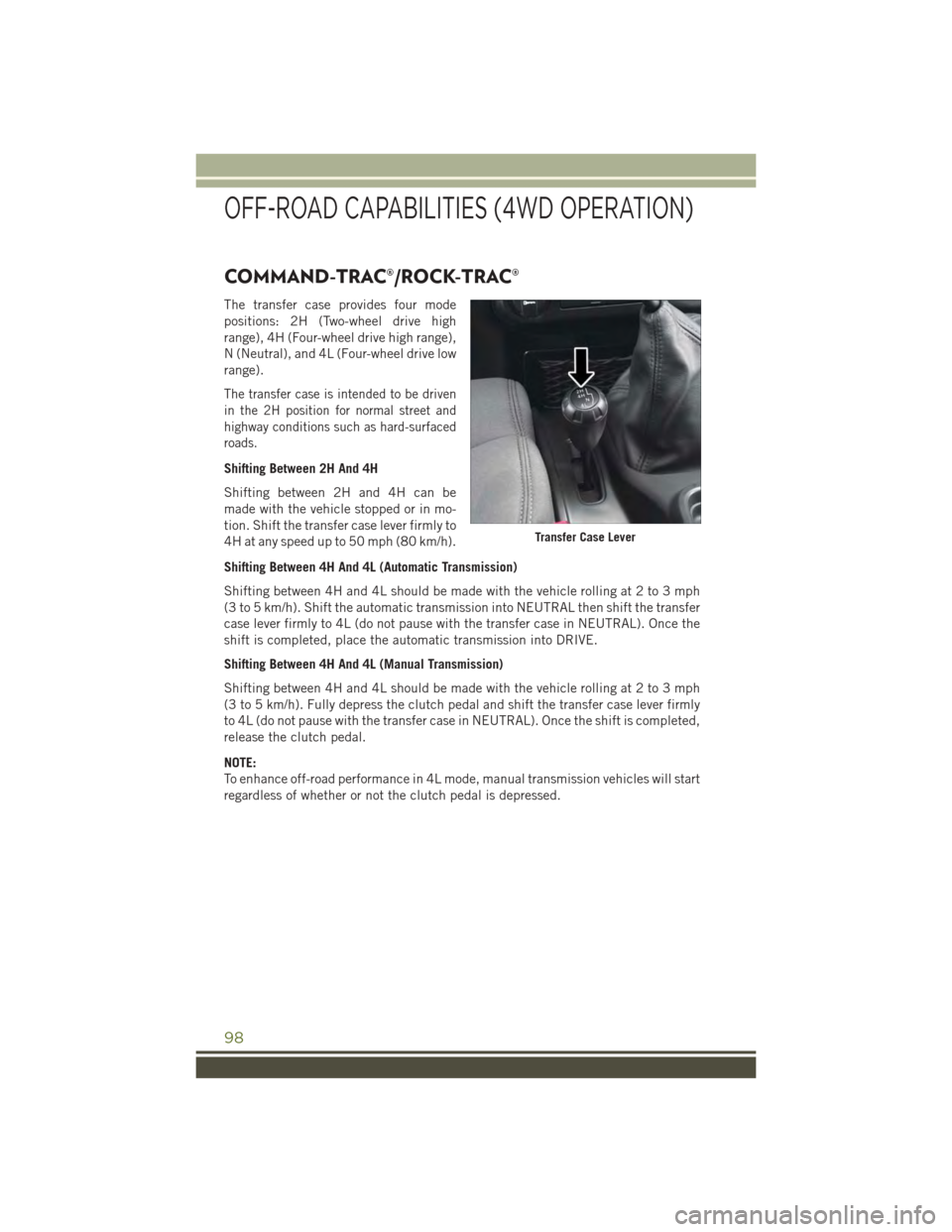

COMMAND-TRAC®/ROCK-TRAC®
The transfer case provides four mode
positions: 2H (Two-wheel drive high
range), 4H (Four-wheel drive high range),
N (Neutral), and 4L (Four-wheel drive low
range).
The transfer case is intended to be driven
in the 2H position for normal street and
highway conditions such as hard-surfaced
roads.
Shifting Between 2H And 4H
Shifting between 2H and 4H can be
made with the vehicle stopped or in mo-
tion. Shift the transfer case lever firmly to
4H at any speed up to 50 mph (80 km/h).
Shifting Between 4H And 4L (Automatic Transmission)
Shifting between 4H and 4L should be made with the vehicle rolling at 2 to 3 mph
(3 to 5 km/h). Shift the automatic transmission into NEUTRAL then shift the transfer
case lever firmly to 4L (do not pause with the transfer case in NEUTRAL). Once the
shift is completed, place the automatic transmission into DRIVE.
Shifting Between 4H And 4L (Manual Transmission)
Shifting between 4H and 4L should be made with the vehicle rolling at 2 to 3 mph
(3 to 5 km/h). Fully depress the clutch pedal and shift the transfer case lever firmly
to 4L (do not pause with the transfer case in NEUTRAL). Once the shift is completed,
release the clutch pedal.
NOTE:
To enhance off-road performance in 4L mode, manual transmission vehicles will start
regardless of whether or not the clutch pedal is depressed.
Transfer Case Lever
OFF-ROAD CAPABILITIES (4WD OPERATION)
98

AXLE LOCK (TRU-LOK®) RUBICON ONLY
The AXLE LOCK switch is located on the instrument panel (to the left of the steering
column).
This feature will only activate when the following conditions are met:
• Key in Run Position, vehicle in 4L (Low) range.
• Vehicle speed at 10 mph (16 km/h) or less.
Press the bottom of the AXLE LOCK switch once to lock the rear axle only and a
second time to lock the front axle (the rear and front axle lock indicator lights will
illuminate).
After the rear axle lock is engaged, pushing the bottom of the locker switch will cycle
the front axle lock on and off. To disengage any of the axle locks, push the top of the
axle lock switch.
The indicator light will flash until the axles are fully locked or unlocked.
ELECTRONIC SWAY BAR DISCONNECT – RUBICON
ONLY
Off-Road
This feature will only activate when the following conditions are met:
• Key in Run positon, vehicle in 4L (Low) or 4H (High) range.
• Vehicle speed under 18 mph.
• Press the SWAY BAR switch, located on the instrument panel (to the left of the
steering column), once to disconnect the Sway Bar.
• The Sway Bar indicator light will illuminate in the instrument cluster.
On-Road
Press the SWAY BAR switch a second time to reconnect the Sway Bar.
The Sway Bar should remain in on-road mode during normal driving conditions.
OFF-ROAD CAPABILITIES (4WD OPERATION)
99

TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS)
Engine/Transmission
Axle Model
GCWR
(Gross CombinedWt. Rating)
Frontal Area
Max. GTW
(Gross Trailer Wt.)
Max. TrailerTongue Wt.(See Note)
3.6L/Manual 3.21
Two–Door SportModel (4WD)
6,311 lbs(2 863 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Manual 3.73
Two–Door SportModel (4WD)
6,311 lbs(2 863 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic 3.21
Two–Door SportModel (4WD)
6,340 lbs(2 876 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic 3.73
Two–Door SportModel (4WD)
6,340 lbs(2 876 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Manual 3.21
Two–Door SaharaModel (4WD)
6,353 lbs(2 882 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Manual 3.73
Two–Door SaharaModel (4WD)
6,353 lbs(2 882 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic 3.21
Two–Door SaharaModel (4WD)
6,383 lbs(2 895 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic 3.73
Two–Door SaharaModel (4WD)
6,383 lbs(2 895 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Manual 4.10
Tw o – D o o r R u b i -con Model (4WD)
6,443 lbs(2 922 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic
3.73
Two–Door Rubi-con Model (4WD)
6,473 lbs(2 936 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic 4.10
Tw o – D o o r R u b i -con Model (4WD)
6,473 lbs(2 936 kg)
25 sq ft(2.32 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Manual 3.21
Four–Door SportModel (4WD)
6,751 lbs(3 062 kg)
32 sq ft(2.97 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
UTILITY
100

Engine/Transmission
Axle Model
GCWR
(Gross CombinedWt. Rating)
Frontal Area
Max. GTW
(Gross Trailer Wt.)
Max. TrailerTo n g u e W t .(See Note)
3.6L/Manual 3.73
Four–Door SportModel (4WD)
8,251 lbs(3 743kg)
32 sq ft(2.97 sq m)
3,500 lbs(1 587 kg)
350 lbs (159 kg)
3.6L/Automatic 3.21
Four–Door SportModel (4WD)
6,780 lbs(3 075 kg)
32 sq ft(2.97 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic 3.73
Four–Door SportModel (4WD)
8,280 lbs(3 756 kg)
32 sq ft(2.97 sq m)
3,500 lbs(1 587 kg)
350 lbs (159 kg)
3.6L/Manual 3.21
Four–Door SaharaModel (4WD)
6,698 lbs(3 038 kg)
32 sq ft(2.97 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Manual 3.73
Four–Door SaharaModel (4WD)
8,198 lbs(3 719 kg)
32 sq ft(2.97 sq m)
3,500 lbs(1 587 kg)
350 lbs (159 kg)
3.6L/Automatic 3.21
Four–Door SaharaModel (4WD)
6,728 lbs(3 052 kg)
32 sq ft(2.97 sq m)
2,000 lbs(907 kg)
200 lbs (91 kg)
3.6L/Automatic 3.73
Four–Door SaharaModel (4WD)
8,228 lbs(3 732 kg)
32 sq ft(2.97 sq m)
3,500 lbs(1 587 kg)
350 lbs (159 kg)
3.6L/Manual 4.10
Four–Door Rubi-con Model (4WD)
8,326 lbs(3 776 kg)
32 sq ft(2.97 sq m)
3,500 lbs(1 587 kg)
350 lbs (159 kg)
3.6L/Automatic 3.73
Four–Door Rubi-con Model (4WD)
8,355 lbs(3 790 kg)
32 sq ft(2.97 sq m)
3,500 lbs(1 587 kg)
350 lbs (159 kg)
3.6L/Automatic
4.10
Four–Door
Rubi-
con Model (4WD)
8,355 lbs(3 776 kg)
32 sq ft(2.97 sq m)
3,500 lbs(1 587 kg)
350 lbs (159 kg)
Refer to local laws for maximum trailer towing speeds.
UTILITY
101

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle
Towing Condition Wheels OFF the Ground Four-Wheel Drive Models
Flat TowNONE
See Instructions•Automatic transmission in PARK• Manual transmission in gear(NOT in NEUTRAL [N])• Transfer case in NEUTRAL (N)• Tow in forward direction
Dolly TowFrontNOT ALLOWED
RearNOT ALLOWED
On TrailerALLOK
Recreational Towing — Four-Wheel Drive Models
NOTE:
The transfer case must be shifted intoNEUTRAL (N),automatic transmission must
be shifted intoPARK,and manual transmission must be placed in gear (NOT in
NEUTRAL) for recreational towing.
CAUTION!
• DO NOT dolly tow any 4WD vehicle. Towing with only one set of wheels on the
ground (front or rear) will cause severe transmission and/or transfer case
damage. Tow with all four wheels either ON the ground, or OFF the ground
(using a vehicle trailer).
• Tow only in the forward direction. Towing this vehicle backwards can cause
severe damage to the transfer case.
• Automatic transmissions must be placed in PARK for recreational towing.
• Manual transmissions must be placed in gear (not in Neutral) for recreational
towing.
• Before recreational towing, perform the procedure outlined under “Shifting
Into NEUTRAL (N)” to be certain that the transfer case is fully in NEUTRAL
(N). Otherwise, internal damage will result.
• Towing this vehicle in violation of the above requirements can cause severe
transmission and/or transfer case damage. Damage from improper towing is
not covered under the New Vehicle Limited Warranty.
• Do not use a bumper-mounted clamp-on tow bar on your vehicle. The bumper
face bar will be damaged.
UTILITY
102
