JEEP WRANGLER 2015 Owners Manual

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

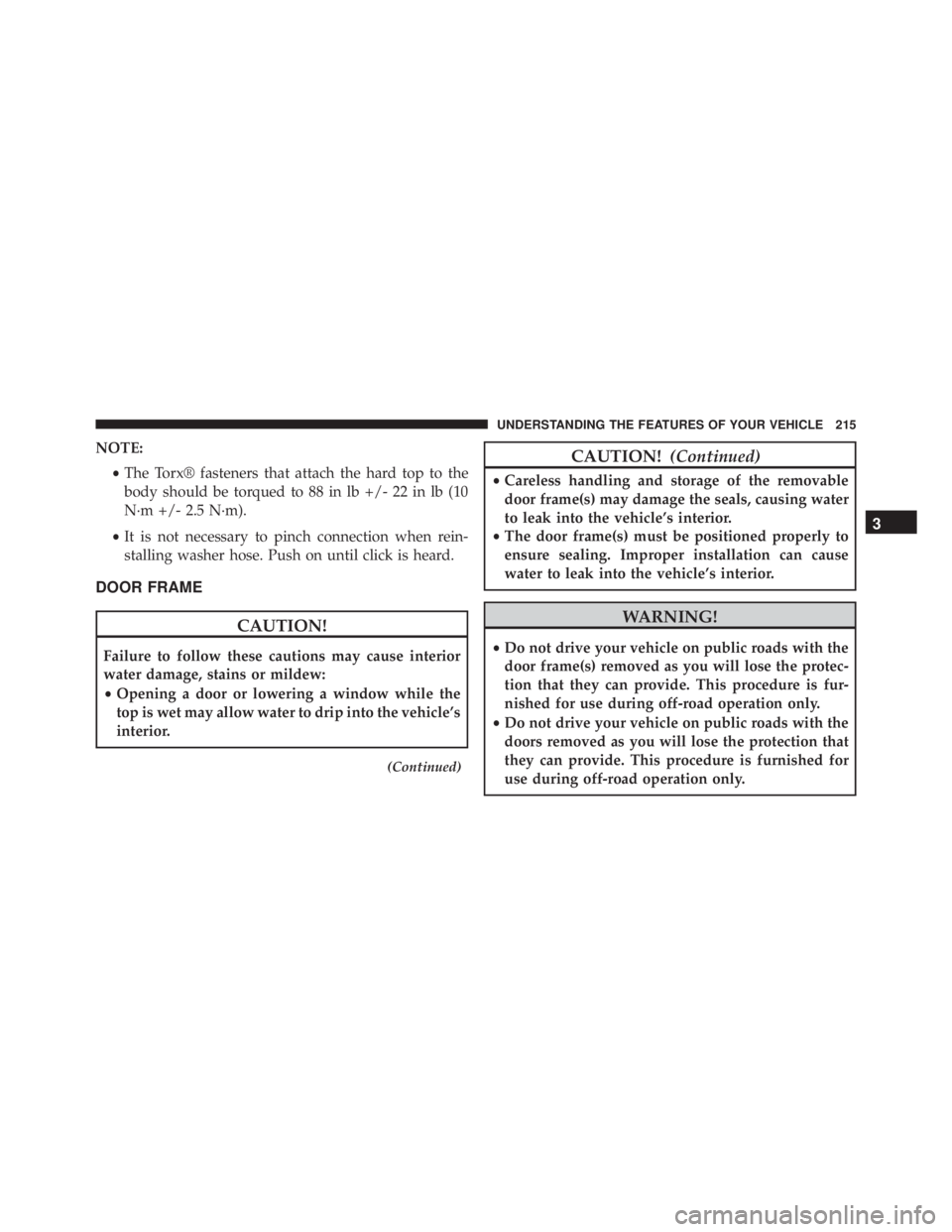

NOTE:•The Torx® fasteners that attach the hard top to the
body should be torqued to 88 in lb +/- 22 in lb (10
N·m +/- 2.5 N·m).
• It is not necessary to pinch connection when rein-
stalling washer hose. Push on until click is heard.
DOOR FRAME

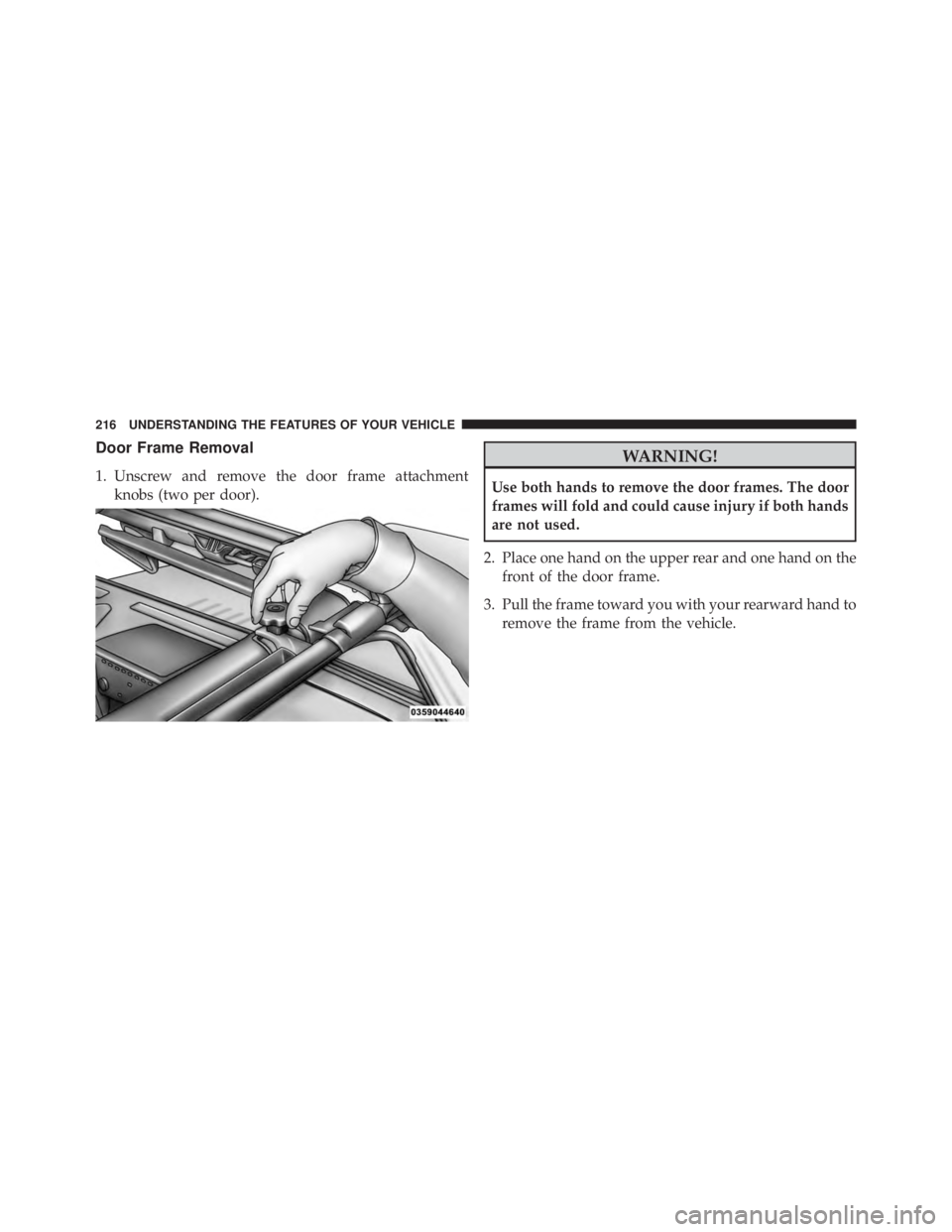

Door Frame Removal
1. Unscrew and remove the door frame attachmentknobs (two per door).

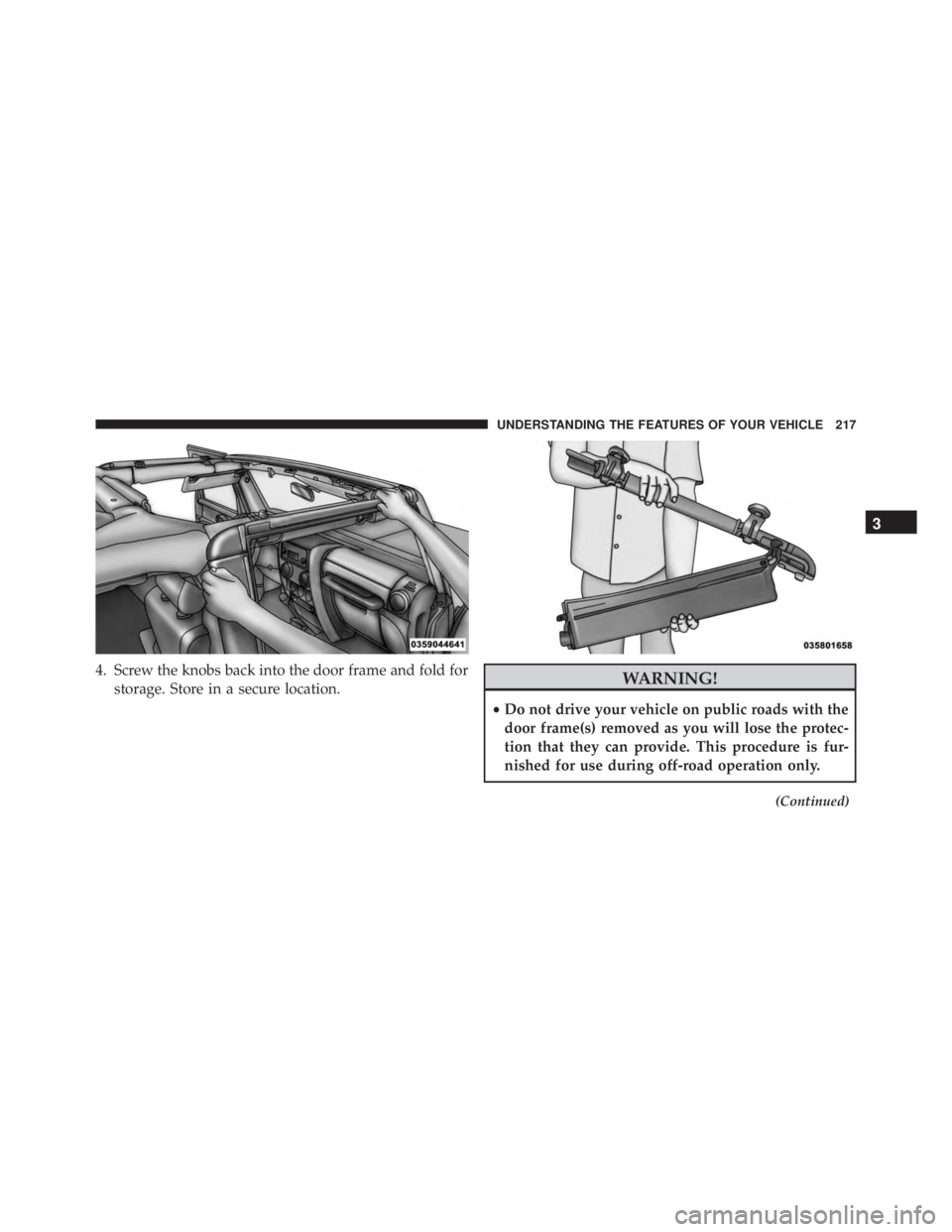

4. Screw the knobs back into the door frame and fold forstorage. Store in a secure location.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

WARNING!(Continued)
•Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for
use during off-road operation only.
Door Frame Installation — Two-Door Models — If
Equipped
1. Unfold door frame and unscrew thumbscrews.
2. Set the door frame pin into the hole on top of the body side, behind the door opening. 3. After the door frame pin has been set into the body
side hole, carefully set the front of the door frame into
the rubber seal at the top of the windshield.
