Page 33 of 705

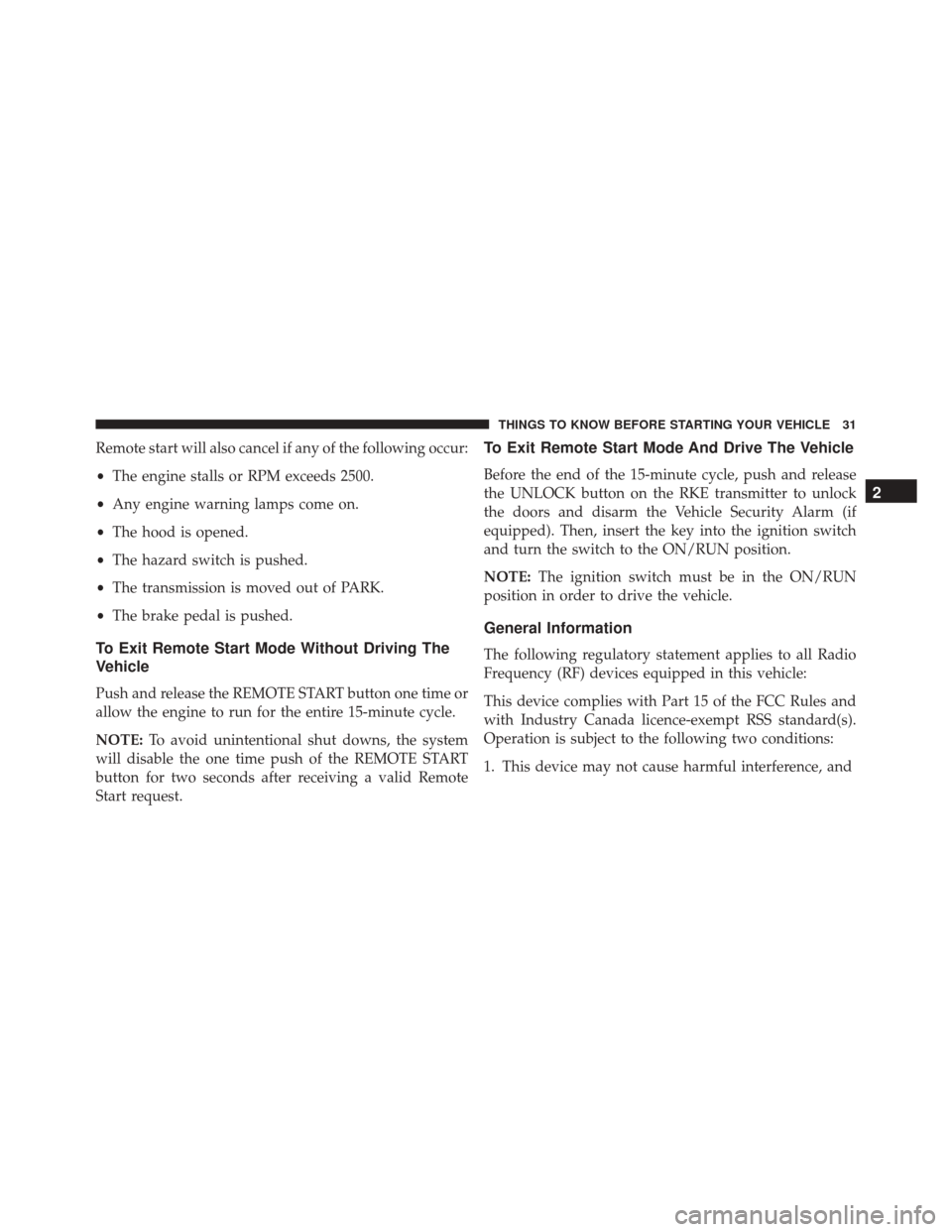

Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500.
• Any engine warning lamps come on.
• The hood is opened.
• The hazard switch is pushed.
• The transmission is moved out of PARK.
• The brake pedal is pushed.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shut downs, the system
will disable the one time push of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, push and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, insert the key into the ignition switch
and turn the switch to the ON/RUN position.
NOTE: The ignition switch must be in the ON/RUN
position in order to drive the vehicle.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
Page 109 of 705
TO OPEN AND CLOSE THE HOOD .........167
LIGHTS ............................ .168
▫ Multifunction Lever ....................168
▫ Headlights And Parking Lights ............169
▫ Automatic Headlights — If Equipped .......169
▫ Turn Signals ........................ .170
▫ Lane Change Assist ...................171
▫ Lights-On Reminder ...................171
▫ High/Low Beam Switch ................171
▫ Flash-To-Pass ....................... .171
▫ Front Fog Lights ..................... .171
▫ Instrument Panel Dimmer ...............172
▫ Daytime Running Lights — If Equipped .....172▫
Interior Lights ...................... .173
WINDSHIELD WIPERS AND WASHERS ......176
▫ Windshield Wiper Operation .............177
▫ Intermittent Wiper System ...............178
▫ Windshield Washers ....................179
▫ Mist Feature ........................ .179
TILT STEERING COLUMN ...............180
ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .181
▫ To Activate ......................... .182
▫ To Set A Desired Speed .................182
▫ To Deactivate ....................... .183
▫ To Resume Speed .....................183
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
Page 169 of 705

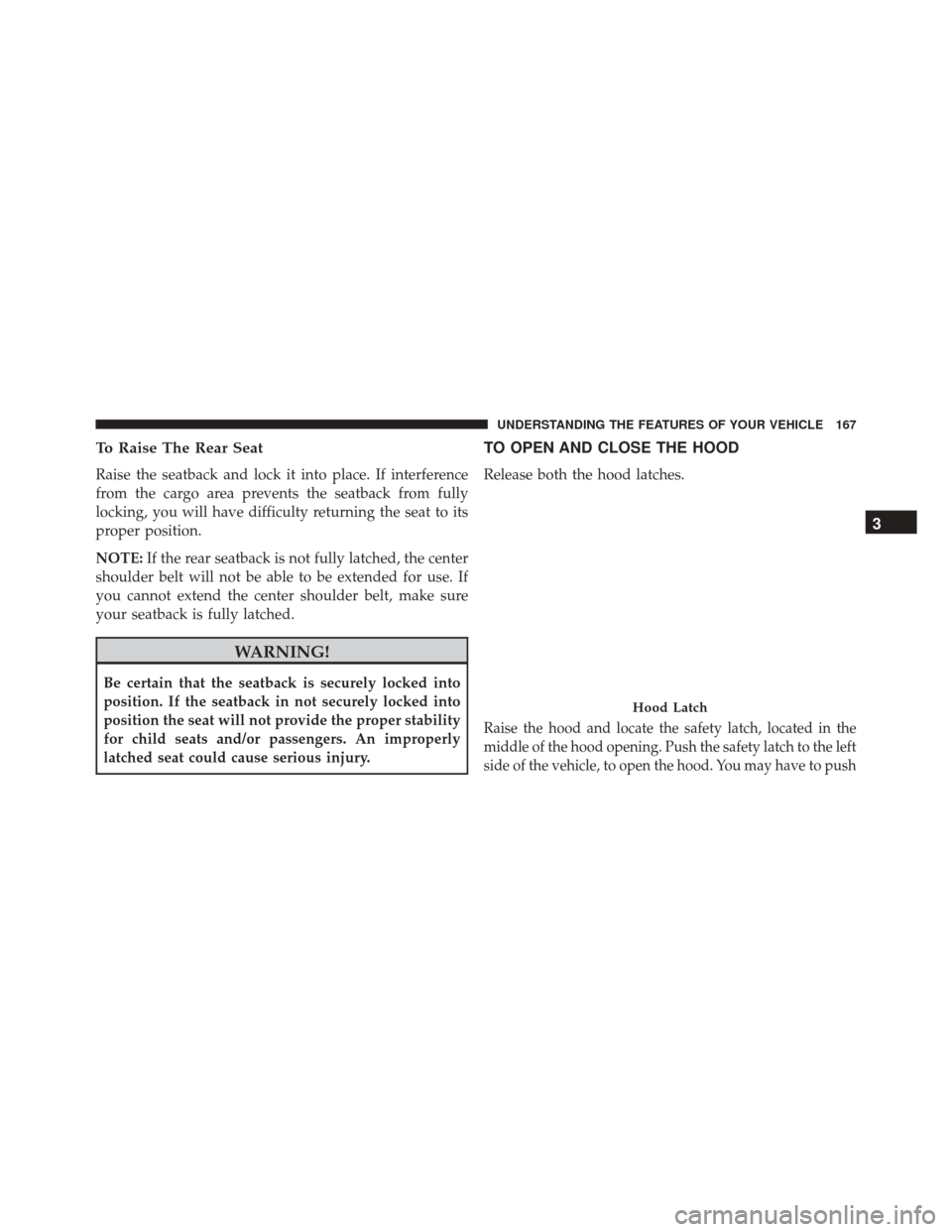

To Raise The Rear Seat
Raise the seatback and lock it into place. If interference
from the cargo area prevents the seatback from fully
locking, you will have difficulty returning the seat to its
proper position.
NOTE:If the rear seatback is not fully latched, the center
shoulder belt will not be able to be extended for use. If
you cannot extend the center shoulder belt, make sure
your seatback is fully latched.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback in not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
TO OPEN AND CLOSE THE HOOD
Release both the hood latches.
Raise the hood and locate the safety latch, located in the
middle of the hood opening. Push the safety latch to the left
side of the vehicle, to open the hood. You may have to push
Hood Latch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167
Page 170 of 705
down slightly on the hood before pushing the safety latch.
Insert the support rod into the slot on the hood.
To close the hood, remove the support rod from the hood
panel and place it in the retaining clip. Lower the hood
slowly. Secure both of the hood latches.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
parking lights, headlights, headlight beam selection,passing light, fog lights, instrument panel light dimming
and turn signals. The multifunction lever is located on
the left side of the steering column.
Multifunction Lever
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 573 of 705
NOTE:There are steps that you can take to slow down
an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
• You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure
that the wheel is properly mounted to the vehicle. Any
time a wheel has been removed and reinstalled on the
vehicle the lug nuts/bolts should be torqued using a
properly calibrated torque wrench.
6
WHAT TO DO IN EMERGENCIES 571
Page 584 of 705

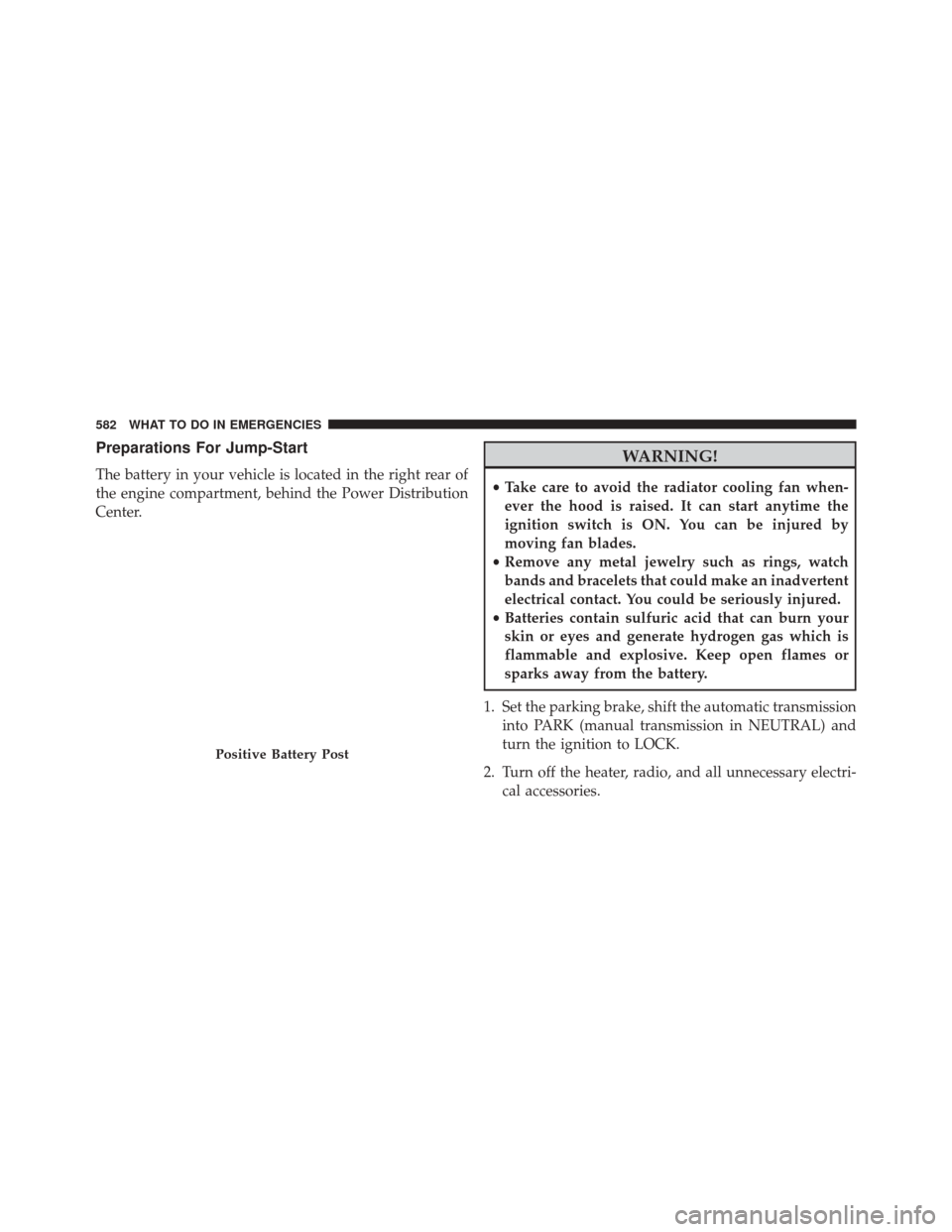

Preparations For Jump-Start
The battery in your vehicle is located in the right rear of
the engine compartment, behind the Power Distribution
Center.
WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.
• Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.
• Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission into PARK (manual transmission in NEUTRAL) and
turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri- cal accessories.
Positive Battery Post
582 WHAT TO DO IN EMERGENCIES
Page 626 of 705
To minimize the possibility of catalytic converter damage:
•Do not shut off the engine or interrupt the ignition,
when the transmission is in gear and the vehicle is in
motion.
• Do not try to start the engine by pushing or towing the
vehicle.
• Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.
Cooling System
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
(Continued)
WARNING! (Continued)
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
Engine Coolant Checks
Check the engine coolant (antifreeze) protection every 12
months (before the onset of freezing weather, where
applicable). If the engine coolant (antifreeze) is dirty or
rusty in appearance, the system should be drained,
flushed and refilled with fresh engine coolant (anti-
freeze). Check the front of the A/C condenser (if
equipped) or radiator for any accumulation of bugs,
leaves, etc. If dirty, clean by gently spraying water from a
garden hose vertically down the face of the A/C con-
denser (if equipped) or the back of the radiator core.
624 MAINTAINING YOUR VEHICLE
Page 653 of 705

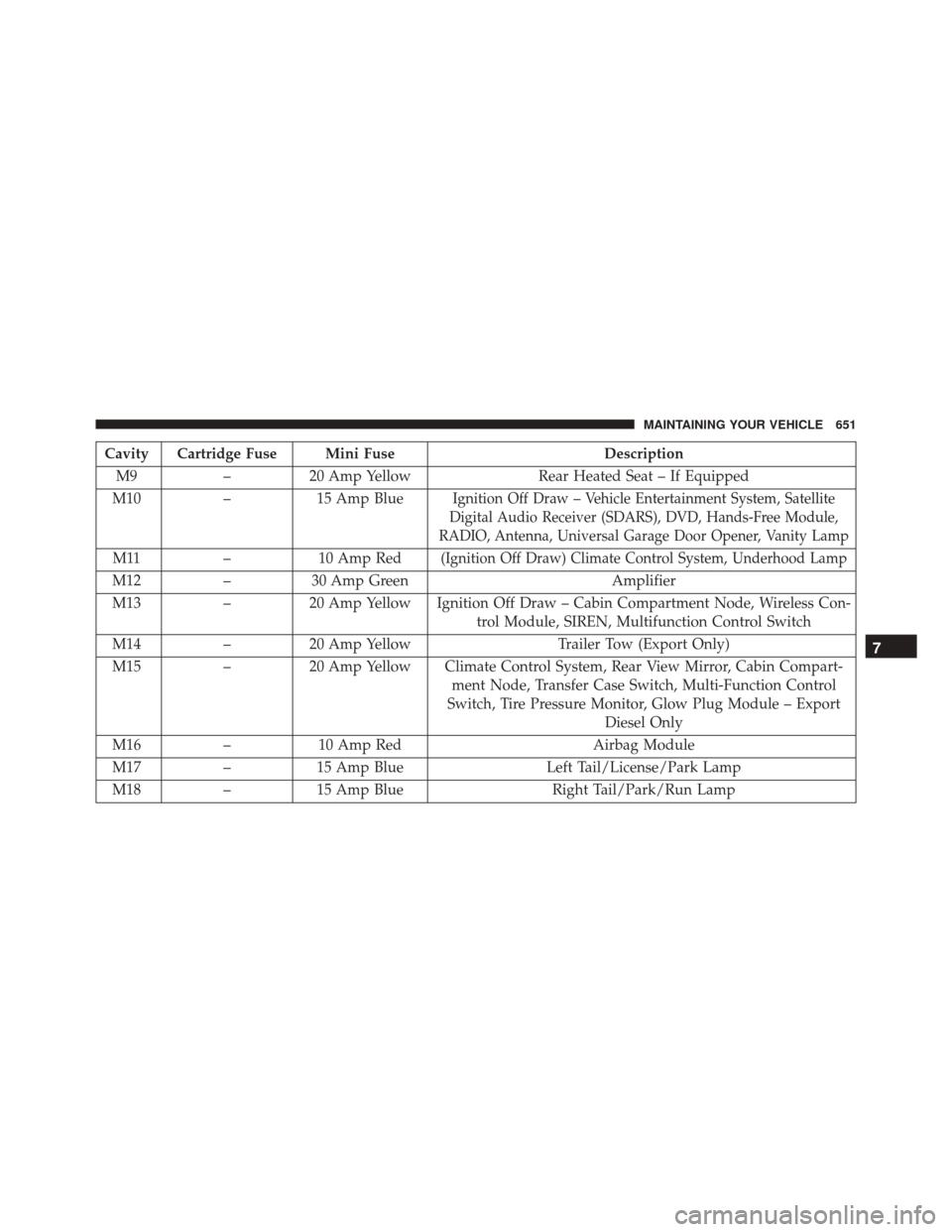

Cavity Cartridge Fuse Mini FuseDescription
M9 –20 Amp Yellow Rear Heated Seat – If Equipped
M10 –15 Amp Blue
Ignition Off Draw – Vehicle Entertainment System, Satellite
Digital Audio Receiver (SDARS), DVD, Hands-Free Module,
RADIO, Antenna, Universal Garage Door Opener, Vanity Lamp
M11 –10 Amp Red(Ignition Off Draw) Climate Control System, Underhood Lamp
M12 –30 Amp Green Amplifier
M13 –20 Amp Yellow Ignition Off Draw – Cabin Compartment Node, Wireless Con-
trol Module, SIREN, Multifunction Control Switch
M14 –20 Amp Yellow Trailer Tow (Export Only)
M15 –20 Amp Yellow Climate Control System, Rear View Mirror, Cabin Compart-
ment Node, Transfer Case Switch, Multi-Function Control
Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only
M16 –10 Amp Red Airbag Module
M17 –15 Amp Blue Left Tail/License/Park Lamp
M18 –15 Amp Blue Right Tail/Park/Run Lamp
7
MAINTAINING YOUR VEHICLE 651
Page 658 of 705

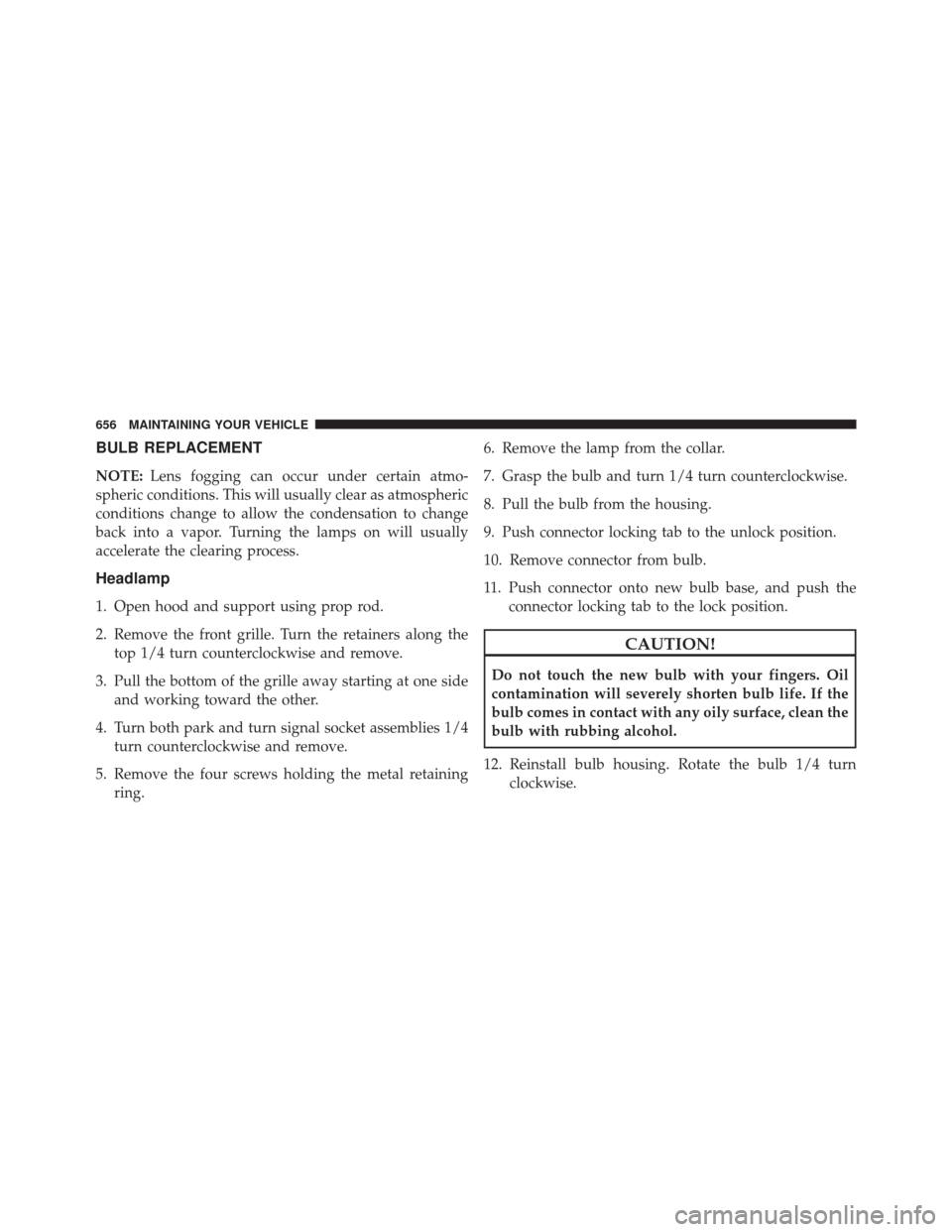

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4 turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn clockwise.
656 MAINTAINING YOUR VEHICLE
Page 700 of 705

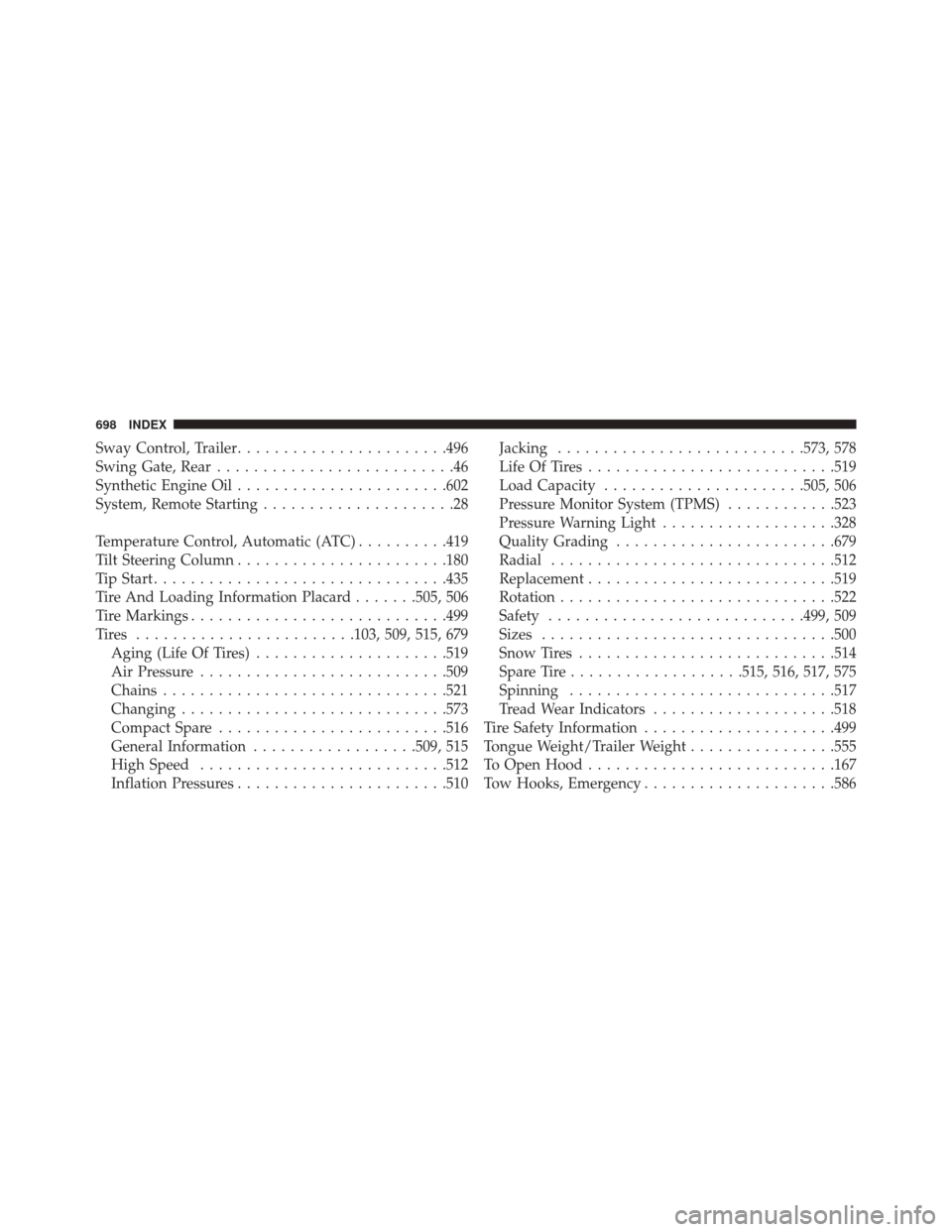

Sway Control, Trailer...................... .496
Swing Gate, Rear ..........................46
Synthetic Engine Oil ...................... .602
System, Remote Starting .....................28
Temperature Control, Automatic (ATC) ..........419
Tilt Steering Column ...................... .180
Tip Start ............................... .435
Tire And Loading Information Placard .......505, 506
Tire Markings ........................... .499
Tires ....................... .103, 509, 515, 679
Aging (Life Of Tires) .....................519
Air Pressure .......................... .509
Chains .............................. .521
Changing ............................ .573
Compact Spare ........................ .516
General Information ..................509, 515
High Speed .......................... .512
Inflation Pressures ...................... .510Jacking
.......................... .573, 578
Life Of Tires .......................... .519
Load Capacity ..................... .505, 506
Pressure Monitor System (TPMS) ............523
Pressure Warning Light ...................328
Quality Grading ....................... .679
Radial .............................. .512
Replacement .......................... .519
Rotation ............................. .522
Safety ........................... .499, 509
Sizes ............................... .500
Snow Tires ........................... .514
Spare Tire ...................515, 516, 517, 575
Spinning ............................ .517
Tread Wear Indicators ....................518
Tire Safety Information .....................499
Tongue Weight/Trailer Weight ................555
T
o Open Hood .......................... .167
Tow Hooks, Emergency .....................586
698 INDEX
