ROADSIDE ASSISTANCE
Dial toll-free 1-800-521-2779 for U.S. Residents or 1-800-363-4869 for Canadian
Residents.
• Provide your name, vehicle identification number, license plate number, and yourlocation, including the telephone number from which you are calling.
• Briefly describe the nature of the problem and answer a few simple questions.
• You will be given the name of the service provider and an estimated time of arrival. If you feel you are in an “unsafe situation”, please let us know. With your consent,
we will contact local police or safety authorities.
INSTRUMENT CLUSTER WARNING LIGHTS
- Electronic Stability Control (ESC) Activation/Malfunction Indicator Light
If the “ESC Activation/Malfunction Indicator Light” comes on continuously with the
engine running, a malfunction has been detected in the ESC system. If this light
remains on after several ignition cycles, and the vehicle has been driven several miles
(kilometers) at speeds greater than 30 mph (48 km/h), we recommend you drive to
the nearest service center and have the vehicle serviced immediately.
The “ESC Activation/Malfunction Indicator Light” starts to flash as soon as the tires
lose traction and the ESC system becomes active. If the light begins to flash during
acceleration, ease up on the accelerator and apply as little throttle as possible. Be
sure to adapt your speed and driving to the prevailing road conditions. The light also
flashes when Traction Control System (TCS) is active. To improve the vehicle's
traction when starting off in deep snow, sand or gravel, it may be desirable to switch
the ESC system to Partial Off mode by momentarily pushing the ESC Off
switch.
– Tire Pressure Monitoring System (TPMS) Light
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or tire inflation pressure
label, you should determine the proper tire inflation pressure for those tires).
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS) that illuminates a low tire pressure telltale when one or
more of your tires is significantly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and check your tires as soon as possible
and inflate them to the proper pressure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire failure. Under-inflation also reduces
fuel efficiency and tire tread life and may affect the vehicle’s handling and stopping
ability.
WHAT TO DO IN EMERGENCIES
101

– Engine Temperature Warning Light
This light warns of an overheated engine condition.
If the light turns on and a warning chime sounds while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also, shift the transmission into
NEUTRAL and idle the vehicle. If the temperature reading does not return to normal,
turn the engine off immediately.
We recommend that you do not operate the vehicle or engine damage will occur. Have
the vehicle serviced immediately.
WARNING!
A hot engine cooling system is dangerous. You or others could be badly burned by
steam or boiling coolant.
– Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking
brake application. If the brake light turns on, it may indicate that the parking brake
is applied, that the brake fluid level is low, or that there is a problem with the brake
system master cylinder reservoir.
If the light remains on when the parking brake has been disengaged, and the fluid
level is at the full mark on the master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the Brake Booster has been
detected by the Anti-Lock Brake System (ABS)/Electronic Stability Control (ESC)
system. In this case, the light will remain on until the condition has been corrected.
If the problem is related to the brake booster, the ABS pump will run when applying
the brake, and a brake pedal pulsation may be felt during each stop.
The dual brake system provides a reserve braking capacity in the event of a failure to
a portion of the hydraulic system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on when the brake fluid level
in the master cylinder has dropped below a specified level. The light will remain on
until the cause is corrected.
Vehicles equipped with the Anti-Lock Brake System (ABS) are also equipped with
Electronic Brake Force Distribution (EBD). In the event of an EBD failure, the Brake
Warning Light will turn on along with the ABS Light. Immediate repair to the ABS
system is required.
Operation of the Brake Warning Light can be checked by turning the ignition switch
from the OFF position to the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn off unless the parking brake
is applied or a brake fault is detected. If the light does not illuminate, have the light
inspected by an authorized dealer.
WHAT TO DO IN EMERGENCIES
103

CRUISE- Cruise Set Indicator
Indicates that the cruise control has been set.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the potential for overheating by
taking the appropriate action.
• On the highways — slow down.
• In city traffic — while stopped, shift transmission into NEUTRAL, but do notincrease engine idle speed.
CAUTION!
Driving with a hot cooling system could damage your vehicle. If the temperature
gauge reads HOT (H), pull over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back into the normal range. If the
pointer remains on HOT (H), and you hear continuous chimes, turn the engine off
immediately, and call for service.
NOTE:
There are steps that you can take to slow down an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and turning the A/C off can help remove this heat.
• You can also turn the temperature control to maximum heat, the mode control to floor and the blower control to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat from the engine cooling
system.
WARNING!
You or others can be badly burned by hot engine coolant (antifreeze) or steam from
your radiator. If you see or hear steam coming from under the hood, do not open
the hood until the radiator has had time to cool. Never try to open a cooling system
pressure cap when the radiator or coolant bottle is hot.
WHAT TO DO IN EMERGENCIES
107

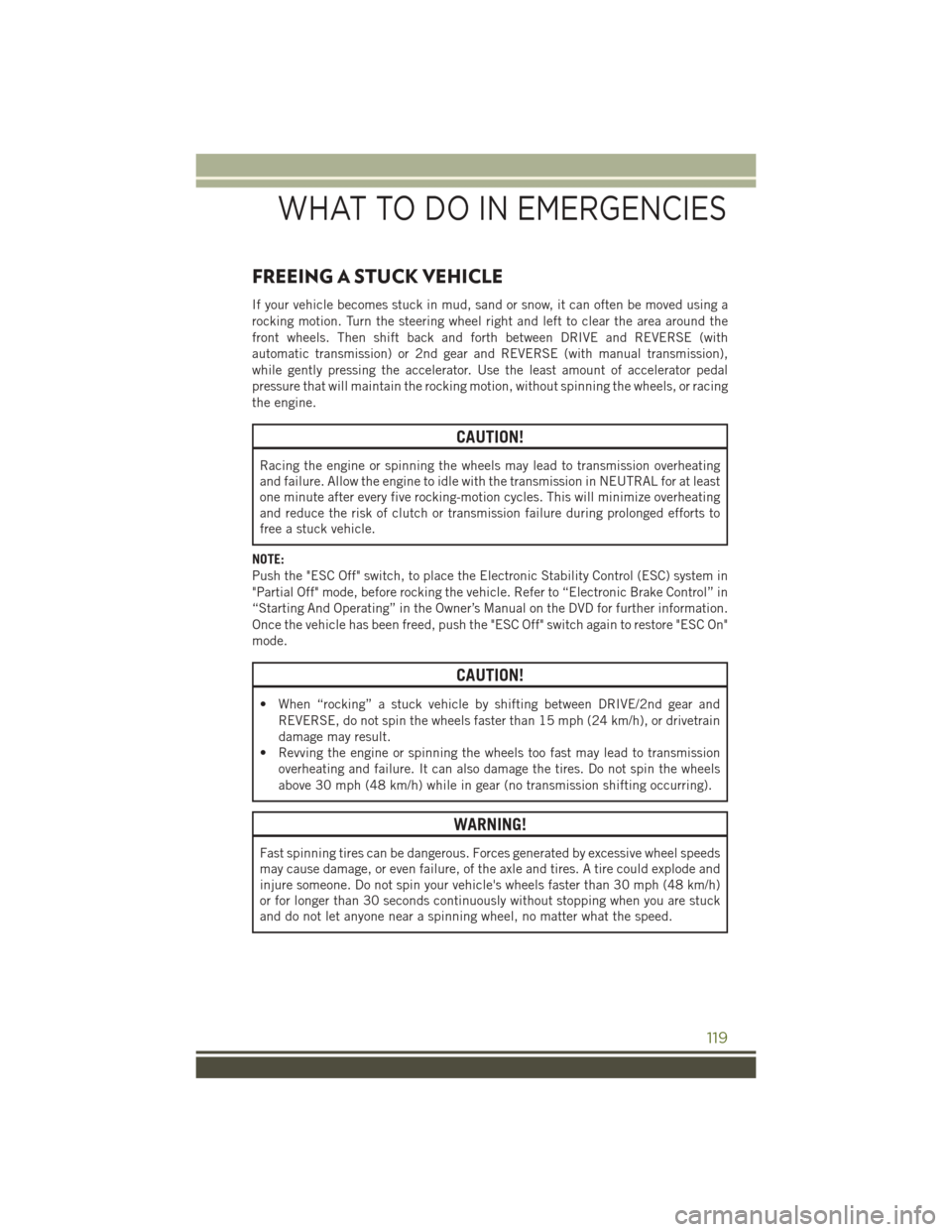

FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand or snow, it can often be moved using a
rocking motion. Turn the steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVE and REVERSE (with
automatic transmission) or 2nd gear and REVERSE (with manual transmission),
while gently pressing the accelerator. Use the least amount of accelerator pedal
pressure that will maintain the rocking motion, without spinning the wheels, or racing
the engine.
CAUTION!
Racing the engine or spinning the wheels may lead to transmission overheating
and failure. Allow the engine to idle with the transmission in NEUTRAL for at least
one minute after every five rocking-motion cycles. This will minimize overheating
and reduce the risk of clutch or transmission failure during prolonged efforts to
free a stuck vehicle.
NOTE:
Push the "ESC Off" switch, to place the Electronic Stability Control (ESC) system in
"Partial Off" mode, before rocking the vehicle. Refer to “Electronic Brake Control” in
“Starting And Operating” in the Owner’s Manual on the DVD for further information.
Once the vehicle has been freed, push the "ESC Off" switch again to restore "ESC On"
mode.
CAUTION!
• When “rocking” a stuck vehicle by shifting between DRIVE/2nd gear and REVERSE, do not spin the wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
• Revving the engine or spinning the wheels too fast may lead to transmission
overheating and failure. It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmission shifting occurring).
WARNING!
Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds
may cause damage, or even failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle's wheels faster than 30 mph (48 km/h)
or for longer than 30 seconds continuously without stopping when you are stuck
and do not let anyone near a spinning wheel, no matter what the speed.
WHAT TO DO IN EMERGENCIES
119

Compass Calibration..........87
Cooling System ............126
Adding Coolant (Antifreeze) . .126
Coolant Capacity .........124
Coolant Level ...........126
Disposal Of Used Coolant ....126
Drain, Flush, And Refill .....126
Inspection ............126
Points To Remember ......126
Pressure Cap ...........126
Selection Of Coolant
(Antifreeze) ........124, 126
Corrosion Protection .........126
Customer Assistance ......139, 140
Defects, Reporting ..........140
Delay (Intermittent) Wipers ......30
Dimmer Control .............28
Dimmer Switch, Headlight ....28,29
Disabled Vehicle Towing ....101, 117
Disarming, Security System ......12
Disposal Antifreeze (Engine Coolant) . . .126
DoorLocks ...............10
Driver Cockpit ............6,55
Driver's Seat Back Tilt .........24
ECO ...................87
Electronic Speed Control (Cruise Control) ................32
Electronic Stability Control (ESC) . .101
Electronic Stability Control (ESC) OFF Indicator ...........104
Electronic Throttle Control Warning Light ................105
Electronic Vehicle Information Center (EVIC)..............86,88
Emergencies, What To Do In .....101
Emergency ...............101
Emergency, In Case Of Jacking ..............108
Jump Starting ..........113
Tow Hooks ............115
Towing ...............101
Engine AirCleaner ............126
Break-In Recommendations . . .28
Checking Oil Level ........126 Coolant (Antifreeze)
.......124
Cooling ...............126
FuelRequirements ........124
Jump Starting ..........113
Oil .............. 124, 126
Oil Filler Cap ...........126
Oil Selection ........124, 126
Overheating ............107
Enhanced Accident Response Feature ...............120
Exhaust System ............126
FAQ...................142
Filters Air Cleaner ............126
EngineOil ......... 124, 126
Engine Oil Disposal .......126
Flashers TurnSignal ............106
Flash-To-Pass ..............
29
Fluid, Brake ..............125
Fluid Capacities ............124
Fluids, Lubricants And Genuine Parts ................124
FogLights ............29,106
FoldingRearSeat ...........25
Four Wheel Drive ............92
Operation ..............92
Shifting ...............92
Systems ..............92
Four Wheel Drive Operation ......92
Freeing A Stuck Vehicle .......119
Frequently Asked Questions .....142
Fuel Octane Rating ..........124
Requirements ..........124
Specifications ..........124
Tank Capacity ..........124
Fuses..................132
Gear Select Lever Override ......116
General Maintenance .........126
Glass Cleaning ............126
GPS Navigation (Uconnect GPS) . . .75
Headlights Cleaning .............126
Dimmer Switch ..........28
INDEX
145

Oil Pressure Light...........104
Outlet Power ................90
Overheating, Engine .........107
PaintCare...............126
Panic Alarm ...............10
Passing Light ..............29
Phone (Uconnect) ...........80
Placard, Tire And Loading Information .............135
Power Inverter ...............89
Outlet (Auxiliary Electrical
Outlet) ...............90
Power Steering Fluid .........125
Preparation For Jacking .......109
Programmable Electronic Features . .88
Radio Presets ........57,59,62,67
Radio Operation ........57,59,62
Rear Seat, Folding ...........25
Rear Wiper/Washer ...........31
Recreational Towing ..........97
Shifting Into Transfer Case
Neutral (N) .............98
Shifting Out Of Transfer Case
Neutral (N) .............99
Refrigerant ...............126
Release, Hood .............121
Remote Keyless Entry (RKE) Arm The Alarm ...........11
Disarm The Alarm .........12
Remote Starting System ........11
Replacement Bulbs ..........138
Reporting Safety Defects .......140
Restraint, Head .............22
Satellite Radio (Uconnect Studios) ..........58,60,63
Schedule, Maintenance .......126
Seat Belt Engage The Automatic Locking
Mode ................19
Seat Belt Pretensioner ......12
SeatBeltMaintenance........126
Seat Belts ................12 Adjustable Shoulder Belt
.....12
Pretensioners ...........12
Seats ...................23
Adjustment .............23
EasyEntry .............25
Heated ...............27
Height Adjustment ........24
Rear Folding ............25
Seatback Release .........24
Tilting ................24
Security Alarm ............106
Arm The System ..........11
Disarm The System ........12
Security Alarm ...........11
Selection Of Coolant (Antifreeze) . .124
Shifting Transfer Case, Shifting Into Transfer
Case Neutral (N) ..........98
Transfer Case, Shifting Out Of Trans-
fer Case Neutral (N) ........99
Shift Lever Override .........116
Signals,

Turn ...........29,106
Sirius Satellite Radio .........76
SIRIUS Travel Link ...........76
SpareTire......... 108, 136, 137
SparkPlugs..............124
Specifications Fuel (Gasoline) ..........124
Oil .................124
Speed Control Accel/Decel ............34
Cancel ...............33
Resume ...............33
Speed Control (Cruise Control) ....32
Starting Remote ...............11
Steering TiltColumn .............26
Wheel, Tilt .............26
Steering Wheel Audio Controls ....79
Stuck, Freeing .............119
Supplemental Restraint System - Air Bag..................13
Sway Bar Disconnect, Electronic . . .93
Temperature Control, Automatic (ATC).................36
Tilt Steering Column ..........26
INDEX
147
