JEEP WRANGLER 2016 Owners Manual

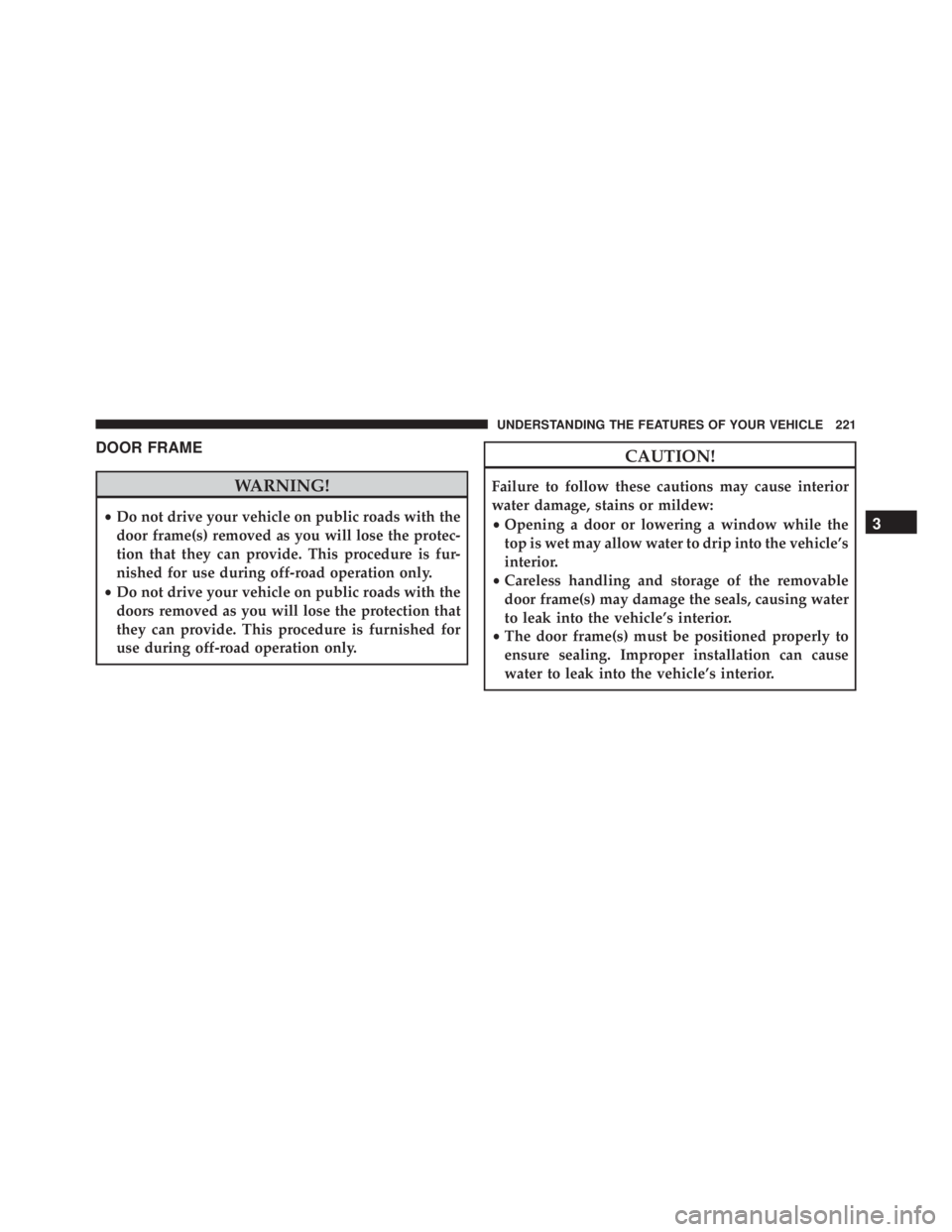

DOOR FRAME

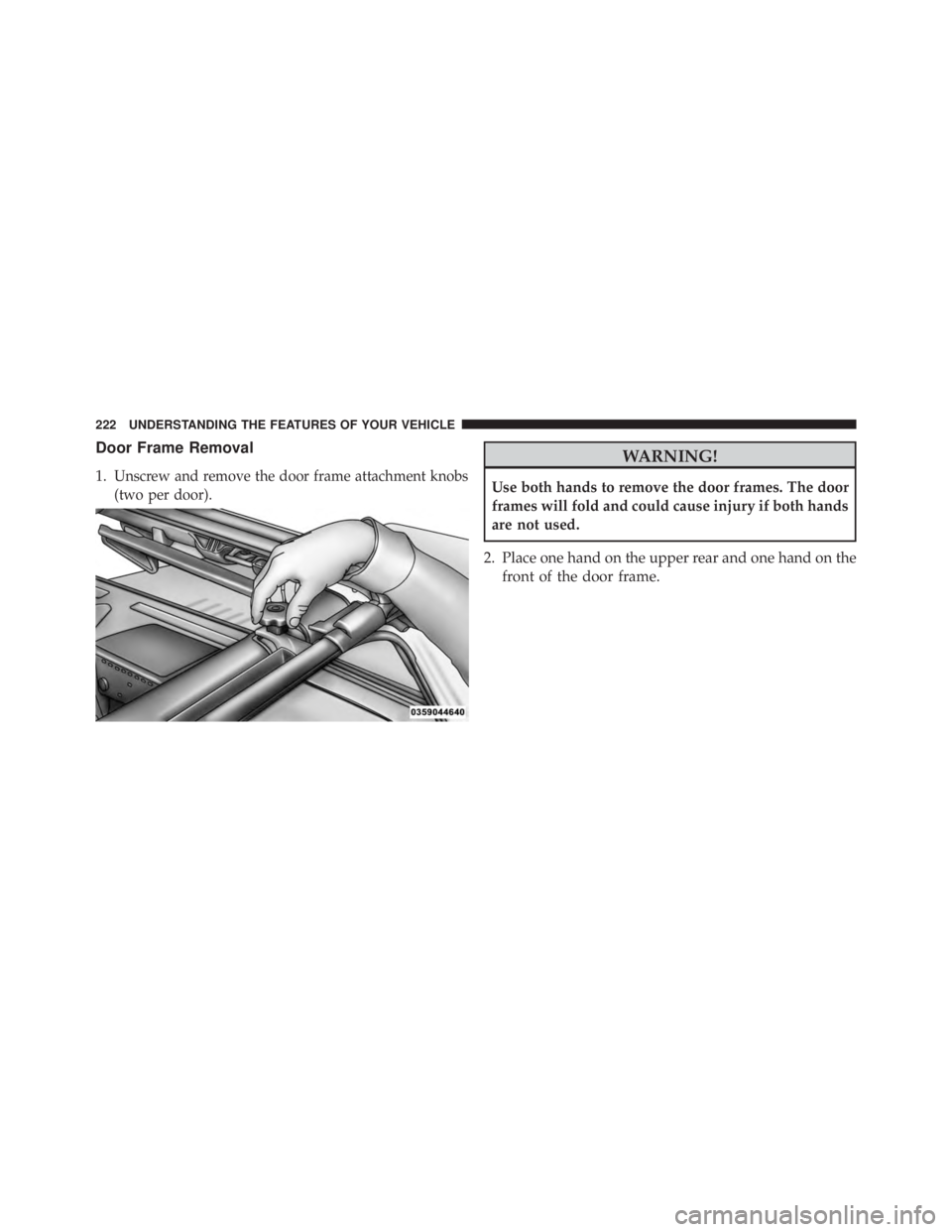

Door Frame Removal
1.Unscrew and remove the door frame attachment knobs
(two per door).

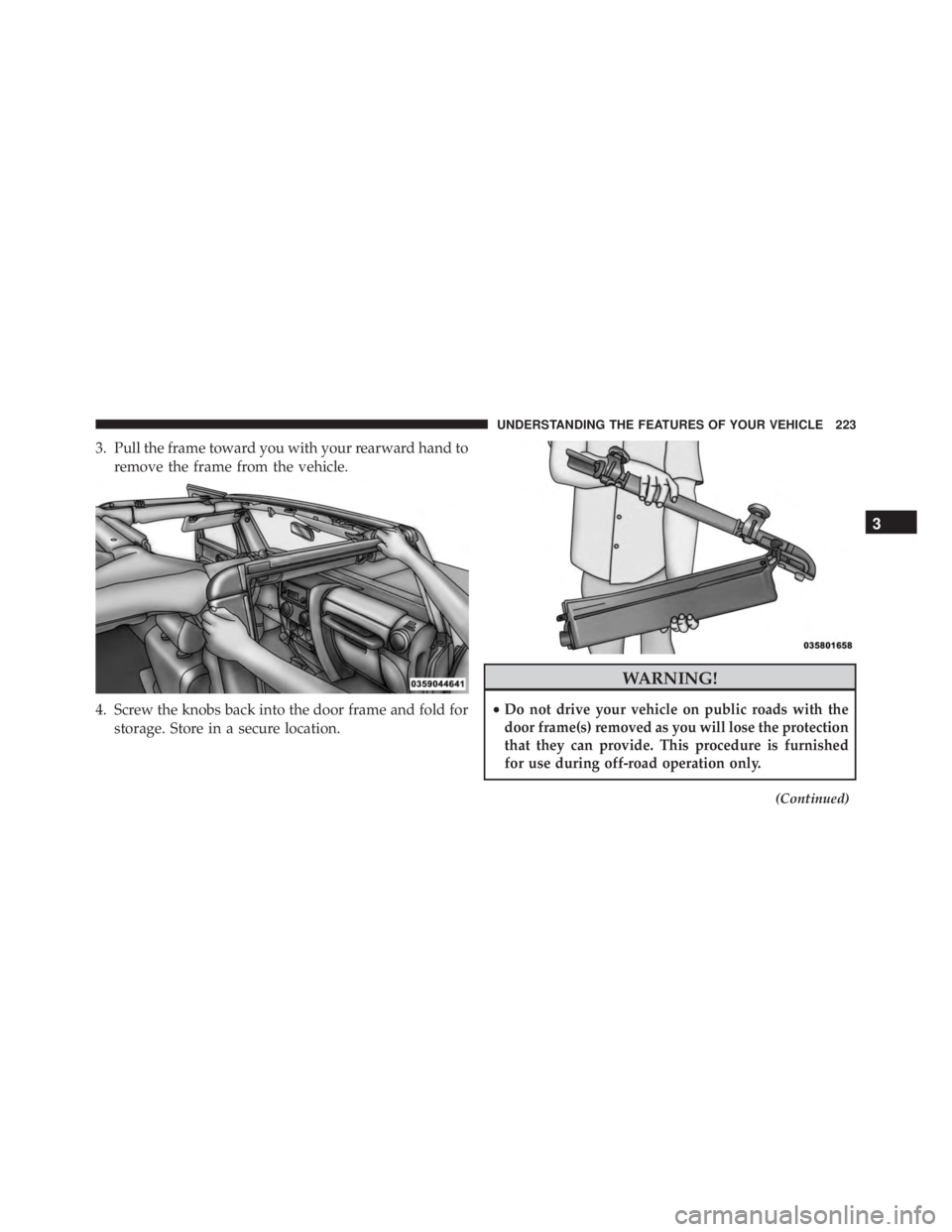

3. Pull the frame toward you with your rearward hand toremove the frame from the vehicle.
4. Screw the knobs back into the door frame and fold for storage. Store in a secure location.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 223

WARNING!(Continued)
•Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for
use during off-road operation only.
Door Frame Installation — Two-Door Models —
If Equipped
1. Unfold door frame and unscrew thumbscrews.
2. Set the door frame pin into the hole on top of the body side, behind the door opening. 3. After the door frame pin has been set into the body
side hole, carefully set the front of the door frame into
the rubber seal at the top of the windshield.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 225

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227

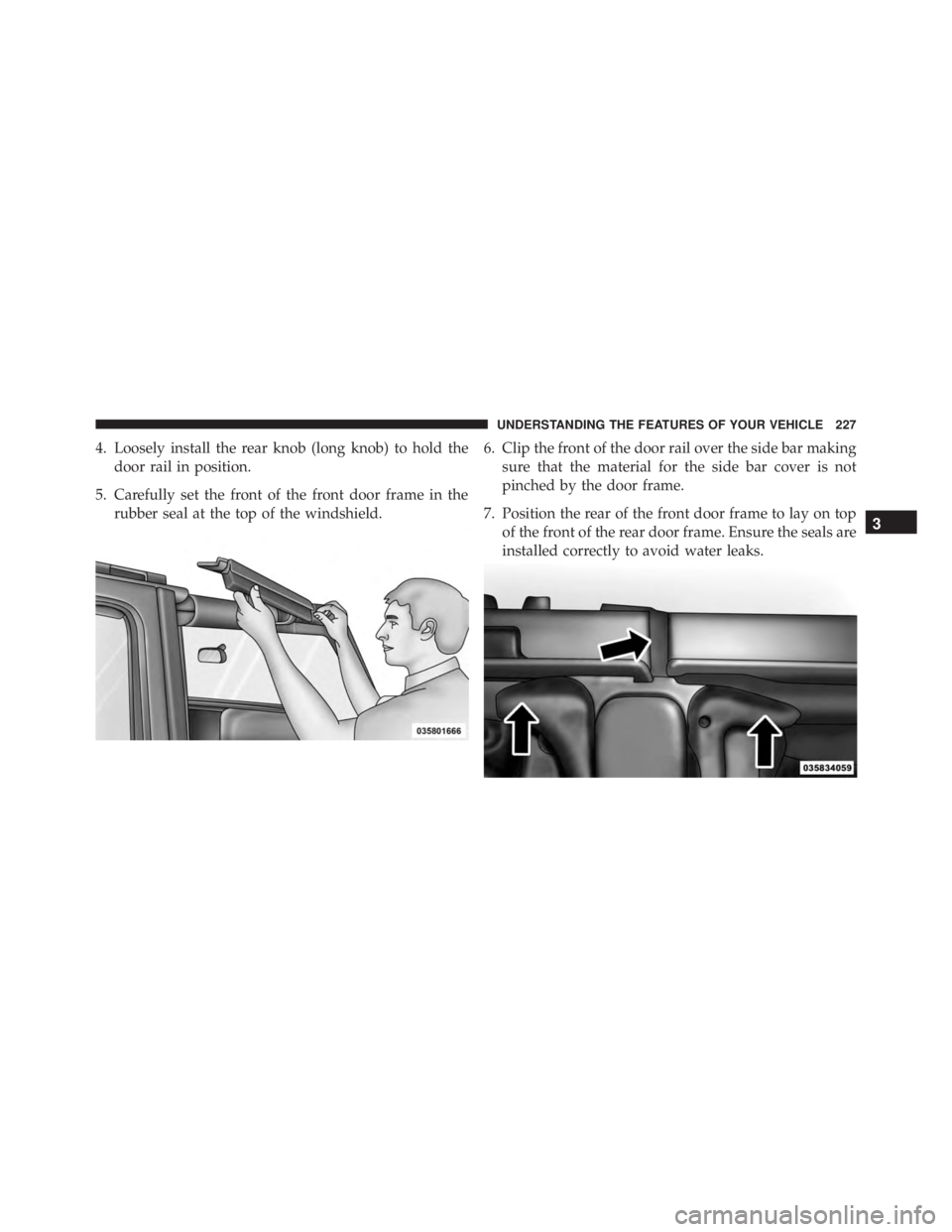

8. Loosely install both knobs beginning with the frontknob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and
screw into the top of the B-pillar.
9. Tighten the front knob, then the rear most knob, and then the middle knob. Repeat this procedure for the
other side.SOFT TOP — TWO-DOOR MODELS
Please visit the Owners Manual on your DVD for instruc-
tional videos.
