Index JEEP WRANGLER 2017 JK / 3.G Owners Manual

TABLE OF CONTENTSSECTIONPAGE
1INTRODUCTION
...................................................................3
2GRAPHICAL TABLE OF CONTENTS
......................................................9
3GETTING TO KNOW YOUR VEHICLE
...................................................15
4GETTING TO KNOW YOUR INSTRUMENT PANEL
.........................................181
5SAFETY
........................................................................\
213
6STARTINGANDOPERATING.........................................................283
7INCASEOFEMERGENCY ...........................................................341
8SERVICING AND MAINTENANCE
.....................................................369
9TECHNICAL SPECIFICATIONS
........................................................435
10MULTIMEDIA ....................................................................447
11CUSTOMER ASSISTANCE
............................................................501
12INDEX........................................................................\
..509
1
2
3
4
5
6
7
8
9
10 11
12

passenger vehicles. It is capable of performing better in a
wide variety of off-road applications. Driven in an unsafe
manner, all vehicles can go out of control. Because of the
higher center of gravity, if this vehicle is out of control it
may roll over while some other vehicles may not.
Do not attempt sharp turns, abrupt maneuvers, or other
unsafe driving actions that can cause loss of vehicle con-
trol. Failure to operate this vehicle safely may result in a
collision, rollover of the vehicle, and severe or fatal injury.
Drive carefully.Failure to use the driver and passenger seat belts provided
is a major cause of severe or fatal injury. In fact, the U.S.
government notes that the universal use of existing seat
belts could cut the highway death toll by 10,000 or more
each year and could reduce disabling injuries by two
million annually. In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat
belt. Always buckle up.
HOW TO USE THIS MANUAL
Essential Information
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the items
of equipment ordered, certain descriptions and illustra-
tions may differ from your vehicle’s equipment.
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Rollover Warning Label
1
INTRODUCTION 5

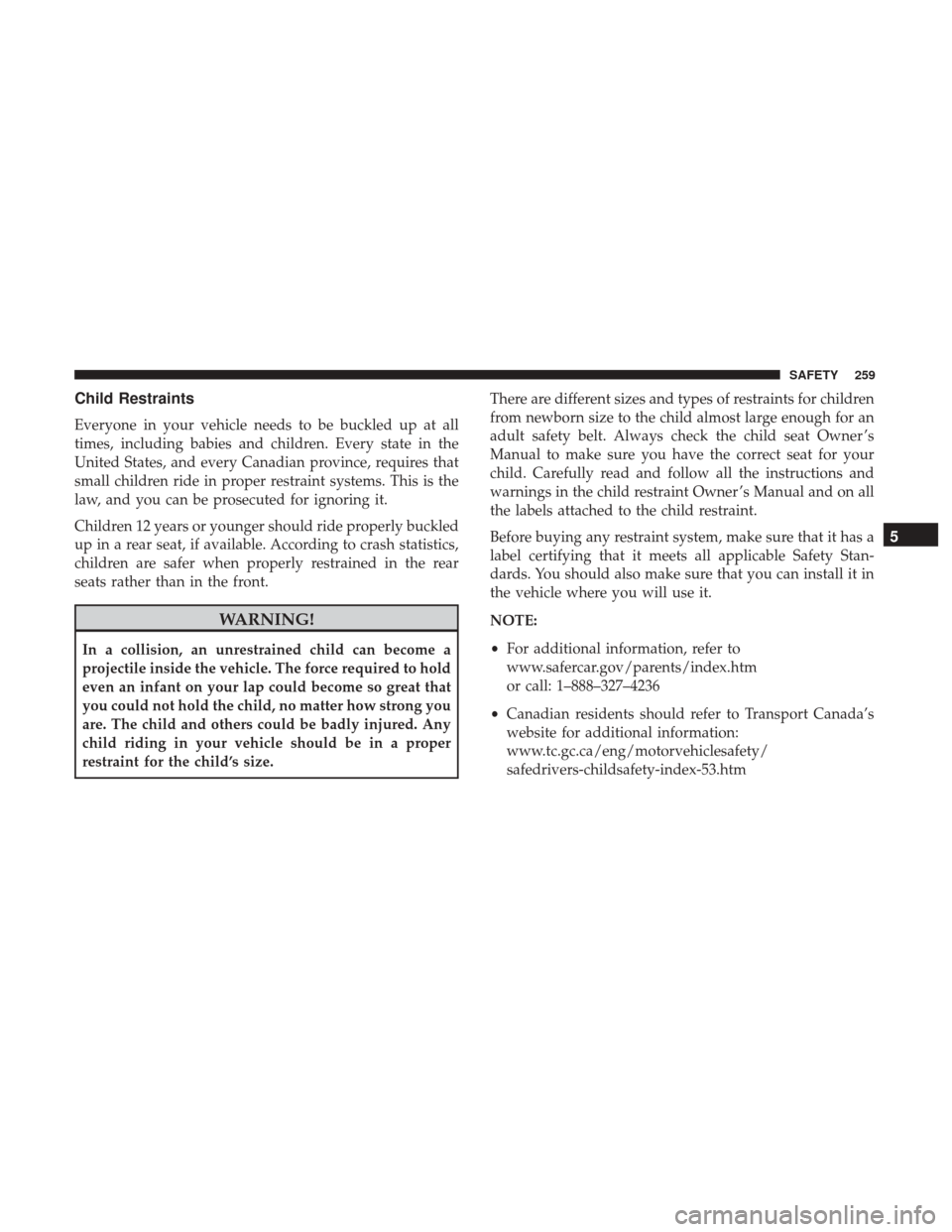

Child Restraints
Everyone in your vehicle needs to be buckled up at all
times, including babies and children. Every state in the
United States, and every Canadian province, requires that
small children ride in proper restraint systems. This is the
law, and you can be prosecuted for ignoring it.
Children 12 years or younger should ride properly buckled
up in a rear seat, if available. According to crash statistics,
children are safer when properly restrained in the rear
seats rather than in the front.
WARNING!
In a collision, an unrestrained child can become a
projectile inside the vehicle. The force required to hold
even an infant on your lap could become so great that
you could not hold the child, no matter how strong you
are. The child and others could be badly injured. Any
child riding in your vehicle should be in a proper
restraint for the child’s size.There are different sizes and types of restraints for children
from newborn size to the child almost large enough for an
adult safety belt. Always check the child seat Owner ’s
Manual to make sure you have the correct seat for your
child. Carefully read and follow all the instructions and
warnings in the child restraint Owner ’s Manual and on all
the labels attached to the child restraint.
Before buying any restraint system, make sure that it has a
label certifying that it meets all applicable Safety Stan-
dards. You should also make sure that you can install it in
the vehicle where you will use it.
NOTE:
•
For additional information, refer to
www.safercar.gov/parents/index.htm
or call: 1–888–327–4236
• Canadian residents should refer to Transport Canada’s
website for additional information:
www.tc.gc.ca/eng/motorvehiclesafety/
safedrivers-childsafety-index-53.htm
5
SAFETY 259

Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced immedi-
ately with another Run Flat tire of identical size and service
description (Load Index and Speed Symbol).
Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as the
Run Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa). Once a
Run Flat tire reaches the run flat mode it has limited
driving capabilities and needs to be replaced immediately.
A Run Flat tire is not repairable.
It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the run flat
mode.
See the tire pressure monitoring section for more informa-
tion.
Tire Spinning
When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 30 mph (48 km/h) or for
longer than 30 seconds continuously without stopping.
Refer to “Freeing A Stuck Vehicle” in “In Case Of Emer-
gency” for further information.
WARNING!
Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause tire damage or
failure. A tire could explode and injure someone. Do
not spin your vehicle’s wheels faster than 30 mph
(48 km/h) for more than 30 seconds continuously when
you are stuck, and do not let anyone near a spinning
wheel, no matter what the speed.
Tread Wear Indicators
Tread wear indicators are in the original equipment tires to
help you in determining when your tires should be re-
placed.

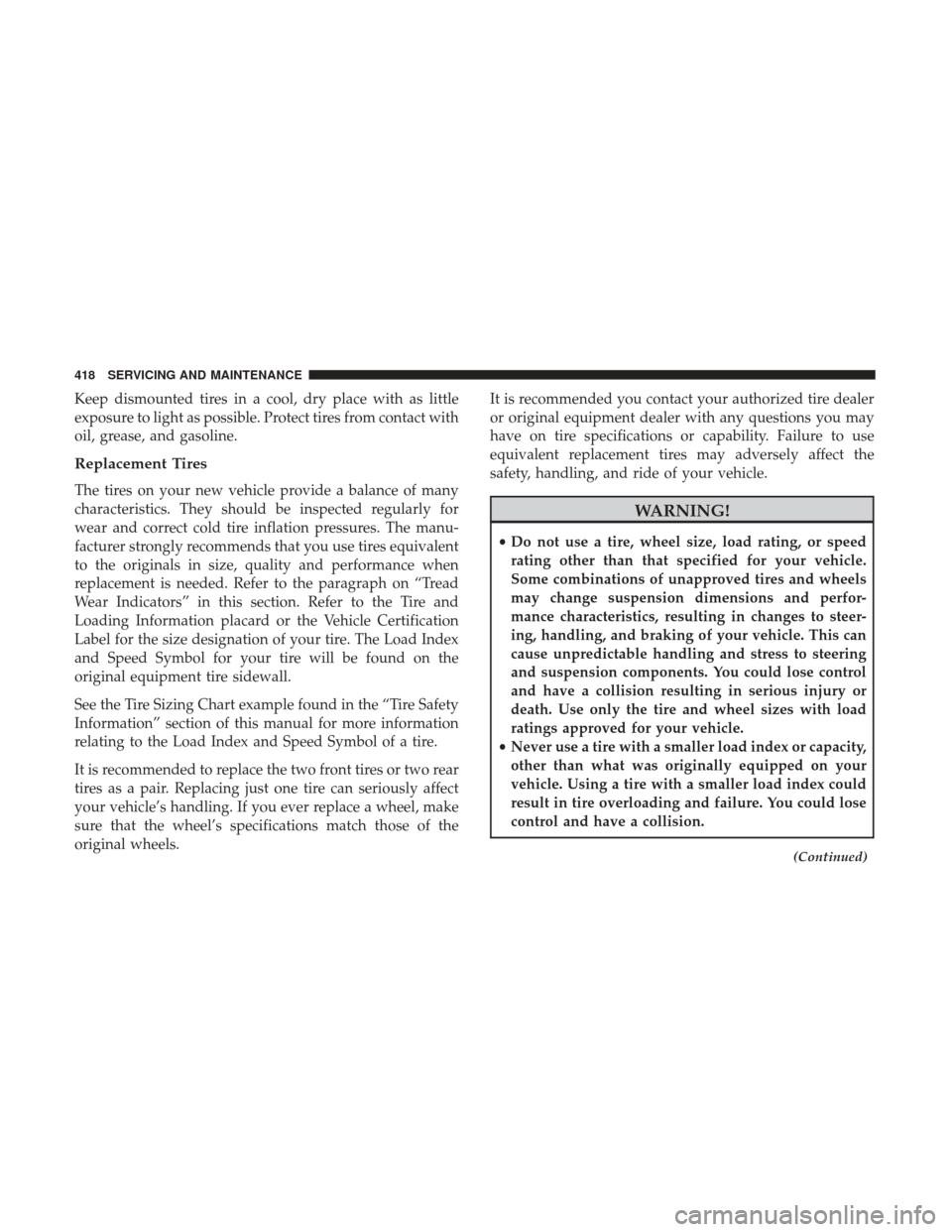

416 SERVICING AND MAINTENANCE

Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact with
oil, grease, and gasoline.
Replacement Tires
The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressures. The manu-
facturer strongly recommends that you use tires equivalent
to the originals in size, quality and performance when
replacement is needed. Refer to the paragraph on “Tread
Wear Indicators” in this section. Refer to the Tire and
Loading Information placard or the Vehicle Certification
Label for the size designation of your tire. The Load Index
and Speed Symbol for your tire will be found on the
original equipment tire sidewall.
See the Tire Sizing Chart example found in the “Tire Safety
Information” section of this manual for more information
relating to the Load Index and Speed Symbol of a tire.
It is recommended to replace the two front tires or two rear
tires as a pair. Replacing just one tire can seriously affect
your vehicle’s handling. If you ever replace a wheel, make
sure that the wheel’s specifications match those of the
original wheels.It is recommended you contact your authorized tire dealer
or original equipment dealer with any questions you may
have on tire specifications or capability. Failure to use
equivalent replacement tires may adversely affect the
safety, handling, and ride of your vehicle.
WARNING!
•
Do not use a tire, wheel size, load rating, or speed
rating other than that specified for your vehicle.
Some combinations of unapproved tires and wheels
may change suspension dimensions and perfor-
mance characteristics, resulting in changes to steer-
ing, handling, and braking of your vehicle. This can
cause unpredictable handling and stress to steering
and suspension components. You could lose control
and have a collision resulting in serious injury or
death. Use only the tire and wheel sizes with load
ratings approved for your vehicle.
• Never use a tire with a smaller load index or capacity,
other than what was originally equipped on your
vehicle. Using a tire with a smaller load index could
result in tire overloading and failure. You could lose
control and have a collision.
(Continued)
418 SERVICING AND MAINTENANCE

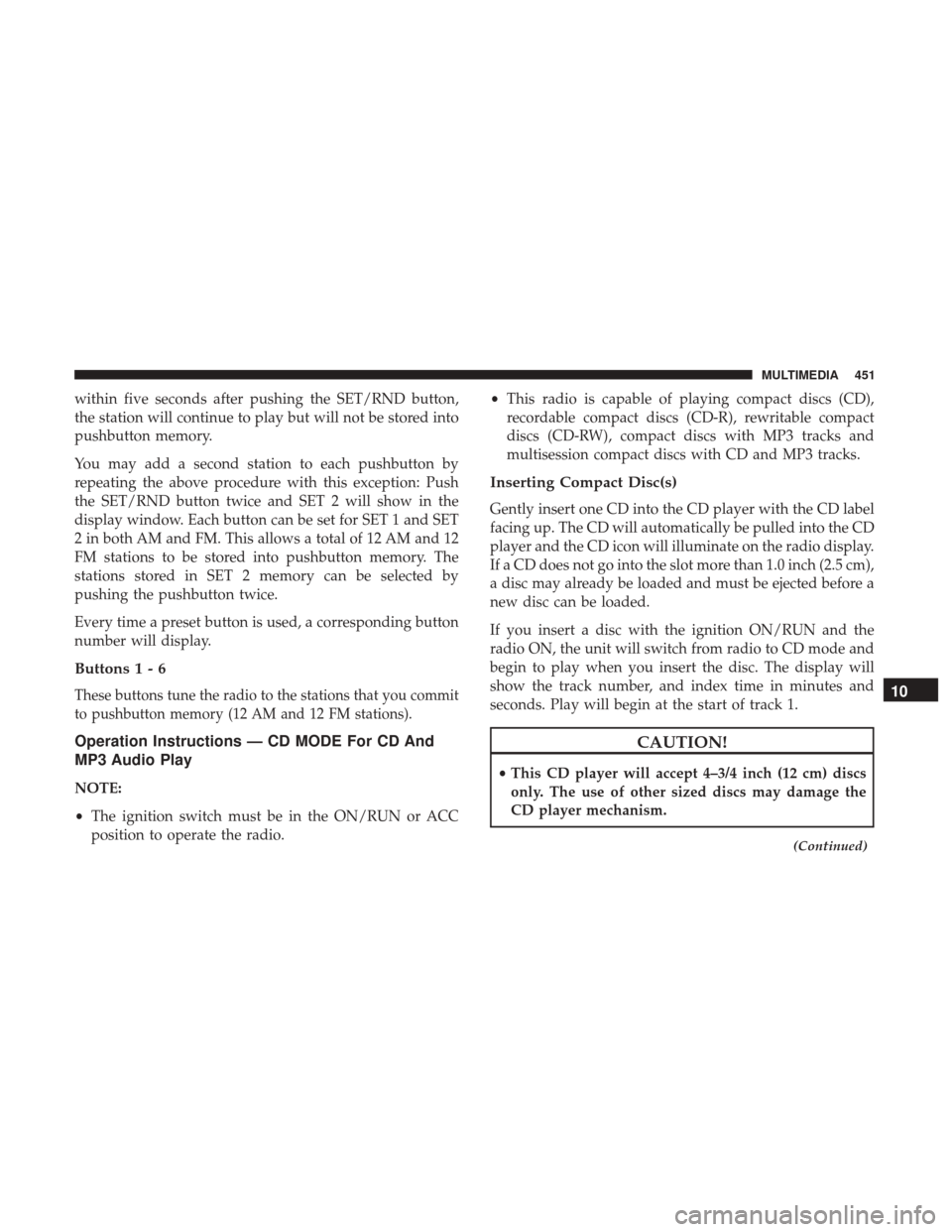

within five seconds after pushing the SET/RND button,
the station will continue to play but will not be stored into
pushbutton memory.
You may add a second station to each pushbutton by
repeating the above procedure with this exception: Push
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and SET
2 in both AM and FM. This allows a total of 12 AM and 12
FM stations to be stored into pushbutton memory. The
stations stored in SET 2 memory can be selected by
pushing the pushbutton twice.
Every time a preset button is used, a corresponding button
number will display.
Buttons1-6
These buttons tune the radio to the stations that you commit
to pushbutton memory (12 AM and 12 FM stations).
Operation Instructions — CD MODE For CD And
MP3 Audio Play
NOTE:
•The ignition switch must be in the ON/RUN or ACC
position to operate the radio. •
This radio is capable of playing compact discs (CD),
recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.
Inserting Compact Disc(s)
Gently insert one CD into the CD player with the CD label
facing up. The CD will automatically be pulled into the CD
player and the CD icon will illuminate on the radio display.
If a CD does not go into the slot more than 1.0 inch (2.5 cm),
a disc may already be loaded and must be ejected before a
new disc can be loaded.
If you insert a disc with the ignition ON/RUN and the
radio ON, the unit will switch from radio to CD mode and
begin to play when you insert the disc. The display will
show the track number, and index time in minutes and
seconds. Play will begin at the start of track 1.
CAUTION!
• This CD player will accept 4–3/4 inch (12 cm) discs
only. The use of other sized discs may damage the
CD player mechanism.
(Continued)
10
MULTIMEDIA 451

Buttons1-6
These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM sta-
tions).
DISC/AUX Button
Pushing the DISC/AUX button will allow you to switch
from AM/FM modes to DISC/AUX mode.
Operation Instructions — CD MODE For CD And
MP3 Audio Play
NOTE:
•The ignition switch must be in the ON/RUN or ACC
position to operate the radio.
• This radio is capable of playing compact discs (CD),
recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.
Inserting Compact Disc(s)
Gently insert one CD into the CD player with the CD label
facing up. The CD will automatically be pulled into the CD
player and the CD icon will illuminate on the radio display. If a CD does not go into the slot more than 1.0 inch (2.5 cm),
a disc may already be loaded and must be ejected before a
new disc can be loaded.
If you insert a disc with the ignition ON/RUN and the
radio ON, the unit will switch from radio to CD mode and
begin to play when you insert the disc. The display will
show the track number, and index time in minutes and
seconds. Play will begin at the start of track 1.
CAUTION!
•
This CD player will accept 4–3/4 inch (12 cm) discs
only. The use of other sized discs may damage the
CD player mechanism.
• Do not use adhesive labels. These labels can peel
away and jam the player mechanism.
• The Radio 130 is a single CD player. Do not attempt
to insert a second CD if one is already loaded.
• Dual-media disc types (one side is a DVD, the other
side is a CD) should not be used, and they can cause
damage to the player.
460 MULTIMEDIA

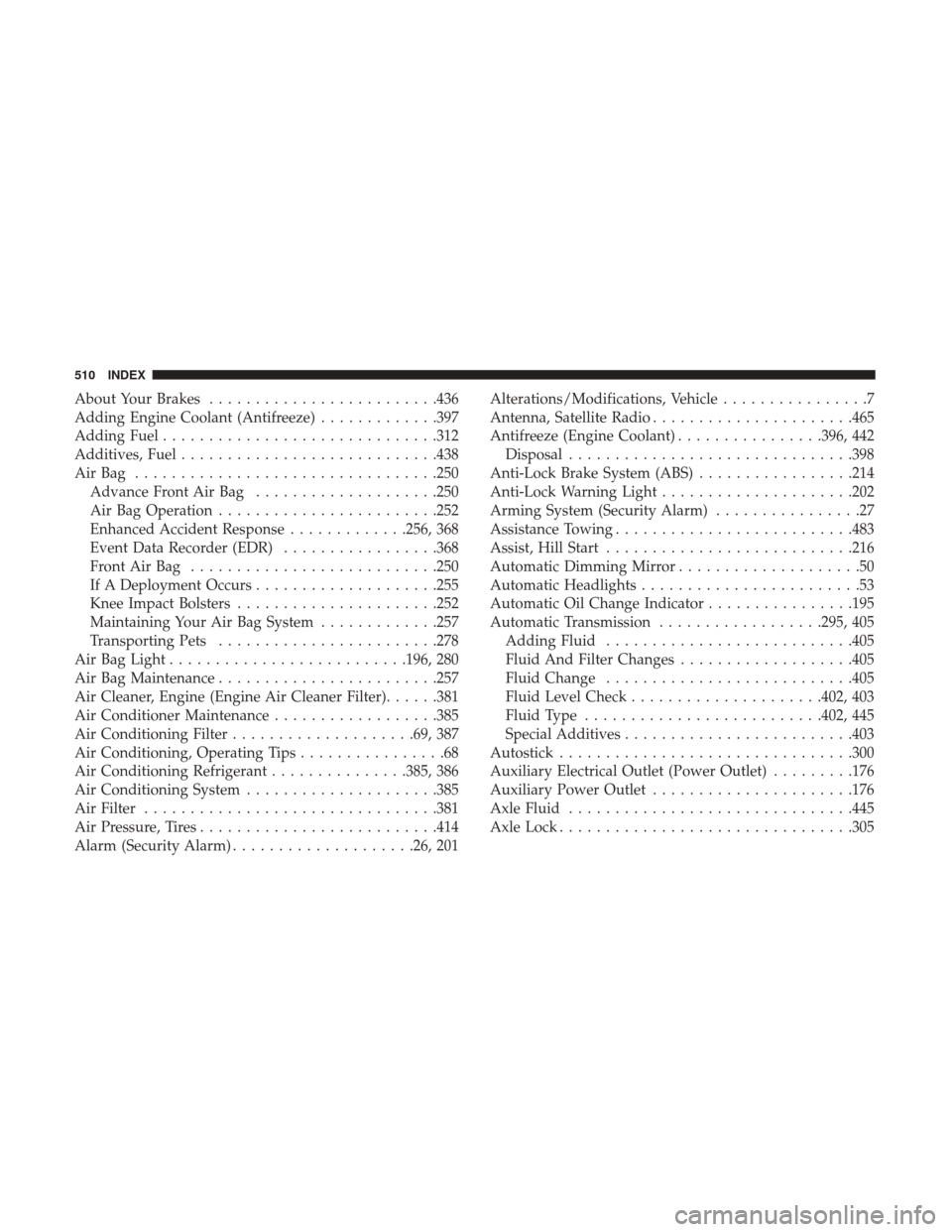

INDEX
12

About Your Brakes........................ .436
Adding Engine Coolant (Antifreeze) .............397
Adding Fuel ............................. .312
Additives, Fuel ........................... .438
AirBag ................................ .250
Advance Front Air Bag ....................250
Air Bag Operation ....................... .252
Enhanced Accident Response .............256, 368
Event Data Recorder (EDR) .................368
FrontAirBag .......................... .250
If A Deployment Occurs ....................255
Knee Impact Bolsters ..................... .252
Maintaining Your Air Bag System .............257
Transporting Pets ....................... .278
Air Bag Light ......................... .196, 280
Air Bag Maintenance ....................... .257
Air Cleaner, Engine (Engine Air Cleaner Filter) ......381
Air Conditioner Maintenance ..................385
Air Conditioning Filter ....................69, 387
Air Conditioning, Operating Tips ................68
Air Conditioning Refrigerant ...............385, 386
Air Conditioning System .....................385
Air Filter ............................... .381
Air Pressure, Tires ......................... .414
Alarm (Security Alarm) ....................26, 201 Alterations/Modifications, Vehicle
................7
Antenna, Satellite Radio ..................... .465
Antifreeze (Engine Coolant) ................396, 442
Disposal .............................. .398
Anti-Lock Brake System (ABS) .................214
Anti-Lock Warning Light .....................202
Arming System (Security Alarm) ................27
Assistance Towing ......................... .483
Assist, Hill Start .......................... .216
Automatic Dimming Mirror ....................50
Automatic Headlights ........................53
Automatic Oil Change Indicator ................195
Automatic
Transmission ..................295, 405
Adding Fluid .......................... .405
Fluid And Filter Changes ...................405
Fluid Change .......................... .405
Fluid Level Check .....................402, 403
Fluid Type ......................... .402, 445
Special Additives ........................ .403
Autostick ............................... .300
Auxiliary Electrical Outlet (Power Outlet) .........176
Auxiliary Power Outlet ..................... .176
Axle Fluid .............................. .445
Axle Lock ............................... .305
510 INDEX

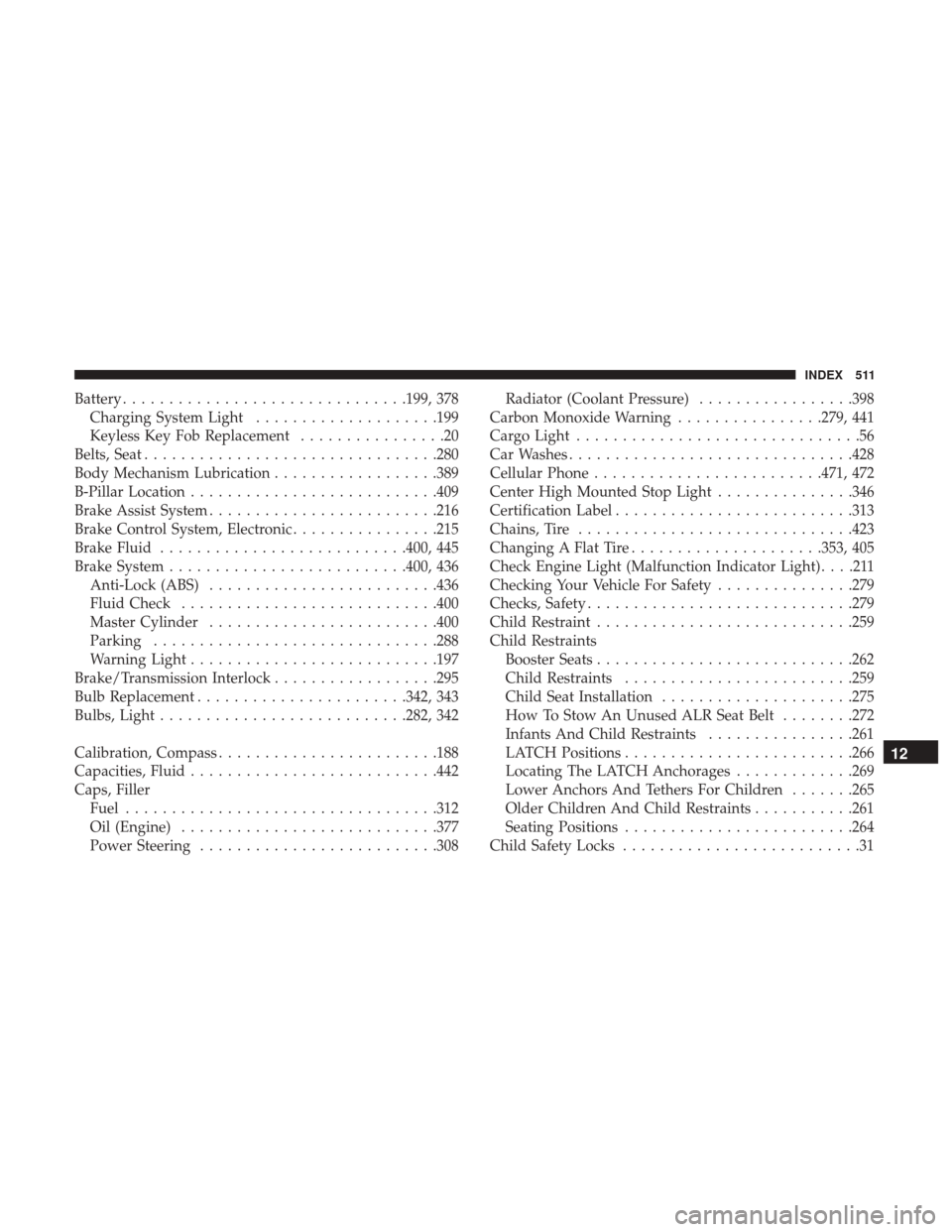

Battery.............................. .199, 378
Charging System Light ....................199
Keyless Key Fob Replacement ................20
Belts, Seat ............................... .280
Body Mechanism Lubrication ..................389
B-Pillar Location .......................... .409
Brake Assist System ........................ .216
Brake Control System, Electronic ................215
Brake Fluid .......................... .400, 445
Brake System ......................... .400, 436
Anti-Lock (ABS) ........................ .436
Fluid Check ........................... .400
Master Cylinder ........................ .400
Parking .............................. .288
Warning Light .......................... .197
Brake/Transmission Interlock ..................295
Bulb Replacement ...................... .342, 343
Bulbs, Light .......................... .282, 342
Calibration, Compass ....................... .188
Capacities, Fluid .......................... .442
Caps, Filler Fuel ................................. .312
Oil (Engine) ........................... .377
Power Steering ......................... .308Radiator (Coolant Pressure)
.................398
Carbon Monoxide Warning ................279, 441
Cargo Light ...............................56
Car Washes .............................. .428
Cellular Phone ........................ .471, 472
Center High Mounted Stop Light ...............346
Certification Label ......................... .313
Chains, Tire ............................. .423
Changing A Flat Tire .....................353, 405
Check Engine Light (Malfunction Indicator Light) . . . .211
Checking Your Vehicle For Safety ...............279
Checks, Safety ............................ .279
Child

Restraint ........................... .259
Child Restraints Booster Seats ........................... .262
Child Restraints ........................ .259
Child Seat Installation .....................275
How To Stow An Unused ALR Seat Belt ........272
Infants And Child Restraints ................261
LATCH Positions ........................ .266
Locating The LATCH Anchorages .............269
Lower Anchors And Tethers For Children .......265
Older Children And Child Restraints ...........261
Seating Positions ........................ .264
Child Safety Locks ..........................31
12
INDEX 511
