Page 17 of 527

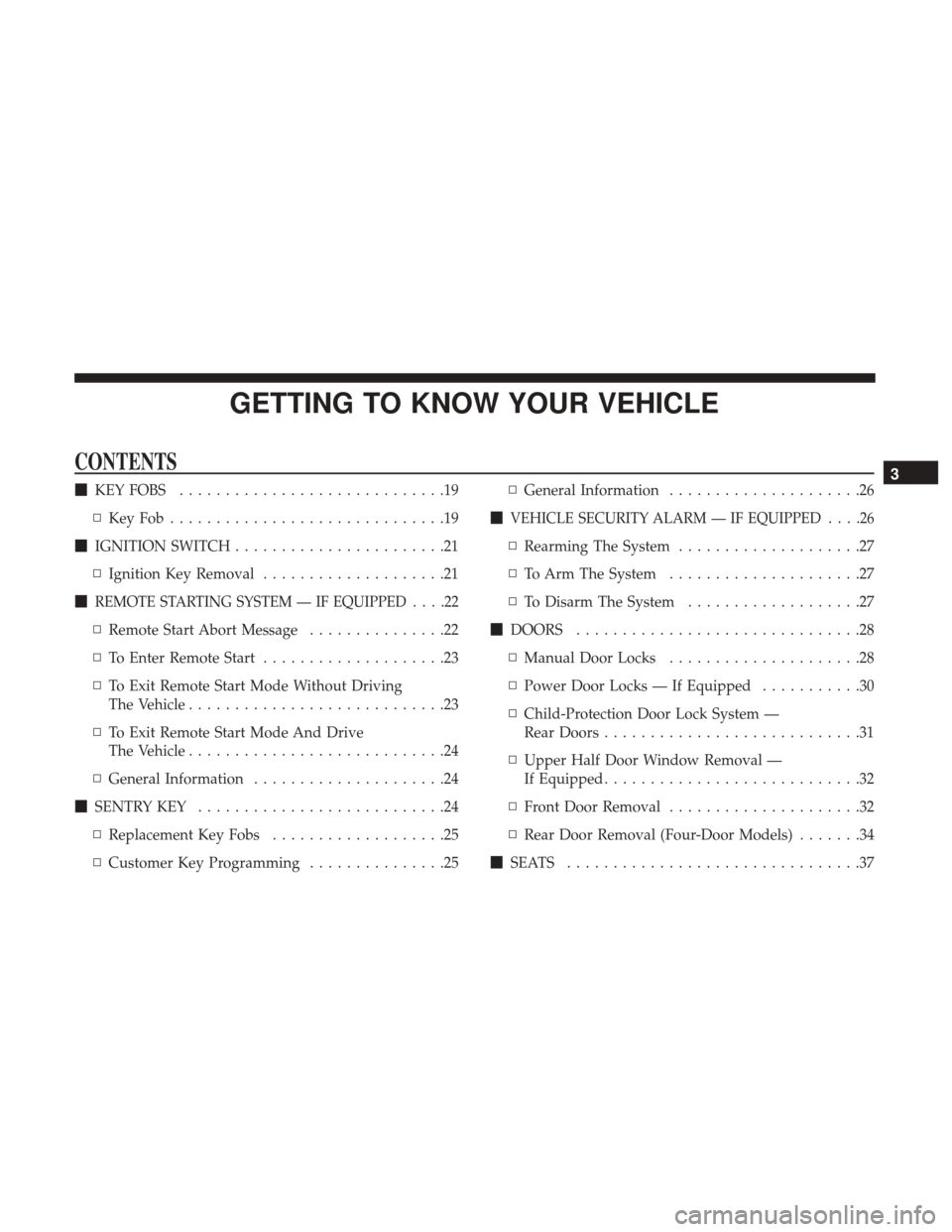

GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEY FOBS .............................19
▫ KeyFob..............................19
IGNITION SWITCH .......................21
▫ Ignition Key Removal ....................21
REMOTE STARTING SYSTEM — IF EQUIPPED ....22
▫Remote Start Abort Message ...............22
▫ To Enter Remote Start ....................23
▫ To Exit Remote Start Mode Without Driving
The Vehicle ............................23
▫ To Exit Remote Start Mode And Drive
The Vehicle ............................24
▫ General Information .....................24
SENTRY KEY ...........................24
▫ Replacement Key Fobs ...................25
▫ Customer Key Programming ...............25▫
General Information .....................26
VEHICLE SECURITY ALARM — IF EQUIPPED ....26
▫Rearming The System ....................27
▫ To Arm The System .....................27
▫ To Disarm The System ...................27
DOORS ...............................28
▫ Manual Door Locks .....................28
▫ Power Door Locks — If Equipped ...........30
▫ Child-Protection Door Lock System —
Rear Doors ............................31
▫ Upper Half Door Window Removal —
If Equipped ............................32
▫ Front Door Removal .....................32
▫ Rear Door Removal (Four-Door Models) .......34
SEATS ................................37
3
Page 33 of 527
Child-Protection Door Lock System — Rear Doors
To provide a safer environment for small children riding in
the rear seats, the rear doors are equipped with Child-
Protection Door Lock system.
To Engage Or Disengage The Child-Protection Door Lock
System
1. Open the rear door.
2. Insert the tip of the ignition key into the lock and rotateto the lock or unlock position.
3. Repeat steps one and two for the opposite rear door.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened from
the outside when the Child-Protection locks are en-
gaged (locked).
NOTE: For emergency exit with the system engaged, move
the rocker lever rearward (unlocked position), roll down
the window and open the door with the outside door
handle.
Child Protection Door Lock Function
3
GETTING TO KNOW YOUR VEHICLE 31

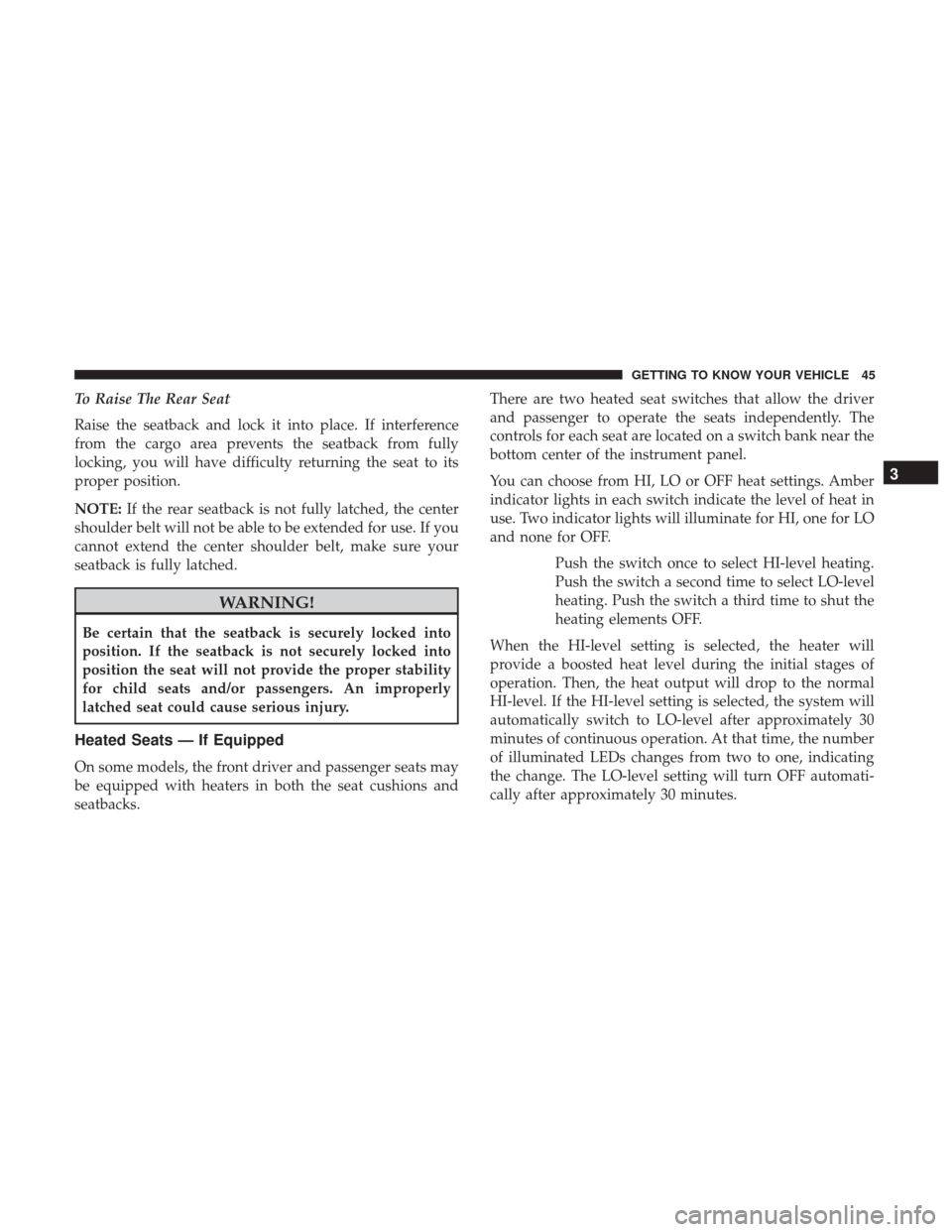

Page 47 of 527
To Raise The Rear Seat
Raise the seatback and lock it into place. If interference
from the cargo area prevents the seatback from fully
locking, you will have difficulty returning the seat to its
proper position.
NOTE:If the rear seatback is not fully latched, the center
shoulder belt will not be able to be extended for use. If you
cannot extend the center shoulder belt, make sure your
seatback is fully latched.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
Heated Seats — If Equipped
On some models, the front driver and passenger seats may
be equipped with heaters in both the seat cushions and
seatbacks. There are two heated seat switches that allow the driver
and passenger to operate the seats independently. The
controls for each seat are located on a switch bank near the
bottom center of the instrument panel.
You can choose from HI, LO or OFF heat settings. Amber
indicator lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for LO
and none for OFF.
Push the switch once to select HI-level heating.
Push the switch a second time to select LO-level
heating. Push the switch a third time to shut the
heating elements OFF.
When the HI-level setting is selected, the heater will
provide a boosted heat level during the initial stages of
operation. Then, the heat output will drop to the normal
HI-level. If the HI-level setting is selected, the system will
automatically switch to LO-level after approximately 30
minutes of continuous operation. At that time, the number
of illuminated LEDs changes from two to one, indicating
the change. The LO-level setting will turn OFF automati-
cally after approximately 30 minutes.
3
GETTING TO KNOW YOUR VEHICLE 45
Page 49 of 527
WARNING!
•A loose head restraint thrown forward in a collision
or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow re-
moved head restraints in a location outside the
occupant compartment.
(Continued)
WARNING! (Continued)
•ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating
the vehicle or occupying a seat.
NOTE: Do not reposition the head restraint 180 degrees to
the incorrect position in an attempt to gain additional
clearance to the back of the head.
Rear Head Restraints — 2 Door Model
The rear seat head restraints are not adjustable. They can be
removed to make it easier to take out the rear seat. To
remove the head restraint, push the button on each of the
two head restraint guides and pull upward on the head
restraint. Replace the head restraint before driving the
vehicle with passengers in the rear seat. To replace the head
restraint, insert the head restraint rods into the guides and
push downward on the head restraint until locked. Refer to
“Occupant Restraint Systems” in “Safety” for information
on child seat tether routing.
1 — Release Button
2 — Adjustment Button
3
GETTING TO KNOW YOUR VEHICLE 47

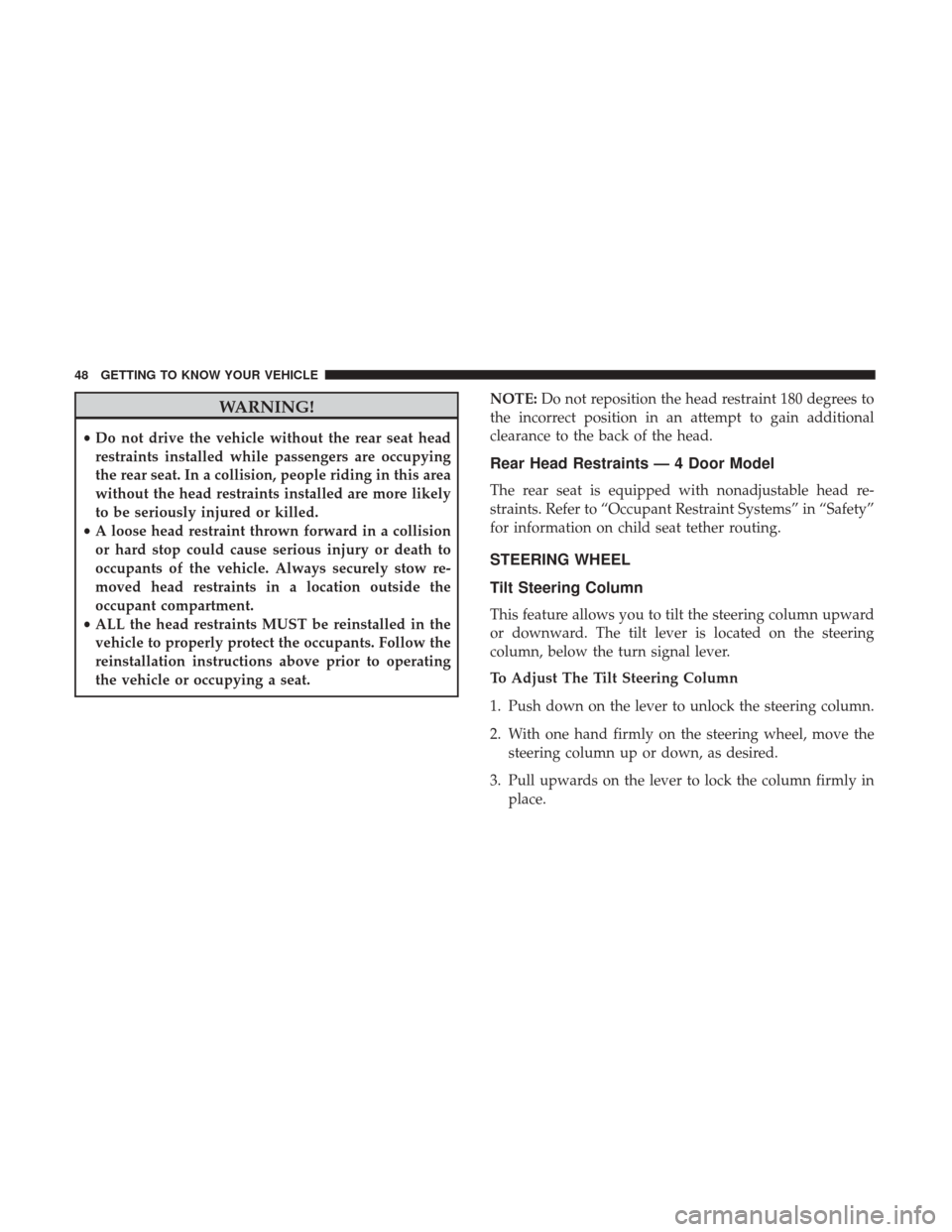

Page 50 of 527
WARNING!
•Do not drive the vehicle without the rear seat head
restraints installed while passengers are occupying
the rear seat. In a collision, people riding in this area
without the head restraints installed are more likely
to be seriously injured or killed.
• A loose head restraint thrown forward in a collision
or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow re-
moved head restraints in a location outside the
occupant compartment.
• ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
reinstallation instructions above prior to operating
the vehicle or occupying a seat. NOTE:
Do not reposition the head restraint 180 degrees to
the incorrect position in an attempt to gain additional
clearance to the back of the head.
Rear Head Restraints — 4 Door Model
The rear seat is equipped with nonadjustable head re-
straints. Refer to “Occupant Restraint Systems” in “Safety”
for information on child seat tether routing.
STEERING WHEEL
Tilt Steering Column
This feature allows you to tilt the steering column upward
or downward. The tilt lever is located on the steering
column, below the turn signal lever.
To Adjust The Tilt Steering Column
1. Push down on the lever to unlock the steering column.
2. With one hand firmly on the steering wheel, move the steering column up or down, as desired.
3. Pull upwards on the lever to lock the column firmly in place.
48 GETTING TO KNOW YOUR VEHICLE
Page 91 of 527
6. Lift the Freedom bag into the vehicle with the hooks andstraps facing the back of the rear seat. Attach the clips at
the bottom of the bag to the child restraint anchorages,
located at the base of the rear seat. 7. Wrap the upper strap around the rear head restraints
and loop the strap through the buckle. Pull on the strap
to tighten the Freedom bag securely against the rear
seat.
Step SixStep Seven
3
GETTING TO KNOW YOUR VEHICLE 89

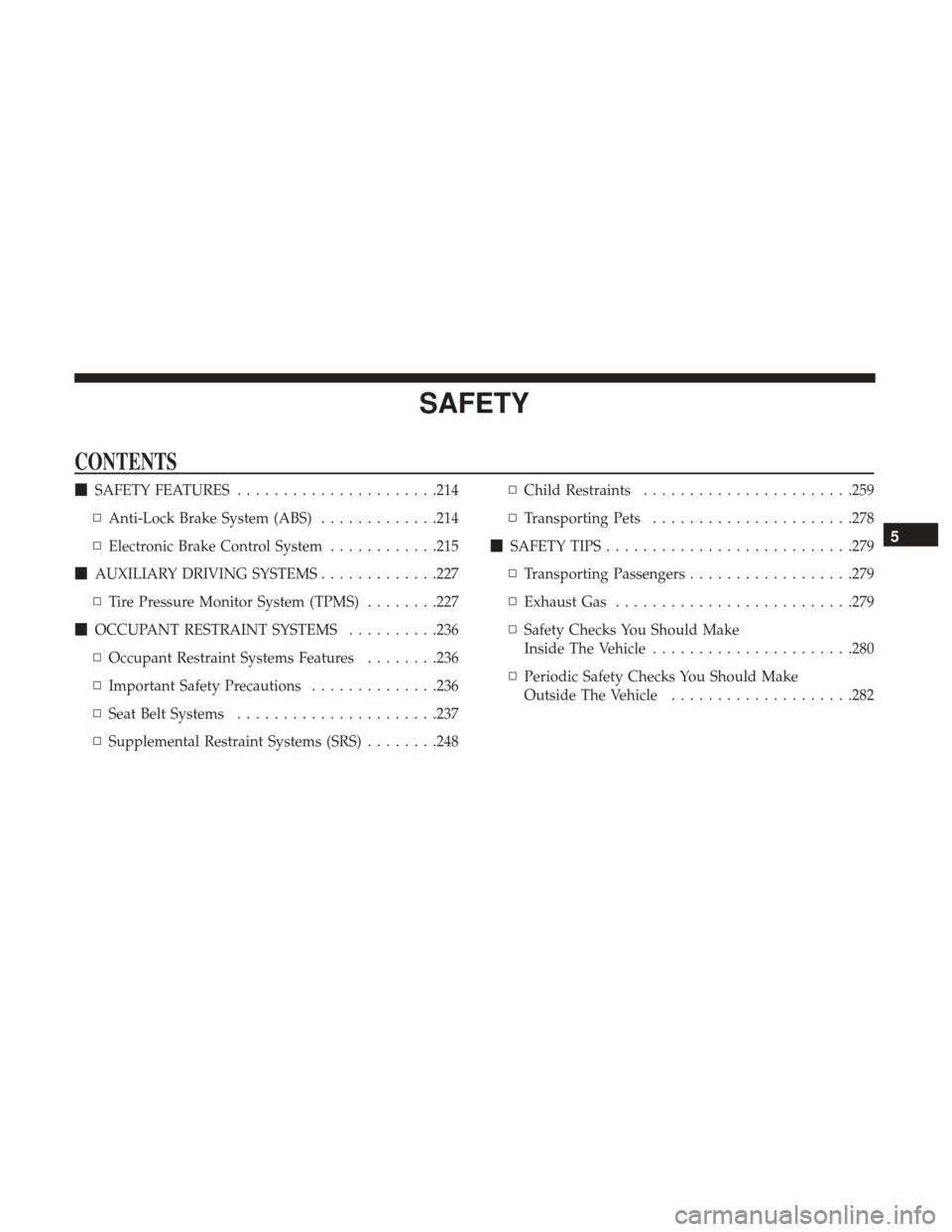

Page 215 of 527
SAFETY
CONTENTS
SAFETY FEATURES ..................... .214
▫ Anti-Lock Brake System (ABS) .............214
▫ Electronic Brake Control System ............215
AUXILIARY DRIVING SYSTEMS .............227
▫ Tire Pressure Monitor System (TPMS) ........227
OCCUPANT RESTRAINT SYSTEMS ..........236
▫ Occupant Restraint Systems Features ........236
▫ Important Safety Precautions ..............236
▫ Seat Belt Systems ..................... .237
▫ Supplemental Restraint Systems (SRS) ........248▫
Child Restraints ...................... .259
▫ Transporting Pets ..................... .278
SAFETY TIPS .......................... .279
▫ Transporting Passengers ..................279
▫ Exhaust Gas ......................... .279
▫ Safety Checks You Should Make
Inside The Vehicle ..................... .280
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ....................282
5

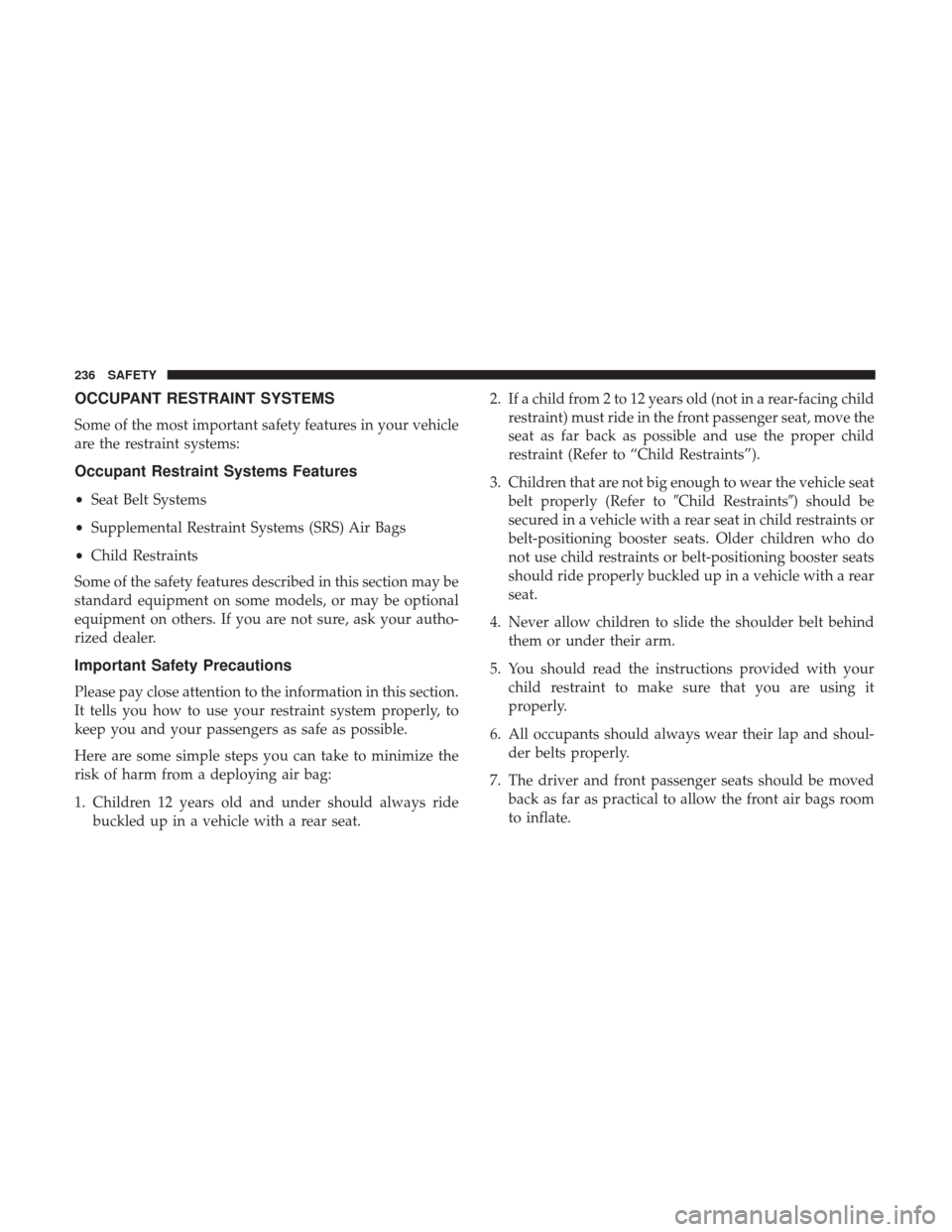

Page 238 of 527
OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your vehicle
are the restraint systems:
Occupant Restraint Systems Features
•Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Child Restraints
Some of the safety features described in this section may be
standard equipment on some models, or may be optional
equipment on others. If you are not sure, ask your autho-
rized dealer.
Important Safety Precautions
Please pay close attention to the information in this section.
It tells you how to use your restraint system properly, to
keep you and your passengers as safe as possible.
Here are some simple steps you can take to minimize the
risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride buckled up in a vehicle with a rear seat. 2. If a child from 2 to 12 years old (not in a rear-facing child
restraint) must ride in the front passenger seat, move the
seat as far back as possible and use the proper child
restraint (Refer to “Child Restraints”).
3. Children that are not big enough to wear the vehicle seat belt properly (Refer to Child Restraints) should be
secured in a vehicle with a rear seat in child restraints or
belt-positioning booster seats. Older children who do
not use child restraints or belt-positioning booster seats
should ride properly buckled up in a vehicle with a rear
seat.
4. Never allow children to slide the shoulder belt behind them or under their arm.
5. You should read the instructions provided with your child restraint to make sure that you are using it
properly.
6. All occupants should always wear their lap and shoul- der belts properly.
7. The driver and front passenger seats should be moved back as far as practical to allow the front air bags room
to inflate.
236 SAFETY
Page 239 of 527

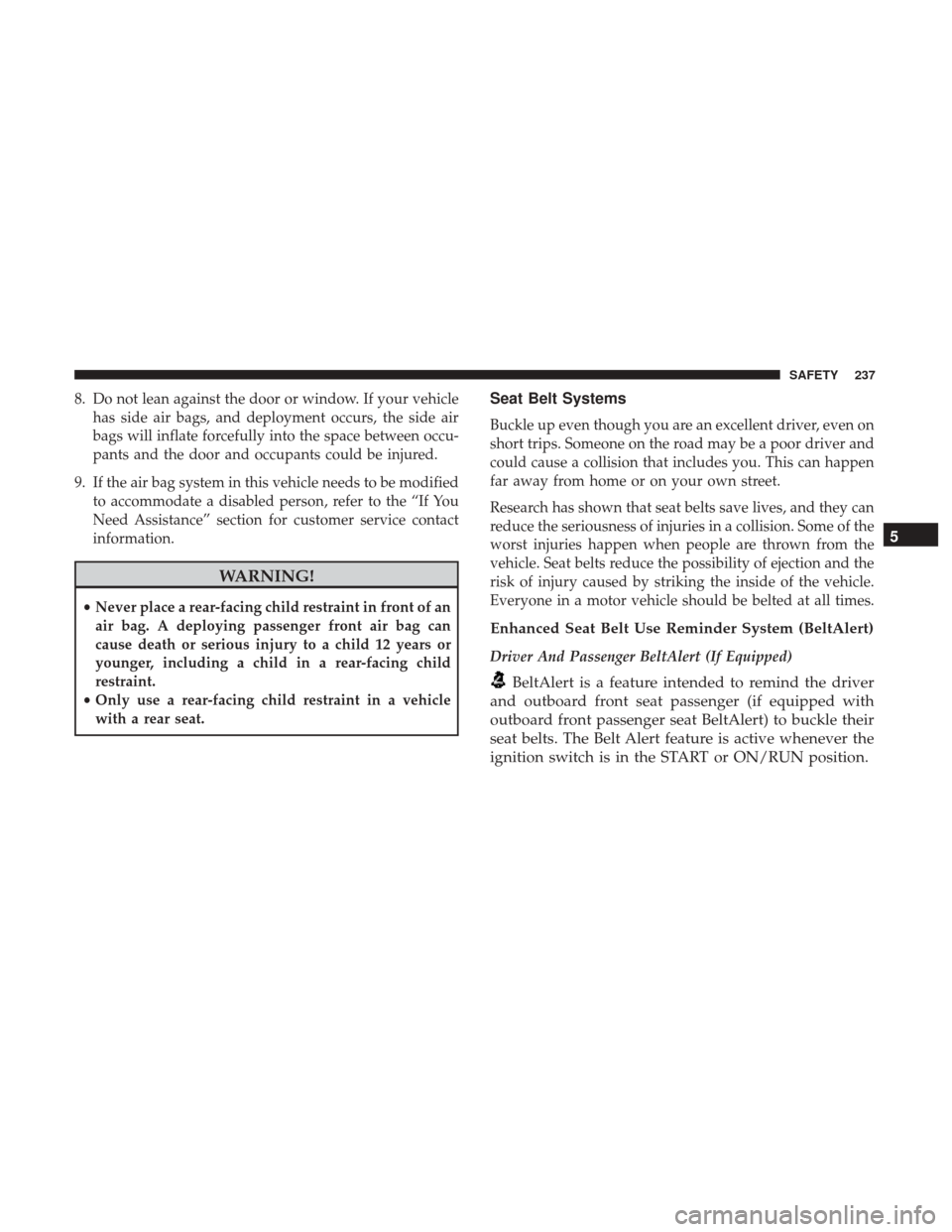

8. Do not lean against the door or window. If your vehiclehas side air bags, and deployment occurs, the side air
bags will inflate forcefully into the space between occu-
pants and the door and occupants could be injured.
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, refer to the “If You
Need Assistance” section for customer service contact
information.
WARNING!
•Never place a rear-facing child restraint in front of an
air bag. A deploying passenger front air bag can
cause death or serious injury to a child 12 years or
younger, including a child in a rear-facing child
restraint.
• Only use a rear-facing child restraint in a vehicle
with a rear seat.
Seat Belt Systems
Buckle up even though you are an excellent driver, even on
short trips. Someone on the road may be a poor driver and
could cause a collision that includes you. This can happen
far away from home or on your own street.
Research has shown that seat belts save lives, and they can
reduce the seriousness of injuries in a collision. Some of the
worst injuries happen when people are thrown from the
vehicle. Seat belts reduce the possibility of ejection and the
risk of injury caused by striking the inside of the vehicle.
Everyone in a motor vehicle should be belted at all times.
Enhanced Seat Belt Use Reminder System (BeltAlert)
Driver And Passenger BeltAlert (If Equipped)
BeltAlert is a feature intended to remind the driver
and outboard front seat passenger (if equipped with
outboard front passenger seat BeltAlert) to buckle their
seat belts. The Belt Alert feature is active whenever the
ignition switch is in the START or ON/RUN position. 5
SAFETY 237
Page 247 of 527
Seat Belts And Pregnant Women
Seat belts must be worn by all occupants including preg-
nant women: the risk of injury in the event of an accident
is reduced for the mother and the unborn child if they are
wearing a seat belt.
Position the lap belt snug and low below the abdomen and
across the strong bones of the hips. Place the shoulder belt
across the chest and away from the neck. Never place the
shoulder belt behind the back or under the arm.
Seat Belt Pretensioner
The front seat belt system is equipped with pretensioning
devices that are designed to remove slack from the seat belt
in the event of a collision. These devices may improve the
performance of the seat belt by removing slack from the
seat belt early in a collision. Pretensioners work for all size
occupants, including those in child restraints.
NOTE:These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.
The pretensioners are triggered by the Occupant Restraint
Controller (ORC). Like the air bags, the pretensioners are
single use items. A deployed pretensioner or a deployed air
bag must be replaced immediately.
Energy Management Feature
This vehicle has a seat belt system with an Energy Man-
agement feature in the front seating positions that may
help further reduce the risk of injury in the event of a
collision. The seat belt system has a retractor assembly that
is designed to release webbing in a controlled manner.
Pregnant Women And Seat Belts
5
SAFETY 245
