Page 178 of 527
Electrical Power Outlets
There are two 12 Volt (13 Amp) auxiliary power outlets that
can provide power for accessories designed for use with
the standard power outlet adapters.
The front power outlet is located in the center of the
instrument panel below the climate controls, and is pow-
ered from the ignition switch. Power is available when the
ignition switch is in the ON or ACC position.When the optional cigar lighter heating element is used in
the power outlet, it heats when pushed in and pops out
automatically when ready for use.
To preserve the heating
element, do not hold the lighter in the heating position.
A second power outlet is located inside the center console
and is powered directly from the vehicle battery.
CAUTION!
• Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
•
Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse. Im-
proper use of the power outlet can cause damage not
covered by your New Vehicle Limited Warranty.
Front Power Outlet
176 GETTING TO KNOW YOUR VEHICLE
Page 179 of 527
On vehicles equipped with a rear subwoofer, there is a
third power outlet located in the right rear cargo area.
Rear Power Outlet — If Equipped
Power Outlet Fuse Locations
1 — M36 Fuse 20 A Yellow Power Outlet Console Bin
2 — M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel
3 — M7 Fuse 20 A Yellow Power Outlet Rear with Sub Woofer
(Opt.)
3
GETTING TO KNOW YOUR VEHICLE 177
Page 186 of 527
5.Odometer / Trip Odometer Display Area
• The odometer display shows the total distance the
vehicle has been driven. The trip odometer shows
individual trip mileage. Refer to “Odometer/Trip
Odometer/ECO (Fuel Saver Indicator) Button” for
further information.
• U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser
the correct mileage that the vehicle has been driven. If
your odometer needs to be repaired or serviced, the
repair technician should leave the odometer reading
the same as it was before the repair or service. If they
cannot do so, then the odometer must be set at zero,
and a sticker must be placed in the door jamb stating
what the mileage was before the repair or service. It is
a good idea for you to make a record of the odometer
reading before the repair/service, so that you can be
sure that it is properly reset, or that the door jamb
sticker is accurate if the odometer must be reset at zero.
Vehicle Odometer Messages
All messages will display in the instrument cluster display,
if equipped. Refer to “Instrument Cluster Display— If
Equipped” in this section for further information. When the appropriate conditions exist, the following
odometer messages will display:
•ECO — Fuel Saver Indicator
• door — Door Open
• gATE — Swing Gate Open
• LoW tirE — Low Tire Pressure
• HOTOIL — Oil Temperature Above Normal Limits
• gASCAP — Fuel Cap Fault
• noFUSE — Fuse Fault
• CHAngE OIL — Oil Change Required
6. Software Telltales
• Hard and Soft Telltales (Symbols) appear based on
specific behaviors.
7.
Instrument Cluster Display / Compass Mini-Trip Com-
puter Display — If Equipped
• When the appropriate conditions exist, this display
shows the instrument cluster display messages. Refer
to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
•
When the appropriate conditions exist, this display
shows the Mini-Trip Computer messages. Refer to “Mini-
Trip Computer” in “Getting To Know Your Instrument
Panel” for further information.
184 GETTING TO KNOW YOUR INSTRUMENT PANEL
Page 343 of 527
IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............342
BULB REPLACEMENT ....................342
▫ Replacement Bulbs .....................342
▫ Bulb Replacement ..................... .343
FUSES ............................... .346
▫ General Information .....................347
▫ Totally Integrated Power Module ...........348
JACKING AND TIRE CHANGING ...........353
▫ Jack Location ........................ .353
▫ Spare Tire Removal .....................354
▫ Preparations For Jacking .................354
▫ Jacking Instructions .....................355
▫ Road Tire Installation ....................357
JUMP-STARTING ....................... .358▫
Preparations For Jump-Start ...............359
▫ Jump-Starting Procedure ..................360
IF YOUR ENGINE OVERHEATS .............361
GEAR SELECTOR OVERRIDE ..............362
FREEING A STUCK VEHICLE ..............363
TOWING A DISABLED VEHICLE ............365
▫ Without The Ignition Key .................366
▫ Four–Wheel Drive Models ................366
▫ Emergency Tow Hooks — If Equipped .......367
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .368
EVENT DATA RECORDER (EDR) ............368
7
Page 348 of 527
Center High-Mounted Stop Lamp (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service is
needed, obtain the LED/Cover Assembly from your local
authorized dealer.
1. Remove the spare tire.
2. Remove the four screws holding the lens/cover in placeon the spare tire carrier.
3. Disconnect the wire harness from the back of the LED cover.
FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
injury, fire and/or property damage.
• Before replacing a fuse, make sure that the ignition is
off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
346 IN CASE OF EMERGENCY
Page 349 of 527
General Information
The fuses protect electrical systems against excessive cur-
rent.
When a device does not work, you must check the electri-
cal circuit inside the fuse for a break/melt.
Also, please be aware that when using power outlets for
extended periods of time with the engine off may result in
vehicle battery discharge.
Blade Fuses
1 — Electrical Circuit
2 — Blade Fuse With Good Electrical Circuit
3 — Blade Fuse With Bad Electrical Circuit
7
IN CASE OF EMERGENCY 347
Page 350 of 527

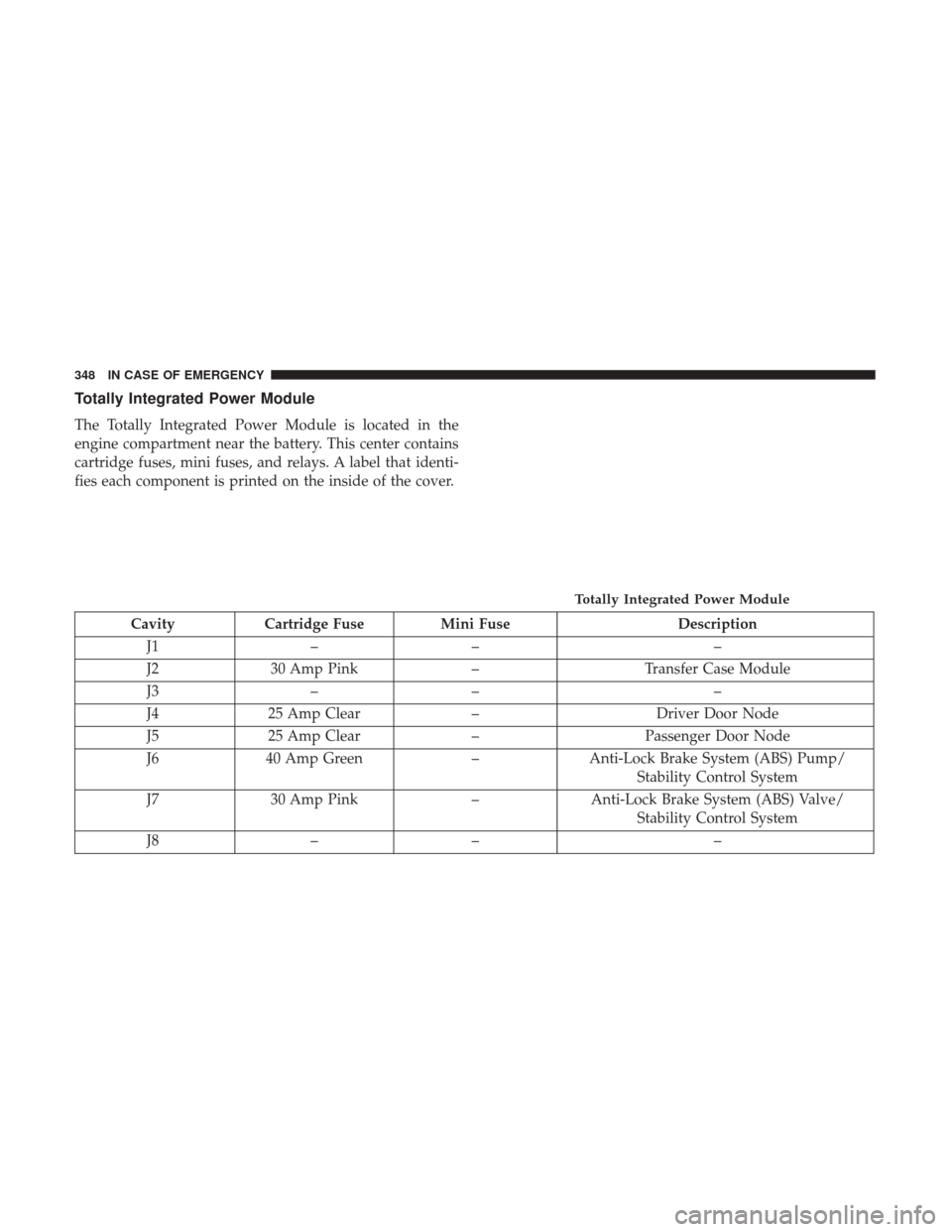

Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the battery. This center contains
cartridge fuses, mini fuses, and relays. A label that identi-
fies each component is printed on the inside of the cover.
CavityCartridge Fuse Mini Fuse Description
J1 –– –
J2 30 Amp Pink –Transfer Case Module
J3 –– –
J4 25 Amp Clear –Driver Door Node
J5 25 Amp Clear –Passenger Door Node
J6 40 Amp Green –Anti-Lock Brake System (ABS) Pump/
Stability Control System
J7 30 Amp Pink –Anti-Lock Brake System (ABS) Valve/
Stability Control System
J8 –– –
Totally Integrated Power Module
348 IN CASE OF EMERGENCY
Page 351 of 527
CavityCartridge Fuse Mini Fuse Description
J9 40 Amp Green –PZEV Sec Motor/Flex Fuel – If Equipped
J10 30 Amp Pink –Headlamp Wash Relay/Manifold Tuning
Valve
J11 30 Amp Pink – Sway Bar
J12 –– –
J13 60 Amp Yellow –Ignition Off Draw (IOD) – Main
J14 40 Amp Green –Rear Defroster
J15 40 Amp Green –Front Blower
J17 40 Amp Green –Starter Solenoid
J18 20 Amp Blue –Powertrain Control Module (PCM) Trans
Range
J19 60 Amp Yellow –Radiator Fan
J20 30 Amp Pink –Front Wiper LO/HI
J21 20 Amp Blue –Front/Rear Washer
J22 –– Spare
M1 –15 Amp Blue Center High-Mounted Stop Light (CHMSL)/
Switch Stop Lamp Feed
M2 –20 Amp Yellow Relay Trailer Lighting (Stop lamp)
M3 –20 Amp Yellow Front/Rear Axle Locker Relay
M4 –2 Amp Grey Clock Spring
7
IN CASE OF EMERGENCY 349
Page 352 of 527

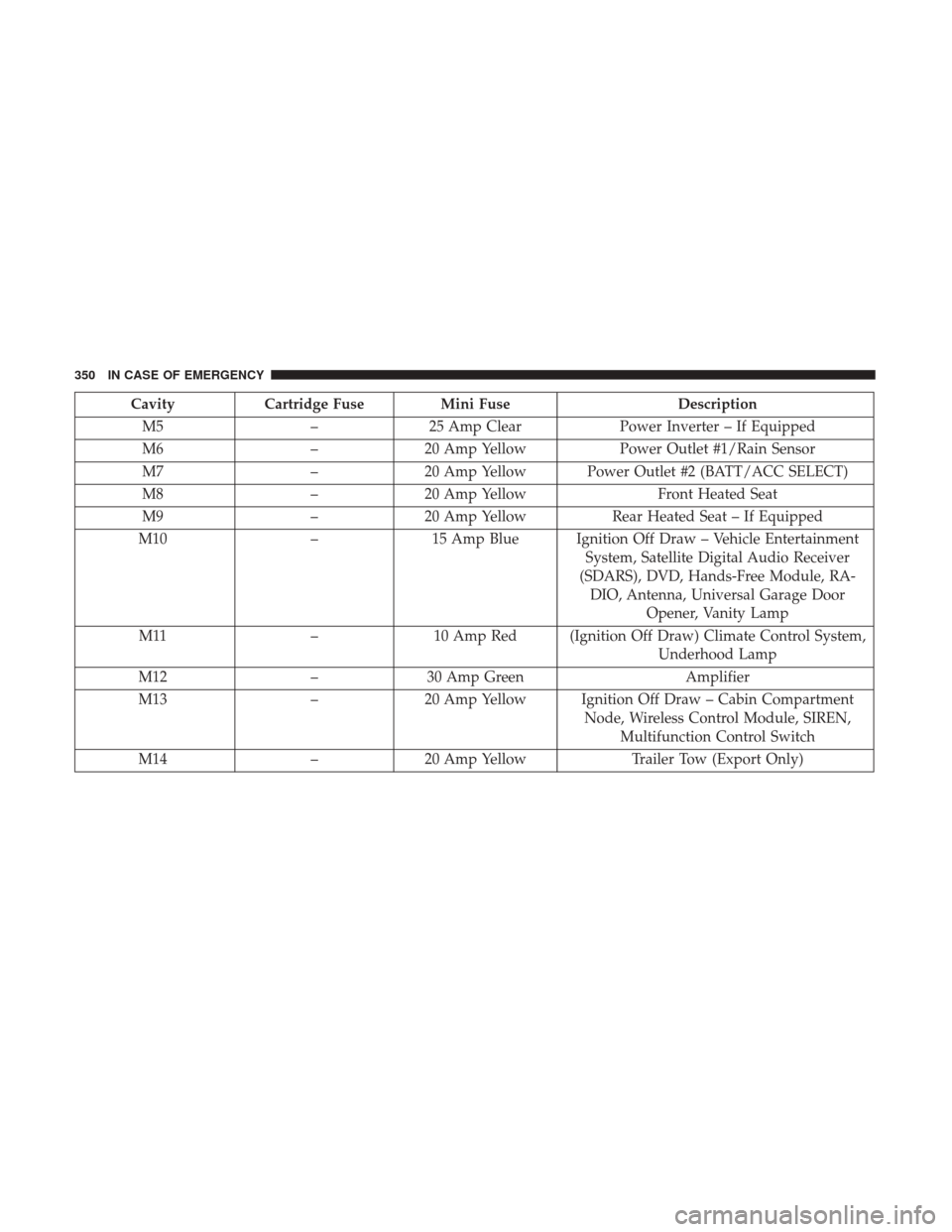

CavityCartridge Fuse Mini Fuse Description
M5 –25 Amp Clear Power Inverter – If Equipped
M6 –20 Amp Yellow Power Outlet #1/Rain Sensor
M7 –20 Amp Yellow Power Outlet #2 (BATT/ACC SELECT)
M8 –20 Amp Yellow Front Heated Seat
M9 –20 Amp Yellow Rear Heated Seat – If Equipped
M10 –15 Amp Blue Ignition Off Draw – Vehicle Entertainment
System, Satellite Digital Audio Receiver
(SDARS), DVD, Hands-Free Module, RA- DIO, Antenna, Universal Garage Door Opener, Vanity Lamp
M11 –10 Amp Red (Ignition Off Draw) Climate Control System,
Underhood Lamp
M12 –30 Amp Green Amplifier
M13 –20 Amp Yellow Ignition Off Draw – Cabin Compartment
Node, Wireless Control Module, SIREN,Multifunction Control Switch
M14 –20 Amp Yellow Trailer Tow (Export Only)
350 IN CASE OF EMERGENCY
Page 353 of 527

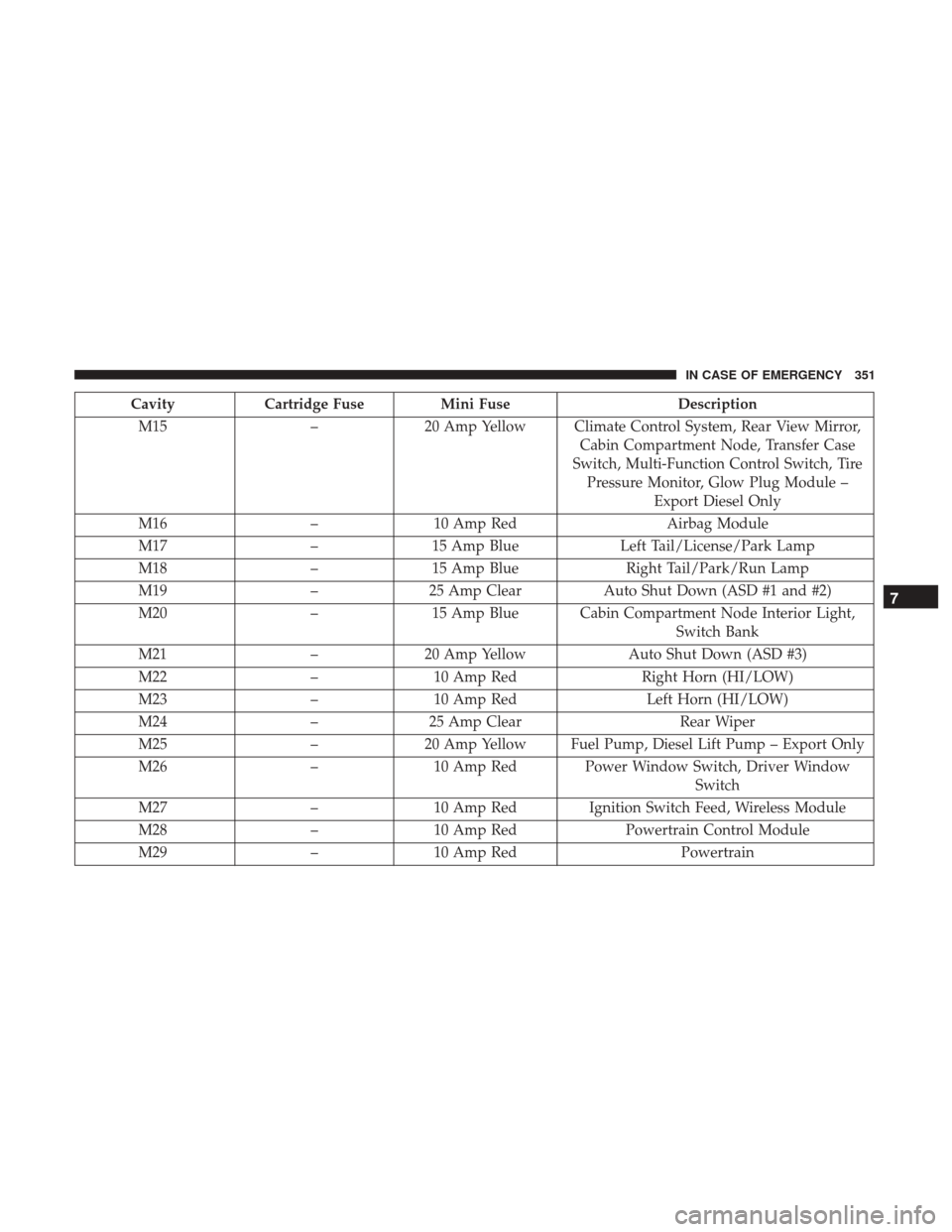

CavityCartridge Fuse Mini Fuse Description
M15 –20 Amp Yellow Climate Control System, Rear View Mirror,
Cabin Compartment Node, Transfer Case
Switch, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only
M16 –10 Amp Red Airbag Module
M17 –15 Amp Blue Left Tail/License/Park Lamp
M18 –15 Amp Blue Right Tail/Park/Run Lamp
M19 –25 Amp Clear Auto Shut Down (ASD #1 and #2)
M20 –15 Amp Blue Cabin Compartment Node Interior Light,
Switch Bank
M21 –20 Amp Yellow Auto Shut Down (ASD #3)
M22 –10 Amp Red Right Horn (HI/LOW)
M23 –10 Amp Red Left Horn (HI/LOW)
M24 –25 Amp Clear Rear Wiper
M25 –20 Amp Yellow Fuel Pump, Diesel Lift Pump – Export Only
M26 –10 Amp Red Power Window Switch, Driver Window
Switch
M27 –10 Amp Red Ignition Switch Feed, Wireless Module
M28 –10 Amp Red Powertrain Control Module
M29 –10 Amp Red Powertrain
7
IN CASE OF EMERGENCY 351
