jacking JEEP WRANGLER 2017 JK / 3.G Owners Manual

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............342
 BULB REPLACEMENT ....................342
▫ Replacement Bulbs .....................342
▫ Bulb Replacement ..................... .343
 FUSES ............................... .346
▫ General Information .....................347
▫ Totally Integrated Power Module ...........348
 JACKING AND TIRE CHANGING ...........353
▫ Jack Location ........................ .353
▫ Spare Tire Removal .....................354
▫ Preparations For Jacking .................354
▫ Jacking Instructions .....................355
▫ Road Tire Installation ....................357
 JUMP-STARTING ....................... .358▫
Preparations For Jump-Start ...............359
▫ Jump-Starting Procedure ..................360
 IF YOUR ENGINE OVERHEATS .............361
 GEAR SELECTOR OVERRIDE ..............362
 FREEING A STUCK VEHICLE ..............363
 TOWING A DISABLED VEHICLE ............365
▫ Without The Ignition Key .................366
▫ Four–Wheel Drive Models ................366
▫ Emergency Tow Hooks — If Equipped .......367
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .368
 EVENT DATA RECORDER (EDR) ............368
7

JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• Never start or run the engine while the vehicle is on
a jack.
• The jack is designed to be used as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.
Jack Location
The jack and lug wrench are located in the rear storage
compartment.
Jack Storage
7
IN CASE OF EMERGENCY 353

NOTE:Turn the black plastic wing nut counterclockwise to
loosen the jack from the storage bin.
Spare Tire Removal
To remove the spare tire from the carrier, remove the tire
cover, if equipped, and remove the lug nuts with the lug
wrench turning them counterclockwise.
NOTE: If you have added aftermarket accessories to the
spare tire mounted carrier, it cannot exceed a gross weight
of 85 lbs (38.5 kg) including the weight of the spare tire.
Preparations For Jacking
1. Park on a firm, level surface. Avoid ice or slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off the
road to avoid being hit when operating the jack or
changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Shift the automatic transmission into PARK, or a manual transmission into REVERSE.
5. Turn the ignition to LOCK.
6. Block both the front and rear of the wheel diagonally opposite of the jacking position. For ex-
ample, if changing the right front tire, block
the left rear wheel.
NOTE: Passengers should not remain in the vehicle when
the vehicle is being jacked.
Plastic Wing Nut Location
354 IN CASE OF EMERGENCY

Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
•Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
• Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the wheel to be
raised.
• Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
• Never start or run the engine with the vehicle on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely
careful of motor traffic.
(Continued)
WARNING! (Continued)
•To assure that spare tires, flat or inflated, are securely
stowed, spares must be stowed with the valve stem
facing the ground.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated.
Jack Warning Label
7
IN CASE OF EMERGENCY 355

1. Remove the spare tire, jack and tools from the storedlocation.
2. Loosen (but do not remove) the wheel lug nuts by turning them to the left one turn while the wheel is still
on the ground.
3. Assemble the jack and jacking tools. Connect the jack handle driver to the extension, then to the lug wrench.
4. Operate the jack from the front or the rear of the vehicle. Place the jack under the axle tube, as shown. Do not
raise the vehicle until you are sure the jack is fully
engaged.
5. Raise the vehicle by turning the jack screw clockwise.Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.
WARNING!
Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.
Front Jacking Location
Rear Jacking Location
356 IN CASE OF EMERGENCY

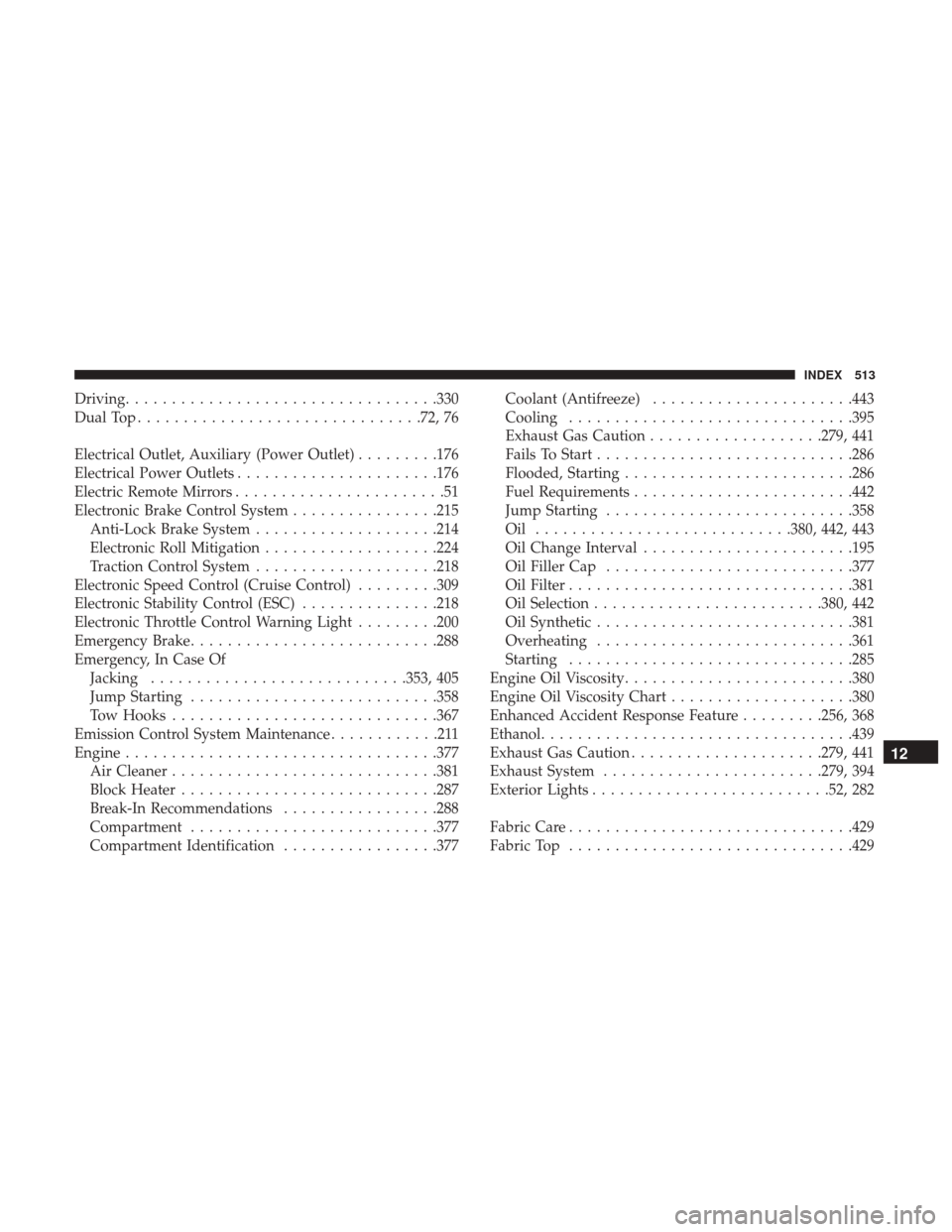

Driving................................. .330
Dual Top .............................. .72, 76
Electrical Outlet, Auxiliary (Power Outlet) .........176
Electrical Power Outlets ..................... .176
Electric Remote Mirrors .......................51
Electronic Brake Control System ................215
Anti-Lock Brake System ....................214
Electronic Roll Mitigation ...................224
Traction Control System ....................218
Electronic Speed Control (Cruise Control) .........309
Electronic Stability Control (ESC) ...............218
Electronic Throttle Control Warning Light .........200
Emergency Brake .......................... .288
Emergency, In Case Of Jacking ........................... .353, 405
Jump Starting .......................... .358
Tow Hooks ............................ .367
Emission Control System Maintenance ............211
Engine ................................. .377
Air Cleaner ............................ .381
Block Heater ........................... .287
Break-In Recommendations .................288
Compartment .......................... .377
Compartment Identification .................377 Coolant (Antifreeze)
..................... .443
Cooling .............................. .395
Exhaust Gas Caution ...................279, 441
Fails To Start ........................... .286
Flooded, Starting ........................ .286
Fuel Requirements ....................... .442
Jump Starting .......................... .358
Oil ........................... .380, 442, 443
Oil Change Interval ...................... .195
Oil Filler Cap .......................... .377
Oil Filter .............................. .381
Oil Selection ........................ .380,
442
Oil Synthetic ........................... .381
Overheating ........................... .361
Starting .............................. .285
Engine Oil Viscosity ........................ .380
Engine Oil Viscosity Chart ....................380
Enhanced Accident Response Feature .........256, 368
Ethanol ................................. .439
Exhaust Gas Caution .....................279, 441
Exhaust System ....................... .279, 394
Exterior Lights ......................... .52, 282
Fabric Care .............................. .429
Fabric Top .............................. .429
12
INDEX 513

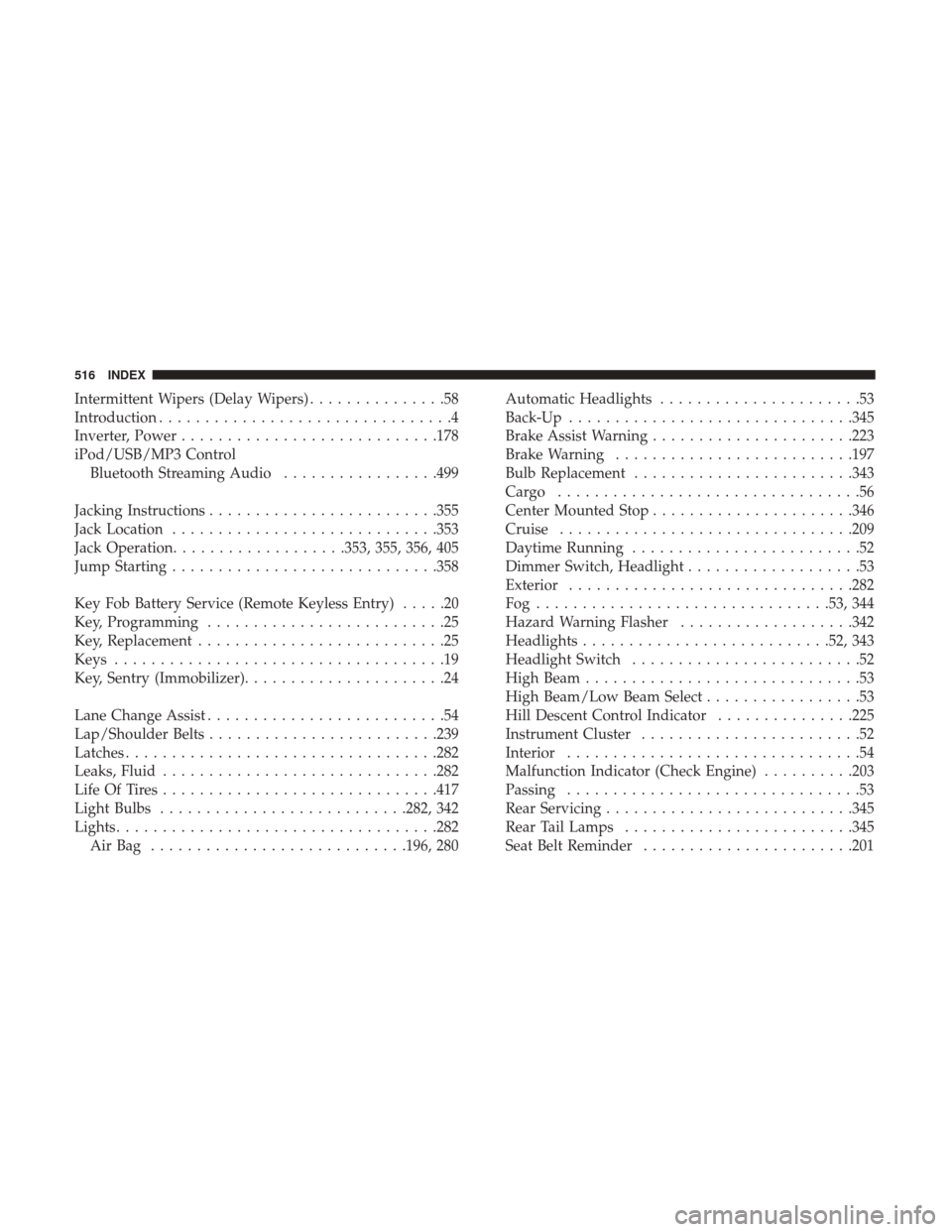

Intermittent Wipers (Delay Wipers)...............58
