Page 20 of 527

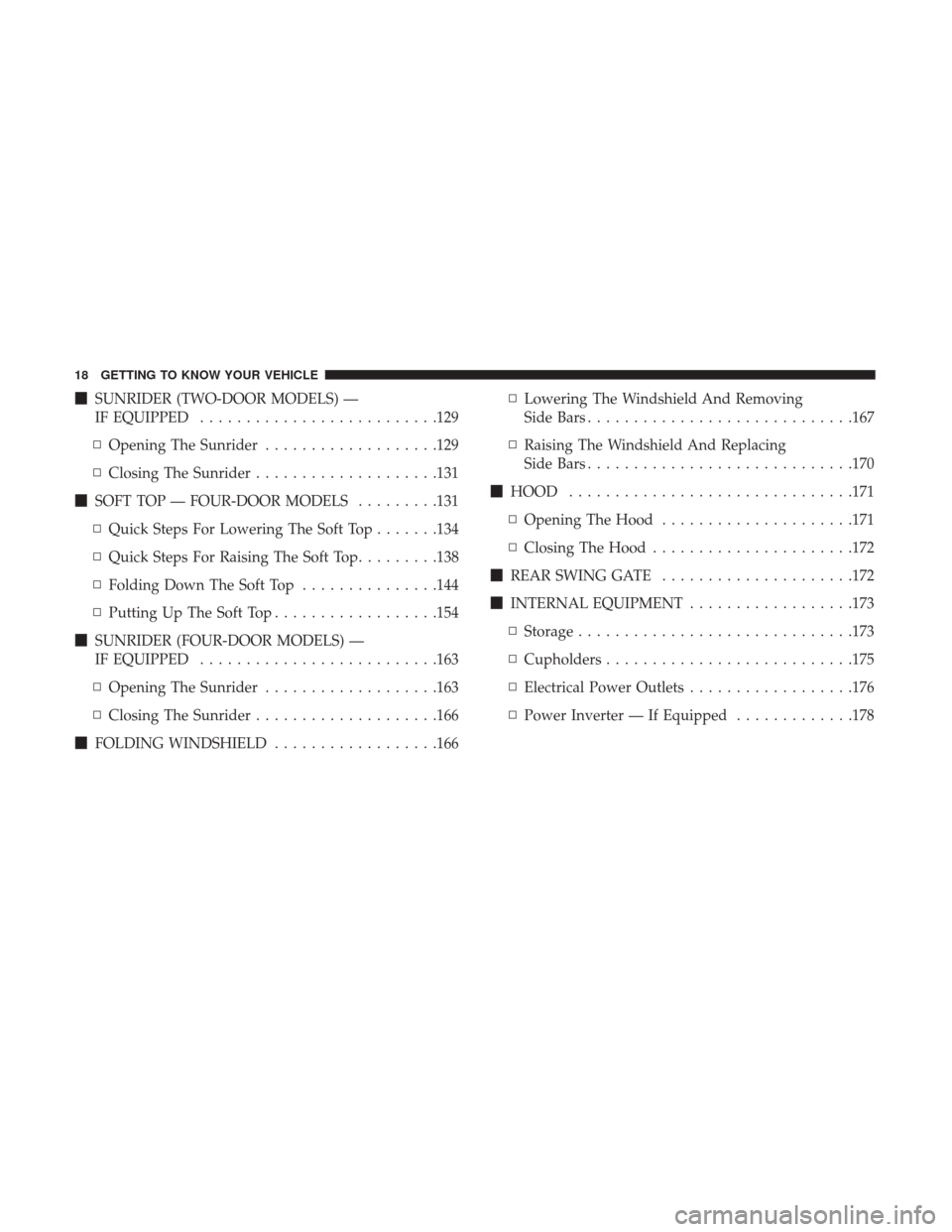

SUNRIDER (TWO-DOOR MODELS) —
IF EQUIPPED ......................... .129
▫ Opening The Sunrider ...................129
▫ Closing The Sunrider ....................131
SOFT TOP — FOUR-DOOR MODELS .........131
▫ Quick Steps For Lowering The Soft Top .......134
▫ Quick Steps For Raising The Soft Top .........138
▫ Folding Down The Soft Top ...............144
▫ Putting Up The Soft Top ..................154
SUNRIDER (FOUR-DOOR MODELS) —
IF EQUIPPED ......................... .163
▫ Opening The Sunrider ...................163
▫ Closing The Sunrider ....................166
FOLDING WINDSHIELD ..................166 ▫
Lowering The Windshield And Removing
Side Bars ............................ .167
▫ Raising The Windshield And Replacing
Side Bars ............................ .170
HOOD .............................. .171
▫ Opening The Hood .....................171
▫ Closing The Hood ..................... .172
REAR SWING GATE .....................172
INTERNAL EQUIPMENT ..................173
▫ Storage ............................. .173
▫ Cupholders .......................... .175
▫ Electrical Power Outlets ..................176
▫ Power Inverter — If Equipped .............178
18 GETTING TO KNOW YOUR VEHICLE
Page 25 of 527
•Remote Start Aborted — Hood Open
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Open
• Remote Start Aborted — System Fault
The instrument cluster display message stays active until
the ignition is turned to the ON/RUN position.
To Enter Remote Start
Push and release the remote start button on the key fob
twice within five seconds. The vehicle doors will lock, the
parking lights will flash and the horn will chirp twice (if
programmed). Then, the engine will start and the vehicle
will remain in the remote start mode for a 15-minute cycle.
NOTE:
• The park lamps will turn on and remain on during
remote start mode.
• For security, power window operation is disabled when
the vehicle is in the remote start mode. •
The engine can be started two consecutive times (two
15-minute cycles) with the key fob. However, the igni-
tion switch must be cycled to the ON/RUN position
before you can repeat the start sequence for a third cycle.
Remote start will also cancel if any of the following occur:
• The engine stalls or RPM exceeds 2500.
• Any engine warning lamps come on.
• The hood is opened.
• The hazard switch is pushed.
• The transmission is moved out of PARK.
• The brake pedal is pushed.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the remote start button one time or allow
the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shut downs, the system will
disable the one time push of the remote start button for two
seconds after receiving a valid remote start request.
3
GETTING TO KNOW YOUR VEHICLE 23
Page 173 of 527
7. Install the lower windshield plates with the six blackround-headed Torx head screws (using a #40 Torx head
driver) on each side of the base of the windshield.
8. Reinstall the wiper arms.HOOD
Opening The Hood
Release both the hood latches.
Raise the hood and locate the safety latch, located in the
middle of the hood opening. Push the safety latch to the
left side of the vehicle, to open the hood. You may have to
push down slightly on the hood before pushing the safety
latch. Insert the support rod into the slot on the hood.
Step Seven
Hood Latch
3
GETTING TO KNOW YOUR VEHICLE 171
Page 174 of 527
Closing The Hood
To close the hood, remove the support rod from the hood
panel and place it in the retaining clip. Lower the hood
slowly. Secure both of the hood latches.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
REAR SWING GATE
The rear swing gate can be unlocked by using the key,
Remote Keyless Entry key fob, or by activating the power
door lock switches located on the front doors.
To open the swing gate, push the button on the gate
handle.NOTE:
Close the rear flip-up window before attempting
to close the swing gate (hard top models only).
WARNING!
Driving with the flip-up window open can allow
poisonous exhaust gases into your vehicle. You and
your passengers could be injured by these fumes. Keep
the flip-up window closed when you are operating the
vehicle.
Gate Handle
172 GETTING TO KNOW YOUR VEHICLE
Page 345 of 527
Exterior Bulbs
Bulb Number
Headlamps (2) H13
Front Park/Turn Signal Lamps (2) 3157NA
Front Side Marker Lamps (2) 168
Fog Lamps PSX24W
Rear Stop/Tail/Turn Lamps (2) 3157
Center High-Mounted Stop Lamp L.E.D.
Backup Lamps (2) 3157
License Lamp 194
NOTE: Numbers refer to commercial bulb types that can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.
Bulb Replacement
NOTE: Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric condi-
tions change to allow the condensation to change back into
a vapor. Turning the lamps on will usually accelerate the
clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4 turn counterclockwise and remove.
7
IN CASE OF EMERGENCY 343
Page 352 of 527
CavityCartridge Fuse Mini Fuse Description
M5 –25 Amp Clear Power Inverter – If Equipped
M6 –20 Amp Yellow Power Outlet #1/Rain Sensor
M7 –20 Amp Yellow Power Outlet #2 (BATT/ACC SELECT)
M8 –20 Amp Yellow Front Heated Seat
M9 –20 Amp Yellow Rear Heated Seat – If Equipped
M10 –15 Amp Blue Ignition Off Draw – Vehicle Entertainment
System, Satellite Digital Audio Receiver
(SDARS), DVD, Hands-Free Module, RA- DIO, Antenna, Universal Garage Door Opener, Vanity Lamp
M11 –10 Amp Red (Ignition Off Draw) Climate Control System,
Underhood Lamp
M12 –30 Amp Green Amplifier
M13 –20 Amp Yellow Ignition Off Draw – Cabin Compartment
Node, Wireless Control Module, SIREN,Multifunction Control Switch
M14 –20 Amp Yellow Trailer Tow (Export Only)
350 IN CASE OF EMERGENCY
Page 361 of 527
Preparations For Jump-Start
The battery in your vehicle is located in the right rear of the
engine compartment, behind the Power Distribution Center.
1 — Positive Battery Post
2 — Negative Battery Post
WARNING!
•Take care to avoid the radiator cooling fan whenever
the hood is raised. It can start anytime the ignition
switch is ON. You can be injured by moving fan
blades.
• Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.
• Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission into PARK (manual transmission in NEUTRAL) and
turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electrical accessories.
3. If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
Battery Posts
7
IN CASE OF EMERGENCY 359
Page 364 of 527
CAUTION!
Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads HOT (H), pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on HOT
(H), and you hear continuous chimes, turn the engine
off immediately and call for service.
NOTE: There are steps that you can take to slow down an
impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
• You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.
GEAR SELECTOR OVERRIDE
If a malfunction occurs and the gear selector cannot be
moved out of the PARK position, you can use the following
procedure to temporarily move the gear selector:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
3. Using a small screwdriver or similar tool, remove the gear selector override access cover (located to the right
of the gear selector).
4. Turn the ignition to the ACC or ON/RUN position, but do not start the engine.
362 IN CASE OF EMERGENCY
Page 397 of 527
CAUTION!(Continued)
•Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. In
the event of engine malfunction, particularly involv-
ing engine misfire or other apparent loss of perfor-
mance, have your vehicle serviced promptly. Contin-
ued operation of your vehicle with a severe
malfunction could cause the converter to overheat,
resulting in possible damage to the converter and
vehicle.
Under normal operating conditions, the catalytic converter
will not require maintenance. However, it is important to
keep the engine properly tuned to assure proper catalyst
operation and prevent possible catalyst damage.
NOTE: Intentional tampering with emissions control sys-
tems can result in civil penalties being assessed against
you.
In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe and
abnormal catalyst overheating. If this occurs, stop the
vehicle, turn off the engine and allow it to cool. Service,
including a tune-up to manufacturer’s specifications,
should be obtained immediately. To minimize the possibility of catalytic converter damage:
•
Do not shut off the engine or interrupt the ignition,
when the transmission is in gear and the vehicle is in
motion.
• Do not try to start the engine by pushing or towing the
vehicle.
• Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough idle
or malfunctioning operating conditions.
Cooling System
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.
8
SERVICING AND MAINTENANCE 395
