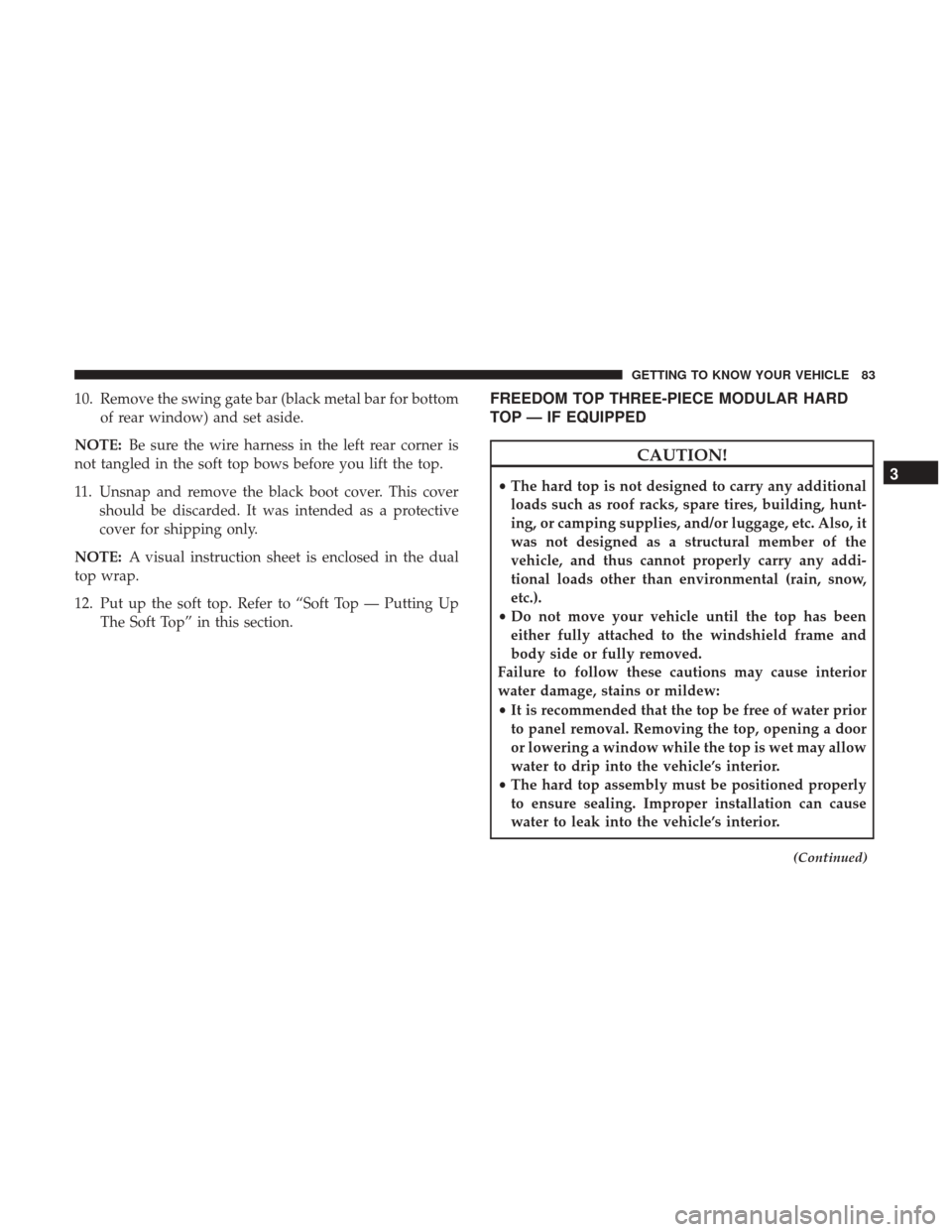

10. Remove the swing gate bar (black metal bar for bottomof rear window) and set aside.
NOTE: Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
11. Unsnap and remove the black boot cover. This cover should be discarded. It was intended as a protective
cover for shipping only.
NOTE: A visual instruction sheet is enclosed in the dual
top wrap.
12. Put up the soft top. Refer to “Soft Top — Putting Up The Soft Top” in this section.FREEDOM TOP THREE-PIECE MODULAR HARD
TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunt-
ing, or camping supplies, and/or luggage, etc. Also, it
was not designed as a structural member of the
vehicle, and thus cannot properly carry any addi-
tional loads other than environmental (rain, snow,
etc.).
• Do not move your vehicle until the top has been
either fully attached to the windshield frame and
body side or fully removed.
Failure to follow these cautions may cause interior
water damage, stains or mildew:
• It is recommended that the top be free of water prior
to panel removal. Removing the top, opening a door
or lowering a window while the top is wet may allow
water to drip into the vehicle’s interior.
• The hard top assembly must be positioned properly
to ensure sealing. Improper installation can cause
water to leak into the vehicle’s interior.
(Continued)
3
GETTING TO KNOW YOUR VEHICLE 83

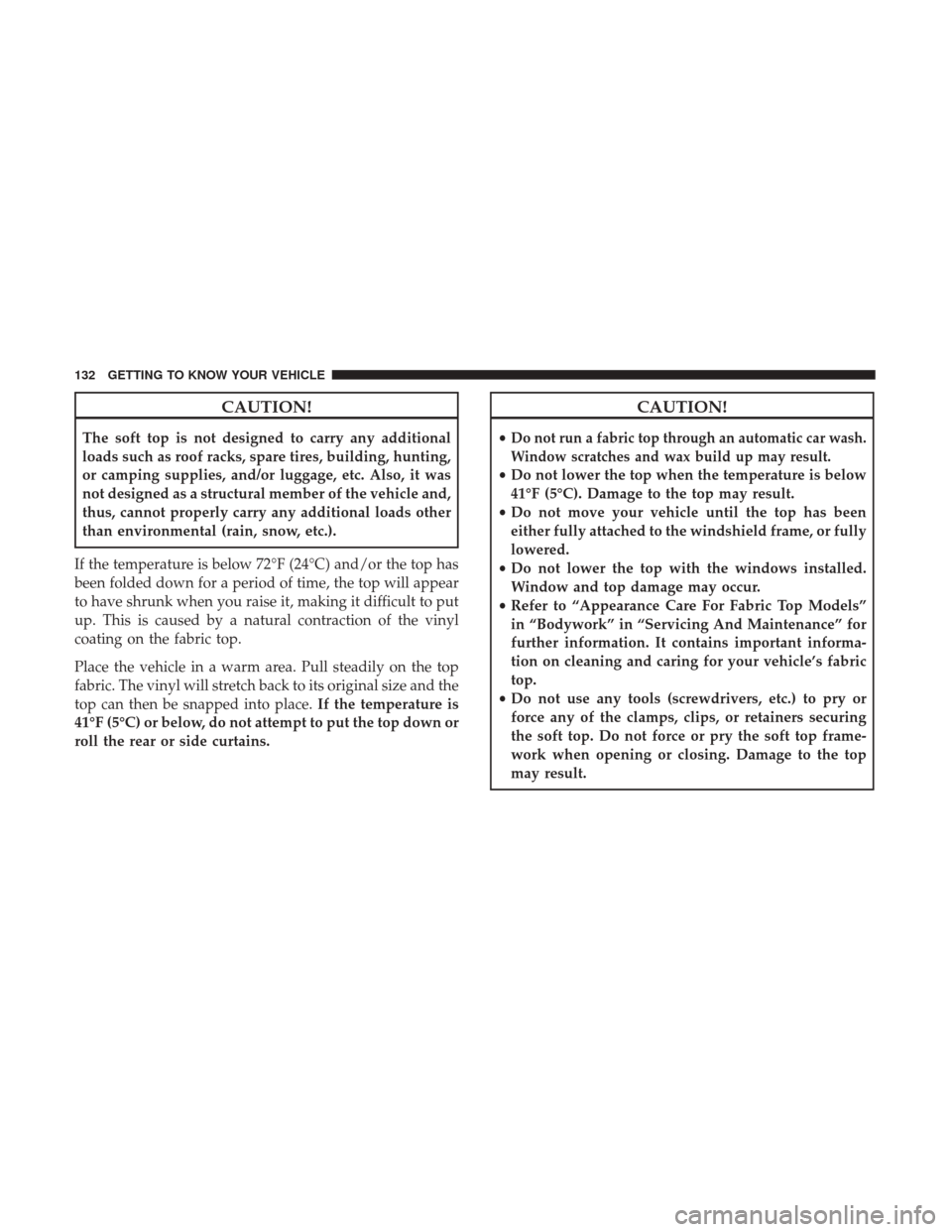

CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunting,
or camping supplies, and/or luggage, etc. Also, it was
not designed as a structural member of the vehicle and,
thus, cannot properly carry any additional loads other
than environmental (rain, snow, etc.).
If the temperature is below 72°F (24°C) and/or the top has
been folded down for a period of time, the top will appear
to have shrunk when you raise it, making it difficult to put
up. This is caused by a natural contraction of the vinyl
coating on the fabric top.
Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and the
top can then be installed. If the temperature is 41°F (5°C)
or below, do not attempt to put the top down or roll the
rear or side curtains.
CAUTION!
• Do not run a fabric top through an automatic car
wash. Window scratches and wax build up may
result.
• Do not lower the top when the temperature is below
41°F (5°C). Damage to the top may result.
• Do not move your vehicle until the top has been
either fully attached to the windshield frame, or fully
lowered.
• Do not lower the top with the windows installed.
Window and top damage may occur.
• Refer to “Appearance Care For Fabric Top Models”
in “Bodywork” in “Servicing And Maintenance” for
further information. It contains important informa-
tion on cleaning and caring for your vehicle’s fabric
top.
• Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top frame-
work when opening or closing. Damage to the top
may result.
3

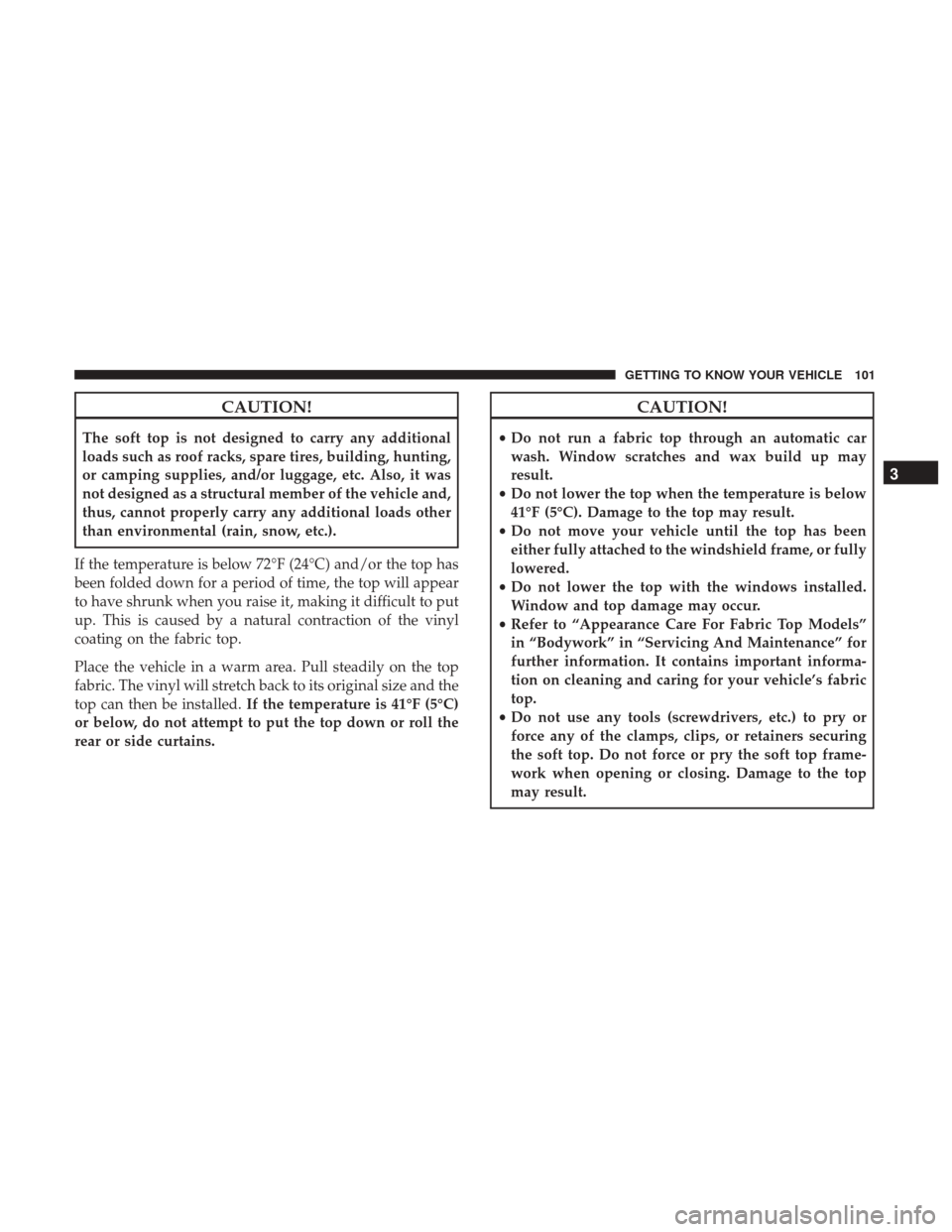

GETTING TO KNOW YOUR VEHICLE 101

CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunting,
or camping supplies, and/or luggage, etc. Also, it was
not designed as a structural member of the vehicle and,
thus, cannot properly carry any additional loads other
than environmental (rain, snow, etc.).
If the temperature is below 72°F (24°C) and/or the top has
been folded down for a period of time, the top will appear
to have shrunk when you raise it, making it difficult to put
up. This is caused by a natural contraction of the vinyl
coating on the fabric top.
Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and the
top can then be snapped into place. If the temperature is
41°F (5°C) or below, do not attempt to put the top down or
roll the rear or side curtains.
CAUTION!
•Do not run a fabric top through an automatic car wash.
Window scratches and wax build up may result.
• Do not lower the top when the temperature is below
41°F (5°C). Damage to the top may result.
• Do not move your vehicle until the top has been
either fully attached to the windshield frame, or fully
lowered.
• Do not lower the top with the windows installed.
Window and top damage may occur.
• Refer to “Appearance Care For Fabric Top Models”
in “Bodywork” in “Servicing And Maintenance” for
further information. It contains important informa-
tion on cleaning and caring for your vehicle’s fabric
top.
• Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top frame-
work when opening or closing. Damage to the top
may result.
132 GETTING TO KNOW YOUR VEHICLE

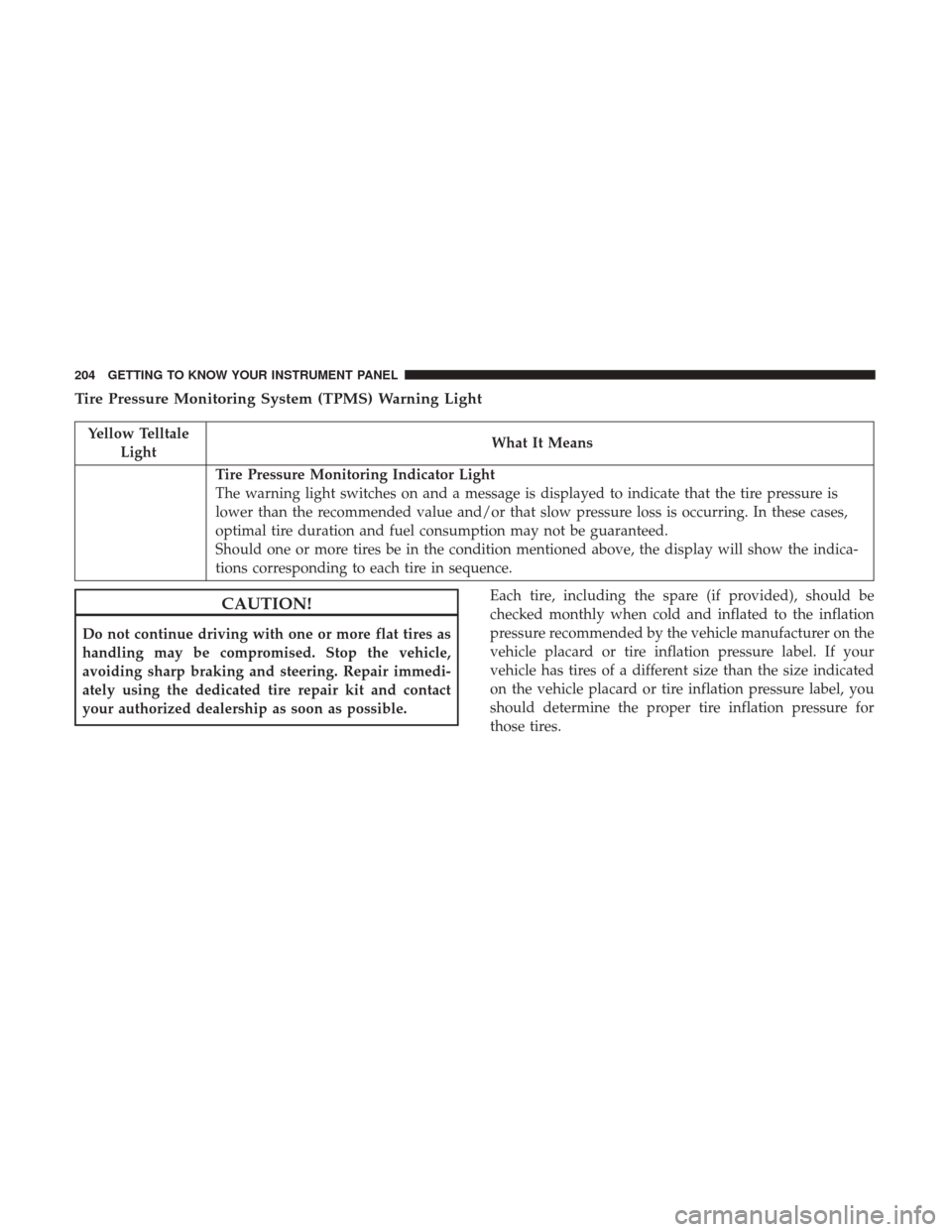

Tire Pressure Monitoring System (TPMS) Warning Light
Yellow TelltaleLight What It Means
Tire Pressure Monitoring Indicator Light
The warning light switches on and a message is displayed to indicate that the tire pressure is
lower than the recommended value and/or that slow pressure loss is occurring. In these cases,
optimal tire duration and fuel consumption may not be guaranteed.
Should one or more tires be in the condition mentioned above, the display will show the indica-
tions corresponding to each tire in sequence.
CAUTION!
Do not continue driving with one or more flat tires as
handling may be compromised. Stop the vehicle,
avoiding sharp braking and steering. Repair immedi-
ately using the dedicated tire repair kit and contact
your authorized dealership as soon as possible. Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. If your
vehicle has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure label, you
should determine the proper tire inflation pressure for
those tires.
204 GETTING TO KNOW YOUR INSTRUMENT PANEL

Base System

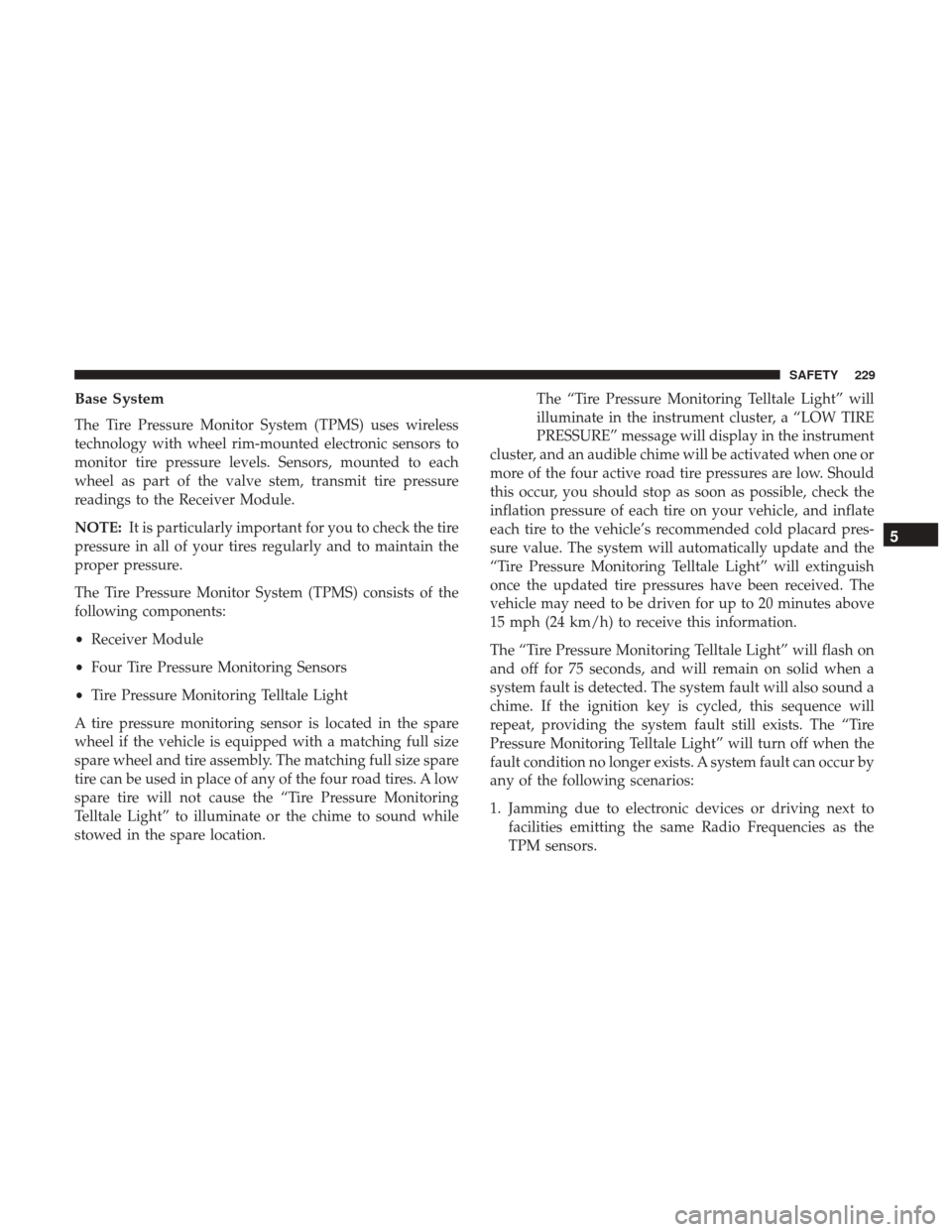

The Tire Pressure Monitor System (TPMS) uses wireless
technology with wheel rim-mounted electronic sensors to
monitor tire pressure levels. Sensors, mounted to each
wheel as part of the valve stem, transmit tire pressure
readings to the Receiver Module.
NOTE:It is particularly important for you to check the tire
pressure in all of your tires regularly and to maintain the
proper pressure.
The Tire Pressure Monitor System (TPMS) consists of the
following components:
• Receiver Module
• Four Tire Pressure Monitoring Sensors
• Tire Pressure Monitoring Telltale Light
A tire pressure monitoring sensor is located in the spare
wheel if the vehicle is equipped with a matching full size
spare wheel and tire assembly. The matching full size spare
tire can be used in place of any of the four road tires. A low
spare tire will not cause the “Tire Pressure Monitoring
Telltale Light” to illuminate or the chime to sound while
stowed in the spare location. The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster, a “LOW TIRE
PRESSURE” message will display in the instrument
cluster, and an audible chime will be activated when one or
more of the four active road tire pressures are low. Should
this occur, you should stop as soon as possible, check the
inflation pressure of each tire on your vehicle, and inflate
each tire to the vehicle’s recommended cold placard pres-
sure value. The system will automatically update and the
“Tire Pressure Monitoring Telltale Light” will extinguish
once the updated tire pressures have been received. The
vehicle may need to be driven for up to 20 minutes above
15 mph (24 km/h) to receive this information.
The “Tire Pressure Monitoring Telltale Light” will flash on
and off for 75 seconds, and will remain on solid when a
system fault is detected. The system fault will also sound a
chime. If the ignition key is cycled, this sequence will
repeat, providing the system fault still exists. The “Tire
Pressure Monitoring Telltale Light” will turn off when the
fault condition no longer exists. A system fault can occur by
any of the following scenarios:
1. Jamming due to electronic devices or driving next to facilities emitting the same Radio Frequencies as the
TPM sensors.
5
SAFETY 229

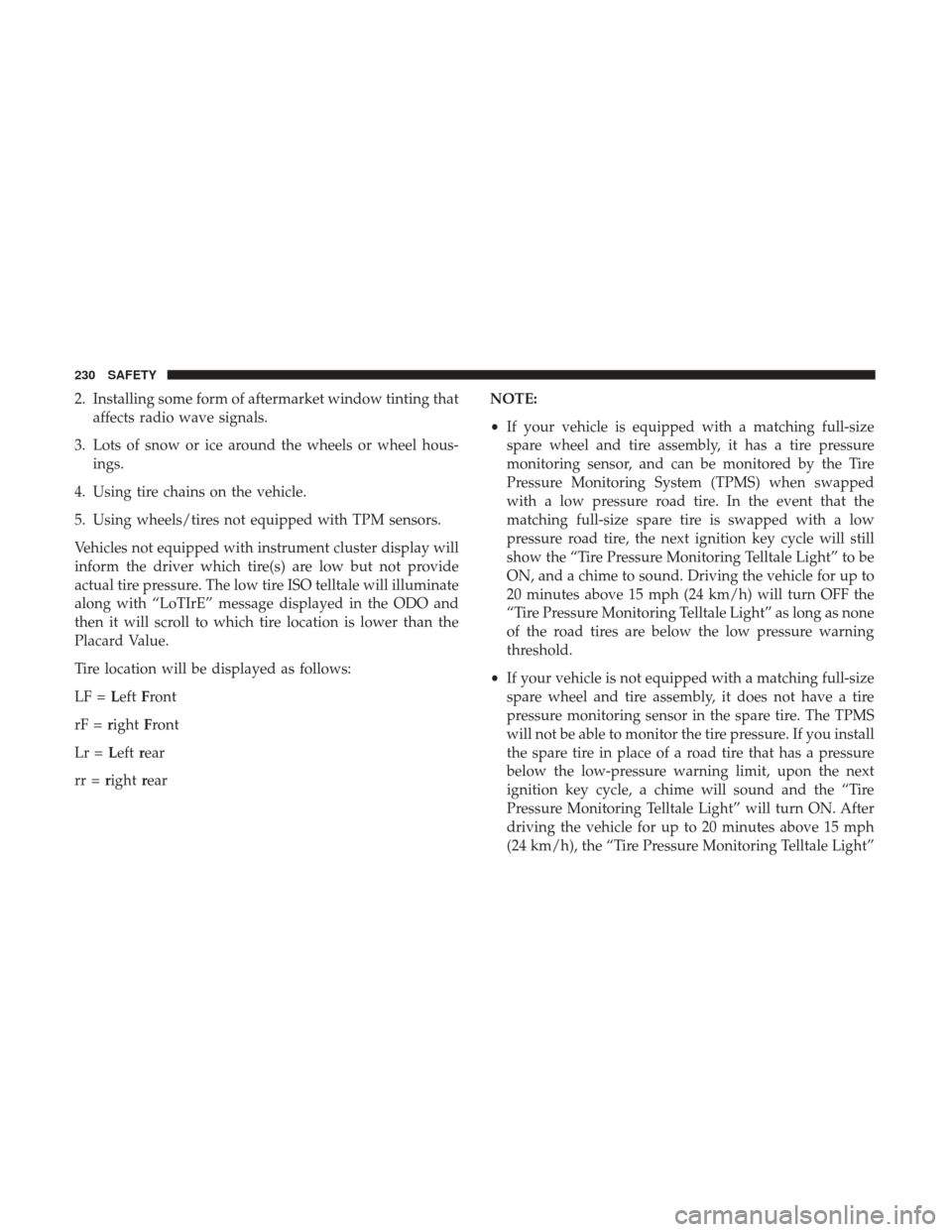

2. Installing some form of aftermarket window tinting thataffects radio wave signals.
3. Lots of snow or ice around the wheels or wheel hous- ings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
Vehicles not equipped with instrument cluster display will
inform the driver which tire(s) are low but not provide
actual tire pressure. The low tire ISO telltale will illuminate
along with “LoTIrE” message displayed in the ODO and
then it will scroll to which tire location is lower than the
Placard Value.
Tire location will be displayed as follows:
LF = LeftFront
rF = right Front
Lr = Leftrear
rr = right rear NOTE:
•
If your vehicle is equipped with a matching full-size
spare wheel and tire assembly, it has a tire pressure
monitoring sensor, and can be monitored by the Tire
Pressure Monitoring System (TPMS) when swapped
with a low pressure road tire. In the event that the
matching full-size spare tire is swapped with a low
pressure road tire, the next ignition key cycle will still
show the “Tire Pressure Monitoring Telltale Light” to be
ON, and a chime to sound. Driving the vehicle for up to
20 minutes above 15 mph (24 km/h) will turn OFF the
“Tire Pressure Monitoring Telltale Light” as long as none
of the road tires are below the low pressure warning
threshold.
• If your vehicle is not equipped with a matching full-size
spare wheel and tire assembly, it does not have a tire
pressure monitoring sensor in the spare tire. The TPMS
will not be able to monitor the tire pressure. If you install
the spare tire in place of a road tire that has a pressure
below the low-pressure warning limit, upon the next
ignition key cycle, a chime will sound and the “Tire
Pressure Monitoring Telltale Light” will turn ON. After
driving the vehicle for up to 20 minutes above 15 mph
(24 km/h), the “Tire Pressure Monitoring Telltale Light”

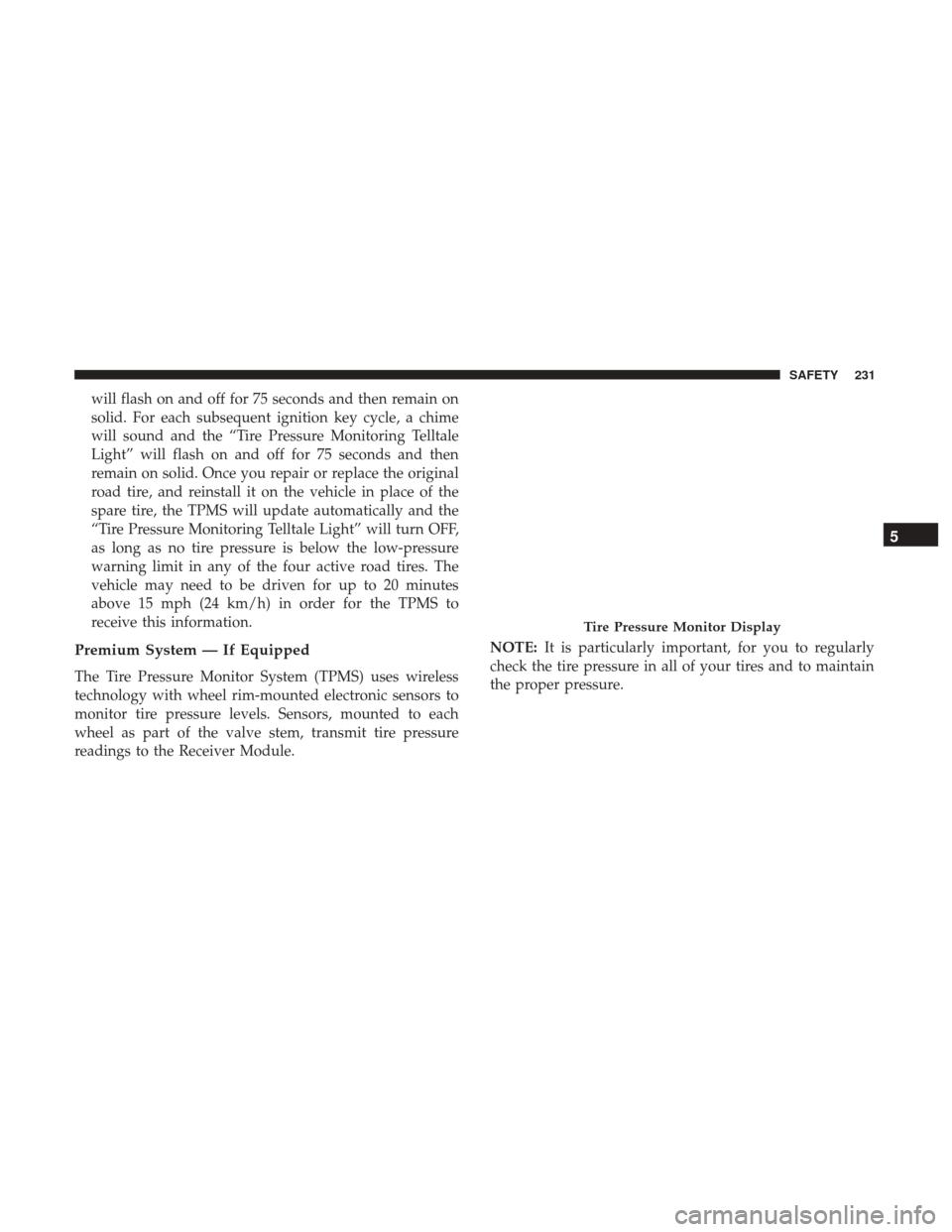

230 SAFETY

will flash on and off for 75 seconds and then remain on
solid. For each subsequent ignition key cycle, a chime
will sound and the “Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 seconds and then
remain on solid. Once you repair or replace the original
road tire, and reinstall it on the vehicle in place of the
spare tire, the TPMS will update automatically and the
“Tire Pressure Monitoring Telltale Light” will turn OFF,
as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The
vehicle may need to be driven for up to 20 minutes
above 15 mph (24 km/h) in order for the TPMS to
receive this information.
Premium System — If Equipped
The Tire Pressure Monitor System (TPMS) uses wireless
technology with wheel rim-mounted electronic sensors to
monitor tire pressure levels. Sensors, mounted to each
wheel as part of the valve stem, transmit tire pressure
readings to the Receiver Module.NOTE:
It is particularly important, for you to regularly
check the tire pressure in all of your tires and to maintain
the proper pressure.
Tire Pressure Monitor Display
5

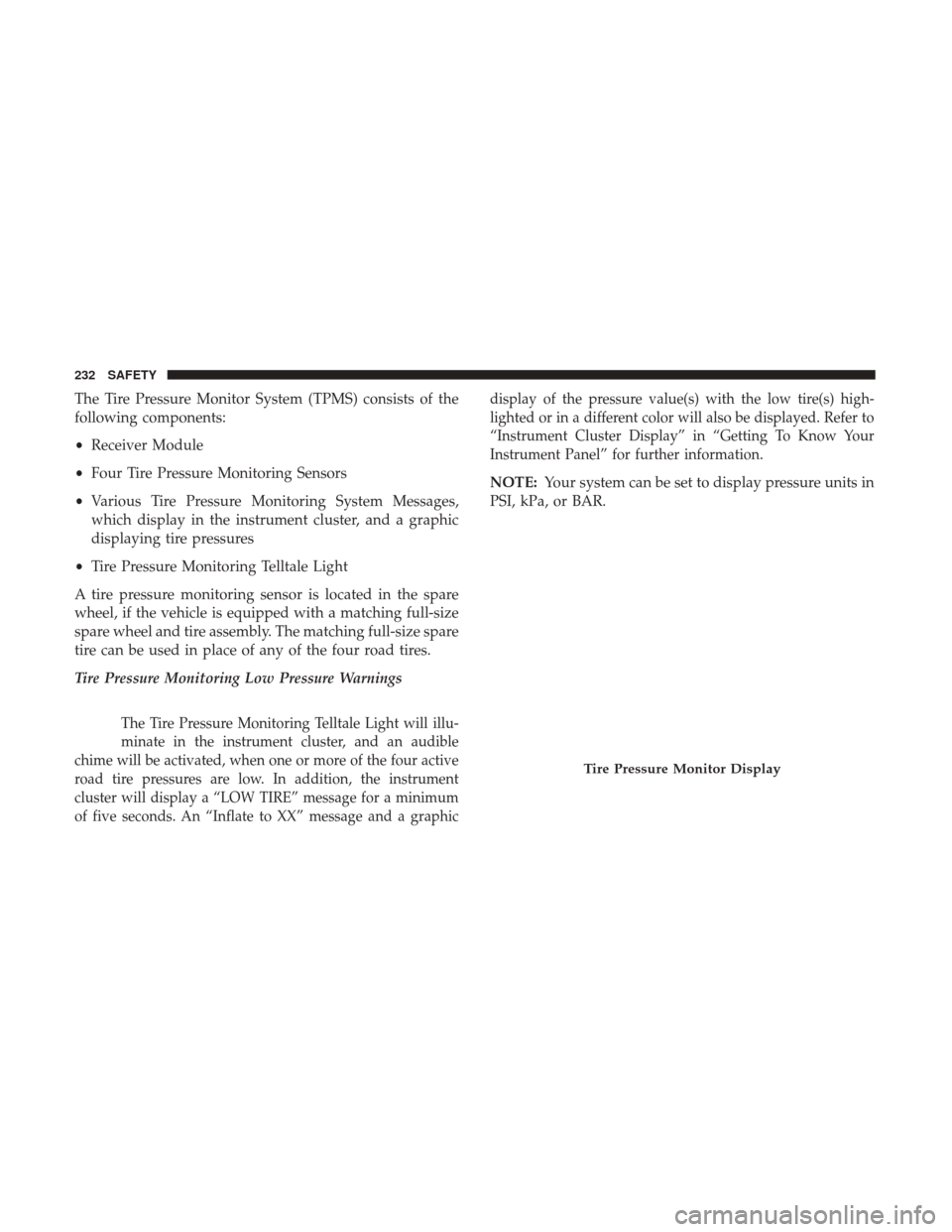

SAFETY 231

The Tire Pressure Monitor System (TPMS) consists of the
following components:
•Receiver Module
• Four Tire Pressure Monitoring Sensors
• Various Tire Pressure Monitoring System Messages,
which display in the instrument cluster, and a graphic
displaying tire pressures
• Tire Pressure Monitoring Telltale Light
A tire pressure monitoring sensor is located in the spare
wheel, if the vehicle is equipped with a matching full-size
spare wheel and tire assembly. The matching full-size spare
tire can be used in place of any of the four road tires.
Tire Pressure Monitoring Low Pressure Warnings
The Tire Pressure Monitoring Telltale Light will illu-
minate in the instrument cluster, and an audible
chime will be activated, when one or more of the four active
road tire pressures are low. In addition, the instrument
cluster will display a “LOW TIRE” message for a minimum
of five seconds. An “Inflate to XX” message and a graphic display of the pressure value(s) with the low tire(s) high-
lighted or in a different color will also be displayed. Refer to
“Instrument Cluster Display” in “Getting To Know Your
Instrument Panel” for further information.
NOTE:
Your system can be set to display pressure units in
PSI, kPa, or BAR.
Tire Pressure Monitor Display

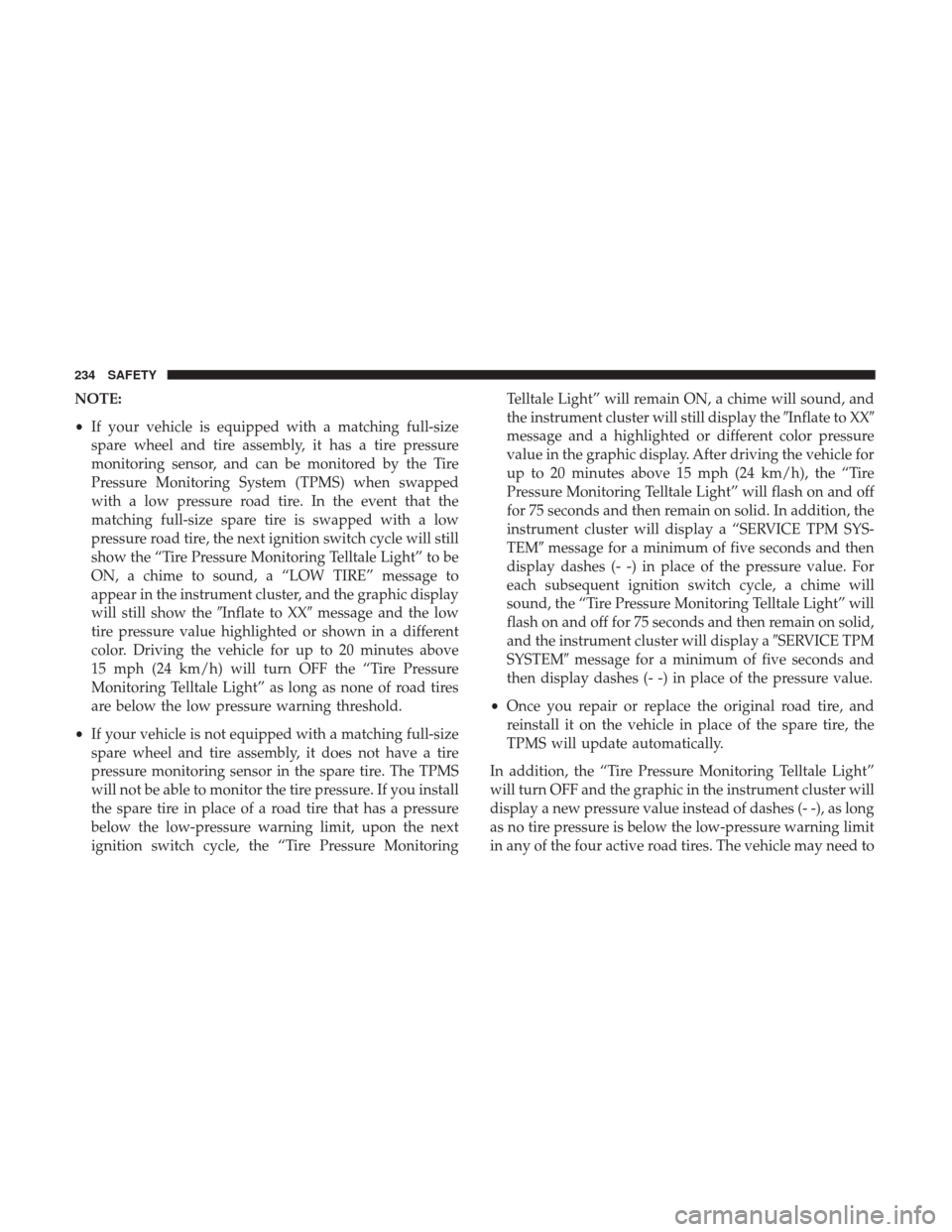

232 SAFETY

NOTE:
•If your vehicle is equipped with a matching full-size
spare wheel and tire assembly, it has a tire pressure
monitoring sensor, and can be monitored by the Tire
Pressure Monitoring System (TPMS) when swapped
with a low pressure road tire. In the event that the
matching full-size spare tire is swapped with a low
pressure road tire, the next ignition switch cycle will still
show the “Tire Pressure Monitoring Telltale Light” to be
ON, a chime to sound, a “LOW TIRE” message to
appear in the instrument cluster, and the graphic display
will still show the Inflate to XXmessage and the low
tire pressure value highlighted or shown in a different
color. Driving the vehicle for up to 20 minutes above
15 mph (24 km/h) will turn OFF the “Tire Pressure
Monitoring Telltale Light” as long as none of road tires
are below the low pressure warning threshold.
• If your vehicle is not equipped with a matching full-size
spare wheel and tire assembly, it does not have a tire
pressure monitoring sensor in the spare tire. The TPMS
will not be able to monitor the tire pressure. If you install
the spare tire in place of a road tire that has a pressure
below the low-pressure warning limit, upon the next
ignition switch cycle, the “Tire Pressure Monitoring Telltale Light” will remain ON, a chime will sound, and
the instrument cluster will still display the
Inflate to XX
message and a highlighted or different color pressure
value in the graphic display. After driving the vehicle for
up to 20 minutes above 15 mph (24 km/h), the “Tire
Pressure Monitoring Telltale Light” will flash on and off
for 75 seconds and then remain on solid. In addition, the
instrument cluster will display a “SERVICE TPM SYS-
TEM message for a minimum of five seconds and then
display dashes (- -) in place of the pressure value. For
each subsequent ignition switch cycle, a chime will
sound, the “Tire Pressure Monitoring Telltale Light” will
flash on and off for 75 seconds and then remain on solid,
and the instrument cluster will display a SERVICE TPM
SYSTEM message for a minimum of five seconds and
then display dashes (- -) in place of the pressure value.
• Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the spare tire, the
TPMS will update automatically.
In addition, the “Tire Pressure Monitoring Telltale Light”
will turn OFF and the graphic in the instrument cluster will
display a new pressure value instead of dashes (- -), as long
as no tire pressure is below the low-pressure warning limit
in any of the four active road tires. The vehicle may need to
234 SAFETY

WARNING!(Continued)
•ALWAYS make sure objects cannot fall or slide into
the driver ’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.
• NEVER place any objects under the floor mat (e.g.,
towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.
• If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, or brake fluid leaks are
suspected. The cause should be located and corrected
immediately.
282 SAFETY
