WELCOME FROM FCA
HOW TO FIND YOUR OWNER’S MANUAL
ONLINE ................................................... 1
HOW TO USE THIS MANUAL
HOW TO USE THIS MANUAL ..................... 2
Essential Information ........................ 2
Symbols .......................................... 2
ROLLOVER WARNING ............................... 2
WARNINGS AND CAUTIONS ..................... 2

VEHICLE MODIFICATIONS/ALTERATIONS .... 2

GETTING TO KNOW YOUR VEHICLE
KEYS ................................................... 11
Key Fob ......................................... 11
IGNITION SWITCH .................................. 12
Keyless Enter-N-Go — Ignition ........ 12
REMOTE STARTING SYSTEM —
IF EQUIPPED .......................................... 14
How To Use Remote Start ............... 14
To Enter Remote Start Mode............ 15
VEHICLE SECURITY ALARM —
IF EQUIPPED ......................................... 15
To Arm The System ....................... 15
To Disarm The System ................... 15
PREMIUM VEHICLE SECURITY ALARM —
IF EQUIPPED .........................................16
To Arm The System ........................ 16
To Disarm The System .................... 17
Security System Manual Override..... 17
DOORS ................................................. 18
Keyless Enter-N-Go — Passive Entry
(If Equipped) ................................ 18 Child-Protection Door Lock System —
Rear Doors..................................... 20 Front Door Removal ........................ 21
Rear Door Removal
(Four-Door Models) ........................ 23
SEATS................................................... 24
Heated Seats — If Equipped ........... 25
Front Passenger Easy Entry Seat —
Two Door Models ............................ 26 60/40 Split Folding Rear Seat —
Four Door Models ........................... 26 Fold And Tumble Rear Seat —
Two Door Models ............................ 27
HEAD RESTRAINTS.................................28
Front Head Restraints ..................... 28
Rear Head Restraints — Two Door
Models .......................................... 29 Rear Head Restraints — Four Door
Models .......................................... 30
STEERING WHEEL ..................................31
Tilt/Telescoping Steering Column .....31
Heated Steering Wheel —
If Equipped ....................................31
EXTERIOR LIGHTS ..................................32
Headlight Switch ............................32
Daytime Running Lights —
If Equipped ...................................32 High/Low Beam Switch....................32
Automatic High Beam —
If Equipped ....................................33 Flash-To-Pass .................................33
Automatic Headlights —
If Equipped ...................................33 Front And Rear Fog Lights —
If Equipped ....................................33 Turn Signals ...................................34
Lights-On Reminder ........................34
Headlight Leveling System — If
Equipped ......................................34
WINDSHIELD WIPERS AND WASHERS......35
Windshield Wiper Operation .............35
CLIMATE CONTROLS ...............................36

Automatic Climate Controls Overview ....37

Climate Control Functions................44
Automatic Temperature Control (ATC) —
If Equipped ....................................44 Operating Tips ...............................45
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 4

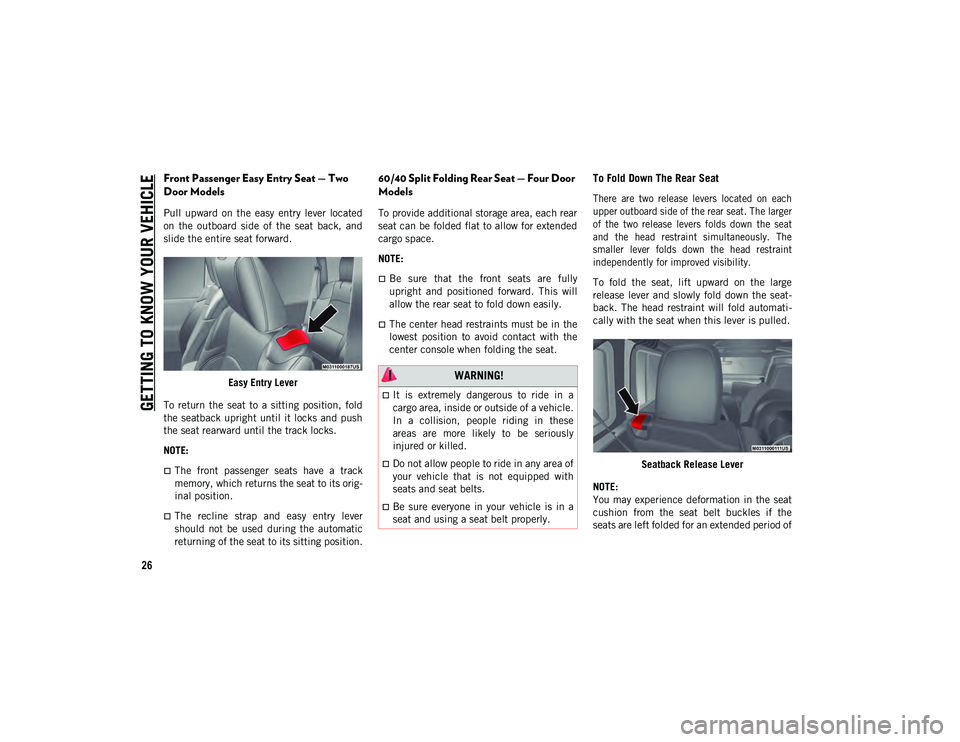

GETTING TO KNOW YOUR VEHICLE
26
Front Passenger Easy Entry Seat — Two
Door Models
Pull upward on the easy entry lever located
on the outboard side of the seat back, and
slide the entire seat forward.Easy Entry Lever
To return the seat to a sitting position, fold
the seatback upright until it locks and push
the seat rearward until the track locks.
NOTE:
The front passenger seats have a track
memory, which returns the seat to its orig-
inal position.
The recline strap and easy entry lever
should not be used during the automatic
returning of the seat to its sitting position.
60/40 Split Folding Rear Seat — Four Door
Models
To provide additional storage area, each rear
seat can be folded flat to allow for extended
cargo space.
NOTE:
Be sure that the front seats are fully
upright and positioned forward. This will
allow the rear seat to fold down easily.
The center head restraints must be in the
lowest position to avoid contact with the
center console when folding the seat.
To Fold Down The Rear Seat

There are two release levers located on each
upper outboard side of the rear seat. The larger
of the two release levers folds down the seat
and the head restraint simultaneously. The
smaller lever folds down the head restraint
independently for improved visibility.

To fold the seat, lift upward on the large
release lever and slowly fold down the seat -
back. The head restraint will fold automati -
cally with the seat when this lever is pulled.
Seatback Release Lever
NOTE:
You may experience deformation in the seat
cushion from the seat belt buckles if the
seats are left folded for an extended period of
WARNING!
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these
areas are more likely to be seriously
injured or killed.
Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.
Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 26

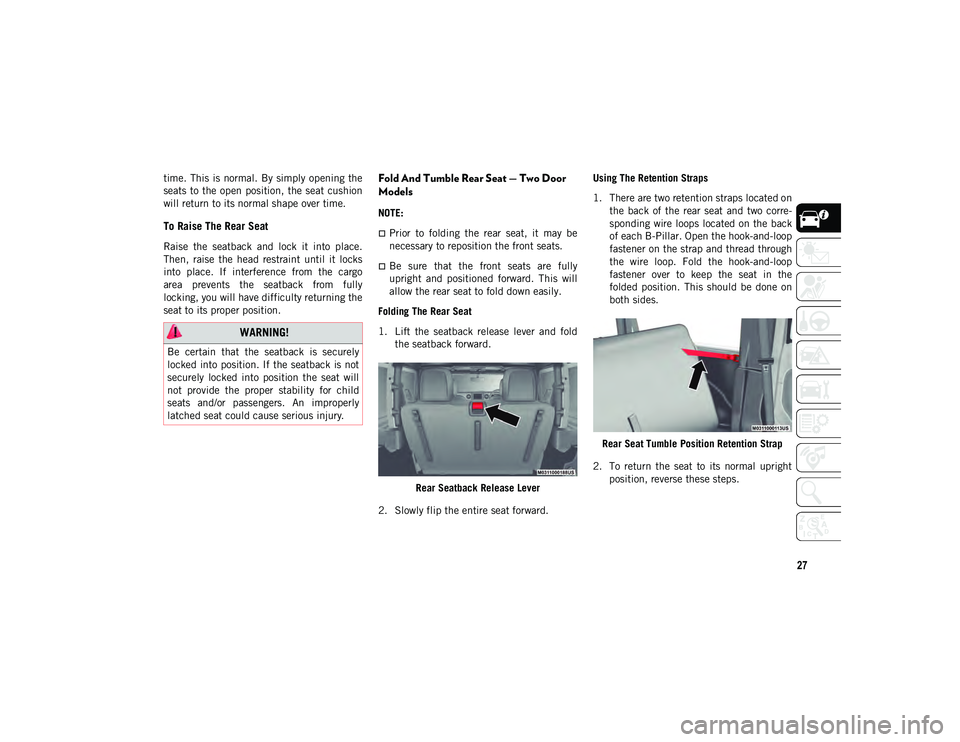

27
time. This is normal. By simply opening the
seats to the open position, the seat cushion
will return to its normal shape over time.
To Raise The Rear Seat
Raise the seatback and lock it into place.
Then, raise the head restraint until it locks
into place. If interference from the cargo
area prevents the seatback from fully
locking, you will have difficulty returning the
seat to its proper position.
Fold And Tumble Rear Seat — Two Door
Models
NOTE:
Prior to folding the rear seat, it may be
necessary to reposition the front seats.
Be sure that the front seats are fully
upright and positioned forward. This will
allow the rear seat to fold down easily.
Folding The Rear Seat
1. Lift the seatback release lever and fold the seatback forward.
Rear Seatback Release Lever
2. Slowly flip the entire seat forward. Using The Retention Straps
1. There are two retention straps located on
the back of the rear seat and two corre -
sponding wire loops located on the back
of each B-Pillar. Open the hook-and-loop
fastener on the strap and thread through
the wire loop. Fold the hook-and-loop
fastener over to keep the seat in the
folded position. This should be done on
both sides.
Rear Seat Tumble Position Retention Strap
2. To return the seat to its normal upright position, reverse these steps.
WARNING!
Be certain that the seatback is securely
locked into position. If the seatback is not
securely locked into position the seat will
not provide the proper stability for child
seats and/or passengers. An improperly
latched seat could cause serious injury.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 27

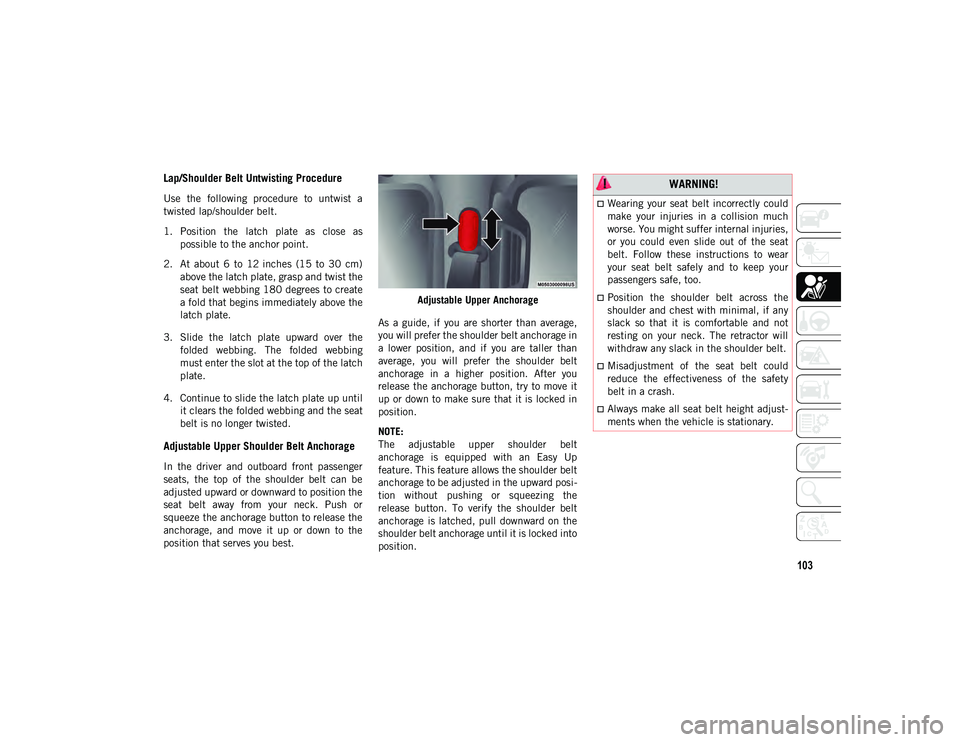

103
Lap/Shoulder Belt Untwisting Procedure
Use the following procedure to untwist a
twisted lap/shoulder belt.
1. Position the latch plate as close aspossible to the anchor point.
2. At about 6 to 12 inches (15 to 30 cm) above the latch plate, grasp and twist the
seat belt webbing 180 degrees to create
a fold that begins immediately above the
latch plate.
3. Slide the latch plate upward over the folded webbing. The folded webbing
must enter the slot at the top of the latch
plate.
4. Continue to slide the latch plate up until it clears the folded webbing and the seat
belt is no longer twisted.
Adjustable Upper Shoulder Belt Anchorage
In the driver and outboard front passenger
seats, the top of the shoulder belt can be
adjusted upward or downward to position the
seat belt away from your neck. Push or
squeeze the anchorage button to release the
anchorage, and move it up or down to the
position that serves you best. Adjustable Upper Anchorage
As a guide, if you are shorter than average,
you will prefer the shoulder belt anchorage in
a lower position, and if you are taller than
average, you will prefer the shoulder belt
anchorage in a higher position. After you
release the anchorage button, try to move it
up or down to make sure that it is locked in
position.
NOTE:
The adjustable upper shoulder belt
anchorage is equipped with an Easy Up
feature. This feature allows the shoulder belt
anchorage to be adjusted in the upward posi -
tion without pushing or squeezing the
release button. To verify the shoulder belt
anchorage is latched, pull downward on the
shoulder belt anchorage until it is locked into
position.
WARNING!
Wearing your seat belt incorrectly could
make your injuries in a collision much
worse. You might suffer internal injuries,
or you could even slide out of the seat
belt. Follow these instructions to wear
your seat belt safely and to keep your
passengers safe, too.
Position the shoulder belt across the
shoulder and chest with minimal, if any
slack so that it is comfortable and not
resting on your neck. The retractor will
withdraw any slack in the shoulder belt.
Misadjustment of the seat belt could
reduce the effectiveness of the safety
belt in a crash.
Always make all seat belt height adjust -
ments when the vehicle is stationary.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 103

107
This vehicle may be equipped with driver
and/or front passenger seat track position
sensors that may adjust the inflation rate of
the Advanced Front Air Bags based upon
seat position.Front Air Bag Operation
Front Air Bags are designed to provide addi-
tional protection by supplementing the seat
belts. Front air bags are not expected to
reduce the risk of injury in rear, side, or roll -
over collisions. The front air bags will not
deploy in all frontal collisions, including
some that may produce substantial vehicle
damage — for example, some pole colli -
sions, truck underrides, and angle offset
collisions.
On the other hand, depending on the type
and location of impact, front air bags may
deploy in crashes with little vehicle front-end
damage but that produce a severe initial
deceleration.
Because air bag sensors measure vehicle
deceleration over time, vehicle speed and
damage by themselves are not good indica -
tors of whether or not an air bag should have
deployed.
Seat belts are necessary for your protection
in all collisions, and also are needed to help
keep you in position, away from an inflating
air bag. When the ORC detects a collision requiring
the front air bags, it signals the inflator units.
A large quantity of non-toxic gas is generated
to inflate the front air bags.
The steering wheel hub trim cover and the
upper passenger side of the instrument
panel separate and fold out of the way as the
air bags inflate to their full size. The front air
bags fully inflate in less time than it takes to
blink your eyes. The front air bags then
quickly deflate while helping to restrain the
driver and front passenger.
Passenger Air Bag Disable Feature — If
Equipped
This system allows the driver to DISABLE
(OFF) the Passenger Advanced Front Air Bag
if a child restraint
must be installed in the
front seat. Only DISABLE (OFF) the
Passenger Advanced Front Air Bag if it is
absolutely necessary to install a child
restraint in the front seat. Children 12 years
or younger should ride properly buckled up in
a rear seat, if available. According to crash
statistics, children are safer when properly
restrained in the rear seats rather than in the
front. (Refer to “Child Restraints” in this
section for further information.)
WARNING!
No objects should be placed over or near
the air bag on the instrument panel or
steering wheel because any such objects
could cause harm if the vehicle is in a
collision severe enough to cause the air
bag to inflate.
Do not put anything on or around the air
bag covers or attempt to open them
manually. You may damage the air bags
and you could be injured because the air
bags may no longer be functional. The
protective covers for the air bag cushions
are designed to open only when the air
bags are inflating.
Relying on the air bags alone could lead
to more severe injuries in a collision. The
air bags work with your seat belt to
restrain you properly. In some collisions,
air bags won’t deploy at all. Always wear
your seat belts even though you have air
bags.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 107

321
Enhanced Accident Response
Feature ..................................... 115, 209
Exhaust Gas Caution .......................... 135
Exhaust System ......................... 135 , 228
Exterior Lights ............................. 32 , 137
F
Fabric Care ....................................... 244
Fabric Top ........................................ 244
Filters Air Conditioning ............................... 46
Engine Oil ..................................... 254
Flashers Hazard Warning ............................. 179Turn Signal.................................... 137
Turn Signals .....................74 , 181 , 182
Flash-To-Pass ...................................... 33
Flat Tire Changing ..................... 232 , 237
Flat Tire Stowage ....................... 232 , 237
Fluid Capacities................................. 253
Fluid Leaks ....................................... 137
Fluid Level Checks Brake ............................................ 230
Engine Oil ..................................... 224
Fluid, Brake ...................................... 257
Fluids And Lubricants ........................ 254
Fog Lights ..............................33 , 72 , 182
Fog Lights, Rear .................................. 33 Fog Lights, Service ............................ 182
Fold And Tumble Rear Seat .................. 27
Fold-Flat Seats .................................... 24
Folding Rear Seats .............................. 26
Forward Collision Warning .................... 89
Four Wheel Drive ............................... 146
Operation ...................................... 146
Shifting......................................... 146
System ......................................... 146
Four Wheel Drive Operation ................ 148
Four-Way Hazard Flasher.................... 179
Freedom Panels .................................. 51
Freeing A Stuck Vehicle ..................... 206
Fuel ................................................. 248 Adding .......................................... 169
Additives ....................................... 249
Consumption ................................. 258
Filler Cap (Gas Cap) ................169 , 170
Gasoline........................................ 248
Materials Added............................. 249
Octane Rating.........................248 , 254
Requirements ................................ 253
Specifications................................ 254
Tank Capacity................................ 253
Fueling ............................................. 169
Fuses ............................................... 183 G
Gas Cap (Fuel Filler Cap) ............ 169
, 170
Gasoline Particulate Filter (GPF)............59
Gasoline, (Fuel) .................................248
Glass Cleaning ...................................246
GVWR ...............................................174
H
Hard Top .............................................51
Hazard Warning Flashers ....................179
Head Restraints ...................................28
Headlights Automatic ........................................33
Bulb Replacement ..........................181
Cleaning ........................................242
High Beam/Low Beam Select Switch .........................................32
Leveling...........................................34 Lights On Reminder ..........................34
Passing............................................33Replacing ......................................181
Heated Steering Wheel .........................31
High Beam/Low Beam Select
(Dimmer) Switch ..................................32
Hill Descent Control .............................83
Hill Descent Control Indicator ...............83
Hill Start Assist....................................85
Hood Prop ...........................................55
Hood Release ......................................55
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 321

324
INDEX
Recreational Towing ........................... 176Shifting Into Transfer CaseNeutral (N)................................. 177
Shifting Out Of Transfer Case Neutral (N)................................. 178
Release, Hood ..................................... 55
Reminder, Seat Belt............................. 99
Remote Control Starting System ............................... 14
Remote Keyless Entry Arm The Alarm................................. 15
Disarm The Alarm ............................ 15
Remote Sound System (Radio)
Control ............................................. 279
Remote Starting System ....................... 14
Removable Doors ........................... 21 , 23
Front............................................... 21
Rear................................................ 23
Removable Top .........................47 , 51 , 53
Removal ............................................. 51
Removing............................................ 53
Replacement Bulbs ............................ 179
Replacement Keys ............................... 12
Replacement Tires ............................. 236
Restraints, Head .................................. 28
Roll Over Warning .................................. 2
Roof Type Carrier ................................. 58
Rotation, Tires ................................... 241 S
Safety Checks Inside Vehicle .............. 136
Safety Checks Outside Vehicle ............ 137
Safety Tips ....................................... 135
Safety, Exhaust Gas ........................... 135
Schedule, Maintenance...............210
, 216
Seat Belt Reminder ............................. 67
Seat Belts ....................................98 , 136
Adjustable Shoulder Belt ................ 103
Adjustable Upper Shoulder Anchorage ................................. 103
Adjustable Upper Shoulder Belt Anchorage ................................. 103
Energy Management Feature ........... 104
Front Seat ........................ 98 , 100 , 102
Inspection ..................................... 136
Lap/Shoulder Belt Operation ........... 102
Lap/Shoulder Belt Untwisting .......... 103
Lap/Shoulder Belts......................... 100
Operating Instructions .................... 102 Pregnant Women ........................... 104
Pretensioners................................. 104
Rear Seat ...................................... 100
Reminder ........................................ 99
Seat Belt Pretensioner .................... 104Seat Belt Reminder ......... 67 , 74 , 75 , 99
Untwisting Procedure ..................... 103
Seat Belts Maintenance ..................... 245 Seats ..................................................24
Adjustment ......................................24
Fold And Tumble Rear ......................27
Rear Folding ....................................24
Tilting .............................................24
Security Alarm ............................... 15 , 68
Arm The System ...............................15
Disarm The System ...........................15
Selection Of Coolant (Antifreeze) .........254
Sentry Key Replacement .......................12
Service Assistance .............................304
Shifting .............................................143 Automatic Transmission .......... 143 , 145
Transfer Case, Shifting Into Transfer Case Neutral (N).............177
Transfer Case, Shifting Out Of Transfer Case Neutral (N).............178
Shoulder Belts ...................................100
Signals, Turn ................74 , 137 , 181 , 182
Siri ...................................................300
Snow Chains (Tire Chains) ..................240
Snow Tires ........................................237
Soft Top ........................................ 47 , 53
Spare Tires ........................ 193 , 237 , 238
Spark Plugs .......................................254
Specifications Fuel (Gasoline) ...............................254
Oil ................................................254
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 324
