IN CASE OF EMERGENCY
184

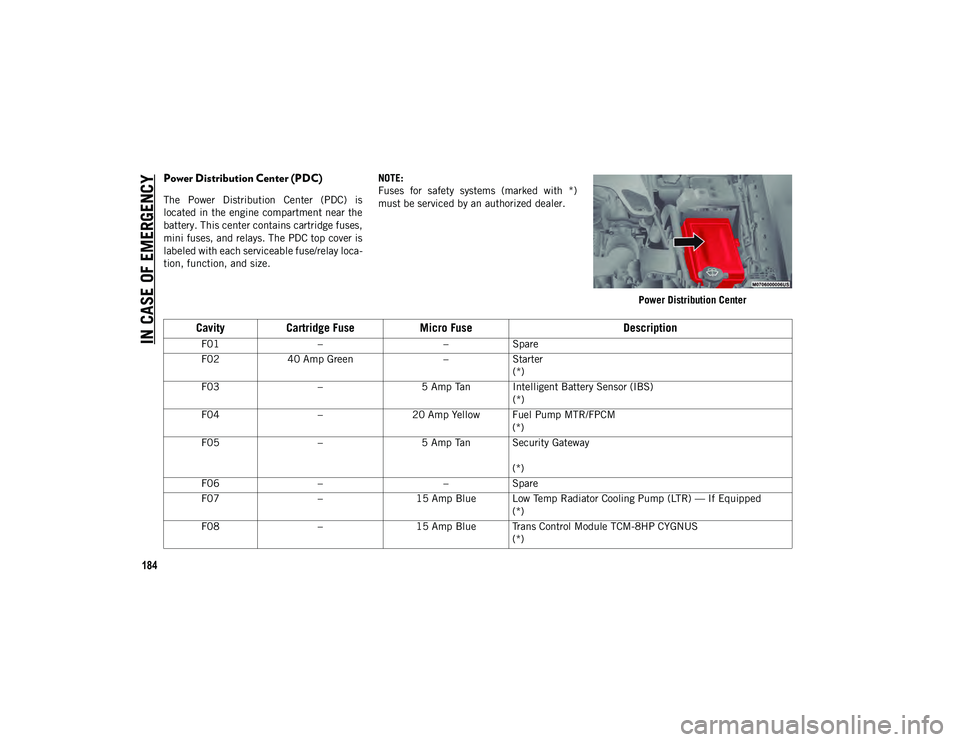

Power Distribution Center (PDC)
The Power Distribution Center (PDC) is
located in the engine compartment near the
battery. This center contains cartridge fuses,
mini fuses, and relays. The PDC top cover is
labeled with each serviceable fuse/relay loca-
tion, function, and size. NOTE:
Fuses for safety systems (marked with *)
must be serviced by an authorized dealer.
Power Distribution Center
CavityCartridge Fuse Micro Fuse Description
F01– –Spare
F02 40 Amp Green –Starter
(*)
F03 –5 Amp Tan Intelligent Battery Sensor (IBS)
(*)
F04 –20 Amp Yellow Fuel Pump MTR/FPCM
(*)
F05 –5 Amp Tan Security Gateway

(*)
F06 – –Spare
F07 –15 Amp Blue Low Temp Radiator Cooling Pump (LTR) — If Equipped
(*)
F08 –15 Amp Blue Trans Control Module TCM-8HP CYGNUS
(*)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 184

187
F38 20 Amp Blue
–Engine Control Module ECM
(*)
F39 – –Spare
F40 –15 Amp Blue DriveTrain Control Module (DTCM)/Axle Lock (AXLE LOC)
FT_RR
(*)
F41 –15 Amp Blue Instrument Cluster (IC)/Security GateWay (SGW) WAKE UP
(*)
F42 –10 Amp Red Power Control Relay Control Feed (Electric Stop/Start)/Spare
(Belt Starter Generator) -- If Equipped
(*)
F43 –20 Amp Yellow PWR OUTLET (CARGO) BATT
(*)
F44 –10 Amp Red InfraRed Camera (IRCAM) HEATERS
(*)
F45 –20 Amp Yellow PWR OUTLET (CARGO) IGN*
(*)
F46 –10 Amp Red AUTO HDLP LVL MOD/LVL MTR/HDLP SW
(*)
F47 – –Spare
F48 – –Spare
F49 –10 Amp Red Occupant Restraint Controller ORC
(*)
F50 –10 Amp Red HD ACC — If Equipped
(*)
CavityCartridge Fuse Micro Fuse Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 187
