JEEP WRANGLER JK 2018 Owners Manual

The “ESC Activation/Malfunction Indicator Light” (lo-
cated in the instrument cluster), starts to flash as soon as
the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
flashes when TCS is active. If the “ESC Activation/
Malfunction Indicator Light” begins to flash during accel-
eration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions.

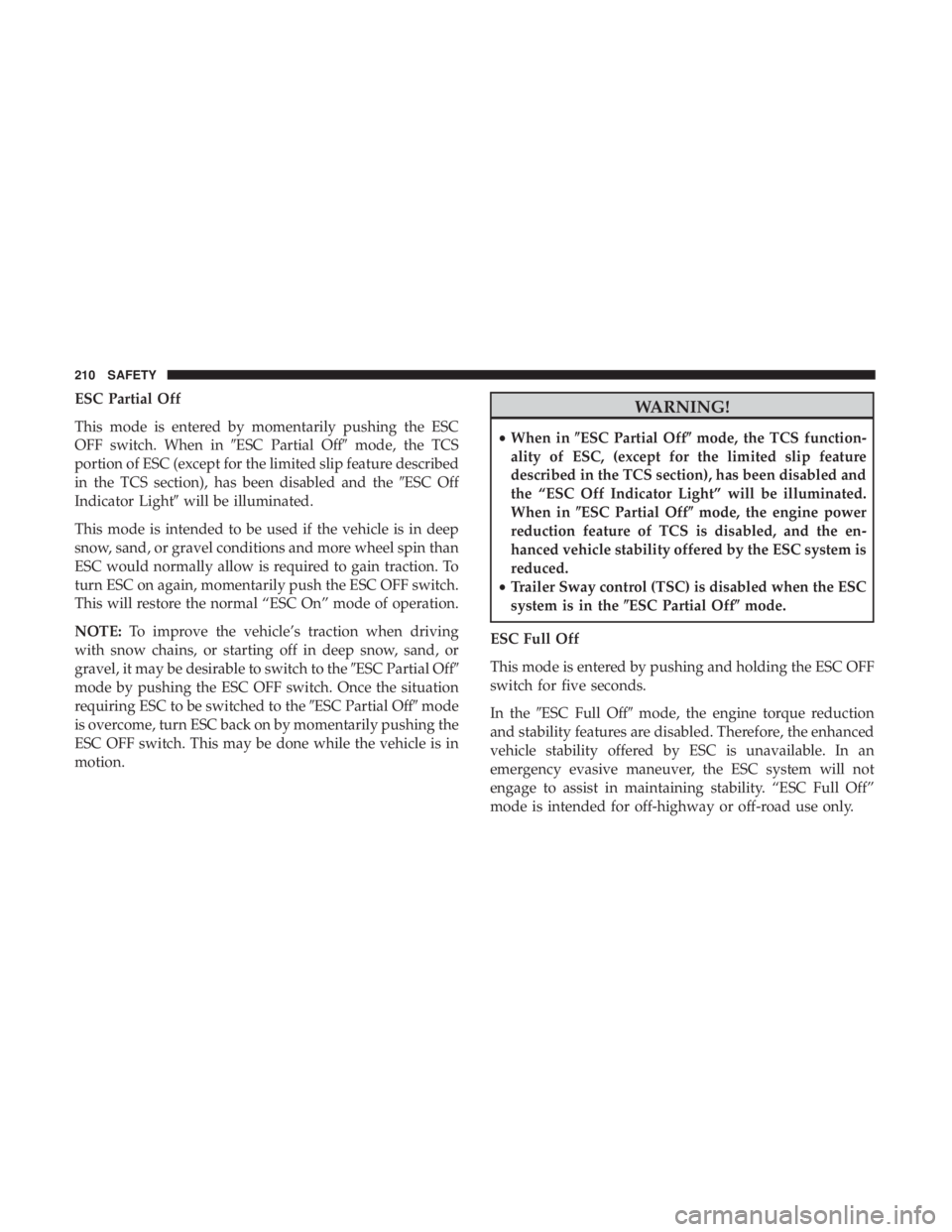

ESC Partial Off
This mode is entered by momentarily pushing the ESC
OFF switch. When inESC Partial Offmode, the TCS
portion of ESC (except for the limited slip feature described
in the TCS section), has been disabled and the ESC Off
Indicator Light will be illuminated.
This mode is intended to be used if the vehicle is in deep
snow, sand, or gravel conditions and more wheel spin than
ESC would normally allow is required to gain traction. To
turn ESC on again, momentarily push the ESC OFF switch.
This will restore the normal “ESC On” mode of operation.
NOTE: To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the ESC Partial Off
mode by pushing the ESC OFF switch. Once the situation
requiring ESC to be switched to the ESC Partial Offmode
is overcome, turn ESC back on by momentarily pushing the
ESC OFF switch. This may be done while the vehicle is in
motion.

When inESC Full Off mode, ESC and TCS, except for the
Brake Limited Differential (BLD) feature described in the
TCS section, are turned off until the vehicle reaches an
approximate speed of 40 mph (64 km/h). For speeds at or
exceeding approximately 40 mph (64 km/h) the ESC goes
into ESC Partial Off. When the vehicle speed drops below
35 mph (56 km/h), the ESC system goes back to ESC Full
Off. To turn ESC on again, momentarily push the ESC OFF
switch. This will restore normal “ESC On” mode of opera-
tion. The ESC Off Indicator Light” will always be illumi-
nated when ESC is in ESC Partial OffandESC full Off.

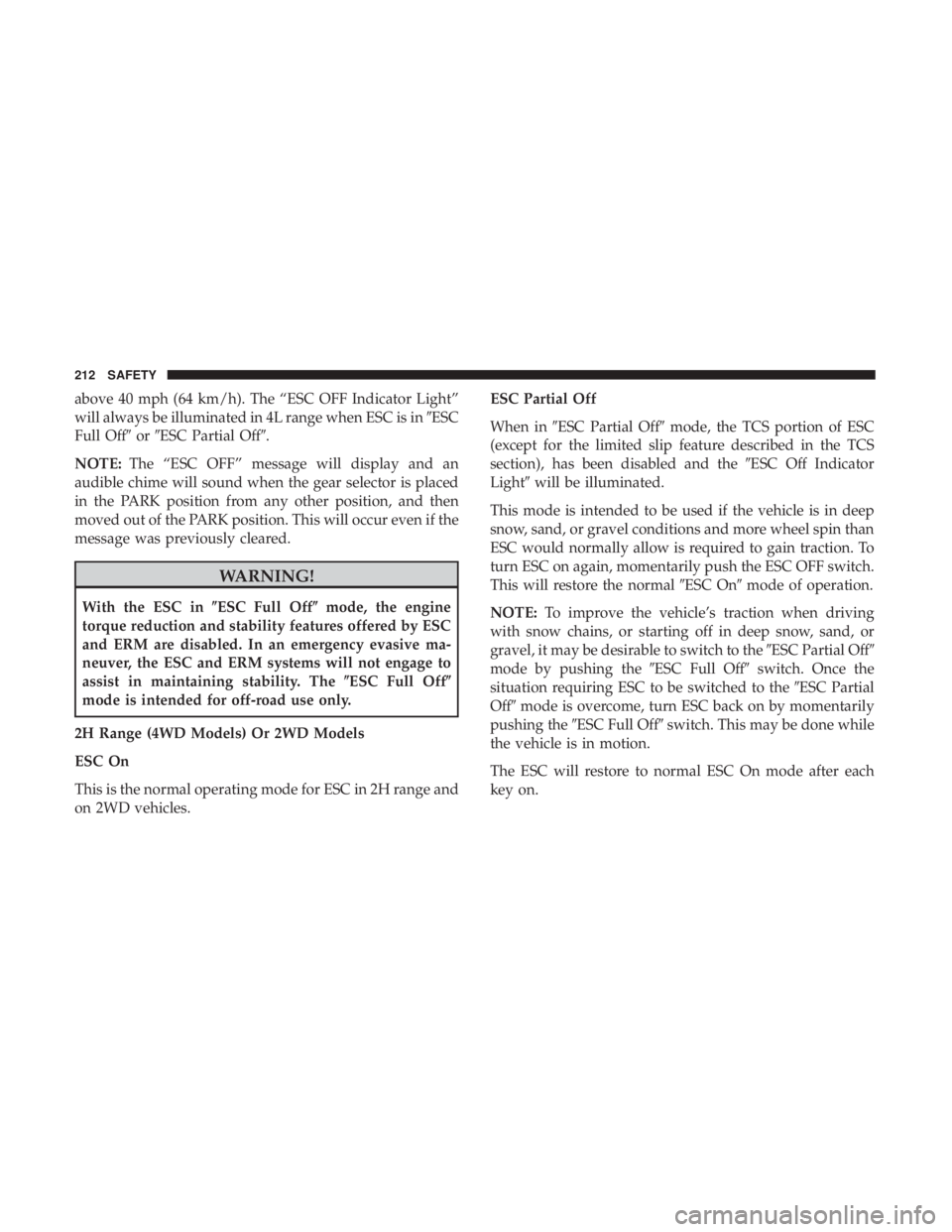

above 40 mph (64 km/h). The “ESC OFF Indicator Light”
will always be illuminated in 4L range when ESC is inESC
Full Off orESC Partial Off.
NOTE: The “ESC OFF” message will display and an
audible chime will sound when the gear selector is placed
in the PARK position from any other position, and then
moved out of the PARK position. This will occur even if the
message was previously cleared.

WARNING!
•When in “Partial Off” mode, the TCS functionality
of ESC, (except for the limited slip feature described
in the TCS section), has been disabled and the “ESC
Off Indicator Light” will be illuminated. When in
“Partial Off” mode, the engine power reduction
feature of TCS is disabled, and the enhanced vehicle
stability offered by the ESC system is reduced.
• Trailer Sway Control (TSC) is disabled when the ESC
system is in the Partial Offmode.
ESC Activation/Malfunction Indicator Light And ESC
OFF Indicator Light
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition is turned to the ON mode. It
should go out with the engine running. If the
“ESC Activation/Malfunction Indicator Light” comes on
continuously with the engine running, a malfunction has
been detected in the ESC system. If this light remains on
after several ignition cycles, and the vehicle has been
driven several miles (kilometers) at speeds greater than 30 mph (48 km/h), see your authorized dealer as soon as
possible to have the problem diagnosed and corrected.The “ESC Activation/Malfunction Indicator Light” (located in
the instrument cluster) starts to flash as soon as the tires lose
traction and the ESC system becomes active. The “ESC
Activation/Malfunction Indicator Light” also flashes when TCS
is active. If the “ESC Activation/Malfunction Indicator Light”
begins to flash during acceleration, ease up on the accelerator
and apply as little throttle as possible. Be sure to adapt your
speed and driving to the prevailing road conditions.
NOTE:
•
The “ESC Activation/Malfunction Indicator Light” and
the “ESC OFF Indicator Light” come on momentarily
each time the ignition is turned ON.
• Each time the ignition is turned ON, the ESC system will
be on even if it was turned off previously.
• The ESC system will make buzzing or clicking sounds
when it is active. This is normal; the sounds will stop
when ESC becomes inactive following the maneuver
that caused the ESC activation.
5
SAFETY 213

The “ESC OFF Indicator Light” indicates the
customer has elected to have the Electronic Sta-
bility Control (ESC) in a reduced mode.
Electronic Roll Mitigation (ERM)
This system anticipates the potential for wheel lift by
monitoring the driver ’s steering wheel input and the speed
of the vehicle. When ERM determines that the rate of
change of the steering wheel angle and vehicle’s speed are
sufficient to potentially cause wheel lift, it then applies the
appropriate brake and may also reduce engine power to
lessen the chance that wheel lift will occur. ERM can only
reduce the chance of wheel lift occurring during severe or
evasive driving maneuvers; it cannot prevent wheel lift
due to other factors, such as road conditions, leaving the
roadway, or striking objects or other vehicles.
NOTE:ERM is disabled anytime the ESC is in “Full Off”
mode (if equipped). Refer to “Electronic Stability Control
(ESC)” in this section for a complete explanation of the
available ESC modes.

When TSC is functioning, the “ESC Activation/
Malfunction Indicator Light” will flash, the engine power
may be reduced and you may feel the brakes being applied
to individual wheels to attempt to stop the trailer from
swaying. TSC is disabled when the ESC system is in the
“Partial Off” or “Full Off” modes.
5
SAFETY 215
