JEEP WRANGLER JK 2019 Service Manual

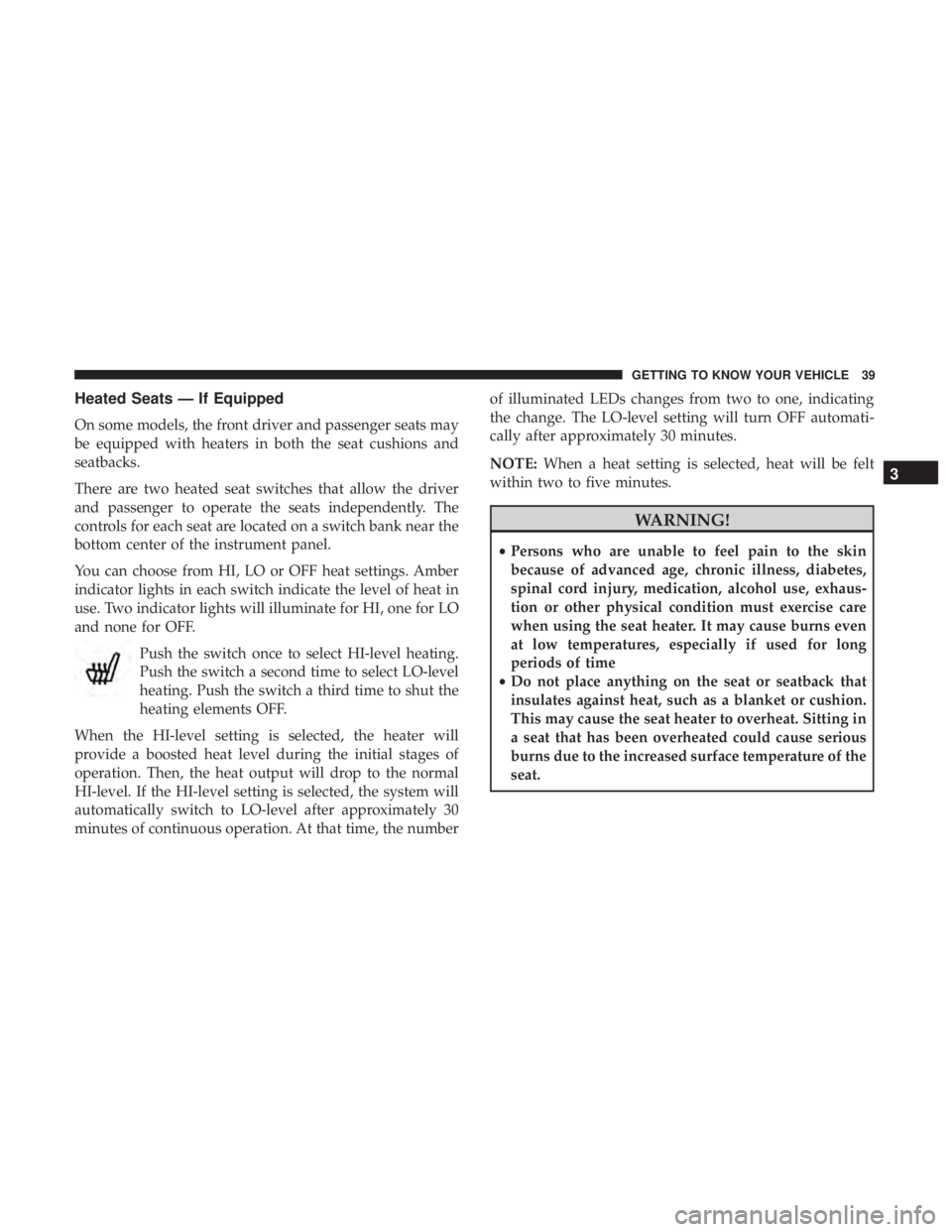

Heated Seats — If Equipped
On some models, the front driver and passenger seats may
be equipped with heaters in both the seat cushions and
seatbacks.
There are two heated seat switches that allow the driver
and passenger to operate the seats independently. The
controls for each seat are located on a switch bank near the
bottom center of the instrument panel.
You can choose from HI, LO or OFF heat settings. Amber
indicator lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for LO
and none for OFF.Push the switch once to select HI-level heating.
Push the switch a second time to select LO-level
heating. Push the switch a third time to shut the
heating elements OFF.
When the HI-level setting is selected, the heater will
provide a boosted heat level during the initial stages of
operation. Then, the heat output will drop to the normal
HI-level. If the HI-level setting is selected, the system will
automatically switch to LO-level after approximately 30
minutes of continuous operation. At that time, the number of illuminated LEDs changes from two to one, indicating
the change. The LO-level setting will turn OFF automati-
cally after approximately 30 minutes.
NOTE:
When a heat setting is selected, heat will be felt
within two to five minutes.
3
GETTING TO KNOW YOUR VEHICLE 39

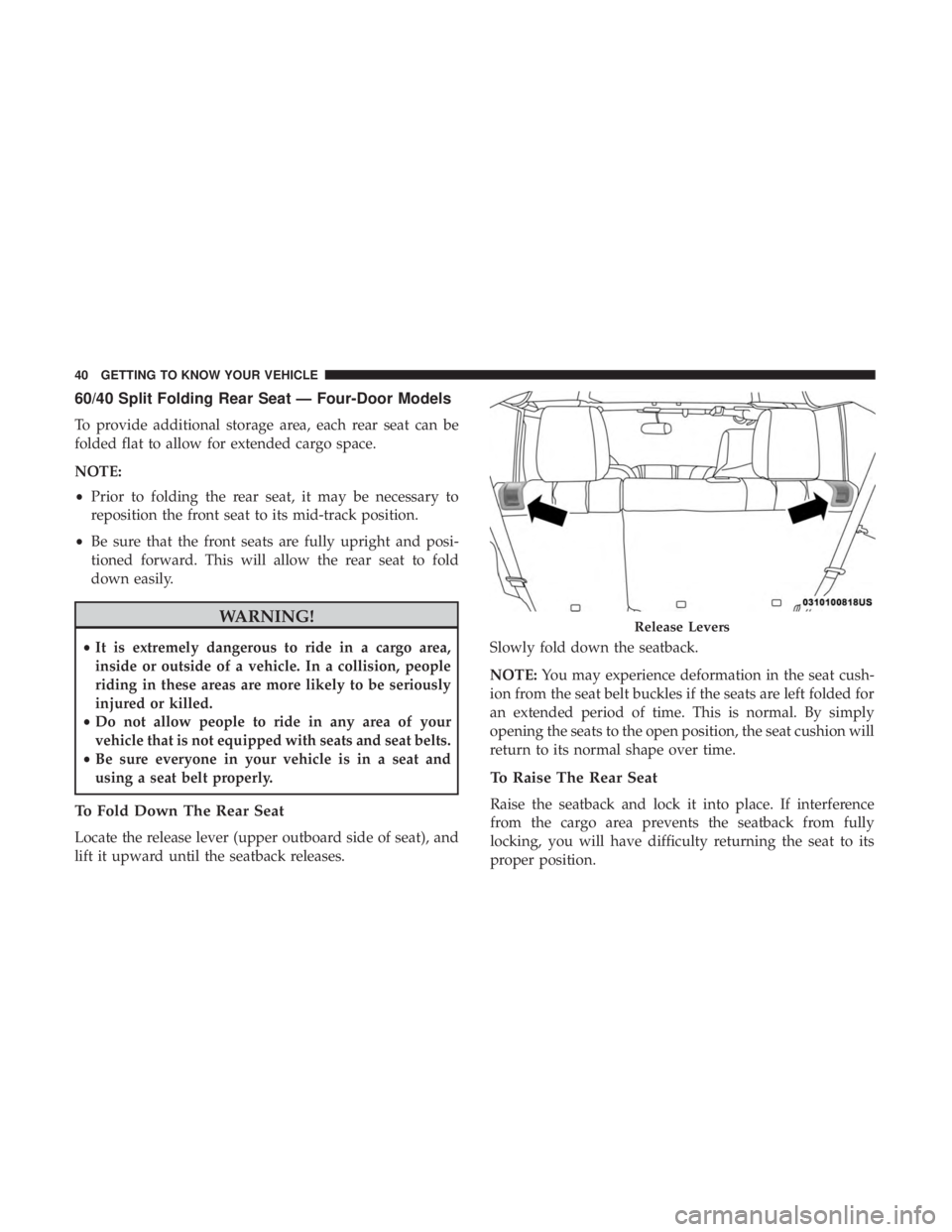

60/40 Split Folding Rear Seat — Four-Door Models
To provide additional storage area, each rear seat can be
folded flat to allow for extended cargo space.
NOTE:
•Prior to folding the rear seat, it may be necessary to
reposition the front seat to its mid-track position.
• Be sure that the front seats are fully upright and posi-
tioned forward. This will allow the rear seat to fold
down easily.

NOTE:If the rear seatback is not fully latched, the center
shoulder belt will not be able to be extended for use. If you
cannot extend the center shoulder belt, make sure your
seatback is fully latched.

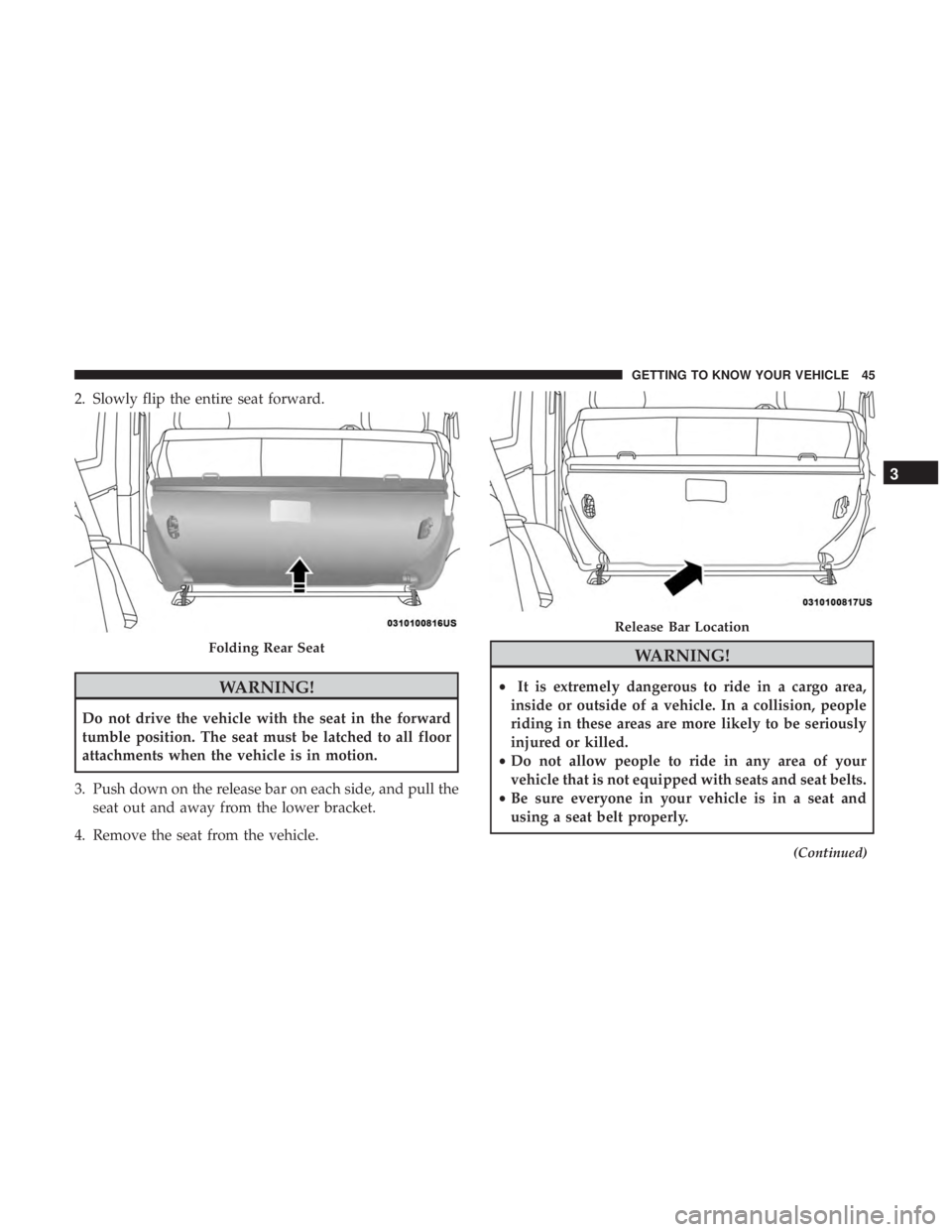

2. Slowly flip the entire seat forward.

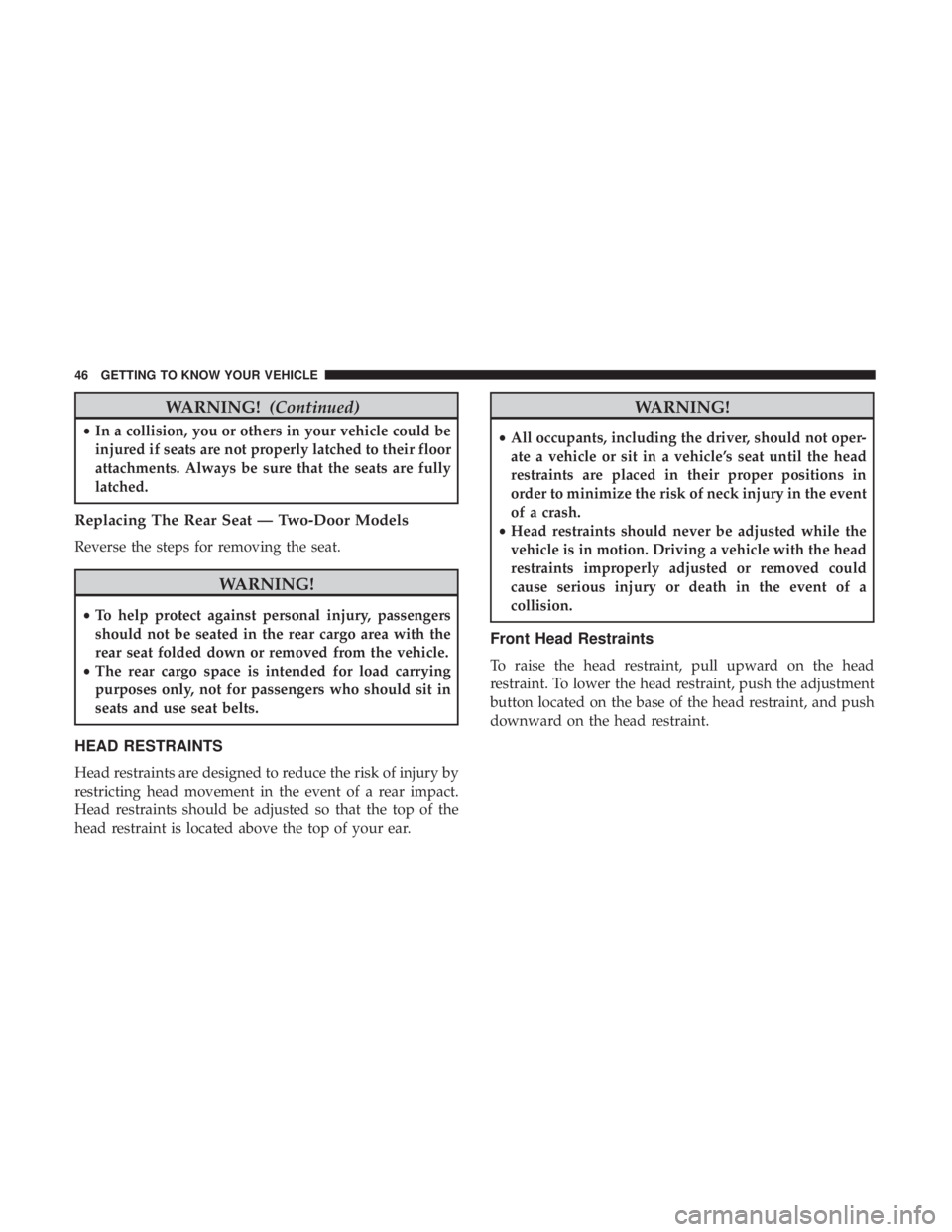

WARNING!(Continued)
•In a collision, you or others in your vehicle could be
injured if seats are not properly latched to their floor
attachments. Always be sure that the seats are fully
latched.
Replacing The Rear Seat — Two-Door Models
Reverse the steps for removing the seat.

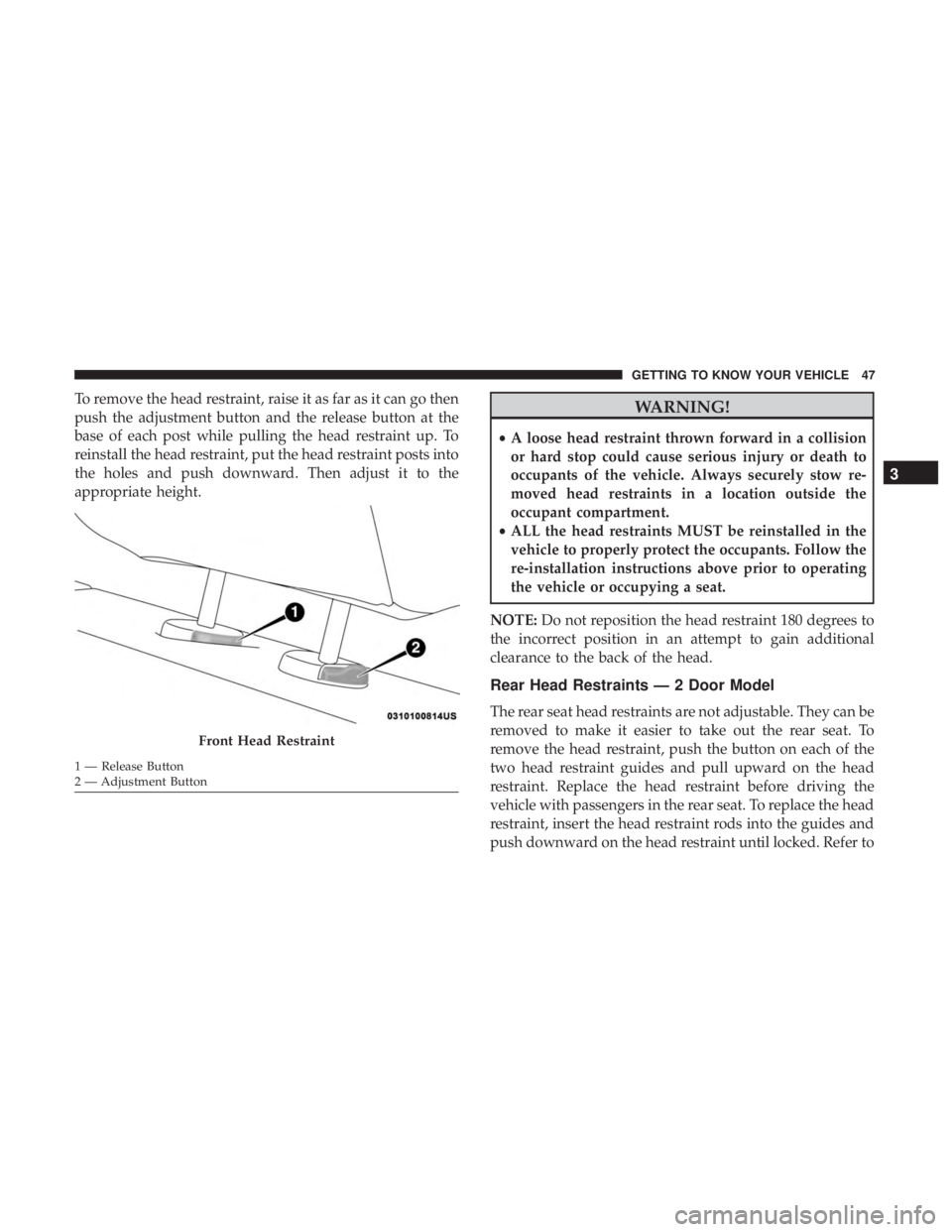

To remove the head restraint, raise it as far as it can go then
push the adjustment button and the release button at the
base of each post while pulling the head restraint up. To
reinstall the head restraint, put the head restraint posts into
the holes and push downward. Then adjust it to the
appropriate height.

“Occupant Restraint Systems” in “Safety” for information
on child seat tether routing.
