steering JEEP WRANGLER RUBICON 2017 Owners Manual

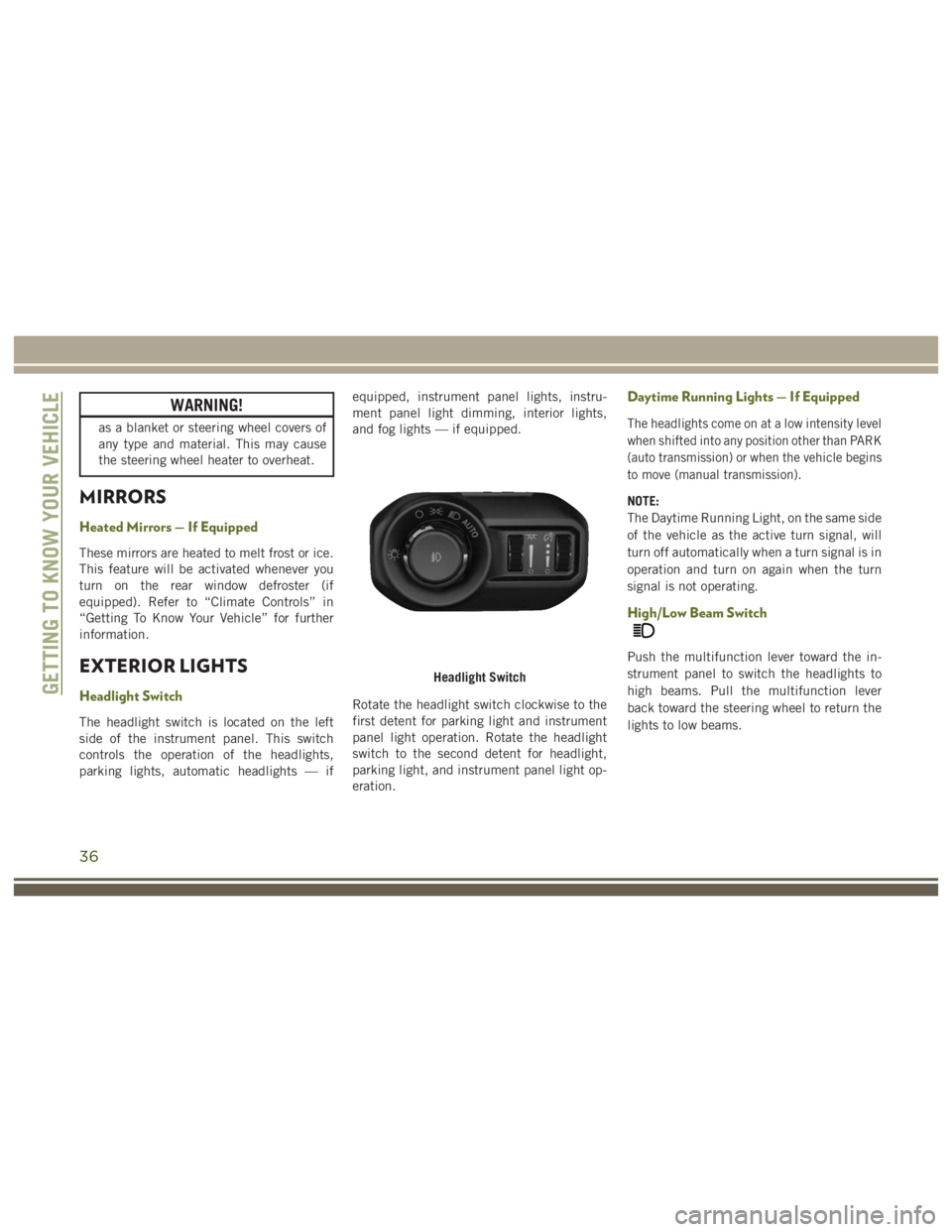

Push the multifunction lever toward the in-
strument panel to switch the headlights to
high beams. Pull the multifunction lever
back toward the steering wheel to return the
lights to low beams.
36

1 — Power Distribution Center (Fuses)8 — Power Pack Unit Pressure Cap — If Equipped
2 — Battery 9 — Power Pack Unit Pressure Reservoir — If Equipped
3 — Engine Oil Dipstick 10 — Washer Fluid Reservoir
4 — Engine Oil Fill 11 — Intercooler/Motor Generator Unit (If Equipped) Coolant Pressure Cap
5 — Engine Coolant Reservoir 12 — Intercooler/Motor Generator Unit (If Equipped) Coolant Reservoir
6 — Engine Coolant Pressure Cap 13 — Power Steering Fluid Reservoir
7 — Brake Fluid Reservoir 14 — Engine Air Cleaner
SERVICING AND MAINTENANCE
210

1 — Power Distribution Center (Fuses)8 — Power Pack Unit Pressure Cap — If Equipped
2 — Battery 9 — Power Pack Unit Pressure Reservoir — If Equipped
3 — Engine Oil Dipstick 10 — Washer Fluid Reservoir
4 — Engine Oil Fill 11 — Motor Generator Unit Coolant Pressure Cap — If Equipped
5 — Engine Coolant Reservoir 12 — Motor Generator Unit Coolant Reservoir — If Equipped
6 — Engine Coolant Pressure Cap 13 — Power Steering Fluid Reservoir
7 — Brake Fluid Reservoir 14 — Engine Air Cleaner
211

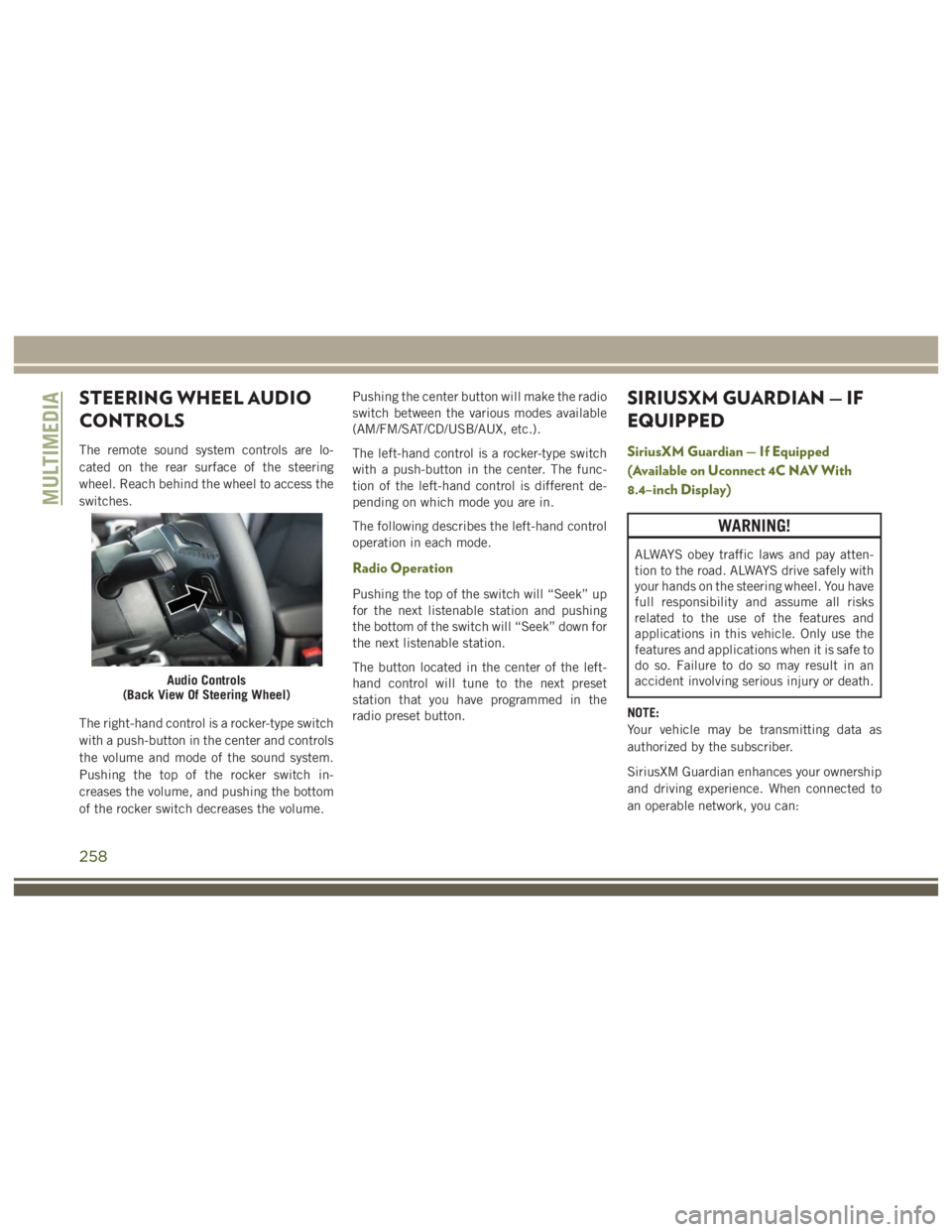

WARNING!
ALWAYS obey traffic laws and pay atten-
tion to the road. ALWAYS drive safely with
your hands on the steering wheel. You have
full responsibility and assume all risks
related to the use of the features and
applications in this vehicle. Only use the
features and applications when it is safe to
do so. Failure to do so may result in an
accident involving serious injury or death.
NOTE:
Your vehicle may be transmitting data as
authorized by the subscriber.
SiriusXM Guardian enhances your ownership
and driving experience. When connected to
an operable network, you can:
258
