JEEP WRANGLER RUBICON 2018 Owners Manual

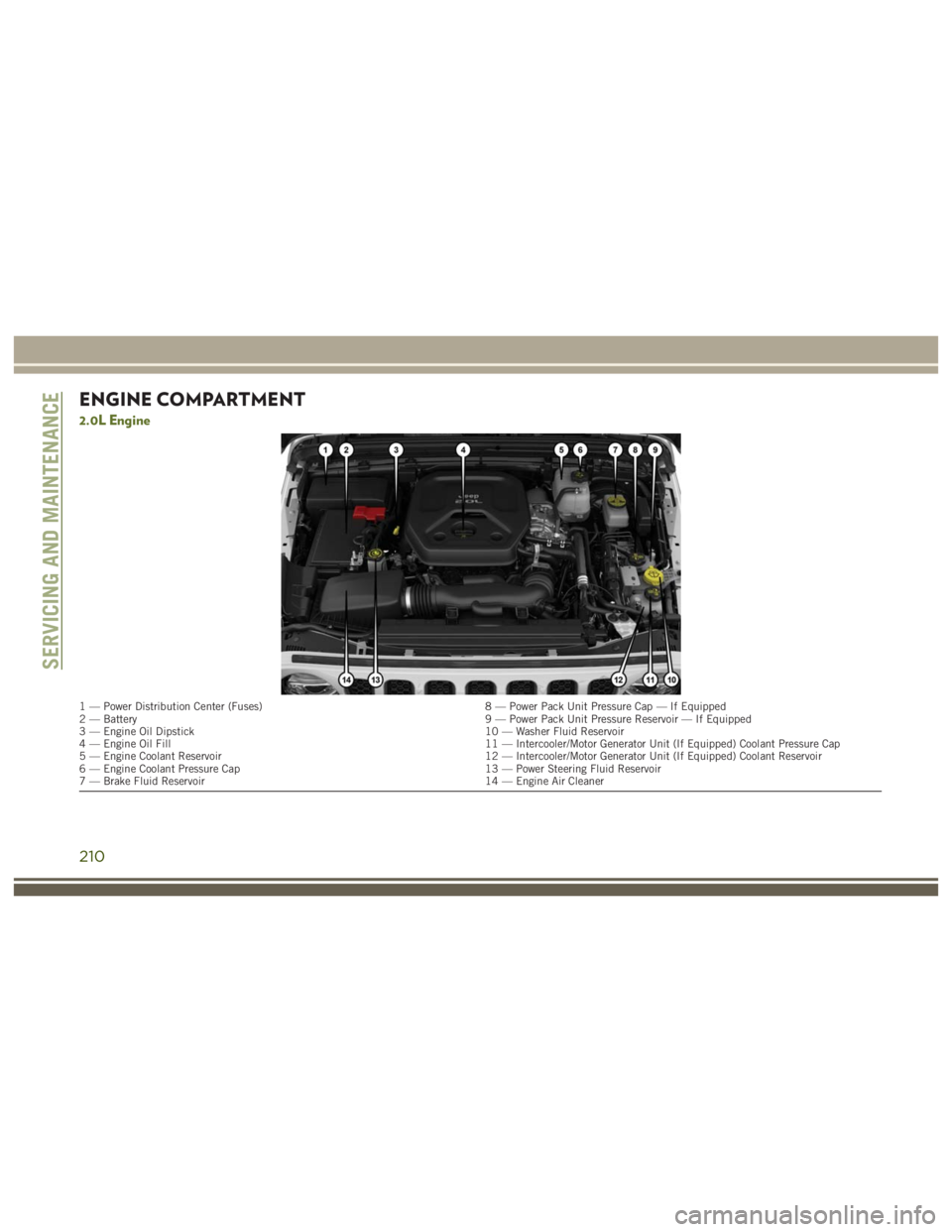

1 — Power Distribution Center (Fuses)8 — Power Pack Unit Pressure Cap — If Equipped
2 — Battery 9 — Power Pack Unit Pressure Reservoir — If Equipped
3 — Engine Oil Dipstick 10 — Washer Fluid Reservoir
4 — Engine Oil Fill 11 — Intercooler/Motor Generator Unit (If Equipped) Coolant Pressure Cap
5 — Engine Coolant Reservoir 12 — Intercooler/Motor Generator Unit (If Equipped) Coolant Reservoir
6 — Engine Coolant Pressure Cap 13 — Power Steering Fluid Reservoir
7 — Brake Fluid Reservoir 14 — Engine Air Cleaner
SERVICING AND MAINTENANCE
210

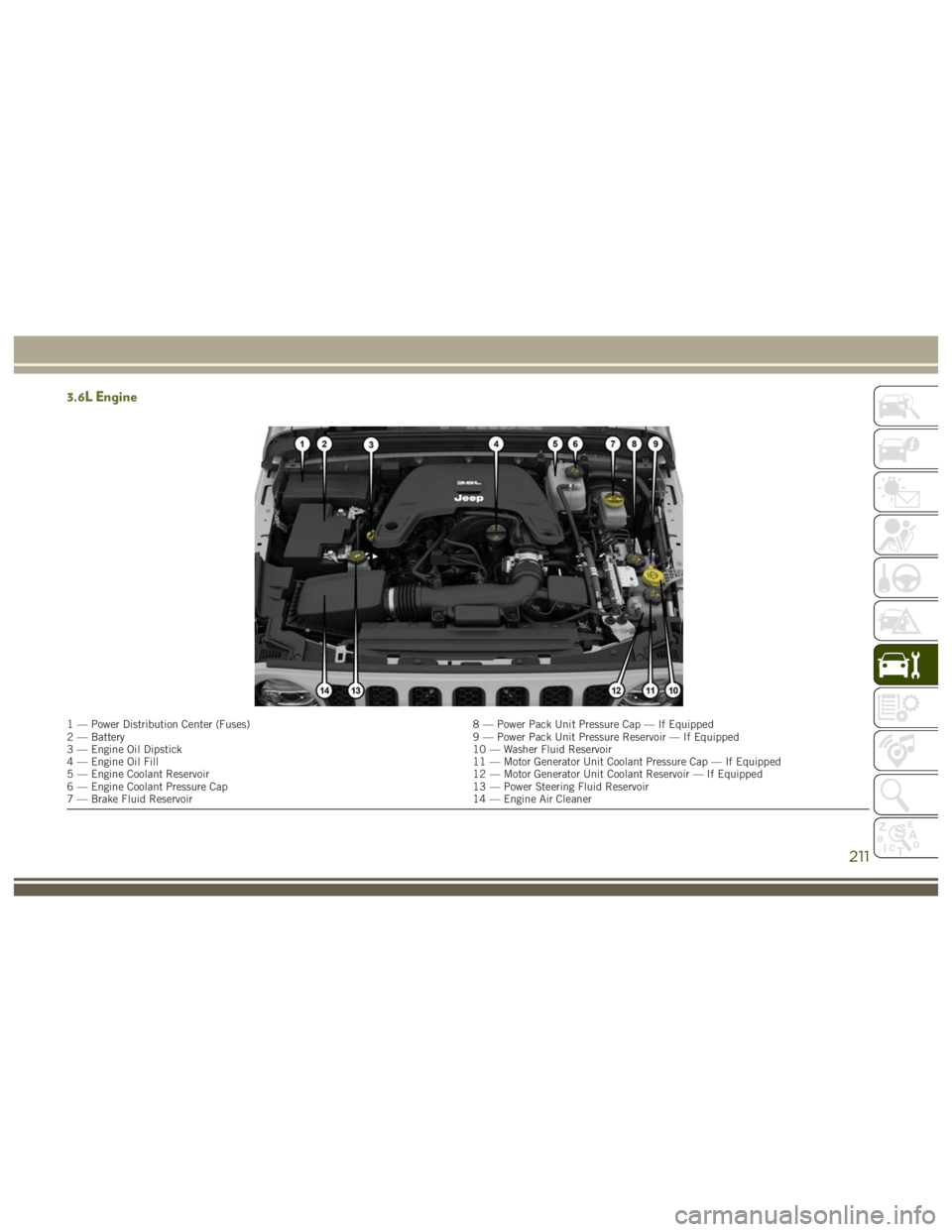

1 — Power Distribution Center (Fuses)8 — Power Pack Unit Pressure Cap — If Equipped
2 — Battery 9 — Power Pack Unit Pressure Reservoir — If Equipped
3 — Engine Oil Dipstick 10 — Washer Fluid Reservoir
4 — Engine Oil Fill 11 — Motor Generator Unit Coolant Pressure Cap — If Equipped
5 — Engine Coolant Reservoir 12 — Motor Generator Unit Coolant Reservoir — If Equipped
6 — Engine Coolant Pressure Cap 13 — Power Steering Fluid Reservoir
7 — Brake Fluid Reservoir 14 — Engine Air Cleaner
211

212

214

216

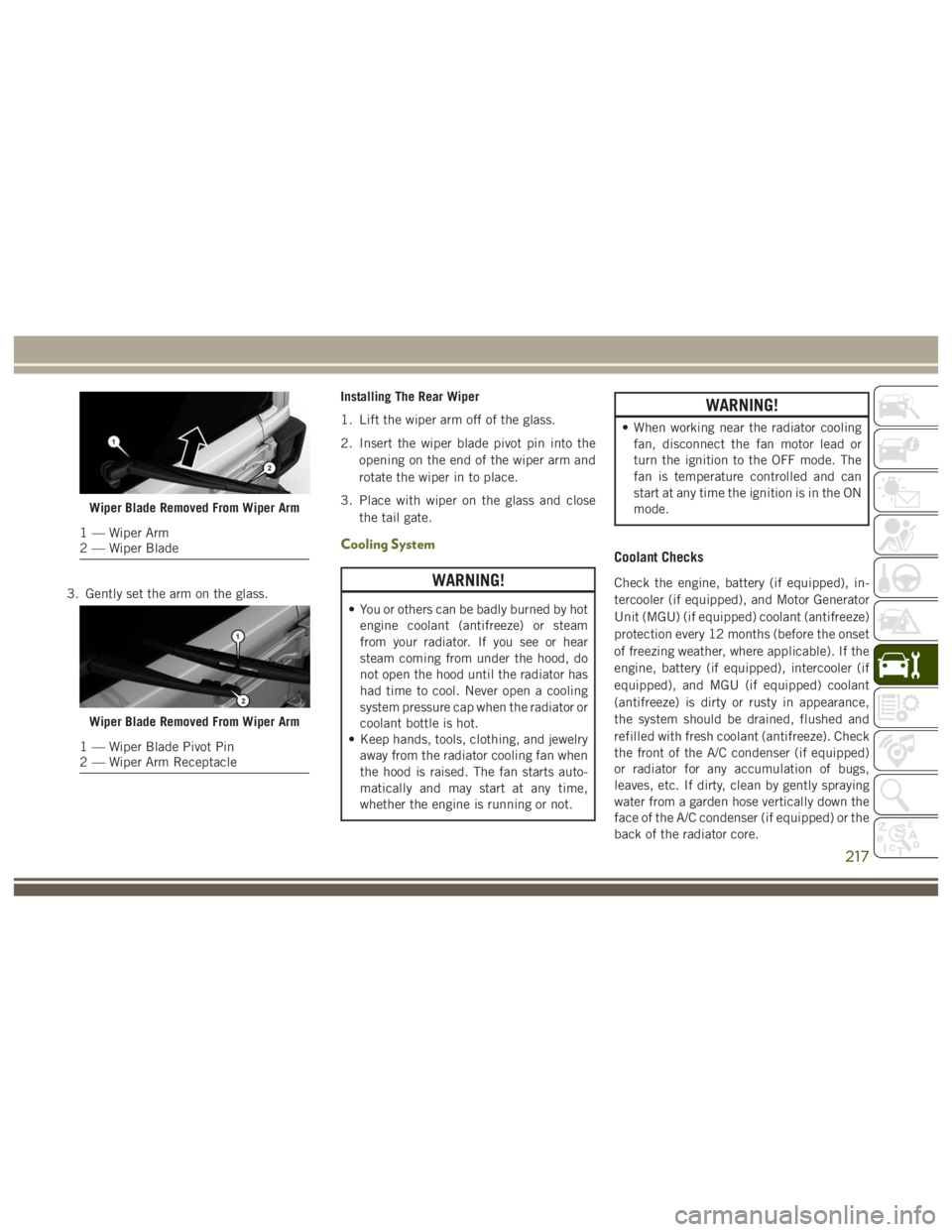

WARNING!
• You or others can be badly burned by hotengine coolant (antifreeze) or steam
from your radiator. If you see or hear
steam coming from under the hood, do
not open the hood until the radiator has
had time to cool. Never open a cooling
system pressure cap when the radiator or
coolant bottle is hot.
• Keep hands, tools, clothing, and jewelry
away from the radiator cooling fan when
the hood is raised. The fan starts auto-
matically and may start at any time,
whether the engine is running or not.

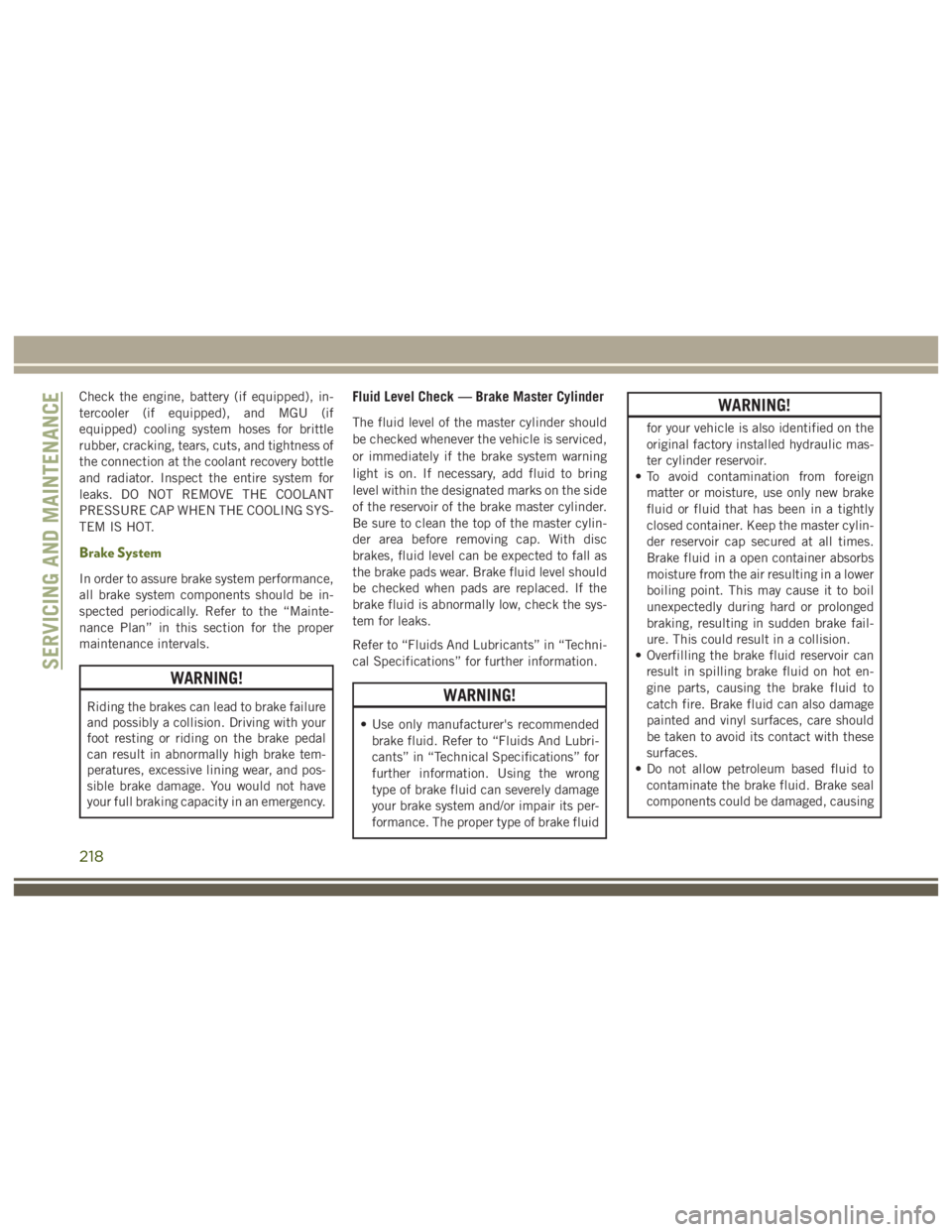

218
