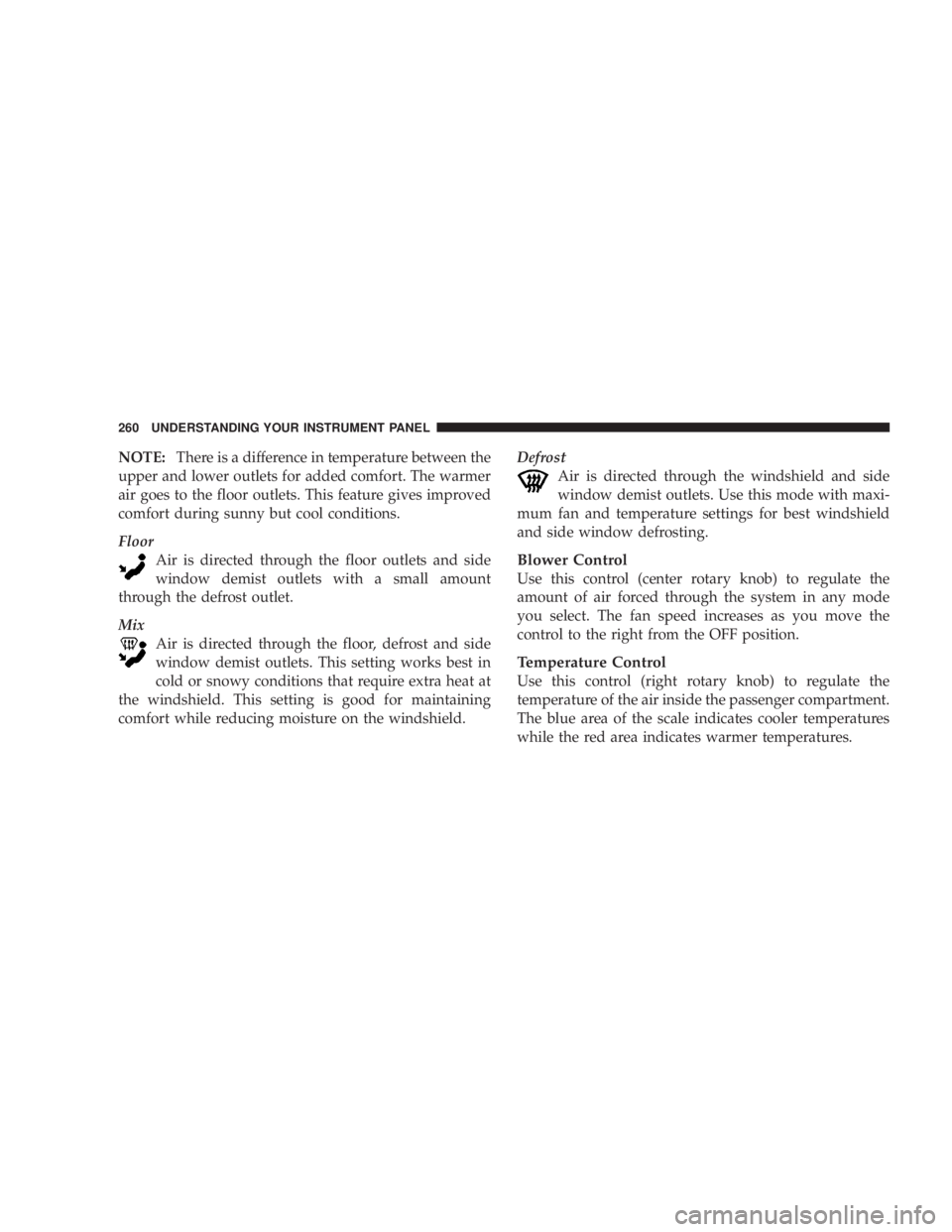

NOTE:There is a difference in temperature between the
upper and lower outlets for added comfort. The warmer
air goes to the floor outlets. This feature gives improved
comfort during sunny but cool conditions.
Floor Air is directed through the floor outlets and side
window demist outlets with a small amount
through the defrost outlet.
Mix Air is directed through the floor, defrost and side
window demist outlets. This setting works best in
cold or snowy conditions that require extra heat at
the windshield. This setting is good for maintaining
comfort while reducing moisture on the windshield. Defrost
Air is directed through the windshield and side
window demist outlets. Use this mode with maxi-
mum fan and temperature settings for best windshield
and side window defrosting.
Blower Control
Use this control (center rotary knob) to regulate the
amount of air forced through the system in any mode
you select. The fan speed increases as you move the
control to the right from the OFF position.
Temperature Control
Use this control (right rotary knob) to regulate the
temperature of the air inside the passenger compartment.
The blue area of the scale indicates cooler temperatures
while the red area indicates warmer temperatures.

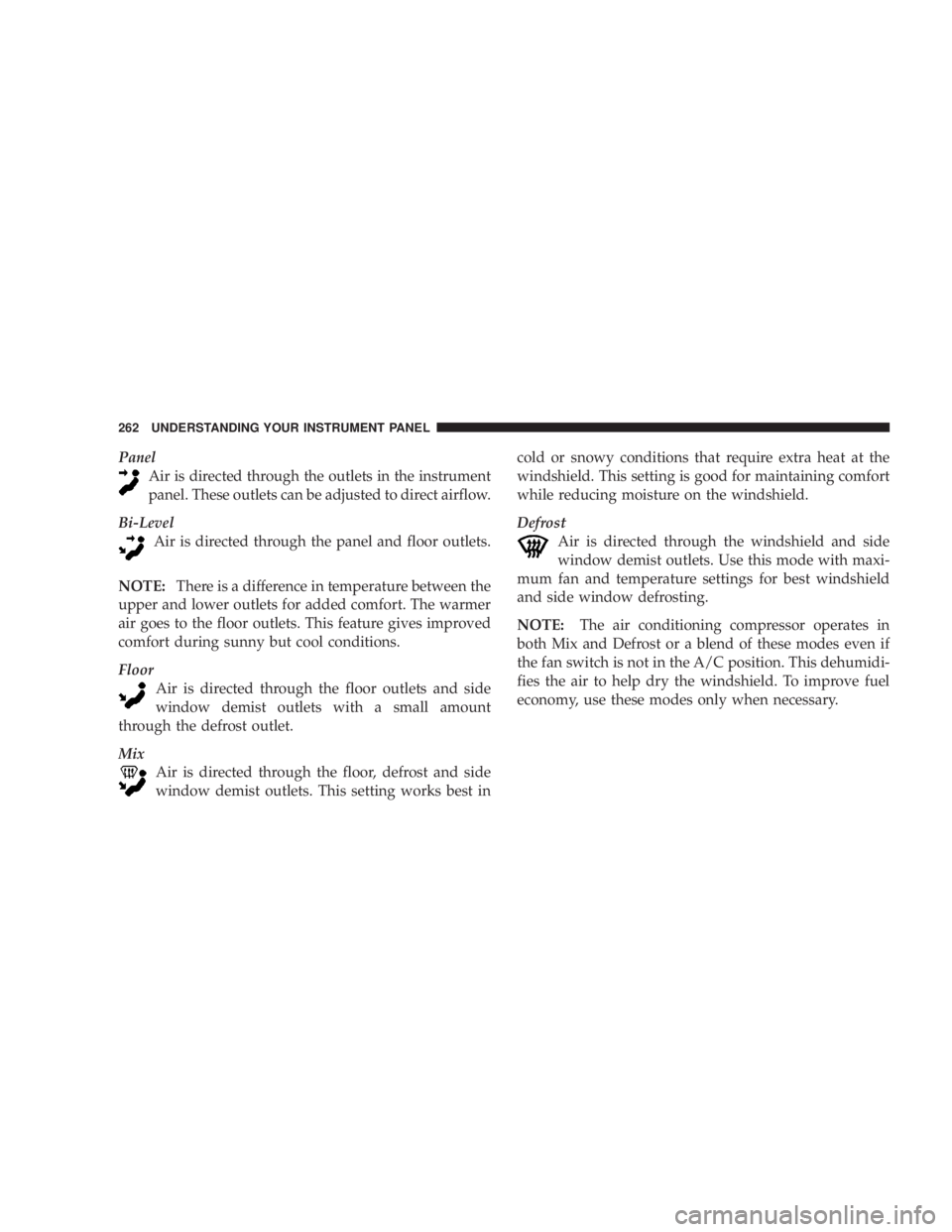

PanelAir is directed through the outlets in the instrument
panel. These outlets can be adjusted to direct airflow.
Bi-Level Air is directed through the panel and floor outlets.
NOTE: There is a difference in temperature between the
upper and lower outlets for added comfort. The warmer
air goes to the floor outlets. This feature gives improved
comfort during sunny but cool conditions.
Floor Air is directed through the floor outlets and side
window demist outlets with a small amount
through the defrost outlet.
Mix Air is directed through the floor, defrost and side
window demist outlets. This setting works best in cold or snowy conditions that require extra heat at the
windshield. This setting is good for maintaining comfort
while reducing moisture on the windshield.
Defrost
Air is directed through the windshield and side
window demist outlets. Use this mode with maxi-
mum fan and temperature settings for best windshield
and side window defrosting.
NOTE: The air conditioning compressor operates in
both Mix and Defrost or a blend of these modes even if
the fan switch is not in the A/C position. This dehumidi-
fies the air to help dry the windshield. To improve fuel
economy, use these modes only when necessary.
NOTE:Continuous use of the “Recirculate” mode may
make the inside air stuffy and window fogging may
occur. Extended use of this mode is not recommended.
In cold or damp weather, the use of the “Recirculate”
mode will cause windows to fog on the inside because of
moisture buildup inside the vehicle. For maximum de-
fogging, select the Outside Air position.
NOTE: The “Recirculate” mode will not operate in floor,
mix or defrost modes.Air Conditioning
Normal Operation
Press this button to engage the air
conditioning. A lamp will illumi-
nate when the air conditioning
system is engaged. Once the air
conditioning is engaged, use a
combination of the mode control,
fan speed control, and tempera-
ture control to achieve your de-
sired interior temperature.
NOTE: The air conditioning compressor will not engage
until the engine has been running for about 10 seconds.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50 %
concentration is recommended. Refer to Fluids and
Genuine Parts in Section 7 for the proper coolant type.
When using the air conditioner in extremely heavy traffic
in hot weather especially when towing a trailer, addi-
tional engine cooling may be required. If this situation is
encountered, operate the transmission in a lower gear to
increase engine RPM, coolant flow and fan speed. When
stopped in heavy traffic, it may be necessary to shift intoNEUTRAL (N) and depress the accelerator slightly for
fast idle operation to increase coolant flow and fan speed.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
266 UNDERSTANDING YOUR INSTRUMENT PANEL

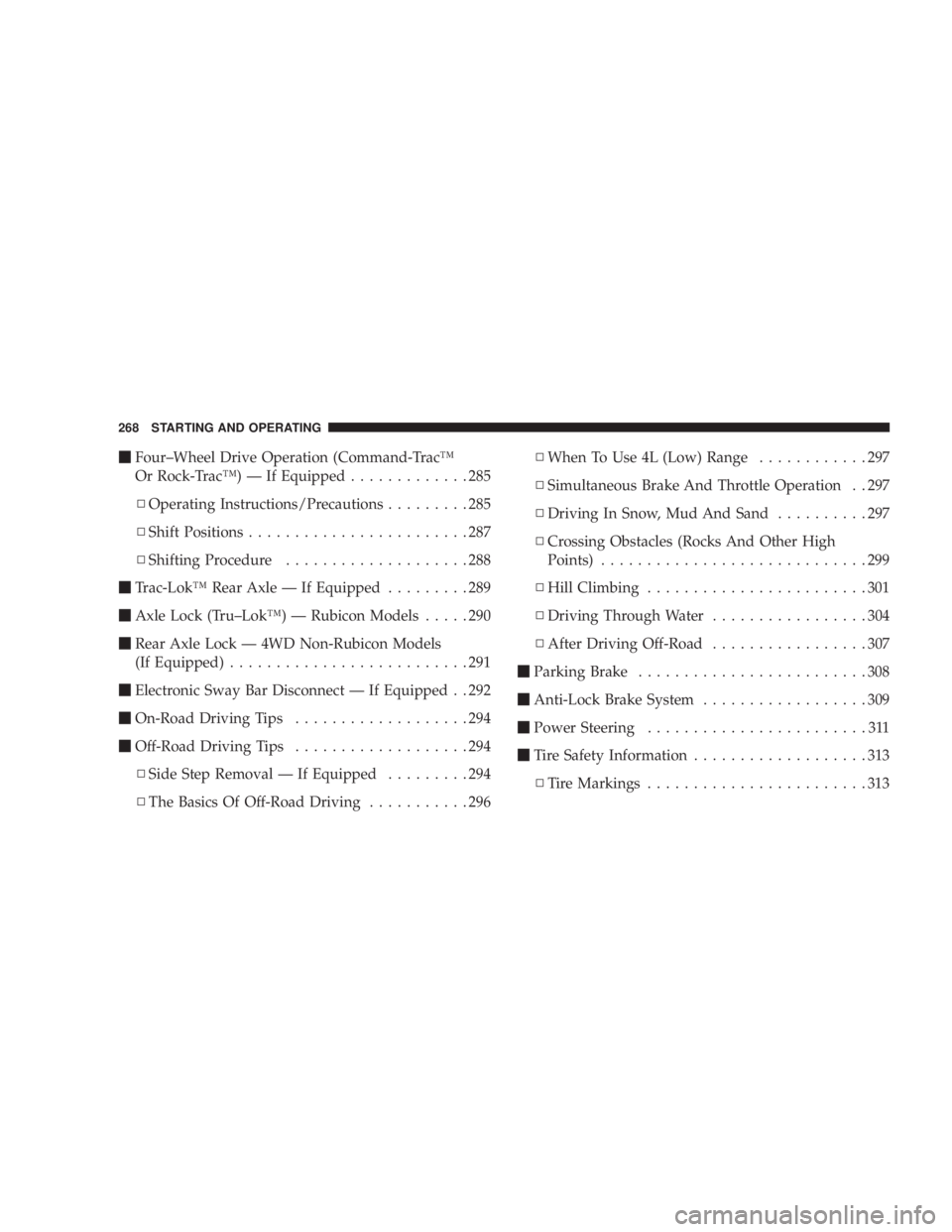

Four–Wheel Drive Operation (Command-Trac™
Or Rock-Trac™) — If Equipped .............285
▫ Operating Instructions/Precautions .........285
▫ Shift Positions ........................287
▫ Shifting Procedure ....................288
Trac-Lok™ Rear Axle — If Equipped .........289
Axle Lock (Tru–Lok™) — Rubicon Models .....290
Rear Axle Lock — 4WD Non-Rubicon Models
(If Equipped) ..........................291
Electronic Sway Bar Disconnect — If Equipped . . 292
On-Road Driving Tips ...................294
Off-Road Driving Tips ...................294
▫ Side Step Removal — If Equipped .........294
▫ The Basics Of Off-Road Driving ...........296▫
When To Use 4L (Low) Range ............297
▫ Simultaneous Brake And Throttle Operation . . 297
▫ Driving In Snow, Mud And Sand ..........297
▫ Crossing Obstacles (Rocks And Other High
Points) .............................299
▫ Hill Climbing ........................301
▫ Driving Through Water .................304
▫ After Driving Off-Road .................307
Parking Brake .........................308
Anti-Lock Brake System ..................309
Power Steering ........................311
Tire Safety Information ...................313
▫ Tire Markings ........................313
268 STARTING AND OPERATING
