JEEP WRANGLER UNLIMITED 2008 Owners Manual

WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable and cause an accident. It could
slip off the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.
6. Remove the lug nuts and wheel.
7. Position spare wheel/tire on vehicle and install lug
nuts with cone-shaped end toward wheel. Lightly tighten
nuts clockwise. To avoid the risk of forcing the vehicle off
the jack, do not tighten the nuts fully until the vehicle has
been lowered.
8. Lower the vehicle by turning the jack screw to the left,
and remove the jack and wheel blocks. 9. Finish tightening the lug nuts. Push down on the
wrench while tightening for increased leverage. Alternate
nuts until each nut has been tightened twice. Correct
wheel nut tightness is 95 ft lbs (130 N·m). If in doubt
about the correct tightness, have them checked with a
torque wrench by your authorized dealer or at a service
station.
10. Remove jack assembly and wheel blocks.

6

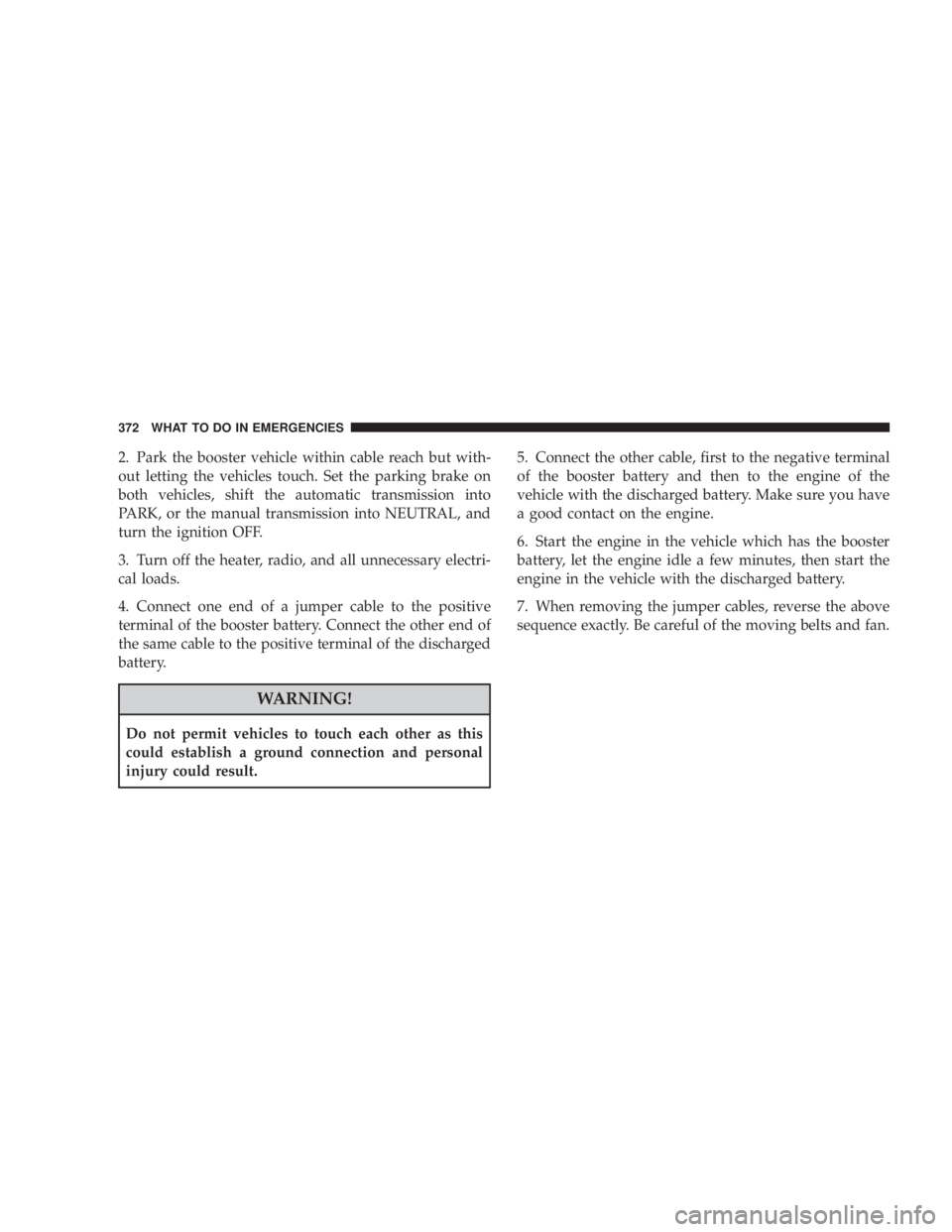

2. Park the booster vehicle within cable reach but with-
out letting the vehicles touch. Set the parking brake on
both vehicles, shift the automatic transmission into
PARK, or the manual transmission into NEUTRAL, and
turn the ignition OFF.
3. Turn off the heater, radio, and all unnecessary electri-
cal loads.
4. Connect one end of a jumper cable to the positive
terminal of the booster battery. Connect the other end of
the same cable to the positive terminal of the discharged
battery.

6

EMERGENCY TOW HOOKS — IF EQUIPPED
If your vehicle is equipped with tow hooks, they are
mounted in the front and the rear.

7

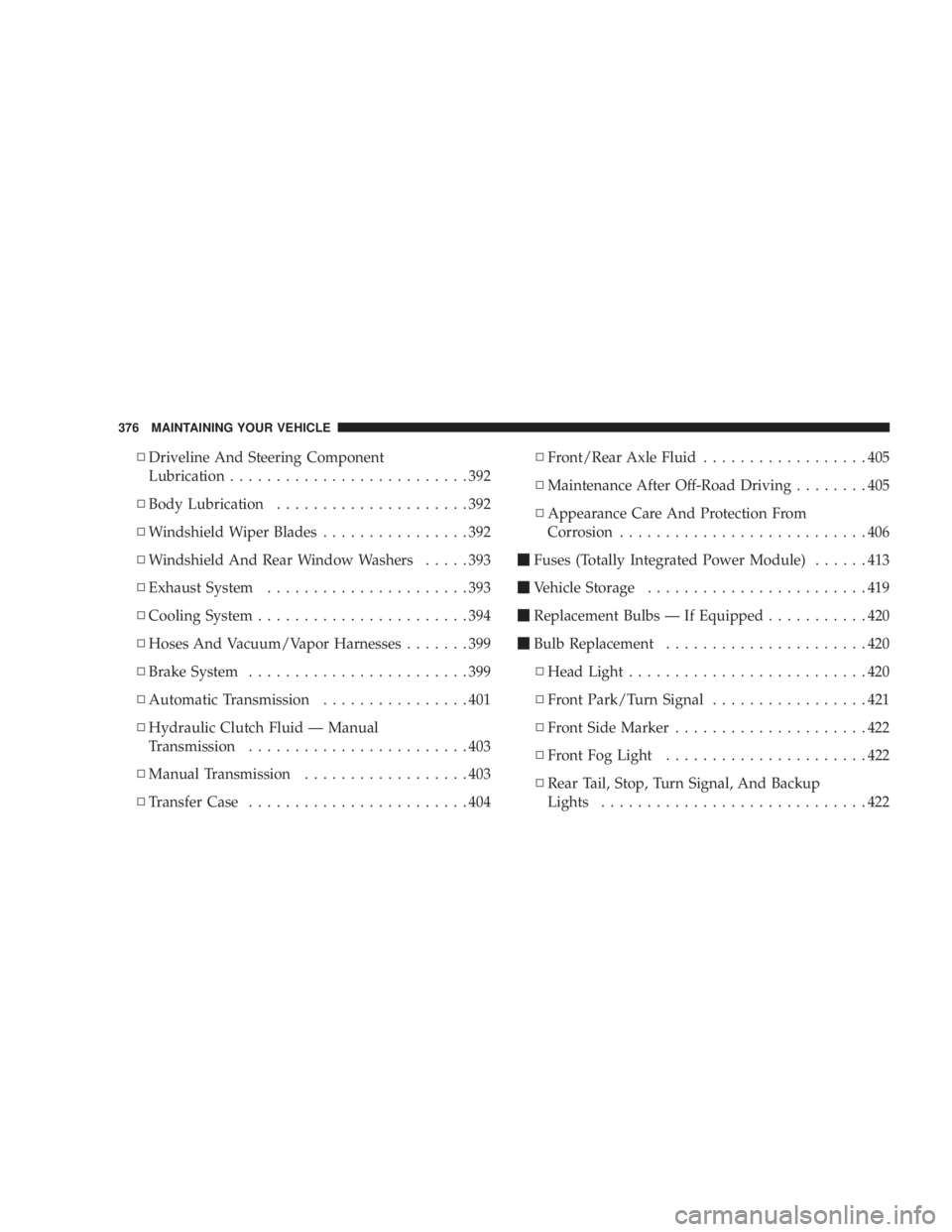

▫Driveline And Steering Component
Lubrication ..........................392
▫ Body Lubrication .....................392
▫ Windshield Wiper Blades ................392
▫ Windshield And Rear Window Washers .....393
▫ Exhaust System ......................393
▫ Cooling System .......................394
▫ Hoses And Vacuum/Vapor Harnesses .......399
▫ Brake System ........................399
▫ Automatic Transmission ................401
▫ Hydraulic Clutch Fluid — Manual
Transmission ........................403
▫ Manual Transmission ..................403
▫ Transfer Case ........................404 ▫
Front/Rear Axle Fluid ..................405
▫ Maintenance After Off-Road Driving ........405
▫ Appearance Care And Protection From
Corrosion ...........................406
 Fuses (Totally Integrated Power Module) ......413
 Vehicle Storage ........................419
 Replacement Bulbs — If Equipped ...........420
 Bulb Replacement ......................420
▫ Head Light ..........................420
▫ Front Park/Turn Signal .................421
▫ Front Side Marker .....................422
▫ Front Fog Light ......................422
▫ Rear Tail, Stop, Turn Signal, And Backup
Lights .............................422
376 MAINTAINING YOUR VEHICLE

7

ENGINE COMPARTMENT – 3.8L

7
