Also, the rear cargo lamp may be turned on by pressing
the lens. Press the lens again to turn it off.When a door is open and the interior lights are on,
rotating the dimmer control all the way down to the OFF
detent will cause all the interior lights to turn off. This is
also known as the
Partymode because it allows the
doors to stay open for extended periods of time without
discharging the vehicle’s battery.

INSTRUMENT CLUSTER DESCRIPTION
Your vehicle is equipped with the instrument cluster
described on the following pages.
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank.
NOTE:When the ignition switch is turned to OFF, the
fuel gauge, voltmeter, oil pressure and temperature
gauges may not show accurate readings. When the
engine is not running, turn the ignition switch to ON to
obtain accurate readings.
2. Charging System Warning Light This light shows the status of the electrical charg-
ing system. The light should come on for three
seconds when the ignition is first turned ON. If the light
comes back on immediately or comes on while driving, it
means that there is a problem with the charging system
or the battery is low. Also, a chime will sound if the light
comes back on. See your authorized dealer immediately. 3. Front Fog Light Indicator Light — If Equipped
This light shows when the front fog lights are on.
4. Low Fuel Warning Light When the fuel level reaches approximately 2.8 gal
(10.6L) this light will turn on and a single chime
will sound.
5. Speedometer
Indicates vehicle speed.
6. Front Axle Lock Indicator Light — If Equipped Indicates when the front axle lock has been
activated.

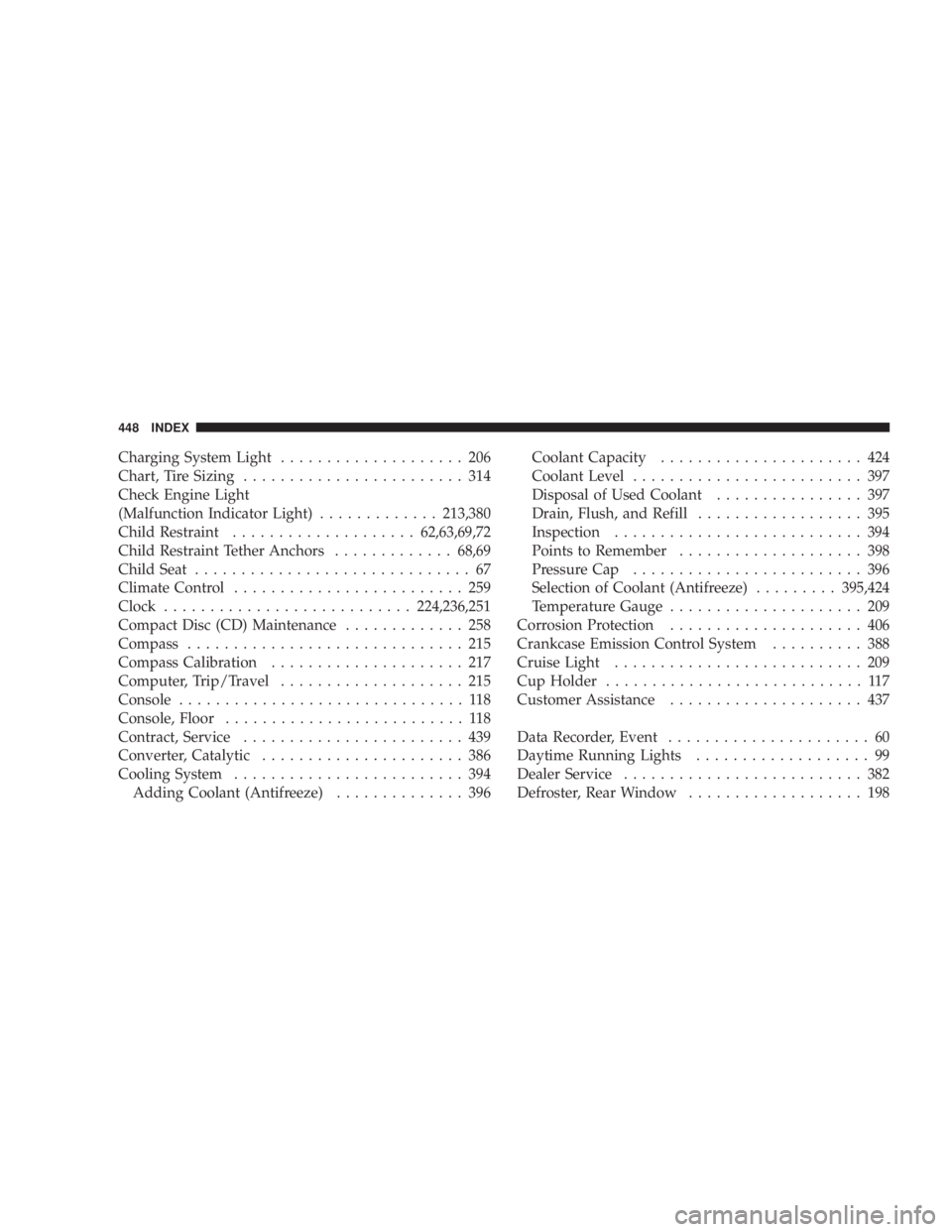

Charging System Light.................... 206
Chart, Tire Sizing ........................ 314
Check Engine Light
(Malfunction Indicator Light) .............213,380
Child Restraint .................... 62,63,69,72
Child Restraint Tether Anchors .............68,69
Child Seat .............................. 67
Climate Control ......................... 259
Clock ........................... 224,236,251
Compact Disc (CD) Maintenance ............. 258
Compass .............................. 215
Compass Calibration ..................... 217
Computer, Trip/Travel .................... 215
Console ............................... 118
Console, Floor .......................... 118
Contract, Service ........................ 439
Converter, Catalytic ...................... 386
Cooling System ......................... 394
Adding Coolant (Antifreeze) .............. 396Coolant Capacity
...................... 424
Coolant Level ......................... 397
Disposal of Used Coolant ................ 397
Drain, Flush, and Refill .................. 395
Inspection ........................... 394
Points to Remember .................... 398
Pressure Cap ......................... 396
Selection of Coolant (Antifreeze) .........395,424
Temperature Gauge ..................... 209
Corrosion Protection ..................... 406
Crankcase Emission Control System .......... 388
Cruise Light ........................... 209
Cup Holder ............................ 117
Customer Assistance ..................... 437
Data Recorder, Event ...................... 60
Daytime Running Lights ................... 99
Dealer Service .......................... 382
Defroster, Rear Window ................... 198
448 INDEX
