remote start JEEP WRANGLER UNLIMITED 2008 Owners Manual

▫To Turn Off “Flash Lights With Lock” ........21
▫ Programming Additional Transmitters ........22
▫ General Information ....................23
▫ Battery Replacement ....................24
 Remote Starting System — If Equipped ........25
 Doors ................................26
▫ Upper Half Door Window Removal
(If Equipped) .........................27
▫ Upper Half Door Window Installation
(If Equipped) .........................27
▫ Front Door Removal ....................28
▫ Rear Door Removal (Four-Door Models) ......29
 Door Locks ............................31
▫ Manual Door Locks .....................32 ▫
Power Door Locks — If Equipped ..........33
▫ Automatic Unlock Doors On Exit ...........34
▫ Automatic Door Locks ...................35
 Windows .............................36
▫ Power Windows — If Equipped ............36
▫ Rear Power Windows (Four-Door
Models Only) .........................37
▫ Wind Buffeting ........................38
 Rear Swing Gate ........................38
 Occupant Restraints ......................40
▫ Lap/Shoulder Belts .....................41
▫ Rear Center Lap/Shoulder Belt Retractor
Lock-Out (Four-Door Models Only) .........46
▫ Adjustable Upper Shoulder Belt Anchorage ....47
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
This system monitors the vehicle doors, swing gate, and
ignition for unauthorized operation. When the alarm is
activated, the system provides both audible and visible
signals. The horn, headlights, and tail lights will sound/
flash repeatedly for three minutes. If disturbance is still
present (driver’s door, passenger door, other doors, igni-
tion) after three minutes, the headlights and tail lights
will flash for an additional 15 minutes.
NOTE:The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
To Set the Alarm
The alarm will set when you use the remote keyless entry
(RKE) transmitter to lock the doors and swing gate, or
when you use the power door lock switch while the door
is open. After all the doors are locked and closed, the
Sentry Key/Security Alarm Indicator Light (located on
the instrument cluster) will flash rapidly for about 16
seconds to signal that the system is arming. During this
16–second arming period, opening any door or the swing
gate will cancel the arming. If the system successfully
arms, the Sentry Key/Security Alarm Indicator Light
will flash at a slower rate to indicate the alarm is set.
To Disarm the System
To disarm the system, you will need to press the UN-
LOCK button on the RKE transmitter, or turn the ignition
key to the ON position. If something has triggered the
system in your absence, the horn will sound three times
when you unlock the doors. Check the vehicle for tam-
pering.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The park lamps will remain illuminated to indicate that
the vehicle has remote started and the engine is running.
The lamps will turn off when the ignition is turned to
RUN or the remote start is cancelled.
To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the key fob. Then, prior to the end of
the 15 minute cycle, insert the key into the ignition switch
and turn the switch to the ON position, otherwise the
engine will cancel remote start and automatically turn
off.
Remote start will also cancel if any of the following occur:
•If the engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the remote start sequence was initiated
but the engine stopped cranking without starting. After
either of these conditions, or if the Security Alarm is
alarming, or if the PANIC button was pressed, the vehicle
must be reset by inserting a valid key into the ignition
and moving it to the RUN position, then back to LOCK.
DOORS
The vacuum fluorescent (VF) display located in the
odometer area will display the word “door” as an
indication of a door ajar or not completely closed. When
the vehicle is not moving and the door is ajar or not
completely closed, the VF display will show the word
“door.”
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down in certain open or partially open posi-
tions. This is a normal occurrence and can be minimized
by adjusting window opening.
REAR SWING GATE
The vacuum fluorescent (VF) display located in the
odometer area displays the word “gATE” as an indica-
tion of when the swing gate is not completely closed.
When the vehicle is not moving, and the swing gate is not
completely closed, the VF display will show the word
“gATE.”If any other active warnings are present, they will be
shown in the VF display and will also continue to cycle.
If the vehicle is moving, three single chimes will occur if
the rear swing gate is open (one chime for each complete
display cycle). After this, the VF display will continue to
sequence only (no chimes).
If the trip/reset button is pressed while the VF warnings
are being displayed, the VF display will revert back to
only displaying the odometer/trip odometer mileage.
The swing gate can be unlocked by using the key, remote
keyless entry (RKE) key fob, or by activating the power
door lock switches located on the front doors.
To open the swing gate, press the button on the gate
handle.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

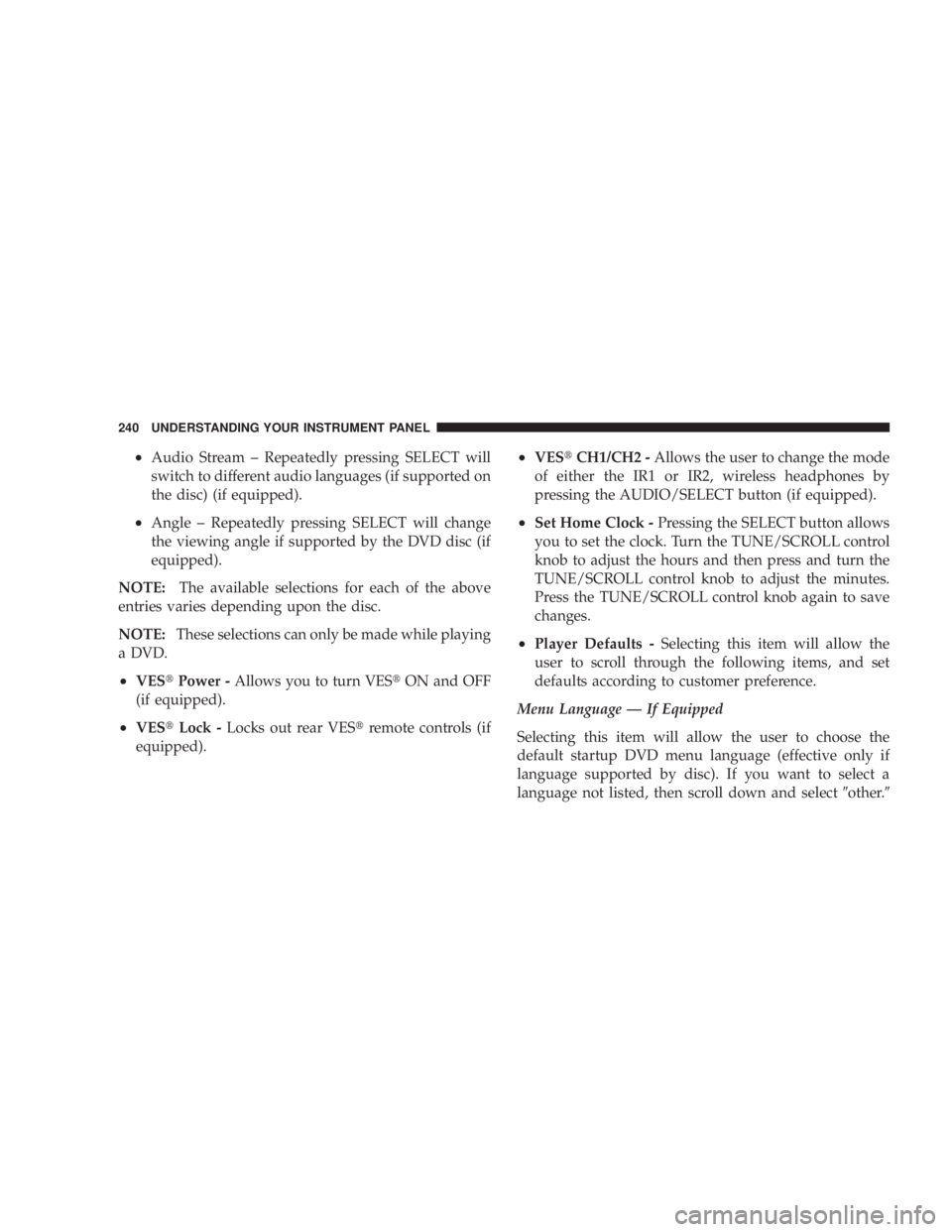

•Audio Stream – Repeatedly pressing SELECT will
switch to different audio languages (if supported on
the disc) (if equipped).
•Angle – Repeatedly pressing SELECT will change
the viewing angle if supported by the DVD disc (if
equipped).
NOTE: The available selections for each of the above
entries varies depending upon the disc.
NOTE: These selections can only be made while playing
a DVD.
•VES Power - Allows you to turn VES ON and OFF
(if equipped).
•VES Lock - Locks out rear VES remote controls (if
equipped).
•VES CH1/CH2 - Allows the user to change the mode
of either the IR1 or IR2, wireless headphones by
pressing the AUDIO/SELECT button (if equipped).
•Set Home Clock - Pressing the SELECT button allows
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
•Player Defaults - Selecting this item will allow the
user to scroll through the following items, and set
defaults according to customer preference.
Menu Language — If Equipped
Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if
language supported by disc). If you want to select a
language not listed, then scroll down and select other.
240 UNDERSTANDING YOUR INSTRUMENT PANEL

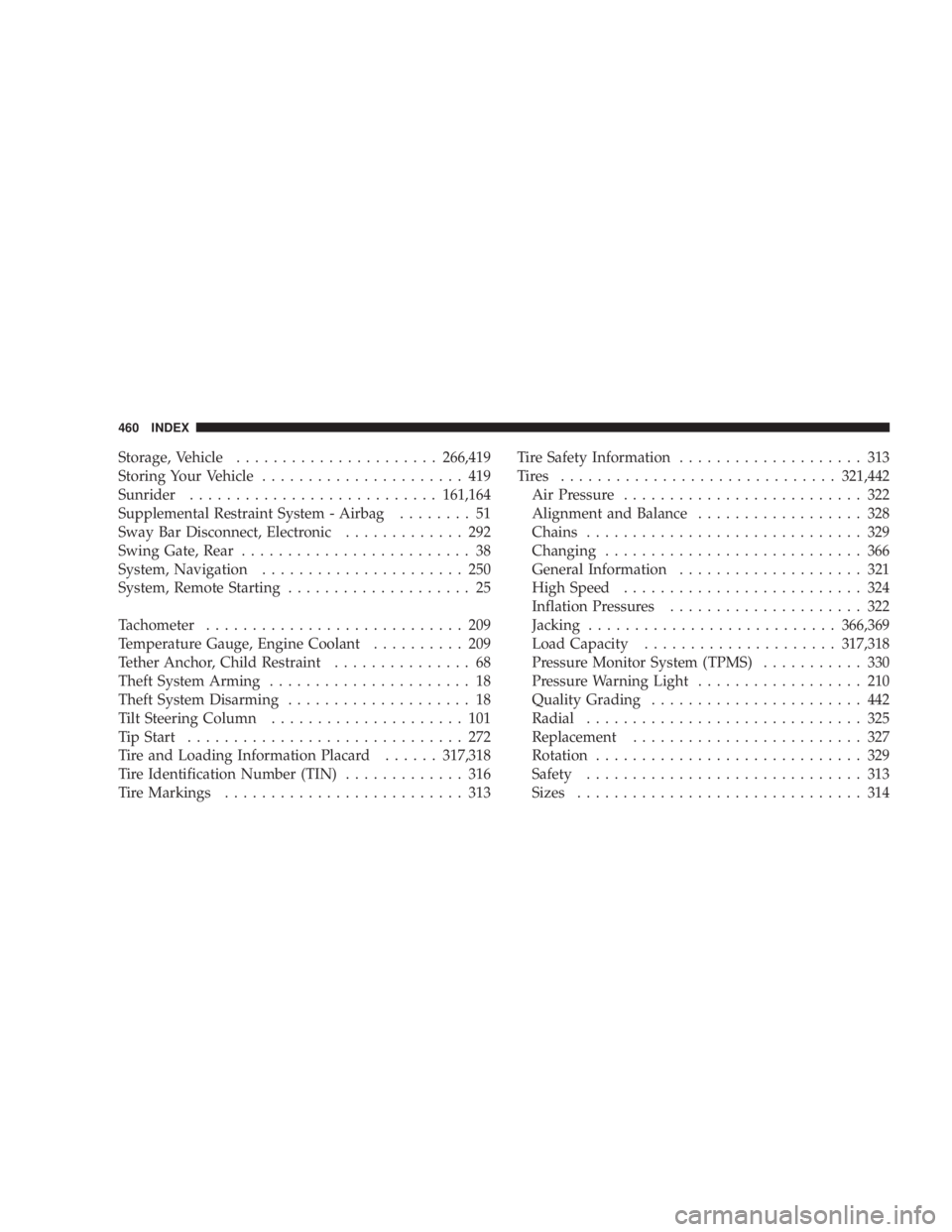

Storage, Vehicle...................... 266,419
Storing Your Vehicle ...................... 419
Sunrider ........................... 161,164
Supplemental Restraint System - Airbag ........ 51
Sway Bar Disconnect, Electronic ............. 292
Swing Gate, Rear ......................... 38
System, Navigation ...................... 250
System, Remote Starting .................... 25
Tachometer ............................ 209
Temperature Gauge, Engine Coolant .......... 209
Tether Anchor, Child Restraint ............... 68
Theft System Arming ...................... 18
Theft System Disarming .................... 18
Tilt Steering Column ..................... 101
Tip Start .............................. 272
Tire and Loading Information Placard ......317,318
Tire Identification Number (TIN) ............. 316
Tire Markings .......................... 313 Tire Safety Information
.................... 313
Tires .............................. 321,442
Air Pressure .......................... 322
Alignment and Balance .................. 328
Chains .............................. 329
Changing ............................ 366
General Information .................... 321
High Speed .......................... 324
Inflation Pressures ..................... 322
Jacking ........................... 366,369
Load Capacity ..................... 317,318
Pressure Monitor System (TPMS) ........... 330
Pressure Warning Light .................. 210
Quality Grading ....................... 442
Radial .............................. 325
Replacement ......................... 327
Rotation ............................. 329
Safety .............................. 313
Sizes ............................... 314
460 INDEX

INTRODUCTION INTRODUCTION ROLLOVER WARNING HOW TO USE THIS MANUAL WARNINGS AND CAUTIONS VEHICLE IDENTIFICATION NUMBER VEHICLE MODIFICATIONS/ALTERATIONS THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD
ABOUT YOUR KEYS Ignition Key RemovalKey-In-Ignition ReminderSTEERING WHEEL LOCK To Manually Lock the Steering WheelTo Release the Steering Wheel LockSENTRY KEY Replacement KeysCustomer Key ProgrammingGeneral InformationSECURITY ALARM
SYSTEM - IF EQUIPPED To Set the AlarmTo Disarm the SystemILLUMINATED ENTRY REMOTE KEYLESS ENTRY - IF EQUIPPED To Unlock the Doors and Swing GateTo Lock the Doors and Swing GateUsing The Panic AlarmTo Turn Off Flash Lights With Lock
Programming Additional TransmittersGeneral InformationBattery ReplacementREMOTE STARTING SYSTEM - IF EQUIPPED DOORS Upper Half Door Window Removal (If Equipped)Upper Half Door Window Installation (If Equipped)Front Door RemovalRear Door Removal
(Four-Door Models)DOOR LOCKS Manual Door LocksPower Door Locks - If EquippedAutomatic Unlock Doors On ExitAutomatic Door LocksWINDOWS Power Windows - If EquippedRear Power Windows (Four-Door Models Only)Wind BuffetingREAR SWING GATE
OCCUPANT RESTRAINTS Lap/Shoulder BeltsRear Center Lap/Shoulder Belt Retractor Lock-Out (Four-Door Models Only)Adjustable Upper Shoulder Belt AnchorageSeat Belt PretensionersEnhanced Seat Belt Use Reminder System (BeltAlert)Seat Belts And Pregnant
WomenSeat Belt ExtenderDriver And Front Passenger Supplemental Restraint Systems (SRS) Child RestraintENGINE BREAK-IN RECOMMENDATIONS SAFETY TIPS Exhaust GasSafety Checks You Should Make Inside The VehicleSafety Checks You Should Make
Outside The VehicleUNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night MirrorOutside MirrorsHANDS-FREE COMMUNICATION (UConnect) SEATS Front Seat AdjustmentManual Seat Height Adjustment - If EquippedFront Seatback
ReclineFront Easy Entry Seats (Two-Door Models)Head RestraintsFold And Tumble Rear Seat (Two-Door Models)Removing the Rear Seat (Two-Door Models)Replacing the Rear Seat (Two-Door Models)60/40 Split Folding Rear Seat (Four-Door Models)To Raise the Rear
SeatTO OPEN AND CLOSE THE HOOD LIGHTS Interior LightsMultifunction Control LeverParking Lights, Instrument Panel Lights, and HeadlightsLights-On ReminderHeadlight Dimmer SwitchPassing LightFront Fog Lights - If EquippedTurn SignalsDaytime Running Lights
- If EquippedWINDSHIELD WIPERS AND WASHERS Intermittent Wiper SystemWindshield Wiper OperationWindshield WashersMist FeatureTILT STEERING COLUMN ELECTRONIC SPEED CONTROL - IF EQUIPPED To ActivateTo Set At A Desired SpeedTo Deactivate
To Resume SpeedTo Vary The Speed SettingManual TransmissionTo Accelerate For PassingELECTRONIC BRAKE CONTROL SYSTEM ABS (Anti-Lock Brake System)TCS (Traction Control System)BAS (Brake Assist System)ERM (Electronic Roll Mitigation)ESP (Electronic
Stability Program)ESP/BAS Warning LightELECTRICAL POWER OUTLET Electrical Outlet Use With Engine OffCUPHOLDERS Front CupholdersRear CupholdersSTORAGE Console Storage CompartmentRear Storage CompartmentDUAL TOP - IF EQUIPPED Removing
The Soft TopInstalling the Soft TopFREEDOM TOP THREE-PIECE MODULAR HARD TOP Front Panel(s) RemovalFront Panel(s) InstallationFront Panel(s) Installation Only (With Rear Hard Top Removed)Rear Hard Top RemovalRear Hard Top InstallationDOOR FRAME
Door Frame Removal (Two-Door Models)Door Frame Installation (Two-Door Models)Door Frame Removal (Four-Door Models)Door Frame Installation (Four-Door Models)SOFT TOP (TWO-DOOR MODELS) Folding Down The Soft Top Putting Up The Soft Top SUNRIDER
(TWO-DOOR MODELS) - IF EQUIPPED SUNRIDER (FOUR-DOOR MODELS) - IF EQUIPPED SOFT TOP (FOUR-DOOR MODELS) Folding Down The Soft Top Putting Up The Soft Top FOLDING WINDSHIELD Lowering The Windshield And Removing Side BarsRaising
The Windshield And Replacing Side BarsREAR WINDOW FEATURES - HARD TOP ONLY Rear Window Wiper/Washer - If EquippedRear Window Defroster - If EquippedUNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL AND CONTROLS
INSTRUMENT CLUSTER INSTRUMENT CLUSTER DESCRIPTION COMPASS AND TRIP COMPUTER - IF EQUIPPED Control ButtonsTrip ConditionsCompass Temperature DisplayRADIO GENERAL INFORMATION Radio Broadcast SignalsTwo Types of SignalsElectrical
DisturbancesAM ReceptionFM ReceptionSALES CODE RES - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) Operating Instructions - Radio ModeOperation Instructions - CD MODE for CD and MP3 Audio PlayNotes On Playing MP3 FilesLIST Button (CD
Mode for MP3 Play)INFO Button (CD Mode for MP3 Play)SALES CODE REQ - AM/FM STEREO RADIO AND 6-DISC CD/DVD CHANGER (MP3/WMA AUX JACK) Operating Instructions - Radio ModeOperation Instructions - (DISC MODE for CD and MP3/WMA Audio
Play, DVD-VIDEO)Notes On Playing MP3/WMA FilesLIST Button (DISC Mode for MP3/WMA Play)INFO Button (DISC Mode for MP3/WMA Play)SALES CODE RER - MULTIMEDIA SYSTEM - IF EQUIPPED Operating Instructions - Satellite RadioOperating Instructions -
Hands-Free Communication (UConnect) (If Equipped)Clock Setting ProcedureSATELLITE RADIO - IF EQUIPPED (REN/REQ/RER/RES RADIOS ONLY) System Act ivationElectronic Serial Number/Sirius Identification Number (ESN/SID)Selecting Satellite ModeSatellite
AntennaReception QualityOperating Instructions - Satellite ModeOperating Instructions - Hands-Free Phone (If Equipped)Operating Instruction s - Video Entertainment System (VES) (If Equipped)CD/DVD DISC MAINTENANCE RADIO OPERATION AND CELLULAR
PHONES CLIMATE CONTROLS Manual Heater OnlyManual Air Conditioning and Heating System - If EquippedAir ConditioningOperating TipsSTARTING AND OPERATING STARTING PROCEDURES Manual TransmissionAutomatic TransmissionNormal StartingExtreme
Cold Weather (below -20 degrees F or -29 degrees C)If Engine Fails to StartAfter StartingENGINE BLOCK HEATER - IF EQUIPPED MANUAL TRANSMISSION ShiftingDownshiftingReverse ShiftingAUTOMATIC TRANSMISSION Shift Lock Manual Override
Brake/Transmission Interlock SystemAutomatic Transmission with OverdriveFOUR-WHEEL DRIVE OPERATION (COMMAND-TRAC OR ROCK-TRAC) - IF EQUIPPED Operating Instructions/PrecautionsShift PositionsShifting ProcedureTRAC-LOK REAR AXLE - IF
EQUIPPED AXLE LOCK (TRU-LOK) - RUBICON MODELS REAR AXLE LOCK - 4WD NON-RUBICON MODELS (IF EQUIPPED) ELECTRONIC SWAY BAR DISCONNECT - IF EQUIPPED ON-ROAD DRIVING TIPS OFF-ROAD DRIVING TIPS Side Step Removal - If
EquippedThe Basics of Off-Road DrivingWhen To Use 4L (Low) RangeSimultaneous Brake And Throttle OperationDriving In Snow, Mud and SandCrossing Obstacles (Rocks And Other High Points)Hill ClimbingDriving Through WaterAfter Driving Off-RoadPARKING BRAKE
ANTI-LOCK BRAKE SYSTEM POWER STEERING TIRE SAFETY INFORMATION Tire Markings Tire Identification Number (TIN)Tire Loading and Tire PressureTIRES - GENERAL INFORMATION Tire PressureTire Inflation Pressures Tire Pressures for High-Speed Operation
Radial-Ply TiresTire SpinningTread Wear IndicatorsLife of TireReplacement TiresAlignment and BalanceTIRE CHAINS TIRE ROTATION RECOMMENDATIONS TIRE PRESSURE MONITOR SYSTEM (TPMS) Base SystemGeneral InformationFUEL REQUIREMENTS
Reformulated GasolineGasoline/Oxygenate BlendsMMT In GasolineMaterials Added To FuelFuel System CautionsCarbon Monoxide WarningsADDING FUEL Fuel Filler Cap (Gas Cap)VEHICLE LOADING Certification LabelTRAILER TOWING Common Towing Definitions
Trailer Hitch ClassificationTrailer Towing Weights (Maximum Trailer Weight Ratings)Trailer and Trailer Tongue WeightTowing RequirementsTowing TipsRECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing - 2WD ModelsTowing - 4WD ModelsWHAT TO DO
IN EMERGENCIES HAZARD WARNING FLASHERS IF YOUR ENGINE OVERHEATS JACKING AND TIRE CHANGING Jack LocationSpare Tire StowagePreparations For JackingJacking Instructions JUMP STARTING EMERGENCY TOW HOOKS - IF EQUIPPED TOWING
A DISABLED VEHICLE MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT - 3.8L ONBOARD DIAGNOSTIC SYSTEM - OBD II Loose Fuel Filler Cap MessageEMISSIONS INSPECTION AND MAINTENANCE PROGRAMS REPLACEMENT PARTS AUTHORIZED
DEALER SERVICE MAINTENANCE PROCEDURES Engine OilDrive Belts - Check Condition and TensionSpark PlugsCatalytic ConverterCrankcase Emission Control SystemFuel FilterEngine Air Cleaner FilterMaintenance-Free BatteryAir Conditioner MaintenancePower
Steering Fluid CheckDriveline And Steering Component LubricationBody LubricationWindshield Wiper BladesWindshield And Rear Window WashersExhaust SystemCooling SystemHoses and Vacuum/Vapor HarnessesBrake SystemAutomatic TransmissionHydraulic Clutch
Fluid - Manual TransmissionManual TransmissionTransfer CaseFront/Rear Axle FluidMaintenance After Off-Road DrivingAppearance Care And Protection From CorrosionFUSES (TOTALLY INTEGRATED POWER MODULE) VEHICLE STORAGE REPLACEMENT BULBS
- IF EQUIPPED BULB REPLACEMENT Head LightFront Park/Turn SignalFront Side MarkerFront Fog LightRear Tail, Stop, Turn Signal, and Backup LightsCenter High-Mounted Stop Light (CHMSL)FLUID CAPACITIES FLUIDS, LUBRICANTS AND GENUINE PARTS Engine
ChassisMAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE MAINTENANCE SCHEDULE Required Maintenance IntervalsIF YOU NEED CONSUMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE Prepare
For The AppointmentPrepare A ListBe Reasonable With RequestsIF YOU NEED ASSISTANCE DaimlerChrysler Motors Corporation Customer CenterDaimlerChrysler Canada Inc. Customer CenterIn Mexico contactCustomer Assistance For The Hearing Or Speech Impaired
(TDD/TTY)Service ContractWARRANTY INFORMATION (U.S. Vehicles Only) MOPAR PARTS REPORTING SAFETY DEFECTS In The 50 United States And Washington, D.CIn CanadaPUBLICATION ORDER FORMS DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES TreadwearTraction GradesTemperature GradesINDEX
