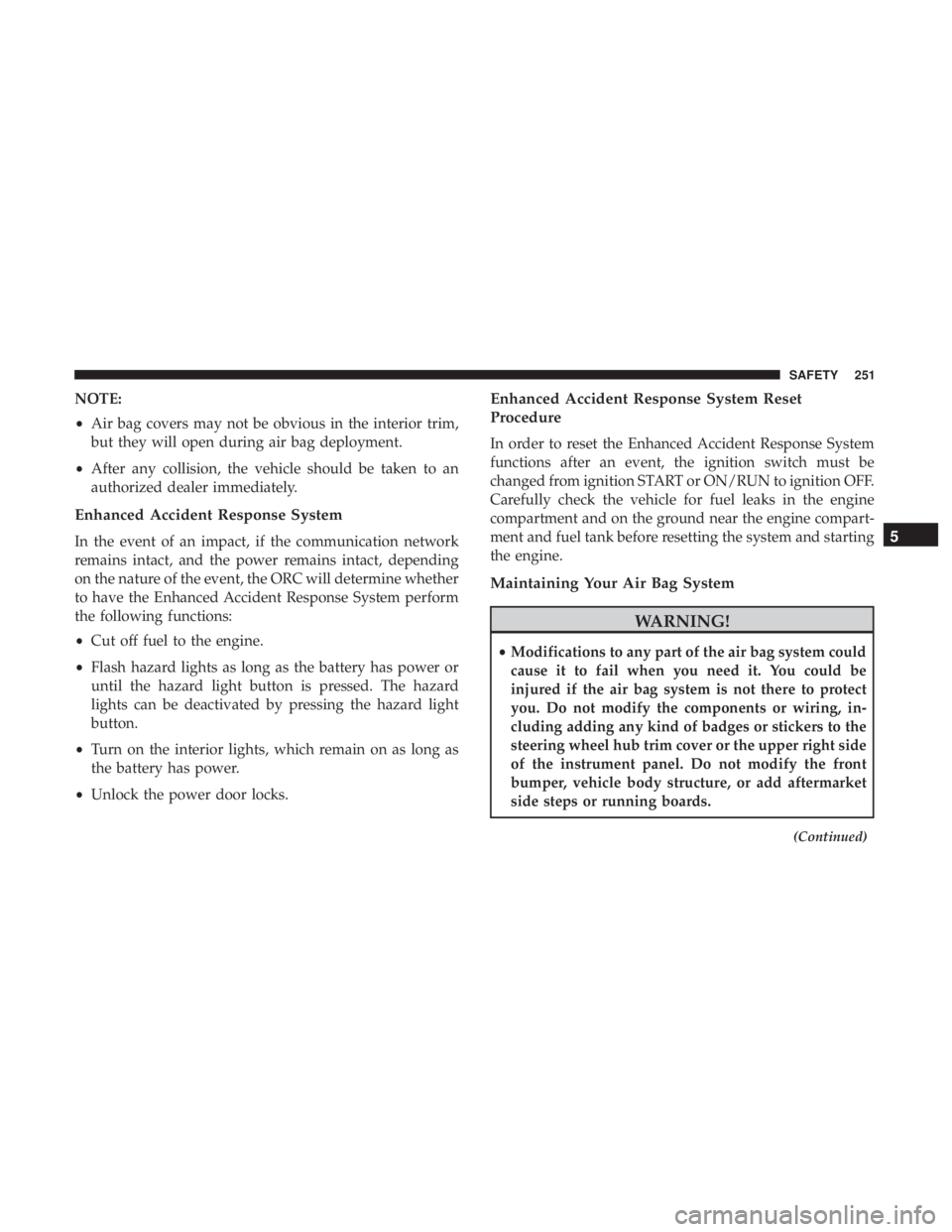

NOTE:
•Air bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
• After any collision, the vehicle should be taken to an
authorized dealer immediately.
Enhanced Accident Response System
In the event of an impact, if the communication network
remains intact, and the power remains intact, depending
on the nature of the event, the ORC will determine whether
to have the Enhanced Accident Response System perform
the following functions:
• Cut off fuel to the engine.
• Flash hazard lights as long as the battery has power or
until the hazard light button is pressed. The hazard
lights can be deactivated by pressing the hazard light
button.
• Turn on the interior lights, which remain on as long as
the battery has power.
• Unlock the power door locks.
Enhanced Accident Response System Reset
Procedure
In order to reset the Enhanced Accident Response System
functions after an event, the ignition switch must be
changed from ignition START or ON/RUN to ignition OFF.
Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine compart-
ment and fuel tank before resetting the system and starting
the engine.
Maintaining Your Air Bag System

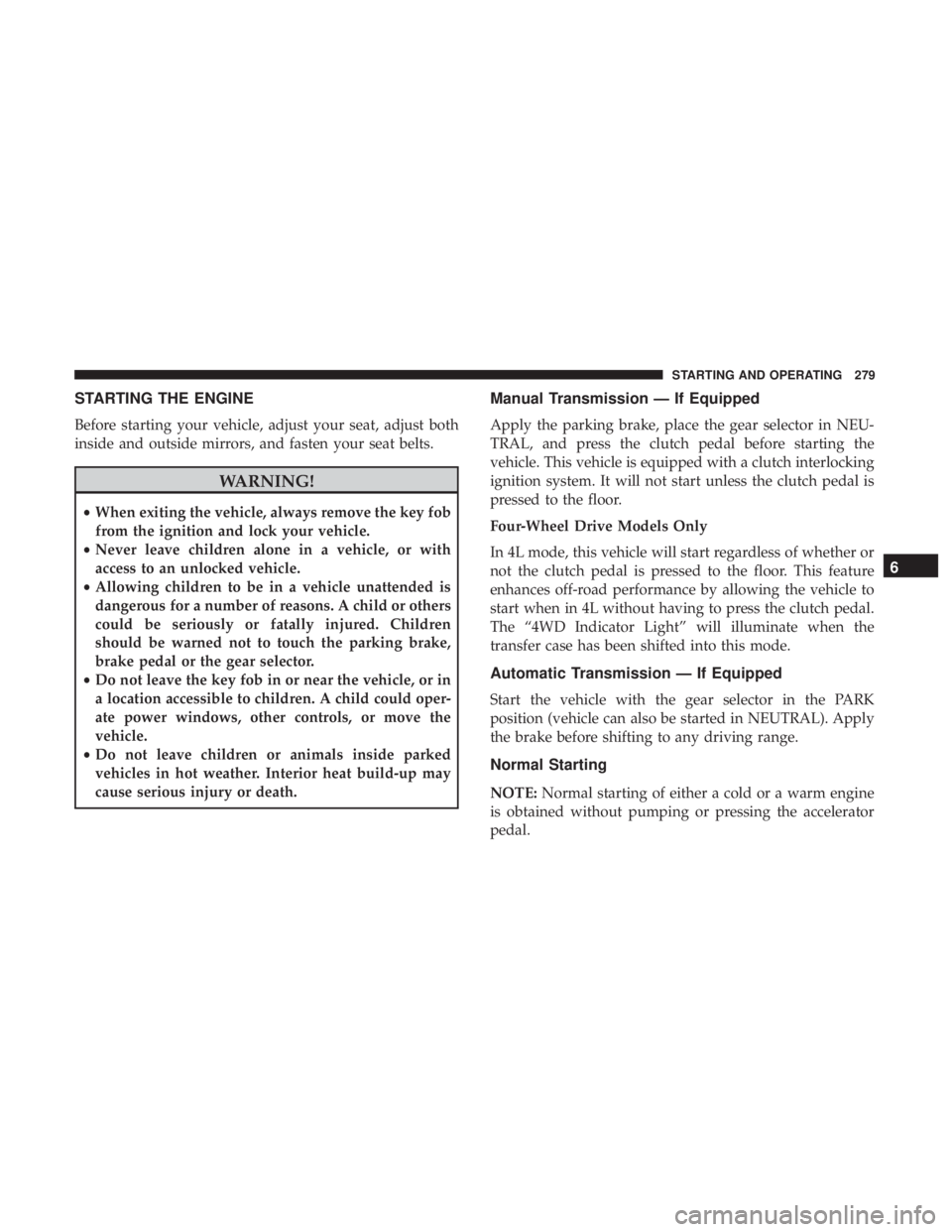

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.

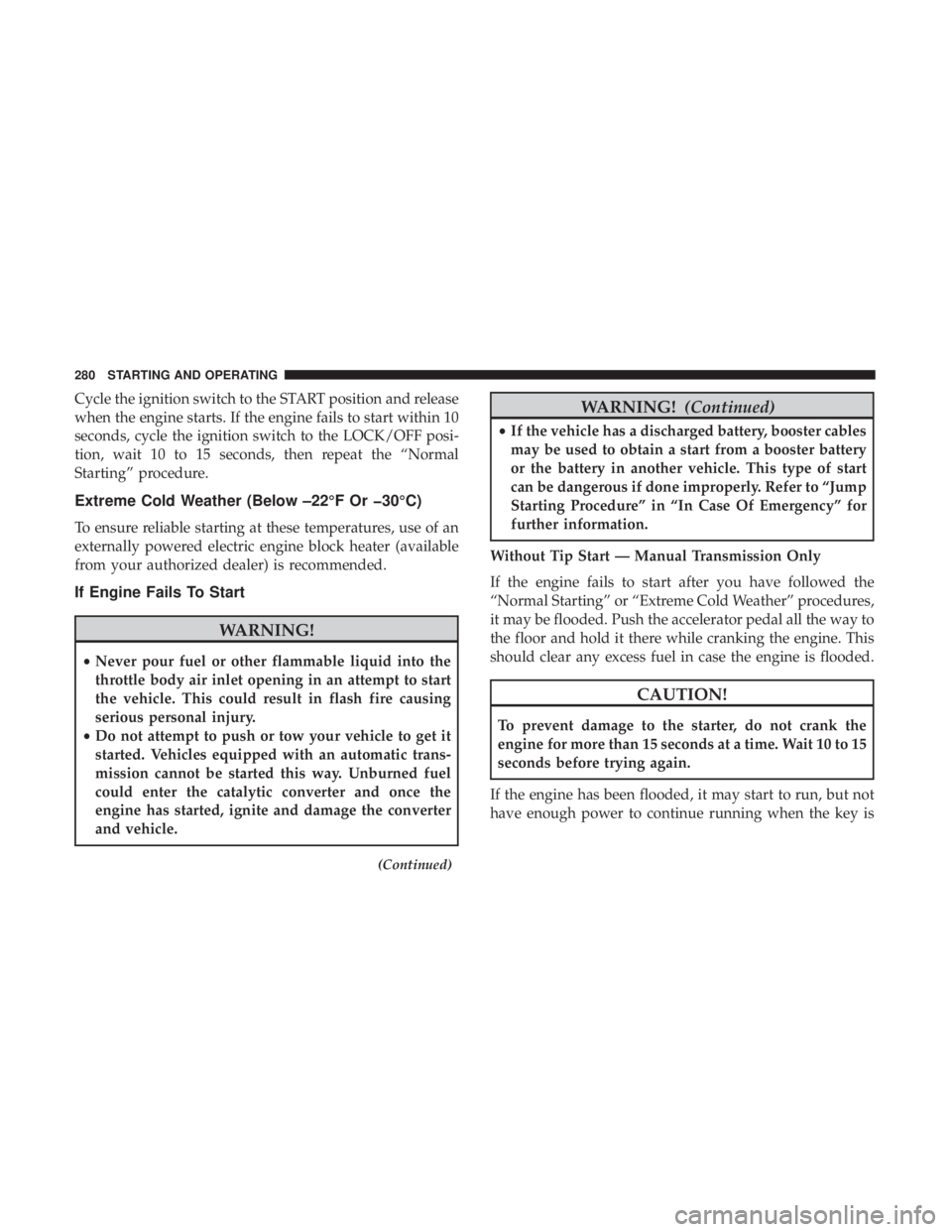

Cycle the ignition switch to the START position and release
when the engine starts. If the engine fails to start within 10
seconds, cycle the ignition switch to the LOCK/OFF posi-
tion, wait 10 to 15 seconds, then repeat the “Normal
Starting” procedure.
Extreme Cold Weather (Below –22°F Or 30°C)
To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your authorized dealer) is recommended.
If Engine Fails To Start

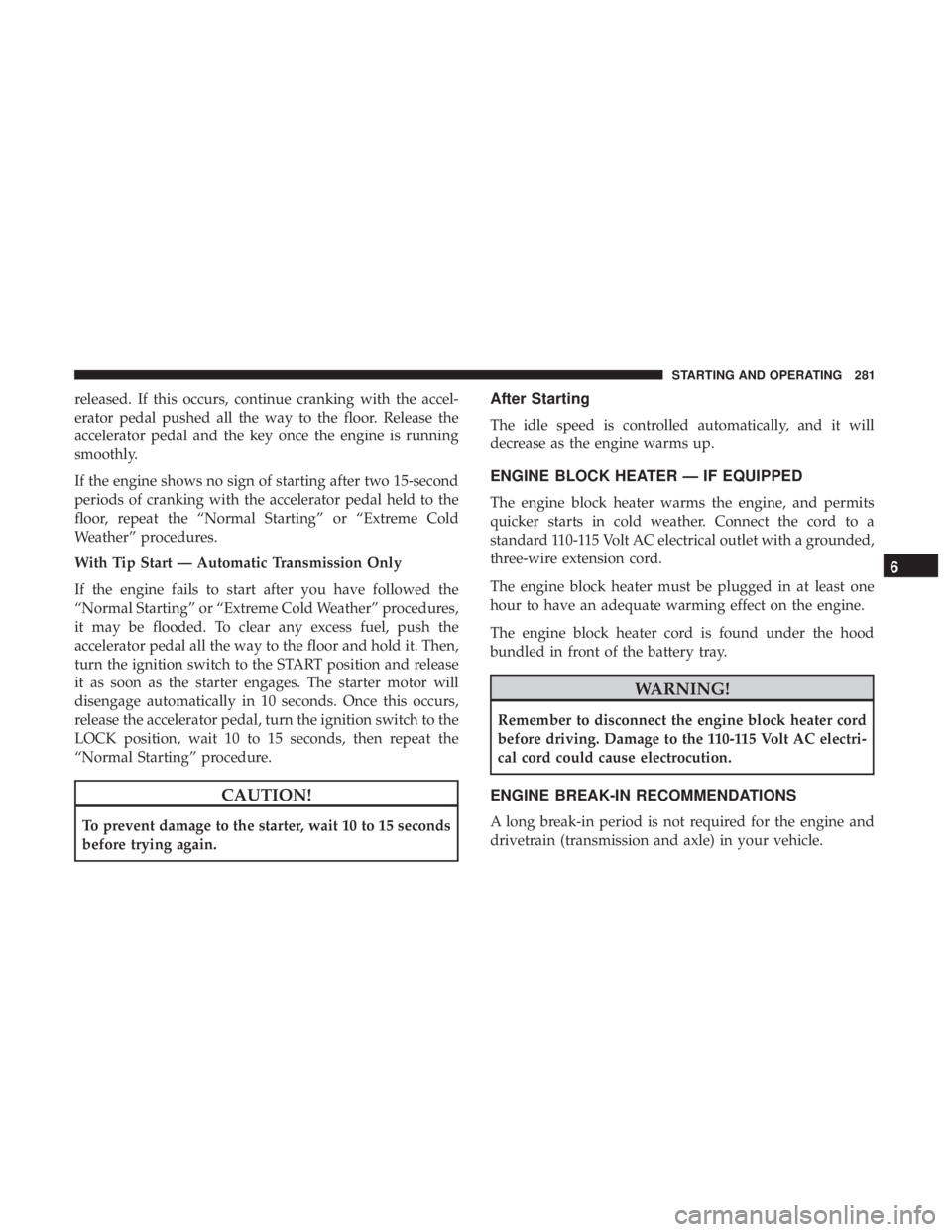

released. If this occurs, continue cranking with the accel-
erator pedal pushed all the way to the floor. Release the
accelerator pedal and the key once the engine is running
smoothly.
If the engine shows no sign of starting after two 15-second
periods of cranking with the accelerator pedal held to the
floor, repeat the “Normal Starting” or “Extreme Cold
Weather” procedures.
With Tip Start — Automatic Transmission Only
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” procedures,
it may be flooded. To clear any excess fuel, push the
accelerator pedal all the way to the floor and hold it. Then,
turn the ignition switch to the START position and release
it as soon as the starter engages. The starter motor will
disengage automatically in 10 seconds. Once this occurs,
release the accelerator pedal, turn the ignition switch to the
LOCK position, wait 10 to 15 seconds, then repeat the
“Normal Starting” procedure.

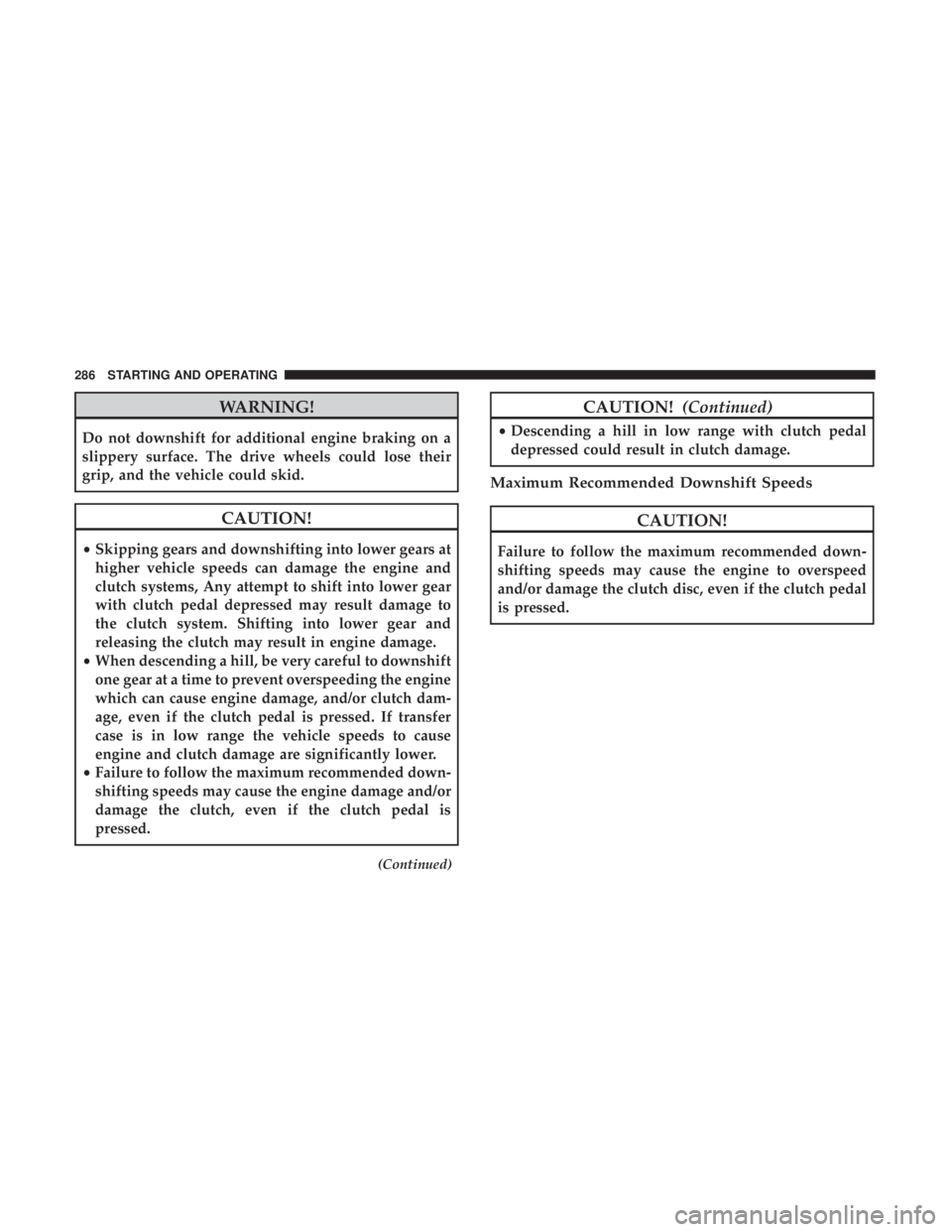

WARNING!
Do not downshift for additional engine braking on a
slippery surface. The drive wheels could lose their
grip, and the vehicle could skid.

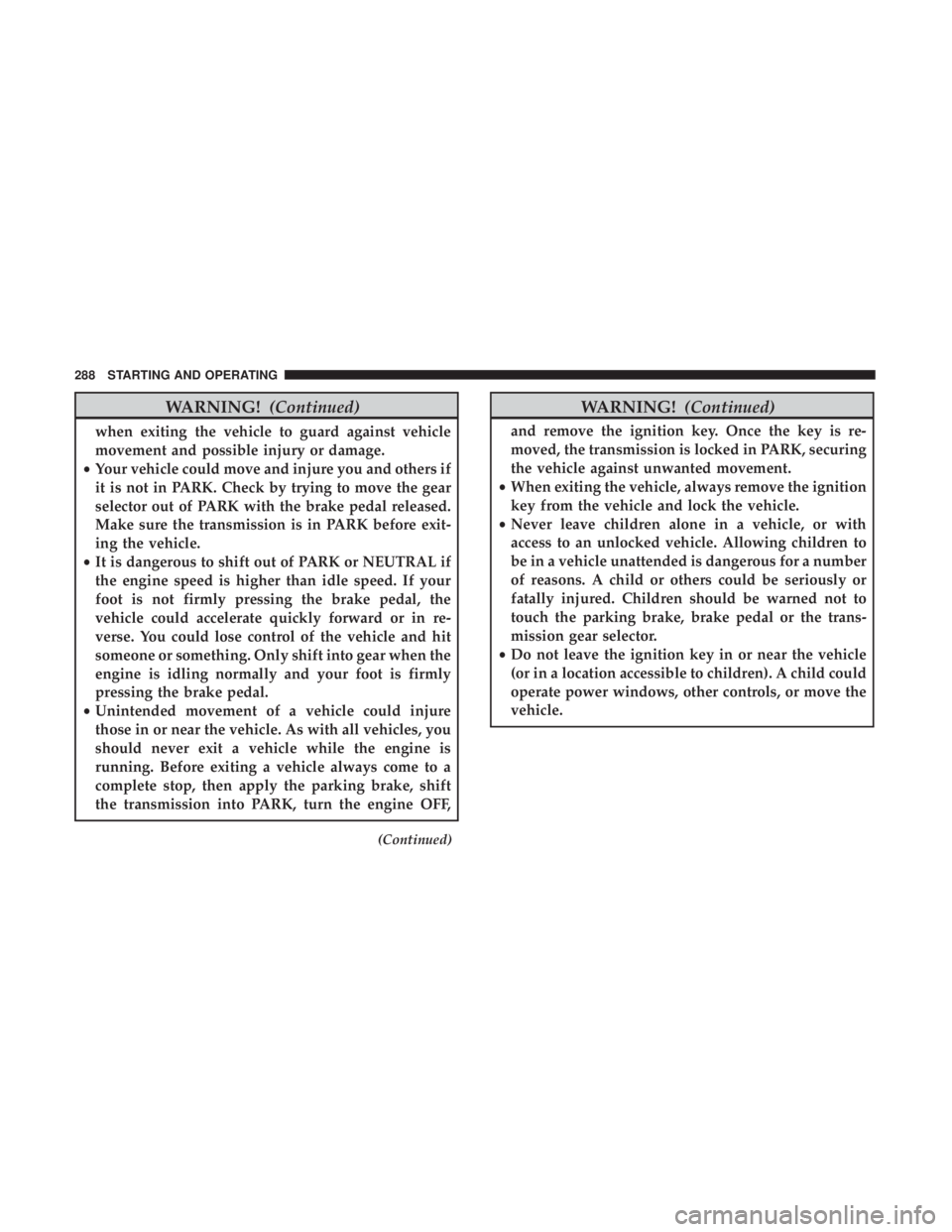

WARNING!(Continued)
when exiting the vehicle to guard against vehicle
movement and possible injury or damage.
• Your vehicle could move and injure you and others if
it is not in PARK. Check by trying to move the gear
selector out of PARK with the brake pedal released.
Make sure the transmission is in PARK before exit-
ing the vehicle.
• It is dangerous to shift out of PARK or NEUTRAL if
the engine speed is higher than idle speed. If your
foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in re-
verse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when the
engine is idling normally and your foot is firmly
pressing the brake pedal.
• Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles, you
should never exit a vehicle while the engine is
running. Before exiting a vehicle always come to a
complete stop, then apply the parking brake, shift
the transmission into PARK, turn the engine OFF,
(Continued)

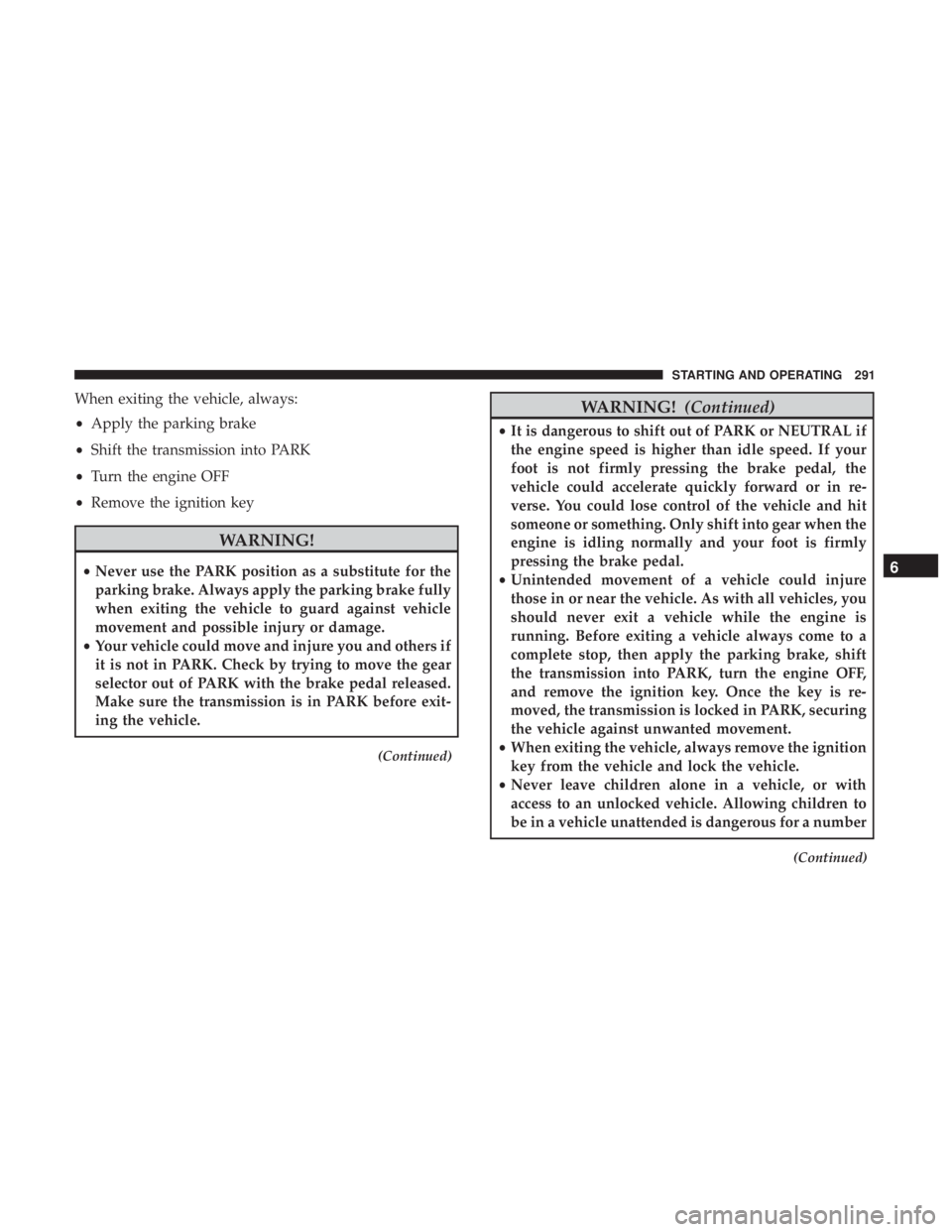

When exiting the vehicle, always:
•Apply the parking brake
• Shift the transmission into PARK
• Turn the engine OFF
• Remove the ignition key

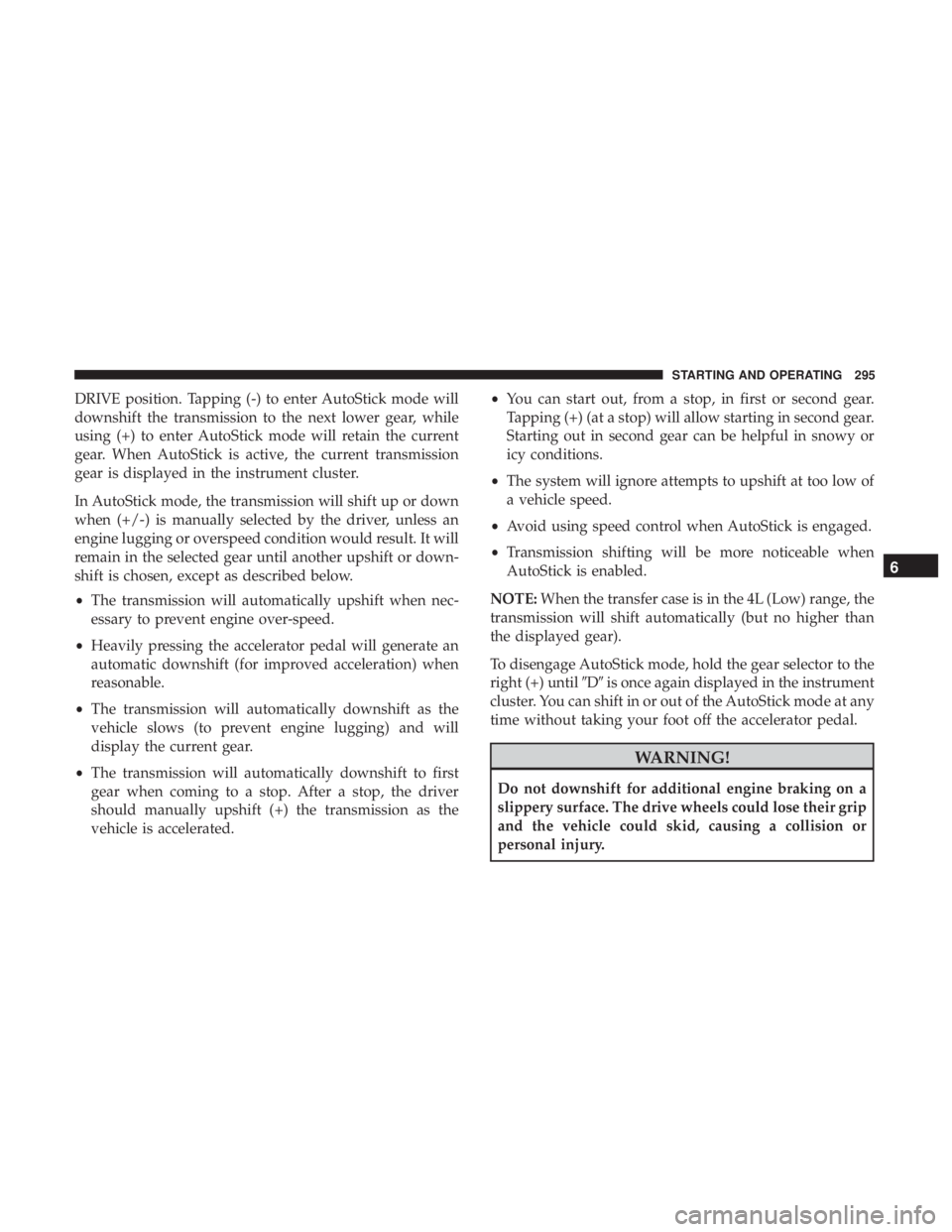

DRIVE position. Tapping (-) to enter AutoStick mode will
downshift the transmission to the next lower gear, while
using (+) to enter AutoStick mode will retain the current
gear. When AutoStick is active, the current transmission
gear is displayed in the instrument cluster.
In AutoStick mode, the transmission will shift up or down
when (+/-) is manually selected by the driver, unless an
engine lugging or overspeed condition would result. It will
remain in the selected gear until another upshift or down-
shift is chosen, except as described below.
•The transmission will automatically upshift when nec-
essary to prevent engine over-speed.
• Heavily pressing the accelerator pedal will generate an
automatic downshift (for improved acceleration) when
reasonable.
• The transmission will automatically downshift as the
vehicle slows (to prevent engine lugging) and will
display the current gear.
• The transmission will automatically downshift to first
gear when coming to a stop. After a stop, the driver
should manually upshift (+) the transmission as the
vehicle is accelerated. •
You can start out, from a stop, in first or second gear.
Tapping (+) (at a stop) will allow starting in second gear.
Starting out in second gear can be helpful in snowy or
icy conditions.
• The system will ignore attempts to upshift at too low of
a vehicle speed.
• Avoid using speed control when AutoStick is engaged.
• Transmission shifting will be more noticeable when
AutoStick is enabled.
NOTE: When the transfer case is in the 4L (Low) range, the
transmission will shift automatically (but no higher than
the displayed gear).
To disengage AutoStick mode, hold the gear selector to the
right (+) until Dis once again displayed in the instrument
cluster. You can shift in or out of the AutoStick mode at any
time without taking your foot off the accelerator pedal.

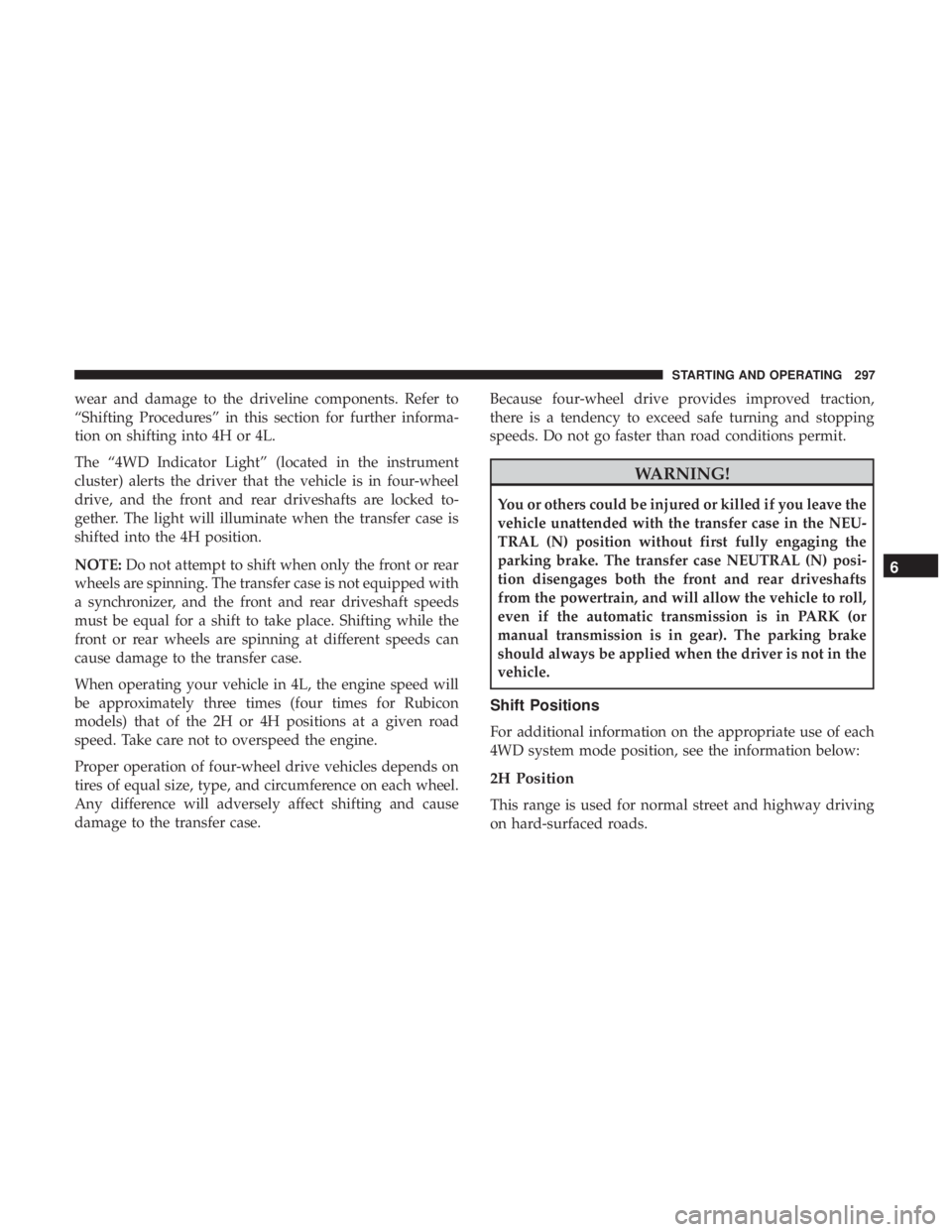

wear and damage to the driveline components. Refer to
“Shifting Procedures” in this section for further informa-
tion on shifting into 4H or 4L.
The “4WD Indicator Light” (located in the instrument
cluster) alerts the driver that the vehicle is in four-wheel
drive, and the front and rear driveshafts are locked to-
gether. The light will illuminate when the transfer case is
shifted into the 4H position.
NOTE:Do not attempt to shift when only the front or rear
wheels are spinning. The transfer case is not equipped with
a synchronizer, and the front and rear driveshaft speeds
must be equal for a shift to take place. Shifting while the
front or rear wheels are spinning at different speeds can
cause damage to the transfer case.
When operating your vehicle in 4L, the engine speed will
be approximately three times (four times for Rubicon
models) that of the 2H or 4H positions at a given road
speed. Take care not to overspeed the engine.
Proper operation of four-wheel drive vehicles depends on
tires of equal size, type, and circumference on each wheel.
Any difference will adversely affect shifting and cause
damage to the transfer case. Because four-wheel drive provides improved traction,
there is a tendency to exceed safe turning and stopping
speeds. Do not go faster than road conditions permit.

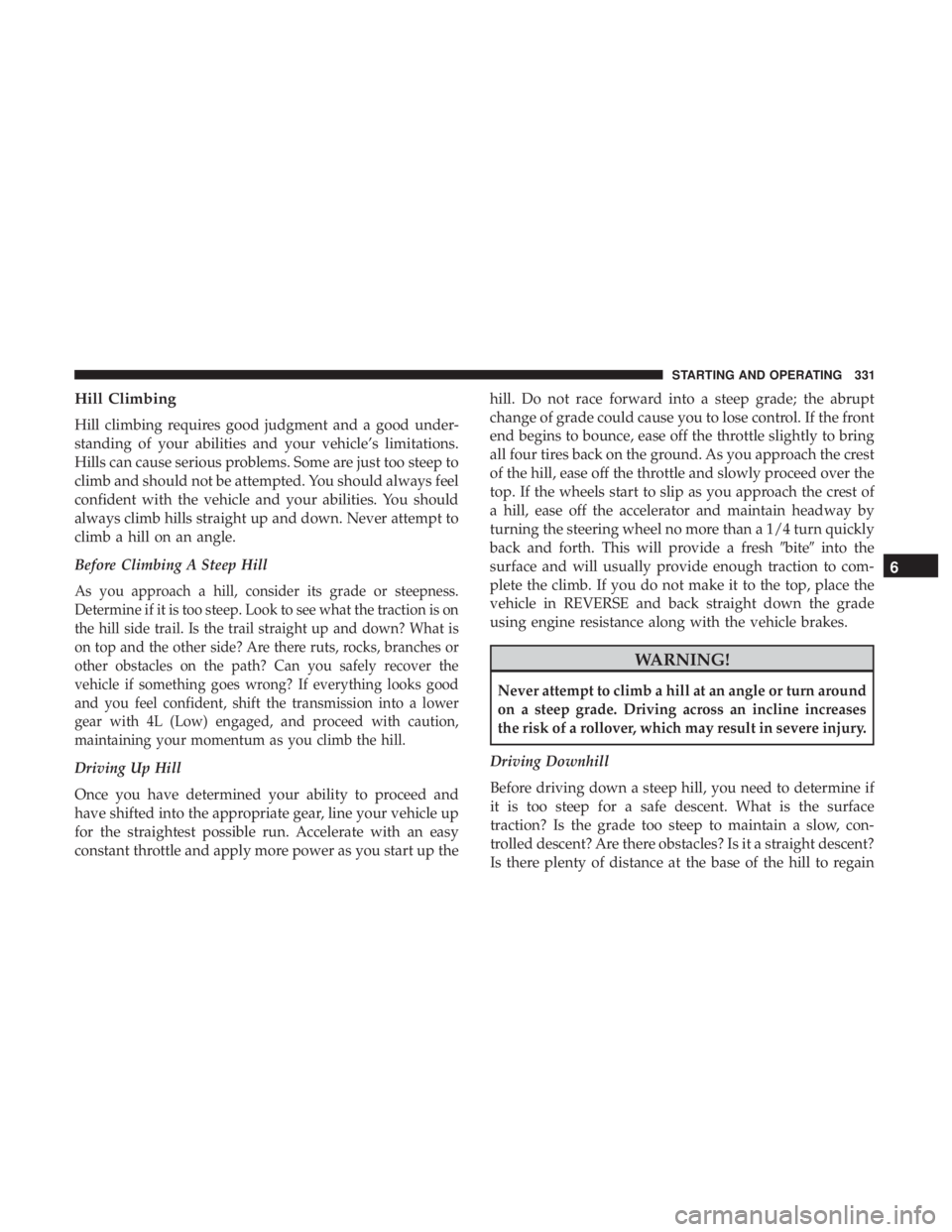

Hill Climbing
Hill climbing requires good judgment and a good under-
standing of your abilities and your vehicle’s limitations.
Hills can cause serious problems. Some are just too steep to
climb and should not be attempted. You should always feel
confident with the vehicle and your abilities. You should
always climb hills straight up and down. Never attempt to
climb a hill on an angle.
Before Climbing A Steep Hill
As you approach a hill, consider its grade or steepness.
Determine if it is too steep. Look to see what the traction is on
the hill side trail. Is the trail straight up and down? What is
on top and the other side? Are there ruts, rocks, branches or
other obstacles on the path? Can you safely recover the
vehicle if something goes wrong? If everything looks good
and you feel confident, shift the transmission into a lower
gear with 4L (Low) engaged, and proceed with caution,
maintaining your momentum as you climb the hill.
Driving Up Hill
Once you have determined your ability to proceed and
have shifted into the appropriate gear, line your vehicle up
for the straightest possible run. Accelerate with an easy
constant throttle and apply more power as you start up thehill. Do not race forward into a steep grade; the abrupt
change of grade could cause you to lose control. If the front
end begins to bounce, ease off the throttle slightly to bring
all four tires back on the ground. As you approach the crest
of the hill, ease off the throttle and slowly proceed over the
top. If the wheels start to slip as you approach the crest of
a hill, ease off the accelerator and maintain headway by
turning the steering wheel no more than a 1/4 turn quickly
back and forth. This will provide a fresh
biteinto the
surface and will usually provide enough traction to com-
plete the climb. If you do not make it to the top, place the
vehicle in REVERSE and back straight down the grade
using engine resistance along with the vehicle brakes.
