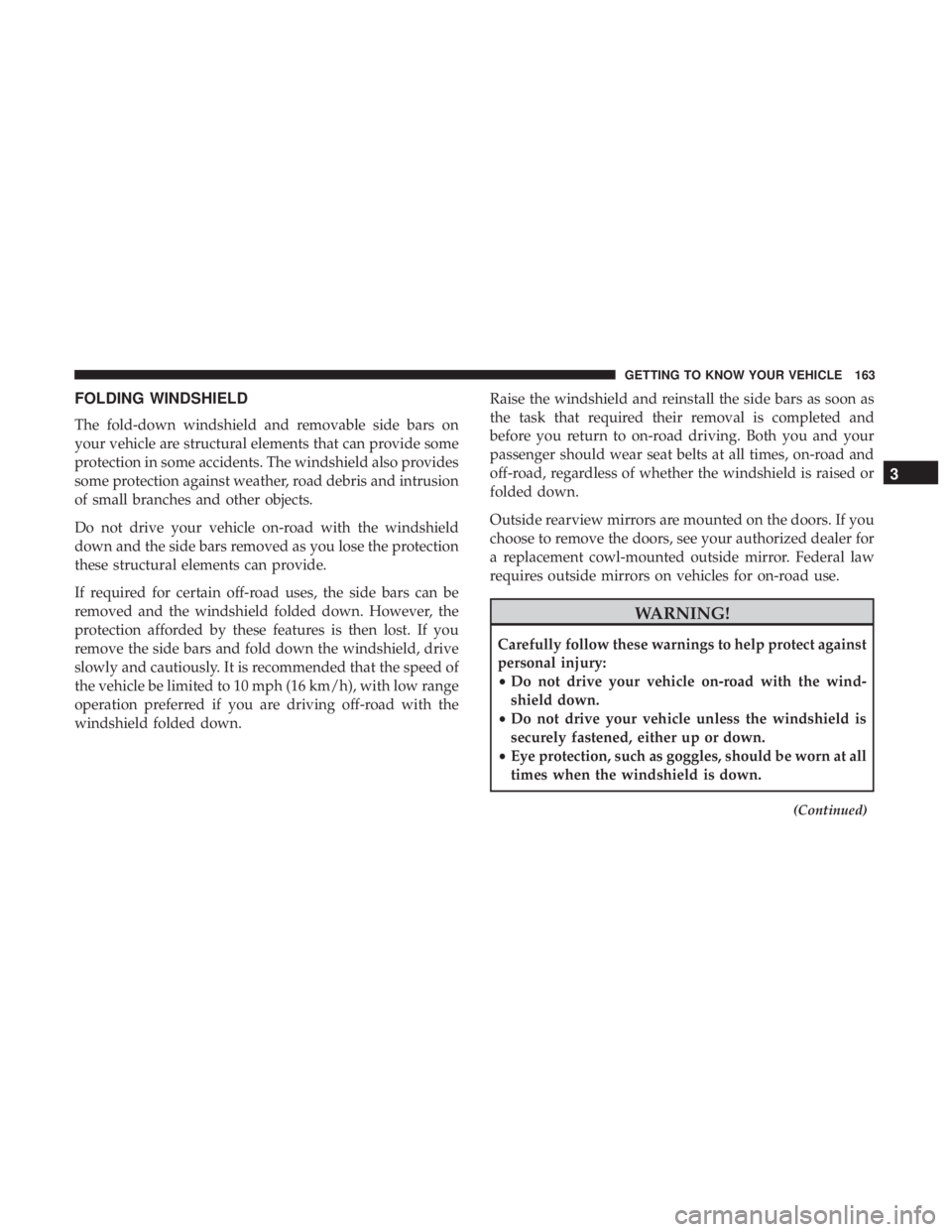

FOLDING WINDSHIELD
The fold-down windshield and removable side bars on
your vehicle are structural elements that can provide some
protection in some accidents. The windshield also provides
some protection against weather, road debris and intrusion
of small branches and other objects.
Do not drive your vehicle on-road with the windshield
down and the side bars removed as you lose the protection
these structural elements can provide.
If required for certain off-road uses, the side bars can be
removed and the windshield folded down. However, the
protection afforded by these features is then lost. If you
remove the side bars and fold down the windshield, drive
slowly and cautiously. It is recommended that the speed of
the vehicle be limited to 10 mph (16 km/h), with low range
operation preferred if you are driving off-road with the
windshield folded down.Raise the windshield and reinstall the side bars as soon as
the task that required their removal is completed and
before you return to on-road driving. Both you and your
passenger should wear seat belts at all times, on-road and
off-road, regardless of whether the windshield is raised or
folded down.
Outside rearview mirrors are mounted on the doors. If you
choose to remove the doors, see your authorized dealer for
a replacement cowl-mounted outside mirror. Federal law
requires outside mirrors on vehicles for on-road use.
WARNING!(Continued)
•Be sure that you carefully follow the instructions for
raising the windshield. Make sure that the folding
windshield, windshield wipers, side bars, and all
associated hardware and fasteners are correctly and
tightly assembled before driving your vehicle. Fail-
ure to follow these instructions may prevent your
vehicle from providing you and your passengers’
protection in some accidents.
• If you remove the doors, store them outside the
vehicle. In the event of an accident, a loose door may
cause personal injury.
Lowering The Windshield And Removing Side Bars
1. Lower the fabric top or remove the hard top following the instructions in this manual.
NOTE: To assist in properly reinstalling side bars, mark
the original locations prior to removing. 2. Remove the two top hex bolts (13 mm), and the one side
hex bolt (13 mm) visible through the trim (Do not
remove plastic corner trim, sun visor bolts, or sport bar
covering).
3. Remove the sun visor.
4. Remove the A-pillar cap.
5. Disconnect microphone (if equipped with Uconnect phone).
6. Open the sport bar Velcro covering.
7. Remove the one hex bolt (13 mm) visible through theplastic trim on the bottom side of the side bar, one hex
bolt (13 mm) on the side of the side bar, and one hex bolt
(13 mm) on top of the side bar.
NOTE: Pull side bar out horizontally when removing.

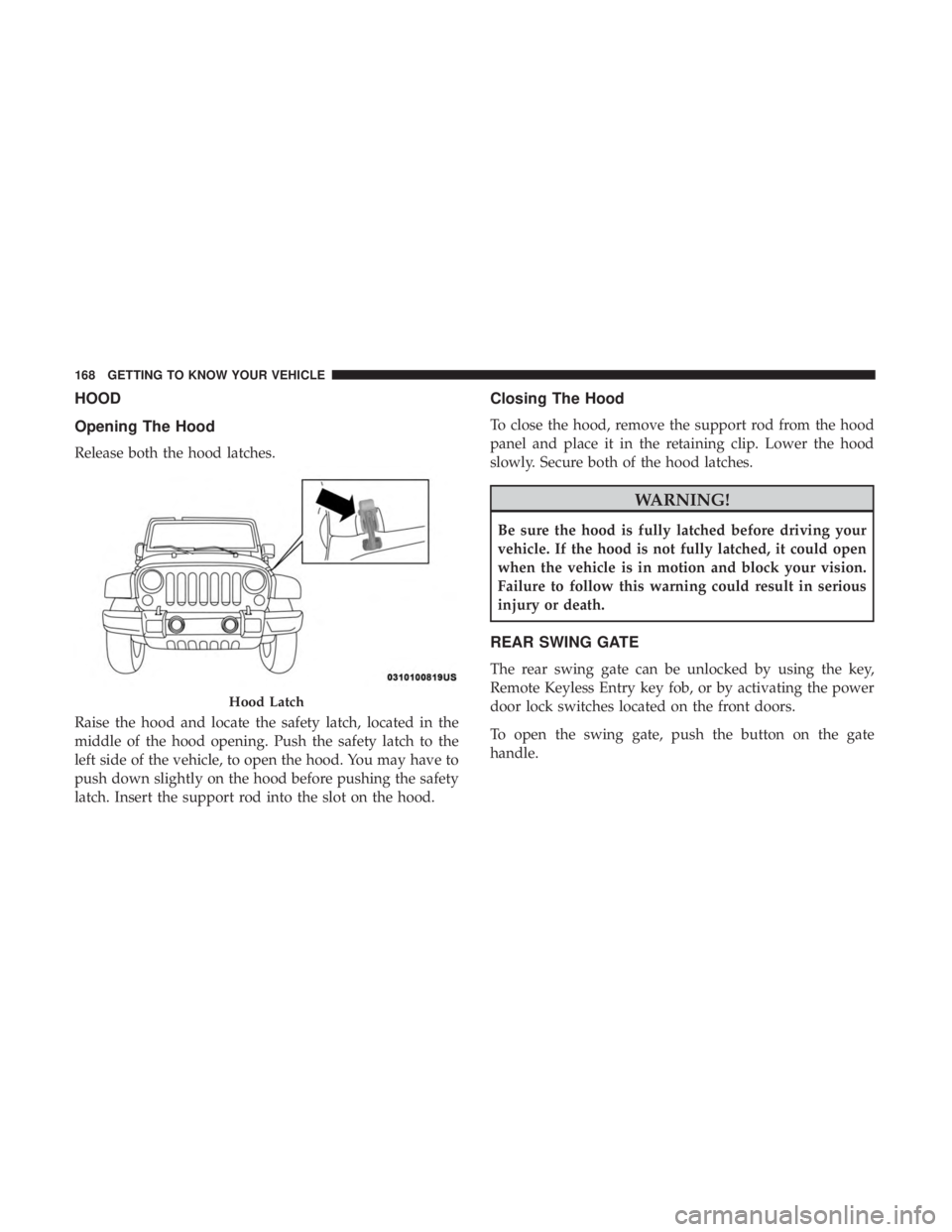

HOOD
Opening The Hood
Release both the hood latches.
Raise the hood and locate the safety latch, located in the
middle of the hood opening. Push the safety latch to the
left side of the vehicle, to open the hood. You may have to
push down slightly on the hood before pushing the safety
latch. Insert the support rod into the slot on the hood.
Closing The Hood
To close the hood, remove the support rod from the hood
panel and place it in the retaining clip. Lower the hood
slowly. Secure both of the hood latches.
