JEEP WRANGLER UNLIMITED SPORT 2016 Owners Manual

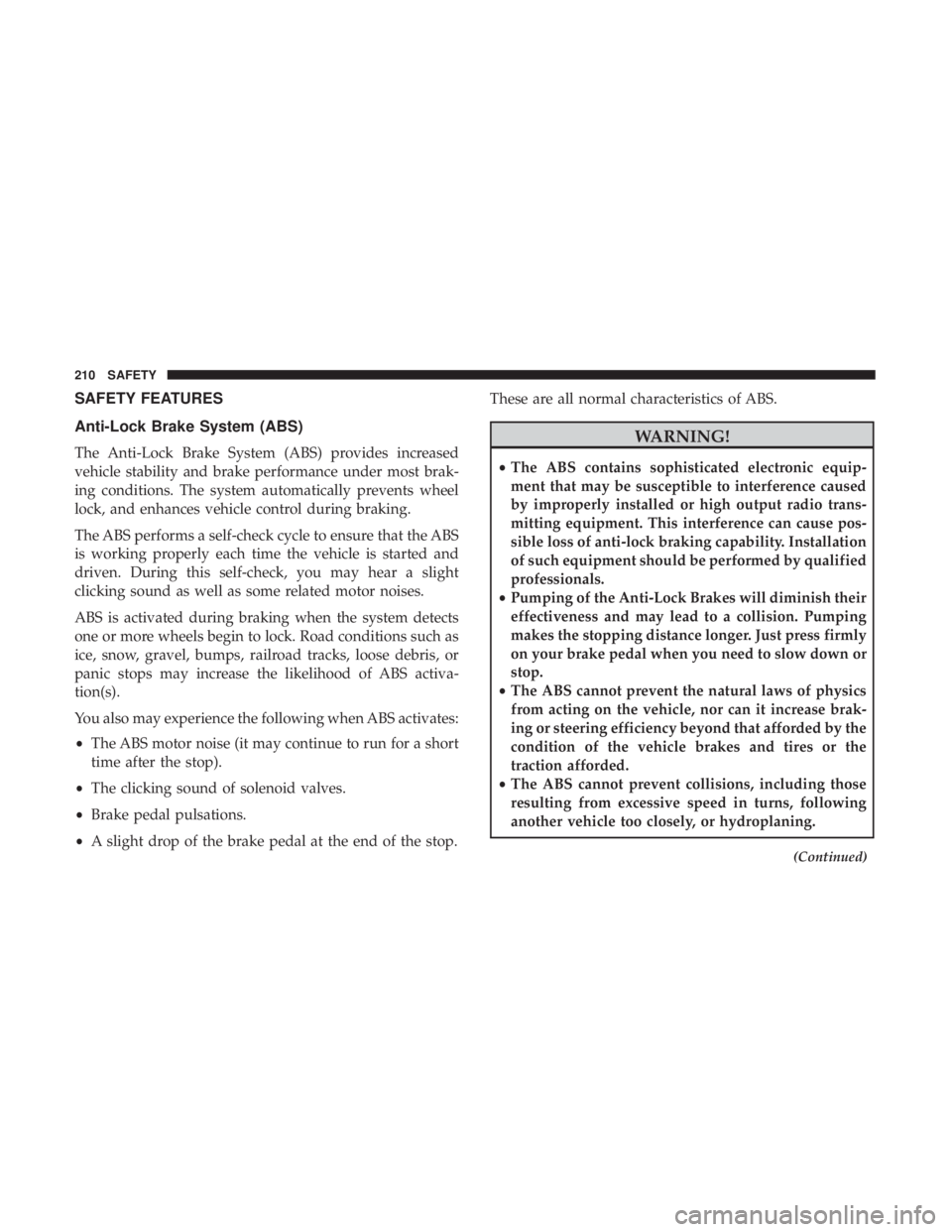

SAFETY FEATURES
Anti-Lock Brake System (ABS)
The Anti-Lock Brake System (ABS) provides increased
vehicle stability and brake performance under most brak-
ing conditions. The system automatically prevents wheel
lock, and enhances vehicle control during braking.
The ABS performs a self-check cycle to ensure that the ABS
is working properly each time the vehicle is started and
driven. During this self-check, you may hear a slight
clicking sound as well as some related motor noises.
ABS is activated during braking when the system detects
one or more wheels begin to lock. Road conditions such as
ice, snow, gravel, bumps, railroad tracks, loose debris, or
panic stops may increase the likelihood of ABS activa-
tion(s).
You also may experience the following when ABS activates:
•The ABS motor noise (it may continue to run for a short
time after the stop).
• The clicking sound of solenoid valves.
• Brake pedal pulsations.
• A slight drop of the brake pedal at the end of the stop. These are all normal characteristics of ABS.

WARNING!(Continued)
•The capabilities of an ABS equipped vehicle must
never be exploited in a reckless or dangerous manner
that could jeopardize the user ’s safety or the safety of
others.
ABS is designed to function with the OEM tires. Modifica-
tion may result in degraded ABS performance.
Anti-Lock Brake Warning Light
The yellow “Anti-Lock Brake Warning Light” will turn on
when the ignition is turned to the ON/RUN mode and
may stay on for as long as four seconds.
If the “Anti-Lock Brake Warning Light” remains on or
comes on while driving, it indicates that the anti-lock
portion of the brake system is not functioning and that
service is required. However, the conventional brake sys-
tem will continue to operate normally if the “Brake System
Warning Light” is not on.
If the “Anti-Lock Brake Warning Light” is on, the brake
system should be serviced as soon as possible to restore the
benefits of anti-lock brakes. If the “Anti-Lock Brake Warning
Light” does not come on when the ignition is turned to the
ON/RUN mode, have the light repaired as soon as possible.
Electronic Brake Control System
Your vehicle is equipped with an advanced Electronic
Brake Control system (EBC). This system includes Elec-
tronic Brake Force Distribution (EBD), Brake Assist System
(BAS), Hill Start Assist (HSA), Traction Control System
(TCS), Electronic Stability Control (ESC), and Electronic
Roll Mitigation (ERM). These systems work together to
enhance both vehicle stability and control in various driv-
ing conditions.
Your vehicle may also be equipped with Trailer Sway
Control (TSC) and Hill Descent Control (HDC).
Electronic Brake Force Distribution (EBD)
This function manages the distribution of the braking
torque between the front and rear axles by limiting braking
pressure to the rear axle. This is done to prevent overslip of
the rear wheels to avoid vehicle instability, and to prevent
the rear axle from entering ABS before the front axle.
Brake System Warning Light
The red “Brake System Warning Light” will turn on when
the ignition is turned to the ON/RUN mode and may stay
on for as long as four seconds.
5
SAFETY 211

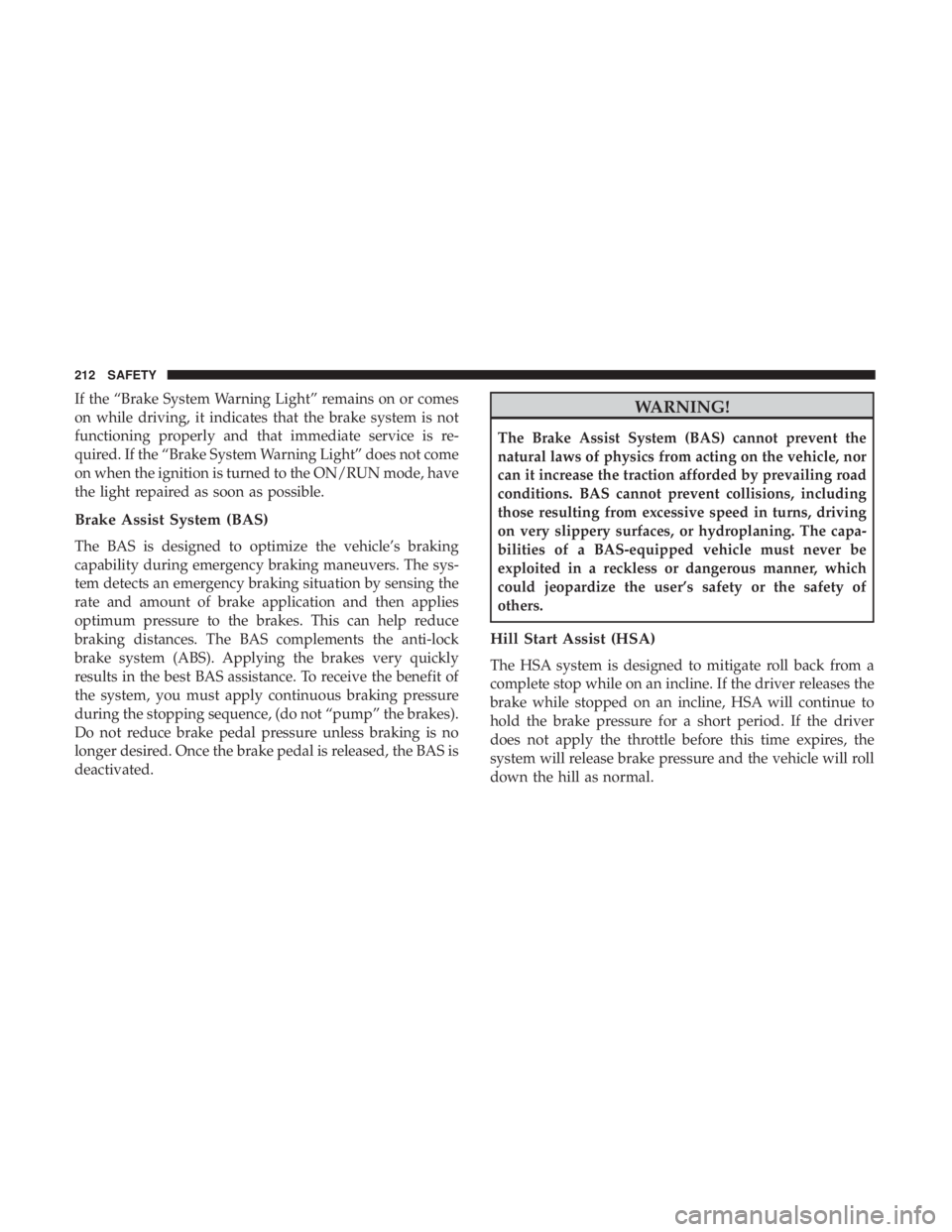

If the “Brake System Warning Light” remains on or comes
on while driving, it indicates that the brake system is not
functioning properly and that immediate service is re-
quired. If the “Brake System Warning Light” does not come
on when the ignition is turned to the ON/RUN mode, have
the light repaired as soon as possible.
Brake Assist System (BAS)
The BAS is designed to optimize the vehicle’s braking
capability during emergency braking maneuvers. The sys-
tem detects an emergency braking situation by sensing the
rate and amount of brake application and then applies
optimum pressure to the brakes. This can help reduce
braking distances. The BAS complements the anti-lock
brake system (ABS). Applying the brakes very quickly
results in the best BAS assistance. To receive the benefit of
the system, you must apply continuous braking pressure
during the stopping sequence, (do not “pump” the brakes).
Do not reduce brake pedal pressure unless braking is no
longer desired. Once the brake pedal is released, the BAS is
deactivated.

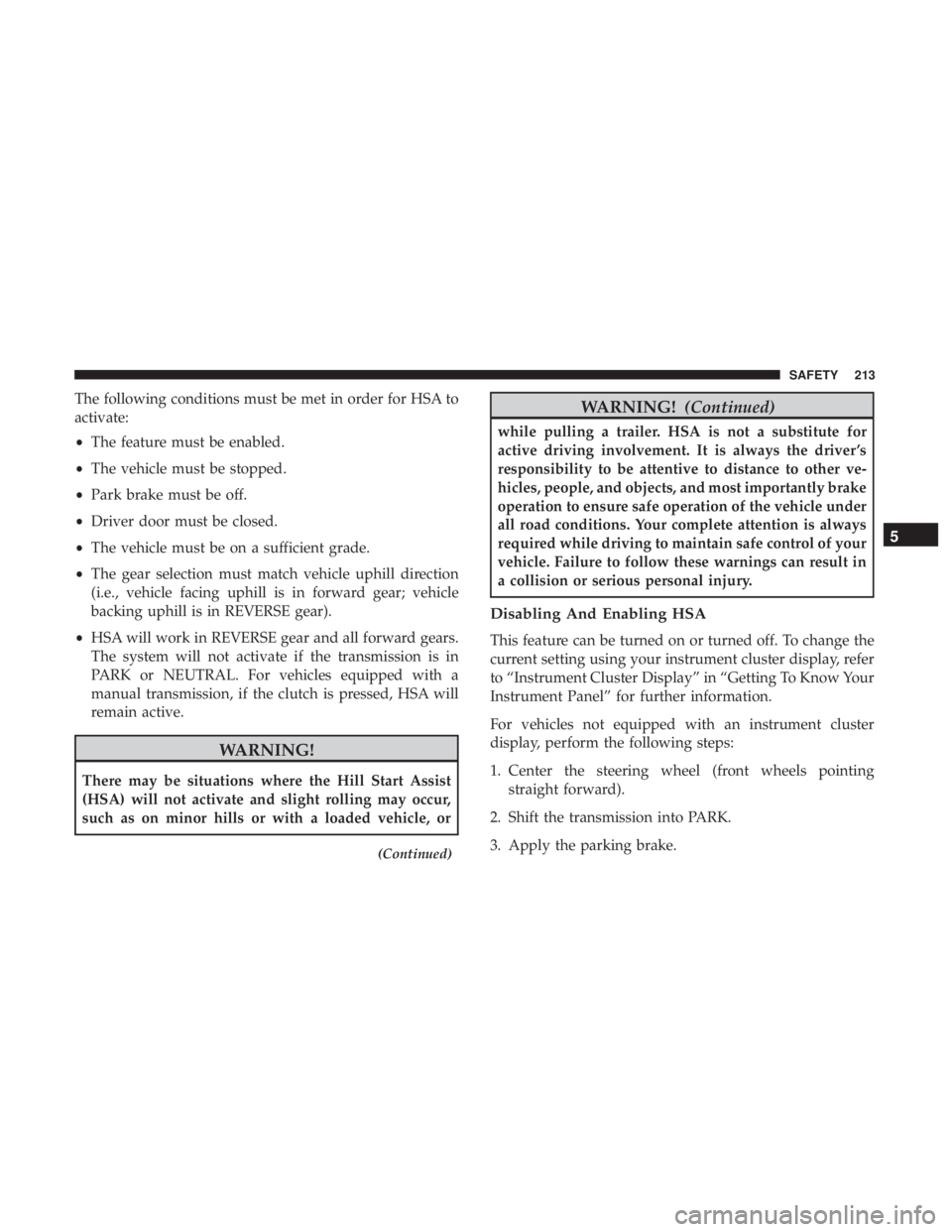

The following conditions must be met in order for HSA to
activate:
•The feature must be enabled.
• The vehicle must be stopped.
• Park brake must be off.
• Driver door must be closed.
• The vehicle must be on a sufficient grade.
• The gear selection must match vehicle uphill direction
(i.e., vehicle facing uphill is in forward gear; vehicle
backing uphill is in REVERSE gear).
• HSA will work in REVERSE gear and all forward gears.
The system will not activate if the transmission is in
PARK or NEUTRAL. For vehicles equipped with a
manual transmission, if the clutch is pressed, HSA will
remain active.

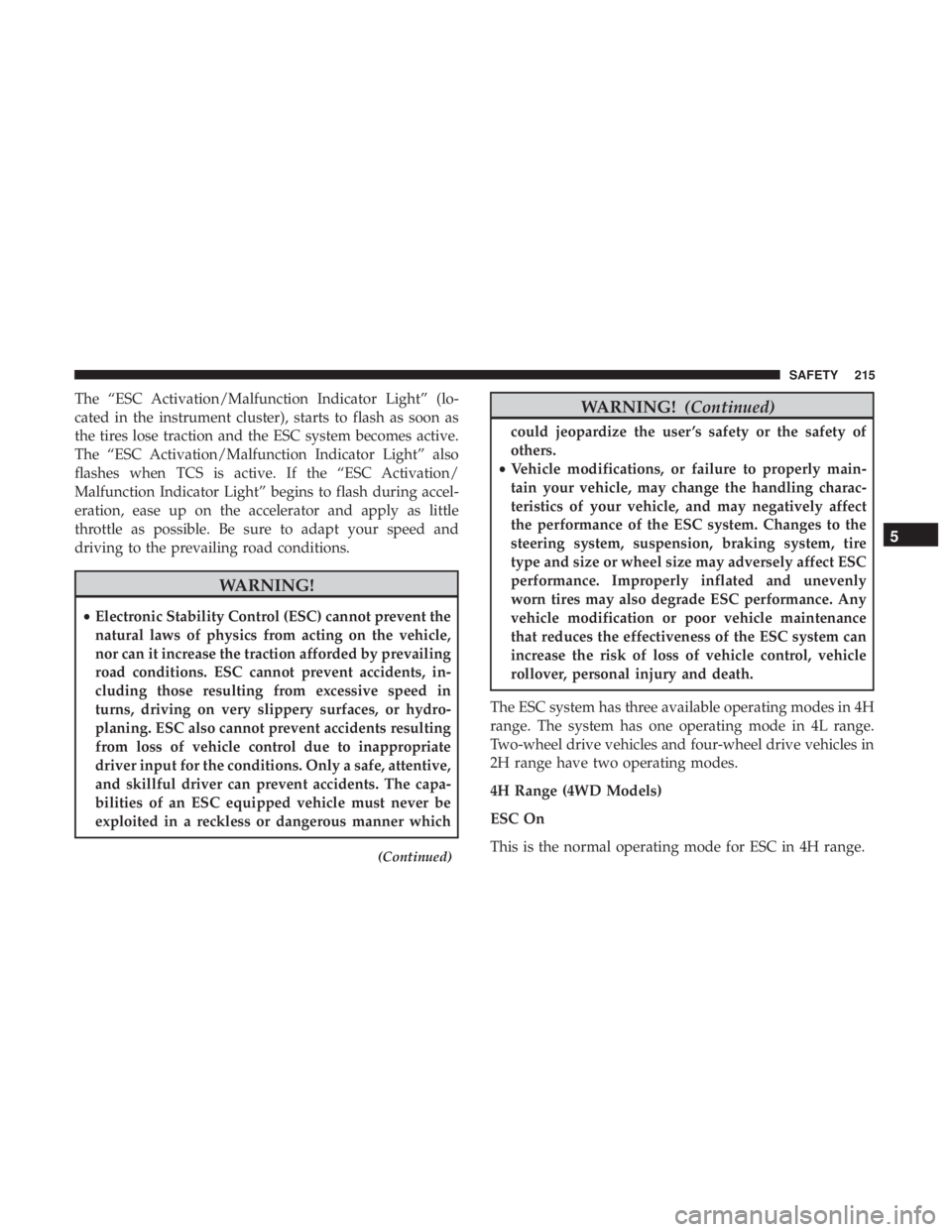

The “ESC Activation/Malfunction Indicator Light” (lo-
cated in the instrument cluster), starts to flash as soon as
the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
flashes when TCS is active. If the “ESC Activation/
Malfunction Indicator Light” begins to flash during accel-
eration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions.

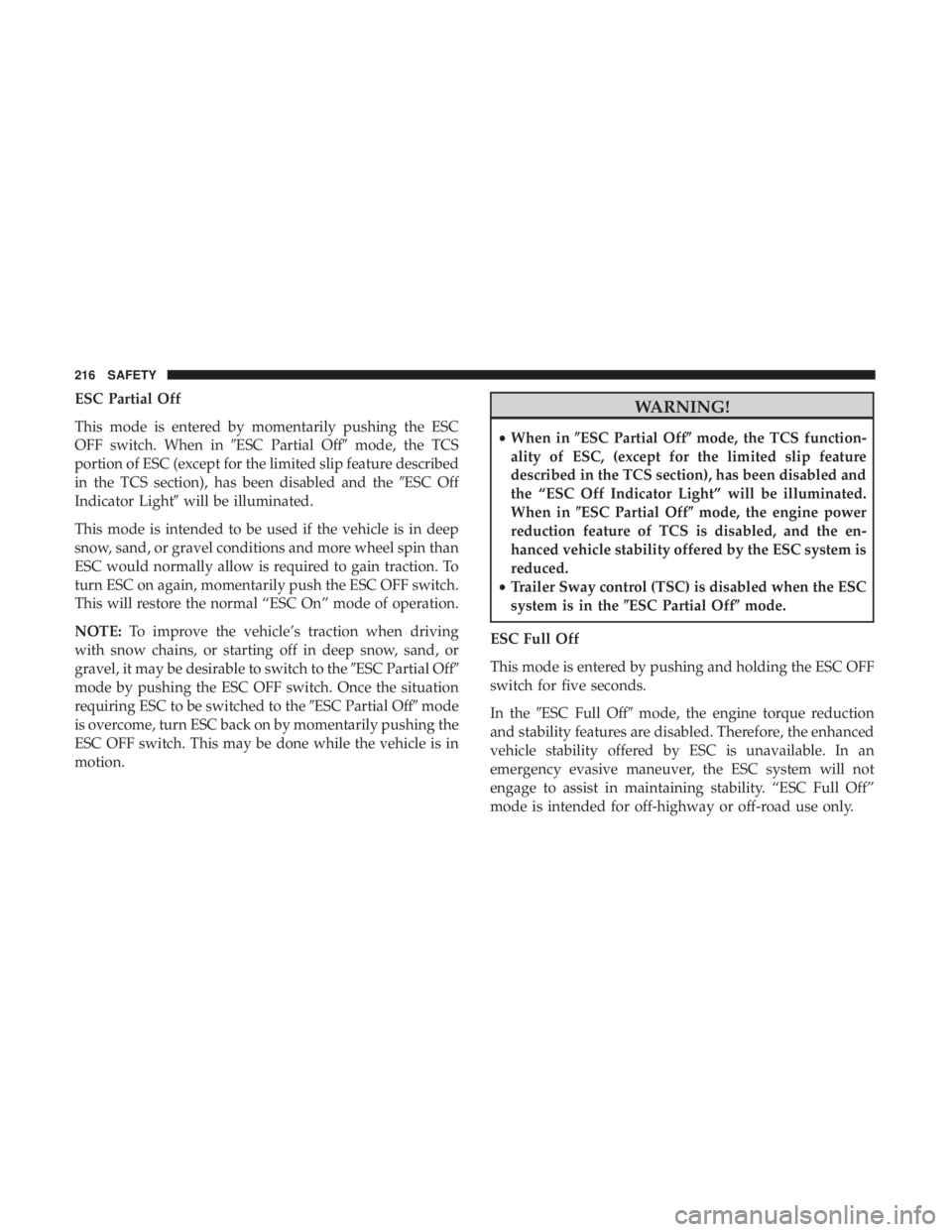

ESC Partial Off
This mode is entered by momentarily pushing the ESC
OFF switch. When inESC Partial Offmode, the TCS
portion of ESC (except for the limited slip feature described
in the TCS section), has been disabled and the ESC Off
Indicator Light will be illuminated.
This mode is intended to be used if the vehicle is in deep
snow, sand, or gravel conditions and more wheel spin than
ESC would normally allow is required to gain traction. To
turn ESC on again, momentarily push the ESC OFF switch.
This will restore the normal “ESC On” mode of operation.
NOTE: To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the ESC Partial Off
mode by pushing the ESC OFF switch. Once the situation
requiring ESC to be switched to the ESC Partial Offmode
is overcome, turn ESC back on by momentarily pushing the
ESC OFF switch. This may be done while the vehicle is in
motion.

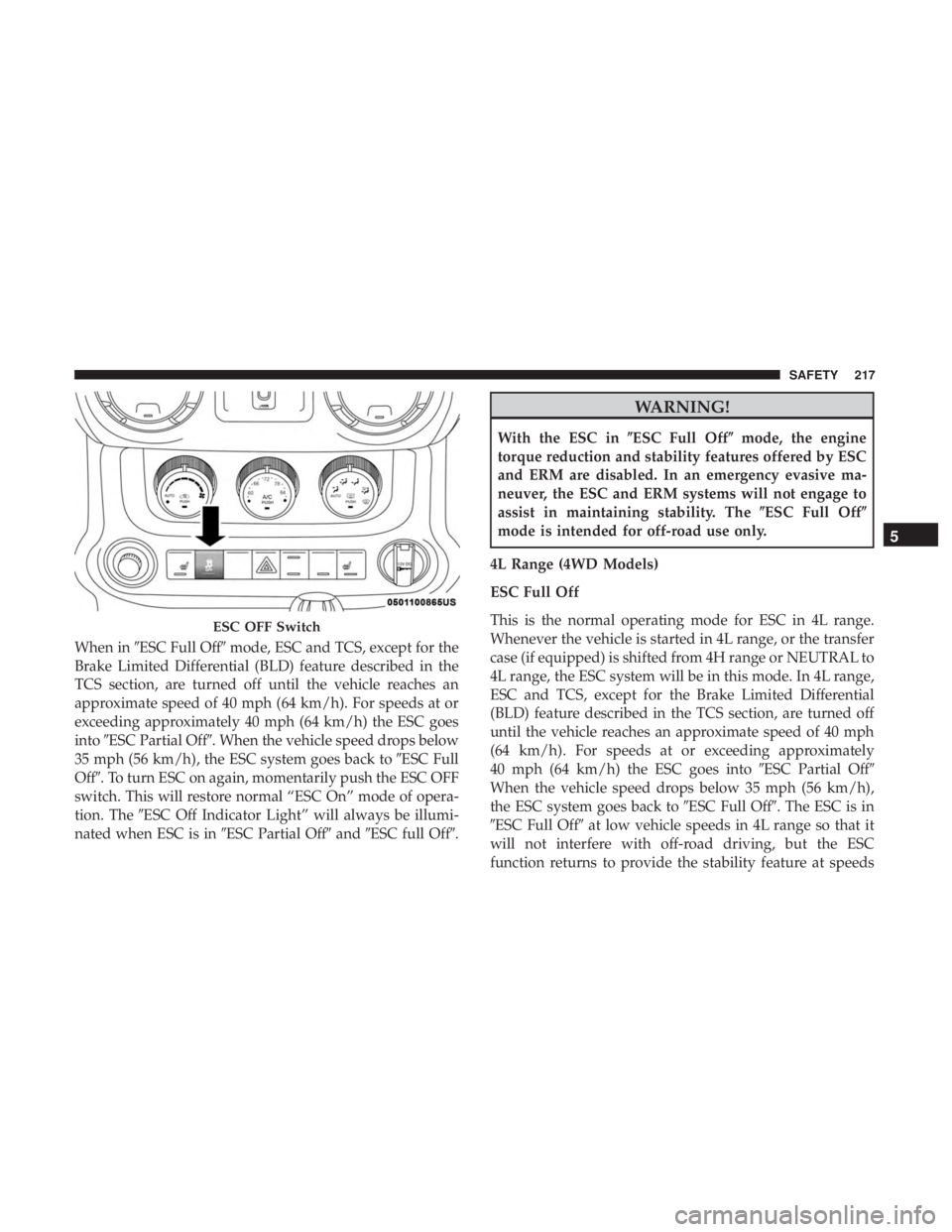

When inESC Full Off mode, ESC and TCS, except for the
Brake Limited Differential (BLD) feature described in the
TCS section, are turned off until the vehicle reaches an
approximate speed of 40 mph (64 km/h). For speeds at or
exceeding approximately 40 mph (64 km/h) the ESC goes
into ESC Partial Off. When the vehicle speed drops below
35 mph (56 km/h), the ESC system goes back to ESC Full
Off. To turn ESC on again, momentarily push the ESC OFF
switch. This will restore normal “ESC On” mode of opera-
tion. The ESC Off Indicator Light” will always be illumi-
nated when ESC is in ESC Partial OffandESC full Off.

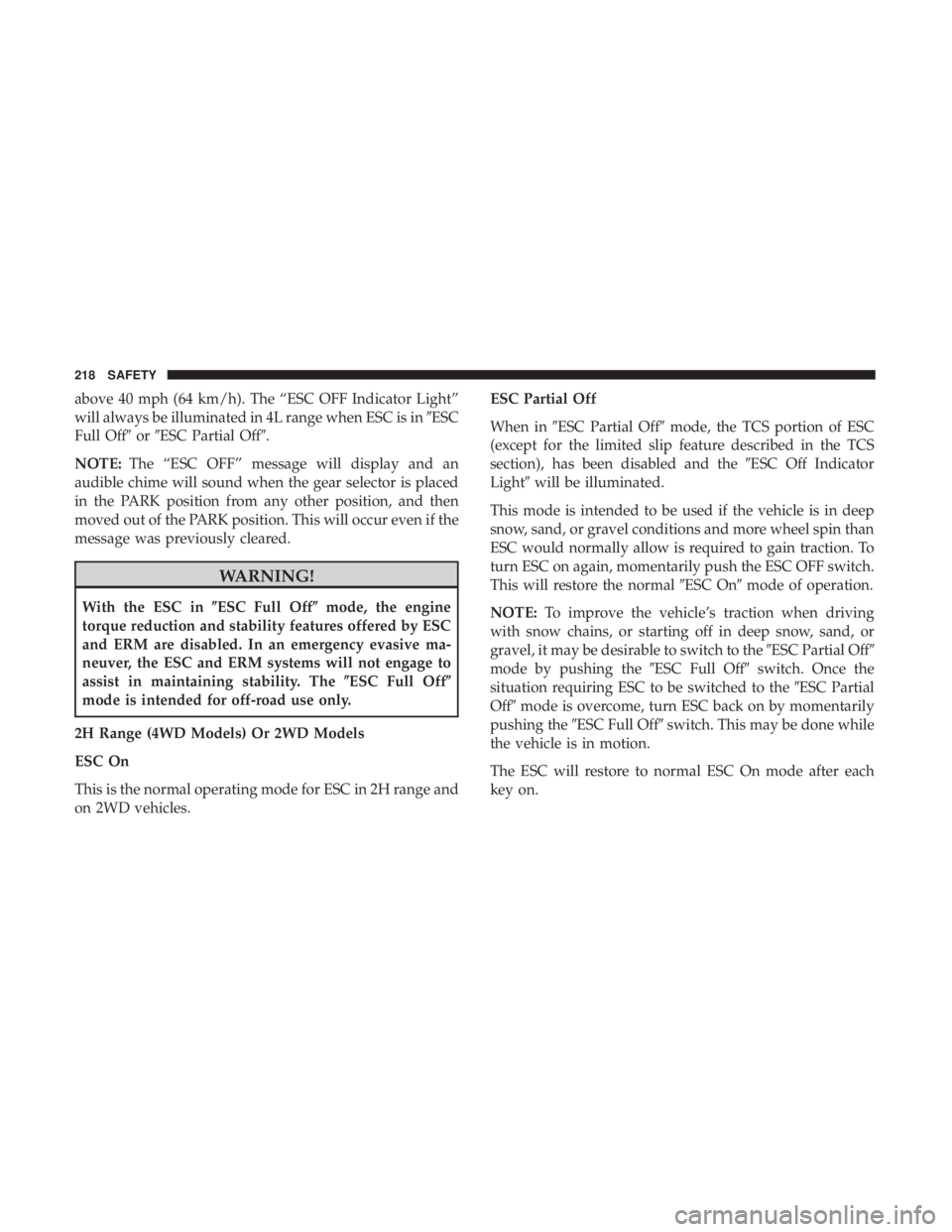

above 40 mph (64 km/h). The “ESC OFF Indicator Light”
will always be illuminated in 4L range when ESC is inESC
Full Off orESC Partial Off.
NOTE: The “ESC OFF” message will display and an
audible chime will sound when the gear selector is placed
in the PARK position from any other position, and then
moved out of the PARK position. This will occur even if the
message was previously cleared.
