JEEP WRANGLER UNLIMITED SPORT 2016 Owners Manual

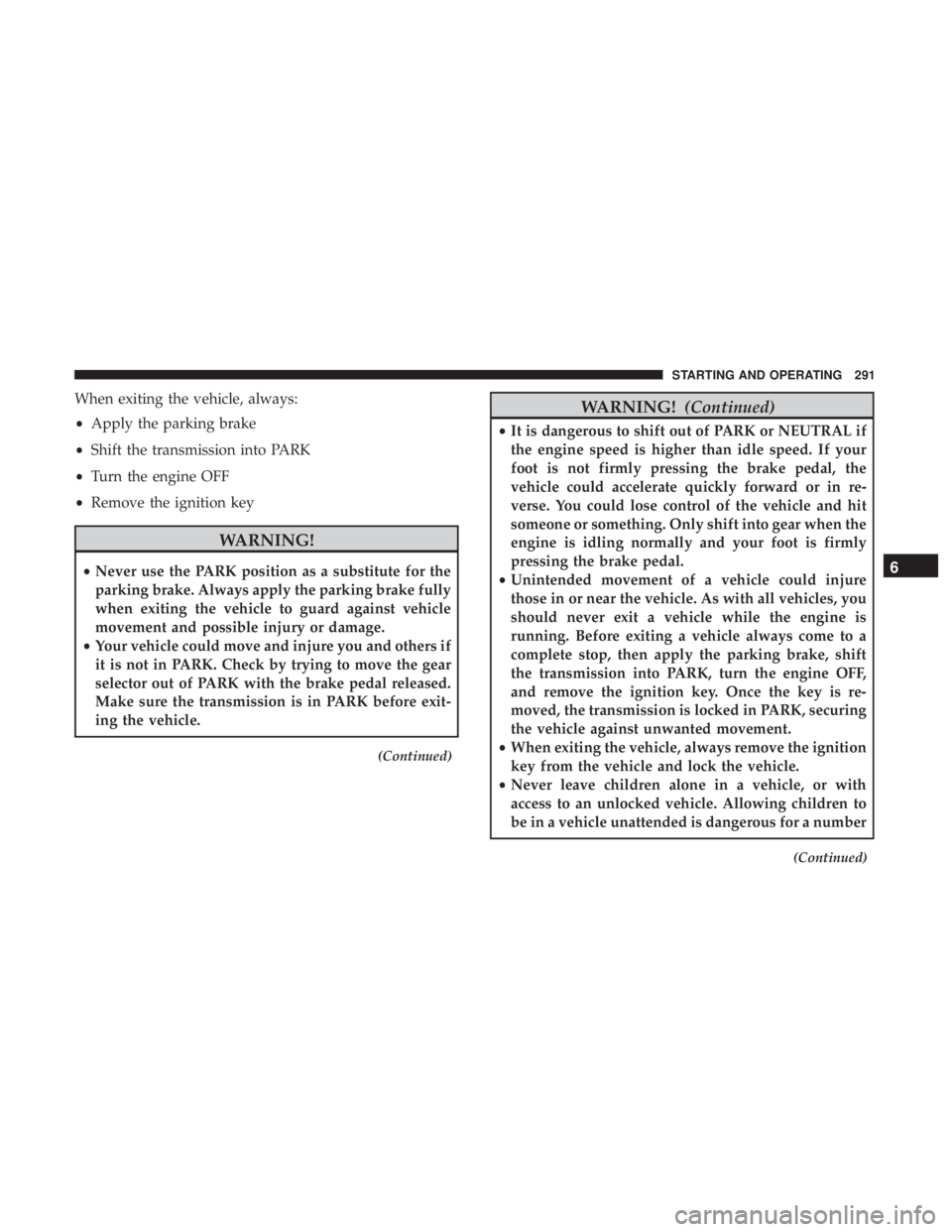

When exiting the vehicle, always:
•Apply the parking brake
• Shift the transmission into PARK
• Turn the engine OFF
• Remove the ignition key

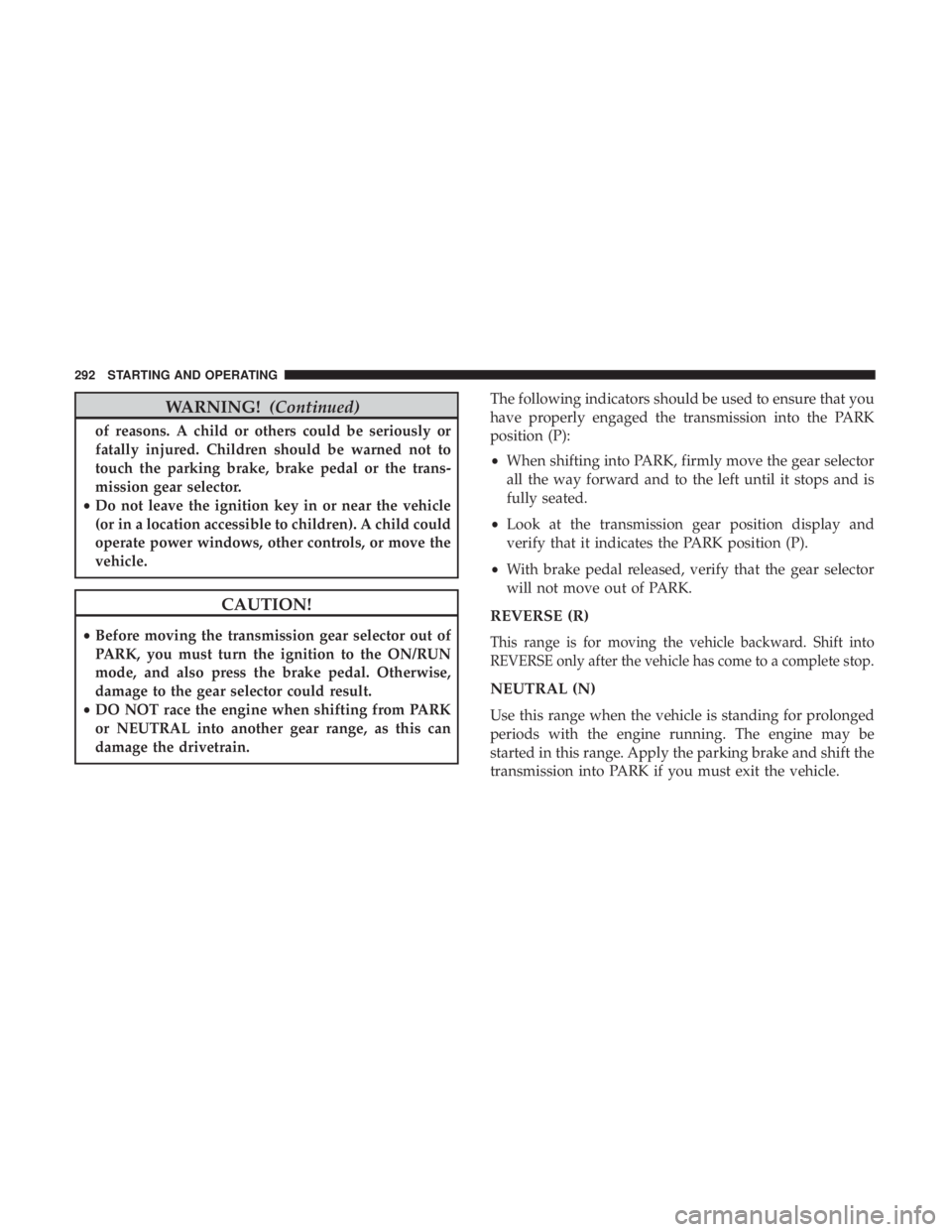

WARNING!(Continued)
of reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the trans-
mission gear selector.
• Do not leave the ignition key in or near the vehicle
(or in a location accessible to children). A child could
operate power windows, other controls, or move the
vehicle.

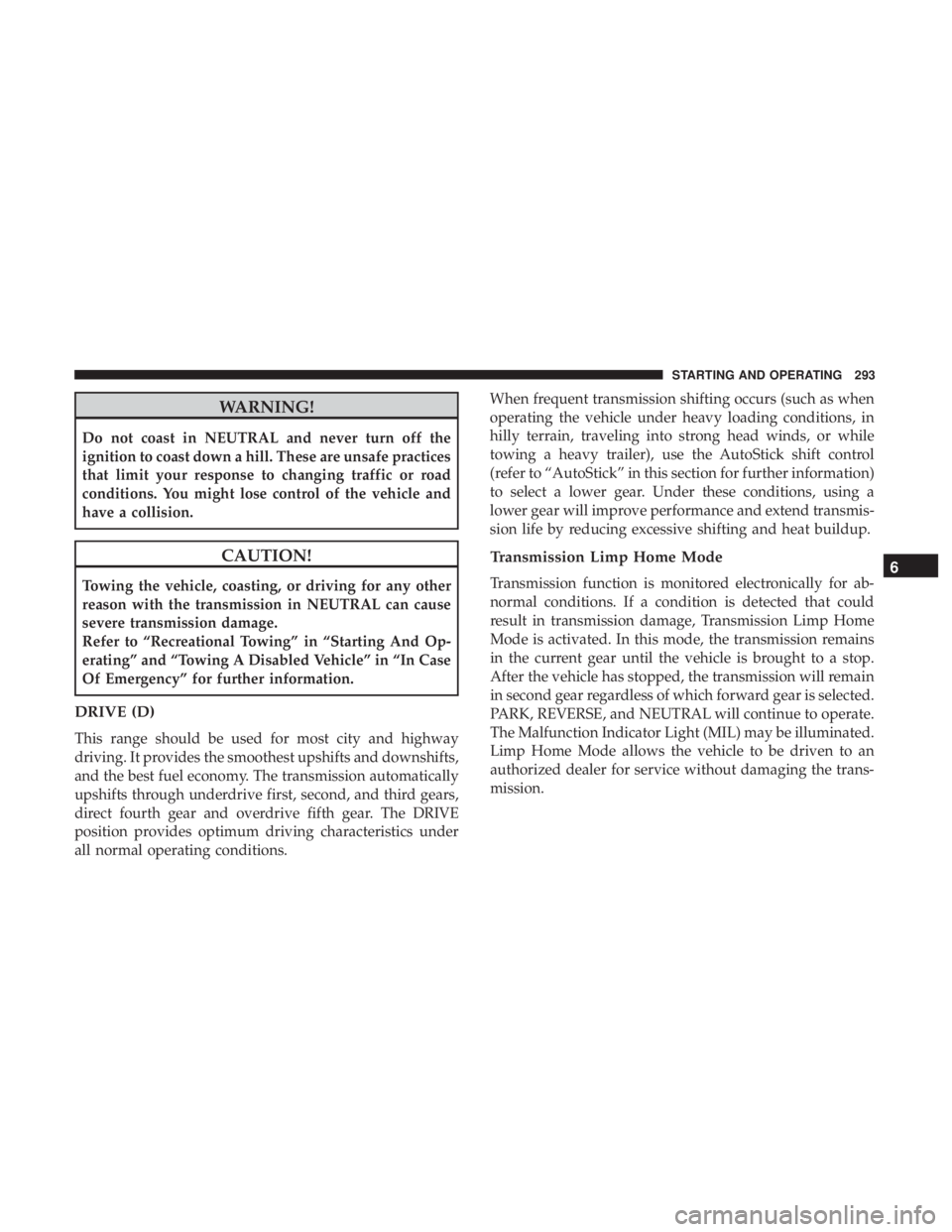

WARNING!
Do not coast in NEUTRAL and never turn off the
ignition to coast down a hill. These are unsafe practices
that limit your response to changing traffic or road
conditions. You might lose control of the vehicle and
have a collision.

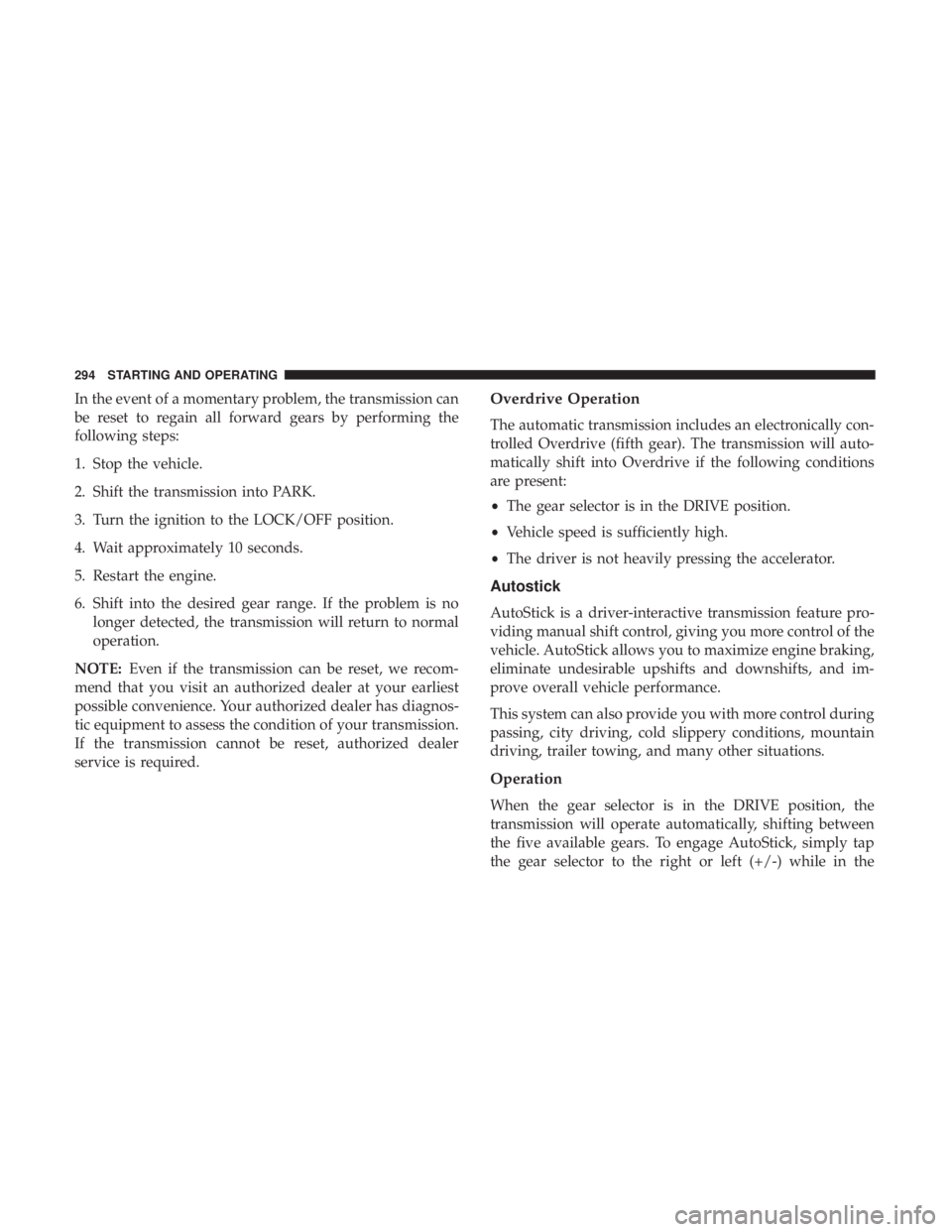

DRIVE position. Tapping (-) to enter AutoStick mode will
downshift the transmission to the next lower gear, while
using (+) to enter AutoStick mode will retain the current
gear. When AutoStick is active, the current transmission
gear is displayed in the instrument cluster.
In AutoStick mode, the transmission will shift up or down
when (+/-) is manually selected by the driver, unless an
engine lugging or overspeed condition would result. It will
remain in the selected gear until another upshift or down-
shift is chosen, except as described below.
•The transmission will automatically upshift when nec-
essary to prevent engine over-speed.
• Heavily pressing the accelerator pedal will generate an
automatic downshift (for improved acceleration) when
reasonable.
• The transmission will automatically downshift as the
vehicle slows (to prevent engine lugging) and will
display the current gear.
• The transmission will automatically downshift to first
gear when coming to a stop. After a stop, the driver
should manually upshift (+) the transmission as the
vehicle is accelerated. •
You can start out, from a stop, in first or second gear.
Tapping (+) (at a stop) will allow starting in second gear.
Starting out in second gear can be helpful in snowy or
icy conditions.
• The system will ignore attempts to upshift at too low of
a vehicle speed.
• Avoid using speed control when AutoStick is engaged.
• Transmission shifting will be more noticeable when
AutoStick is enabled.
NOTE: When the transfer case is in the 4L (Low) range, the
transmission will shift automatically (but no higher than
the displayed gear).
To disengage AutoStick mode, hold the gear selector to the
right (+) until Dis once again displayed in the instrument
cluster. You can shift in or out of the AutoStick mode at any
time without taking your foot off the accelerator pedal.

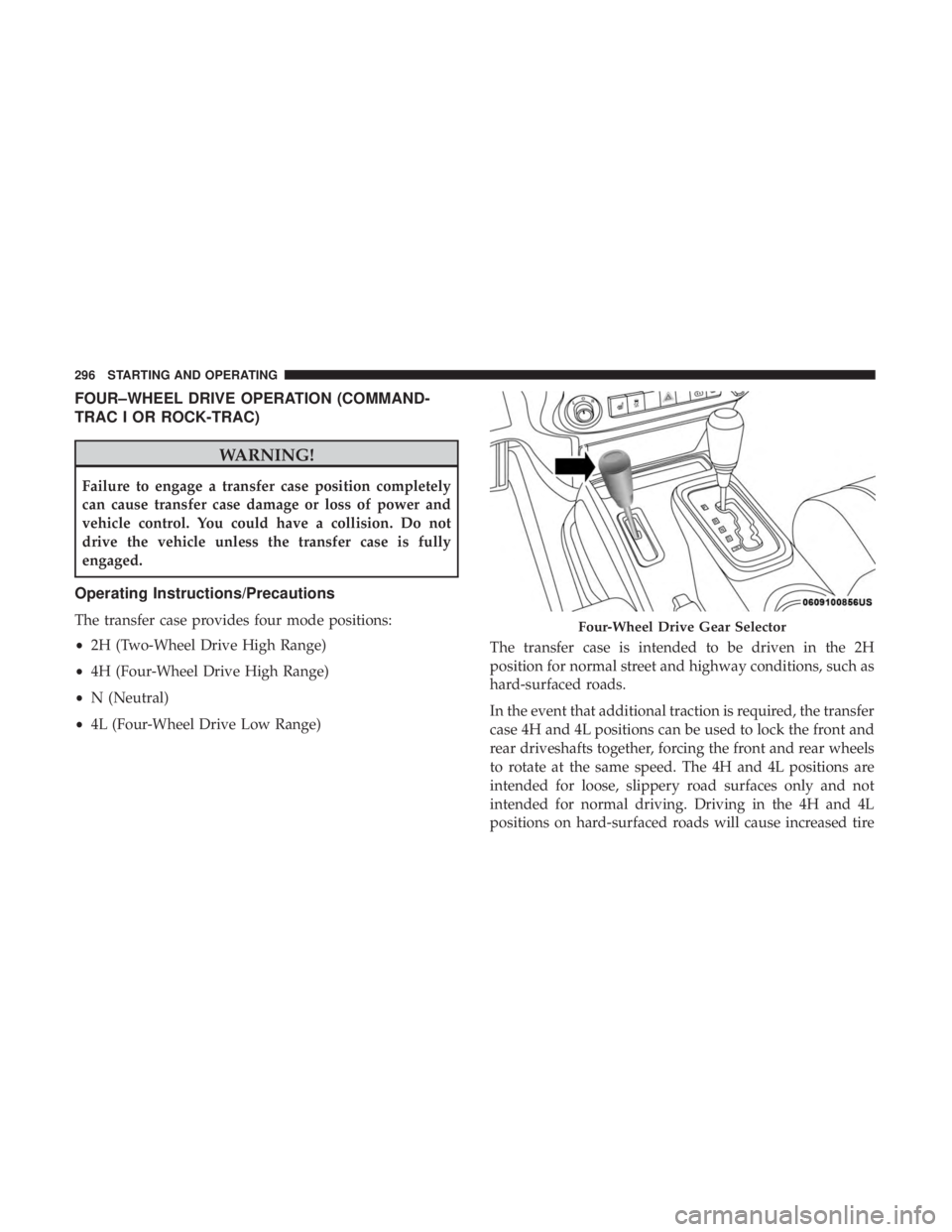

FOUR–WHEEL DRIVE OPERATION (COMMAND-
TRAC I OR ROCK-TRAC)

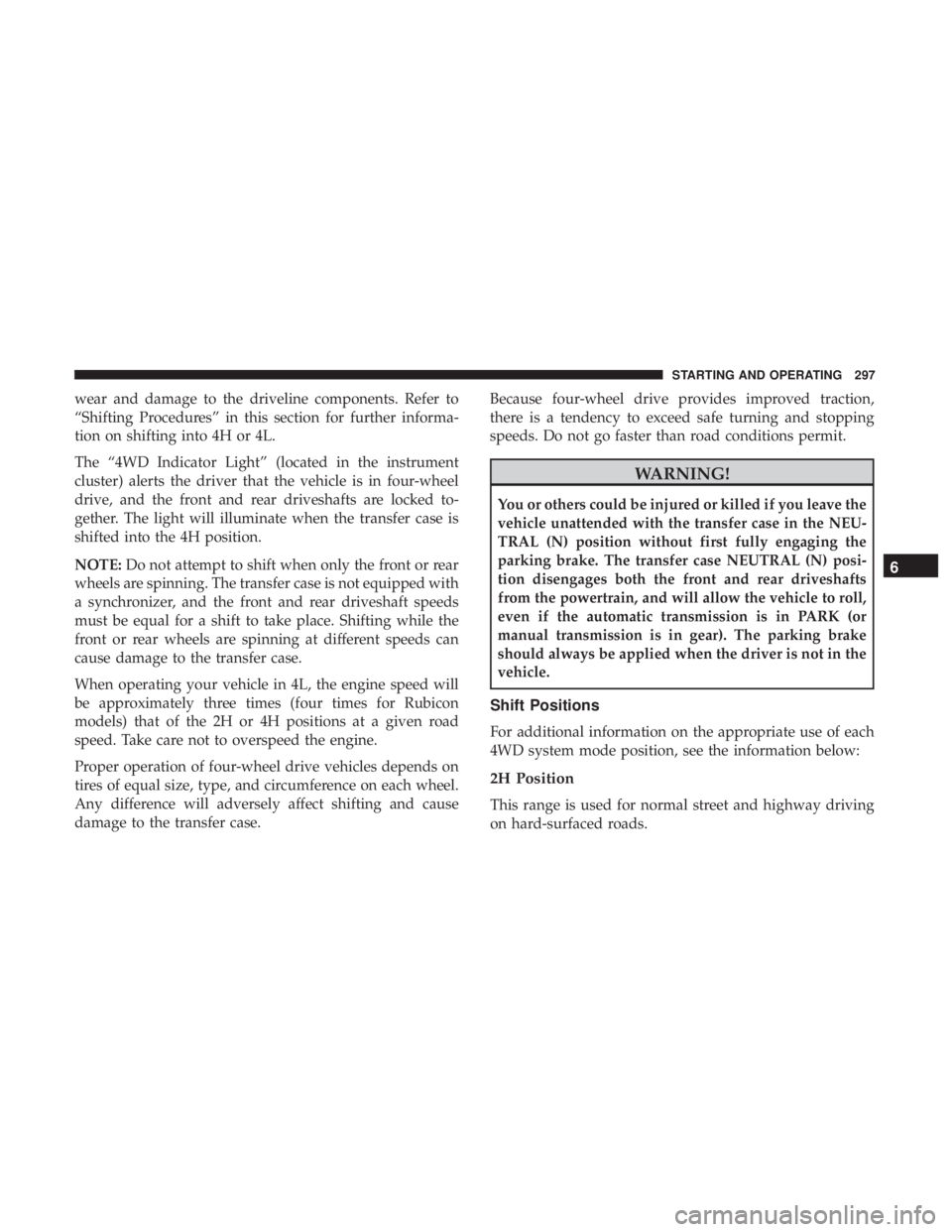

wear and damage to the driveline components. Refer to
“Shifting Procedures” in this section for further informa-
tion on shifting into 4H or 4L.
The “4WD Indicator Light” (located in the instrument
cluster) alerts the driver that the vehicle is in four-wheel
drive, and the front and rear driveshafts are locked to-
gether. The light will illuminate when the transfer case is
shifted into the 4H position.
NOTE:Do not attempt to shift when only the front or rear
wheels are spinning. The transfer case is not equipped with
a synchronizer, and the front and rear driveshaft speeds
must be equal for a shift to take place. Shifting while the
front or rear wheels are spinning at different speeds can
cause damage to the transfer case.
When operating your vehicle in 4L, the engine speed will
be approximately three times (four times for Rubicon
models) that of the 2H or 4H positions at a given road
speed. Take care not to overspeed the engine.
Proper operation of four-wheel drive vehicles depends on
tires of equal size, type, and circumference on each wheel.
Any difference will adversely affect shifting and cause
damage to the transfer case. Because four-wheel drive provides improved traction,
there is a tendency to exceed safe turning and stopping
speeds. Do not go faster than road conditions permit.
