The rear windshield washer uses a pump motor lo-
cated inside the windshield washer fluid reservoir.
When the rear wiper switch is pressed, power is sup-
plied through the wiper switch to the pump motor on
circuit V20. Circuit Z1 provides ground for the pump
motor.DIAGRAM INDEX
Component Page
Circuit Breaker (Fuse Block Cavity 11).........8W-53-4, 5
Fuse 4 (PDC).......................8W-53-3, 4, 5,
Fuse 4 (Fuse Block).....................8W-53-4, 5
Fuse 7 (Fuse Block).....................8W-53-4, 5
Ignition Switch......................8W-53-3, 4, 5

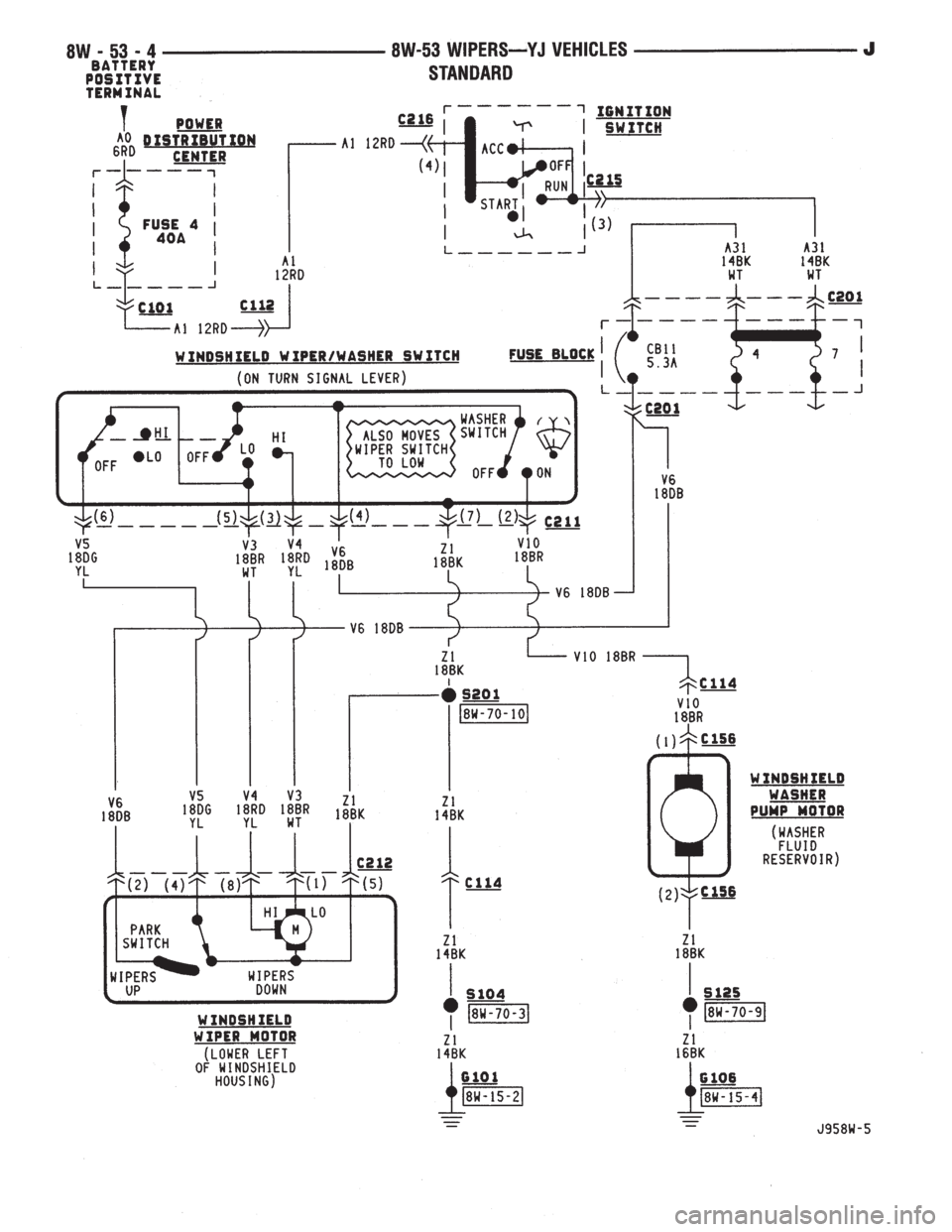

Intermittent Wiper Control Module.............8W-53-5
Intermittent Wiper Switch...................8W-53-5
Rear Windshield Washer Pump Motor...........8W-53-3
Rear Wiper Motor........................8W-53-3
Standard Wiper Switch.....................8W-53-4
Windshield Washer Pump Motor.............8W-53-4, 5
Wiper Motor..........................8W-53-4, 5
8W - 53 - 2 8W-53 WIPERSÐYJ VEHICLESJ

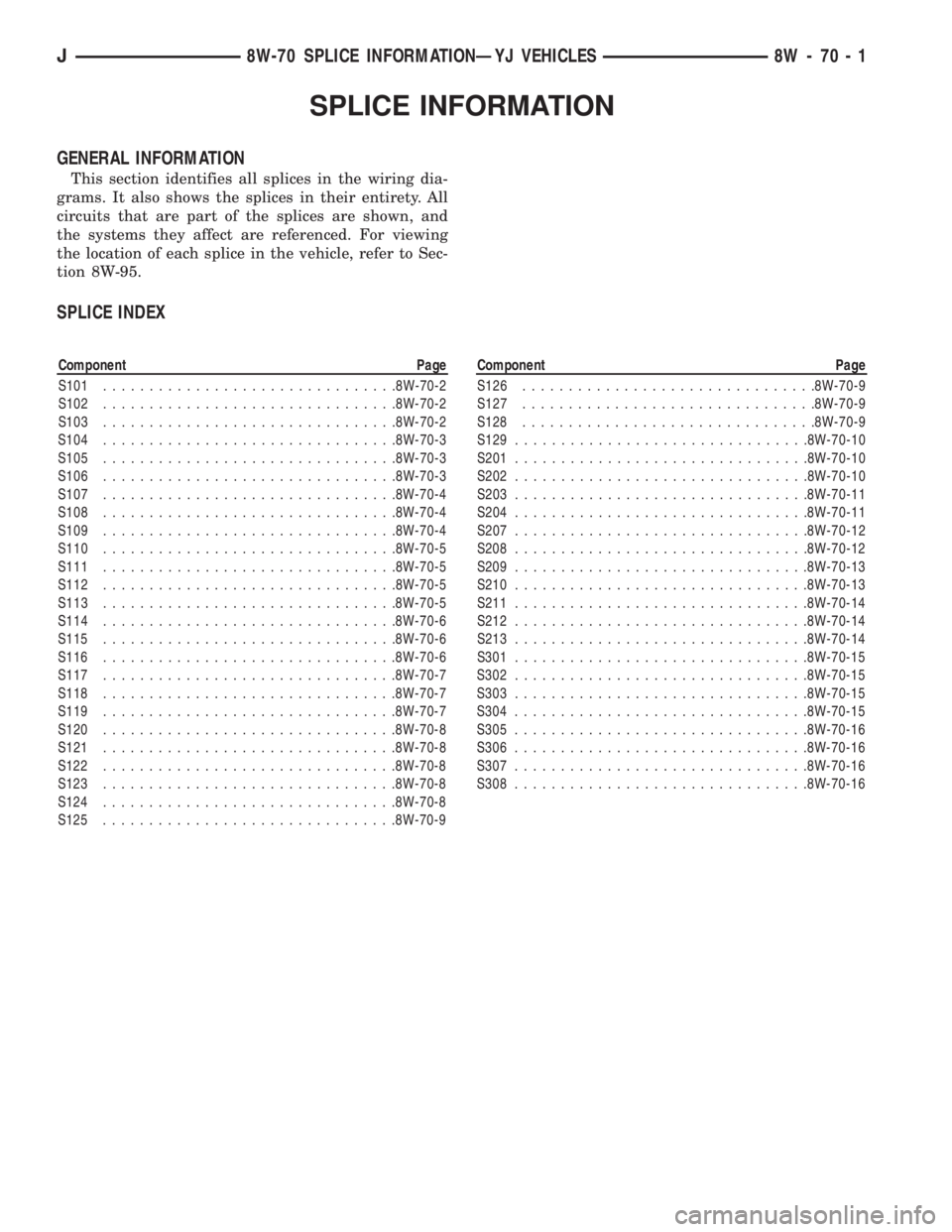

SPLICE INFORMATION
GENERAL INFORMATION

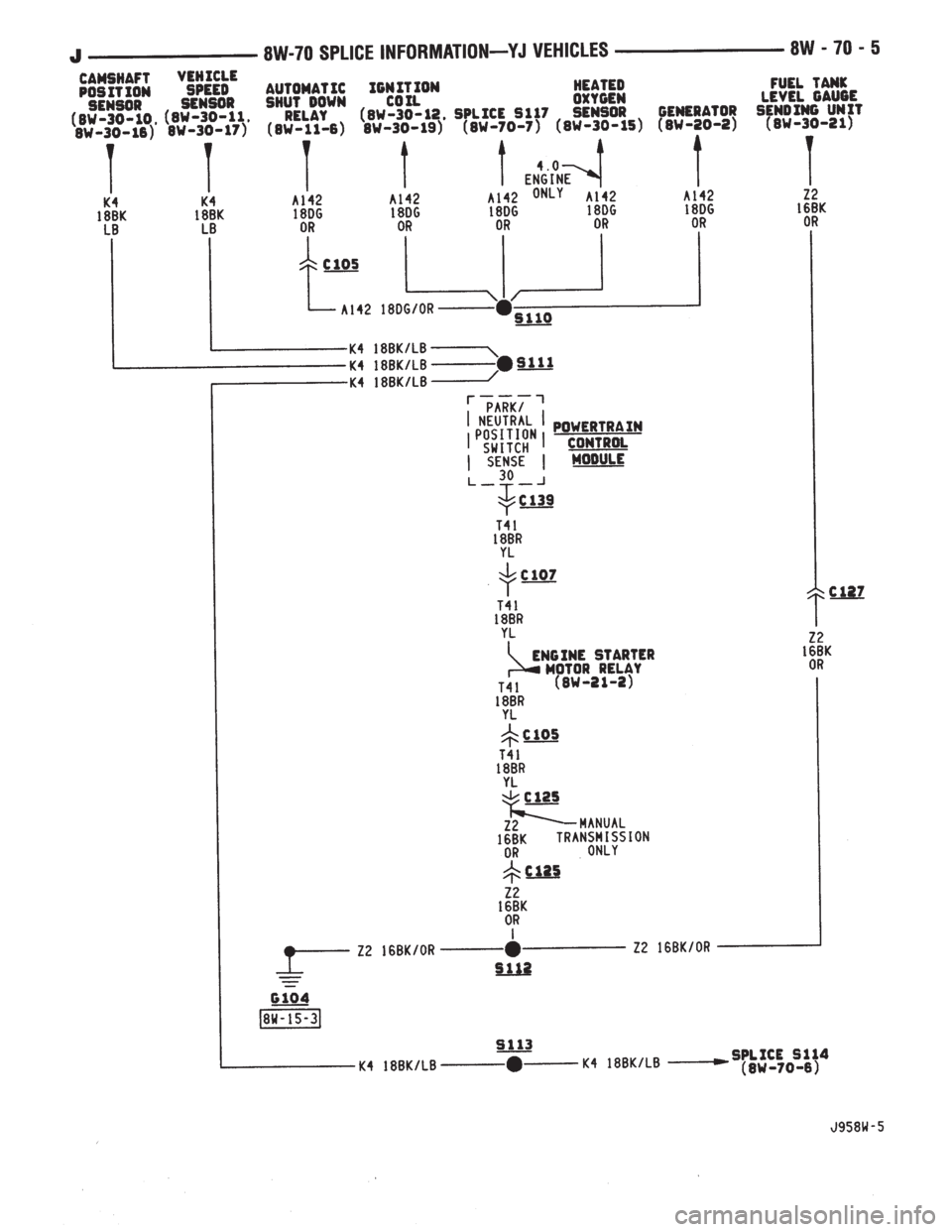

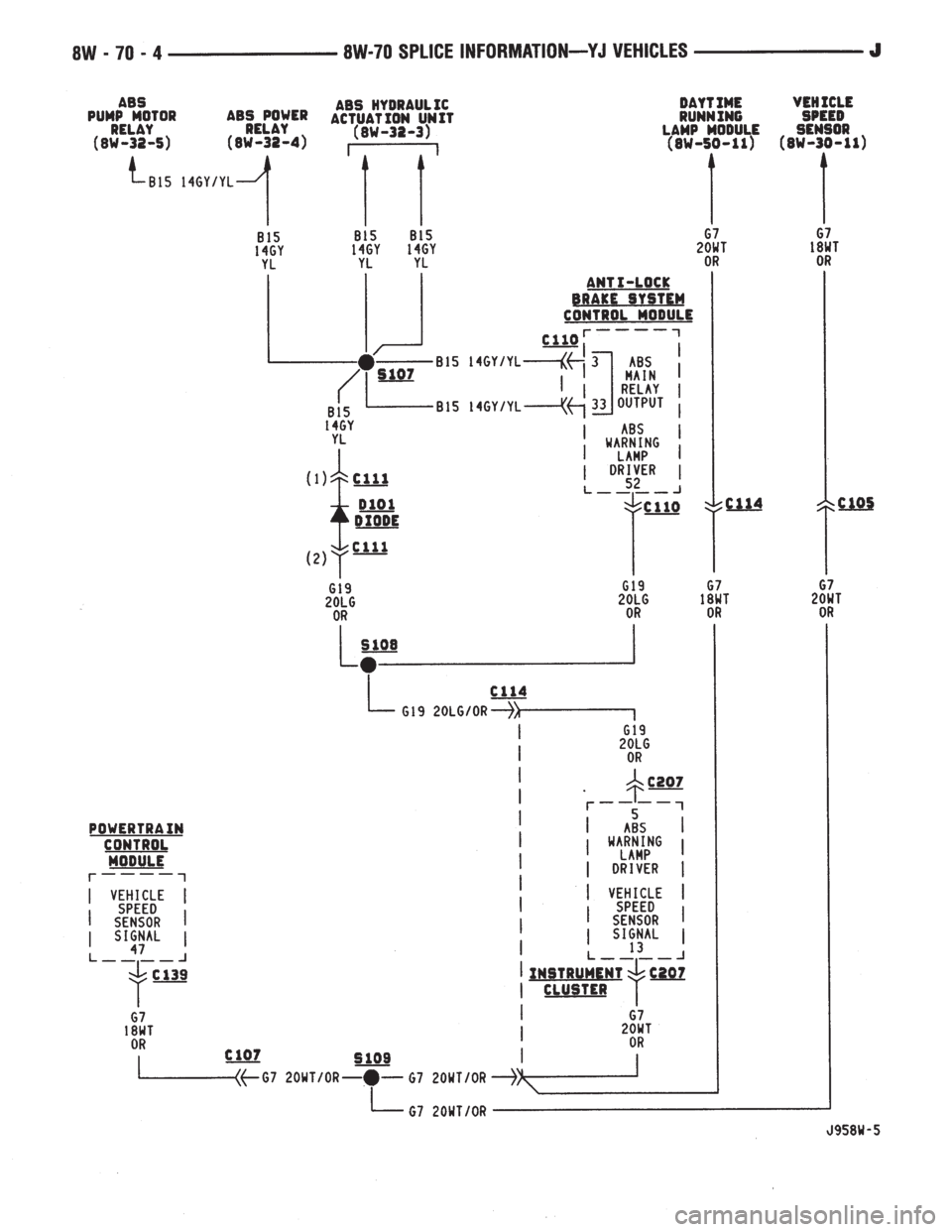

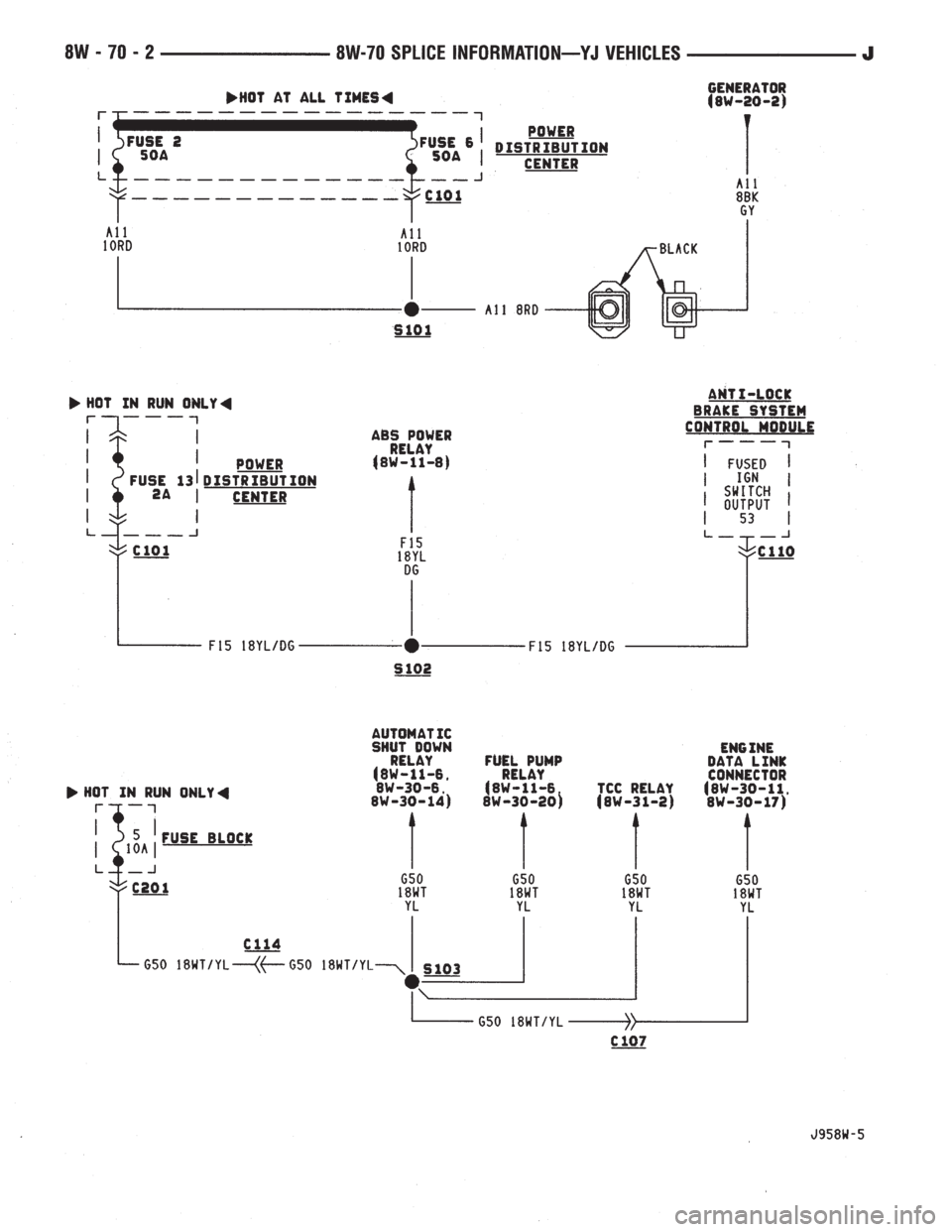

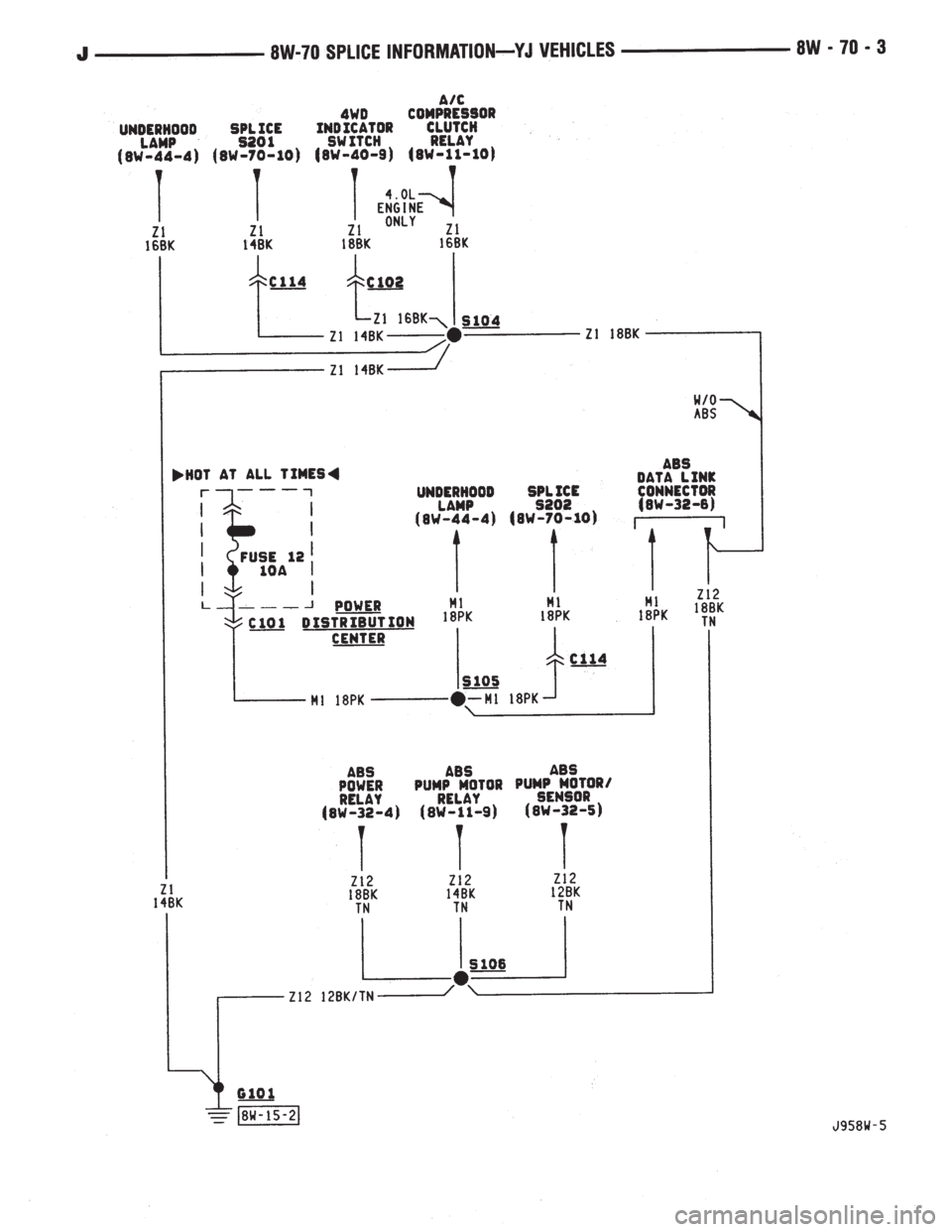

This section identifies all splices in the wiring dia-
grams. It also shows the splices in their entirety. All
circuits that are part of the splices are shown, and
the systems they affect are referenced. For viewing
the location of each splice in the vehicle, refer to Sec-
tion 8W-95.
SPLICE INDEX
Component Page
S101................................8W-70-2
S102................................8W-70-2
S103................................8W-70-2
S104................................8W-70-3
S105................................8W-70-3
S106................................8W-70-3
S107................................8W-70-4
S108................................8W-70-4
S109................................8W-70-4
S110................................8W-70-5
S111................................8W-70-5
S112................................8W-70-5
S113................................8W-70-5
S114................................8W-70-6
S115................................8W-70-6
S116................................8W-70-6
S117................................8W-70-7
S118................................8W-70-7
S119................................8W-70-7
S120................................8W-70-8
S121................................8W-70-8
S122................................8W-70-8
S123................................8W-70-8
S124................................8W-70-8
S125................................8W-70-9Component Page
S126................................8W-70-9
S127................................8W-70-9
S128................................8W-70-9
S129................................8W-70-10
S201................................8W-70-10
S202................................8W-70-10
S203................................8W-70-11
S204................................8W-70-11
S207................................8W-70-12
S208................................8W-70-12
S209................................8W-70-13
S210................................8W-70-13
S211................................8W-70-14
S212................................8W-70-14
S213................................8W-70-14
S301................................8W-70-15
S302................................8W-70-15
S303................................8W-70-15
S304................................8W-70-15
S305................................8W-70-16
S306................................8W-70-16
S307................................8W-70-16
S308................................8W-70-16
J8W-70 SPLICE INFORMATIONÐYJ VEHICLES 8W - 70 - 1
