Driving your vehicle62
5E140700AHMService Connector for towing
brake controller1 : Trailer brake (blue)
2 : Battery(+) (black)
3 : Stop light (red)
4 : Ground(-) (white) A service connector is equipped in your
vehicle for the towing brake controller as
shown. Link the connector to the towing
brake controller with the sub wire har-
ness stored in the glove box. The detailed
explanation of the sub wire harness cir-
cuit is shown in the picture. Be sure to
position the towing brake controller
where it does not interfere with the driver
from operating the pedal.
We recommend that the sub wire har-
ness be stored in the glove box when it is
not in use.
E140800AHMTrailer light connectorYour vehicle is equipped with a wire har-
ness stored in the rear end underbody.
Use it to connect and operate the trailer
lights. However, the trailer lights must
comply with federal, state/provincial and
local regulations. See your local recre-
ational vehicle dealer or rental agency for
the correct type of wiring and relays for
your trailer. Check for correct operation of
the turn signals, tail, back-up and stop
lights each time you hitch up. Direct splic-
ing may damage your vehicle's electrical
system and cause a malfunction of your
lights.
OHM068032N

Maintenance46
7
✽
✽
NOTICENot all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
G210300AHM-EUFuse/relay panel descriptionInside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.Inner fuse panel
Engine compartment fuse panel
OHM078027/OHM078043N/OHM078028N/OHM078029N

747
Maintenance
Inner fuse panel (Instrument panel)
Description Fuse ratingProtected component
AUDIO15A Audio, Rear Monitor, RSE Control Box, DVD Player Can
MEMORY 7.5AFront A/C Control Module, Rear A/C Control Module, Instrument Cluster (IND.), RF Receiver, FAM, RAM, Driver
Door Module, Assistant Door Module, Tilt & Telescopic Module, IMS Control Module
Front A/C Control Module, Incar Temperature Sensor, PDM, Multifunction Switch (Wiper/Washer),
IG2-1 7.5A Driver/Passenger Seat Warmer Module, Front Blower Relay, Electro Chromic Mirror, Rear Blower Relay,
AC Inverter Switch, Trailer Relay, C/FAN HI/LOW Relay
IG2-2 7.5ARear A/C Control Module, Driver Door Module, FAM, Assistant Door Module, IMS Control Module,
Tilt & Telescopic Module
OBD-II 7.5AStart Stop Button Switch, Data Link Connector, PDM, Multipurpose Check Connector,
Smart Key Control Module, Fob Holder
ROOM 7.5AElectronic Chrome Mirror, Map Lamp, Vanity Lamp Switch LH/RH, Front/Rear A/C Control Module,
Center Room Lamp, Rear Room Lamp
KEY LOCK 7.5A Sport Mode Switch, Ignition Lock Switch
ILLUMI 7.5A IPM
RR S/WARMER 20A Rear Seat Warmer Relay
FRT S/WARMER 20A Driver Seat Warmer Module, Passenger Seat Warmer Module
SUNROOF 25A Sunroof Module
TPMS 7.5A Tire Pressure Monitoring Module
PEDAL 15A Adjustable Pedal Relay
F/PWR OUTLET 15A Front Power Outlet
S/TILT & TELE 20A Tilt & Telescopic Module
PASS P/SEAT 20A Passenger Power Seat Switch
DRIVER P/SEAT 30A Driver Power Seat Switch, Lumbar Support Switch, IMS Control Module
ACC 7.5A Audio, Front A/C Control Module, Rear monitor, RSE Control Box, Smart Key Control Module, DVD Player Can

Maintenance48
7
Description Fuse rating Protected component
START7.5A Burglar Alarm Relay, Start Relay
AIR BAG IND. 7.5A Instrument Cluster (Air Bag IND.)
ABS 7.5AABS Control Module, ESC Control Module, DBC Relay, Steering Angle Sensor, Crash Pad Switch LH,
Smart Key Control Module, Rear Parking Assist Control Module
Rheostat, Instrument Cluster (MICOM), Multifunction Switch (Cruise Remocon), Generator,
IGN 1 7.5A Rear Parking Assist Buzzer, Rear Parking Assist Switch, Audio, PODS Module,
Tire Pressure Monitoring Module
ENG 7.5AMultipurpose Check Connector, ECM, TCM, Front Wiper Motor, 4WD ECM, Stop Lamp Switch,
Free Running Differential Air Pump, Generator (G8BA)
AIR BAG 15A SRS Control Module, Telltale Lamp
DDM 30A Driver Door Module, Driver Safety Power Window Motor
ADM 30A Assistant Door Module, Passenger Safety Power Window Motor

749
Maintenance
Inner fuse panel (Luggage compartment)
FUSE Fuse ratingCircuit Protected
RR DEFOG25A RR Defog Relay, Rear Defogger (+)
T/G POWER LATCH 30A Tail Gate Control Module
RR WIPER 15A Rear Wiper Motor Relay (+), Rear Wiper Motor
DOOR LOCK 15A Rear Door Lock Actuator LH/RH, Rear Door Lock/Unlock Relay
CTR P/OUT 15A Console Power Outlet
RR P/OUT 15A Rear Power Outlet
FUEL DR 15A Fuel Door Relay, Fuel Filler Door Actuator
TRAILER3 15A Tail Lamp Converter (Back up)
RR P/WIN-LH 20A Rear Power Window Relay LH(UP/DH), Rear Power Window Motor LH
RR P/WIN-RH 20A Rear Power Window Relay RH(UP/DH), Rear Power Window Motor RH(DN)
LUGGAGE 7.5A Luggage Lamp
AMP 30A AMP
TRAILER2 30A Tail Lamp Converter (Tail)

Maintenance50
7Engine compartment main fuse panel
Description Fuse rating Protected component
FRT/RR WASHER 10A Front/Rear Washer Motor Relay, Washer Motor
TRAILER 5 15A Tail Lamp Converter (Turn/Stop)
STOP LAMP 20A Stop Lamp Switch, DBC Relay
KEY SW 1 25A Ignition Switch, PDM Relay Box (IG1 Relay , ACC Relay)
STOP SIGNAL 7.5A ABS Control Module, ESC Control Module, ECM, Smart Key Control Module
A/C COMP 7.5A A/C Comp Relay
FRT DEICER 15A Front Deicer Relay
HORN 15A Horn Relay
ECU 1 10A ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay
O2 DN 10A Oxygen Sensor #3,#4
ECU 2 15A Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve, Canister Close Valve
O2 UP 10A Oxygen Sensor #1,#2
IGN COIL 20A Ignition Coil #1~#8, Condenser #1,#2
INJECTOR 15A ECM, Injector #1~#8, Camshaft Position Sensor #1 ~ #3 (G8BA)
P/TRAIN 7.5A ECM, Main Relay, Relay Box(Burglar Horn Relay), Generator (G8BA)
FUEL PUMP 15A Fuel Pump Relay, Fuel Sender & Fuel Pump Motor
ATM 15A TCM

751
Maintenance
Description Fuse ratingProtected component
ABS 240A ABS Control Module
ABS 1 40A ABS Control Module
PDM 20A PDM
FRT WIPER 30A Front Wiper ON Relay, Front Wiper HI/LO Relay
KEY SW 2 30A Start Relay #1, Ignition Switch, PDM Relay Box (IG2 Relay)
RAM 1 50ARAM(CTR P/OUT FUSE 15A, RR P/OUT FUSE 15A, FUEL DR FUSE 15A, RR P/WIN-L\
H FUSE 20A,
RR P/WIN-RH FUSE 20A, LUGGAGE FUSE 7.5A)
RAM 2 50ARAM(RR DEFOG FUSE 25A, T/G POWER LATCH FUSIBLE LINK 30A, DOOR LOCK FUSE 15A,
RR WIPER FUSE 15A)
RAM 3 50A RAM (AMP FUSIBLE LIMK 30A TRAILER 2 FUSIBLE LINK 30A)
IPM 1 50AIPM (ILLUMI FUSE 7.5A, DDM FUSIBLE LINK 30A, FRT S/WARMER FUSE 20A, OBD-II FUSE 7.5A,
SUNROOF FUSE 25A, KEY LOCK FUSE 7.5A)
IPM 2 50A IPM (ADM FUSIBLE LINK 30A, F/PWR OUTLET FUSE 15A, PEDAL FUSE 15A, S/TILT & TELE FUSE 20A)
IPM 3 50AIPM (MEMORY FUSE 7.5A, DRIVER P/SEAT FUSE 30A, PASS P/SEAT FUSE 20A,
RR S/WARMER FUSE 20A, ROOM FUSE 7.5A, AUDIO FUSE 15A)
4WD 30A 4WD ECM
AC 110V 30A AC inverter module

Maintenance52

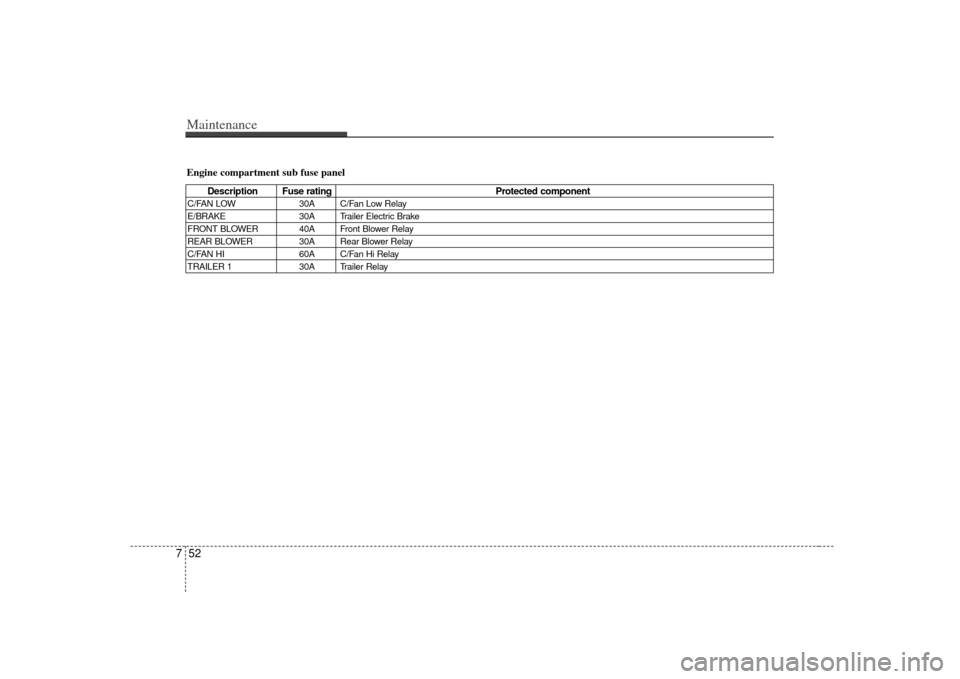

7Engine compartment sub fuse panel
Description Fuse rating Protected component
C/FAN LOW30A C/Fan Low Relay
E/BRAKE 30A Trailer Electric Brake
FRONT BLOWER 40A Front Blower Relay
REAR BLOWER 30A Rear Blower Relay
C/FAN HI 60A C/Fan Hi Relay
TRAILER 1 30A Trailer Relay
