Your vehicle at a glance
OHM076071L
■■Diesel Engine (3.0L)
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir .................8-24
2. Engine oil filler cap..........................8-22
3. Brake fluid reservoir ........................8-27
4. Air cleaner .......................................8-31
5. Fuse box .........................................8-53
6. Negative battery terminal ................8-38
7. Positive battery terminal .................8-38
8. Radiator cap....................................8-24
9. Engine oil dipstick ...........................8-22
10. Power steering fluid reservoir .......8-28
11. Windshield washer fluid reservoir ...
8-29
12. Fuel Filter ......................................8-30

4133
Features of your vehicle
Air conditioning system operation tips
If the vehicle has been parked indirect sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
Use air conditioning to reduce humidity and moisture inside the
vehicle on rainy or humid days.
During air conditioning system operation, you may occasionallynotice a slight change in enginespeed as the air conditioning com-
pressor cycles. This is a normal
system operation characteristic.
Use the air conditioning system every month only for a few minutes
to ensure maximum system per-
formance. When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side
of the vehicle. This is a normal sys-
tem operation characteristic.
Operating the air conditioning sys- tem in the recirculated air position
provides maximum cooling, how-
ever, continual operation in this
mode may cause the air inside the
vehicle to become stale.
During cooling operation, you may occasionally notice a misty air flow
because of rapid cooling and
humid air intake. This is a normal

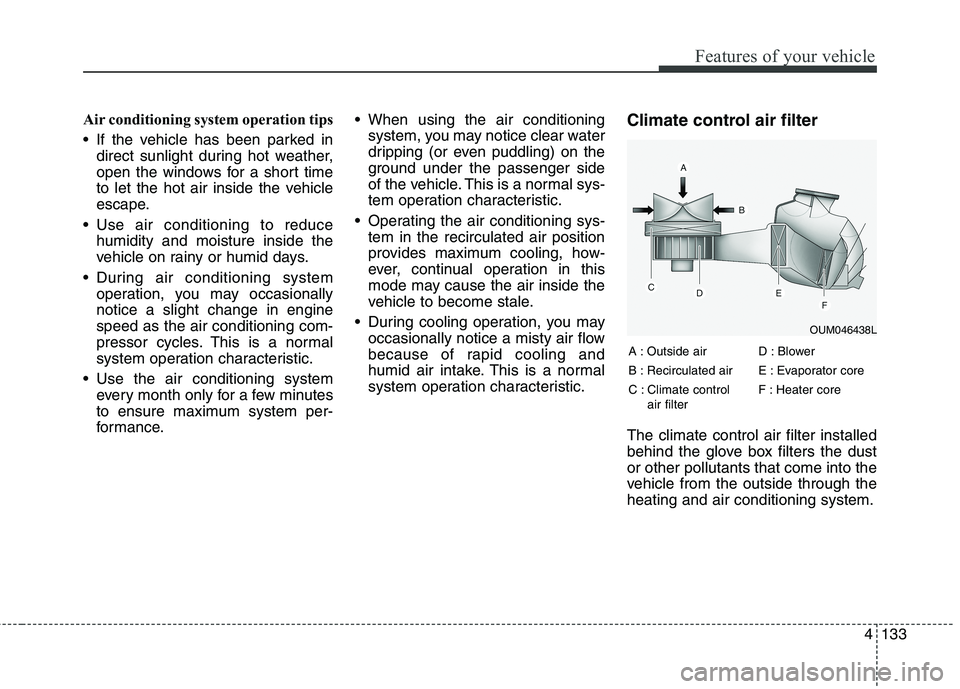

system operation characteristic. Climate control air filter The climate control air filter installed
behind the glove box filters the dustor other pollutants that come into the
vehicle from the outside through theheating and air conditioning system.
OUM046438L
A : Outside air
B : Recirculated air
C : Climate control air filter D : Blower
E : Evaporator core
F : Heater core

Features of your vehicle
134
4
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
air position is selected. If this hap-
pens, we recommend that the cli-
mate control air filter be replaced by
an authorized Kia dealer.
✽✽
NOTICE
 Replace the filter according to the Maintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate con-
trol air filter inspections and
changes are required.
 When the air flow rate suddenly decreases, we recommend that the
system be checked by an author-
ized Kia dealer.
Checking the amount of air
conditioner refrigerant andcompressor lubricant
When the amount of refrigerant is
low, the performance of the air con-
ditioning is reduced. Overfilling alsohas a bad influence on the air condi-tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by an authorized
Kia dealer. *: Your vehicle is filled with R-134a
according to the regulation in your
country at the time of producing.
You can find out which air condi-
tioning refrigerant is applied your
vehicle at the chapter 9, air condi-tioning system.
WARNING - Vehicles
equipped with R-134a*
Because the refriger-
ant is at very high
pressure, the air con-ditioning system
should only be serv-
iced by trained and certified
technicians. It is important thatthe correct type and amount of
oil and refrigerant is used.
Otherwise, it may cause dam-
age to the vehicle and personal
injury.

651
Driving your vehicle
CAUTION
Always check if there is any-thing under the rear part of thevehicle before adjusting theALS.
There may be noise heard while the ALS is adjusting theheight to a mode.
Do not turn off the engine or press the switch to anothermode while the ALS is adjust-ing to the mode selected.
Do not activate the ALS when the air filter of the compressorhas been submerged.
Inspect or replace the ALS air filter and air spring accordingto the maintenance schedule.
Do not drive the vehicle when the air spring is damaged orairless. Have the vehicle towed with all the wheels liftedfrom the ground.

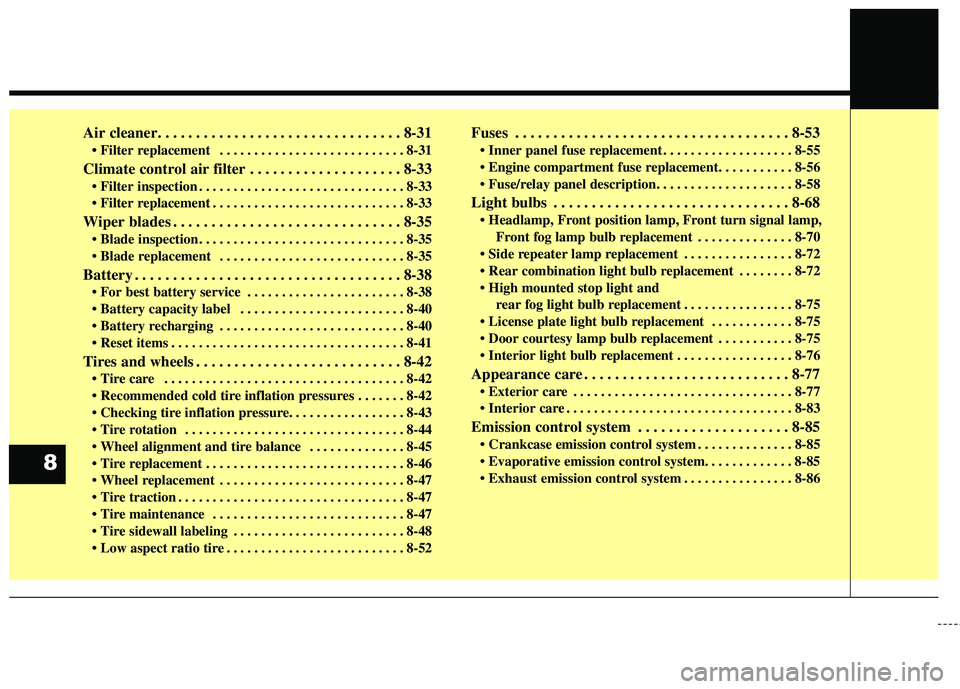

Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Climate control air filter . . . . . . . . . . . . . . . . . . . . 8-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-38 . . . . . . . . . . . . . . . . . . . . . . . 8-38
. . . . . . . . . . . . . . . . . . . . . . . . 8-40
. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-41
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-44
. . . . . . . . . . . . . . 8-45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
. . . . . . . . . . . . . . . . . . . . . . . . . 8-48
. . . . . . . . . . . . . . . . . . . . . . . . . . 8-52 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-53
. . . . . . . . . . . . . . . . . . . 8-55


Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-68 Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement . . . . . . . . . . . . . . 8-70
. . . . . . . . . . . . . . . . 8-72
. . . . . . . . 8-72 rear fog light bulb replacement . . . . . . . . . . . . . . . . 8-75
. . . . . . . . . . . . 8-75
. . . . . . . . . . . 8-75
. . . . . . . . . . . . . . . . . 8-76
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-83
Emission control system . . . . . . . . . . . . . . . . . . . . 8-85 . . . . . . . . . . . . . . 8-85

. . . . . . . . . . . . . . . . 8-86
8

Maintenance
4
8
OHM076071L
■■
Diesel Engine (3.0L)
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Power steering fluid reservoir
11. Windshield washer fluid reservoir
12. Fuel filter

813
Maintenance

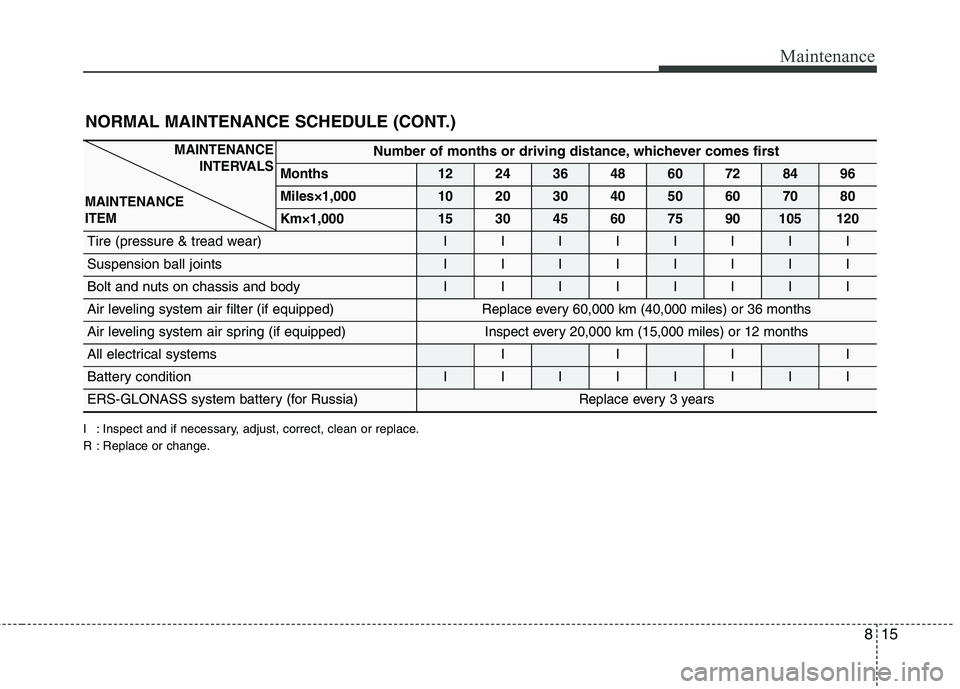

NORMAL MAINTENANCE SCHEDULE (CONT.)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.*8
: If good quality gasolines meet Europe Fuel standards (EN228) or equivalents including fuel additives is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.
* 9
: If the diesel fuel specifications don't meet the European standards EN590, replace it more frequently.
Consult an authorized Kia dealer for details.
* 10
: Middle East includes India, Libya, Algeria, Morocco, Tunisia, Sudan, Egypt and Iran.
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Fuel additives * 8GasolineFor EuropeAdd every 15,000 km (10,000 miles) or 12 months
Except EuropeAdd every 10,000 km (6,500miles) or 6 months
Fuel filterGasolineFor China, BrazilIRIR
Fuel filter
cartridge*9DieselRRRR
Fuel lines, hoses and connectionsIIIIIIII
Fuel tank air filterGasolineIIRIIRII
Vapor hose and fuel filler capIIII
Air cleaner filter
For China, India, Middle East* 10RRRRRRRR
Except China, India, Middle East*10IIRIIRII
MAINTENANCE
INTERVALS
MAINTENANCE ITEM

Maintenance
14
8
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change. NORMAL MAINTENANCE SCHEDULE (CONT.)
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Cooling systemInspect “Coolant level and leak” every day
Inspect “Water pump” when replacing the drive belt or timing belt
Air conditioner refrigerant (if equipped)IIIIIIII
Air conditioner compressor (if equipped)IIIIIIII
Climate control air filter (if equipped)RRRRRRRR
Brake discs and padsIIIIIIII
Brake lines, hoses and connectionsIIIIIIII
Brake pedalIIII
Brake fluidIIIIIIII
Parking brakeIIII
Steering gear rack, linkage and bootsIIIIIIII
Power steering fluid and hosesIIIIIIII
MAINTENANCE INTERVALS
MAINTENANCE ITEM

815
Maintenance
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Tire (pressure & tread wear)IIIIIIII
Suspension ball jointsIIIIIIII
Bolt and nuts on chassis and bodyIIIIIIII
Air leveling system air filter (if equipped)Replace every 60,000 km (40,000 miles) or 36 months
Air leveling system air spring (if equipped)Inspect every 20,000 km (15,000 miles) or 12 months
All electrical systemsIIII
Battery conditionIIIIIIII
ERS-GLONASS system battery (for Russia)Replace every 3 years
MAINTENANCEINTERVALS
MAINTENANCE ITEM
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change. NORMAL MAINTENANCE SCHEDULE (CONT.)

Maintenance
16
8

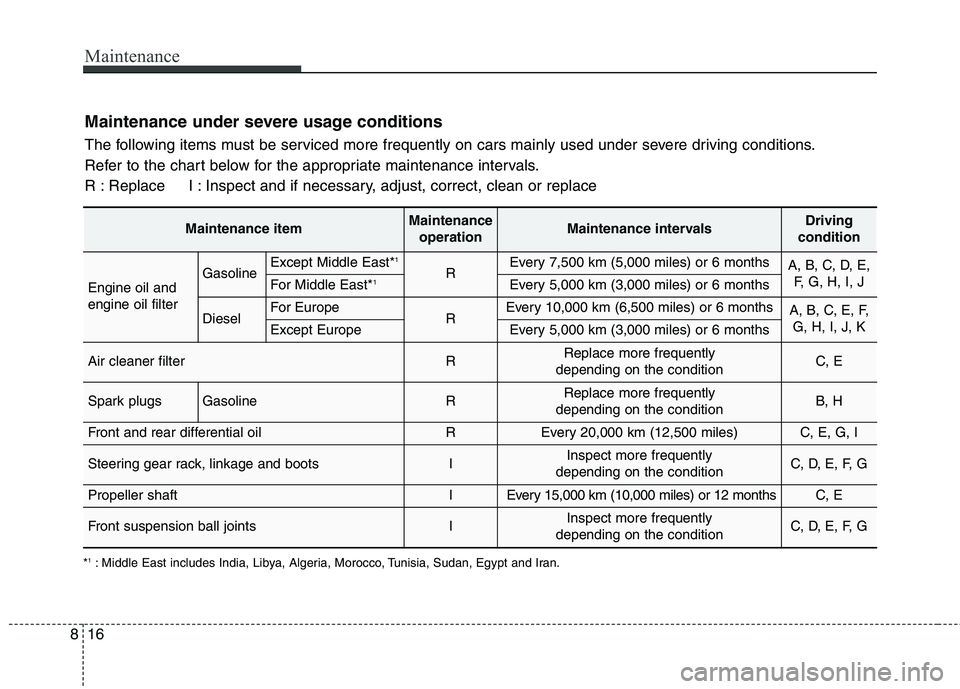

Maintenance under severe usage conditions
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Engine oil and engine oil filterGasolineExcept Middle East* 1REvery 7,500 km (5,000 miles) or 6 monthsA, B, C, D, E,
F, G, H, I, J
For Middle East* 1Every 5,000 km (3,000 miles) or 6 months
DieselFor EuropeREvery 10,000 km (6,500 miles) or 6 months A, B, C, E, F,
G, H, I, J, K
Except EuropeEvery 5,000 km (3,000 miles) or 6 months
Air cleaner filterRReplace more frequently
depending on the conditionC, E
Spark plugsGasolineRReplace more frequently
depending on the conditionB, H
Front and rear differential oil REvery 20,000 km (12,500 miles)C, E, G, I
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G
Propeller shaftIEvery 15,000 km (10,000 miles) or 12 monthsC, E
Front suspension ball jointsIInspect more frequently
depending on the conditionC, D, E, F, G
* 1
: Middle East includes India, Libya, Algeria, Morocco, Tunisia, Sudan, Egypt and Iran.
