Page 490 of 548

Maintenance
54
8
✽✽

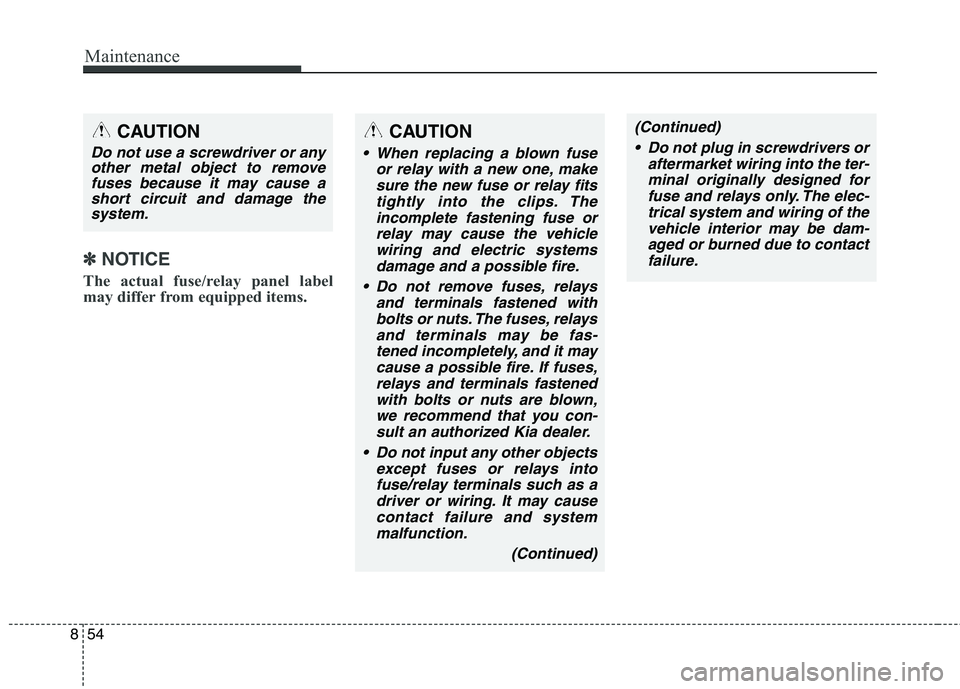

NOTICE
The actual fuse/relay panel label
may differ from equipped items.
CAUTION
When replacing a blown fuse or relay with a new one, makesure the new fuse or relay fitstightly into the clips. Theincomplete fastening fuse or relay may cause the vehiclewiring and electric systemsdamage and a possible fire.
Do not remove fuses, relays and terminals fastened withbolts or nuts. The fuses, relaysand terminals may be fas-tened incompletely, and it maycause a possible fire. If fuses, relays and terminals fastenedwith bolts or nuts are blown,we recommend that you con- sult an authorized Kia dealer.
Do not input any other objects except fuses or relays intofuse/relay terminals such as adriver or wiring. It may cause contact failure and systemmalfunction.
(Continued)
(Continued)
Do not plug in screwdrivers or aftermarket wiring into the ter-minal originally designed forfuse and relays only. The elec-trical system and wiring of thevehicle interior may be dam- aged or burned due to contactfailure.CAUTION
Do not use a screwdriver or anyother metal object to removefuses because it may cause ashort circuit and damage thesystem.
Page 494 of 548

Maintenance
58
8

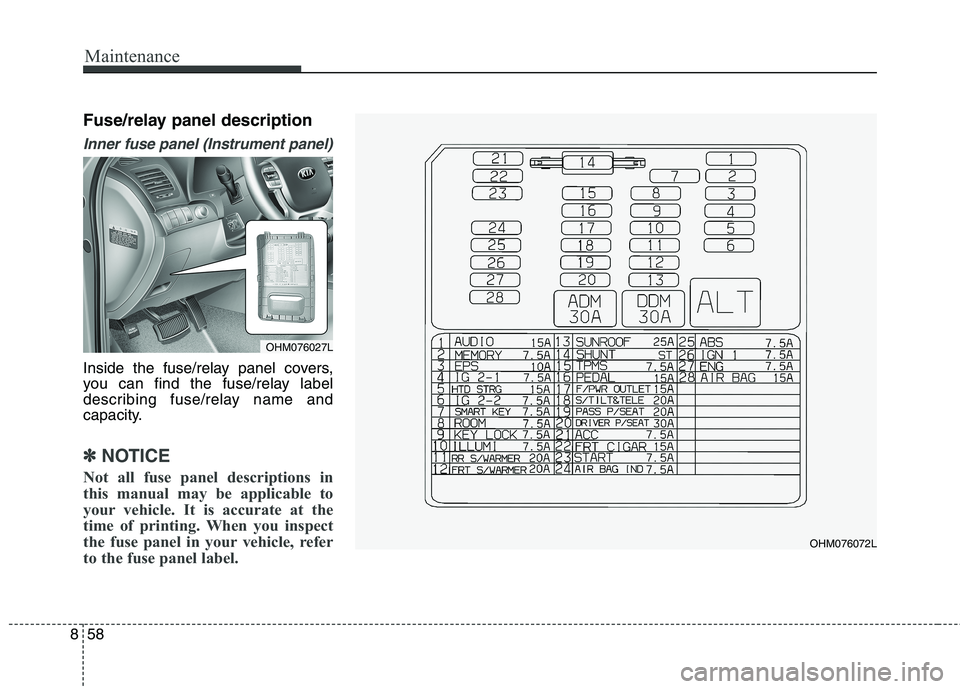

Fuse/relay panel description
Inner fuse panel (Instrument panel)
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽✽
NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OHM076027L
OHM076072L
Page 495 of 548

859
Maintenance

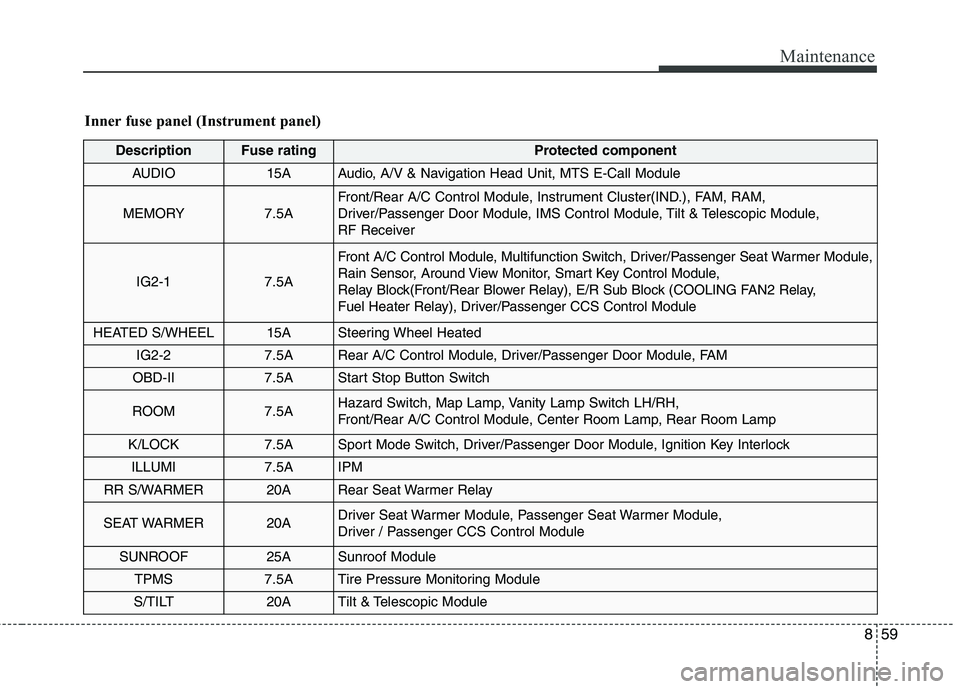

Inner fuse panel (Instrument panel)
DescriptionFuse ratingProtected component
AUDIO15AAudio, A/V & Navigation Head Unit, MTS E-Call Module
MEMORY7.5A
Front/Rear A/C Control Module, Instrument Cluster(IND.), FAM, RAM,
Driver/Passenger Door Module, IMS Control Module, Tilt & Telescopic Module,
RF Receiver
IG2-17.5A
Front A/C Control Module, Multifunction Switch, Driver/Passenger Seat Warmer Module,
Rain Sensor, Around View Monitor, Smart Key Control Module,
Relay Block(Front/Rear Blower Relay), E/R Sub Block (COOLING FAN2 Relay,
Fuel Heater Relay), Driver/Passenger CCS Control Module
HEATED S/WHEEL15ASteering Wheel Heated
IG2-27.5ARear A/C Control Module, Driver/Passenger Door Module, FAM
OBD-II7.5AStart Stop Button Switch
ROOM7.5AHazard Switch, Map Lamp, Vanity Lamp Switch LH/RH,
Front/Rear A/C Control Module, Center Room Lamp, Rear Room Lamp
K/LOCK7.5ASport Mode Switch, Driver/Passenger Door Module, Ignition Key Interlock
ILLUMI7.5AIPM
RR S/WARMER20ARear Seat Warmer Relay
SEAT WARMER20ADriver Seat Warmer Module, Passenger Seat Warmer Module,
Driver / Passenger CCS Control Module
SUNROOF25ASunroof Module
TPMS7.5ATire Pressure Monitoring Module
S/TILT20ATilt & Telescopic Module
Page 496 of 548

Maintenance
60
8

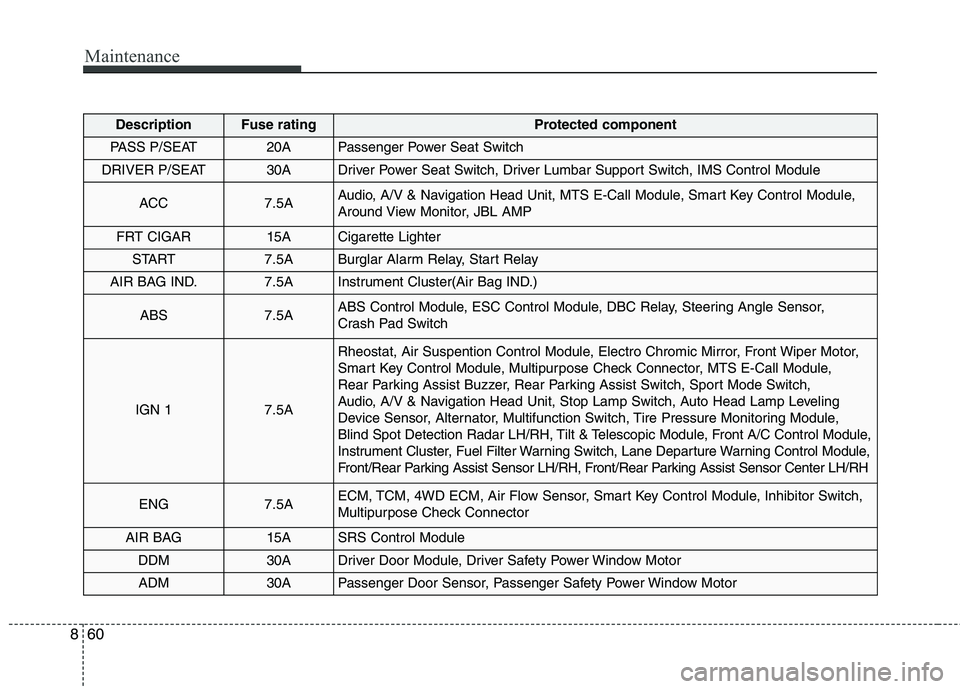

DescriptionFuse ratingProtected component
PASS P/SEAT20APassenger Power Seat Switch
DRIVER P/SEAT30ADriver Power Seat Switch, Driver Lumbar Support Switch, IMS Control Module
ACC7.5AAudio, A/V & Navigation Head Unit, MTS E-Call Module, Smart Key Control Module,
Around View Monitor, JBL AMP
FRT CIGAR15ACigarette Lighter
START7.5ABurglar Alarm Relay, Start Relay
AIR BAG IND.7.5AInstrument Cluster(Air Bag IND.)
ABS7.5AABS Control Module, ESC Control Module, DBC Relay, Steering Angle Sensor,
Crash Pad Switch
IGN 17.5A
Rheostat, Air Suspention Control Module, Electro Chromic Mirror, Front Wiper Motor,
Smart Key Control Module, Multipurpose Check Connector, MTS E-Call Module,
Rear Parking Assist Buzzer, Rear Parking Assist Switch, Sport Mode Switch,
Audio, A/V & Navigation Head Unit, Stop Lamp Switch, Auto Head Lamp Leveling
Device Sensor, Alternator, Multifunction Switch, Tire Pressure Monitoring Module,
Blind Spot Detection Radar LH/RH, Tilt & Telescopic Module, Front A/C Control Module,
Instrument Cluster, Fuel Filter Warning Switch, Lane Departure Warning Control Module,
Front/Rear Parking Assist Sensor LH/RH, Front/Rear Parking Assist Sensor Center LH/RH
ENG7.5AECM, TCM, 4WD ECM, Air Flow Sensor, Smart Key Control Module, Inhibitor Switch,
Multipurpose Check Connector
AIR BAG15ASRS Control Module
DDM30ADriver Door Module, Driver Safety Power Window Motor
ADM30APassenger Door Sensor, Passenger Safety Power Window Motor
Page 498 of 548

Maintenance
62
8
Inner fuse panel (Luggage compartment)
Fuse NameFuse ratingCircuit Protected
D/LOCK15ARear Door Lock/Unlock Relay
RR WIPER15ARear Wiper Motor Relay
MODULE 17.5AConsole Switch LH/RH
RR DEFOG25ARR Defog Relay
RR P/WIN-RH20ARear Power Window Relay RH(UP/DN)
LUGGAGE7.5ALuggage Lamp
RR P/WIN-LH20ARear Power Window Relay LH(UP/DN)
FUEL DR15AFuel Door Relay
CONSOL P/OUT15AConsole Power Outlet
RR P/OUT15ARear Power Outlet
T/G POWER LATCH30ATail Gate Control Module
AMP30AJBL AMP
Page 500 of 548

Maintenance
64
8

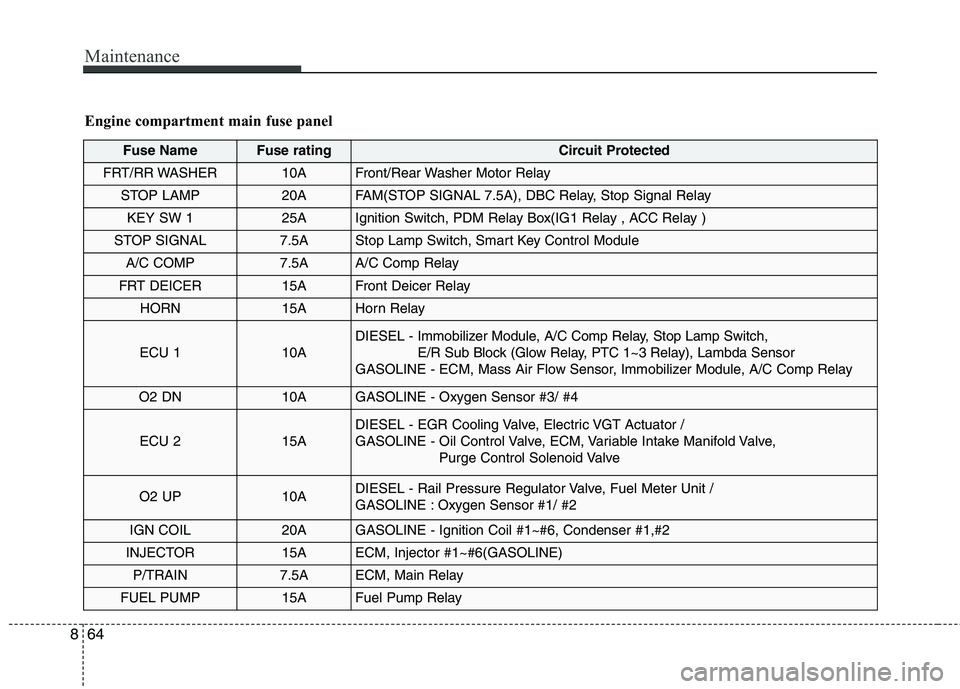

Engine compartment main fuse panel
Fuse NameFuse ratingCircuit Protected
FRT/RR WASHER10AFront/Rear Washer Motor Relay
STOP LAMP20AFAM(STOP SIGNAL 7.5A), DBC Relay, Stop Signal Relay
KEY SW 125AIgnition Switch, PDM Relay Box(IG1 Relay , ACC Relay )
STOP SIGNAL7.5AStop Lamp Switch, Smart Key Control Module
A/C COMP7.5AA/C Comp Relay
FRT DEICER15AFront Deicer Relay
HORN15AHorn Relay
ECU 110A
DIESEL - Immobilizer Module, A/C Comp Relay, Stop Lamp Switch,
E/R Sub Block (Glow Relay, PTC 1~3 Relay), Lambda Sensor
GASOLINE - ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay
O2 DN10AGASOLINE - Oxygen Sensor #3/ #4
ECU 215A
DIESEL - EGR Cooling Valve, Electric VGT Actuator /
GASOLINE - Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve
O2 UP10ADIESEL - Rail Pressure Regulator Valve, Fuel Meter Unit /
GASOLINE : Oxygen Sensor #1/ #2
IGN COIL20AGASOLINE - Ignition Coil #1~#6, Condenser #1,#2
INJECTOR15AECM, Injector #1~#6(GASOLINE)
P/TRAIN7.5AECM, Main Relay
FUEL PUMP15AFuel Pump Relay
Page 501 of 548

865
Maintenance

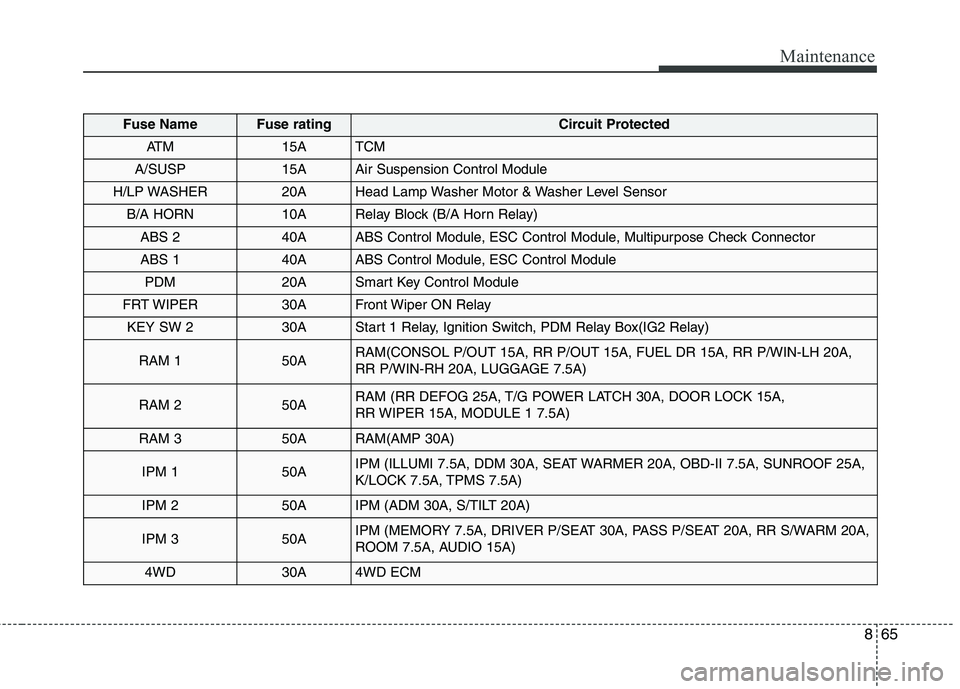

Fuse NameFuse ratingCircuit Protected
AT M15ATCM
A/SUSP15AAir Suspension Control Module
H/LP WASHER20AHead Lamp Washer Motor & Washer Level Sensor
B/A HORN10ARelay Block (B/A Horn Relay)
ABS 240AABS Control Module, ESC Control Module, Multipurpose Check Connector
ABS 140AABS Control Module, ESC Control Module
PDM20ASmart Key Control Module
FRT WIPER30AFront Wiper ON Relay
KEY SW 230AStart 1 Relay, Ignition Switch, PDM Relay Box(IG2 Relay)
RAM 150ARAM(CONSOL P/OUT 15A, RR P/OUT 15A, FUEL DR 15A, RR P/WIN-LH 20A,
RR P/WIN-RH 20A, LUGGAGE 7.5A)
RAM 250ARAM (RR DEFOG 25A, T/G POWER LATCH 30A, DOOR LOCK 15A,
RR WIPER 15A, MODULE 1 7.5A)
RAM 350ARAM(AMP 30A)
IPM 150AIPM (ILLUMI 7.5A, DDM 30A, SEAT WARMER 20A, OBD-II 7.5A, SUNROOF 25A,
K/LOCK 7.5A, TPMS 7.5A)
IPM 250AIPM (ADM 30A, S/TILT 20A)
IPM 350AIPM (MEMORY 7.5A, DRIVER P/SEAT 30A, PASS P/SEAT 20A, RR S/WARM 20A,
ROOM 7.5A, AUDIO 15A)
4WD30A4WD ECM
Page 503 of 548

867
Maintenance

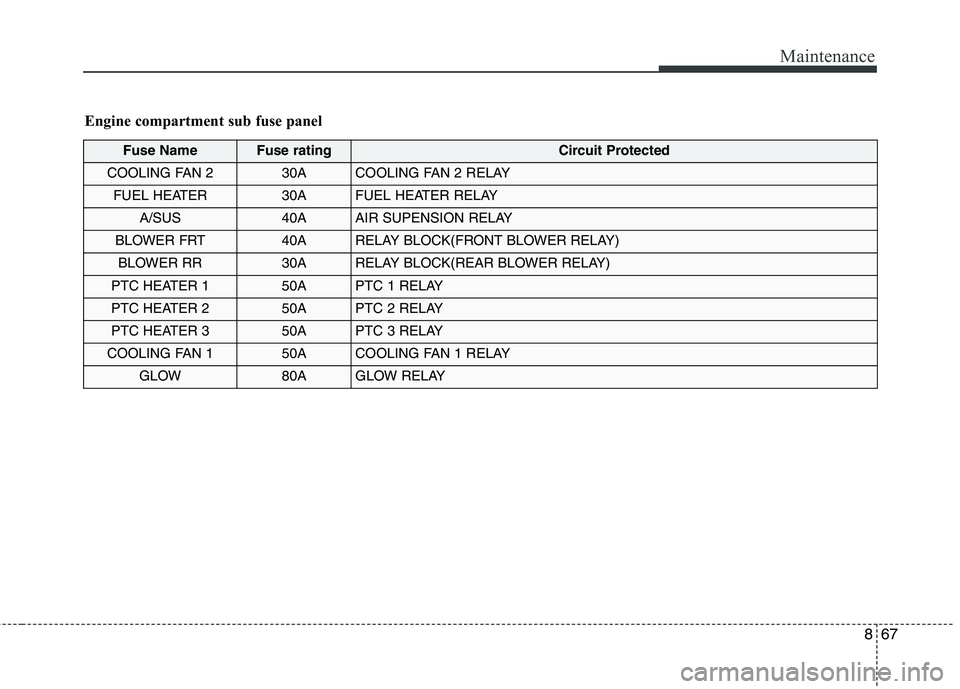

Engine compartment sub fuse panel
Fuse NameFuse ratingCircuit Protected
COOLING FAN 230ACOOLING FAN 2 RELAY
FUEL HEATER30AFUEL HEATER RELAY
A/SUS40AAIR SUPENSION RELAY
BLOWER FRT40ARELAY BLOCK(FRONT BLOWER RELAY)
BLOWER RR30ARELAY BLOCK(REAR BLOWER RELAY)
PTC HEATER 150APTC 1 RELAY
PTC HEATER 250APTC 2 RELAY
PTC HEATER 350APTC 3 RELAY
COOLING FAN 150ACOOLING FAN 1 RELAY
GLOW80AGLOW RELAY

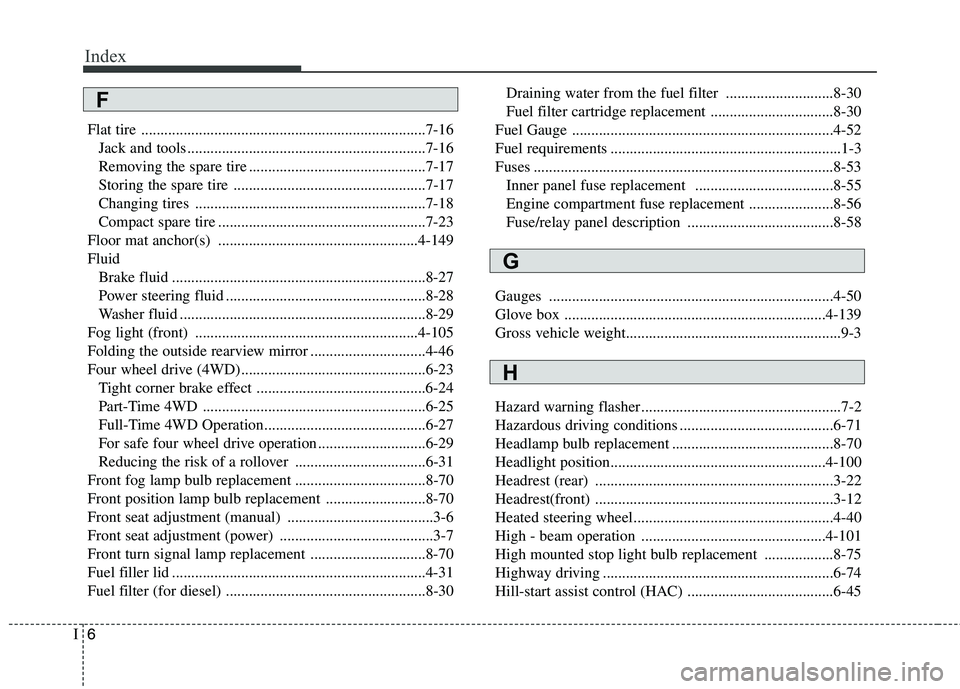

Page 541 of 548

Index
6
I
Flat tire ..........................................................................7-16
Jack and tools ..............................................................7-16
Removing the spare tire ..............................................7-17
Storing the spare tire ..................................................7-17
Changing tires ............................................................7-18
Compact spare tire ......................................................7-23
Floor mat anchor(s) ....................................................4-149Fluid Brake fluid ..................................................................8-27
Power steering fluid ....................................................8-28
Washer fluid ................................................................8-29
Fog light (front) ..........................................................4-105
Folding the outside rearview mirror ..............................4-46
Four wheel drive (4WD)................................................6-23 Tight corner brake effect ............................................6-24
Part-Time 4WD ..........................................................6-25
Full-Time 4WD Operation..........................................6-27
For safe four wheel drive operation ............................6-29
Reducing the risk of a rollover ..................................6-31
Front fog lamp bulb replacement ..................................8-70
Front position lamp bulb replacement ..........................8-70
Front seat adjustment (manual) ......................................3-6
Front seat adjustment (power) ........................................3-7
Front turn signal lamp replacement ..............................8-70
Fuel filler lid ..................................................................4-31
Fuel filter (for diesel) ....................................................8-30 Draining water from the fuel filter ............................8-30
Fuel filter cartridge replacement ................................8-30
Fuel Gauge ....................................................................4-52
Fuel requirements ............................................................1-3
Fuses ..............................................................................8-53 Inner panel fuse replacement ....................................8-55
Engine compartment fuse replacement ......................8-56
Fuse/relay panel description ......................................8-58
Gauges ..........................................................................4-50
Glove box ....................................................................4-139
Gross vehicle weight........................................................9-3
Hazard warning flasher ....................................................7-2
Hazardous driving conditions ........................................6-71
Headlamp bulb replacement ..........................................8-70
Headlight position........................................................4-100
Headrest (rear) ..............................................................3-22
Headrest(front) ..............................................................3-12
Heated steering wheel....................................................4-40
High - beam operation ................................................4-101
High mounted stop light bulb replacement ..................8-75
Highway driving ............................................................6-74
Hill-start assist control (HAC) ......................................6-45
F
G
H
