service indicator KIA BORREGO 2017 Owners Manual

617
Driving your vehicle
For smooth operation, depress thebrake pedal when shifting from N(Neutral) to a forward or reverse gear.
Transaxle ranges
The indicator lights in the instrument
cluster displays the shift lever posi-
tion when the ignition switch is in theON position.
P (Park)
Always come to a complete stop
before shifting into P (Park). This
position locks the transaxle and pre-
vents the front wheels from rotating. R (Reverse)
Use this position to drive the vehicle
backward.
WARNING
- Automatic
transaxle
Always check the surrounding areas near your vehicle for
people, especially children,
before shifting a vehicle into
D (Drive) or R (Reverse).
Before leaving the driver’s seat, always make sure the
shift lever is in the P (Park)
position; then set the parking
brake fully and shut the
engine off. Unexpected and
sudden vehicle movementcan occur if these precautions
are not followed in the orderidentified.
Do not use the engine brake (shifting from a high gear to
lower gear) rapidly on slip-
pery roads.
The vehicle may slip causing an accident.
CAUTION
To avoid damage to your
transaxle, do not acceleratethe engine in R (Reverse) orany forward gear position withthe brakes on.
When stopped on an upgrade, do not hold the vehicle sta-tionary with engine power.Use the service brake or theparking brake.
Do not shift from N (Neutral) or P (Park) into D (Drive), or R(Reverse) when the engine isabove idle speed.
WARNING
Shifting into P (Park) while the vehicle is in motion will cause
the drive wheels to lock which
will cause you to lose control
of the vehicle.
Do not use the P (Park) posi- tion in place of the parking
brake. Always make sure the
shift lever is latched in the P
(Park) position and set the
parking brake fully.
Never leave a child unattend- ed in a vehicle.
CAUTION
The transaxle may be damaged
if you shift into P (Park) whilethe vehicle is in motion.

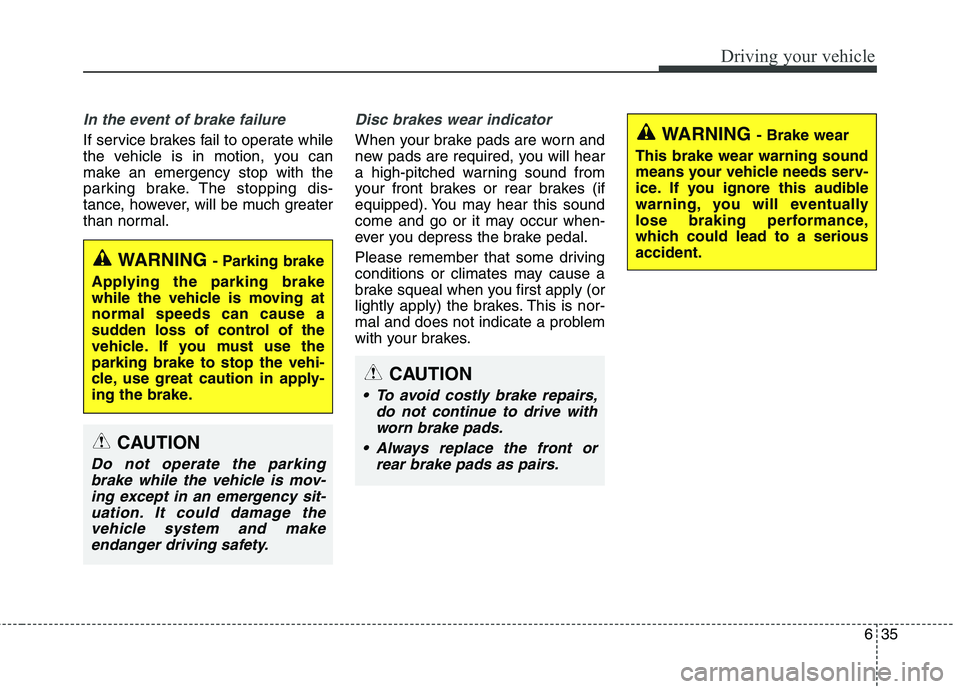

635
Driving your vehicle
In the event of brake failure
If service brakes fail to operate while
the vehicle is in motion, you can
make an emergency stop with the
parking brake. The stopping dis-
tance, however, will be much greater
than normal.
Disc brakes wear indicator
When your brake pads are worn and
new pads are required, you will hear
a high-pitched warning sound from
your front brakes or rear brakes (if
equipped). You may hear this sound
come and go or it may occur when-
ever you depress the brake pedal.
Please remember that some driving
conditions or climates may cause a
brake squeal when you first apply (or
lightly apply) the brakes. This is nor-
mal and does not indicate a problem
with your brakes.
CAUTION
To avoid costly brake repairs,do not continue to drive withworn brake pads.
Always replace the front or rear brake pads as pairs.
WARNING - Parking brake
Applying the parking brake
while the vehicle is moving atnormal speeds can cause a
sudden loss of control of the
vehicle. If you must use theparking brake to stop the vehi-
cle, use great caution in apply-
ing the brake.
CAUTION
Do not operate the parking brake while the vehicle is mov-ing except in an emergency sit- uation. It could damage thevehicle system and makeendanger driving safety.
WARNING - Brake wear
This brake wear warning sound
means your vehicle needs serv-
ice. If you ignore this audible
warning, you will eventually
lose braking performance,
which could lead to a seriousaccident.

711
What to do in an emergency
✽✽NOTICE
If any of the below happens, we rec-
ommend that the system be checked
by an authorized Kia dealer.
1.The low tire pressure telltale/ TPMS malfunction indicator do
not illuminate for 3 seconds when
the ignition switch is turned to the
ON position or engine is running.
2. The TPMS malfunction indicator remains illuminated after blinking
for approximately 1 minute.
3. The Low tire pressure position telltale remains illuminated. Low tire pressure telltale
Low tire pressure position tell-tale
When the tire pressure monitoring
system warning indicators are illumi-
nated and warning massage dis-
played on the cluster LCD display,
one or more of your tires is signifi-
cantly under-inflated. The low tirepressure position telltale light willindicate which tire is significantly
under-inflated by illuminating the cor-responding position light. If either telltale illuminates, immedi-
ately reduce your speed, avoid hard
cornering and anticipate increased
stopping distances. You should stop
and check your tires as soon as pos-
sible. Inflate the tires to the proper
pressure as indicated on the vehicle’splacard or tire inflation pressure label
located on the driver’s side center pil-
lar outer panel. If you cannot reach a
service station or if the tire cannot
hold the newly added air, replace the
low pressure tire with a spare tire.
If you drive the vehicle for about 10
minutes at speeds above 25 km/h
after replacing the low pressure tire
with the spare tire, one of the follow-ing will happen:
The TPMS malfunction indicator
may blink for approximately 1
minute and then remain continu-ously illuminated because theTPMS sensor is not mounted on
the spare wheel. (changed tireequipped with a sensor not in the
vehicle)
OHM056152L

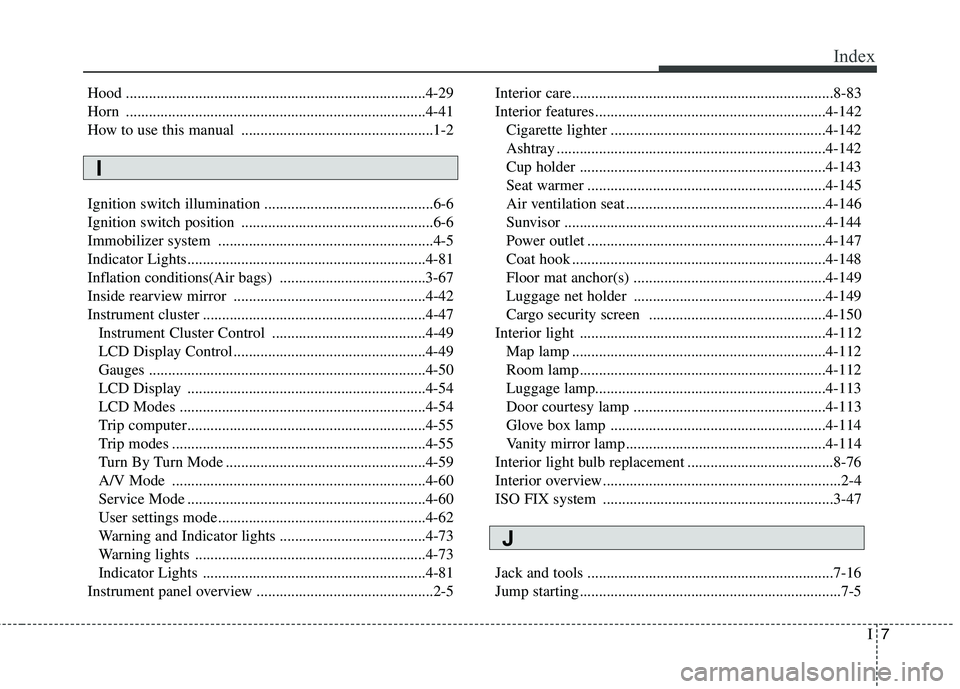

I7
Index
Hood ..............................................................................4-29
Horn ..............................................................................4-41
How to use this manual ..................................................1-2
Ignition switch illumination ............................................6-6
Ignition switch position ..................................................6-6
Immobilizer system ........................................................4-5
Indicator Lights..............................................................4-81
Inflation conditions(Air bags) ......................................3-67
Inside rearview mirror ..................................................4-42
Instrument cluster ..........................................................4-47
Instrument Cluster Control ........................................4-49
LCD Display Control ..................................................4-49
Gauges ........................................................................4-50
LCD Display ..............................................................4-54
LCD Modes ................................................................4-54
Trip computer..............................................................4-55
Trip modes ..................................................................4-55
Turn By Turn Mode ....................................................4-59
A/V Mode ..................................................................4-60
Service Mode ..............................................................4-60
User settings mode ......................................................4-62
Warning and Indicator lights ......................................4-73
Warning lights ............................................................4-73
Indicator Lights ..........................................................4-81
Instrument panel overview ..............................................2-5 Interior care....................................................................8-83
Interior features............................................................4-142
Cigarette lighter ........................................................4-142
Ashtray ......................................................................4-142
Cup holder ................................................................4-143
Seat warmer ..............................................................4-145
Air ventilation seat ....................................................4-146
Sunvisor ....................................................................4-144
Power outlet ..............................................................4-147
Coat hook ..................................................................4-148
Floor mat anchor(s) ..................................................4-149
Luggage net holder ..................................................4-149
Cargo security screen ..............................................4-150
Interior light ................................................................4-112 Map lamp ..................................................................4-112
Room lamp ................................................................4-112Luggage lamp............................................................4-113
Door courtesy lamp ..................................................4-113
Glove box lamp ........................................................4-114
Vanity mirror lamp ....................................................4-114
Interior light bulb replacement ......................................8-76
Interior overview..............................................................2-4
ISO FIX system ............................................................3-47
Jack and tools ................................................................7-16
Jump starting....................................................................7-5
I
J

I9
Index
Maintenance
Engine compartment ....................................................8-3
Maintenance services ....................................................8-5
Owner maintenance ......................................................8-8
Scheduled maintenance service ..................................8-10
Explanation of scheduled maintenance items ............8-18
Tire maintenance ........................................................8-47
Maintenance schedule....................................................8-10 Normal Maintenance Schedule ..................................8-11
Maintenance Under Severe Usage Conditions ..........8-16
Maintenance services ......................................................8-5 Owner’s responsibility ..................................................8-5
Owner maintenance precautions ..................................8-5
Engine compartment precautions (Diesel engine) ............................................................8-6
Manual mode - Automatic transaxle ............................6-19
Map lamp ....................................................................4-112
Mirrors ..........................................................................4-42 Inside rearview mirror ................................................4-42
Day/night rearview mirror ..........................................4-42
Electrochromic mirror (ECM) ..................................4-42
Outside rearview mirror ..............................................4-43
Remote control ............................................................4-44
Folding the outside rearview mirror ..........................4-46 Non-inflation conditions(Air bags) ..............................3-68
Odometer ......................................................................4-53
Oil (Engine) ..................................................................8-22
Outside rearview mirror ................................................4-43
Outside Temperature ......................................................4-53
Overheats ........................................................................7-8
Owner maintenance ........................................................8-8
Owner maintenance schedule ......................................8-8
Parking assist system ....................................................4-91 Types of warning indicator and sound........................4-92
Parking brake ................................................................6-36
Parking brake ................................................................8-29 Checking the parking brake ........................................8-29
Parking light position ....................................................4-99
Power brakes ..................................................................6-34
Power outlet ................................................................4-147
Power steering................................................................4-39
Power steering fluid ......................................................8-28 Checking the power steering fluid level ....................8-28
Checking the power steering hose ..............................8-28
M
O
N
P
