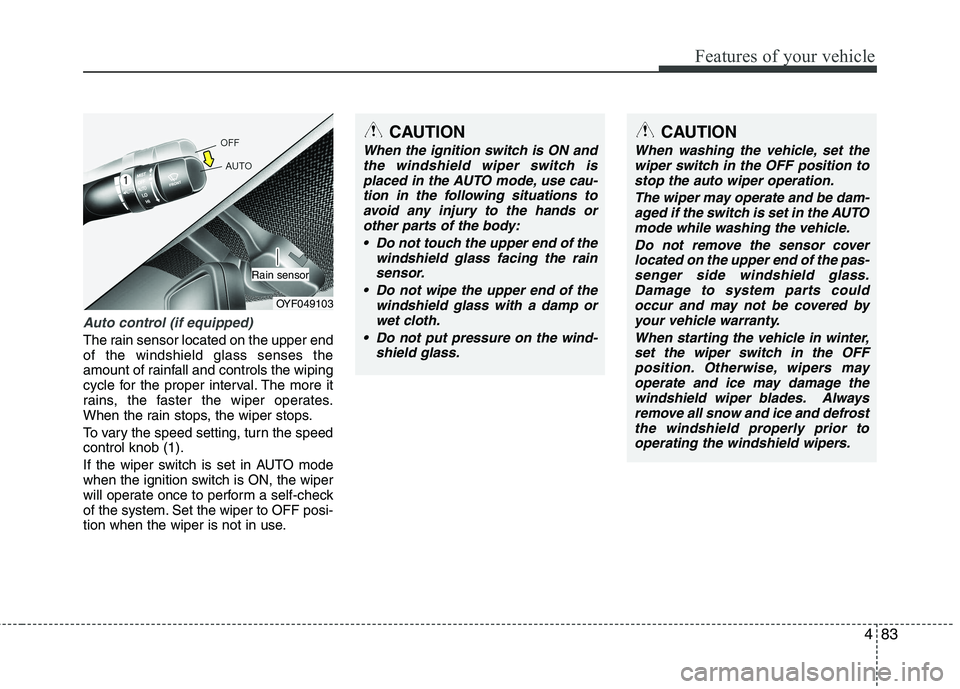

483
Features of your vehicle
Auto control (if equipped)
The rain sensor located on the upper end of the windshield glass senses the
amount of rainfall and controls the wiping
cycle for the proper interval. The more it
rains, the faster the wiper operates.
When the rain stops, the wiper stops.
To vary the speed setting, turn the speed control knob (1).
If the wiper switch is set in AUTO mode
when the ignition switch is ON, the wiper
will operate once to perform a self-check
of the system. Set the wiper to OFF posi-
tion when the wiper is not in use.
OYF049103
Rain sensor
CAUTION
When the ignition switch is ON andthe windshield wiper switch is
placed in the AUTO mode, use cau-tion in the following situations toavoid any injury to the hands or other parts of the body:
Do not touch the upper end of the windshield glass facing the rainsensor.
Do not wipe the upper end of the windshield glass with a damp or
wet cloth.
Do not put pressure on the wind- shield glass.
CAUTION
When washing the vehicle, set thewiper switch in the OFF position to
stop the auto wiper operation.
The wiper may operate and be dam-aged if the switch is set in the AUTOmode while washing the vehicle.
Do not remove the sensor coverlocated on the upper end of the pas- senger side windshield glass.Damage to system parts couldoccur and may not be covered by
your vehicle warranty.
When starting the vehicle in winter,set the wiper switch in the OFF position. Otherwise, wipers mayoperate and ice may damage the
windshield wiper blades. Alwaysremove all snow and ice and defrost the windshield properly prior tooperating the windshield wipers.

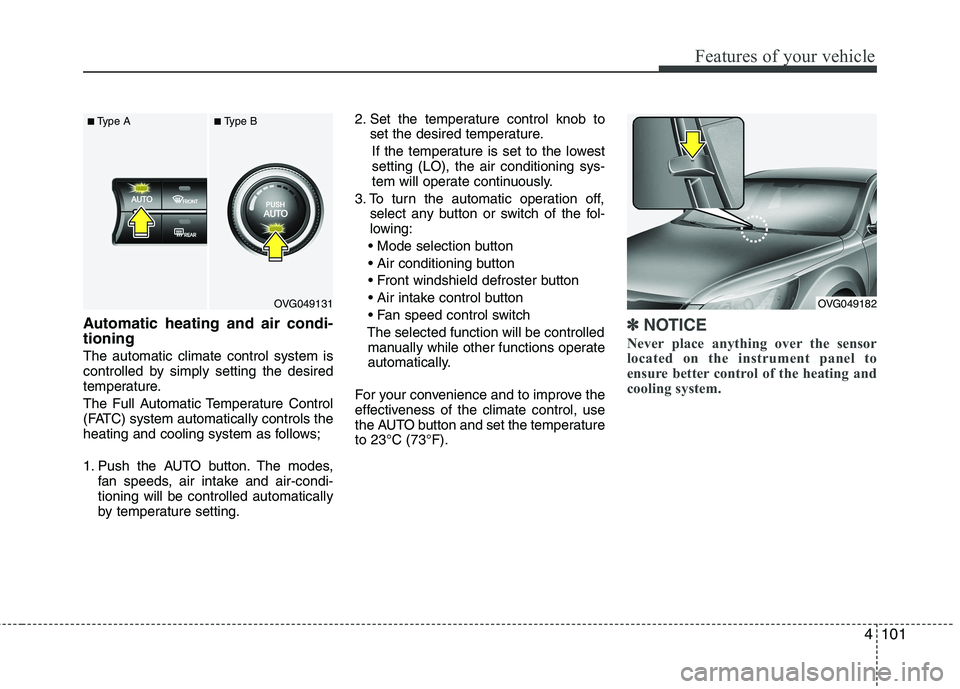

4101
Features of your vehicle
Automatic heating and air condi- tioning The automatic climate control system is
controlled by simply setting the desired
temperature.
The Full Automatic Temperature Control
(FATC) system automatically controls the
heating and cooling system as follows;
1. Push the AUTO button. The modes,fan speeds, air intake and air-condi- tioning will be controlled automatically
by temperature setting. 2. Set the temperature control knob to
set the desired temperature.
If the temperature is set to the lowestsetting (LO), the air conditioning sys-
tem will operate continuously.
3. To turn the automatic operation off, select any button or switch of the fol-
lowing:





The selected function will be controlled manually while other functions operate
automatically.
For your convenience and to improve the
effectiveness of the climate control, use
the AUTO button and set the temperatureto 23°C (73°F).✽✽ NOTICE
Never place anything over the sensor
located on the instrument panel to
ensure better control of the heating and
cooling system.
OVG049182OVG049131
■
Type A ■Type B

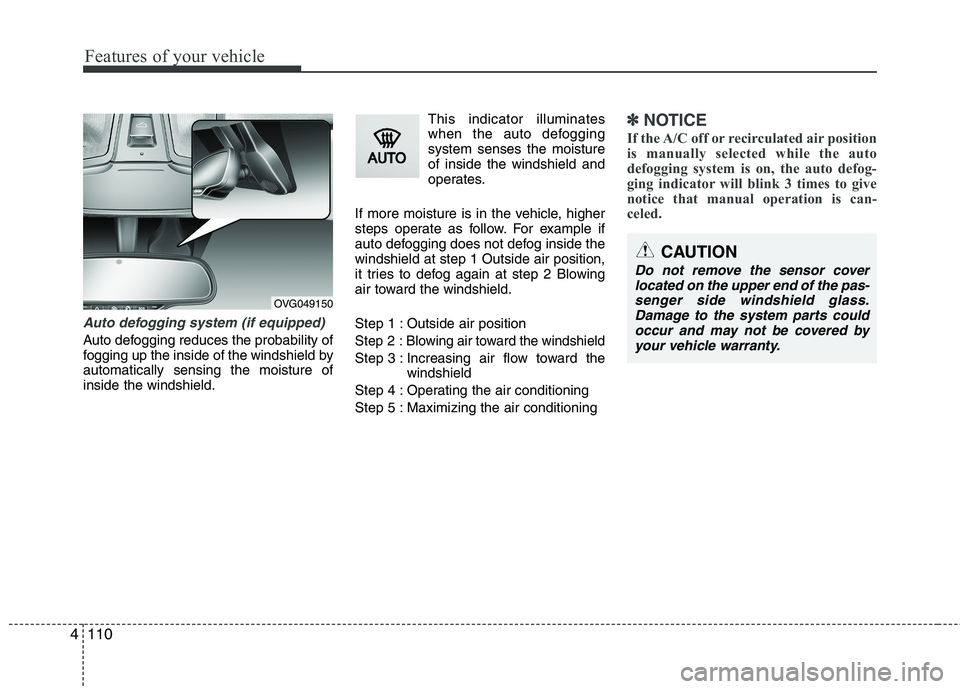

Features of your vehicle
110
4
Auto defogging system (if equipped)
Auto defogging reduces the probability of
fogging up the inside of the windshield byautomatically sensing the moisture ofinside the windshield. This indicator illuminates
when the auto defoggingsystem senses the moistureof inside the windshield and
operates.
If more moisture is in the vehicle, higher
steps operate as follow. For example if
auto defogging does not defog inside thewindshield at step 1 Outside air position,
it tries to defog again at step 2 Blowing
air toward the windshield.
Step 1 : Outside air positionStep 2 :Blowing air toward the windshield
Step 3 : Increasing air flow toward the windshield
Step 4 : Operating the air conditioning
Step 5 : Maximizing the air conditioning
✽✽ NOTICE
If the A/C off or recirculated air position
is manually selected while the auto
defogging system is on, the auto defog-
ging indicator will blink 3 times to give
notice that manual operation is can-
celed.
OVG049150
CAUTION
Do not remove the sensor cover located on the upper end of the pas-senger side windshield glass.
Damage to the system parts couldoccur and may not be covered by your vehicle warranty.

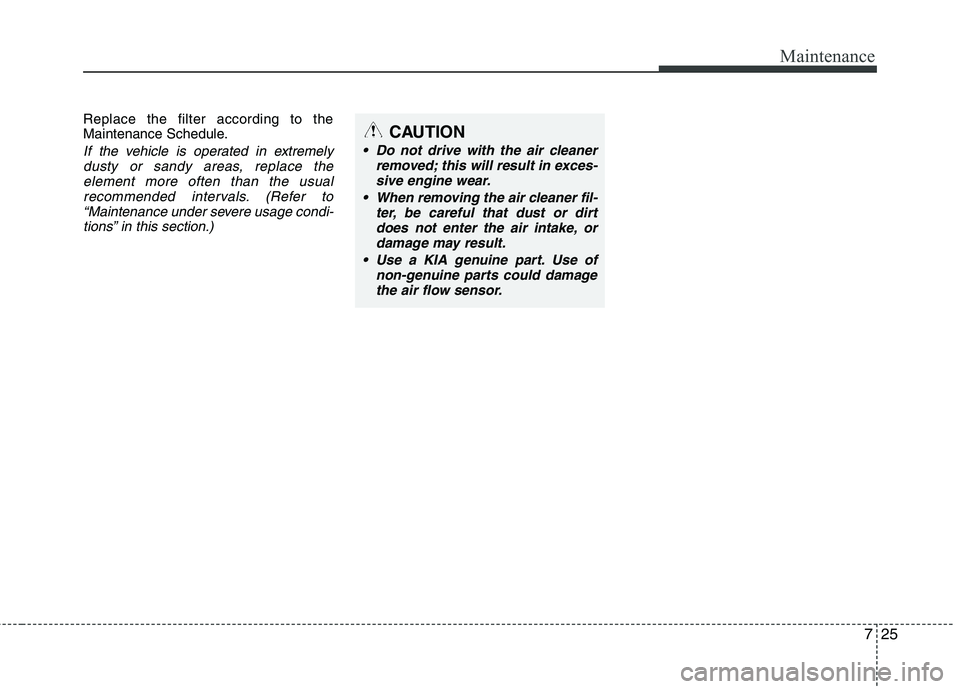

725
Maintenance
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremelydusty or sandy areas, replace the element more often than the usual
recommended intervals. (Refer to“Maintenance under severe usage condi-tions” in this section.)
CAUTION
Do not drive with the air cleaner removed; this will result in exces-
sive engine wear.
When removing the air cleaner fil- ter, be careful that dust or dirtdoes not enter the air intake, or
damage may result.
Use a KIA genuine part. Use of non-genuine parts could damagethe air flow sensor.

749
Maintenance
DescriptionSymbolFuse ratingProtected component
MODULE 22
MODULE10A
ATM Shift Lever Illumination, Instrument Cluster, Multifunction Switch (Remote Control),
Tilt & Telescopic Module, Head Lamp Leveling Device Actuator LH/RH,
Auto Head Lamp Leveling Device Module, IMS Control Module,
Head Lamp Leveling Device Switch, Front CCS Switch, Front Seat Warmer Switch,
Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module
Rear Seat Warmer Module LH/RH, Rear Seat Warmer Switch,
Driver/Passenger Door Module, Electro Chromic Mirror, LDWS Camera Module,
Room Lamp (Deluxe Type)
A/BAG INDIND10AInstrument Cluster (Air Bag IND.)
MODULE 33
MODULE10AABS Control Module, ESP Control Module, ESP Off Switch, Yaw Rate Sensor,
Steering Angle Sensor
IG 1IG120AE/R Fuse & Relay Box (Fuse - F10, F11, F12)
SUNROOF20APanorama Sunroof
DR LOCK20ADriver Door Module
ECSECS15AICM Relay Box (Rear Fog Lamp Relay)
AUDIO 22 AUDIO10AAudio, Audio Monitor, Amp, Overhead Console Lamp Switch, PDM, Smart Key Control Module
POWER
OUTLET 22POWER
OUTLET15AConsole Power Outlet
POWER
OUTLET 11POWER
OUTLET15A(Not Used)

Maintenance
50
7
DescriptionSymbolFuse ratingProtected component
C/LIGHTER15AFront Cigarette Lighter
AMPAMP25AAmp
TRUNK10ATrunk Lid Relay, Trunk Main Switch, Trunk Lid Motor, Fuel Filler Door Switch
S/HEATER
RRRR20ARear Seat Warmer Module LH/RH
MEMORYMEMORY10A
Driver/Passenger Foot Lamp, Data Link Connector, Auto Light & Photo Sensor,
Instrument Cluster (MICOM, IND.), Rear Curtain Module, Door Warning Switch,
Garnish Lamp LH/RH/Center, Tilt & Telescopic Module, A/C Control Module,
Loom Lamp (Deluxe Type), Driver/Passenger Door Scuff Lamp,
IMS Control Module, Driver/Passenger Door Lamp, Driver/Passenger Door Module,
RF Receiver, Trunk Room Lamp
AUDIO 1
1AUDIO15AAudio, Audio Monitor
MODULE 11
MODULE10APDM, Rear Curtain Module, Rain Sensor
Panorama Sunroof, ICM Relay Box (Head Lamp Washer Relay)
SPARESPARE10A-
WIPER 1125AFront Wiper Motor, Multifunction Switch (Wiper)
E/R Fuse & Relay Box (RLY. 11, RLY. 12)
HTD
HANDLEHTD
HANDLE15ASteering Wheel Heated
P/SEAT
PASSPASS20APassenger Manual Switch
POWER
CONNECTOR
POWER
CONNECTOR

Maintenance
54
7
DescriptionSymbolFuse ratingProtected component
FUSE
IGN COIL20AIgnition Coil #1 /#2 /#3 /#4 (G4KE), Ignition Coil #1 /#2 /#3 /#4 /#5 /#6 (G6DC), Condenser (G4KE), Condenser #1 /#2 (G6DC)
SENSOR115AG4KE : Immobilizer Module, Camshaft Position Sensor #1 /#2, Crankshaft Position Sensor,
Oil Control Valve #1 /#2, Canister Purge Control Solenoid Valve
Variable Intake Manifold Valve, G6DC : Immobilizer Module, PCM, Oxygen Sensor #1 /#2 /#3 /#4
SENSOR215AG4KE : Oxygen Sensor (Up)/(Down), RLY. 5 (Cooling Fan (High) Relay)
G6DC : PCM, Oil Control Valve #1 /#2, Canister Purge Control Solenoid Valve,
Variable Intake Manifold Valve #1 /#2, RLY. 5 (Cooling Fan (High) Relay)
INJECTOR15AInjector #1/ #2/ #3/ #4 (G4KE), Injector #1/ #2/ #3/ #4/ #5/ #6 (G6DC), PCM (G6DC),
RLY. 16 (Fuel Pump Relay)
F/PUMP20ARLY. 16 (Fuel Pump Relay)
410APCM, Alternator (G6DC)
15ARLY. 13 (Burglar Alarm Horn Relay), RLY. 15 (Horn Relay)
530ARLY. 17 (Engine Control Relay)
SPARE25A-
SPARE20A-
SPARE15A-
SPARE10A-
