KIA CADENZA 2011 Owners Manual

Maintenance
46
7
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture
above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Remove the fuse panel in the enginecompartment.
2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
✽✽ NOTICE
If the multi fuse is blown, consult an
authorized KIA dealer.
CAUTION
After checking the fuse panel in the engine compartment, securely
install the fuse panel cover. If not,electrical failures may occur fromwater contact.
OVG079023LOVG079022

747
Maintenance
✽✽NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Engine compartment fuse panel
OVG079024/OVG079025L/OVG079026
Instrument panel fuse panel

Maintenance
48
7
Instrument panel (Driver’s side fuse panel)
DescriptionSymbolFuse ratingProtected component
SPARESPARE10A-
ROOM LP10AICM Relay Box (Room Lamp Auto Cut Relay)
WIPER 2210AIPM (Washer Switch), Multifunction Switch (Wiper), Washer Motor
PDM 1125APDM
PDM 3310APDM, Smart Key Control Module
A/BAG15ASRS Control Module
P/WDW LHLH25ADriver Safety Power Window Module, Rear Door Mood Lamp LH, Driver Door Mood Lamp,
Rear Power Window Switch LH
P/WDW RHRH25APassenger Door Module, Passenger Door Mood Lamp, Rear Door Mood Lamp RH,
Rear Power Window Switch RH
CURTAINCURTAIN10ADriver/Passenger Door Module, Rear Curtain Module
S/HEATER
FRTFRT20ADriver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module
SPARESPARE20A-
PDM 2210AFOB Holder, PDM, Smart Key Control Module, Start Stop Button Switch

749
Maintenance
DescriptionSymbolFuse ratingProtected component
MODULE 22
MODULE10A
ATM Shift Lever Illumination, Instrument Cluster, Multifunction Switch (Remote Control),
Tilt & Telescopic Module, Head Lamp Leveling Device Actuator LH/RH,
Auto Head Lamp Leveling Device Module, IMS Control Module,
Head Lamp Leveling Device Switch, Front CCS Switch, Front Seat Warmer Switch,
Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module
Rear Seat Warmer Module LH/RH, Rear Seat Warmer Switch,
Driver/Passenger Door Module, Electro Chromic Mirror, LDWS Camera Module,
Room Lamp (Deluxe Type)
A/BAG INDIND10AInstrument Cluster (Air Bag IND.)
MODULE 33
MODULE10AABS Control Module, ESP Control Module, ESP Off Switch, Yaw Rate Sensor,
Steering Angle Sensor
IG 1IG120AE/R Fuse & Relay Box (Fuse - F10, F11, F12)
SUNROOF20APanorama Sunroof
DR LOCK20ADriver Door Module
ECSECS15AICM Relay Box (Rear Fog Lamp Relay)
AUDIO 22 AUDIO10AAudio, Audio Monitor, Amp, Overhead Console Lamp Switch, PDM, Smart Key Control Module
POWER
OUTLET 22POWER
OUTLET15AConsole Power Outlet
POWER
OUTLET 11POWER
OUTLET15A(Not Used)

Maintenance
50
7
DescriptionSymbolFuse ratingProtected component
C/LIGHTER15AFront Cigarette Lighter
AMPAMP25AAmp
TRUNK10ATrunk Lid Relay, Trunk Main Switch, Trunk Lid Motor, Fuel Filler Door Switch
S/HEATER
RRRR20ARear Seat Warmer Module LH/RH
MEMORYMEMORY10A
Driver/Passenger Foot Lamp, Data Link Connector, Auto Light & Photo Sensor,
Instrument Cluster (MICOM, IND.), Rear Curtain Module, Door Warning Switch,
Garnish Lamp LH/RH/Center, Tilt & Telescopic Module, A/C Control Module,
Loom Lamp (Deluxe Type), Driver/Passenger Door Scuff Lamp,
IMS Control Module, Driver/Passenger Door Lamp, Driver/Passenger Door Module,
RF Receiver, Trunk Room Lamp
AUDIO 1
1AUDIO15AAudio, Audio Monitor
MODULE 11
MODULE10APDM, Rear Curtain Module, Rain Sensor
Panorama Sunroof, ICM Relay Box (Head Lamp Washer Relay)
SPARESPARE10A-
WIPER 1125AFront Wiper Motor, Multifunction Switch (Wiper)
E/R Fuse & Relay Box (RLY. 11, RLY. 12)
HTD
HANDLEHTD
HANDLE15ASteering Wheel Heated
P/SEAT
PASSPASS20APassenger Manual Switch
POWER
CONNECTOR
POWER
CONNECTOR

751
Maintenance
DescriptionSymbolFuse ratingProtected component
P/SEATDRIDRV30ADriver Lumbar Support Switch, Driver Cushion Extension Switch, Driver Manual Switch, IMS Control Module
P/HANDLEP/
HANDLE15AKey Solenoid, Tilt & Telescopic Module, Sport Mode Switch
A/CON10AA/C Control Module, Ionizer, E/R Fuse & Relay Box (RLY. 14)
HTD MRR10ADriver/Passenger Power Outside Mirror, A/C Control Module
START410A[W/O Smart Key] Ignition Switch, Burglar Alarm Relay,
E/R Fuse & Relay Box (RLY. 3-G4KE, RLY. 6-G6DC)
[With Smart Key] PDM, E/R Fuse & Relay Box (RLY. 6)

Maintenance
52
7
DescriptionSymbolFuse ratingProtected component
MULTI
FUSE
B+260AIPM (Fuse - F7/ F8/ F9/ F19, IPS Control - IPS1/ IPS2/ IPS3/ IPS5/ IPS7)
B+360AIPM (Fuse - F17/ F24/ F25/ F26/ F33/ F34)
IGN140A[W/O Smart Key] Ignition Switch, [With Smart Key] RLY. 1 (ACC Relay), RLY. 9 (IG1 Relay)
40AESP Control Module, ABS Control Module
RR HTD40ARLY. 2 (Rear Defogger Relay)
40ARLY. 14 (Blower Relay)
B+460AIPM (Fuse- F2/ F10, IPS Control - IPS 0/ IPS4/ TURN/ IPS6)
SPARE80A-
FUSE
10AA/C Control Module
B/UP LP10ARLY. 8 (Back-up Lamp Relay), Stop Lamp Switch, Multipurpose Check Connector
IGN10ARLY. 6 (Start2 Relay), Alternator (G6DC)
110APCM, Transaxle Range Switch
Engine compartment main fuse panel

753
Maintenance
DescriptionSymbolFuse ratingProtected component
FUSE
SPARE30A-
IGN 230A[W/O Smart Key] Ignition Switch, RLY. 3 (Start1 Relay),
[With Smart Key] RLY. 3 (Start1 Relay), RLY. 10 (IG2 Relay)
B+140AIPM (Fuse - F4/ F12/ F18/ F35, Power Connector - F27/ F28)
240AEMS Box (Fuse - F35/ F36/ F37/ F38)
30AESP Control Module, ABS Control Module
10AIPM, RLY. 11 (Wiper Relay), Front Wiper Motor
AMS10A(Not Used)
20AICM Relay Box (Head Lamp Washer Relay)
320APCM (G4KE)
STOP LP15AStop Lamp Switch
20ARLY. 7 (Front Wiper Deicer Relay)
DIAGNOSIS20AMultipurpose Check Connector
40ARLY. 4 (Cooling Fan (Low) Relay), RLY. 5 (Cooling Fan (High) Relay)

Maintenance
54
7
DescriptionSymbolFuse ratingProtected component
FUSE
IGN COIL20AIgnition Coil #1 /#2 /#3 /#4 (G4KE), Ignition Coil #1 /#2 /#3 /#4 /#5 /#6 (G6DC), Condenser (G4KE), Condenser #1 /#2 (G6DC)
SENSOR115AG4KE : Immobilizer Module, Camshaft Position Sensor #1 /#2, Crankshaft Position Sensor,
Oil Control Valve #1 /#2, Canister Purge Control Solenoid Valve
Variable Intake Manifold Valve, G6DC : Immobilizer Module, PCM, Oxygen Sensor #1 /#2 /#3 /#4
SENSOR215AG4KE : Oxygen Sensor (Up)/(Down), RLY. 5 (Cooling Fan (High) Relay)
G6DC : PCM, Oil Control Valve #1 /#2, Canister Purge Control Solenoid Valve,
Variable Intake Manifold Valve #1 /#2, RLY. 5 (Cooling Fan (High) Relay)
INJECTOR15AInjector #1/ #2/ #3/ #4 (G4KE), Injector #1/ #2/ #3/ #4/ #5/ #6 (G6DC), PCM (G6DC),
RLY. 16 (Fuel Pump Relay)
F/PUMP20ARLY. 16 (Fuel Pump Relay)
410APCM, Alternator (G6DC)
15ARLY. 13 (Burglar Alarm Horn Relay), RLY. 15 (Horn Relay)
530ARLY. 17 (Engine Control Relay)
SPARE25A-
SPARE20A-
SPARE15A-
SPARE10A-

755
Maintenance

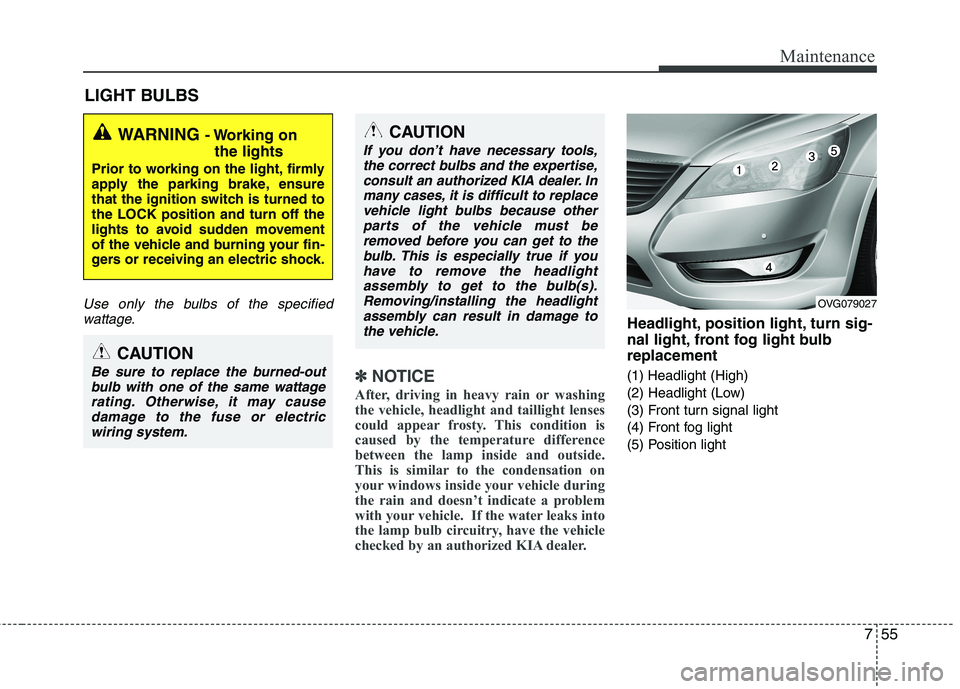

LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽✽ NOTICE
After, driving in heavy rain or washing
the vehicle, headlight and taillight lenses
could appear frosty. This condition is
caused by the temperature difference
between the lamp inside and outside.
This is similar to the condensation on
your windows inside your vehicle during
the rain and doesn’t indicate a problem
with your vehicle. If the water leaks into
the lamp bulb circuitry, have the vehicle
checked by an authorized KIA dealer.
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Front turn signal light
(4) Front fog light
(5) Position light
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattagerating. Otherwise, it may causedamage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized KIA dealer. Inmany cases, it is difficult to replacevehicle light bulbs because other parts of the vehicle must be
removed before you can get to thebulb. This is especially true if youhave to remove the headlight
assembly to get to the bulb(s).Removing/installing the headlightassembly can result in damage tothe vehicle.
OVG079027
