Your vehicle at a glance
2
2

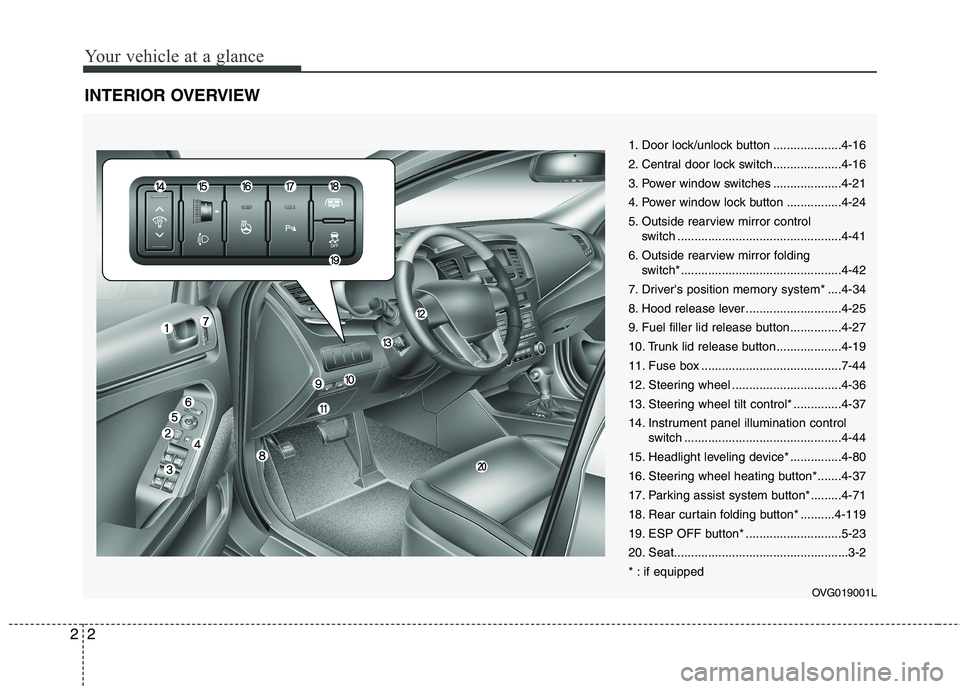

INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-16
2. Central door lock switch....................4-16
3. Power window switches ....................4-21
4. Power window lock button ................4-24
5. Outside rearview mirror control
switch ................................................4-41
6. Outside rearview mirror folding switch*...............................................4-42
7. Driver's position memory system* ....4-34
8. Hood release lever ............................4-25
9. Fuel filler lid release button...............4-27
10. Trunk lid release button...................4-19
11. Fuse box .........................................7-44
12. Steering wheel ................................4-36
13. Steering wheel tilt control* ..............4-37
14. Instrument panel illumination control switch ..............................................4-44
15. Headlight leveling device* ...............4-80
16. Steering wheel heating button*.......4-37
17. Parking assist system button*.........4-71
18. Rear curtain folding button* ..........4-119
19. ESP OFF button* ............................5-23
20. Seat...................................................3-2
* : if equipped
OVG019001L

Your vehicle at a glance
4
2

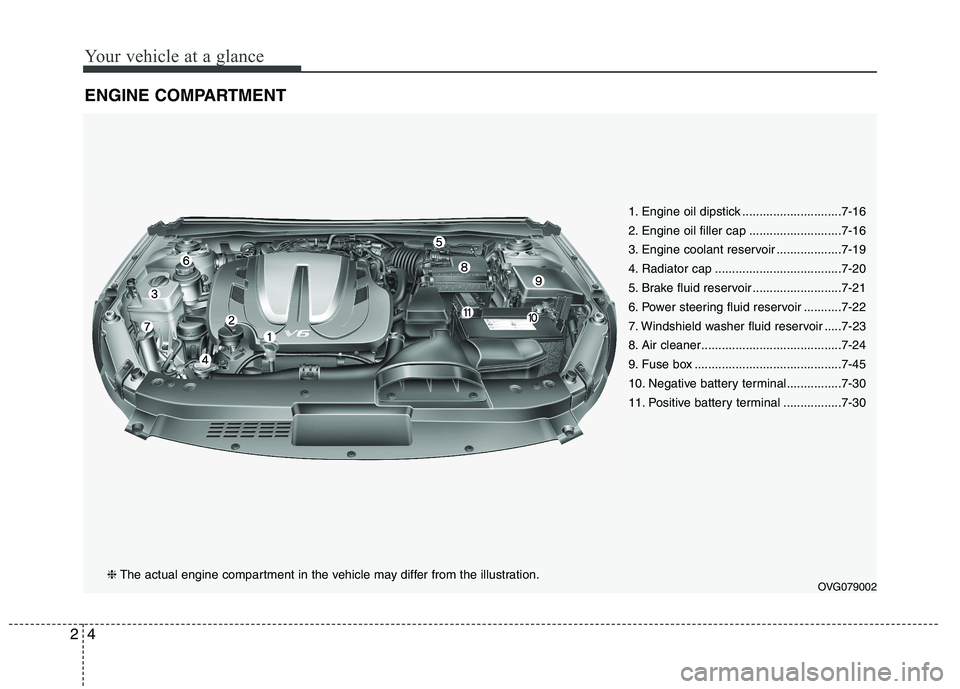

ENGINE COMPARTMENT
1. Engine oil dipstick .............................7-16
2. Engine oil filler cap ...........................7-16
3. Engine coolant reservoir ...................7-19
4. Radiator cap .....................................7-20
5. Brake fluid reservoir ..........................7-21
6. Power steering fluid reservoir ...........7-22
7. Windshield washer fluid reservoir .....7-23
8. Air cleaner.........................................7-24
9. Fuse box ...........................................7-45
10. Negative battery terminal................7-30
11. Positive battery terminal .................7-30
OVG079002
❈The actual engine compartment in the vehicle may differ from the illustration.

Safety features of your vehicle
36
3

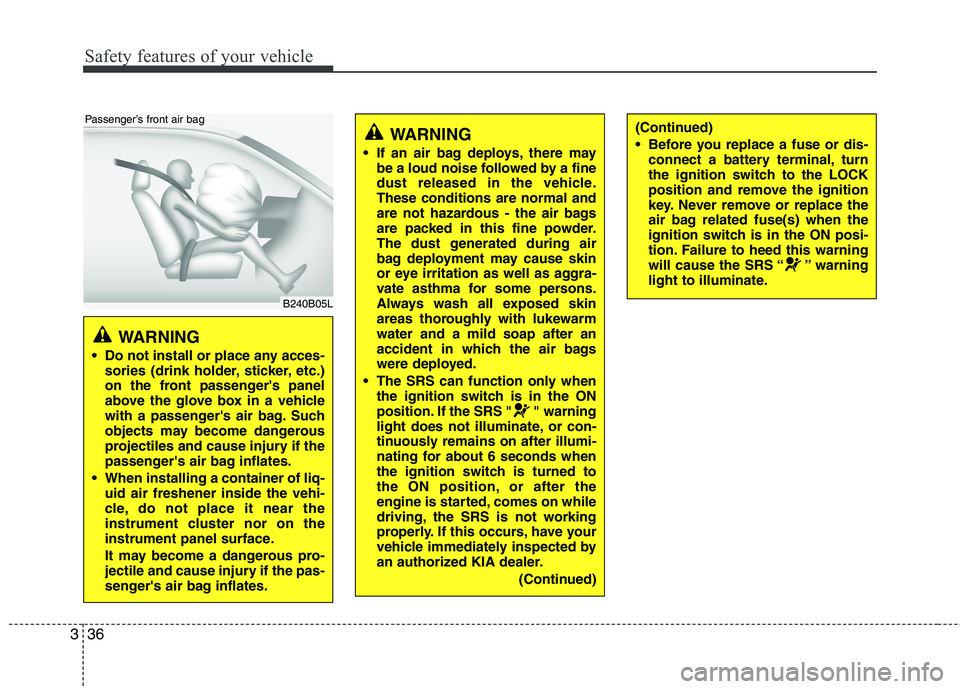

WARNING
Do not install or place any acces- sories (drink holder, sticker, etc.)
on the front passenger's panel
above the glove box in a vehicle
with a passenger's air bag. Such
objects may become dangerous
projectiles and cause injury if the
passenger's air bag inflates.
When installing a container of liq- uid air freshener inside the vehi-
cle, do not place it near the
instrument cluster nor on the
instrument panel surface.
It may become a dangerous pro-
jectile and cause injury if the pas-
senger's air bag inflates.
B240B05L
Passenger’s front air bag
WARNING
If an air bag deploys, there may be a loud noise followed by a fine
dust released in the vehicle.These conditions are normal and
are not hazardous - the air bags
are packed in this fine powder.
The dust generated during air
bag deployment may cause skin
or eye irritation as well as aggra-
vate asthma for some persons.
Always wash all exposed skin
areas thoroughly with lukewarmwater and a mild soap after an
accident in which the air bags
were deployed.
The SRS can function only when the ignition switch is in the ON
position. If the SRS " " warning
light does not illuminate, or con-
tinuously remains on after illumi-
nating for about 6 seconds when
the ignition switch is turned to
the ON position, or after the
engine is started, comes on while
driving, the SRS is not working
properly. If this occurs, have your
vehicle immediately inspected by
an authorized KIA dealer.
(Continued)(Continued)
Before you replace a fuse or dis-connect a battery terminal, turn
the ignition switch to the LOCK
position and remove the ignition
key. Never remove or replace the
air bag related fuse(s) when the
ignition switch is in the ON posi-
tion. Failure to heed this warning
will cause the SRS “ ” warning
light to illuminate.

Maintenance
2
7
ENGINE COMPARTMENT
1. Engine oil dipstick
2. Engine oil filler cap
3. Engine coolant reservoir
4. Radiator cap
5. Brake fluid reservoir
6. Power steering fluid reservoir
7. Windshield washer fluid reservoir
8. Air cleaner
9. Fuse box
10. Negative battery terminal
11. Positive battery terminal
OVG079002
❈The actual engine compartment in the vehicle may differ from the illustration.

Maintenance
48
7
Instrument panel (Driver’s side fuse panel)
DescriptionSymbolFuse ratingProtected component
SPARESPARE10A-
ROOM LP10AICM Relay Box (Room Lamp Auto Cut Relay)
WIPER 2210AIPM (Washer Switch), Multifunction Switch (Wiper), Washer Motor
PDM 1125APDM
PDM 3310APDM, Smart Key Control Module
A/BAG15ASRS Control Module
P/WDW LHLH25ADriver Safety Power Window Module, Rear Door Mood Lamp LH, Driver Door Mood Lamp,
Rear Power Window Switch LH
P/WDW RHRH25APassenger Door Module, Passenger Door Mood Lamp, Rear Door Mood Lamp RH,
Rear Power Window Switch RH
CURTAINCURTAIN10ADriver/Passenger Door Module, Rear Curtain Module
S/HEATER
FRTFRT20ADriver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module
SPARESPARE20A-
PDM 2210AFOB Holder, PDM, Smart Key Control Module, Start Stop Button Switch

749
Maintenance
DescriptionSymbolFuse ratingProtected component
MODULE 22
MODULE10A
ATM Shift Lever Illumination, Instrument Cluster, Multifunction Switch (Remote Control),
Tilt & Telescopic Module, Head Lamp Leveling Device Actuator LH/RH,
Auto Head Lamp Leveling Device Module, IMS Control Module,
Head Lamp Leveling Device Switch, Front CCS Switch, Front Seat Warmer Switch,
Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module
Rear Seat Warmer Module LH/RH, Rear Seat Warmer Switch,
Driver/Passenger Door Module, Electro Chromic Mirror, LDWS Camera Module,
Room Lamp (Deluxe Type)
A/BAG INDIND10AInstrument Cluster (Air Bag IND.)
MODULE 33
MODULE10AABS Control Module, ESP Control Module, ESP Off Switch, Yaw Rate Sensor,
Steering Angle Sensor
IG 1IG120AE/R Fuse & Relay Box (Fuse - F10, F11, F12)
SUNROOF20APanorama Sunroof
DR LOCK20ADriver Door Module
ECSECS15AICM Relay Box (Rear Fog Lamp Relay)
AUDIO 22 AUDIO10AAudio, Audio Monitor, Amp, Overhead Console Lamp Switch, PDM, Smart Key Control Module
POWER
OUTLET 22POWER
OUTLET15AConsole Power Outlet
POWER
OUTLET 11POWER
OUTLET15A(Not Used)

Maintenance
50
7
DescriptionSymbolFuse ratingProtected component
C/LIGHTER15AFront Cigarette Lighter
AMPAMP25AAmp
TRUNK10ATrunk Lid Relay, Trunk Main Switch, Trunk Lid Motor, Fuel Filler Door Switch
S/HEATER
RRRR20ARear Seat Warmer Module LH/RH
MEMORYMEMORY10A
Driver/Passenger Foot Lamp, Data Link Connector, Auto Light & Photo Sensor,
Instrument Cluster (MICOM, IND.), Rear Curtain Module, Door Warning Switch,
Garnish Lamp LH/RH/Center, Tilt & Telescopic Module, A/C Control Module,
Loom Lamp (Deluxe Type), Driver/Passenger Door Scuff Lamp,
IMS Control Module, Driver/Passenger Door Lamp, Driver/Passenger Door Module,
RF Receiver, Trunk Room Lamp
AUDIO 1
1AUDIO15AAudio, Audio Monitor
MODULE 11
MODULE10APDM, Rear Curtain Module, Rain Sensor
Panorama Sunroof, ICM Relay Box (Head Lamp Washer Relay)
SPARESPARE10A-
WIPER 1125AFront Wiper Motor, Multifunction Switch (Wiper)
E/R Fuse & Relay Box (RLY. 11, RLY. 12)
HTD
HANDLEHTD
HANDLE15ASteering Wheel Heated
P/SEAT
PASSPASS20APassenger Manual Switch
POWER
CONNECTOR
POWER
CONNECTOR

751
Maintenance
DescriptionSymbolFuse ratingProtected component
P/SEATDRIDRV30ADriver Lumbar Support Switch, Driver Cushion Extension Switch, Driver Manual Switch, IMS Control Module
P/HANDLEP/
HANDLE15AKey Solenoid, Tilt & Telescopic Module, Sport Mode Switch
A/CON10AA/C Control Module, Ionizer, E/R Fuse & Relay Box (RLY. 14)
HTD MRR10ADriver/Passenger Power Outside Mirror, A/C Control Module
START410A[W/O Smart Key] Ignition Switch, Burglar Alarm Relay,
E/R Fuse & Relay Box (RLY. 3-G4KE, RLY. 6-G6DC)
[With Smart Key] PDM, E/R Fuse & Relay Box (RLY. 6)

753
Maintenance
DescriptionSymbolFuse ratingProtected component
FUSE
SPARE30A-
IGN 230A[W/O Smart Key] Ignition Switch, RLY. 3 (Start1 Relay),
[With Smart Key] RLY. 3 (Start1 Relay), RLY. 10 (IG2 Relay)
B+140AIPM (Fuse - F4/ F12/ F18/ F35, Power Connector - F27/ F28)
240AEMS Box (Fuse - F35/ F36/ F37/ F38)
30AESP Control Module, ABS Control Module
10AIPM, RLY. 11 (Wiper Relay), Front Wiper Motor
AMS10A(Not Used)
20AICM Relay Box (Head Lamp Washer Relay)
320APCM (G4KE)
STOP LP15AStop Lamp Switch
20ARLY. 7 (Front Wiper Deicer Relay)
DIAGNOSIS20AMultipurpose Check Connector
40ARLY. 4 (Cooling Fan (Low) Relay), RLY. 5 (Cooling Fan (High) Relay)

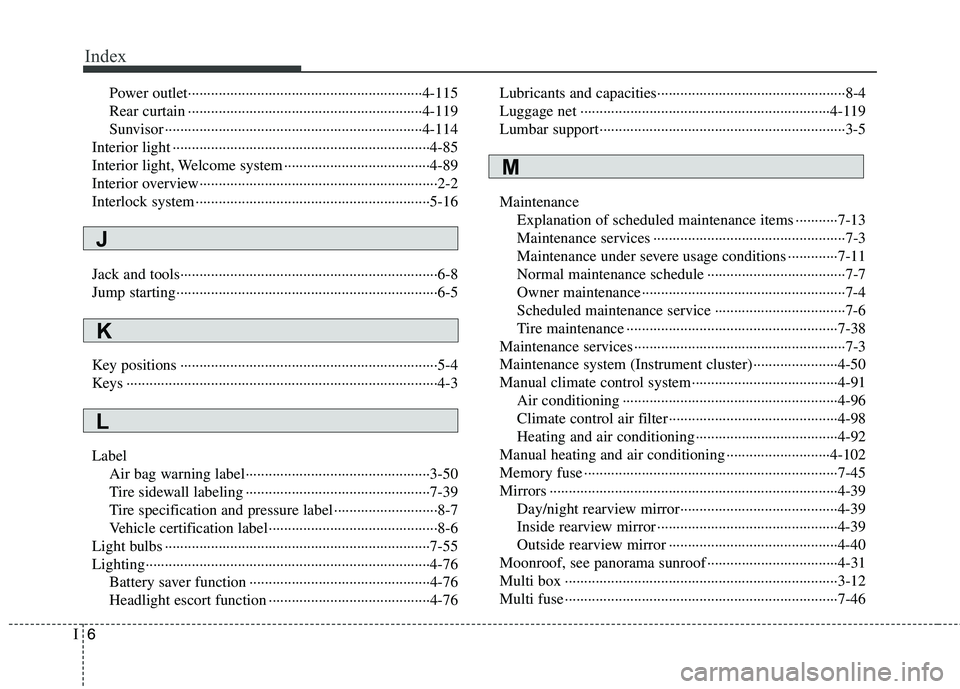

Index
6
I
Power outlet·····························································4-115
Rear curtain ·····························································4-119
Sunvisor ···································································4-114
Interior light ···································································4-85
Interior light, Welcome system ······································4-89
Interior overview······························································2-2
Interlock system ·····························································5-16
Jack and tools···································································6-8
Jump starting····································································6-5
Key positions ···································································5-4
Keys ·················································································4-3 Label Air bag warning label················································3-50
Tire sidewall labeling ················································7-39
Tire specification and pressure label ···························8-7
Vehicle certification label············································8-6
Light bulbs ·····································································7-55
Lighting··········································································4-76
Battery saver function ···············································4-76
Headlight escort function ··········································4-76 Lubricants and capacities·················································8-4
Luggage net ·································································4-119
Lumbar support································································3-5 Maintenance
Explanation of scheduled maintenance items ···········7-13
Maintenance services ··················································7-3
Maintenance under severe usage conditions ·············7-11
Normal maintenance schedule ····································7-7
Owner maintenance·····················································7-4
Scheduled maintenance service ··································7-6
Tire maintenance ·······················································7-38
Maintenance services ·······················································7-3
Maintenance system (Instrument cluster)······················4-50
Manual climate control system······································4-91
Air conditioning ························································4-96
Climate control air filter············································4-98
Heating and air conditioning ·····································4-92
Manual heating and air conditioning ···························4-102
Memory fuse ··································································7-45
Mirrors ···········································································4-39 Day/night rearview mirror·········································4-39
Inside rearview mirror ···············································4-39
Outside rearview mirror ············································4-40
Moonroof, see panorama sunroof ··································4-31
Multi box ·······································································3-12
Multi fuse ·······································································7-46
M
K
L
J
