Page 6 of 429
1
Driver’s seat
(1) Seat adjustment, forward / back-ward
(2) Seatback recliner
(3) Seat adjustment, height
(4) Lumbar support
(5) Cushion extension*
(6) Headrest
(7) Driver position memory system
Front passenger’s seat
(8) Seat adjustment, forward / back-
ward
(9) Seat adjustment, height
*
(10) Seatback recliner
(11) Headrest
Rear seat
(12) Armrest
(13) Ski through
(14) Headrest
* : if equipped
SEAT
OVG034001N
Page 32 of 429
Safety features of your vehicle
23
Driver’s seat
(1) Seat adjustment, forward / back-ward
(2) Seatback recliner
(3) Seat adjustment, height
(4) Lumbar support
(5) Cushion extension*
(6) Headrest
(7) Driver position memory system
Front passenger’s seat
(8) Seat adjustment, forward / back-
ward
(9) Seatback recliner
(10) Headrest
Rear seat
(11) Armrest
(12) Ski through
(13) Headrest
* : if equipped
SEAT
OVG033001N
Page 39 of 429
39
Safety features of your vehicle
Headrest (for front seat)
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and com-
for t.
The headrest not only provides com-
fort for the driver and front passen-
ger, but also helps protect the head
and neck in the event of a collision.
For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.Also, adjust the headrest as close to
your head as possible.
For this reason, the use of a cushion
that holds the body away from the
seatback is not recommended.
Forward and backward adjust-
ment
The headrest may be adjusted for-
ward to 4 different positions by
pulling the headrest forward to the
desired detent. To adjust the head-
rest to it’s full rearward position, pull
it fully forward to the farthest position
and release it. Adjust the headrest so
that it properly supports the head
and neck.
OMG038400
WARNING - Headrest
removal/adjustment
Do not operate the vehicle with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
OVG039016
Page 40 of 429
Safety features of your vehicle
10
3
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
Removal/Reinstall
To remove the headrest:
1. Recline the seatback (2) with the
recline switch (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button (3) while pulling the headrest up (4). To reinstall the headrest :
1. Put the headrest poles (2) into the
holes while pressing the release
button (1).
2. Recline the seatback (4) with the recline switch (3).
3. Adjust the headrest to the appro- priate height.
OVG039011OVG033312
OVG033313
WARNING
Always make sure the headrest
locks into position after rein-
stalling and adjusting it properly.
WARNING- Headrest
Reinstallation
To reduce the risk of injury to the
head or neck, always make sure
the head rest is locked into posi-
tion and adjusted properly after
reinstalling.
Page 41 of 429
311
Safety features of your vehicle
Seatback pocket
The seatback pocket is provided on
the back of the front seatbacks.
Rear seat adjustment
Headrest (for rear seat)
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height as the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
WARNING- Seatback
pocket
Do not put heavy or sharp
objects in the seatback pocket.
An occupant could contact such
objects in a crash. Heavy objects
in the front passenger seatback
could also interfere with the air
bag sensing system.
OVG039017
ONF039401

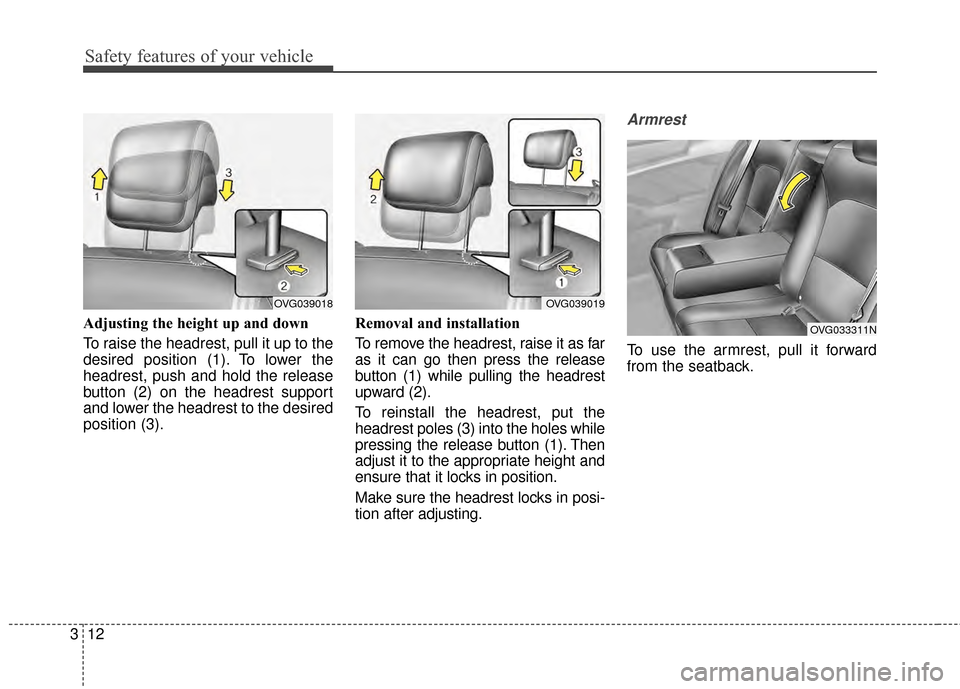

Page 42 of 429
Safety features of your vehicle
12
3
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3). Removal and installation
To remove the headrest, raise it as far
as it can go then press the release
button (1) while pulling the headrest
upward (2).
To reinstall the headrest, put the
headrest poles (3) into the holes while
pressing the release button (1). Then
adjust it to the appropriate height and
ensure that it locks in position.
Make sure the headrest locks in posi-
tion after adjusting.
Armrest
To use the armrest, pull it forward
from the seatback.
OVG039018OVG039019
OVG033311N

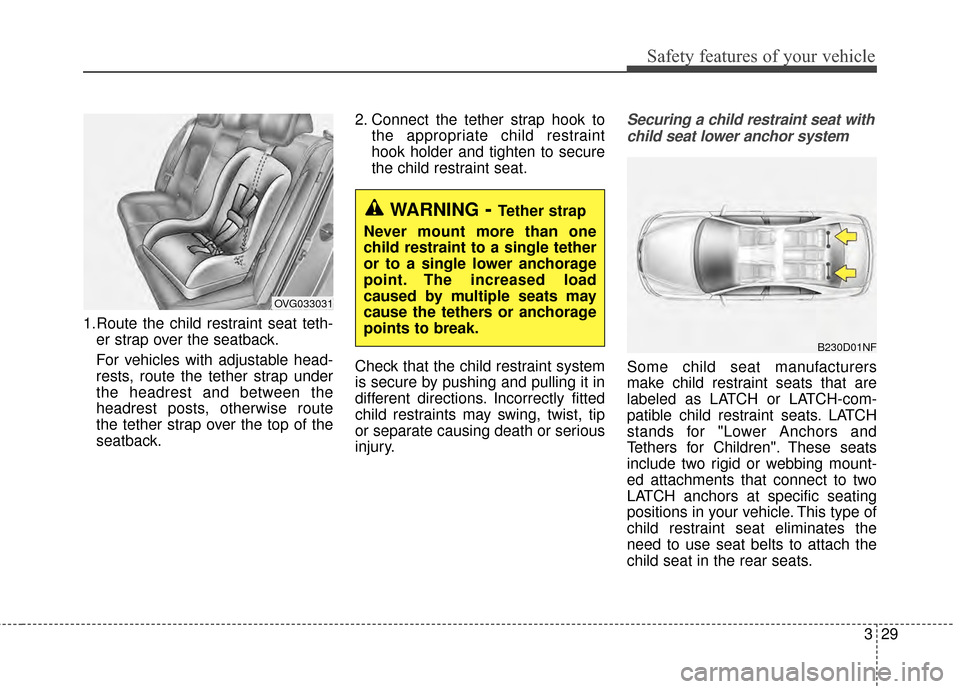

Page 59 of 429
329
Safety features of your vehicle
1.Route the child restraint seat teth-er strap over the seatback.
For vehicles with adjustable head-
rests, route the tether strap under
the headrest and between the
headrest posts, otherwise route
the tether strap over the top of the
seatback. 2. Connect the tether strap hook to
the appropriate child restraint
hook holder and tighten to secure
the child restraint seat.
Check that the child restraint system
is secure by pushing and pulling it in
different directions. Incorrectly fitted
child restraints may swing, twist, tip
or separate causing death or serious
injury.
Securing a child restraint seat with child seat lower anchor system
Some child seat manufacturers
make child restraint seats that are
labeled as LATCH or LATCH-com-
patible child restraint seats. LATCH
stands for "Lower Anchors and
Tethers for Children". These seats
include two rigid or webbing mount-
ed attachments that connect to two
LATCH anchors at specific seating
positions in your vehicle. This type of
child restraint seat eliminates the
need to use seat belts to attach the
child seat in the rear seats.
WARNING- Tether strap
Never mount more than one
child restraint to a single tether
or to a single lower anchorage
point. The increased load
caused by multiple seats may
cause the tethers or anchorage
points to break.
B230D01NF
OVG033031
Page 427 of 429
Index
6I
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 6-2
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-8
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 3-2 Driver position memory system . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-4
Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . 3-9
Headrest (for rear seat). . . . . . . . . . . . . . . . . . . . . . . 3-11
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-13 Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-18
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-13
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-4 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Mechanical key operations. . . . . . . . . . . . . . . . . . . . . 4-9
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote keyless entry system operations . . . . . . . . . . 4-6
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-7
Special driving conditions . . . . . . . . . . . . . . . . . . . . . . 5-65 Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-66 Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 5-67
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 5-67
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-68
Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-65
Highway driving. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-68
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-66
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 Electric power steering (EPS) . . . . . . . . . . . . . . . . . 4-37
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-39
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-39
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-38
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-130 Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-130
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . . 6-8 Changing a tire with TPMS . . . . . . . . . . . . . . . . . . . 6-11
TPMS (Tire Pressure Monitoring System)malfunction indicator . . . . . . . . . . . . . . . . . . . . . . . 6-10
