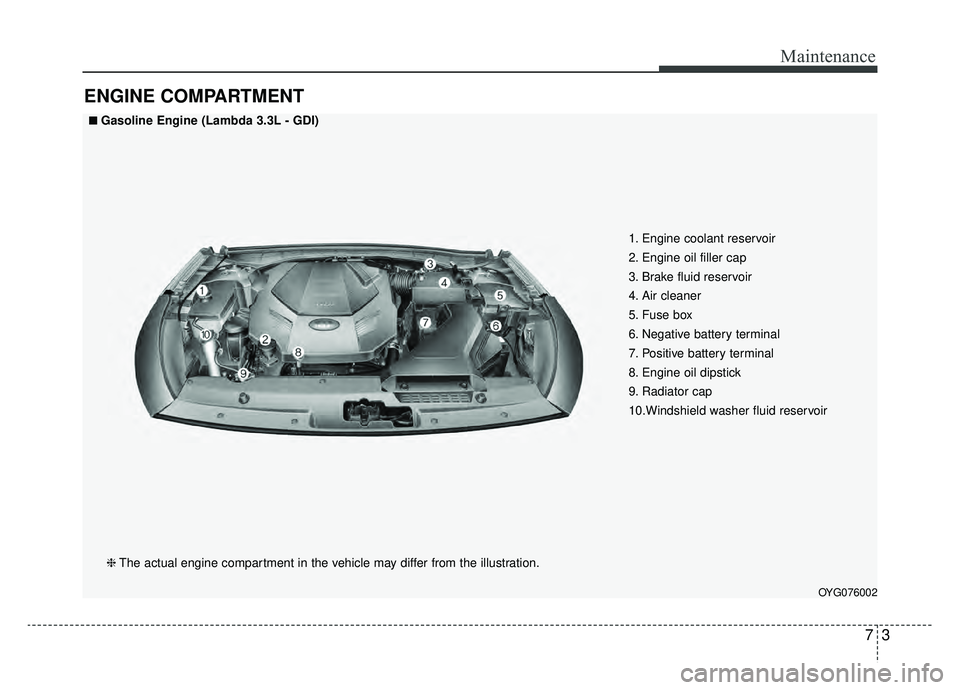

ENGINE COMPARTMENT
OYG076002
1. Engine coolant reservoir....................7-21
2. Engine oil filler cap ............................7-19
3. Brake fluid reservoir ..........................7-23
4. Air cleaner .........................................7-26
5. Fuse box ............................................7-51
6. Negative battery terminal ..................7-33
7. Positive battery terminal ....................7-33
8. Engine oil dipstick..............................7-19
9. Radiator cap ......................................7-22
10. Windshield washer fluid reservoir....7-30
■ ■Gasoline Engine (Lambda 3.3L - GDI)
❈ The actual engine compartment in the vehicle may differ from the illustration.

• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-51
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 7-52
• Engine compartment fuse replacement. . . . . . . . . . . 7-54
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 7-57
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-68
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . 7-68
• Light bulb position (front) . . . . . . . . . . . . . . . . . . . . . 7-70
• Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . . 7-71
• Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . . 7-71
• Headlamp (LED type) bulb replacement . . . . . . . . . 7-72
• Headlamp (Low beam) bulb replacement . . . . . . . . 7-72
• Headlamp (High beam) bulb replacement . . . . . . . . 7-73
• Front turn signal lamp bulb replacement . . . . . . . . 7-74
• Front fog lamp (LED type) bulb replacement . . . . . 7-75
• Position lamp + DRL* (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-75
• Side repeater lamp bulb replacement . . . . . . . . . . . . 7-76
• Rear turn signal lamp bulb replacement . . . . . . . . . 7-76
• Stop and tail lamp (LED type) bulb replacement . . 7-77
• Back-up lamp bulb replacement . . . . . . . . . . . . . . . . 7-78
• License plate lamp bulb replacement . . . . . . . . . . . . 7-78
• High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-79 • Map lamp (LED type) bulb replacement . . . . . . . . . 7-79
• Vanity mirror lamp (LED type) bulb replacement . 7-80
• Room lamp (LED type) bulb replacement . . . . . . . . 7-80
• Personal lamp bulb replacement . . . . . . . . . . . . . . . . 7-81
• Glove box lamp bulb replacement . . . . . . . . . . . . . . . 7-81
• Trunk lamp (LED type) bulb replacement . . . . . . . . 7-81
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-87
Emission control system . . . . . . . . . . . . . . . . . . . . 7-90
• Crankcase emission control system . . . . . . . . . . . . . . 7-90
• Evaporative emission control (including ORVR:
Onboard Refueling Vapor Recovery) system . . . . . 7-90
• Exhaust emission control system . . . . . . . . . . . . . . . . 7-91
California perchlorate notice . . . . . . . . . . . . . . . . 7-93
7

73
Maintenance
ENGINE COMPARTMENT
OYG076002
■ ■Gasoline Engine (Lambda 3.3L - GDI)❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10.Windshield washer fluid reservoir

Maintenance
54
7

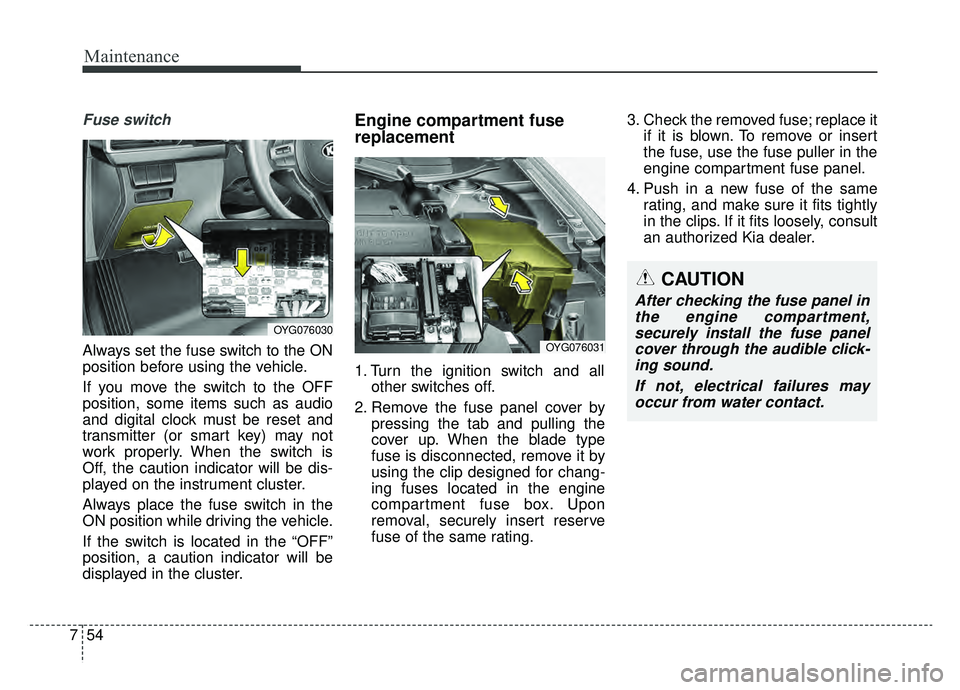

Fuse switch
Always set the fuse switch to the ON
position before using the vehicle.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly. When the switch is
Off, the caution indicator will be dis-
played on the instrument cluster.
Always place the fuse switch in the
ON position while driving the vehicle.
If the switch is located in the “OFF”
position, a caution indicator will be
displayed in the cluster.
Engine compartment fuse
replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the
cover up. When the blade type
fuse is disconnected, remove it by
using the clip designed for chang-
ing fuses located in the engine
compartment fuse box. Upon
removal, securely insert reserve
fuse of the same rating. 3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized Kia dealer.
CAUTION
After checking the fuse panel inthe engine compartment,securely install the fuse panelcover through the audible click-ing sound.
If not, electrical failures mayoccur from water contact.
OYG076030
OYG076031

Maintenance
56
7
✽ ✽

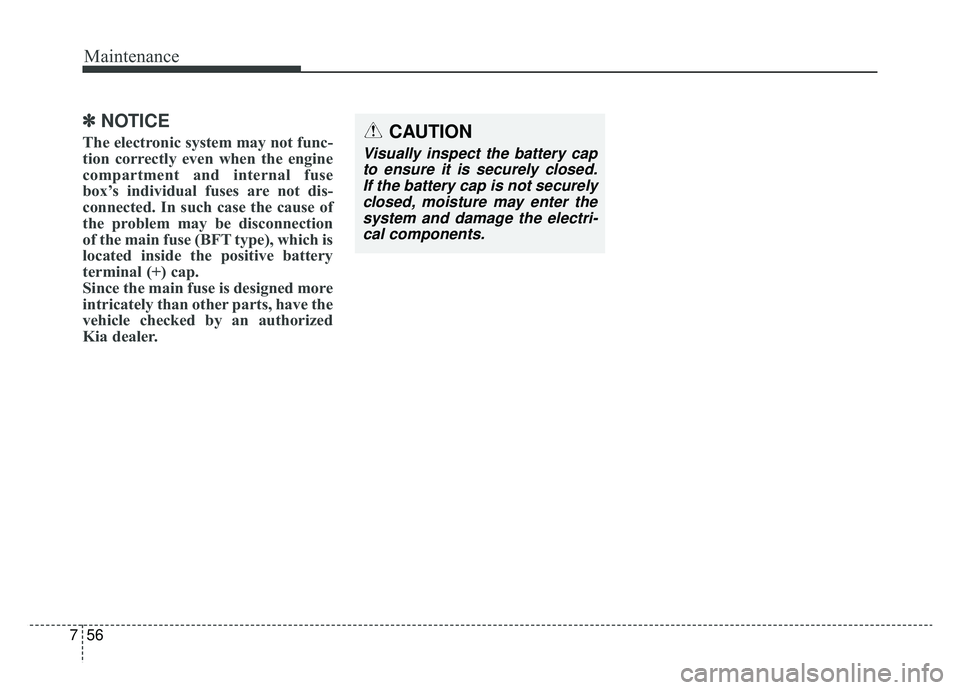

NOTICE
The electronic system may not func-
tion correctly even when the engine
compartment and internal fuse
box’s individual fuses are not dis-
connected. In such case the cause of
the problem may be disconnection
of the main fuse (BFT type), which is
located inside the positive battery
terminal (+) cap.
Since the main fuse is designed more
intricately than other parts, have the
vehicle checked by an authorized
Kia dealer.CAUTION
Visually inspect the battery cap
to ensure it is securely closed.If the battery cap is not securelyclosed, moisture may enter thesystem and damage the electri-cal components.

759
Maintenance
Fuse NameFuse ratingCircuit Protected
A/CON7.5AAir Conditioner Switch, Air Conditioner Control Module, Ionizer, Engine Room Junction Block (Blower Relay)
MEMORY 110AHead-Up Display, Instrument Cluster, Wireless Charger Unit , Analog Clock, BCM (Body Control Module),
Rain Sensor, Driver Door Module, Power Trunk Module, Passenger Door Module, Air Conditioner Switch,
Air Conditioner Control Module, Security Indicator
MEMORY 215ADriver Door Module
MEMORY 310APassenger Door Module
START7.5ATransaxle Range Switch, ECM (Engine Control Module)
HEATED
STEERING15ABCM (Body Control Module)
MODULE 97.5ASurround View Unit, Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air
Ventilation Seat Control Module
WASHER15AMultifunction Switch
INTERIOR LAMP10AGlove Box Lamp, Passenger Foot Lamp, Driver Foot Lamp, Trunk Room Lamp, Front Vanity Lamp Switch
Left Handle side/Right Handle side, Overhead Console Lamp, Room Lamp, Rear Personal Lamp Left
Handle side/Right Handle side
DOOR LOCK20ADoor Lock/Unlock Relay
S/HEATER (FR)25AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
SMART KEY 210AStart/Stop Button Switch
BRAKE SWITCH10AStop Lamp Switch, Immobilizer Module, Smart Key Control Module
AMP30AAMP (Amplifier)

769
Maintenance

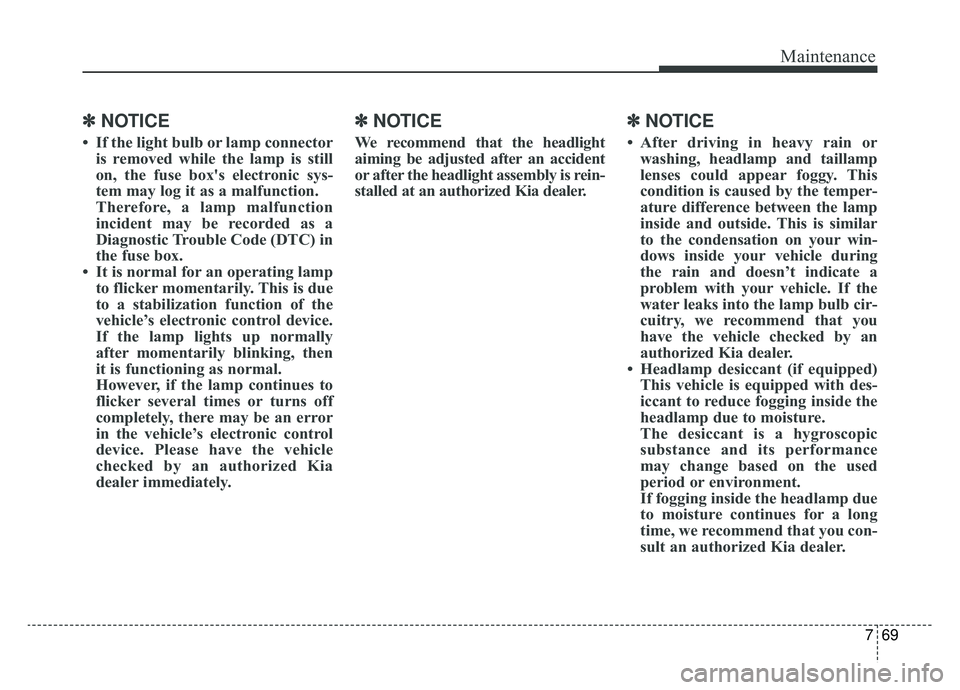

✽ ✽NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
✽ ✽ NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized Kia dealer.
✽ ✽NOTICE
• After driving in heavy rain or
washing, headlamp and taillamp
lenses could appear foggy. This
condition is caused by the temper-
ature difference between the lamp
inside and outside. This is similar
to the condensation on your win-
dows inside your vehicle during
the rain and doesn’t indicate a
problem with your vehicle. If the
water leaks into the lamp bulb cir-
cuitry, we recommend that you
have the vehicle checked by an
authorized Kia dealer.
• Headlamp desiccant (if equipped) This vehicle is equipped with des-
iccant to reduce fogging inside the
headlamp due to moisture.
The desiccant is a hygroscopic
substance and its performance
may change based on the used
period or environment.
If fogging inside the headlamp due
to moisture continues for a long
time, we recommend that you con-
sult an authorized Kia dealer.

Maintenance
70
7
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may

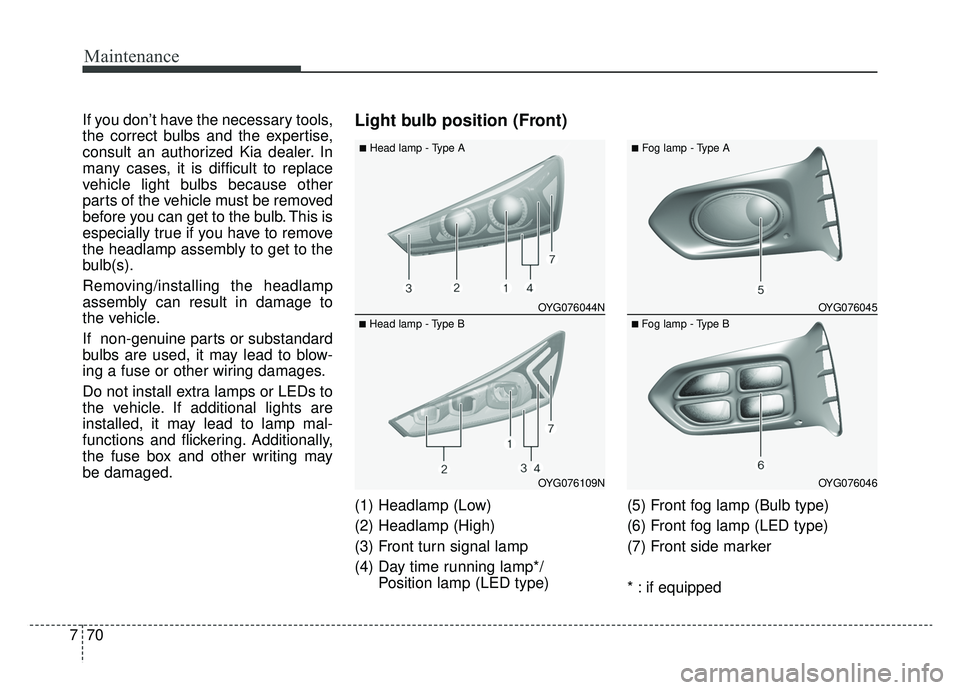

be damaged.Light bulb position (Front)
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Front turn signal lamp
(4) Day time running lamp*/
Position lamp (LED type) (5) Front fog lamp (Bulb type)
(6) Front fog lamp (LED type)
(7) Front side marker
* : if equipped
OYG076044N
OYG076109N
■Head lamp - Type A
■Head lamp - Type B
OYG076045
OYG076046
■Fog lamp - Type A
■Fog lamp - Type B
