Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood .....................................................4-37
2. Head lamp (Features of your vehicle) ..4-123Head lamp (Maintenance) ....................7-68
3. Front fog lamp (Features of your vehicle) ...................4-118
Front fog lamp (Maintenance)...............7-68
4. Wheel and tire (Maintenance) ..............7-40 Wheel and tire (Specification) ................8-4
5. Outside rearview mirror ........................4-68
6. Panorama sunroof ................................4-43
7. Front windshield wiper blades (Features of your vehicle) ...................4-120
Front windshield wiper blades
(Maintenance) .......................................7-30
8. Windows ...............................................4-32
OYG016001N
■ Front view
❈ The actual shape may differ from the illustration.

4121
Features of your vehicle
Auto control (if equipped)
The rain sensor (A) located on the
upper end of the windshield glass
senses the amount of rainfall and
controls the wiping cycle for the
proper interval. The more it rains, the
faster the wiper operates. When the
rain stops, the wiper stops.To vary the speed setting, turn the
speed control knob (1).
If the wiper switch is set in AUTO
mode when the ignition switch is ON,
the wiper will operate once to per-
form a self-check of the system. Set
the wiper to OFF position when the
wiper is not in use.
OYG046455N
CAUTION
When washing the vehicle, set
the wiper switch in the OFFposition to stop the auto wiperoperation.
The wiper may operate and bedamaged if the switch is set inthe AUTO mode while washingthe vehicle.
Do not remove the sensor cover located on the upperend of the passenger sidewindshield glass. Damage tosystem parts could occur andmay not be covered by yourvehicle warranty.
When starting the vehicle in winter, set the wiper switch inthe OFF position. Otherwise,wipers may operate and icemay damage the windshieldwiper blades. Always removeall snow and ice and defrostthe windshield properly priorto operating the windshieldwipers.
WARNING
When the ignition switch is ON
and the windshield wiper switch
is placed in the AUTO mode,
use caution in the following sit-
uations to avoid any injury to
the hands or other parts of the
body:
Do not touch the upper end of the windshield glass facing
the rain sensor.
Do not wipe the upper end of the windshield glass with a
damp or wet cloth.
Do not put pressure on the windshield glass.

Features of your vehicle
122
4
Front windshield washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.
If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
appropriate non-abrasive windshield
washer fluid to the washer reservoir. The reservoir filler neck is located in
the front of the engine compartment
on the passenger side.
OJF045063L
CAUTION - Washer pump
To prevent possible damage to
the washer pump, do not oper-ate the washer when the fluidreservoir is empty.
WARNING - Obscured
visibility
Do not use the washer in freez-
ing temperatures without first
warming the windshield with
the defrosters; the washer solu-
tion could freeze on the wind-
shield and obscure your vision.
CAUTION -Wipers & windshields
To prevent possible damage to the wipers or windshield,do not operate the wiperswhen the windshield is dry.
To prevent damage to the wiper blades, do not use gasoline,kerosene, paint thinner, orother solvents on or near them.
To prevent damage to the wiper arms and other compo-nents, do not attempt to movethe wipers manually.

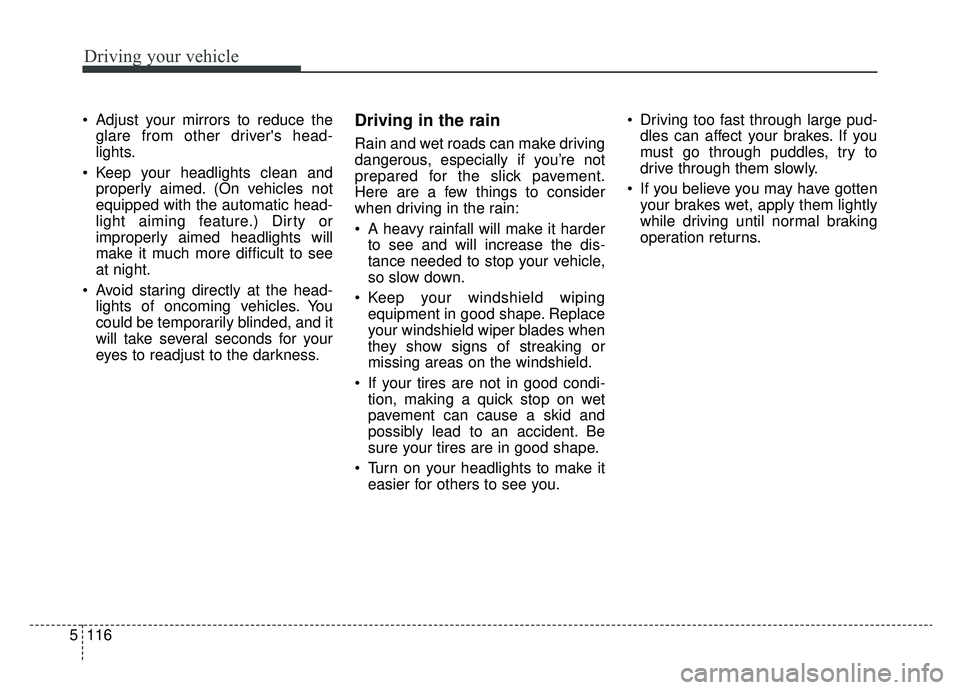

Driving your vehicle
116
5
Adjust your mirrors to reduce the
glare from other driver's head-
lights.
Keep your headlights clean and properly aimed. (On vehicles not
equipped with the automatic head-
light aiming feature.) Dirty or
improperly aimed headlights will
make it much more difficult to see
at night.
Avoid staring directly at the head- lights of oncoming vehicles. You
could be temporarily blinded, and it
will take several seconds for your
eyes to readjust to the darkness.Driving in the rain
Rain and wet roads can make driving
dangerous, especially if you’re not
prepared for the slick pavement.
Here are a few things to consider
when driving in the rain:
A heavy rainfall will make it harderto see and will increase the dis-
tance needed to stop your vehicle,
so slow down.
Keep your windshield wiping equipment in good shape. Replace
your windshield wiper blades when
they show signs of streaking or
missing areas on the windshield.
If your tires are not in good condi- tion, making a quick stop on wet
pavement can cause a skid and
possibly lead to an accident. Be
sure your tires are in good shape.
Turn on your headlights to make it easier for others to see you. Driving too fast through large pud-
dles can affect your brakes. If you
must go through puddles, try to
drive through them slowly.
If you believe you may have gotten your brakes wet, apply them lightly
while driving until normal braking
operation returns.

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner maintenance precautions . . . . . . . . . . . . . . . . . 7-5
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
• Owner maintenance schedule. . . . . . . . . . . . . . . . . . . . 7-6
Scheduled maintenance service. . . . . . . . . . . . . . . . 7-8
Explanation of scheduled maintenance items . . . 7-14
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . 7-18
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
• Checking the engine oil level . . . . . . . . . . . . . . . . . . . 7-18
• Changing the engine oil and filter . . . . . . . . . . . . . . . 7-19
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
• Checking the coolant level . . . . . . . . . . . . . . . . . . . . . 7-20
• Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . 7-22
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
• Checking the brake fluid level . . . . . . . . . . . . . . . . . . 7-23
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
• Checking the washer fluid level . . . . . . . . . . . . . . . . . 7-24
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
• Checking the parking brake. . . . . . . . . . . . . . . . . . . . 7-25
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Climate control air filter . . . . . . . . . . . . . . . . . . . . 7-28
• Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
33
• For best battery service . . . . . . . . . . . . . . . . . . . . . . . 7-33
• Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . 7-34
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35\
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
• Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-36
• Recommended cold tire inflation pressures . . . . . . . 7-36
• Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37
• Checking tire inflation pressure. . . . . . . . . . . . . . . . . 7-37
• Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Wheel alignment and tire balance . . . . . . . . . . . . . . . 7-39
• Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40
• Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
• Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
• Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
• Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
48
• Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48\
7

77
Maintenance
At least monthly:
Check the coolant level in theengine coolant reservoir.
Check the operation of all exterior lights, including the stoplights, turn
signals and hazard warning flash-
ers.
Check the inflation pressures of all tires including the spare.
At least twice a year
(i.e., every Spring and Fall) :
Check the radiator, heater and air conditioning hoses for leaks or
damage.
Check the windshield washer spray and wiper operation. Clean
the wiper blades with clean cloth
dampened with washer fluid.
Check the headlight alignment.
Check the muffler, exhaust pipes, shields and clamps.
Check the lap/shoulder belts for wear and function.
Check for worn tires and loose wheel lug nuts.
At least once a year :
Clean the body and door drainholes.
Lubricate the door hinges and check the hood hinges.
Lubricate the door and hood locks and latches.
Lubricate the door rubber weather- strips.
Check the air conditioning system.
Inspect and lubricate automatic transaxle linkage and controls.
Clean the battery and terminals.
Check the brake fluid level.

Maintenance
30
7
WIPER BLADES
Blade inspection
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean. Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water.
Blade replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
To prevent damage to the wiper arms
or other components, do not attempt
to move the wipers manually.
The use of a non-specified wiper
blade could result in wiper malfunc-
tion and failure.
1JBA5122CAUTION - Wiper blades
To prevent damage to the wiper
blades, do not use gasoline,kerosene, paint thinner, or othersolvents on or near them.

731
Maintenance
Front windshield wiper blade
For your convenience, move the
windshield wiper blades to the serv-
ice position as follows;
After turning off the engine, move the
wiper switch to the single wiping
(MIST) position within 20 seconds
and hold the switch more than 2 sec-
onds until the wiper blade is in the
fully up position.Type A
1. Raise the wiper arm.
2. Lift up the wiper blade clip. Then
pull down the blade assembly and
remove it.
3. Install the new blade assembly.
OHM078060
OHM078061
CAUTION - Wiper arms
Do not allow the wiper arm to fall against the windshield,since it may chip or crack thewindshield.
OYG076026

Index
10I
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-122Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-125
Tire and loading information label. . . . . . . . . . . . . 5-122
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-126
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-93 Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-93
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-24
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126 Headlight (Headlamp) escort function . . . . . . . . . . 4-126
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-32 Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Windshield defrosting and defogging. . . . . . . . . . . . . 4-141 Automatic climate control system . . . . . . . . . . . . . 4-141
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142 Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-118
Carry emergency equipment . . . . . . . . . . . . . . . . . 5-121
Change to "winter weight" oil if necessary . . . . . . 5-120
Check battery and cables . . . . . . . . . . . . . . . . . . . . 5-120
Check spark plugs and ignition system . . . . . . . . . 5-120
Don’t let your parking brake freeze . . . . . . . . . . . . 5-121
Don't let ice and snow accumulate underneath . . . 5-121
Snowy or icy conditions . . . . . . . . . . . . . . . . . . . . . 5-118
To keep locks from freezing. . . . . . . . . . . . . . . . . . 5-121
Use approved window washer anti-freeze in system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12\
1
Use high quality ethylene glycol coolant. . . . . . . . 5-120
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120 Front windshield washers. . . . . . . . . . . . . . . . . . . . 4-122
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
V
W
