KIA CADENZA 2020 Owners Manual

Maintenance
56 7
Fuse/relay panel description
Driver’s side fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ ✽
NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OYG070267N
OYG079226N

757
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 710ADriver Door Module, Passenger Door Module
MODULE 310AStop Lamp Switch, BCM (Body Control Module), Sports Mode Switch
MODULE 510AConsole Switch, Blind-Spot Collision Warning Unit Left Handle side/Right Handle side, BCM (Body Control
Module), Crash Pad Switch, Fuel Filler & Trunk Open Switch, Lane Keeping Assist Unit (Line), Steering Tilt
& Telescopic Module, Smart Cruise Control Unit, Parking Collision Avoidance Assist Unit
IG 125APCB Block (Fuse – TCU 2, ECU 3, ABS 3)
MDPS7.5AMDPS (Motor Driven Power Steering) Unit
MODULE 610A
Air Conditioner Switch, Air Conditioner Control Module, Electro Chromic Mirror, Wireless Charger Unit, Front
Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Rear Seat Warmer Control Module,
Audio/Video & Navigation Head Unit, Audio, Driver Integrated Memory System Module, Automatic
Transmission Shift Lever Indicator
CLUSTER10AInstrument Cluster, Head-Up Display
AIR BAG15ASRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor
MULTIMEDIA 120AIGPM (Integrated Gateway Power control Module), Audio/Video & Navigation Head Unit, Audio
A/BAG IND7.5AAir Conditioner Switch, Instrument Cluster
MODULE 410ASmart Key Control Module, Immobilizer Module
SPARE 210ASpare
Instrument panel (Driver’s side fuse panel)

Maintenance
58 7
Fuse NameFuse ratingCircuit Protected
A/C7.5AAir Conditioner Switch, Air Conditioner Control Module, Ionizer, Engine Room Junction Block (Blower Relay)
MEMORY 110AHead-Up Display, Instrument Cluster, Blind-Spot Collision Warning Unit Left Handle side/Right Handle side,
Driver Door Module, Power Trunk Module, Passenger Door Module, Air Conditioner Switch, Air Conditioner
Control Module, Security Indicator, BCM (Body Control Module)
MEMORY 215ADriver Door Module
MEMORY 310APassenger Door Module
START7.5ATransmission Range Switch
HEATED
STEERING15ABCM (Body Control Module)
MODULE 97.5ASurround View Monitor Unit, Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front
Air Ventilation Seat Control Module, Parking Collision Avoidance Assist Unit
WASHER15AMultifunction Switch
INTERIOR
LAMP10AGlove Box Lamp, Passenger Foot Lamp, Driver Foot Lamp, Room Lamp, Front Vanity Lamp Switch Left
Handle side/Right Handle side, Overhead Console Lamp, Trunk Room Lamp, Rear Personal Lamp Left
Handle side/Right Handle side
DOOR LOCK20ADoor Lock/Unlock Relay
S/HEATER (FR)25AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
SMART KEY 210AStart/Stop Button Switch
BRAKE SWITCH10AStop Lamp Switch, Immobilizer Module, Smart Key Control Module
AMP30AAMP (Amplifier)

759
Maintenance
Fuse NameFuse ratingCircuit Protected
P/WINDOW (RH)25APassenger Safety Power Window Module, Rear Power Window Switch Right Handle side, Rear Safety
Power Window Module Right Handle side
SUNROOF 120ASunroof Control Unit (Glass)
TRUNK10ATrunk Relay, Fuel Filler & Trunk Open Switch, PCB Block (Fuel Lid Relay)
MULTIMEDIA 210ANot Used
POWER TRUNK30APower Trunk Module
S/HEATER (RR)25ARear Seat Warmer Control Module
E-SHIFTER 210AElectronic Automatic Transmission Shift Lever (SBW)
P/WINDOW (LH)25ARear Power Window Switch Left Handle side, Driver Safety Power Window Module, Rear Safety Power
Window Module Left Handle side
P/SEAT (PASS)25APassenger Seat Manual Switch
SUNROOF 220ASunroof Control Unit (Roller)
POWER HANDLE15ASteering Tilt & Telescopic Module
SPARE 110ASpare
SMART KEY 115ASmart Key Control Module
MODULE 17.5AData Link Connector, Hazard Lamp Switch, Console Switch, Console Mood Lamp, Mood Lamp Unit, Mood
Lamp Right Handle side

Maintenance
60 7
Fuse NameFuse ratingCircuit Protected
P/SEAT (DRV)25ADriver Seat Manual Switch, Driver Integrated Memory System Module
USB CHARGER10AFront USB Charger, Rear USB Charger Left Handle side/Right Handle side
MODULE 210AAMP (Amplifier), Surround View Monitor Unit, BCM (Body Control Module), Smart Key Control Module,
Parking Collision Avoidance Assist Unit, Audio, Audio/Video & Navigation Head Unit, Engine Room Junction
Block (Power Outlet Relay)
SPARE 310ASpare
MODULE 87.5ABCM (Body Control Module), Smart Key Control Module
E-SHIFTER 110AElectronic Automatic Transmission Shift Lever (SBW), SCU

761
Maintenance

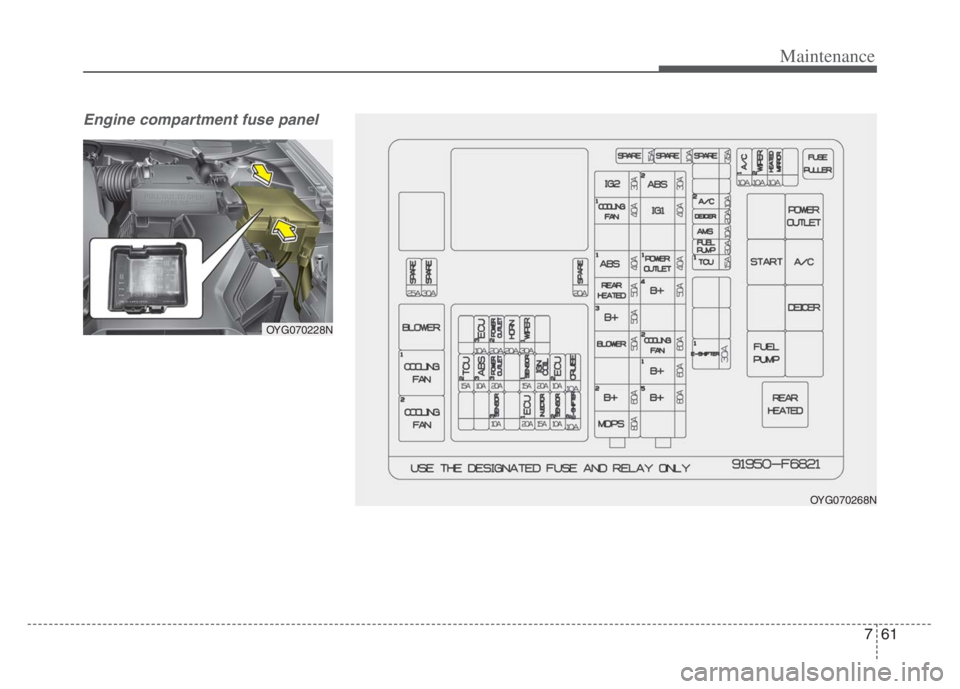

Engine compartment fuse panel
OYG070268N
OYG070228N

Maintenance
62 7
Fuse NameFuse ratingCircuit Protected
MULTI
FUSE
MDPS80AMDPS (Motor Driven Power Steering) UNIT
B+260AIGPM (Integrated Gateway Power control Module)
BLOWER50ABlower Relay
B+350AIGPM (Integrated Gateway Power control Module)
REAR
HEATED50ARear Heated Relay
ABS 140AESC (Electronic Stability Control) Module
IG 230AWithout Smart Key : Start Relay, Ignition Switch
With Smart Key : Start Relay, PCB Block (IG 2 Relay)
B+580APCB BLOCK (Fuse – WIPER 1, HORN, ECU 2, E-SHIFTER 2, CRUISE, Engine Control Relay)
B+160AIGPM (Integrated Gateway Power control Module)
COOLING
FAN 260ACooling Fan 1 Relay, Cooling Fan 2 Relay
B+450AIGPM (Integrated Gateway Power control Module)
POWER
OUTLET 140APower Outlet Relay
IG 140AWithout Smart Key : Ignition Switch
With Smart Key : PCB Block (IG 1 Relay, ACC Relay)
ABS 230AESC (Electronic Stability Control) Module
Engine room compartment fuse panel

763
Maintenance
Fuse NameFuse ratingCircuit Protected
FUSE
E-SHIFTER 130ASCU
TCU 115ATCM (Transmission Control Module)
FUEL PUMP20AFuel Pump Relay
AMS10ABattery Sensor
DEICER20ADeicer Relay
A/C 210AA/C Relay
AC 110AAir Conditioner Control Module
WIPER 210ABCM (Body Control Module), ECM (Engine Control Module)
HEATED
MIRROR10AAir Conditioner Switch, Driver/Passenger Power Outside Mirror
ECU 310AECM (Engine Control Module)
POWER
OUTLET 220AFront Power Outlet
HORN20AHorn Relay
WIPER 130AWiper Power Relay

Maintenance
64 7
Fuse NameFuse ratingCircuit Protected
FUSE
TCU 215ATCM (Transmission Control Module), Transmission Range Switch
ABS 310AESC (Electronic Stability Control) Module
POWER
OUTLET 320ANot Used
SENSOR 115AOxygen Sensor #1~#4, Electronic Thermostat
IGN COIL20AIgnition Coil #1~#6
ECU 210AECM (Engine Control Module)
CRUISE10ASmart Cruise Control Unit
SENSOR 310AEngine Room Junction Block (Fuel Pump Relay)
ECU 120AECM (Engine Control Module)
INJECTOR15ANot Used
SENSOR 210AVariable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve, Canister Close Valve, Oil
Pressure Solenoid Valve, Oil Control Valve #1~#4, Engine Room Junction Block (Cooling Fan 1 Relay,
Cooling Fan 2 Relay, A/C Relay, Fuel Pump Relay)
E-SHIFTER 210ASCU

765
Maintenance
Relay NameType
Blower RelayMINI
Cooling Fan 1 RelayMINI
Cooling Fan 2 RelayMINI
Power Outlet RelayMICRO
Start RelayMICRO
A/C RelayMICRO
Front Deicer RelayMICRO
Fuel Pump RelayMICRO
Rear Heated RelayMINI
Relay
