Page 4 of 66
TABLE OF CONTENTS
VIDEOS & QR CODES .........Inside Cover
INSTRUMENT CLUSTER
Instrument Cluster Overview ................03Indicators & Warning Lights .................04Tire Pressure Monitoring System (TPMS) .....05Fuel Economy ..............................05Drive Mode Integrated Control System .......06ECO Mode (Active ECO) .....................06
VEHICLE SETTINGS
LCD Instrument Cluster Modes ..............07Trip Modes / Trip Computer .................07User Settings ...............................08Vehicle Settings* - Audio Head Unit. . . . . . . . . . . 09Service Interval Mode ........................10Vehicle Auto Shut-Off* .......................10
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Forward Collision-Avoidance Assist (FCA) .....11Lane Keeping Assist (LK A) ....................12Blind-Spot Collision-Avoidance Assist (BCA) ....13Blind-Spot View Monitor (BVM)* ...............14Safe Exit Assist (SEA) .........................14Intelligent Speed Limit Assist (ISL A)* ...........15Driver Attention Warning (DAW) ...............16Leading Vehicle Departure Alert (LVDA)* .......17Lane Following Assist (LFA) ...................18Highway Driving Assist (HDA)* ................19Rear Cross-Traffic Collision* Avoidance Assist (RCCA) ...................................20
DRIVER’S PANEL
Instrument Cluster Control ...................21Electronic Stability Control (ESC) ..............21Hill-Start Assist Control (HAC) .................21Power Windows, Window Lock & Central Door Lock ........................22
DRIVER’S PANEL (CONTINUED)
Power Folding Outside Mirrors* ...............22Heated Outside Mirrors ......................22Automatic Door Lock/Unlock .................22Manual Folding Mirrors* ......................22Reverse Parking Aid Function* ................23Engine Start/Stop Button .....................23
STEERING WHEEL CONTROLS
Tilt/Telescoping Steering Wheel ...............24Headlights & High Beams .....................24Turn Signals & Fog Lights* ....................25Windshield Wipers & Washers .................25Rear Wiper & Washer .........................25Smart Cruise Control (SCC)* ..................26Navigation-based Smart Cruise Control (NSCC)* . .27Cruise Control* ..............................27
AUDIO SYSTEMS
Bluetooth® Wireless Technology ...............28Audio Controls ...............................29Android Auto™ / Apple CarPlay® Setup ........30Standard Audio System - Value* ...............31UVO link Activation* / UVO Assistance* ........32 Kia Access with UVO link App Download .......33Kia Access with UVO link App Features Guide . .33UVO link with Navigation* ....................34
CENTER PANEL
Digital Clock .................................35USB Charger Ports, Multimedia USB Port, Power Outlets & AC Inverter ................35Automatic Climate Control* ...................36Manual Climate Control* ......................38Wireless Smartphone Charging System* .......39Electronic Parking Brake (EPB) / Auto Hold ...40Automatic Gear Shift / Sportmatic® Shifting* ...41Heated Steering Wheel* ......................42Surround View Monitor (SVM)* ................42Seat Warmers / Ventilated Seats* .............43
SEATING
Front Seat Headrest Adjustment .............44Driver Position Memory System* .............44Rear Occupant Alert (ROA) with Ultrasonic Sensors ....................45Power Adjustable Driver ’s Seat* ..............46Manual Adjustable Driver ’s Seat* .............46 2nd-Row Removable Seats* ...................47 2nd-Row Tumble (Center) Seat* ..............48 2nd-Row VIP Seats with Relaxation Mode* ....49Unfastening Center Seat Belt ................49 3rd-Row Seat - Access, Folding and Stowing* . .50
OTHER KEY FEATURES
Smart Key ...................................51Lock/Unlock All Doors ........................51Power Liftgate* ..............................52Smart Liftgate with Auto Open & Close* ........53Power Sliding Doors .........................54Smart Sliding Door with Auto Open* ..........54Passenger View* / Passenger Talk* ...........54Map/Room Lamps / Sunvisor .................55Sunroof Operation ...........................56Forward*/Reverse Parking Distance Warning ...57Rear View Monitor (RVM) .....................57Hood Release Lever and Latch ...............58Fuel Filler Lid Release .......................58HomeLink® w/Auto-Dimming Rearview Mirror* .59
SAFETY FEATURES
Seat Belts ..................................60Occupant Detection System (ODS) / Passenger Airbag Off Indicator ............60Child-Protector Rear Door Lock ..............60
MAINTENANCE SCHEDULE . .Back Cover
LEGAL DISCLAIMERS ....Inside Back Cover
*IF EQUIPPED2CARNIVAL FEATURES & FUNCTIONS GUIDE
Page 6 of 66
*IF EQUIPPED4CARNIVAL FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 2 in the Owner ’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
ECO Mode Indicator Light*
Malfunction Indicator Lamp (MIL)
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Engine Oil Pressure Warning Light
Electric Parking Brake (EPB) Warning Light*
Master Warning Light
Parking Brake & Brake Fluid Warning Light
Front Fog Light Indicator*
Light ON Indicator Light
Washer Fluid Warning Light*
High Beam Indicator
AUTO HOLD Indicator*
High Beam Assist Indicator
Seat Belt Warning Light
Airbag Warning Light
Charging System Warning Light
Electronic Power Steering (EPS) Warning Light*
Immobilizer Indicator Light*
Anti-Lock Braking System (ABS) Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (Two separate indicators on Instrument Cluster lit at same time)
KEY OUT Indicator*
Lane Keeping Assist Indicator
For ward Collision-Avoidance Assist (FCA) Warning Light
Electronic Stabilit y Control (ESC) Indicator Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Low Fuel Level Warning Light
Cruise Indicator Light*
Door Ajar Warning Light*
Liftgate Open Warning Light*
Sunroof Open Warning Light*
COMFORT Mode Indicator Light*
Icy Road Warning Indicator Light*
LED Headlamp Warning Indicator*
CHE F
505
EPBAUTO
(Type B Cluster)
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER
Page 10 of 66
8
User Settings* (Available on certain models)
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A when the vehicle is at a standstill and with the Engine Start/Stop button in the ON position and select User Settings by pressing the OK button B.
You can navigate the selections on the display by pressing the OK button B up/down, and then selecting the item by pressing the OK button B again.
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
Some set tings in cer tain models may be available through the audio head unit screen. See section 4 in the Owner ’s Manual or the Car Infotainment System Quick Reference Guide.
CARNIVAL FEATURES & FUNCTIONS GUIDE*IF EQUIPPED
VEHICLESETTINGS
VEHICLE SETTINGS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Vehicle & User Settings Video
QR CODES
A
B
User Settings:
Driver Assistance*• Driving Convenience*• Speed Limit Active Assist*: Warning Only/Off
• Warning Timing: Normal/Late• Warning Volume: High/ Medium/Low• Driver Attention Warning: Leading Vehicle Departure Alert/Inattentive Driving• Forward Safety: Active Assist/ Warning Only/Off • Lane Safety: Assist/ Warning Only/O f f • Blind-Spot Safety: Safe Exit Assist (SEA), Active Assist/ Warning Only/ Off
• Parking Safety: Rear Cross- Traffic Safety
Cluster• Wipers/Lights Display• Ice Road Warning• Welcome Sound
• Wallpaper: A/B/C
Lights• Illumination• One-Touch Turn Signal: 3/5/7 flashes/off• Headlight Delay• High Beam Assist
Door• Automatically Unlock: Enable – On shift to park/ Vehicle off/Off • 2-Press Unlock• Smart Sliding Door• Remote Power Doors & Liftgate*
Convenience• Seat Easy Access*• Vehicle Auto Shut-off*• Service Interval*
• Rear Occupant Alert• Welcome Light: On driver approach• Wireless Charging System*• Auto Rear Wiper• Service Interval: Enable Service Interval/Adjust Interval/Reset
Units
• Speedometer Unit*• Fuel Economy Unit• Temperature Unit*• Tire Pressure Unit
Reset• Reset to factory defaults (except language and service interval)
(Buttons located on right side of steering wheel)
Page 11 of 66
Vehicle Settings* - Audio Head Unit (Available on certain models)
To enter the Vehicle Settings mode in the audio head unit, press the SETUP key on the audio head unit or the SETUP icon onscreen. Then press VEHICLE , which will take you to Vehicle Settings. Use the touchscreen to navigate through the menus.
Some set tings in cer tain models may be available through User Set tings in the Instrument Cluster LCD. See section 4 in the Owner ’s Manual or the Car Infotainment System Quick Reference Guide.
VEHICLE SETTINGS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
9*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
Vehicle & User Settings Video
QR CODES
VEHICLESETTINGS
Vehicle Settings:
Driver Assistance• Driving Convenience• Speed Limit Assist• Warning Timing• Warning Volume• Driver Attention Warning• Forward Safety• Lane Safety• Blind-Spot Safety• Parking Safety
Drive Mode• Drive Mode Alert*
Climate*• Recirculate Air*• Automatic Ventilation*• Defog/Defrost Options*• Climate Features*
Lights*• Ambient Light*• One Touch Turn Signal*• Headlight Display*, • High Beam Assist*
Door*• Auto Lock*• Auto Unlock*• Walk-Away Lock*• Two-Press Unlock*• Smart Trunk*
Cluster*• Service Interval*• Energy Consumption Reset*• Content Selection*• Cluster Voice Guidance Volume* • Welcome Sound*• Theme Selection*
Convenience*: • Rear Occupant Alert*• Welcome Mirror Light*• Wireless Charging System*• Vehicle Auto Shut-Off*
Seat*: • Seat Position Change Alert*• Smart Posture Care*• Heated/Ventilated Features*• Seat Easy Access*• Rear Seat Heating Control*
ResetReset Vehicle Settings to Factory Defaults
Page 16 of 66
ADAS
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
14CARNIVAL FEATURES & FUNCTIONS GUIDE
Blind-Spot View Monitor (BVM)*†6
Blind-Spot View Monitor is designed to display the rear and side of the vehicle blind spot areas in the Instrument Cluster LCD A when the system is activated.
To turn BVM on (in some models) go to User Settings in the Instrument Cluster by pressing the Mode button B on the Steering Wheel. Select Driver Assistance > Blind-Spot Safety > Blind-Spot View and press the OK button C.
In other models, on the audio head unit, press the SETUP key, then VEHICLE. Then press Driver Assistance > Blind-Spot Safety > Blind-Spot View.
When operating the turn signal D, BVM displays video of the blind-spot view for the direction indicated.
BVM will not operate when the Engine Start/Stop button is off, a turn signal is deactivated or another warning screen comes up on the Instrument Cluster LCD.
Images are for illustrative purposes only and may not reflect actual feature or operation. See section 4 in the Owner ’s Manual for more information.
Images are for illustrative purposes only and may not reflect actual feature or operation. See section 5 in the Owner ’s Manual for more information.
(But tons located on right side of the steering wheel)
(Display showing left side of vehicle)
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
D
526mimi68F°467
25
.7MPG
１ 7
8
2
6
3
4
5
C H
x１000 rpm
OFFOFF
AUTO
Safe Exit Assist (SEA)†6 a
Safe Exit Assist can help prevent passengers from opening their door by displaying a warning message on the Instrument Cluster and sounding an audible warning when a vehicle is detected, approaching from behind, after your vehicle has stopped.
SEA keeps the sliding doors closed. When pressing the Power Sliding Door lock button, SEA warns the driver of the risk of collision with a vehicle approaching the blind spot area.
To turn on SEA , go to User Settings in the Instrument cluster or press SETUP in the Vehicle Settings* in the audio head unit, then select Driver Assistance, Blind-Spot Safety, and select Safe Exit Assist.
Watch for traffic
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
QR CODES
Blind-Spot View Monitor (BVM) Video
Safe Exit Assist (SEA) Video
AB
D
C
Page 24 of 66
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED22CARNIVAL FEATURES & FUNCTIONS GUIDE
DRIVER’SPANEL
DRIVER’S PANEL
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Front Windows Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press to disable Rear Passenger Windows and Rear Sunroof* passenger controls
REMINDER: When C is pressed, window controls for the Rear Passenger Windows are disabled.
Power Folding Outside Mirrors*
Press the L or R buttons D to select the mirror to adjust.
Press button arrows E left/right or up/down to adjust mirror position.
Toggle button F left/right to unfold/fold the outside rearview mirrors.
Toggle button F to center to automatically fold/unfold mirrors when:
•The Smart Key Lock/Unlock buttons are pressed
•The door outside handle button is pressed
Heated Outside Mirrors
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF. The Rear Window Defroster button* is located on the climate control system panel.
Refer to section 4 in the Owner ’s Manual for more information.
Automatic Door
Lock/Unlock
When the gear shift is moved into or out of P (Park), all doors will Lock/Unlock. Refer to the User Settings on how to turn Auto Door Lock/Unlock ON/OFF.
Refer to section 4 in the Owner ’s Manual for more information.
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window.
LRLRLRLR
# V U U P O T X J U D I Q B O F M M P D B U F E P O % S J W F S s T % P P S
# V U U P O D P O7T H V S B U J P O N B Z W B S Z E F Q F O E J O H P O W F I J D M F N P E F M
3 F G F S U P T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
A
B
C
D
E
F
•Auto Door Lock/Unlock* will engage when the gear shift is moved into or out of the P (Park) position
•To turn Auto Door Lock/Unlock* OFF, go to User Set tings* in the LCD Instrument Cluster modes
QUICK TIPS
•The mirrors will automatically unfold when the Smar t Key is within close proximit y to the vehicle
•To automatically fold mirrors when exiting vehicle, press the LOCK but ton once on the Smar t Key
QUICK TIPS
Press but ton again to stop Auto Up/Down function
QUICK TIP
If needed, pull the mirror firmly until it folds.
QUICK TIP
Refer to section 4 in the Owner ’s Manual for more information.
REMINDER: To lock position of mirrors, toggle switch to the neutral (center) position.
Refer to section 4 in the Owner ’s Manual for more information.
Page 25 of 66
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 23
LRLRLRLR
(But ton/switch panel located on Driver's Door )
(But ton located above center console)
ENGINESTART
STOP
Reverse Parking Aid Function*
The left or right mirror buttons A need to be depressed for the Reverse Parking Aid Function to operate.
When the gear shift lever is moved into R (Reverse) and while the vehicle is moving backwards, the outside rearview mirrors B will rotate downward to aid in reverse parking.
To turn OFF the function, press the L or R buttons again.
The outside rearview mirrors will automatically return to their original positions when:
•The Engine Start/Stop Button is in the OFF position
•The gear shift lever is moved to any position except R (Reverse)
•
Outside rearview mirror switches are not depressed
Engine Start/Stop Button†9
To start the engine:
•Press the brake pedal
•
Press the ENGINE START/STOP button
while the gear shift is in P (Park)
To turn the engine OFF:
•Press the ENGINE START/STOP button
To use the ENGINE START/STOP button, you must have the Smart Key fob inside the vehicle.
REMINDER: When the outside rear view mirror but tons (L or R) A are not depressed, the Reverse Parking Aid Function will not operate and the outside rear view mirrors will not rotate downward
Refer to section 4 in the Owner ’s Manual for more information.
To use electrical accessories:
ACC position
•When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton once (amber light)
ON position
•When already in the ACC position (orange light) and without depressing the brake pedal, press the ENGINE START/STOP but ton again (reddish orange light)
When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice (reddish orange light)
Keeping the vehicle in ACC or the ON position for extended periods of time without turning the engine on may discharge the vehicle’s battery
QUICK TIPS
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the ENGINE START/STOP but ton for more than 2 seconds or 3 times successively within 3 seconds
•
If Smar t Key fob bat ter y is dead, with the lock but ton facing the ENGINE START/STOP but ton, hold the fob up against the ENGINE START/STOP but ton and press to star t the engine while pressing the brake pedal
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Engine Start/Stop Button Video
QR CODE
Refer to section 4 in the Owner ’s Manual for more information.
AB
DRIVER’SPANEL
DRIVER’S PANEL
Page 26 of 66
*IF EQUIPPED24CARNIVAL FEATURES & FUNCTIONS GUIDE

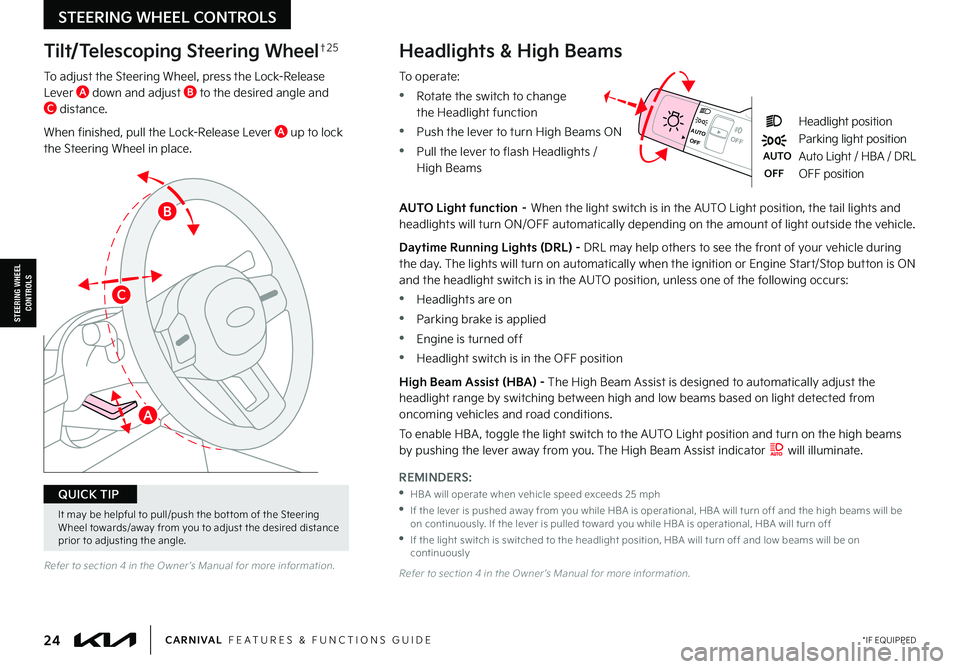

STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
HOLD
HOLDPOWER
DOOR OFFHOLD
OFFOFF
AUTO
OFFOFF
AUTO
Headlight position
Parking light position
AUTOAuto Light / HBA / DRL
OFFOFF position
Tilt/Telescoping Steering Wheel†2 5
To adjust the Steering Wheel, press the Lock-Release Lever A down and adjust B to the desired angle and C distance.
When finished, pull the Lock-Release Lever A up to lock the Steering Wheel in place.
Headlights & High Beams
To operate:
•Rotate the switch to change the Headlight function
•Push the lever to turn High Beams ON
•Pull the lever to flash Headlights / High Beams
AUTO Light function – When the light switch is in the AUTO Light position, the tail lights and headlights will turn ON/OFF automatically depending on the amount of light outside the vehicle.
Daytime Running Lights (DRL) - DRL may help others to see the front of your vehicle during
the day. The lights will turn on automatically when the ignition or Engine Start/Stop button is ON and the headlight switch is in the AUTO position, unless one of the following occurs:
•Headlights are on
•Parking brake is applied
•Engine is turned off
•Headlight switch is in the OFF position
High Beam Assist (HBA) - The High Beam Assist is designed to automatically adjust the headlight range by switching between high and low beams based on light detected from oncoming vehicles and road conditions.
To enable HBA , toggle the light switch to the AUTO Light position and turn on the high beams by pushing the lever away from you. The High Beam Assist indicator will illuminate.
REMINDERS:
•HBA will operate when vehicle speed exceeds 25 mph
•
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously. If the lever is pulled toward you while HBA is operational, HBA will turn off
•
If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuouslyRefer to section 4 in the Owner ’s Manual for more information.Refer to section 4 in the Owner ’s Manual for more information.
A
B
C
It may be helpful to pull/push the bot tom of the Steering Wheel towards/away from you to adjust the desired distance prior to adjusting the angle.
QUICK TIP
Page 35 of 66
AUDIOSYSTEMS
*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
AUDIO SYSTEMS
33
Kia Access with UVO link App Download
Go to an app marketplace to download the new Kia Access with UVO link App. Once you download, make sure you register your vehicle and star t an account (refer to UVO link Activation page). Get to know your new Kia and the available convenient features on the app.
Kia Access with UVO link App Features Guide. Click this dynamic QR code to access the guide. Some phone’s operating systems may need to be updated to scan dynamic QR codes.
Download the Kia Access with UVO link App by clicking this dynamic QR code. Some phone’s operating systems may need to be updated to scan dynamic QR codes.
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
Kia Access with UVO link App Features Guide
The Kia Access with UVO link App Features Guide is a step-by-guide helping you utilize the app to its full potential by detailing how to set up and use each feature and adjust various settings. Below are some of the topics included:
•Remote Commands
•Set Climate
•Schedule Service
•Dealer Settings
•Manage Vehicles and Profiles
Kia App Screen for illustrative purposes only. Actual App screen and functionalit y may var y.
For fur ther UVO link operations, refer to the Car Infotainment System Quick Reference Guide.
QR CODES
•The smar tphone and vehicle need to be connected to a cellular net work with good wireless signal strength in order to use UVO. If these conditions are not met, remote command may not execute or takes a long time. It will also effect voice commands
•
To use Remote Star t or Remote Star t with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•
Activate Remote Star t or Remote Star t with Climate Control feature at least 10 minutes before get ting into the vehicle, which will allow vehicle interior to reach a desired temperature. If the driver does not enter the vehicle within the 10 minutes, the Remote Star t will turn off the engine
•
The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, UVO will not turn on seven days after the last ignition was on. You will need to restar t the vehicle with a key fob in order to use UVO again
QUICK TIPS
Page 46 of 66
Driver Position Memory System*
The integrated system stores into memory the position of the Driver ’s Seat and the Outside Rearview Mirrors.
To store positions into memory, first place the Gear Shift into P (Park) while the Engine Start/Stop button* is in the ON position. Then:
1. Adjust the Driver ’s Seat and the Outside Rearview Mirrors
2. Press the SET button B on the control panel. System will beep once
3. Press one of the memory buttons C within 5 seconds. The system will beep twice when memory has been stored
Easy Access Function*
•The system will automatically move the driver's seat forward when the ignition or the Engine Start/Stop button is pressed to ON or the ACC position
•The system will automatically move the driver's seat rearward when the ignition or the Engine Start/Stop button is pressed to OFF
•To activate or deactivate the Easy Access Function, go to User Settings in the LCD Instrument Cluster modes
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED44CARNIVAL FEATURES & FUNCTIONS GUIDE
These illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
SET(Buttons located on Driver's Door Panel)
Refer to section 3 in the Owner ’s Manual for more information.
SEATING
SEATING
Front Seat Headrest Adjustment†1 0
To raise headrest: Pull headrest up.
To lower headrest: Press lock A and then press the headrest down.
BCC
A
REMINDER: Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head suppor t in an accident.
REMINDER: Do not at tempt to operate the driver position memor y system while the vehicle is moving. This could result in loss of control of the vehicle.
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath.
QUICK TIP
