*IF EQUIPPED2CARNIVAL FEATURES & FUNCTIONS GUIDE

*IF EQUIPPED4CARNIVAL FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 2 in the Owner ’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
ECO Mode Indicator Light*
Malfunction Indicator Lamp (MIL)

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Engine Oil Pressure Warning Light
Electric Parking Brake (EPB) Warning Light*
Master Warning Light
Parking Brake & Brake Fluid Warning Light
Front Fog Light Indicator*
Light ON Indicator Light
Washer Fluid Warning Light*
High Beam Indicator
AUTO HOLD Indicator*
High Beam Assist Indicator
Seat Belt Warning Light
Airbag Warning Light
Charging System Warning Light
Electronic Power Steering (EPS) Warning Light*
Immobilizer Indicator Light*
Anti-Lock Braking System (ABS) Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (Two separate indicators on Instrument Cluster lit at same time)
KEY OUT Indicator*
Lane Keeping Assist Indicator
For ward Collision-Avoidance Assist (FCA) Warning Light
Electronic Stabilit y Control (ESC) Indicator Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Low Fuel Level Warning Light
Cruise Indicator Light*
Door Ajar Warning Light*
Liftgate Open Warning Light*
Sunroof Open Warning Light*
COMFORT Mode Indicator Light*
Icy Road Warning Indicator Light*
LED Headlamp Warning Indicator*
CHE F
505
EPBAUTO
(Type B Cluster)
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED22CARNIVAL FEATURES & FUNCTIONS GUIDE
DRIVER’SPANEL
DRIVER’S PANEL
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Front Windows Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press to disable Rear Passenger Windows and Rear Sunroof* passenger controls
REMINDER: When C is pressed, window controls for the Rear Passenger Windows are disabled.
Power Folding Outside Mirrors*
Press the L or R buttons D to select the mirror to adjust.
Press button arrows E left/right or up/down to adjust mirror position.
Toggle button F left/right to unfold/fold the outside rearview mirrors.
Toggle button F to center to automatically fold/unfold mirrors when:
•The Smart Key Lock/Unlock buttons are pressed
•The door outside handle button is pressed
Heated Outside Mirrors
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF. The Rear Window Defroster button* is located on the climate control system panel.
Refer to section 4 in the Owner ’s Manual for more information.
Automatic Door
Lock/Unlock
When the gear shift is moved into or out of P (Park), all doors will Lock/Unlock. Refer to the User Settings on how to turn Auto Door Lock/Unlock ON/OFF.
Refer to section 4 in the Owner ’s Manual for more information.
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window.
LRLRLRLR
#VU UPOTXJUDI
QBOFM
MPDBUFE
PO
%SJWFS sT
%PPS


#VU UPO
DPO7THVSBUJPO
NBZ
WBS Z
EFQFOEJOH
PO
WFIJDMF
NPEFM
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO
A
B
C
D
E
F
•Auto Door Lock/Unlock* will engage when the gear shift is moved into or out of the P (Park) position
•To turn Auto Door Lock/Unlock* OFF, go to User Set tings* in the LCD Instrument Cluster modes
QUICK TIPS
•The mirrors will automatically unfold when the Smar t Key is within close proximit y to the vehicle
•To automatically fold mirrors when exiting vehicle, press the LOCK but ton once on the Smar t Key
QUICK TIPS
Press but ton again to stop Auto Up/Down function
QUICK TIP
If needed, pull the mirror firmly until it folds.
QUICK TIP
Refer to section 4 in the Owner ’s Manual for more information.
REMINDER: To lock position of mirrors, toggle switch to the neutral (center) position.
Refer to section 4 in the Owner ’s Manual for more information.

MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
BC
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 29
Bluetooth® Wireless Technology*†5 , 2 3 (continued)
Voice Recognition* and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names. Improve the per formance by making a few simple changes to your phone contacts, listed below. To help optimize the Bluetooth Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips.
•Use full names (first and last names) vs. short or single-syllable names (“John Smith” vs. “Dad,” “Smith Residence” vs. “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc.)
•Avoid using acronyms (“In Case of Emergency” vs. “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs. “Dr. Smith”)

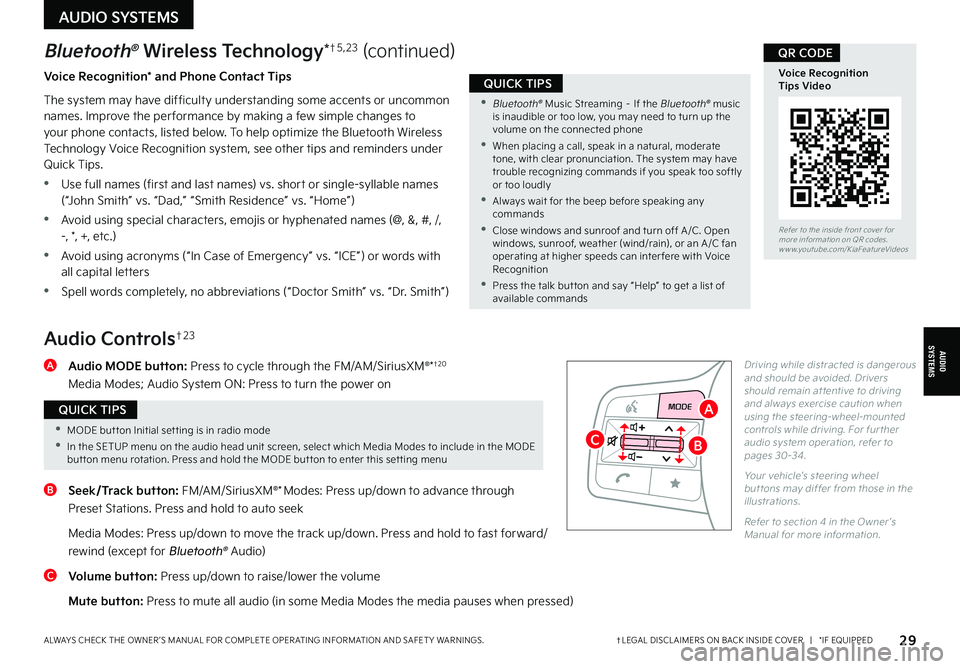

Audio Controls†2 3
A Audio MODE button: Press to cycle through the FM/AM/SiriusXM®*†2 0
Media Modes; Audio System ON: Press to turn the power on
B Seek/Track button: FM/AM/SiriusXM®* Modes: Press up/down to advance through
Preset Stations. Press and hold to auto seek
Media Modes: Press up/down to move the track up/down. Press and hold to fast forward/
rewind (except for Bluetooth® Audio)
C Volume button: Press up/down to raise/lower the volume
Mute button: Press to mute all audio (in some Media Modes the media pauses when pressed)
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving. For fur ther audio system operation, refer to pages 30-34.
Your vehicle’s steering wheel but tons may differ from those in the illustrations.
Refer to section 4 in the Owner ’s Manual for more information.
AUDIOSYSTEMS
AUDIO SYSTEMS
•
Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•
When placing a call, speak in a natural, moderate tone, with clear pronunciation. The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•
Close windows and sunroof and turn off A /C . Open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
•MODE but ton Initial set ting is in radio mode
•In the SETUP menu on the audio head unit screen, select which Media Modes to include in the MODE but ton menu rotation. Press and hold the MODE but ton to enter this set ting menu
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Voice Recognition Tips Video
QR CODE
A

*IF EQUIPPED56CARNIVAL FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
B
REMINDERS:
•
When the Power Window Lock is depressed, the Rear Sunroof controls cannot operate the Rear Sunroof
•
The Sunshade needs to remain OPEN while the Sunroof is open and the vehicle is moving
•
Do not adjust the Sunroof or Sunshade while driving. This could result in loss of control of the vehicle
REMINDER: The Front Sunroof will automatically open all the way. The Rear Sunroof will only par tially open. To open all the way, slide the Rear Sunroof lever again.
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Sunroof Operation Video
QR CODE
FRONTREARFRONTREAR
REARREAR
FRONTREARFRONTREAR
REARREAR
(Rear overhead console for Rear Sunroof controls)
Sunroof Operation
The Sunroof and Sunshade operation is controlled through a multidirectional switch/lever. The ignition needs to be in the ON position to operate the Sunroof/Sunshade.
The front and rear Sunroof/Sunshade are operated from separate controls.
Front Sunshade and Sunroof Controls:
Auto Open: Slide lever A backward to the farthest position and release.
Auto Close (Sunroof only): Slide the lever A forward to the farthest position and release.
Slide the Sunroof (with Sunshade open):
Open: Press the Sunroof lever A backward and press again forward/backward until you reach the desired detent position (manual slide feature).
Close: Press the Sunroof lever A forward and press again forward/backward until you reach the desired detent position (manual slide feature)
Tilt the Sunroof:
To raise, push the lever A upward; to lower, push the lever A forward.
Rear Sunshade and Sunroof Controls:
Auto Open: Slide lever B backward to the farthest position and release.
Auto Close (Sunroof only): Slide the lever B forward to the farthest position and release.
Slide the Sunroof (with Sunshade open):
Open: Press the Sunroof lever B backward and press again forward/backward until you reach the desired detent position (manual slide feature).
Close: Press the Sunroof lever B forward and press again forward/backward until you reach the desired detent position (manual slide feature)
AB
(Front overhead console for Front & Rear Sunroof controls)

KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System (TPMS) – page 05 Blind-Spot Collision Avoidance-Assist (BCA)*

– page 11 Engine Start/Stop Button – page 23 Digital Clock – page 35 USB Charger Ports, Multimedia USB Port,

Power Outlets & AC Inverter – page 35 Seat Warmers / Ventilated Seats* – page 43 Smart Key* – page 51
HomeLink
® with Auto-Dimming Rearview Mirror*
– page 59 Sunroof Operation* – page 56 Forward*/Reverse Parking Distance Warning*

– page 57 Sunvisor – page 55 Rear View Monitor (RVM) – page 57 Passenger Airbag Off Indicator – page 60
Demonstrate the following with the customer:
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up SCC / Cruise Control

– pages 26-27

Demonstrate operation Android Auto
™ / Apple CarPlay
®
Setup* – page 30 UVO link Activation* – page 32For fur ther UVO operations, refer to

the Car Infotainment System Quick Reference Guide.
Standard Audio System - Value with UVO link*– page 31

For fur ther UVO operations, refer to

the Car Infotainment System Quick Reference Guide.
UVO link with Navigation*

– page 34

For fur ther UVO operations, refer to

the Car Infotainment System Quick Reference Guide.

Bluetooth
® Wireless Technology

– pages 28-29

Demonstrate operation
Power Liftgate / Smart Liftgate

with Auto Open* – pages 52-53
