ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
GETTING STARTED
As you get to know your new Kia, you can explore this booklet to better understand how
to operate its many features and systems. You can find the complete Table of Contents
on the next two pages, but first, be sure to review the following to better understand
some of your Kia’s most used features:
1 Smart Key with Remote Start . . . . . . . . . . . . . . . . . . . . . . . 52
2 Fuel Filler Door Release . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3 Power Adjustable Driver’s Seat* . . . . . . . . . . . . . . . . . . . . . . 46
4 Front Seat Headrest Adjustment . . . . . . . . . . . . . . . . . . . . . 45
5 2nd-Row / 3rd-Row Seats . . . . . . . . . . . . . . . . . . . . . . . 47-50
6 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . 29
7 Smart Cruise Control (SCC)* / Navigation-based Smart
Cruise Control (NSCC)* / Cruise Control (CC)* . . . . . . . . . . . . . 18 -19
8 Normal Maintenance Schedule . . . . . . . . . . . . . . . . . Back Cover
9 User Settings* - Instrument Cluster . . . . . . . . . . . . . . . . . . . . 08
10 Vehicle Settings* - Infotainment System . . . . . . . . . . . . . . . . . 09
11 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . 30-31
12 Kia Connect Activation* / Kia Connect Assistance* . . . . . . . . . . . 34
13 Standard Audio System* / Kia Connect with Navigation* . . . . . 33, 36
14 Kia Access App Download . . . . . . . . . . . . . . . . . . . . . . . . . 35
15 Kia Access App Features Guide . . . . . . . . . . . . . . . . . . . . . . 35
16 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . 32
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www.kia.com Consumer Affairs – Roadside Assistance†1 1: 1-800-333-4KIA (800-333-4542)Always check the Owner ’s Manual for complete operating information and safet y warnings.
*IF EQUIPPED1
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Your New Kia Important Care Tips Video
Vehicle Cameras Important Tips Video
Navigation System Important Tips Video
QR CODE
Page 4 of 64
TABLE OF CONTENTS
VIDEOS & QR CODES .........Inside Cover
INSTRUMENT CLUSTER
Instrument Cluster Overview ................03Indicators & Warning Lights .................04Tire Pressure Monitoring System (TPMS) .....05Fuel Economy / Tips for Economical Driving ...05Drive Mode Integrated Control System .......06ECO Mode (Active ECO) .....................06
VEHICLE SETTINGS
Instrument Cluster LCD Modes ..............07Trip Modes / Trip Computer .................07User Settings* - Instrument Cluster ...........08Vehicle Settings* - Infotainment System. . . . . . . 09Service Interval Mode ....................... 10Vehicle Auto Shut-Off* ...................... 10
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
Forward Collision-Avoidance Assist (FCA) .... 11Lane Keeping Assist (LK A) ................... 12Blind-spot Collision-Avoidance Assist (BCA) ... 13Blind-spot View Monitor (BVM) ............... 14Safe Exit Assist (SEA) ........................ 14Lane Following Assist (LFA) .................. 15Driver Attention Warning (DAW) .............. 16Leading Vehicle Departure Alert (LVDA)* ...... 17Smart Cruise Control (SCC)* ................. 18Navigation-based Smart Cruise Control (NSCC)* . 19Cruise Control (CC)* ......................... 19Intelligent Speed Limit Assist (ISL A)* .......... 20Highway Driving Assist (HDA)* ............... 21Rear View Monitor (RVM) .................... 22Surround View Monitor (SVM)* ............... 22Rear Cross-traffic Collision-Avoidance Assist (RCCA) ................................... 23Forward*/Reverse Parking Distance Warning (PDW) .................................... 24
DRIVER’S PANEL
Instrument Cluster Control .................. 25Electronic Stability Control (ESC) ............. 25Hill-start Assist Control (HAC) ................ 25Power Windows, Window Lock & Central Door Lock ....................... 26Power Folding Outside Mirrors* .............. 26Heated Outside Mirrors ..................... 26Automatic Door Lock/Unlock ................ 26Manual Folding Mirrors* ..................... 26Reverse Parking Aid Function* ............... 27Engine Start/Stop Button .................... 27
STEERING WHEEL CONTROLS
Tilt/Telescoping Steering Wheel .............. 28Headlights & High Beams .................... 28High Beam Assist (HBA) ..................... 28Turn Signals & Fog Lights* ................... 29Windshield Wipers & Washers ................ 29Lifting Wipers (Wiper Service Mode) .......... 29Rear Wiper & Washer ........................ 29
INFOTAINMENT SYSTEM
Bluetooth® Wireless Technology .............. 30Audio Controls .............................. 31Android Auto™ / Apple CarPlay® Setup ........ 32Standard Audio System - Value* .............. 33Kia Connect Activation* / Kia Connect Assistance* 34 Kia Access App Download ................... 35Kia Access App Features Guide .............. 35Kia Connect with Navigation* ................ 36
CENTER PANEL
Digital Clock - Infotainment System .......... 37USB Charger Ports, Multimedia USB Port, Power Outlets & AC Inverter ............... 37Automatic Climate Control* .................. 38Manual Climate Control* ..................... 40Wireless Smartphone Charging System* ...... 41Electronic Parking Brake (EPB) / Auto Hold ... 42
CENTER PANEL (CONTINUED)
Automatic Gear Shift / Sportmatic® Shifting* . . 43Heated Steering Wheel* ..................... 44Seat Warmers / Ventilated Seats* ............. 44
SEATING
Front Seat Headrest Adjustment ............. 45Driver Position Memory System* ............. 45Power Adjustable Driver ’s Seat* ..............46Manual Adjustable Driver ’s Seat* .............46 2nd-Row VIP Seats with Relaxation Mode* .... 47Unfastening Center Seat Belt ................ 47 2nd-Row Removable Seats* .................. 48 2nd-Row Tumble (Center) Seat* .............. 49 3rd-Row Seat - Access, Folding and Stowing* . . 50
OTHER KEY FEATURES
Rear Occupant Alert (ROA) with Ultrasonic Sensors .................... 51Smart Key with Remote Start ................ 52Lock/Unlock All Doors ....................... 52Power Liftgate* ............................. 53Smart Liftgate with Auto Open & Close* ....... 54Power Sliding Doors ......................... 55Smart Sliding Door with Auto Open* .......... 55Passenger View* / Passenger Talk* ........... 55Map / Room Lamps / Sunvisor ................ 56Sunroof Operation .......................... 57Hood Release Lever and Latch ............... 58Fuel Filler Door Release ...................... 58Fuel Cap/Malfunction Indicator .............. 58HomeLink® w/Auto-Dimming Rearview Mirror* 59
SAFETY FEATURES
Seat Belts .................................. 60Occupant Detection System (ODS) / Passenger Airbag Off Indicator ............60Child-Protector Rear Door Lock ..............60
LEGAL DISCLAIMERS ....Inside Back Cover
MAINTENANCE SCHEDULE . .Back Cover
*IF EQUIPPED2CARNIVAL FEATURES & FUNCTIONS GUIDE
Page 21 of 64
0 KMH020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
DAUTO
Navigation-based Smart Cruise Control (NSCC)*†3
Navigation-based Smart Cruise Control can automatically adjust the vehicle speed when it detects a curved road ahead and when it receives road information from the navigation system.
To turn on NSCC, go to User Settings in the instrument cluster or the Vehicle Settings* in the infotainment system, by selecting Driving Convenience,* Highway Auto Speed Change. When SCC is on and operating, the vehicle is driving on limited/controlled access highways, and NSCC is turned on, NSCC is enabled and the AUTO icon A will illuminate white on the instrument cluster.
When NSCC detects a curve ahead, activates, and reduces the vehicle speed, the AUTO icon A will turn green. When the vehicle passes the curved road, the vehicle may return to its previously set SCC speed.
Highway Set Speed Auto Change: If the speed is set to the current speed limit on the highway during NSCC operation, the set speed is changed automatically whenever the speed limit changes.
REMINDER: NSCC is only available on controlled access roads and highways.
(Display on LCD screen)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Navigation-based Smart Cruise Control (NSCC) Video
QR CODE
A
Cruise Control (CC)†3
B
Driving Assist button: Press to turn the Cruise Control On/Off. The indicator will illuminate on the instrument cluster and the set speed will automatically activate at the vehicle’s current speed
C + button: Press up to increase Set speed
- button: Press down to set or decrease Set Speed
Pause/Resume button: Press to pause Cruise Control. Press again to resume Cruise Control
Your vehicle’s steering wheel but tons may differ from those in the illustrations.
Refer to section 5 in the Owner ’s Manual for more information.
•Cruise Control is designed to function at above 20 mph
•Cruise Control will not activate until the brake pedal has been depressed at least once after ignition ON or engine star t
QUICK TIPS
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button) Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
$
#
See section 5 in the Owner ’s Manual for more information. For more set ting information, refer to the Car Infotainment System Quick Reference Guide.
NSCC is a supplemental system and is not a substitute for safe driving. It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead.
REMINDER: In standard Cruise Control, the driver needs to manually assess the distance from other vehicles as the system will not automatically apply brakes.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 19
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS
Page 22 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED20CARNIVAL FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Intelligent & Manual Speed Limit Assist Video
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
60mphLIMIT
60mphLIMIT
Intelligent Speed Limit Assist (ISLA)*†3
Intelligent Speed Limit Assist monitors the vehicle speed and warns the driver when the vehicle surpasses the posted speed limit. ISL A is designed to use the information from the posted speed limit and the navigation system to also inform the driver to change the set speed for the Manual Speed, Limit Assist or Smart Cruise Control.
When ISL A is on and active, the system will display an alert on the Instrument Cluster LCD A of the detected speed limit. If the vehicle’s current speed exceeds the detected speed limit, a warning will sound and a warning indicator and the vehicle’s current speed will blink on the LCD until the vehicle speed returns to or is below the posted speed limit.
ISLA User Settings:
To turn ISL A on, press the Mode button B on the Steering Wheel and go to User Settings on the Instrument Cluster LCD. Press the Move (OK) button C up/down and select Driver Assistance by pressing the OK button C, then Intelligent Speed Limit Assist.
Select one of the three modes:
•Speed Limit Assist: To help the driver stay within the posted speed limit, ISL A informs the driver of the detected speed limit, displays a message to change the set speed of the SCC
•Speed Limit Warning: Informs the driver of the detected speed limit and warns the driver when the vehicle is traveling faster than the posted speed limit
•Off: ISL A is disabled
REMINDER: Additional information may be displayed if additional road sign information is detected.
When engaged, ISL A is not a substitute for safe and proper driving. Always drive safely and use caution.
Refer to section 5 in the Owner ’s Manual for more information
You can set a speed limit offset to the posted speed limit by going to User Set tings, Driver Assistance, Speed Limit, then Speed Limit Offset. Set the offset to “0” if you want the vehicle to travel at the detected speed limit, when ISL A is on
QUICK TIP
A
B
C
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS
Page 24 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED22CARNIVAL FEATURES & FUNCTIONS GUIDE
(Navigation screen display shown)
Rear View Monitor (RVM)†3
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the audio control head unit screens while the vehicle is in Reverse.
Rear View Monitor activates when the:
•Ignition or the Engine Start/Stop button* is in the ON position (Green Light)
•Gear Shift Lever is in the R (Reverse) position
REMINDER: The screen image on the right is for illustration purposes only. The actual image or graphics may differ in your vehicle.
The Rear View Monitor is not a substitute for proper and safe backing-up procedures. The Rear View Monitor may not display ever y object behind the vehicle. Always drive safely and use caution when backing up.
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 4 in the Owner ’s Manual for more information.
REMINDER: The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance.
The Surround View Monitoring (SVM) is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay at tention and directly check the left/right and rear.
Images are for illustrative purposes only and may not reflect actual feature or operation.
Surround View Monitor (SVM)*
Surround View Monitor (SVM) is a parking support system that shows the areas around the front, rear, left and right sides of the vehicle via four cameras displayed onto the audio head unit screen.
•Press the Parking/ View button A to turn on Surround View Monitor. Press the button again to turn off the function
•Other view modes can be selected by touching the view icons B on the Surround View Monitor screen
•Surround View Monitor Auto On: With Driver Assistance → Parking Safety → Surround View Monitor Auto On selected from the Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in D (Drive)
To change the SVM settings, press the onscreen settings icon C, while SVM is operating.
(Located below gear shift)
A
C
B
The Front View of SVM will turn off when the gear shift is moved into Park or Reverse or the Parking/View but ton is pressed.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Surround View Monitor (SVM) Video
QR CODE
See section 4 in the Owner ’s Manual for more information.
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS
Page 32 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED30CARNIVAL FEATURES & FUNCTIONS GUIDE
Pairing a Phone
For instructions on how to pair a phone, refer to the audio system’s user ’s guide or your vehicle’s Quick Start Guide.
How to Place a Call
Below are methods for placing a call using the Steering Wheel controls:
When using the voice command feature,* waiting for the system BEEP before speaking the command.
•Option 1: Press the Talk button* A. Then say the command “Call {name}” or “Dial {number}” followed by contact name or number
•Option 2: Press the Call button C (displays the phone screen with call history)
For more information, refer to the Car Infotainment System Quick Reference Guide.
Your vehicle’s steering wheel but tons may differ from those in the illustrations. See your Owner ’s Manual for more details.
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
For more information, if equipped, refer to the Car Infotainment System Quick Reference Guide. For Bluetooth® Wireless Technology FAQs, go to w w w.kia.com, Owners section, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA .

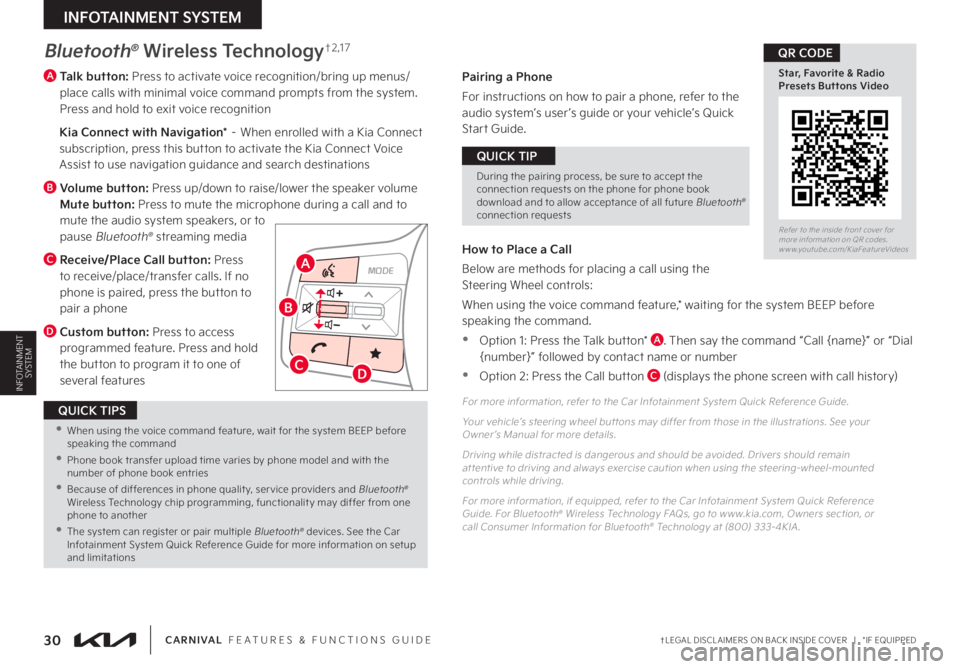

Bluetooth® Wireless Technology†2 , 1 7
A Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system. Press and hold to exit voice recognition
Kia Connect with Navigation* – When enrolled with a Kia Connect subscription, press this button to activate the Kia Connect Voice Assist to use navigation guidance and search destinations
B Volume button: Press up/down to raise/lower the speaker volume Mute button: Press to mute the microphone during a call and to mute the audio system speakers, or to pause Bluetooth® streaming media
C Receive/Place Call button: Press to receive/place/transfer calls. If no phone is paired, press the button to pair a phone
D Custom button: Press to access programmed feature. Press and hold the button to program it to one of several features
INFOTAINMENT SYSTEM
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button) Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK #
$ %
"
•When using the voice command feature, wait for the system BEEP before speaking the command
•
Phone book transfer upload time varies by phone model and with the number of phone book entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
•The system can register or pair multiple Bluetooth® devices. See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
QUICK TIPS
During the pairing process, be sure to accept the connection requests on the phone for phone book download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Star, Favorite & Radio Presets Buttons Video
QR CODE
INFOTAINMENTSYSTEM
Page 34 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED32CARNIVAL FEATURES & FUNCTIONS GUIDE
Android Auto™†2 / Apple CarPlay®†2 Setup
Android Auto™ compatible smartphone setup — Download the Android Auto™ app from the Google Play™ Store.†2 Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device.
Wireless Connection setup for Android Auto™ & Apple CarPlay® (Standard Audio System & Standard Audio System-Value with Kia Connect):
1. Press the SETUP key on the audio head unit
2. Press DEVICE CONNECTION SETTINGS
3. Press PHONE PROJECTION, then ADD NEW
Cable Connection setup for Android Auto™ (Standard Audio System, Standard Audio System-Value & Kia Connect with Navigation):
1. Press the SETUP key on the audio head unit
2. Press DEVICE CONNECTION, select Android Auto™ and then select ENABLE ANDROID AUTO. Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Android Auto™
3. Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4. From the vehicle’s home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death. The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
Cable Connection setup for Apple CarPlay® (Kia Connect with Navigation only):
1. Connect the Apple CarPlay® compatible iPhone®†2 with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®†2
2. Press the SETUP key on the audio head unit
3. Press DEVICE CONNECTION on the screen and select Apple CarPlay®
4. Select ENABLE APPLE CARPL AY. Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Apple CarPlay®
5. From the audio head unit home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
REMINDERS:
•Android Auto™ compatibilit y requirements for connection:
-Kia Connect with Navigation (USB cable connection only): OS Android™ 5.0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-Standard Audio System-Value (USB cable & wireless connection)
-
USB cable connection - OS Android™ 5.0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-
Wireless connection - OS Android™ 9.0 or higher with data plan for applicable feature(s)
•Apple CarPlay® compatibilit y requirements for connection:
-Kia Connect with Navigation (USB cable connection only): iOS soft ware 8.0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s)
-
Standard Audio System-Value (wireless connection only): iOS soft ware 10.0 and higher with data plan for applicable feature(s)
•
It is recommended to always update your phone to the latest operating system release
•
Wireless Android Auto™ system only works for cer tain Android models. Use the manufacturer ’s USB cable when wireless feature is not availableRefer to the Car Infotainment System Quick Reference Guide for more information.
•If Android Auto™ / Apple CarPlay® randomly disconnects:
-Ensure the USB cable is cer tified by the phone manufacturer for both power and data
-
Clean the phone’s por t, which the USB cable connects to, with disposable compressed air
-
The phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
-
Visit the phone manufacturers website for Android Auto™/ Apple CarPlay® app concerns
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Wireless Apple CarPlay® & Android™ Auto Video
QR CODE
INFOTAINMENT SYSTEM
INFOTAINMENTSYSTEM
Page 35 of 64
*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 33
REMINDERS:
•
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
•
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s battery
Standard Audio System - Value* — F M /A M/Media (USB, Bluetooth® Audio)
Sound Settings: To adjust the sound settings:
1. Press the SETUP key on the Infotainment System or the onscreen MENU button, when in MEDIA mode. Select the onscreen SOUND button, or SOUND SETTINGS
2.
Select the menu item (Position, Volume, Tone, Priority, Advanced, Default, FM Radio Noise Cancel*)
3.
Use the onscreen buttons to adjust settings. Press the return button to save settings
Presets: Press the STAR button next to or below the Radio Station display. This saves the current station as a preset.
Custom Key H: To program the Custom Key, press and hold the Custom key, then select one of the available features you would like the Custom key to open.
Software updates - To keep your software up to date, Kia provided over-the-air updates, free of charge. You can also snap the QR code to watch the video, or visit the official Kia update webpage at https://update.kia.com. Note, visiting a dealer for software update may include an additional charge.
For more information, refer to the Car Infotainment System Quick Reference Guide. For other audio system information, refer to pages 30-36.
(Audio controls above center console)
(System display)
Press to display SETUP/Set tings mode System reset
Press to Power ON/OFF. Rotate to adjust Volume
Press to select FM/AM/modes
Press to enter MEDIA mode
Rotate to change Radio Station/Media tracks/files. Press to select
POWERPUSHVOL
RADIO
MEDIA
SETUPSEEK
ENTER
TUNE
FILE
TRACK
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Standard Audio System – Value Video
Standard Audio System Updates Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only)
•
Navigation may be available when connected to Android Auto™ or Apple CarPlay® suppor ted smar tphones
•Voice Recognition function is available when connected to Android Auto™ and Apply CarPlay®
•
At any time, you can interrupt Command Feedback by pressing the TALK but ton; when using the voice command feature, wait for the system to BEEP before speaking the command
•
A warning screen may appear periodically to remind users that the system should be operated when the engine is running to prevent bat ter y discharge
QUICK TIPS
A programmable key to provide quick access to one of several available system features
Your vehicle’s audio system may differ from that in the illustrationPress briefly to do the following:• FM/AM mode: Play the previous/next frequency• MEDIA mode: Change the track, file or title (except for AUX)Press and hold to do the following (over 0.8 seconds):• FM/AM mode: Move quickly through all of the frequencies. When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for AUX and Bluetooth® Audio)
INFOTAINMENT SYSTEM
INFOTAINMENTSYSTEM
Page 36 of 64
Kia Connect Activation*†1
(Systems equipped with Kia Connect only):
Follow these steps to activate your UVO link system:
1. Enter the activation screen on your vehicle’s head unit:
a. Press SETUP key
b. Press Kia Connect icon
c. Press Activate Kia Connect
2. Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3. Enter number or email address to receive a verification code, then press SUBMIT
4. Follow these steps to receive your verification code using your phone text message or email:
a. Check your phone text message or email for verification code
b. Open the link in your text message or email. A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
c. Enter your first name, last name, email, phone number, and account password, and click CREATE ACCOUNT. A page will open displaying your verification code
d. Enter the code in the head unit and press ACTIVATE
e. Go back to the page with your verification code and press “I have entered my PIN.” A link will be provided to download the Kia Access app from your app store. After installing the app, log in and enjoy
REMINDER: This vehicle is not equipped with over-the-air system updates.
Kia Connect Assistance*
Virtual Assistant A — Press to connect to a virtual assistant to hear information about the Kia Connect features
Kia Connect B (non-navigation systems) — Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable — see previous page for availability and setup)
Kia Connect Voice Local Search B (systems with navigation) — Press to connect to the search function to find points of interest or other locations, like “cafe”
Roadside Assist C — Press to connect to a Roadside Assistant where you can request vehicle towing services
(But tons on rear view mirror*. Kia Connect but ton may be located on the overhead console area)
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED34CARNIVAL FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Access app Video
Kia Connect Activation Video
Kia Connect Assistance Video
QR CODE
BCA
INFOTAINMENT SYSTEM
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death. The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
For fur ther Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide.
Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachuset ts. See UVO Terms of Ser vice at owners.kia.com for more information.
INFOTAINMENTSYSTEM
Page 38 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED36CARNIVAL FEATURES & FUNCTIONS GUIDE
To adjust the sound settings from any audio mode: Press the SETUP button on the Audio Head Unit, then the onscreen SOUND button. Select the menu item to change settings, then use the onscreen buttons to adjust settings.
Presets: To Save a Preset, press and hold the desired slot. This saves the current station in the selected slot.
SiriusXM® Smart Favorites: In Radio mode, choose SiriusXM®, then select any of the first six favorites. During song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast.
Custom Key H To program a custom key, press and hold the Custom Key, then select one of the available features you would like the Custom Key to open.
Software updates - To keep your software up to date, Kia provided over-the-air updates, free of charge. You can also snap the QR code to watch the video, or visit the official Kia update webpage at https://update.kia.com. Note, visiting a dealer for software update may include an additional charge.
Kia Connect†1 with Navigation*†8 – F M /A M /S ir i us X M®†1 5/Media (USB, Aux, Bluetooth® A u d i o )
Your vehicle’s audio system may differ from that in the illustration.
For fur ther Kia Connect with Navigation operations, refer to the Car Infotainment System Quick Reference Guide.
Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachuset ts. See Kia Connect Terms of Ser vice at owners.kia.com for more information.
REMINDERS:
•
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
•
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• SiriusXM® mode: Change the channel• MEDIA mode: Change the track, file or title (except for AUX)Press and hold to do the following (over 0.8 seconds):• FM/AM mode: Move quickly through all of the frequencies. When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for AUX and Bluetooth® Audio)
A programmable key to provide quick access to one of several available system features
Press to display SETUP/Set tings mode Press to Power ON/OFF. Rotate to adjust Volume
Press to select FM/AM/SiriusXM® modesPress to enter MEDIA mode
Press to display the Map screen for the current position/ Voice mode
Press to display the Navigation menu screen
Rotate to change Radio/SiriusXM® Station/Media tracks/files. Press to select
POWERPUSHVOL
MAPENGINESTART
STOPN AV RADIO MEDIA SETUP
SEEK
TRACK
ENTER
TUNE
FILE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Connect with Navigation Video
Navigation System Important Tips Video
Navigation System Updates Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
•When connected to Android Auto™ or Apple CarPlay® on your smar t-phone, the smar tphone’s navigation system may also be available
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
•A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•At any time, you can interrupt Kia Connect Command Feedback by pressing the TALK but ton on the steering wheel
QUICK TIPS
INFOTAINMENT SYSTEM
For other audio system information, see pages 30-35.
INFOTAINMENTSYSTEM
