KIA CEED 2010 Owners Manual

8
Dimensions / 8-2
Bulb wattage / 8-3
Tires and wheels / 8-4
Recommended lubricants and capacities / 8-5
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification and pressure label / 8-8
Engine number / 8-8
Specifications & Consumer information

Specifications & Consumer information
2
8
DIMENSIONS
Item 5 door 5 door wagon 3 door
Overall length 4260 (167.7) 4490 (176.8) 4250 (167.3)
Overall width 1790 (70.5)
Overall height 1480 (58.3) 1525 (60.0) 1450 (57.1)
Front tread 1546* 1
/1538* 2
/1532* 3
/1528* 4
(60.9* 1
/60.6* 2
/60.3* 3
/60.2* 4
)
Rear tread 1544* 1
/1536* 2
/1530* 3
/1527* 4
(60.8* 1
/60.5* 2
/60.2* 3
/60.1* 4
)
Wheelbase 2650 (104.3)
*1
Fitted with 185/65R15 or 195/65R15 tires.
* 2
Fitted with 205/55R16 tires. (6.0Jx16)
* 3
Fitted with 205/55R16 tires. (6.5Jx16)
* 4
Fitted with 225/45R17 tires. mm (in)

83
Specifications & Consumer information
BULB WATTAGE
Light BulbWattage
5 door 5 door wagon 3 door
Headlights High 55 55 55
Low 55 55 55
Front turn signal lights 21 21 21
Position lights 5 5 5
Side repeater lights (if equipped) 5 5 5
Front fog lights (if equipped) 27 27 55
Stop and tail lights 21/5 21/5 21/5
Tail lights - 5 -
Rear turn signal lights 21 21 21
Back-up lights 16 21 16
Rear fog lights (if equipped) 21 21 21
High mounted stop light 2 (LED *1
) 2 (LED *1
) 2 (LED *1
)
License plate lights 5 5 5
Front map lamp 10 10 10
Center dome lamp 8 8 8
Luggage room lamp 5 5 5
Glove box lamp 5 5 5
*1
LED : Light-emitting diode

Specifications & Consumer information
4
8

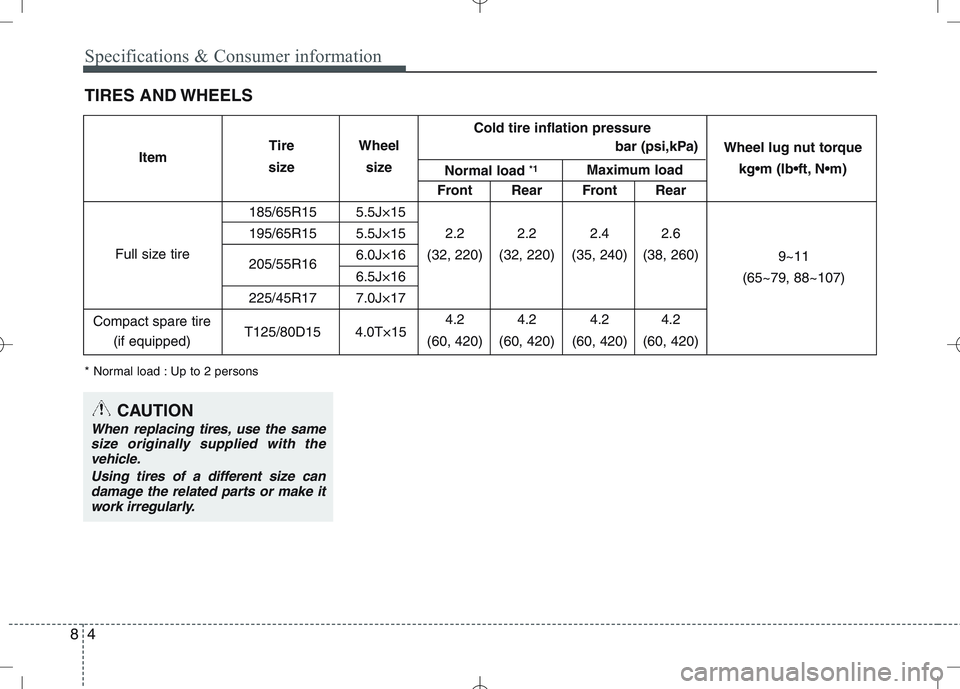

TIRES AND WHEELS
* Normal load : Up to 2 persons
CAUTION
When replacing tires, use the same size originally supplied with thevehicle.
Using tires of a different size candamage the related parts or make itwork irregularly.
Front Rear Front Rear
185/65R15 5.5J×15
195/65R15 5.5J×15 2.2 2.2 2.4 2.6 205/55R16 6.0J×16 (32, 220) (32, 220) (35, 240) (38, 260) 6.5J×16
225/45R17 7.0J×17
T125/80D15 4.0T×15 4.2 4.2 4.2 4.2
(60, 420) (60, 420) (60, 420) (60, 420)
Full size tire
Compact spare tire (if equipped) Normal load
*1
Maximum load Wheel lug nut torque

9~11
(65~79, 88~107)
Item
Tire
size Wheel
size Cold tire inflation pressure
bar (psi,kPa)

85
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
*1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing the amount
of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer
significant cost and energy savings.
* 3
If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant
Volume Classification
1.4L/1.6L 3.3 l(3.5 US qt.)
2.0L 4.0 l(4.2 US qt.)
With DPF (Diesel Particulate filter) ; ACEA C3
1.6L 5.3 l(5.6 US qt.) Without DPF (Diesel Particulate filter)
; API Service CH-4 or above, ACEA B4
2.0L 6.7 l(6.2 US qt.) With DPF (Diesel Particulate filter) ; ACEA C3
Without DPF (Diesel Particulate filter)
; API Service CH-4 or above, ACEA B4
1.9 l(2.0 US qt.
)
API GL-4
1.6L 1.9 l (2.0 US qt.)
SAE 75W-85 (fill for-life)
2.0L 1.75 l(1.85 US qt.)
Automatic transaxle fluid 1.4L/1.6L 6.8
l(7.2 US qt.)
DIAMOND ATF SP-III,
2.0L 6.6 l(6.9 US qt.) SK ATF SP-III
1.4L/1.6L 5.8~5.9 l (6.1~6.2 US qt.)
Coolant 2.0L 6.2~6.3
l(6.6~6.7 US qt.)
Ethylene glycol base for aluminum radiator
1.6L 6.3 l(6.7 US qt.)
2.0L 7.3 l(7.7 US qt.)
Brake/Clutch fluid 0.7~0.8 l (0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel 53 l (14 US gal) -
Manual transaxle fluid Gasoline
Engine
Diesel
EngineGasoline Engine
Diesel
Engine
Gasoline Engine
Diesel
Engine
Engine oil *1 *2
(drain and refill) Recommends
- For Europe For Europe
API Service SL or SM, ACEA A3 or above
Use the engine oils approved by KIA Motors.
Consult an authorized KIA dealer for details.
Except Europe
API Service SM*
3
, ILSAC GF-4 or above

Specifications & Consumer information
6
8
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be operat-
ed in before the next oil change. Proceedto select the recommended oil viscosity
from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especially
important in dusty or sandy areasand when the vehicle is used on unpaved roads. Cleaning the plugand dipstick areas will prevent dirt
and grit from entering the engine and other mechanisms that couldbe damaged.
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
0W-40, 5W-30, 5W-40 (API Service SL, SM / ACEA A3 or above).
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SL, SM / ILSAC GF-3 or above). However, if the engine oil is not available
in your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: If your vehicle follows 30,000 km/ 1 year interval in normal maintenance schedule, use the
engine oil of viscosity grade, SAE 5W-30/40 or SAE 0W-30/40.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1
(For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil * 45W-30
15W-40
10W-30
5W-40
0W-40, 5W-30, 5W-40
Gasoline
Engine Oil * 2
(Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
0W-30, 0W-40

87
Specifications & Consumer information
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, remove the cover (1).VIN label (if equipped)
The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION
LABEL (IF EQUIPPED)
OED056002
OED056004 OED056005
OED056001
Type A
OED056003
Type B (if equipped)Identification label (if equipped)
Compliance label (if equipped)
VIN bar code (if equipped)

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.The engine number is stamped on the
engine block as shown in the drawing.
88
Specifications & Consumer information
OED056006
TIRE SPECIFICATION AND PRESSURE LABEL
OFD087004
1.4L/1.6L Gasoline engine
OFD087005
2.0L Gasoline engineOFD087006
OFD087007
2.0L Diesel engine
ENGINE NUMBER
1.6L Diesel engine
