KIA CEED 2011 Owners Manual

787

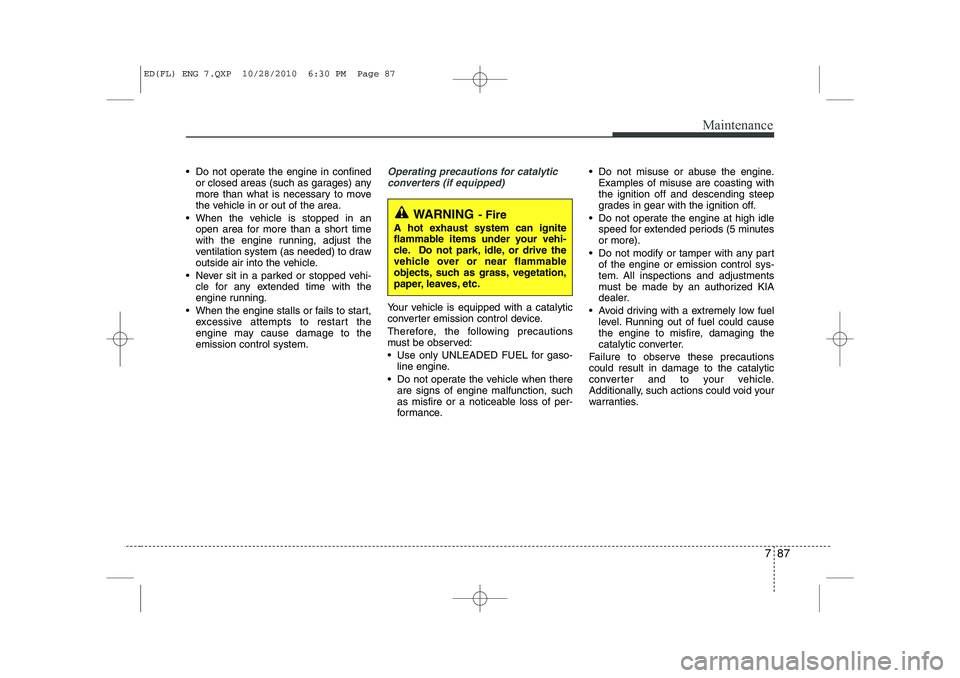

Maintenance
 Do not operate the engine in confinedor closed areas (such as garages) any
more than what is necessary to move
the vehicle in or out of the area.
 When the vehicle is stopped in an open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to draw
outside air into the vehicle.
 Never sit in a parked or stopped vehi- cle for any extended time with the
engine running.
 When the engine stalls or fails to start, excessive attempts to restart the
engine may cause damage to theemission control system.Operating precautions for catalytic
converters (if equipped)
Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions
must be observed:
 Use only UNLEADED FUEL for gaso- line engine.
 Do not operate the vehicle when there are signs of engine malfunction, such
as misfire or a noticeable loss of per-
formance.  Do not misuse or abuse the engine.
Examples of misuse are coasting withthe ignition off and descending steep
grades in gear with the ignition off.
 Do not operate the engine at high idle speed for extended periods (5 minutesor more).
 Do not modify or tamper with any part of the engine or emission control sys-
tem. All inspections and adjustments
must be made by an authorized KIA
dealer.
 Avoid driving with a extremely low fuel level. Running out of fuel could cause
the engine to misfire, damaging the
catalytic converter.
Failure to observe these precautionscould result in damage to the catalytic
converter and to your vehicle.
Additionally, such actions could void your
warranties.
WARNING - Fire
A hot exhaust system can ignite
flammable items under your vehi-
cle. Do not park, idle, or drive the
vehicle over or near flammable
objects, such as grass, vegetation,
paper, leaves, etc.
ED(FL) ENG 7.QXP 10/28/2010 6:30 PM Page 87

Maintenance
88
7
Diesel Particulate Filter (if equipped)
The Diesel Particulate Filter (DPF) sys-
tem removes the soot emitted from the
vehicle.
Unlike a disposable air filter, the DPF
system automatically burns (oxidizes)
and removes the accumulated soot
according to the driving condition. In
other words, the active burning by engine
control system and high exhaust gas
temperature caused by normal/high driv-
ing condition burns and removes the
accumulated soot.
However, if the vehicle continues to be
driven at low speed for long time, the
accumulated soot may not be automati-
cally removed because of low exhaust
gas temperature. In this particular case,the amount of soot is out of detection
limit, the soot oxidation process by
engine control system may not happen
and the malfunction indicator light may
blink. When the malfunction indicator light
blinks, it may stop blinking by driving the
vehicle at more than 60km/h (37 mph) orat more than second gear with 1500 ~
2000 engine rpm for a certain time (for
about 25 minutes). If the malfunction indicator light contin-
ues to be blinked in spite of the proce-
dure, please visit an authorized KIA deal-
er and then check the DPF system.
If you continue to drive with the malfunc-
tion indicator light blinking for a long
time, the DPF system can be damaged
and fuel consumption can be worsen.
CAUTION -
Diesel Fuel
(if equipped with DPF)
It is recommended to use the regu- lated automotive diesel fuel for diesel vehicle equipped with the
DPF system.
If you use diesel fuel including highsulfur (more than 50 ppm sulfur) and unspecified additives, it can
cause the DPF system to be dam- aged and white smoke can be emit-ted.
ED(FL) ENG 7.QXP 10/28/2010 6:30 PM Page 88

8
Dimensions / 8-2 Bulb wattage / 8-3
Tires and wheels / 8-4Recommended lubricants and capacities / 8-5
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification and pressure label / 8-8
Engine number / 8-8
Specifications & Consumer information
ED(FL) ENG 8.QXP 10/28/2010 6:03 PM Page 1

Specifications & Consumer information
2
8
DIMENSIONS
Item 5 door 5 door wagon 3 door
Overall length 4260 (167.7) 4490 (176.8) 4250 (167.3)
Overall width 1790 (70.5)
Overall height 1480 (58.3) 1525 (60.0)* 1
1450 (57.1)
Front tread 1546* 2
/1538* 3
/1532* 4
/1528* 5
(60.9* 2
/60.6* 3
/60.3* 4
/60.2* 5
)
Rear tread 1544* 2
/1536* 3
/1530* 4
/1527* 5
(60.8* 2
/60.5* 3
/60.2* 4
/60.1* 5
)
Wheelbase 2650 (104.3)
*1
Without roof rack : 1490 (58.7)
* 2
Fitted with 185/65R15 or 195/65R15 tires.
* 3
Fitted with 205/55R16 tires. (6.0Jx16)
* 4
Fitted with 205/55R16 tires. (6.5Jx16)
* 5
Fitted with 225/45R17 tires. mm (in)
ED(FL) ENG 8.QXP 10/28/2010 6:03 PM Page 2

83
Specifications & Consumer information
BULB WATTAGE
Light BulbWattage
5 door 5 door wagon 3 door
Headlights High 55 55 55
Low 55 55 55
Front turn signal lights 21 21 21
Position lights 5 5 5
Side repeater lights (if equipped) 5 5 5
Front fog lights (if equipped) 27 27 55
Stop and tail lights 21/5 21/5 21/5
Tail lights - 5 -
Rear turn signal lights 21 21 21
Back-up lights 16 21 16
Rear fog lights (if equipped) 21 21 21
High mounted stop light 2 (LED *1
) 2 (LED *1
) 2 (LED *1
)
License plate lights 5 5 5
Front map lamp 10 10 10
Center dome lamp 8 8 8
Luggage room lamp 5 5 5
Glove box lamp 5 5 5
*1
LED : Light-emitting diode
ED(FL) ENG 8.QXP 10/28/2010 6:03 PM Page 3

Specifications & Consumer information
4
8

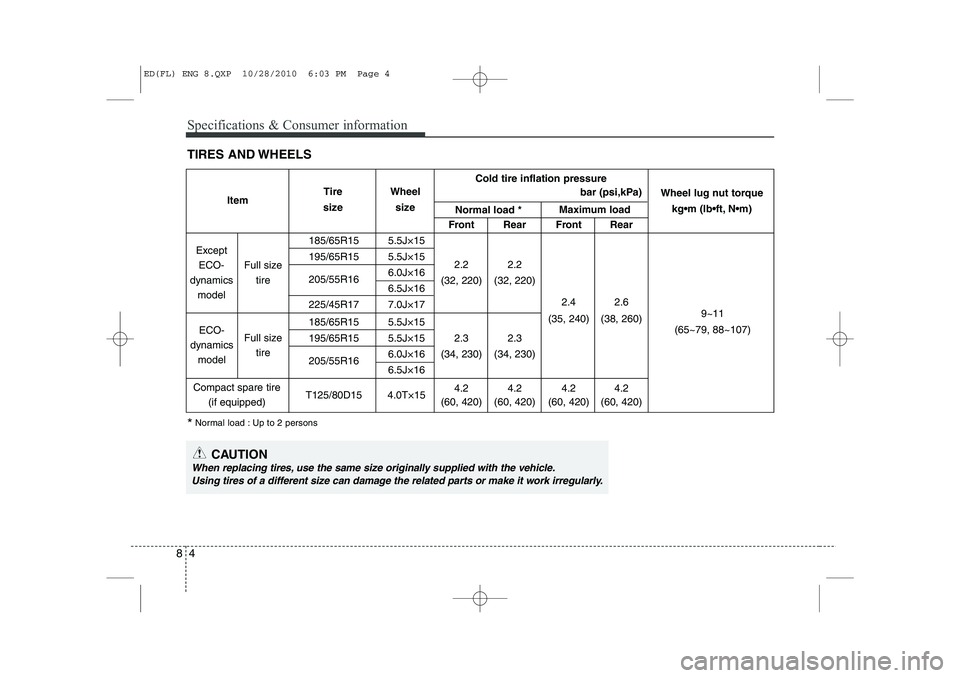

TIRES AND WHEELS
* Normal load : Up to 2 persons
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
Front Rear Front Rear
185/65R15 5.5J×15 195/65R15 5.5J×15 2.2 2.2
205/55R16 6.0J×16
(32, 220) (32, 220)
6.5J×16
225/45R17 7.0J×17 2.4 2.6
185/65R15 5.5J×15 (35, 240) (38, 260)
195/65R15 5.5J×15 2.3 2.3 205/55R16 6.0J×16 (34, 230) (34, 230) 6.5J×16
T125/80D15 4.0T×15 4.2 4.2 4.2 4.2
(60, 420) (60, 420) (60, 420) (60, 420)
Full size
tire
Except
ECO-
dynamics model
ECO-
dynamics
model Full size
tire
Compact spare tire (if equipped) Normal load *
Maximum loadWheel lug nut torque
kg•m (lbft, Nm)
9~11
(65~79, 88~107)
Item
Tire
size Wheel
size Cold tire inflation pressure
bar (psi,kPa)
ED(FL) ENG 8.QXP 10/28/2010 6:03 PM Page 4

85
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
* 1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing the amount
of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer
significant cost and energy savings.
* 3
If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolumeClassification
Engine oil *1 *2
(drain and refill) Recommends
- For Europe
Gasoline Engine
1.4L/1.6L3.3 l(3.5 US qt.)For Europe
API Service SM, ACEA A3 or above
Use the engine oils approved by KIA Motors.
Consult an authorized KIA dealer for details.
Except Europe
API Service SM* 3
, ILSAC GF-4 or above
2.0L4.0 l(4.2 US qt.)
Diesel Engine5.3 l(5.6 US qt.)With DPF (Diesel Particulate filter) ; ACEA C3
Without DPF (Diesel Particulate filter)
; API Service CH-4 or above, ACEA B4
Manual transaxle fluidGasoline Engine1.9 l(2.0 US qt.)API GL-4
SAE 75W-85 (fill for-life)
Diesel Engine1.9 l(2.0 US qt.)
Automatic transaxle fluid1.4L/1.6L6.8 l(7.2 US qt.)DIAMOND ATF SP-III,
SK ATF SP-III
2.0L6.6 l(6.9 US qt.)
Coolant
Gasoline
Engine1.4L/1.6L5.8~5.9 l(6.1~6.2 US qt.)
Ethylene glycol base for aluminum radiator 2.0L6.2~6.3 l(6.6~6.7 US qt.)
Diesel Engine6.3 l(6.7 US qt.)
Brake/Clutch fluid0.7~0.8 l(0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel53 l(14 US gal)-
ED(FL) ENG 8.QXP 10/28/2010 6:03 PM Page 5

Specifications & Consumer information
6
8
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be operat-
ed in before the next oil change. Proceedto select the recommended oil viscosity
from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especially
important in dusty or sandy areas and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirt
and grit from entering the engine and other mechanisms that couldbe damaged.
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
0W-40, 5W-30, 5W-40 (API Service SM / ACEA A3 or above).
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SM / ILSAC GF-3 or above). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: If your vehicle follows 30,000 km/ 1 year interval in normal maintenance schedule, use the
engine oil of viscosity grade, SAE 5W-30/40 or SAE 0W-30/40.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1
(For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil * 45W-30
15W-40
10W-30
5W-40
0W-40, 5W-30, 5W-40
Gasoline
Engine Oil * 2
(Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
0W-30, 0W-40
ED(FL) ENG 8.QXP 10/28/2010 6:03 PM Page 6

87
Specifications & Consumer information

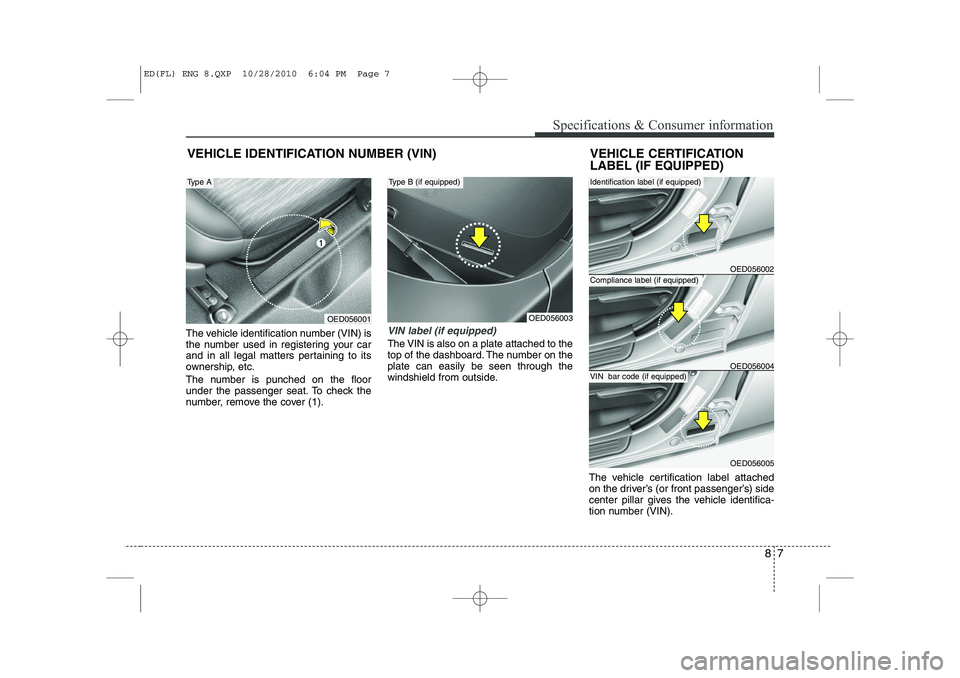

The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, remove the cover (1).VIN label (if equipped)
The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION
LABEL (IF EQUIPPED)
OED056002
OED056004 OED056005
OED056001
Type A
OED056003
Type B (if equipped)Identification label (if equipped)
Compliance label (if equipped)
VIN bar code (if equipped)
ED(FL) ENG 8.QXP 10/28/2010 6:04 PM Page 7

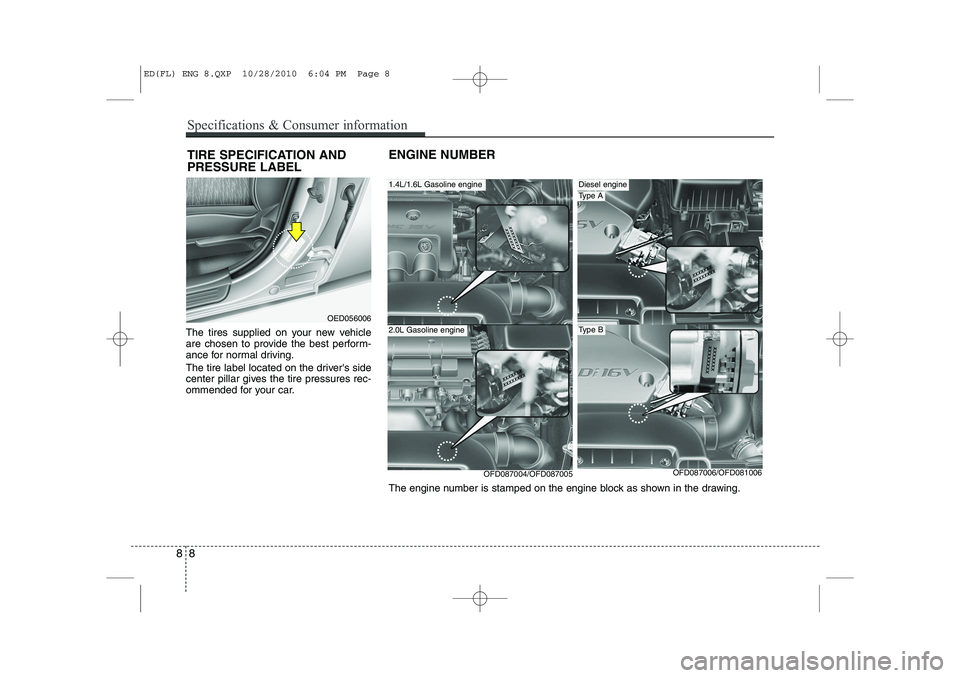

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
88
Specifications & Consumer information
OED056006
TIRE SPECIFICATION AND PRESSURE LABEL
1.4L/1.6L Gasoline engine
OFD087004/OFD087005
2.0L Gasoline engine
ENGINE NUMBER
Diesel engine
Type B
Type A
The engine number is stamped on the engine block as shown in the drawing. OFD087006/OFD081006
ED(FL) ENG 8.QXP 10/28/2010 6:04 PM Page 8
