Your vehicle's fuel economy depends
mainly on your style of driving, where you
drive and when you drive.
Each of these factors affects how many
kilometers (miles) you can get from a
liter (gallon) of fuel. To operate your vehi-
cle as economically as possible, use the
following driving suggestions to help
save money in both fuel and repairs:
Drive smoothly. Accelerate at a moder-ate rate. Don't make "jack-rabbit" starts or full-throttle shifts and maintain a
steady cruising speed. Don't race
between stoplights. Try to adjust your
speed to the traffic so you don't have to
change speeds unnecessarily. Avoid
heavy traffic whenever possible.
Always maintain a safe distance from
other vehicles so you can avoid unnec-
essary braking. This also reduces
brake wear.
Drive at a moderate speed. The faster you drive, the more fuel your vehicle
uses. Driving at a moderate speed,
especially on the highway, is one of the
most effective ways to reduce fuel con-sumption. Don't "ride" the brake or clutch pedal.
This can increase fuel consumption
and also increase wear on these com-
ponents. In addition, driving with your
foot resting on the brake pedal may
cause the brakes to overheat, which
reduces their effectiveness and may
lead to more serious consequences.
Take care of your tires. Keep them inflated to the recommended pressure.
Incorrect inflation, either too much or
too little, results in unnecessary tire
wear. Check the tire pressures at leastonce a month.
Be sure that the wheels are aligned correctly. Improper alignment can
result from hitting curbs or driving too
fast over irregular surfaces. Poor align-
ment causes faster tire wear and may
also result in other problems as well as
greater fuel consumption. Keep your vehicle in good condition.
For better fuel economy and reduced
maintenance costs, maintain your vehi-cle in accordance with the mainte-
nance schedule in Section 7. If you
drive your vehicle in severe conditions,more frequent maintenance is required
(see Section 7 for details).
Keep your vehicle clean. For maximum service, your vehicle should be kept
clean and free of corrosive materials. It
is especially important that mud, dirt,
ice, etc. not be allowed to accumulate
on the underside of the vehicle. This
extra weight can result in increased
fuel consumption and also contributeto corrosion.
Travel lightly. Don't carry unnecessary weight in your vehicle. Weight reduces
fuel economy.
Don't let the engine idle longer than necessary. If you are waiting (and not
in traffic), turn off your engine and
restart only when you're ready to go.
ECONOMICAL OPERATION
ED(FL) ENG 5.QXP 10/28/2010 6:24 PM Page 35
Page 250 of 390
543
Driving your vehicle
Use high quality ethylene glycol coolant
Your vehicle is delivered with high quality
ethylene glycol coolant in the cooling
system. It is the only type of coolant that
should be used because it helps prevent
corrosion in the cooling system, lubri-
cates the water pump and prevents
freezing. Be sure to replace or replenish
your coolant in accordance with themaintenance schedule in section 7.
Before winter, have your coolant tested toassure that its freezing point is sufficient
for the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on the
battery system. Visually inspect the bat-
tery and cables as described in section
7. The level of charge in your battery can
be checked by an authorized KIA dealer
or a service station.Change to "winter weight" oil if
necessary In some climates it is recommended that
a lower viscosity "winter weight" oil be
used during cold weather. See section 8
for recommendations. If you aren't sure
what weight oil you should use, consult
an authorized KIA dealer.
Check spark plugs and ignition system
Inspect your spark plugs as described in
section 7 and replace them if necessary.
Also check all ignition wiring and compo-
nents to be sure they are not cracked,
worn or damaged in any way.
WARNING
- Tire chains
The use of chains may adversely affect vehicle handling.
Do not exceed 30 km/h (20 mph) or the chain manufacturer’s rec-
ommended speed limit, whichev-
er is lower.
Drive carefully and avoid bumps, holes, sharp turns, and other
road hazards, which may cause
the vehicle to bounce.
Avoid sharp turns or locked- wheel braking.
CAUTION
Chains that are the wrong size or
improperly installed can damage
your vehicle's brake lines, sus-pension, body and wheels.
Stop driving and retighten the chains any time you hear themhitting the vehicle.
ED(FL) ENG 5.QXP 10/28/2010 6:24 PM Page 43
Page 257 of 390
Driving your vehicle
50
5
When you are ready to leave after park- ing on a hill
1. With the manual transaxle in Neutral
or automatic transaxle in P (Park),
apply your brakes and hold the brake
pedal down while you:
Start your engine;
Shift into gear; and
Release the parking brake.
2. Slowly remove your foot from the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks. Maintenance when trailer towing
Your vehicle will need service more often
when you regularly pull a trailer.
Important items to pay particular atten-tion to include engine oil, automatic
transaxle fluid, axle lubricant and cooling
system fluid. Brake condition is another
important item to frequently check. Each
item is covered in this manual, and the
Index will help you find them quickly. If
you’re trailering, it’s a good idea to review
these sections before you start your trip.
Don’t forget to also maintain your trailer
and hitch. Follow the maintenance
schedule that accompanied your trailer
and check it periodically. Preferably, con-
duct the check at the start of each day’s
driving. Most importantly, all hitch nutsand bolts should be tight.CAUTION
Due to higher load during trailer
usage, overheating might occur
in hot days or during uphill driv- ing. If the coolant gauge indicatesover-heating, switch off the A/Cand stop the vehicle in a safe area
to cool down the engine.
When towing, check the transaxle fluid more frequently.
If your vehicle is not equipped with an air conditioner, you
should install a condenser fan to improve engine performancewhen towing a trailer.
ED(FL) ENG 5.QXP 10/28/2010 6:24 PM Page 50
Page 285 of 390
7
Engine compartment / 7-2 Maintenance services / 7-4
Owner maintenance / 7-6Scheduled maintenance service / 7-8Explanation of scheduled maintenance items / 7-27Engine oil / 7-30Engine coolant / 7-31Brake/clutch fluid / 7-34Automatic transaxle fluid / 7-35
Washer fluid / 7-37Parking brake / 7-37
Fuel filter / 7-38
Air cleaner / 7-39
Climate control air filter / 7-41
Wiper blades / 7-43Battery / 7-46
Tires and wheels / 7-49 Fuses / 7-59Light bulbs / 7-68
Appearance care / 7-79
Emission control system / 7-85
Maintenance
ED(FL) ENG 7.QXP 10/28/2010 6:25 PM Page 1
Page 288 of 390
Maintenance
4
7

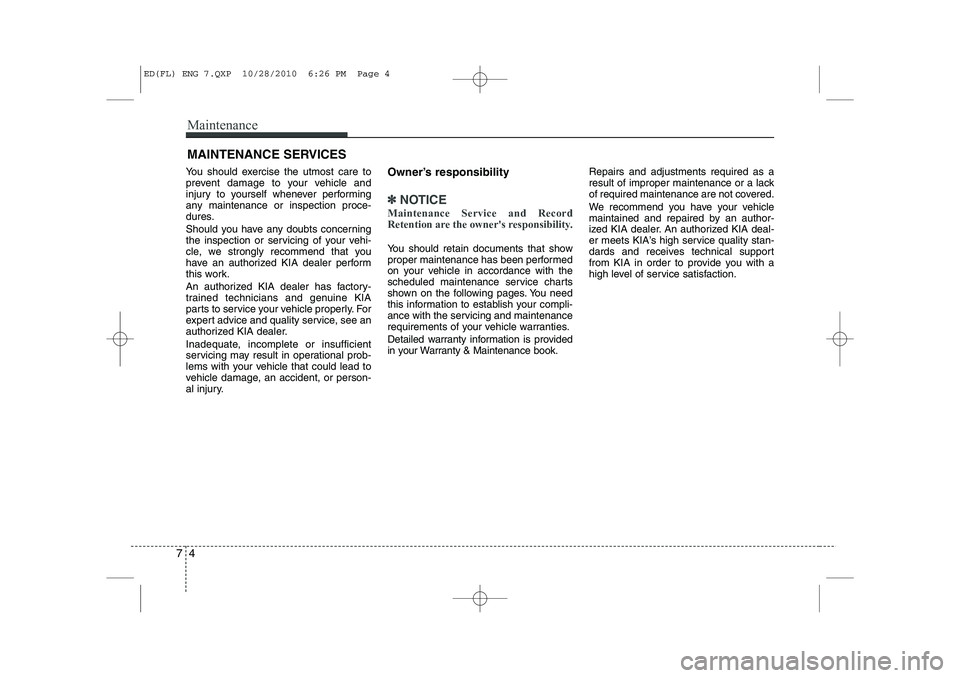

MAINTENANCE SERVICES
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection proce-
dures.
Should you have any doubts concerning
the inspection or servicing of your vehi-
cle, we strongly recommend that you
have an authorized KIA dealer perform
this work.
An authorized KIA dealer has factory-
trained technicians and genuine KIA
parts to service your vehicle properly. For
expert advice and quality service, see an
authorized KIA dealer.
Inadequate, incomplete or insufficient
servicing may result in operational prob-
lems with your vehicle that could lead to
vehicle damage, an accident, or person-
al injury. Owner’s responsibility
✽✽
NOTICE
Maintenance Service and Record
Retention are the owner's responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with the
scheduled maintenance service charts
shown on the following pages. You need
this information to establish your compli-
ance with the servicing and maintenance
requirements of your vehicle warranties.
Detailed warranty information is provided
in your Warranty & Maintenance book. Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
We recommend you have your vehicle
maintained and repaired by an author-
ized KIA dealer. An authorized KIA deal-
er meets KIA’s high service quality stan-
dards and receives technical support
from KIA in order to provide you with a
high level of service satisfaction.
ED(FL) ENG 7.QXP 10/28/2010 6:26 PM Page 4
Page 292 of 390
Maintenance
8
7

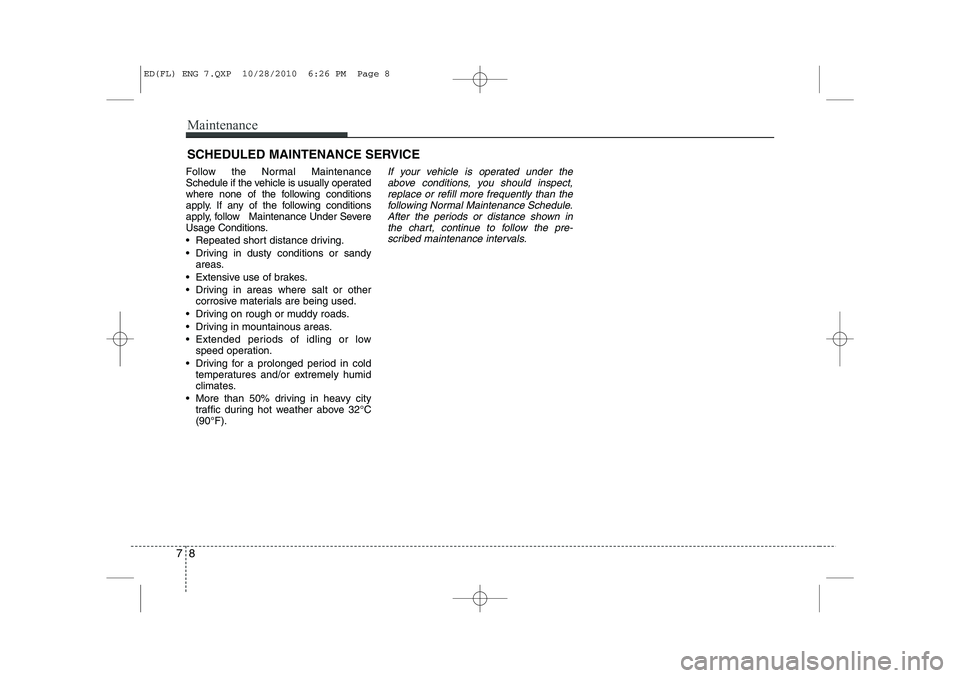

SCHEDULED MAINTENANCE SERVICE
Follow the Normal Maintenance
Schedule if the vehicle is usually operated
where none of the following conditions
apply. If any of the following conditions
apply, follow Maintenance Under Severe
Usage Conditions.
Repeated short distance driving.
Driving in dusty conditions or sandy areas.
Extensive use of brakes.
Driving in areas where salt or other corrosive materials are being used.
Driving on rough or muddy roads.
Driving in mountainous areas.
Extended periods of idling or low speed operation.
Driving for a prolonged period in cold temperatures and/or extremely humid
climates.
More than 50% driving in heavy city traffic during hot weather above 32°C(90°F).
If your vehicle is operated under the
above conditions, you should inspect, replace or refill more frequently than thefollowing Normal Maintenance Schedule.
After the periods or distance shown inthe chart, continue to follow the pre- scribed maintenance intervals.
ED(FL) ENG 7.QXP 10/28/2010 6:26 PM Page 8
Page 378 of 390
Specifications & Consumer information
6
8

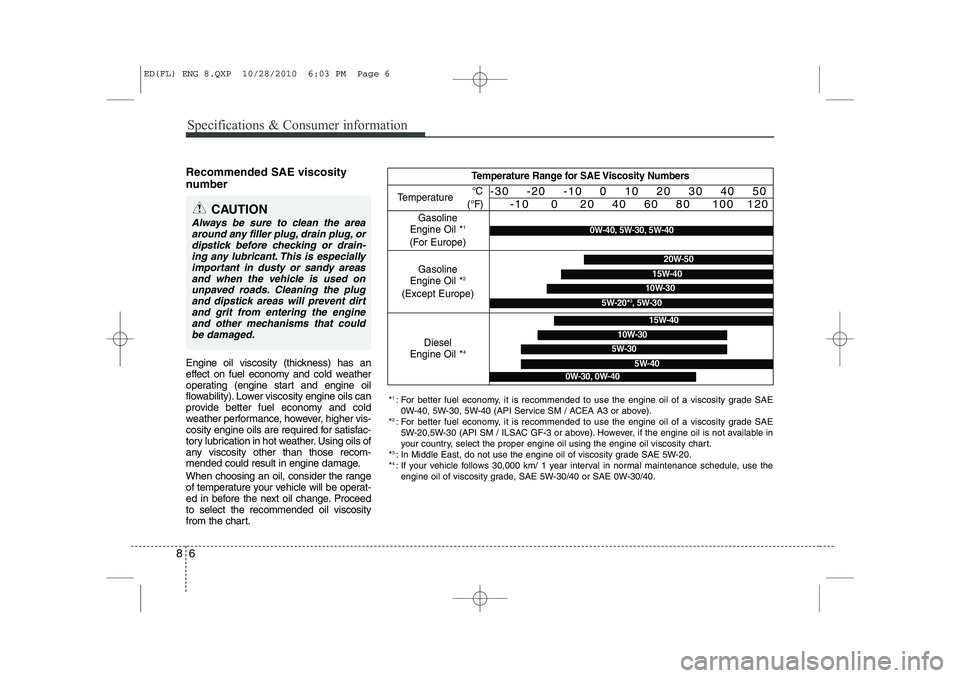

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be operat-
ed in before the next oil change. Proceedto select the recommended oil viscosity
from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especially
important in dusty or sandy areas and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirt
and grit from entering the engine and other mechanisms that couldbe damaged.
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
0W-40, 5W-30, 5W-40 (API Service SM / ACEA A3 or above).
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SM / ILSAC GF-3 or above). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: If your vehicle follows 30,000 km/ 1 year interval in normal maintenance schedule, use the
engine oil of viscosity grade, SAE 5W-30/40 or SAE 0W-30/40.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1
(For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil * 45W-30
15W-40
10W-30
5W-40
0W-40, 5W-30, 5W-40
Gasoline
Engine Oil * 2
(Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
0W-30, 0W-40
ED(FL) ENG 8.QXP 10/28/2010 6:03 PM Page 6
Page 387 of 390
I7
Index
Main fuse ········································································7-62 Maintenance
Explanation of scheduled maintenance items ···········7-27Maintenance services ················································· 7-4
Maintenance under severe usage conditions (1.4/1.6L Gasoline) ················································7-13
Maintenance under severe usage conditions (2.0L Gasoline) ······················································7-19
Maintenance under severe usage conditions (1.6L Diesel) ··························································7-25
Normal maintenance schedule (1.4/1.6L Gasoline)····7-9 Normal maintenance schedule (2.0L Gasoline) ········7-15
Normal maintenance schedule (1.6L Diesel) ············7-21
Owner maintenance ····················································7-6
Scheduled maintenance service ·································7-8
Tire maintenance ······················································7-54
Maintenance services ·······················································7-4
Manual climate control system ······································4-70 Air conditioning ·······················································4-75
Climate control air filter ··········································4-78
Heating and air conditioning ····································4-71
Manual heating and air conditioning ·····························4-81
Manual transaxle ······························································5-9
Map lamp ········································································4-68
Memory fuse ··································································7-61 Mirrors ···········································································4-32
Day/night rearview mirror ·······································4-32
Electric chromic mirror (ECM) ·······························4-32
Inside rearview mirror ··············································4-32
Outside rearview mirror ···········································4-33
Moonroof, see panorama sunroof ··································4-26
Mounting bracket for roof carrier ·································4-102
Multi box·········································································4-91
Neck restraints, see headrest ··································3-6, 3-12Odometer ·······································································4-40
Oil (Engine) ···································································7-30
Outside mirror defroster ················································4-69
Outside rearview mirror ·················································4-33Overheats ·········································································6-6
Owner maintenance ·························································7-6
Panorama sunroof ··························································4-26
Parking brake inspect ·····················································7-37
Parking brake ·································································5-19
Passenger's front air bag ················································3-43
M
O
N
P
ED(FL) Index.qxp 6/28/2010 11:04 AM Page 7
Page 388 of 390
Index
8
I
Position light bulb replacement ·····································7-71
Power brakes ··································································5-18
Power outlet ···································································4-95
Power window lock button ············································4-19
Pre-tensioner seat belt ····················································3-20
Push starting ·····································································6-5 Rear combination light bulb replacement ······················7-74
Rear fog light ··································································4-62
Rear fog light bulb replacement ·····································7-77
Rear seat ···········································································3-9
Rear parking assist system ·············································4-55
Rear window defroster····················································4-69
Rearview camera ···························································4-58
Recommended cold tire inflation pressures ··················7-49
Recommended lubricants and capacities ·························8-5
Recommended SAE viscosity number ······················8-6
Remote keyless entry ·······················································4-5
Road warning ···································································6-2
Rocking the vehicle ·······················································5-37
Roof rack ·····································································4-103
Room lamp······································································4-68
Scheduled maintenance service ·······································7-8 Maintenance under severe usage conditions
(1.4/1.6L Gasoline) ················································7-13
Maintenance under severe usage conditions (2.0L Gasoline) ······················································7-19
Maintenance under severe usage conditions (1.6L Diesel) ··························································7-25
Normal maintenance schedule (1.4/1.6L Gasoline)····7-9 Normal maintenance schedule (2.0L Gasoline) ········7-15
Normal maintenance schedule (1.6L Diesel) ············7-21
Seat belts ········································································3-15 Pre-tensioner seat belt ··············································3-20
3 point rear center belt ·············································3-19
Lap/shoulder belt ······················································3-18
Seat belt warning ···························································3-16 Rear passenger's seat belt warning····························3-17
Seat warmer ······································································3-8
Seatback pocket ·······························································3-9Seats ·················································································3-2 Armrest ·····································································3-14
Entering the rear seat ················································3-14
Folding the rear seat ···················································3-9
Front seat adjustment ··················································3-4
Headrest ····························································3-6, 3-12
Lumbar support ··························································3-5
Rear seat ·····································································3-9
Seatback pocket ··························································3-9
Seat warmer ································································3-8
Shift lock system ···························································5-15
R
S
ED(FL) Index.qxp 6/28/2010 11:04 AM Page 8
