KIA CEED 2013 Owners Manual

Features of your vehicle
18
4
In case of an emergency
If the power door lock switch does not
operate electrically, the only way to lock
the door(s) is with the mechanical key
from the outside key hole.
You can lock the doors without the out-
side key hole as follows:
1. Open the door.
2. Insert the key into the emergency door
lock hole and turn the key horizontally
to lock.
3. Close the door securely. Operating door locks from inside
the vehicle
With the door handle
Driver’s door and front passanger’s door (if equipped) If the inner door handle is pulled when
the door is locked, the door will unlockand open. Rear door (if equipped) If the inner door handle is pulled once
when the door is locked, the door will
unlock. If the inner door handle is pulled once
more, the door will open.
With central door lock/unlock switch
It is operated by pressing the door lock/
unlock switch.
 When you press the central door lock
switch, all vehicle doors will lock and
the indicator light on the switch will illu-
minate.
 If any door is opened when the switch is pressed, all doors will not lock.
 If any door is unlocked, the indicator of the central door lock switch will go off.
 When you press the central door unlock switch, all vehicle doors will
unlock.
OJD042012 L
LLLoooocccckkkk
OJD042013ROJD042014R
U
UUUnnnnlllloooocccckkkk
JD RHD 4a(~168).QXP 7/21/2012 12:04 PM Page 18

419

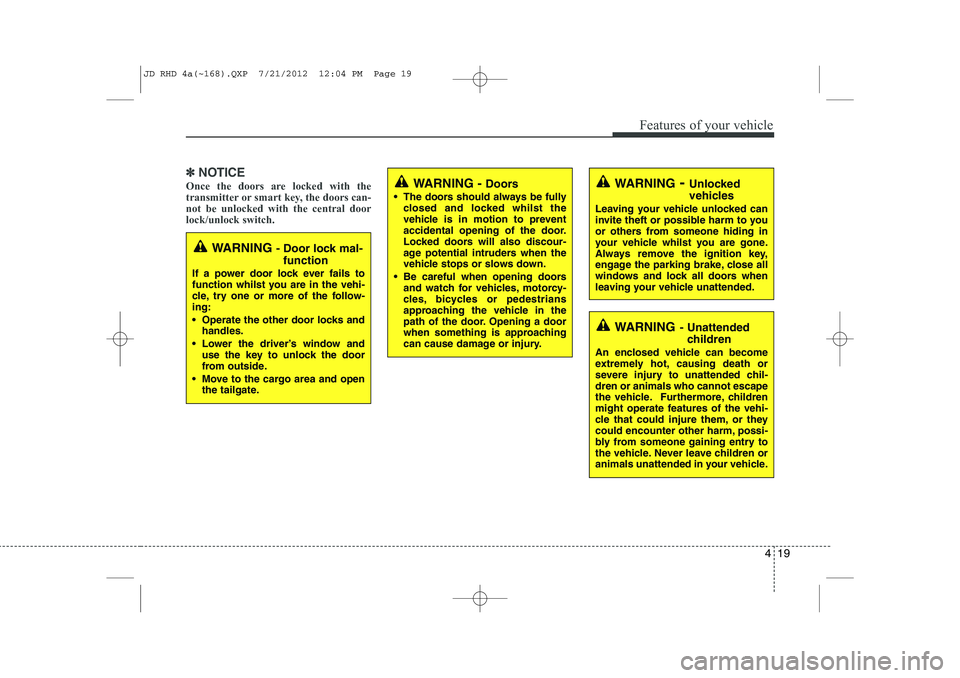

Features of your vehicle
✽✽NOTICE
Once the doors are locked with the
transmitter or smart key, the doors can-not be unlocked with the central doorlock/unlock switch. WARNING - Doors
 The doors should always be fully closed and locked whilst the
vehicle is in motion to prevent
accidental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows down.
 Be careful when opening doors and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.WARNING - Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle whilst you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING - Unattended
children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING - Door lock mal-
function
If a power door lock ever fails to
function whilst you are in the vehi-
cle, try one or more of the follow-ing:
 Operate the other door locks and handles.
 Lower the driver’s window and use the key to unlock the door
from outside.
 Move to the cargo area and open the tailgate.
JD RHD 4a(~168).QXP 7/21/2012 12:04 PM Page 19

Features of your vehicle
20
4
Deadlocks (if equipped)
Some vehicles are equipped with a
deadlock system. Deadlocks preventopening of a door from either inside or
outside the vehicle once the deadlocks
have been activated providing an addi-
tional measure of vehicle security.
To lock the vehicle using the deadlock
function, the doors must be locked by
using the transmitter or smart key. To
unlock the vehicle, the transmitter or
smart key must be used again. Door lock/unlock features
Impact sensing door unlock system
All doors will automatically unlock when
an impact causes the air bags to deploy.
Speed sensing door lock system
(if equipped)
All doors will automatically lock after the
vehicle speed exceeds 15 km/h.
Engine off door unlock system
(if equipped)
All doors will automatically unlock: Without smart key system
When the key is removed from the igni-
tion switch. With smart key system
When the engine start/stop button is in the OFF position.
Shift lever door lock/unlock system
 All doors will automatically lock when the shift lever is moved out of P (Park).
 All doors will automatically unlock when the shift lever is moved into P
(Park).
You can activate or deactivate the auto
door lock/unlock features in the vehicle.
Refer to "User setting" in this section.
WARNING
Do not lock the doors with the
transmitter or the smart key with
anybody left in the vehicle. The pas-
senger in the vehicle cannot unlock
the doors with the door lock button.
For example, if the door is locked
with the transmitter, the passenger
in the vehicle cannot unlock the
door without the transmitter.
JD RHD 4a(~168).QXP 7/21/2012 12:04 PM Page 20

421
Features of your vehicle

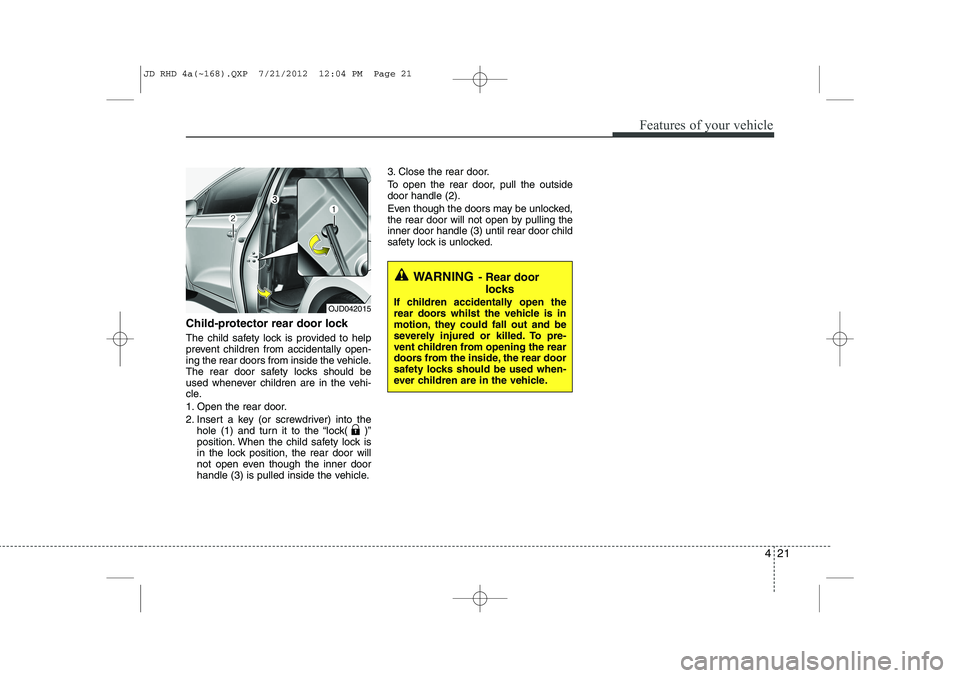

Child-protector rear door lock
The child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle.
1. Open the rear door.
2. Insert a key (or screwdriver) into thehole (1) and turn it to the “lock( )”
position. When the child safety lock is
in the lock position, the rear door will
not open even though the inner door
handle (3) is pulled inside the vehicle. 3. Close the rear door.
To open the rear door, pull the outside door handle (2).
Even though the doors may be unlocked,
the rear door will not open by pulling theinner door handle (3) until rear door child
safety lock is unlocked.
WARNING
- Rear door
locks
If children accidentally open the
rear doors whilst the vehicle is in
motion, they could fall out and be
severely injured or killed. To pre-
vent children from opening the rear
doors from the inside, the rear door
safety locks should be used when-
ever children are in the vehicle.
OJD042015
JD RHD 4a(~168).QXP 7/21/2012 12:04 PM Page 21

Features of your vehicle
22
4
Opening the tailgate
 The tailgate is locked or unlocked
when all doors are locked or unlocked
with the key, transmitter, smart key or
central door lock/unlock switch.  Only the tailgate is unlocked if the tail-
gate unlock button on the transmitter or
smart key is pressed for approximately
1 second or the tailgate handle switch
is pressed with the smart key in yourpossession.
 If unlocked, the tailgate can be opened by pressing the handle and pulling it up.
 Once the tailgate is opened and then closed, the tailgate locks automatically.
(All doors must be locked.)
✽✽ NOTICE
In cold and wet climates, door lock and
door mechanisms may not work proper-
ly due to freezing conditions.
❈ The actual luggage room in the vehicle may
differ from the illustration.
Closing the tailgate
Lower and push down the tailgate firmly.
Make sure that the tailgate is securelylatched.
TAILGATE
WARNING
The tailgate swings upward. Make sure no objects or people are near
the rear of the vehicle when open-
ing the tailgate.
CAUTION
Make certain that you close the tail- gate before driving your vehicle.Possible damage may occur to the
tailgate lift cylinders and attaching hardware if the tailgate is notclosed prior to driving.
WARNING
Make sure your hands, feet and other
parts of your body are safely out of
the way before closing the tailgate.
OJD042087
OJD042016
OJD042241
■ 5Door
■Wagon
JD RHD 4a(~168).QXP 7/21/2012 12:04 PM Page 22

423
Features of your vehicle
❈The actual luggage room in the vehicle may
differ from the illustration.
Emergency tailgate safety release
Your vehicle is equipped with the emer-
gency tailgate safety release lever locat-
ed on the bottom of the tailgate. When
someone is inadvertently locked in the
luggage compartment. The tailgate can
be opened by doing as follows:
1. Input the machanical key into the hole.
2. Push the machanical key to the right.
3. Push up the tailgate.
WARNING - Exhaust fumes
If you drive with the tailgate
opened, you will draw dangerous
exhaust fumes into your vehicle
which can cause serious injury or
death to vehicle occupants.
If you must drive with the tailgate
opened, keep the air vents and all
windows open so that additional
outside air comes into the vehicle.
WARNING - Rear cargo area
Occupants should never ride in the
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
stops, occupants should always be
properly restrained.
OJD042017
WARNING
 For emergencies, be fully aware of the location of the emergency
tailgate safety release lever in the
vehicle and how to open the tail-
gate if you are accidentally locked
in the luggage compartment.
 No one should be allowed to occupy the luggage compartment
of the vehicle at any time. The
luggage compartment is a very
dangerous location in the eventof a crash.
 Use the release lever for emer- gencies only. Use with extreme
caution, especially whilst the
vehicle is in motion.CAUTION
Make sure nothing is near the tail-
gate latch and striker whilst closing
the tailgate. It may damage the tail-gate's latch.
JD RHD 4a(~168).QXP 7/21/2012 12:05 PM Page 23

Features of your vehicle
24
4

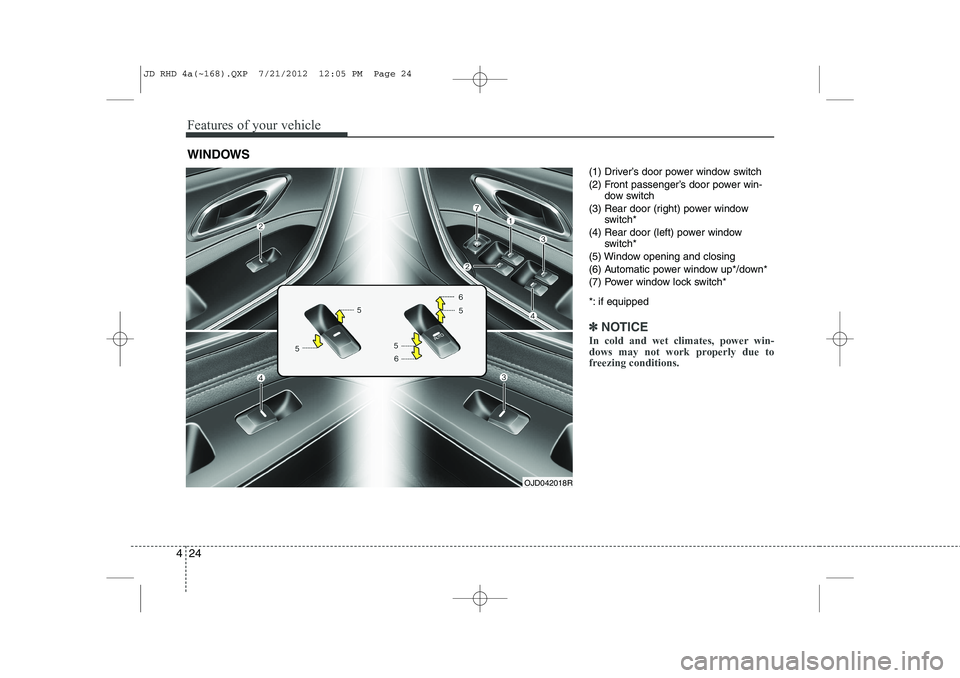

(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Rear door (right) power window switch*
(4) Rear door (left) power window switch*
(5) Window opening and closing
(6) Automatic power window up*/down*
(7) Power window lock switch*
*: if equipped
✽✽ NOTICE
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
OJD042018R
JD RHD 4a(~168).QXP 7/21/2012 12:05 PM Page 24

425
Features of your vehicle

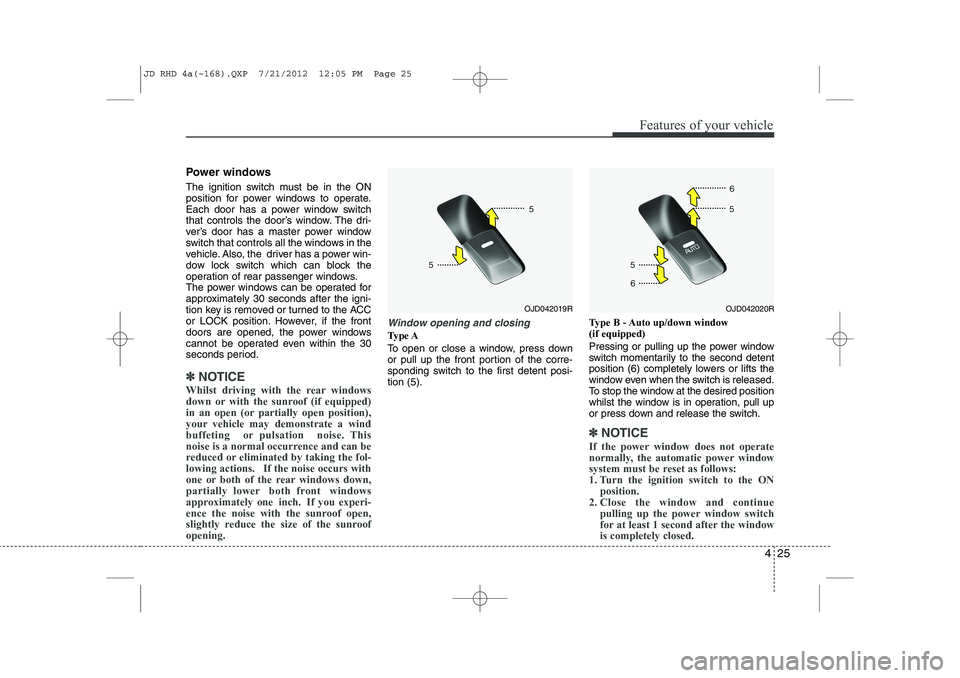

Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the door’s window. The dri-
ver’s door has a master power window
switch that controls all the windows in the
vehicle. Also, the driver has a power win-
dow lock switch which can block the
operation of rear passenger windows.
The power windows can be operated for
approximately 30 seconds after the igni-
tion key is removed or turned to the ACC
or LOCK position. However, if the front
doors are opened, the power windows
cannot be operated even within the 30
seconds period.
✽✽NOTICE
Whilst driving with the rear windows
down or with the sunroof (if equipped)
in an open (or partially open position),
your vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is a normal occurrence and can be
reduced or eliminated by taking the fol-
lowing actions. If the noise occurs with
one or both of the rear windows down,
partially lower both front windows
approximately one inch. If you experi-
ence the noise with the sunroof open,
slightly reduce the size of the sunroofopening.
Window opening and closing
Type A
To open or close a window, press down
or pull up the front portion of the corre-
sponding switch to the first detent posi-tion (5). Type B - Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second detent
position (6) completely lowers or lifts the
window even when the switch is released.
To stop the window at the desired position
whilst the window is in operation, pull up
or press down and release the switch.
✽✽
NOTICE
If the power window does not operate
normally, the automatic power window
system must be reset as follows:
1. Turn the ignition switch to the ON position.
2. Close the window and continue
pulling up the power window switch
for at least 1 second after the windowis completely closed.
OJD042020ROJD042019R
JD RHD 4a(~168).QXP 7/21/2012 12:05 PM Page 25

Features of your vehicle
26
4
WARNING
Always check for obstructions
before raising any window to avoid
injuries or vehicle damage. If anobject less than 4 mm (0.16 in.) indiameter is caught between the
window glass and the upper win-
dow channel, the automatic reverse
window may not detect the resist-
ance and will not stop and reversedirection.

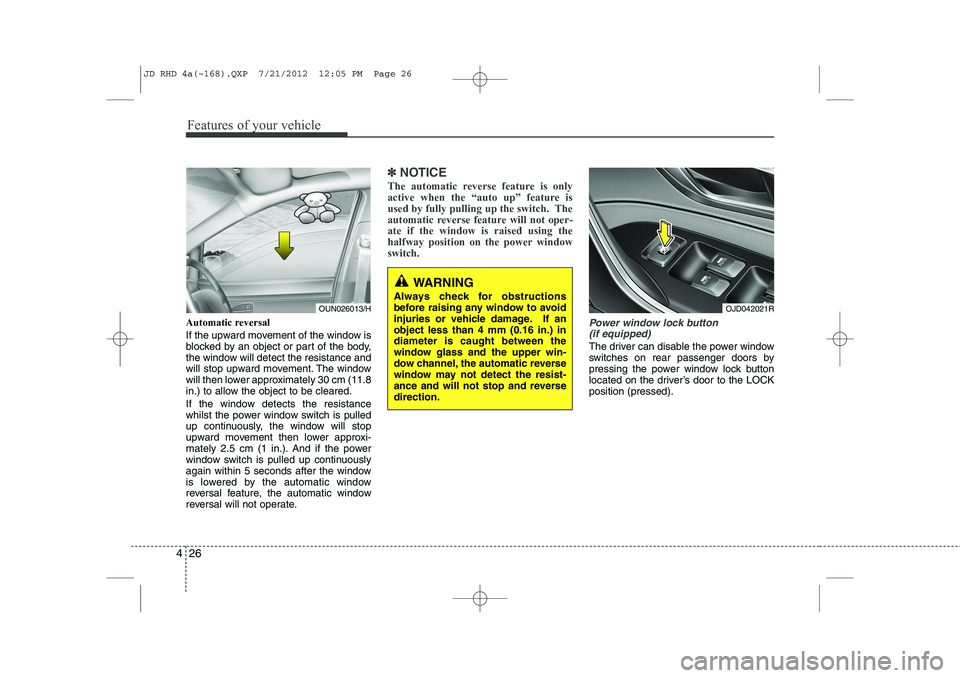

Automatic reversal
If the upward movement of the window is
blocked by an object or part of the body,
the window will detect the resistance and
will stop upward movement. The window
will then lower approximately 30 cm (11.8
in.) to allow the object to be cleared.
If the window detects the resistance
whilst the power window switch is pulled
up continuously, the window will stop
upward movement then lower approxi-
mately 2.5 cm (1 in.). And if the power
window switch is pulled up continuously
again within 5 seconds after the window
is lowered by the automatic window
reversal feature, the automatic window
reversal will not operate.
✽✽ NOTICE
The automatic reverse feature is only
active when the “auto up” feature is
used by fully pulling up the switch. The
automatic reverse feature will not oper-ate if the window is raised using the
halfway position on the power windowswitch.
Power window lock button (if equipped)
The driver can disable the power window
switches on rear passenger doors by
pressing the power window lock button
located on the driver’s door to the LOCKposition (pressed).
OUN026013/HOJD042021R
JD RHD 4a(~168).QXP 7/21/2012 12:05 PM Page 26

427
Features of your vehicle

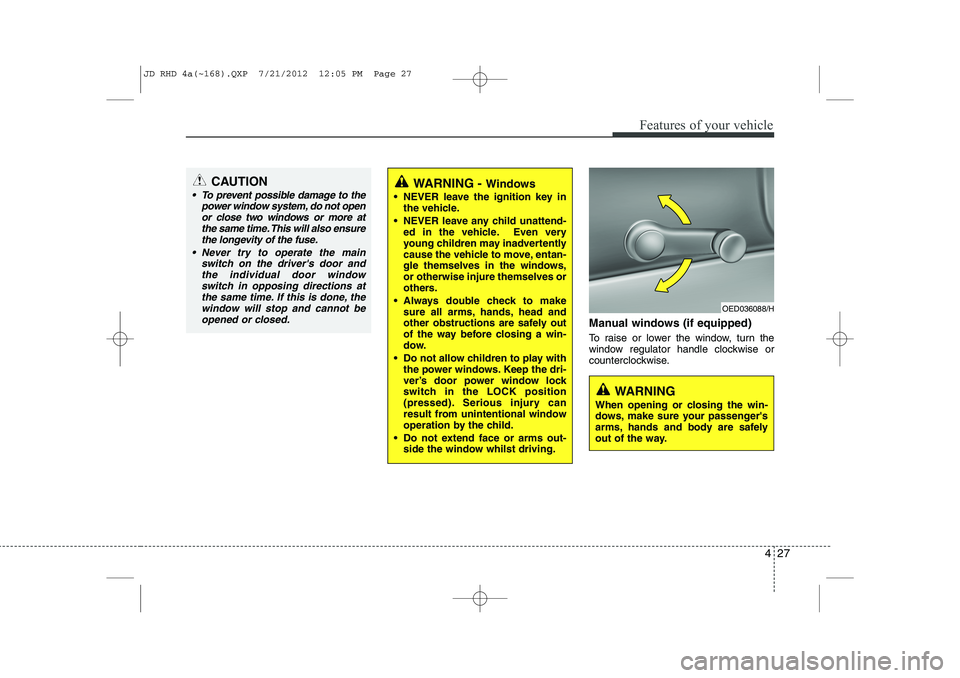

Manual windows (if equipped)
To raise or lower the window, turn the
window regulator handle clockwise or
counterclockwise.
CAUTION
 To prevent possible damage to thepower window system, do not open
or close two windows or more at the same time. This will also ensurethe longevity of the fuse.
 Never try to operate the main switch on the driver's door andthe individual door windowswitch in opposing directions at the same time. If this is done, the
window will stop and cannot be opened or closed.WARNING - Windows
 NEVER leave the ignition key in the vehicle.
 NEVER leave any child unattend- ed in the vehicle. Even very
young children may inadvertently
cause the vehicle to move, entan-
gle themselves in the windows,or otherwise injure themselves or
others.
 Always double check to make sure all arms, hands, head and
other obstructions are safely out
of the way before closing a win-
dow.
 Do not allow children to play with the power windows. Keep the dri-
ver’s door power window lock
switch in the LOCK position
(pressed). Serious injury can
result from unintentional window
operation by the child.
 Do not extend face or arms out- side the window whilst driving.
OED036088/H
WARNING
When opening or closing the win-
dows, make sure your passenger's
arms, hands and body are safely
out of the way.
JD RHD 4a(~168).QXP 7/21/2012 12:05 PM Page 27
