Driving your vehicle
You can set the speed limit when you do
not want to drive over a specific speed.
If you drive over the preset speed limit,
the warning system operates (set speed
limit will blink and chime will sound) until
the vehicle speed returns within thespeed limit.
✽✽NOTICE
While speed limit control is in opera-
tion, the cruise control system cannot be
activated.

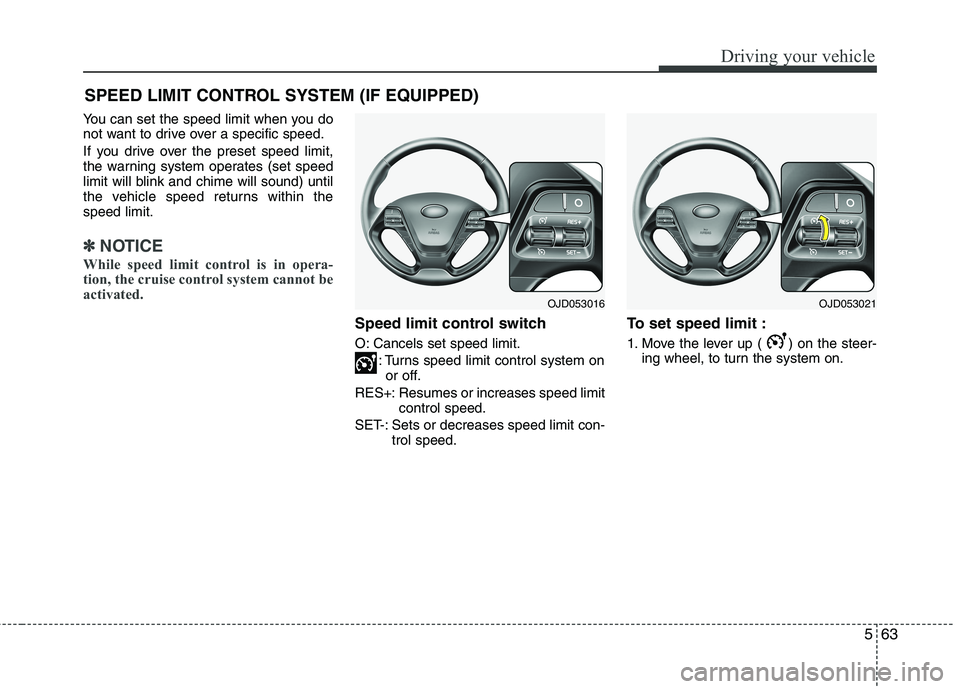

Speed limit control switch
O: Cancels set speed limit.
: Turns speed limit control system onor off.
RES+: Resumes or increases speed limit control speed.
SET-: Sets or decreases speed limit con- trol speed. To set speed limit :
1. Move the lever up ( ) on the steer-
ing wheel, to turn the system on.
SPEED LIMIT CONTROL SYSTEM (IF EQUIPPED)
OJD053021OJD053016
Page 442 of 653

Driving your vehicle
64
5

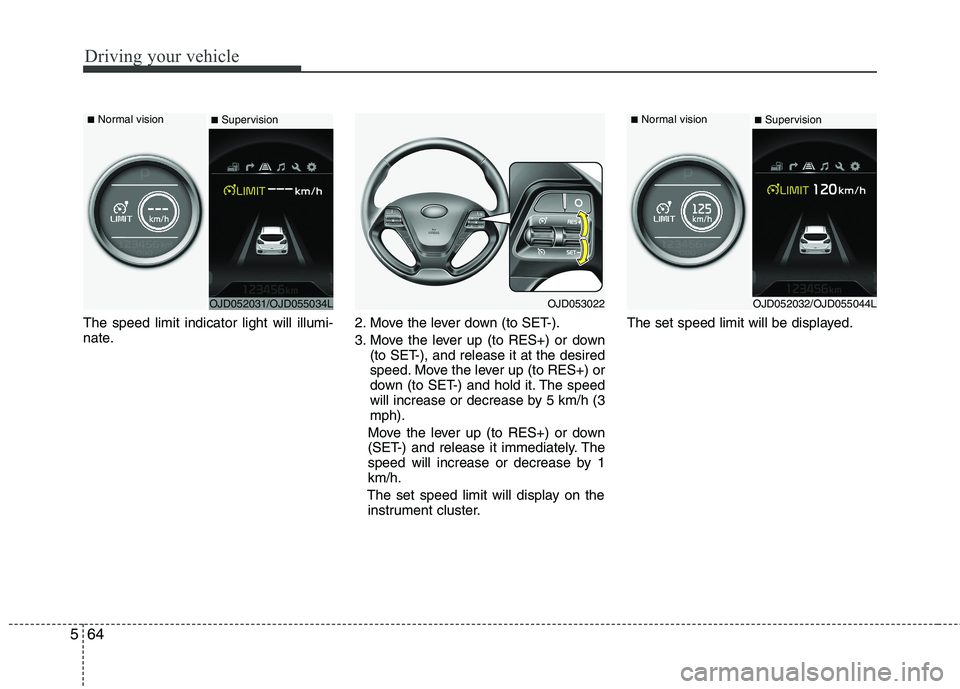

The speed limit indicator light will illumi-
nate. 2. Move the lever down (to SET-).
3. Move the lever up (to RES+) or down
(to SET-), and release it at the desired
speed. Move the lever up (to RES+) or
down (to SET-) and hold it. The speed
will increase or decrease by 5 km/h (3mph).
Move the lever up (to RES+) or down
(SET-) and release it immediately. The
speed will increase or decrease by 1km/h.
The set speed limit will display on the instrument cluster. The set speed limit will be displayed.
OJD052031/OJD055034L
■
Normal vision
■SupervisionOJD053022
■Normal vision
■Supervision
OJD052032/OJD055044L
Page 443 of 653

565
Driving your vehicle
To drive over the preset speed limit you
must depress hard on the accelerator
pedal (more than approximately 80%)
until the kick down mechanism works
with a clicking noise. Then the set speed
limit will blink and chime will sound until
you return the vehicle speed within thespeed limit.
✽✽NOTICE
Depressing the accelerator pedal less than approximately 50%, the vehicle
will not speed over the preset speed
limit but maintain the vehicle speed
within the speed limit.
A clicking noise heard from the kick
down mechanism by depressing the
accelerator pedal fully is a normal
condition.

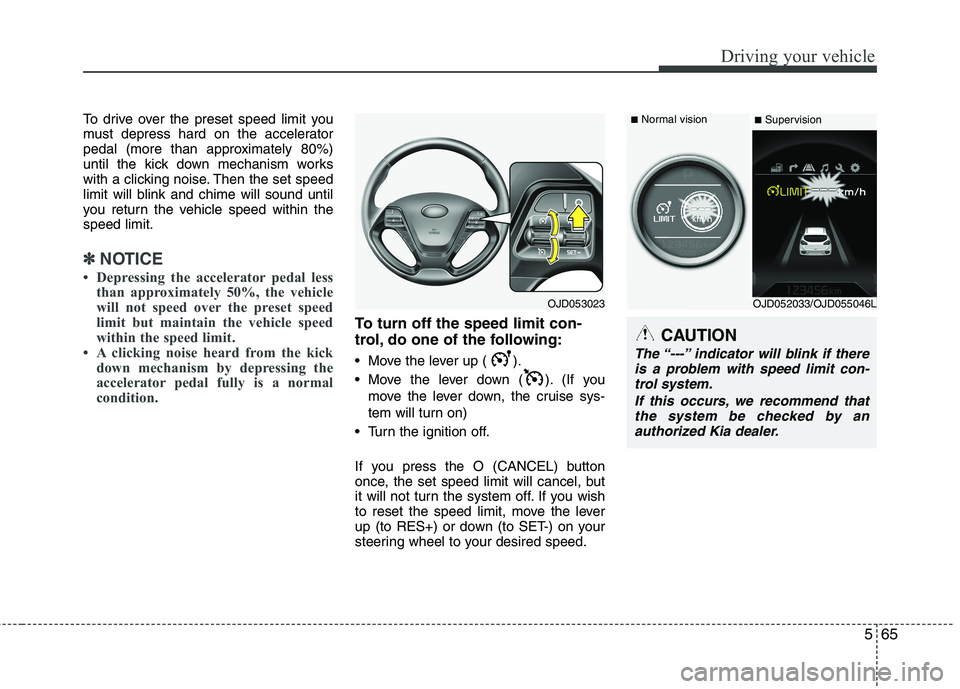

To turn off the speed limit con-
trol, do one of the following:
Move the lever up ( ).
Move the lever down ( ). (If you
move the lever down, the cruise sys-
tem will turn on)
Turn the ignition off.
If you press the O (CANCEL) button
once, the set speed limit will cancel, but
it will not turn the system off. If you wish
to reset the speed limit, move the lever
up (to RES+) or down (to SET-) on your
steering wheel to your desired speed.CAUTION
The “---” indicator will blink if there is a problem with speed limit con- trol system.
If this occurs, we recommend thatthe system be checked by an
authorized Kia dealer.
OJD053023
■ Normal vision
■Supervision
OJD052033/OJD055046L
Page 444 of 653

Driving your vehicle
66
5

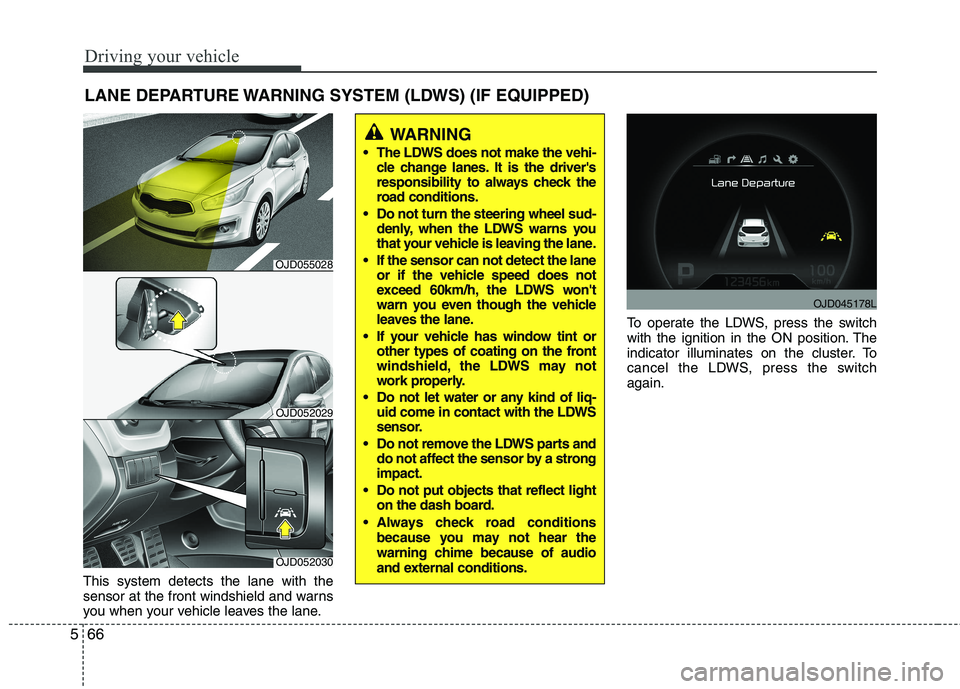

This system detects the lane with the
sensor at the front windshield and warns
you when your vehicle leaves the lane. To operate the LDWS, press the switch
with the ignition in the ON position. The
indicator illuminates on the cluster. To
cancel the LDWS, press the switchagain.
LANE DEPARTURE WARNING SYSTEM (LDWS) (IF EQUIPPED)
WARNING
The LDWS does not make the vehi- cle change lanes. It is the driver's
responsibility to always check the
road conditions.
Do not turn the steering wheel sud- denly, when the LDWS warns you
that your vehicle is leaving the lane.
If the sensor can not detect the lane or if the vehicle speed does not
exceed 60km/h, the LDWS won't
warn you even though the vehicle
leaves the lane.
If your vehicle has window tint or other types of coating on the front
windshield, the LDWS may not
work properly.
Do not let water or any kind of liq- uid come in contact with the LDWS
sensor.
Do not remove the LDWS parts and do not affect the sensor by a strongimpact.
Do not put objects that reflect light on the dash board.
Always check road conditions because you may not hear the
warning chime because of audio
and external conditions.
OJD052030
OJD052029
OJD045178L
OJD055028
Page 445 of 653

567
Driving your vehicle
If your vehicle leaves the lane when the
LDWS is operating and vehicle speed
exceeds 60km/h, the warning operates

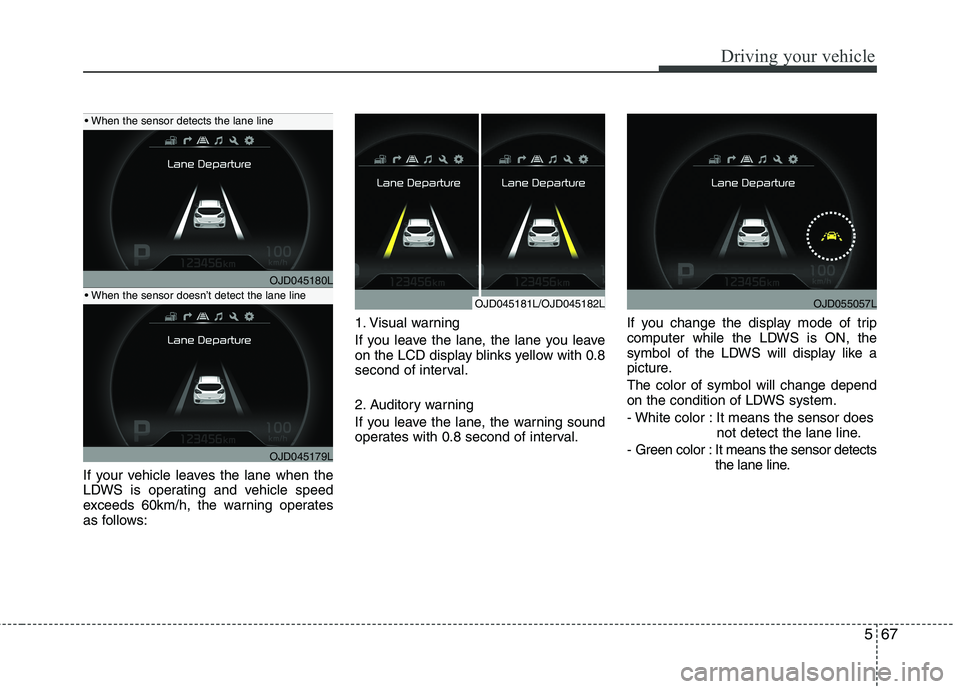

as follows:1. Visual warning
If you leave the lane, the lane you leave
on the LCD display blinks yellow with 0.8
second of interval.
2. Auditory warning
If you leave the lane, the warning sound
operates with 0.8 second of interval.
If you change the display mode of trip
computer while the LDWS is ON, the
symbol of the LDWS will display like a
picture. The color of symbol will change depend
on the condition of LDWS system.
- White color : It means the sensor does
not detect the lane line.
- Green color : It means the sensor detects the lane line.
OJD045180L
OJD045179L
OJD055057LOJD045181L/OJD045182L
Page 446 of 653

Driving your vehicle
68
5
Warning indicator

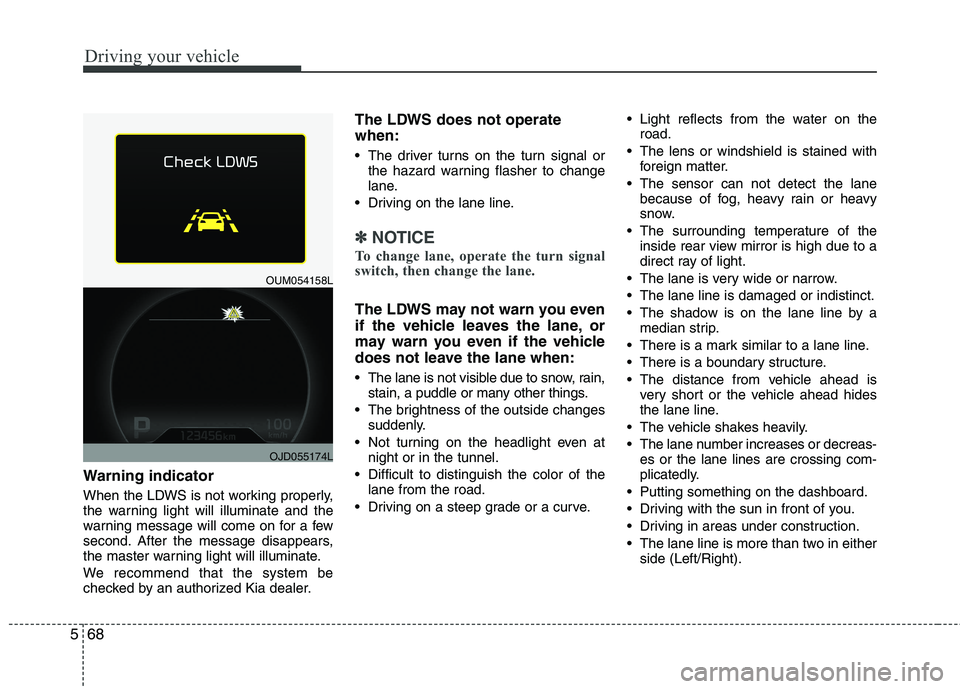

When the LDWS is not working properly,
the warning light will illuminate and the
warning message will come on for a few
second. After the message disappears,
the master warning light will illuminate.
We recommend that the system be
checked by an authorized Kia dealer. The LDWS does not operate when:
The driver turns on the turn signal or
the hazard warning flasher to change
lane.
Driving on the lane line.
✽✽ NOTICE
To change lane, operate the turn signal
switch, then change the lane.
The LDWS may not warn you even
if the vehicle leaves the lane, or
may warn you even if the vehicle
does not leave the lane when:
The lane is not visible due to snow, rain, stain, a puddle or many other things.
The brightness of the outside changes suddenly.
Not turning on the headlight even at night or in the tunnel.
Difficult to distinguish the color of the lane from the road.
Driving on a steep grade or a curve. Light reflects from the water on the
road.
The lens or windshield is stained with foreign matter.
The sensor can not detect the lane because of fog, heavy rain or heavy
snow.
The surrounding temperature of the inside rear view mirror is high due to a
direct ray of light.
The lane is very wide or narrow.
The lane line is damaged or indistinct.
The shadow is on the lane line by a median strip.
There is a mark similar to a lane line.
There is a boundary structure.
The distance from vehicle ahead is very short or the vehicle ahead hides
the lane line.
The vehicle shakes heavily.
The lane number increases or decreas- es or the lane lines are crossing com-
plicatedly.
Putting something on the dashboard.
Driving with the sun in front of you.
Driving in areas under construction.
The lane line is more than two in either side (Left/Right).
OUM054158L
OJD055174L
Page 447 of 653

569
Driving your vehicle
The system displays the information of
speed limit and no passing restriction to
the driver in both the instrument cluster
and navigation screen. SLIF detects traf-
fic signs with camera system attachedbehind the top of the windscreen.
The SLIF also utilizes the navigation
information to display the speed limit
information.SLIF activation / deactivation
SLIF Setting method :
Cluster User Settings Driving Assist
SLIF (Speed Limit Information
Function)
The information of speed limit and no passing restriction will appear on the
cluster using a symbol if you have acti-
vated SLIF in User Settings of cluster.
If SLIF is activated in navigation set- ting, the information also displayed in
navigation screen.
SPEED LIMIT INFORMATION FUNCTION (SLIF) (IF EQUIPPED)
OJD052029
WARNING
Speed Limit Information Function is only an aid and is not always able
to correctly display speed limits
and overtaking restrictions.
The driver always keeps the responsibility to not exceed the
maximum allowed speed
Do not place any accessories, stickers or tint the windshield near
the rearview mirror.
The system detects traffic signs and displays speed limit informa-
tion by a camera therefore, if traffic
signs are hard to detect, the system
may not work properly.
Please refer to "Driver's Attention".
Do not remove any LDWS parts or apply impact.
Do not place objects on the dash- board that reflects light such as
mirrors, white paper, etc. The sys-
tem may malfunction if the sunlightis reflected.
The system is not available in all countries.
OJD055153L
Page 448 of 653

Driving your vehicle
70
5
Operation
If a traffic sign that is relevant to your
vehicle is passed, the system displays
the information of the speed limits and
no passing restrictions to the driver. When the driver turn on the ignition,
the system displays stored information
of the speed limit before turn off theignition.
Sometimes different speed limits are displayed for the same road. The infor-
mation displayed depending on the sit-
uation. Because, traffic signs with addi-
tional sign (e.g rainy, arrow...) are also
detected and compared with vehicle
interior data(e.g wiper operation, turnsignal...).
The system can update the speed limit information without visible speed limit
signs in the following situations.
- When you change your driving direc-tion with right or left or U turning.
- When vehicle changes roads. (e.g. from highway to country road…)
- When you enter or exit into town or village.
✽✽ NOTICE
If speed limit value has the difference
between cluster and navigation, check
the speed unit setting in navigation.
Display
If the system doesn’t have a reliable speed limit information, the following
symbol is displayed in both the instru-
ment cluster and navigation screen.
WUM-203
■
No reliable speed limit information
OJD055173L
Page 449 of 653

571
Driving your vehicle
If the system detect no passing sign,no passing is displayed in both the
instrument cluster and navigationscreen. After passing "end of speed limitation“
sign SLIF provides information from
navigation to inform driver of perhaps
afterwards applicable speed limit. For some areas on highways in ger-
many there's no speed limit applicable.
In that case SLIF shows "end of limita-
tion" traffic sign as long as you don'tpass another speed limit sign.
WUM-206/WUM-204
■
No passing informationWUM-207/WUM-208
■
End of a speed limitWUM-205
■
Unlimited speed (only in Germany)
Page 450 of 653

Driving your vehicle
72
5
Warning message
The message will appear when camera’s
field of view is covered by some objects.
The system stops until the field of view is
normal.
Check the windshield around the camera
view area.
If the system does not work normally
even though camera’s field of view is
cleared, we recommend that the system
be checked by an authorized Kia dealer. When SLIF is not working properly, the
warning message will come on for a few
second. After the message disappears,
the master warning light will illuminate.
We recommend that the system be
checked by an authorized Kia dealer.The system may not fully operate and
provide correct information in the follow-
ing situations.
Traffic signs are positioned on sharp
curve.
Poorly positioned traffic sign. (eg. Rotated, shaded by any object, dam- aged…)
Concealed traffic signs by other vehicle.
Broken LED traffic signs.
Poor weather like snow, rain, fog
There is glare around traffic signs by low sun in the sky.
There is insufficient illumination of the traffic signs in the night.
There is bright lights around traffic signs.
There is dirt, ice or frost on the wind- shield in the area of the camera.
When camera field of view is covered by objects such as a sticker, paper, leaf fall.
When driving very close to the vehicle in front of you.
When navigation system has malfunc- tion.
When bus or trucks attached with a speed sticker are passing you.
When you are in area or countries where navigation system is not covered.
When a navigation system not updated latest map version.
OJD055155L
OUM054154L
OJD055174L
