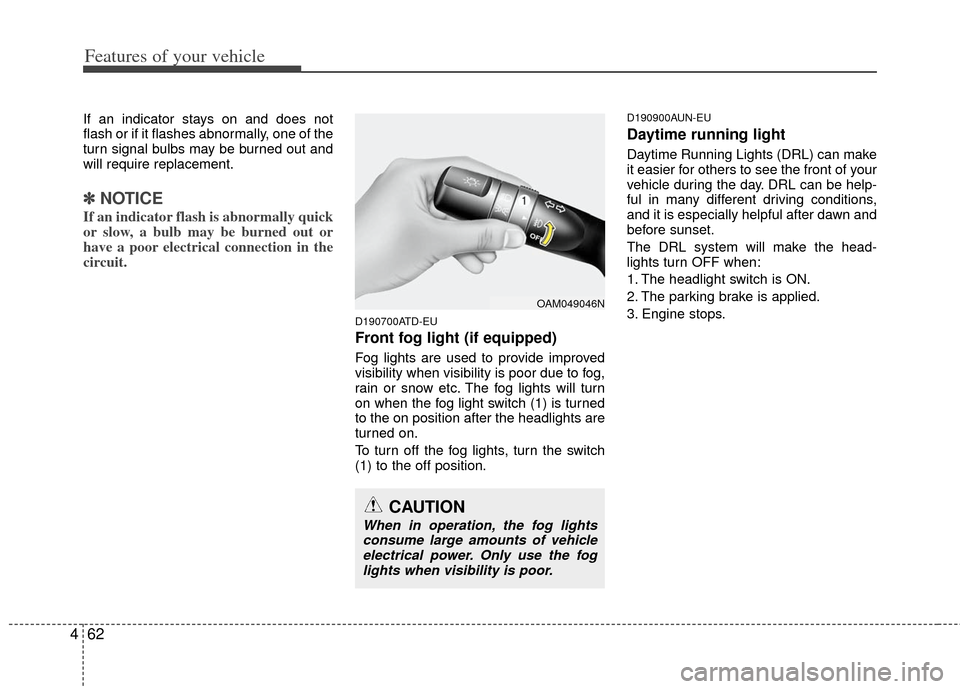

Features of your vehicle
62
4
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out and
will require replacement.
✽ ✽
NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit.
D190700ATD-EU
Front fog light (if equipped)
Fog lights are used to provide improved
visibility when visibility is poor due to fog,
rain or snow etc. The fog lights will turn
on when the fog light switch (1) is turned
to the on position after the headlights are
turned on.
To turn off the fog lights, turn the switch
(1) to the off position.
D190900AUN-EU
Daytime running light
Daytime Running Lights (DRL) can make
it easier for others to see the front of your
vehicle during the day. DRL can be help-
ful in many different driving conditions,
and it is especially helpful after dawn and
before sunset.
The DRL system will make the head-
lights turn OFF when:
1. The headlight switch is ON.
2. The parking brake is applied.
3. Engine stops.
OAM049046N
CAUTION
When in operation, the fog lights
consume large amounts of vehicle electrical power. Only use the foglights when visibility is poor.

Specifications & Consumer information
28
DIMENSIONS
I010000ATD-EU
Light BulbWattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal 28
Front side marker 8
Position light 8
Side repeater light* LED
Front fog light* 28
Stop and tail light 28/8 or LED
Rear turn signal light 27
Back-up light 16
Rear side marker 8
High mounted stop light 16 or LED
License plate light 5
Front map lamp* 10
Center room lamp 10
Trunk room lamp* 5
BULB WATTAGE
I030000ATD-EU
* : If equipped
*1: for 2door vehicle only
Itemmm (in.)
Overall length 4480 (176.3)
Overall width 1765 (69.4)
Overall height 1400 (55.1)
Front tread 1560/1546*
1/1542*2(61.4/60.9/60.7)
Rear tread 1564/1550*
1/1546*2(61.6/61.0/60.9)
Wheelbase 2650 (104.3)
*1: P205/55R16 tire
*2: P215/45R17 tire
■ ■2door vehicle
*
1: P205/55R16 tire
*2: P215/45R17 tire
■
■4door vehicle / 5door vehicle
Itemin. (mm)
Overall length4door4530 (178.3)
5door4340 (170.9)
Overall width69.8 (1775)
Overall height57.4 (1460)
Front tread61.3/60.7*1/60.6*2(1557/1543/1539)
Rear tread61.6/61.0*1/60.9*2(1564/1550/1546)
Wheelbase104.3 (2650)
