KIA Cerato 2014 2.G Owners Manual 763
Maintenance
Fuse/relay panel description
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ ✽NOTICE
Not all fuse panel description

Page 412 of 446

KIA Cerato 2014 2.G Owners Manual Maintenance
64
7
Engine compartment fuse
panel
✽ ✽
NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect

Page 413 of 446

KIA Cerato 2014 2.G Owners Manual 765
Maintenance

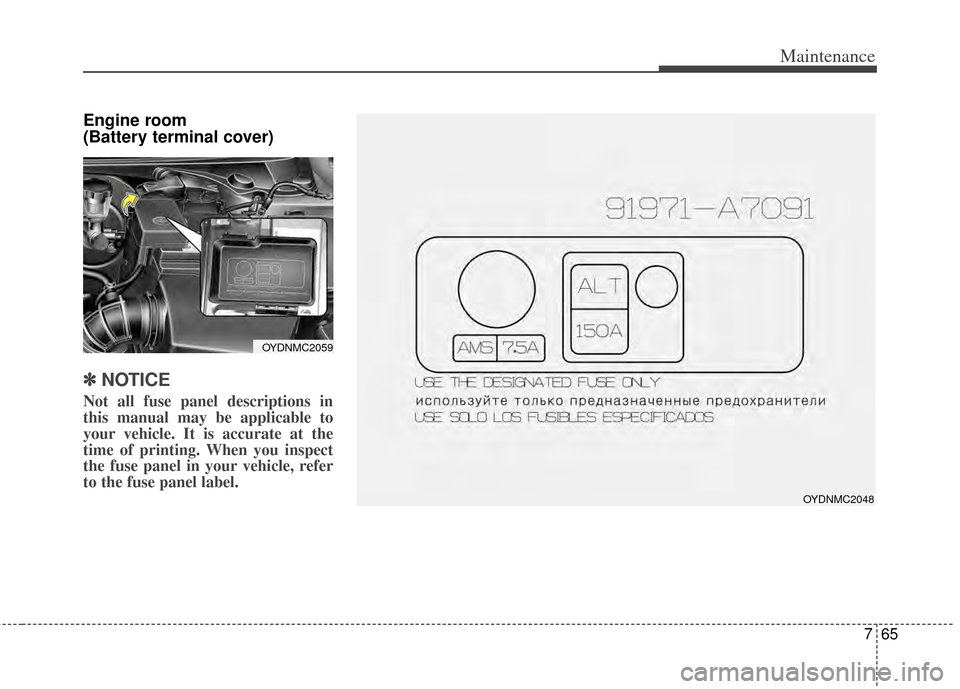

Engine room
(Battery terminal cover)
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you i

Page 414 of 446

KIA Cerato 2014 2.G Owners Manual Maintenance
66
7
Instrument panel fuse panel
Fuse Name  Fuse rating Circuit Protected
P/SEAT DRV  30A  Driver IMS Module, Driver Seat Manual Switch  SPARE 4  25A  -
P/WDW RH  25A  Smart Junction Box

Page 415 of 446

KIA Cerato 2014 2.G Owners Manual 767
Maintenance
Fuse Name  Fuse ratingCircuit Protected
HTD STRG  15A  Steering Wheel Heater
IG 1  20A  W/O Smart Key : E/R Fuse & Relay Box (Fuse - TCU 1, ECU 3, ABS 3)
WIPER FRT  25A  Wiper Motor

Page 416 of 446

KIA Cerato 2014 2.G Owners Manual Maintenance
68
7

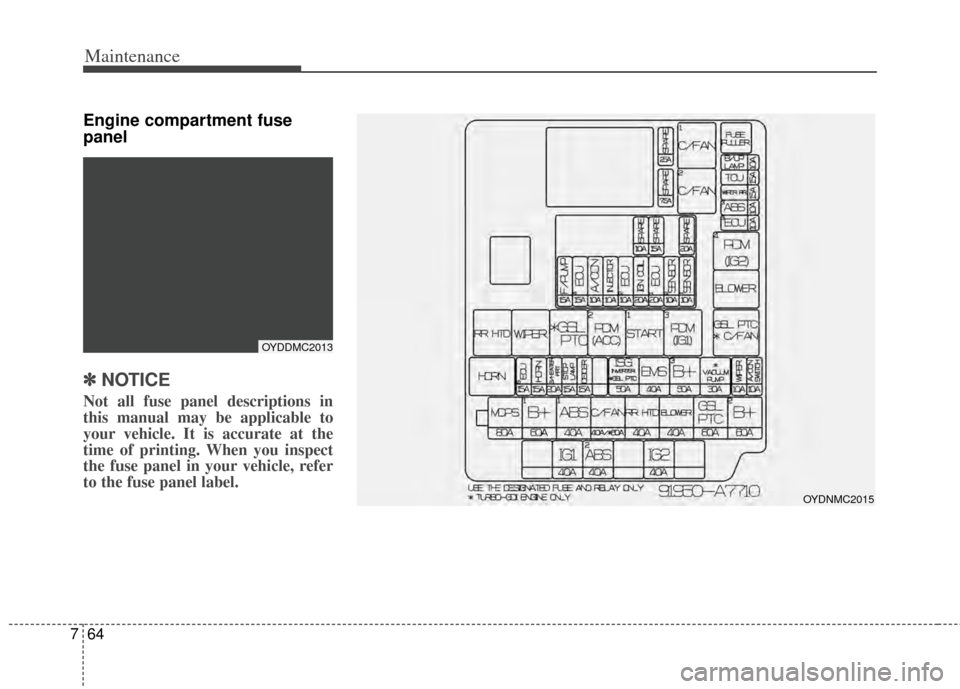

Engine compartment fuse panel
Fuse Name  Fuse rating Circuit Protected
MULTI FUSE  MDPS 80A MDPS Unit
B+1 60A  Smart Junction Box (ARISU-LT IPS 1 (4CH), Fuse - MODULE 6, MODULE 7, P

Page 417 of 446

KIA Cerato 2014 2.G Owners Manual 769
Maintenance
Fuse Name  Fuse ratingCircuit Protected
FUSE  STOP LAMP  15A  Stop Signal Electronic Module
S/HEATER FRT  20A  Driver CCS Control Module, Passenger Seat Warmer Module
HORN  15A  Hor

Page 418 of 446

KIA Cerato 2014 2.G Owners Manual Maintenance
70
7
Engine compartment fuse panel (EMS BOX)
Fuse Name  Fuse rating Circuit Protected
F/PUMP 15A F/Pump Relay  ECU 4  15A  ECM/PCM
A/CON  10A  A/CON COMP Relay
INJECTOR  10A  Injector #

Page 419 of 446

KIA Cerato 2014 2.G Owners Manual 771
Maintenance

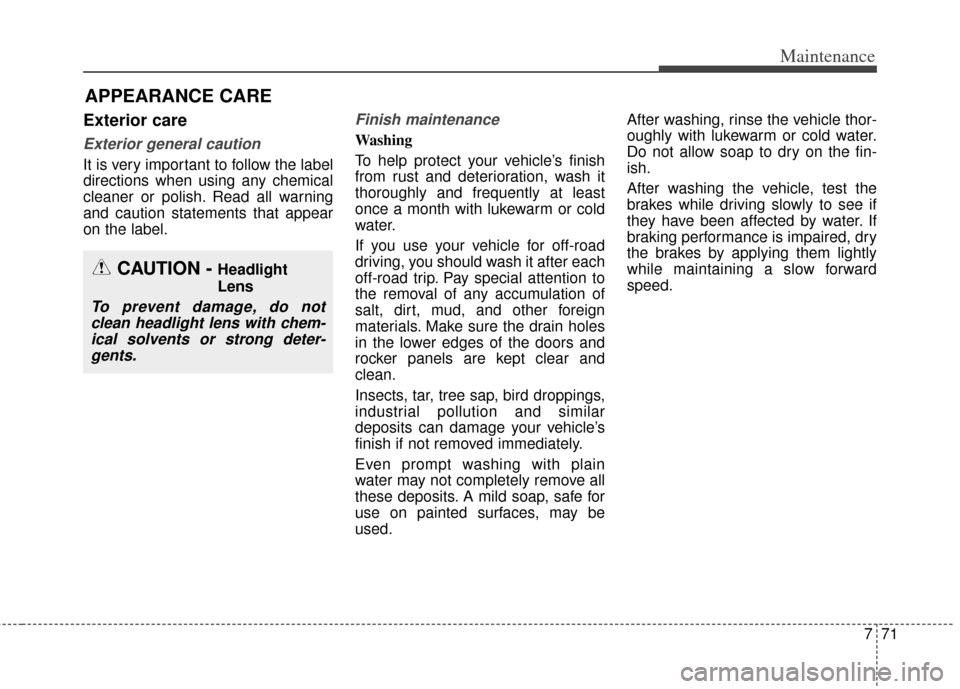

APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution stat

Page 420 of 446

KIA Cerato 2014 2.G Owners Manual Maintenance
72
7

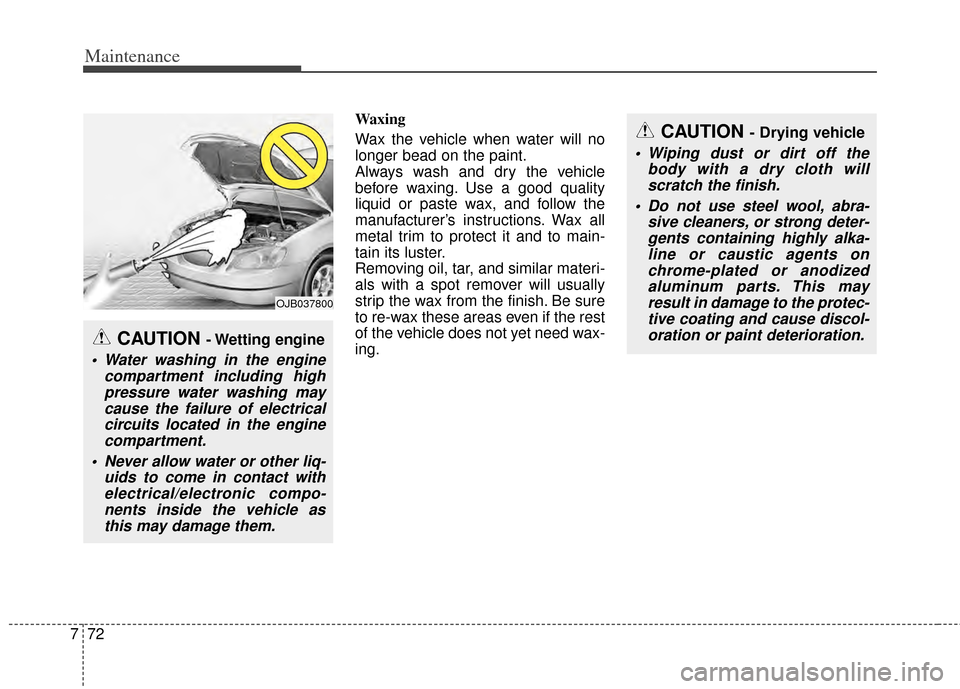

Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer�
