KIA Forte 2010 1.G Owner's Manual

Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-6
Vehicle certification label / 8-6
Tire specification and pressure label / 8-7
Engine number / 8-7
Specifications & Consumer information
8

Specifications & Consumer information28DIMENSIONSI010000ATD-EU
Light BulbWattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal 28
Front side marker 8
Position light 8
Side repeater light* 5
Front fog light* 28
Stop and tail light 28/8 27/8*
1
Rear turn signal light 27
Back-up light 16
Rear side marker 8
High mounted stop light 16
License plate light 5
Front map lamp* 10
Center room lamp 10
Trunk room lamp* 5BULB WATTAGEI030000ATD-EU* : If equipped
*1: for 3door vehicle only
Itemmm (in.)
Overall length 4530 (178.3)
Overall width 1775 (69.8)
Overall height 1460 (57.4)
Front tread 1557/1543*
1/1539*
2(61.3/60.7/60.6)
Rear tread 1564/1550*
1/1546*
2(61.6/61.0/60.9)
Wheelbase 2650 (104.3)
*1: P205/55R16 tire
*2: P215/45R17 tire■ ■4door vehicle
Item mm (in.)
Overall length 4480 (176.3)
Overall width 1765 (69.4)
Overall height 1400 (55.1)
Front tread 1560/1546*
1/1542*
2(61.4/60.9/60.7)
Rear tread 1564/1550*
1/1546*
2(61.6/61.0/60.9)
Wheelbase 2650 (104.3)
*1: P205/55R16 tire
*2: P215/45R17 tire■
■3door vehicle

83
Specifications & Consumer information

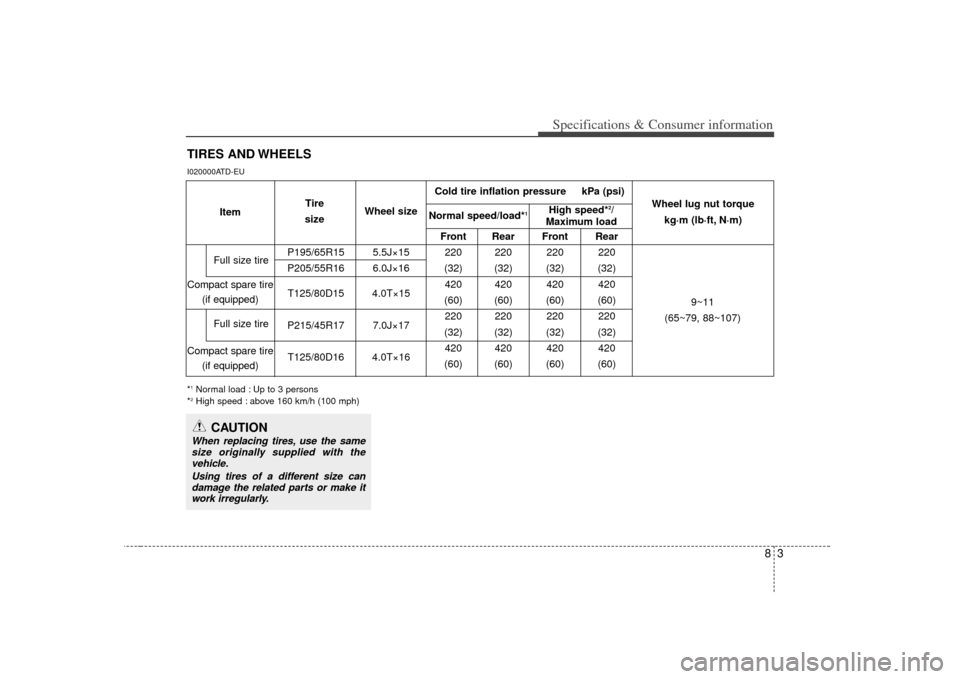

TIRES AND WHEELSI020000ATD-EU*1Normal load : Up to 3 persons
*2High speed : above 160 km/h (100 mph)
Front Rear Front Rear
P195/65R15 5.5J×15 220 220 220 220
P205/55R16 6.0J×16 (32) (32) (32) (32) 420 420 420 420
T125/80D15 4.0T×15 (60) (60) (60) (60)
P215/45R17 7.0J×17 220 220 220 220
(32) (32) (32) (32) 420 420 420 420
T125/80D16 4.0T×16 (60) (60) (60) (60)
Full size tire
Compact spare tire (if equipped)
Compact spare tire (if equipped) Wheel lug nut torque
kg·m (lb·ft, N·m)
9~11
(65~79, 88~107)
Item
Tire
size Wheel sizeCAUTION
When replacing tires, use the same
size originally supplied with thevehicle.
Using tires of a different size candamage the related parts or make itwork irregularly.
Full size tire
Normal speed/load*
1
High speed*
2/
Maximum load
Cold tire inflation pressure kPa (psi)

Specifications & Consumer information48RECOMMENDED LUBRICANTS AND CAPACITIES I040000ATD-ECTo help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.These lubricants and fluids are recommended for use in your vehicle.Lubricant
Volume
Classification
Engine oil
*1 *2
2.0 Engine
3.9
l(4.1
US qt.
)
API Service SM or above,
(drain and refill, with oil filter) 2.4 Engine 4.3 l(4.5 US qt.) ILSAC GF-4 or above
Manual transaxle fluid 2.0 Engine 1.9l
(2.0 US qt.) API GL-4 (SAE 75W-85, fill for life)
2.4 Engine 1.8l (1.9 US qt.) (ZIC GF TOP or HD GEAR OIL XLS)
2.0 Engine 6.6l (6.9 US qt.)
Automatic transaxle fluid
2.4 Engine 7.6l(8.0 US qt.) DIAMOND ATF SP-III, SK ATF SP-III
Power steering 0.9l(0.9 US qt.) PSF-3
Coolant 6.0l(6.3 US qt.)
Brake/Clutch fluid 0.7~0.8l(0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel 52l(13.7 US gal.) -
Mixture of antifreeze and water (Ethylene glycol
base coolant for aluminum radiator)
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the
amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time,
they can offer significant cost and energy savings.

85
Specifications & Consumer information
I040100ATD-EURecommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operation (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas and when the vehicle is used onunpaved roads. Cleaning the plug and dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1°C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30

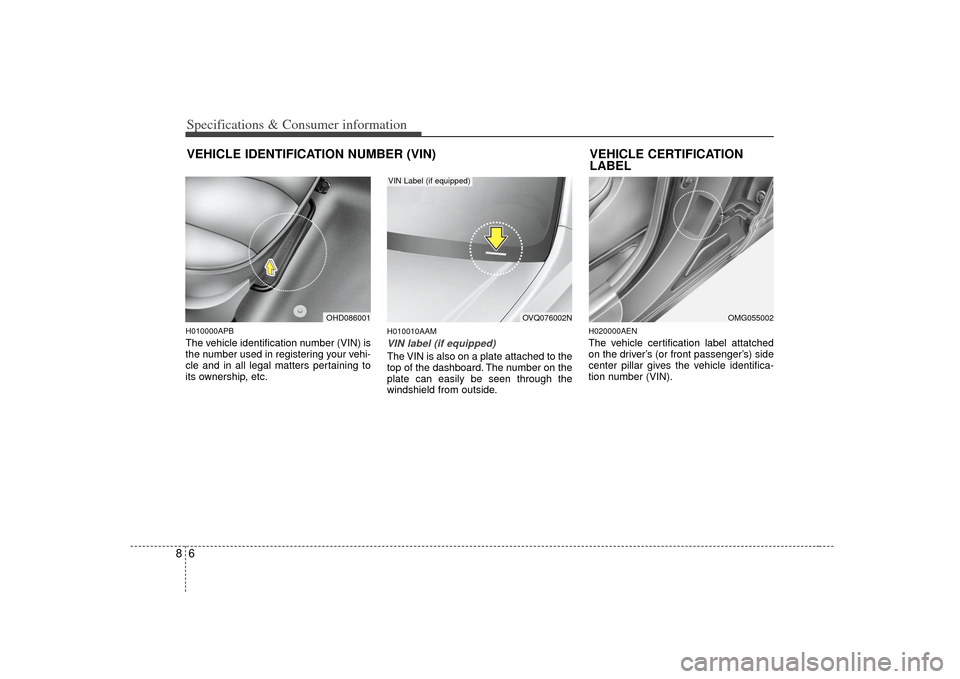

Specifications & Consumer information68H010000APBThe vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
H010010AAMVIN label (if equipped)The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
H020000AENThe vehicle certification label attatched
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
OMG055002
VEHICLE CERTIFICATION
LABEL
OVQ076002N
VIN Label (if equipped)
VEHICLE IDENTIFICATION NUMBER (VIN)
OHD086001

87
Specifications & Consumer information
H030000APBThe tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.
H04000AUNThe engine number is stamped on the
engine block as shown in the drawing.
OMG055004
OTD089005
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL

I
