Page 13 of 446
25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster ................................4-52
2. Lighting control lever ...........................4-93
3. Audio remote control buttons ............4-145
4. Horn.....................................................4-39
5. Driver's front air bag ............................3-44
6. Cruise control button ...........................5-35
7. Wiper and washer control lever ...........4-99
8. Ignition switch orEngine start/stop button .................5-5, 5-7
9. Digital clock .......................................4-141
10. Hazard warning flasher .......................6-2
11. Audio ...............................................4-144
12. Climate control system.........4-107, 4-117
13. Shift lever .................................5-13, 5-16
14. Passenger's front air bag ..................3-44
15. Glove box ........................................4-132
16. Parking brake ....................................5-23
17. Cup holder .......................................4-136
18. LCD display control button ................4-54
OYDEIN2004CN
❈ The actual shape may differ from the illustration.
Page 71 of 446
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
• Instrument Cluster Control . . . . . . . . . . . . . . . . . . . . 4-53
• LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-54
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-54
• Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . 4-57
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
• LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
• Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-59
• User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
• A/V Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
63
• Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
• Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
• Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
71
• Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
• Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-73
Warning and indicator lights . . . . . . . . . . . . . . . . 4-75
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
• Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-81
Parking assist system . . . . . . . . . . . . . . . . . . . . . . . 4-86
• Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
87
• Non-operational conditions . . . . . . . . . . . . . . . . . . . . 4-89
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-93\
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . . 4-93
• Headlamp escort function. . . . . . . . . . . . . . . . . . . . . . 4-93
• Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
• Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
• High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• Turn signals and lane change signals . . . . . . . . . . . . 4-97
• Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . 4-99
• Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
• Windshield washers. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
• Automatict turn off function . . . . . . . . . . . . . . . . . . 4-101
• Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10\
1
• Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
• Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• Interior light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• Puddle lamp and pocket lamp . . . . . . . . . . . . . . . . . 4-105
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
• Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-106
4
Page 104 of 446
435
Features of your vehicle

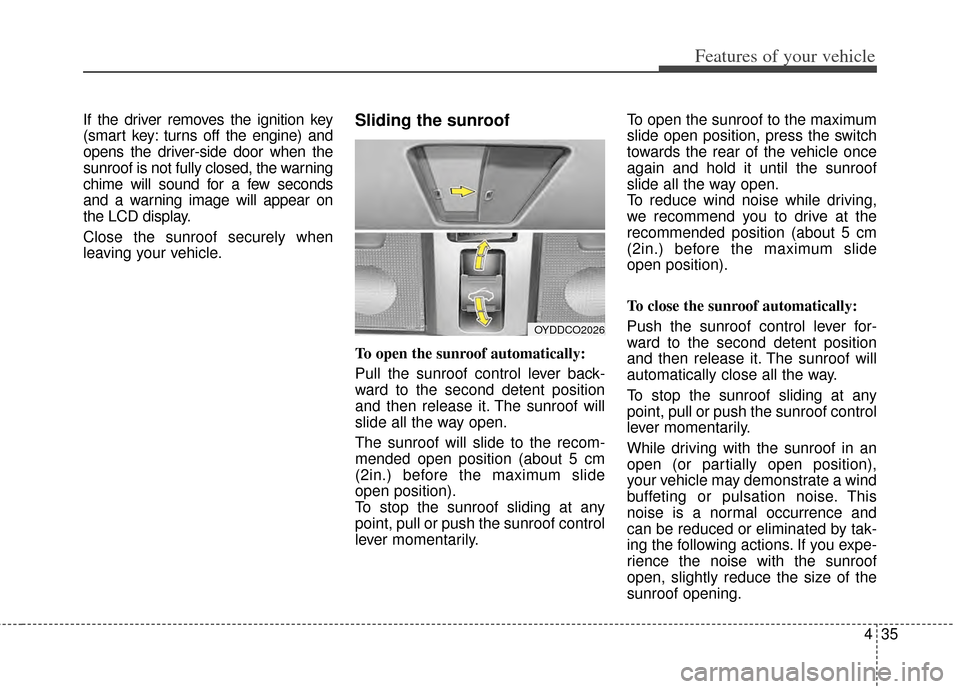

If the driver removes the ignition key
(smart key: turns off the engine) and
opens the driver-side door when the
sunroof is not fully closed, the warning
chime will sound for a few seconds
and a warning image will appear on
the LCD display.
Close the sunroof securely when
leaving your vehicle.Sliding the sunroof
To open the sunroof automatically:
Pull the sunroof control lever back-
ward to the second detent position
and then release it. The sunroof will
slide all the way open.
The sunroof will slide to the recom-
mended open position (about 5 cm
(2in.) before the maximum slide
open position).
To stop the sunroof sliding at any
point, pull or push the sunroof control
lever momentarily.To open the sunroof to the maximum
slide open position, press the switch
towards the rear of the vehicle once
again and hold it until the sunroof
slide all the way open.
To reduce wind noise while driving,
we recommend you to drive at the
recommended position (about 5 cm
(2in.) before the maximum slide
open position).
To close the sunroof automatically:
Push the sunroof control lever for-
ward to the second detent position
and then release it. The sunroof will
automatically close all the way.
To stop the sunroof sliding at any
point, pull or push the sunroof control
lever momentarily.
While driving with the sunroof in an
open (or partially open position),
your vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is a normal occurrence and
can be reduced or eliminated by tak-
ing the following actions. If you expe-
rience the noise with the sunroof
open, slightly reduce the size of the
sunroof opening.
OYDDCO2026
Page 109 of 446
Features of your vehicle
40
4

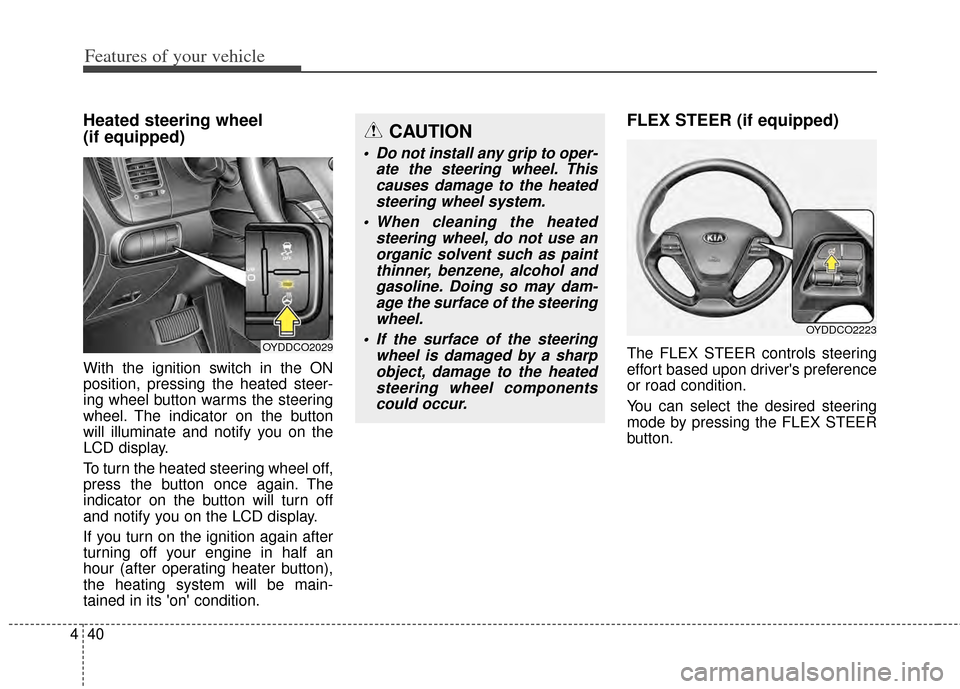

Heated steering wheel
(if equipped)
With the ignition switch in the ON
position, pressing the heated steer-
ing wheel button warms the steering
wheel. The indicator on the button
will illuminate and notify you on the
LCD display.
To turn the heated steering wheel off,
press the button once again. The
indicator on the button will turn off
and notify you on the LCD display.
If you turn on the ignition again after
turning off your engine in half an
hour (after operating heater button),
the heating system will be main-
tained in its 'on' condition.
FLEX STEER (if equipped)
The FLEX STEER controls steering
effort based upon driver's preference
or road condition.
You can select the desired steering
mode by pressing the FLEX STEER
button.
CAUTION
Do not install any grip to oper-
ate the steering wheel. Thiscauses damage to the heatedsteering wheel system.
When cleaning the heated steering wheel, do not use anorganic solvent such as paintthinner, benzene, alcohol andgasoline. Doing so may dam-age the surface of the steeringwheel.
If the surface of the steering wheel is damaged by a sharpobject, damage to the heatedsteering wheel componentscould occur.
OYDDCO2029
OYDDCO2223
Page 110 of 446
441
Features of your vehicle

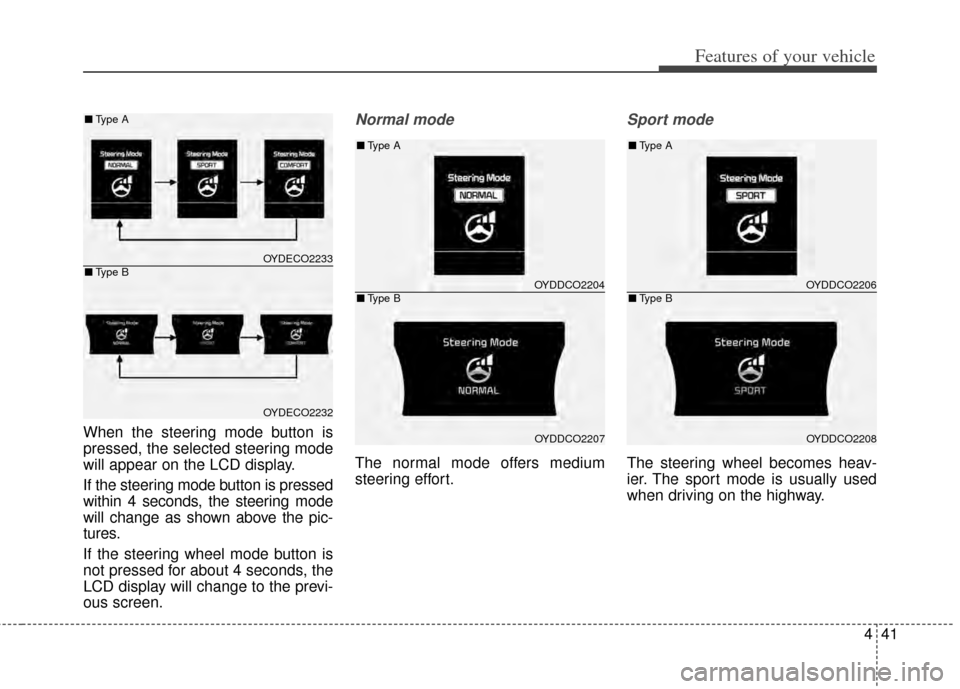

When the steering mode button is
pressed, the selected steering mode
will appear on the LCD display.
If the steering mode button is pressed
within 4 seconds, the steering mode
will change as shown above the pic-
tures.
If the steering wheel mode button is
not pressed for about 4 seconds, the
LCD display will change to the previ-
ous screen.
Normal mode
The normal mode offers medium
steering effort.
Sport mode
The steering wheel becomes heav-
ier. The sport mode is usually used
when driving on the highway.
OYDDCO2204
OYDDCO2207
■Type A
■Type B
OYDECO2233
OYDECO2232
■Type A
■Type BOYDDCO2206
OYDDCO2208
■Type A
■Type B
Page 111 of 446
Features of your vehicle
42
4

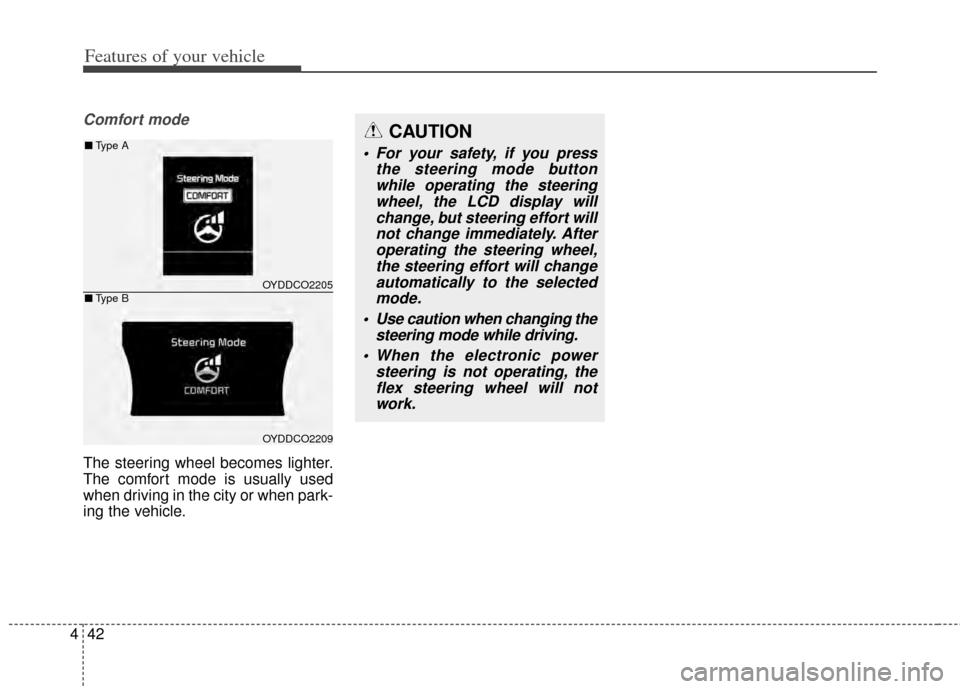

Comfort mode
The steering wheel becomes lighter.
The comfort mode is usually used
when driving in the city or when park-
ing the vehicle.
OYDDCO2205
OYDDCO2209
■ Type A
■Type B
CAUTION
For your safety, if you press
the steering mode buttonwhile operating the steeringwheel, the LCD display willchange, but steering effort willnot change immediately. Afteroperating the steering wheel,the steering effort will changeautomatically to the selectedmode.
Use caution when changing the steering mode while driving.
When the electronic power steering is not operating, theflex steering wheel will notwork.
Page 121 of 446
Features of your vehicle
52
4

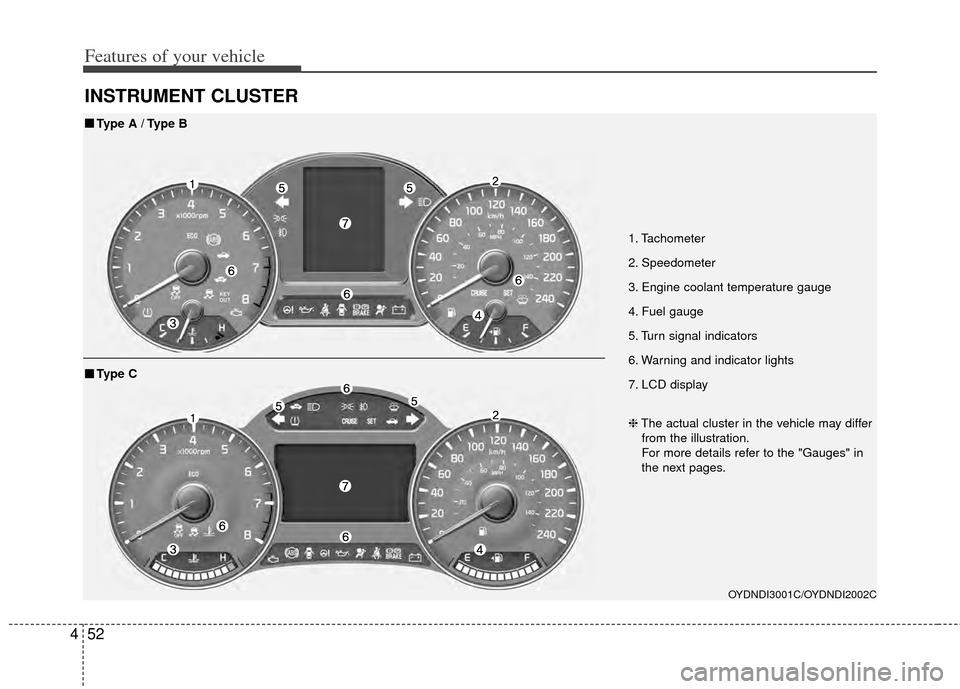

INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Turn signal indicators
6. Warning and indicator lights
7. LCD display
OYDNDI3001C/OYDNDI2002C
■
■
Type A / Type B
❈The actual cluster in the vehicle may differ
from the illustration.
For more details refer to the "Gauges" in
the next pages.
■
■ Type C
Page 123 of 446
Features of your vehicle
54
4

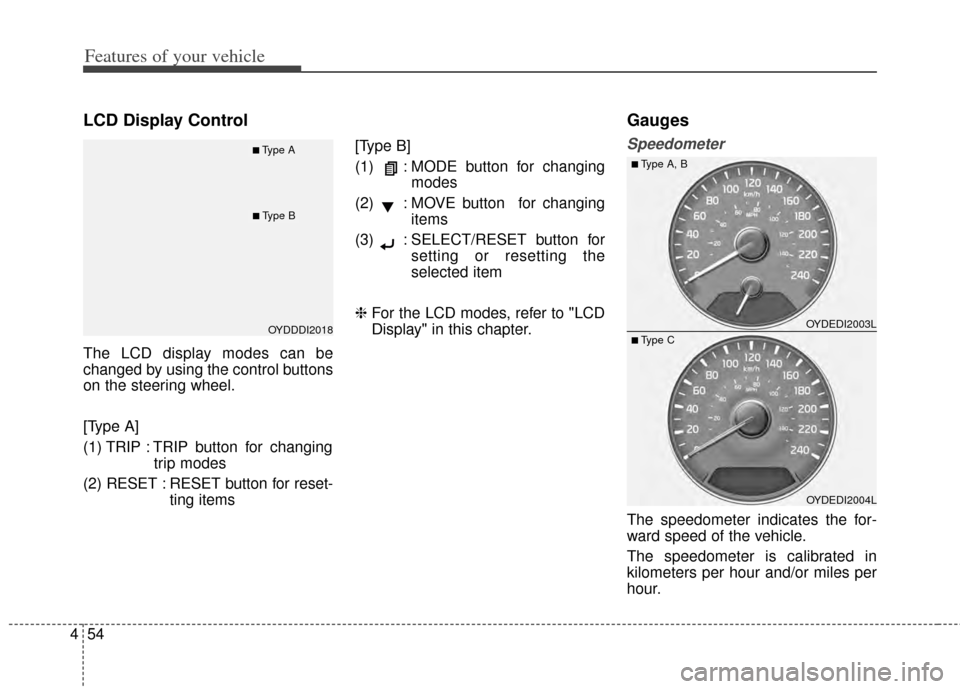

LCD Display Control
The LCD display modes can be
changed by using the control buttons
on the steering wheel.
[Type A]
(1) TRIP : TRIP button for changing
trip modes
(2) RESET : RESET button for reset- ting items [Type B]
(1) : MODE button for changing
modes
(2) : MOVE button for changing items
(3) : SELECT/RESET button for setting or resetting the
selected item
❈ For the LCD modes, refer to "LCD
Display" in this chapter.
Gauges
Speedometer
The speedometer indicates the for-
ward speed of the vehicle.
The speedometer is calibrated in
kilometers per hour and/or miles per
hour.
OYDDDI2018OYDEDI2003L
OYDEDI2004L
■Type A, B
■ Type C
■Type A
■Type B
Page 126 of 446
457
Features of your vehicle

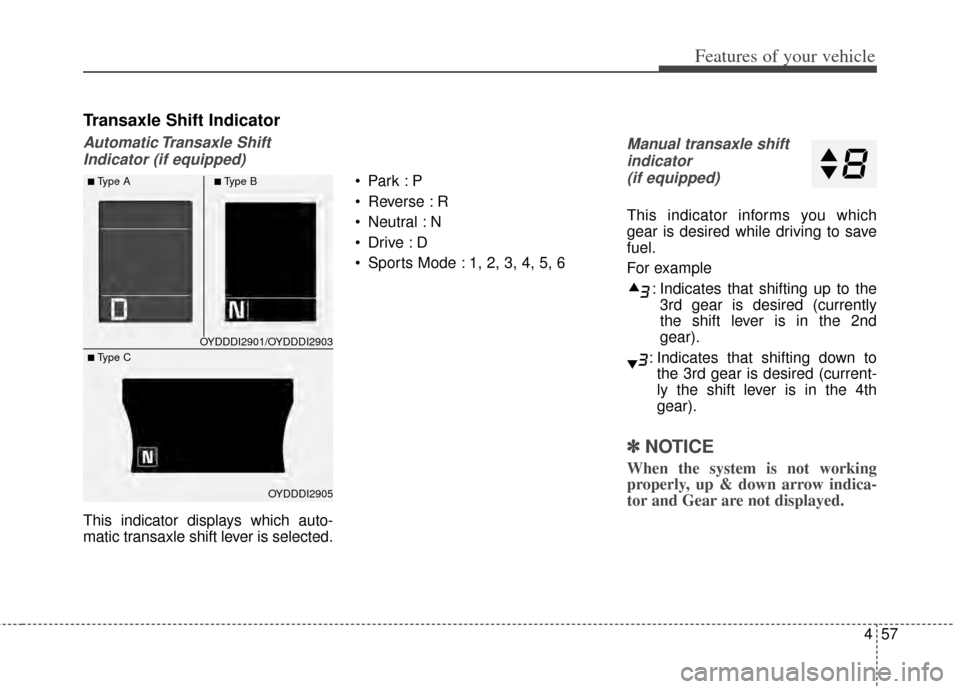

Transaxle Shift Indicator
Automatic Transaxle ShiftIndicator (if equipped)
This indicator displays which auto-
matic transaxle shift lever is selected.
Reverse : R
Neutral : N
Sports Mode : 1, 2, 3, 4, 5, 6
Manual transaxle shift
indicator (if equipped)
This indicator informs you which
gear is desired while driving to save
fuel.
For example
: Indicates that shifting up to the3rd gear is desired (currently
the shift lever is in the 2nd
gear).
: Indicates that shifting down to the 3rd gear is desired (current-
ly the shift lever is in the 4th
gear).
✽ ✽ NOTICE
When the system is not working
properly, up & down arrow indica-
tor and Gear are not displayed.
OYDDDI2901/OYDDDI2903
OYDDDI2905
■Type A■Type B
■ Type C
Page 127 of 446
Features of your vehicle
58
4
LCD Modes
LCD DISPLAY (IF EQUIPPED)
❈ For controlling the LCD modes, refer to "LCD Display Control" in this chapter.
Modes SymbolExplanationType BType C
Trip Computer
This mode displays driving information like the tripmeter, fuel economy,
and so on.
For more details, refer to "Trip Computer" in this chapter.
ServiceThis mode informs of service interval (mileage or days).
User SettingsOn this mode, you can change settings of the doors, lamps, and so on.
A/V
(if equipped)-This mode displays the state of the A/V system.
Tu r n B y Tu r n (if equipped)-On this mode, you can change settings of the doors, lamps, and so on.
