turn signal bulb KIA Forte 2015 2.G Owner's Manual

Features of your vehicle
100
4

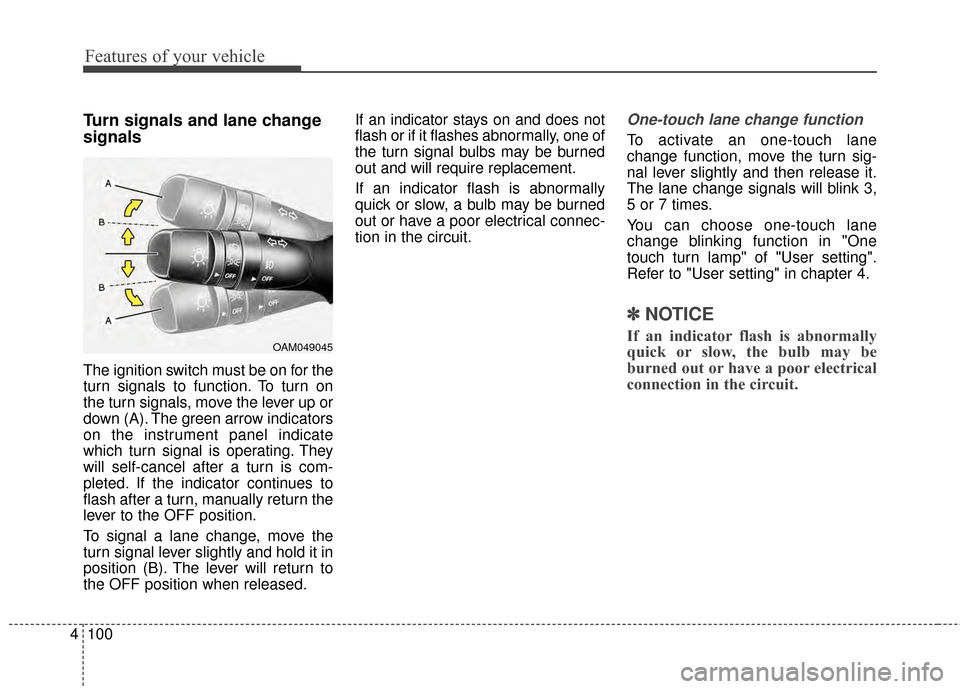

Turn signals and lane change
signals
The ignition switch must be on for the
turn signals to function. To turn on
the turn signals, move the lever up or
down (A). The green arrow indicators
on the instrument panel indicate
which turn signal is operating. They
will self-cancel after a turn is com-
pleted. If the indicator continues to
flash after a turn, manually return the
lever to the OFF position.
To signal a lane change, move the
turn signal lever slightly and hold it in
position (B). The lever will return to
the OFF position when released. If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
If an indicator flash is abnormally
quick or slow, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit.
One-touch lane change function
To activate an one-touch lane
change function, move the turn sig-
nal lever slightly and then release it.
The lane change signals will blink 3,
5 or 7 times.
You can choose one-touch lane
change blinking function in "One
touch turn lamp" of "User setting".
Refer to "User setting" in chapter 4.
✽ ✽
NOTICE
If an indicator flash is abnormally
quick or slow, the bulb may be
burned out or have a poor electrical
connection in the circuit.OAM049045

83
Specifications & Consumer information
BULB WATTAGE
Light BulbWattage Bulb type
Front Headlamps(Low)
55 H11
Headlamps(Low)- HID * 25 D8S
Headlamps(High) 55H1
Front turn signal lamps 28 PY28W/8W
Front position lamps * 5 PY28W/8W
Front position lamps (LED type)* LED LED
Front fog lamps * 35H8
Side Repeater lamps 5 WY5W
Side Repeater lamps (Outside Mirror) * LED LED
Daytime running lamps * 55H1
Side marker5W5W
Rear Bulb
type
Rear Stop/Tail lamps (outside) 28/8 PY28/8
Rear tail lamps (Inside) 8 P28/8
LED
type Rear Stop/Tail lamps (outside) LED LED
Rear Stop/tail lamps (Inside) LED LED
Rear turn signal lamps 27 PY27W
Back-up lamps 16 W16W
Bulb type High mounted stop lamp 21 P21W
LED type LED LED
License plate lamps 5 W5W
Interior Map lamps * 8 FESTOON
Room lamps 8 FESTOON
Vanity mirror lamps * 5 FESTOON
Trunk room lamp * 5 FESTOON
Glove box lamp 5 FESTOON
* : If equipped
